HBA Bladder Accumulator 50.0L 330bar
Product specifications and documentation
HBA Bladder Accumulator 50.0L 330bar
HydroLync HBA Bladder Accumulator 50.0L capacity at 330 bar working pressure
Quick Specifications
Max Flow Rate18L/sec
Designed Max. Pressure330bar
Net Weight124kg
Oil PortG2
Gas PortExternal: ø7/8"-14UNF 1A
Internal: ø1/2"-20UNF 2B
n = number of plates
Detailed Specifications
Dimensions
| Dimension H1 | 135 mm |
|---|---|
| Dimension H2 | 102.2 mm |
| Shell Diameter (D) | 219 mm |
| Total Height (H) | 1,987.7 mm |
Technical Specifications
| Max Flow Rate | 18 L/sec |
|---|---|
| Designed Max. Pressure | 330 bar |
| Net Weight | 124 kg |
| Oil Port | G2 |
| Gas Port | External: ø7/8"-14UNF 1A Internal: ø1/2"-20UNF 2B |
| Volume | 50 L |
HBA 80L, 125L, 160L (315bar) models are available upon request. Please contact our sales team.
Downloads
Catalogs & Documents
HBA Series Selection Guide 2026 V04EN
HBA Bladder Accumulator User ManualEN
HBA Bladder Accumulator User ManualKO
HBA Series Selection Guide 2026 V04KO
HBA Series Selection Guide 2026 V04ZH
HydroLync Complete Selection Guide 2026 V05 (EN)EN
HydroLync Complete Selection Guide 2026 V05 (KR)KO
HydroLync Complete Selection Guide 2026 V05 (CN)ZH

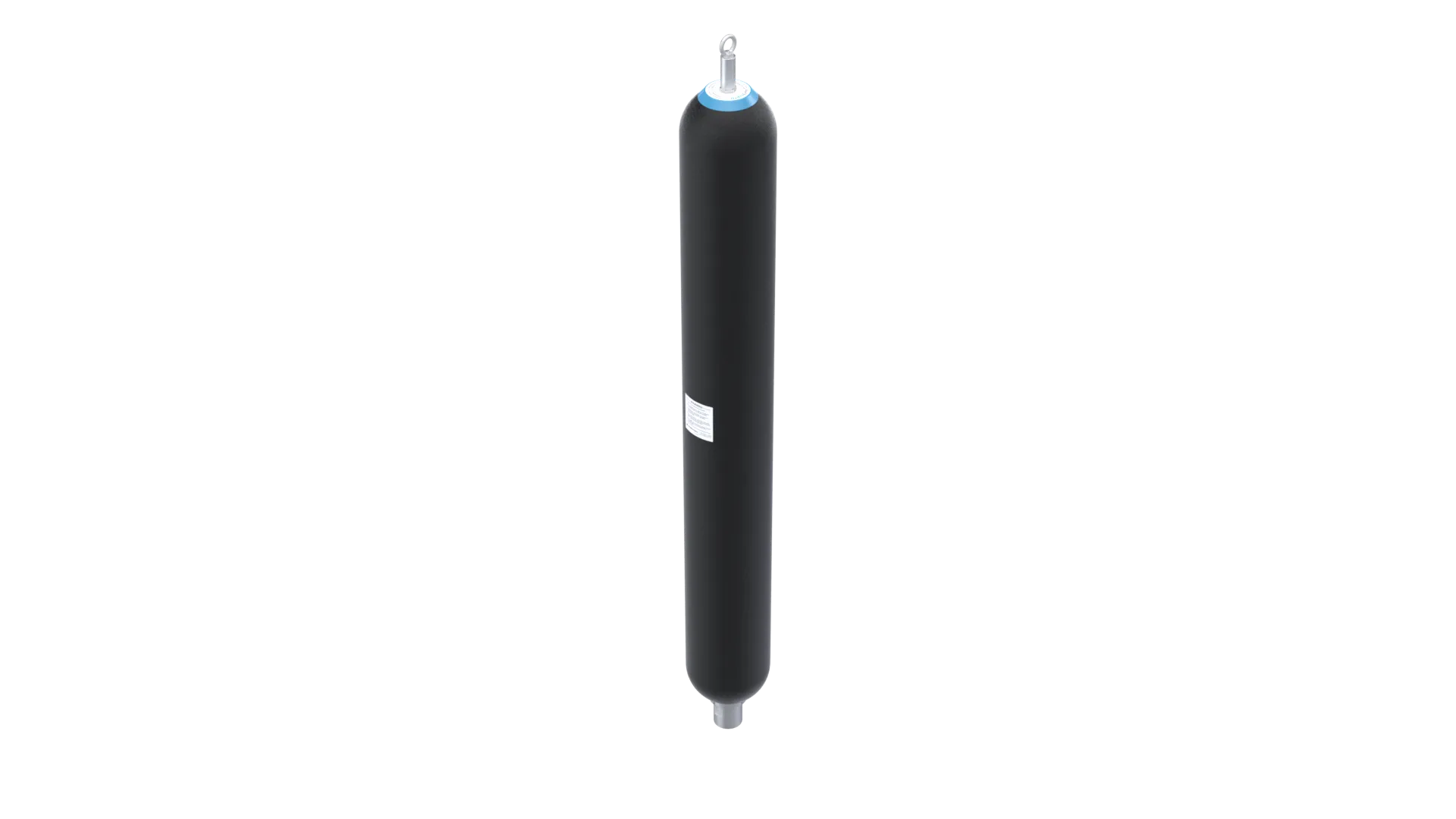

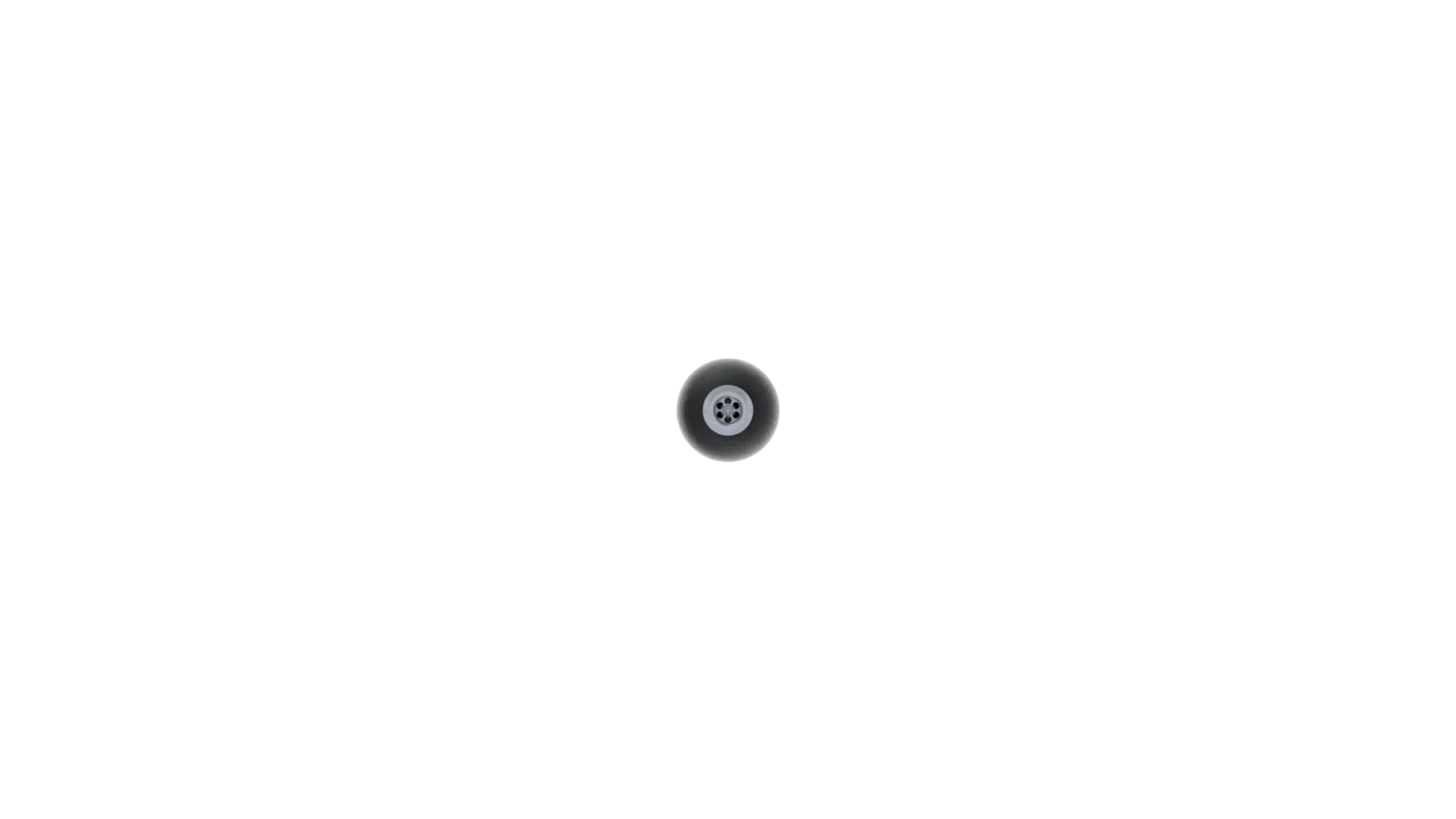

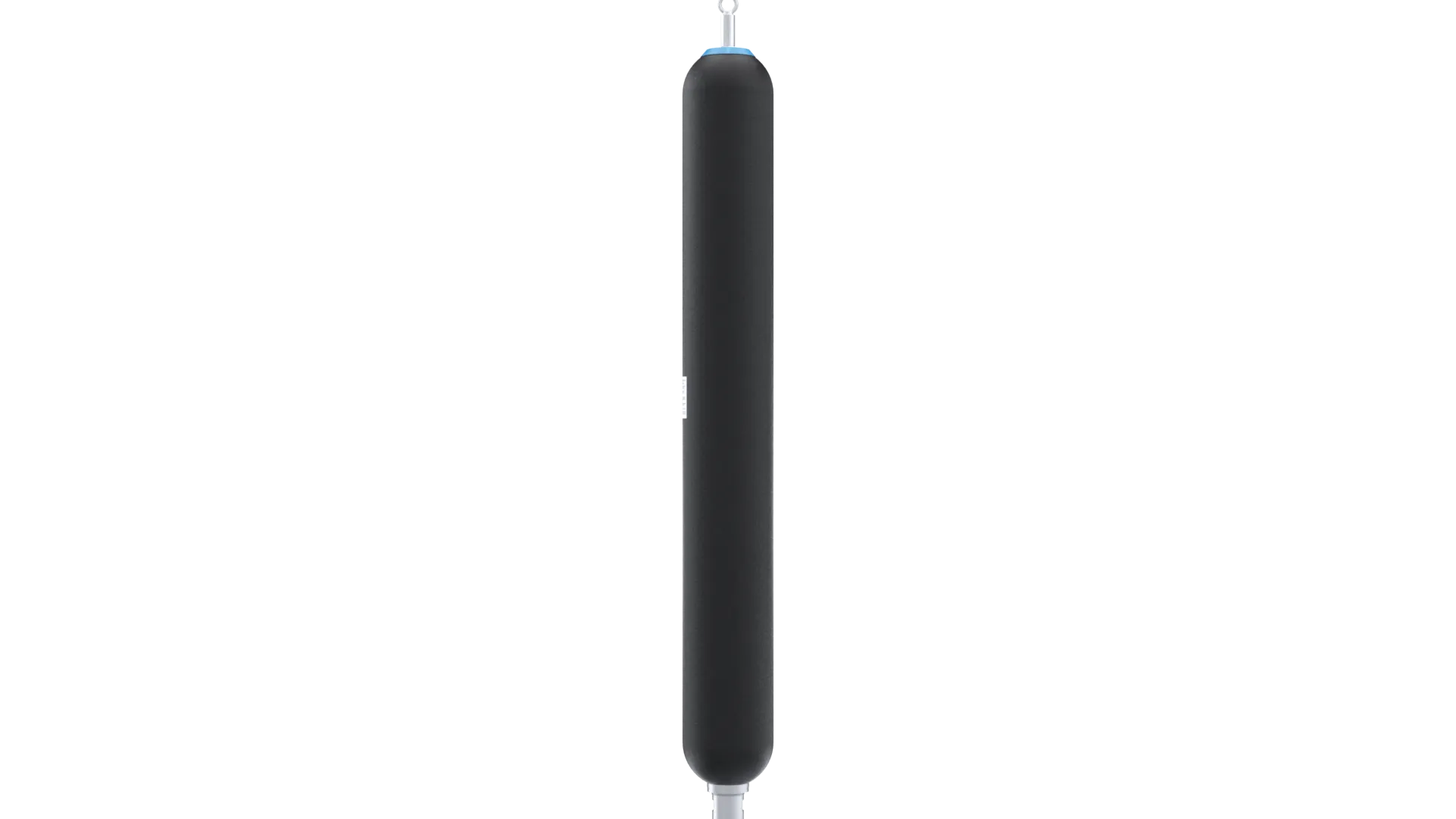

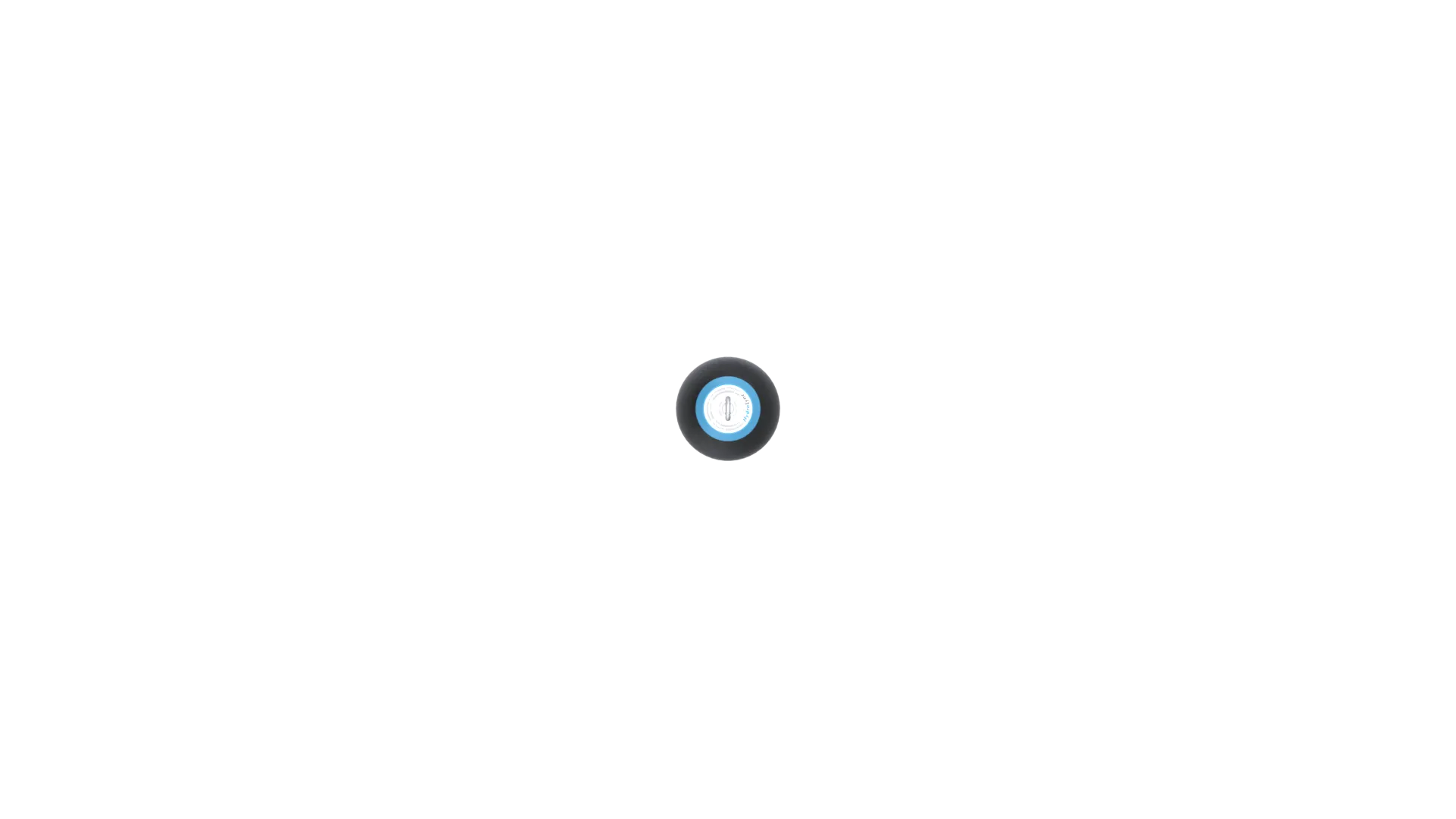

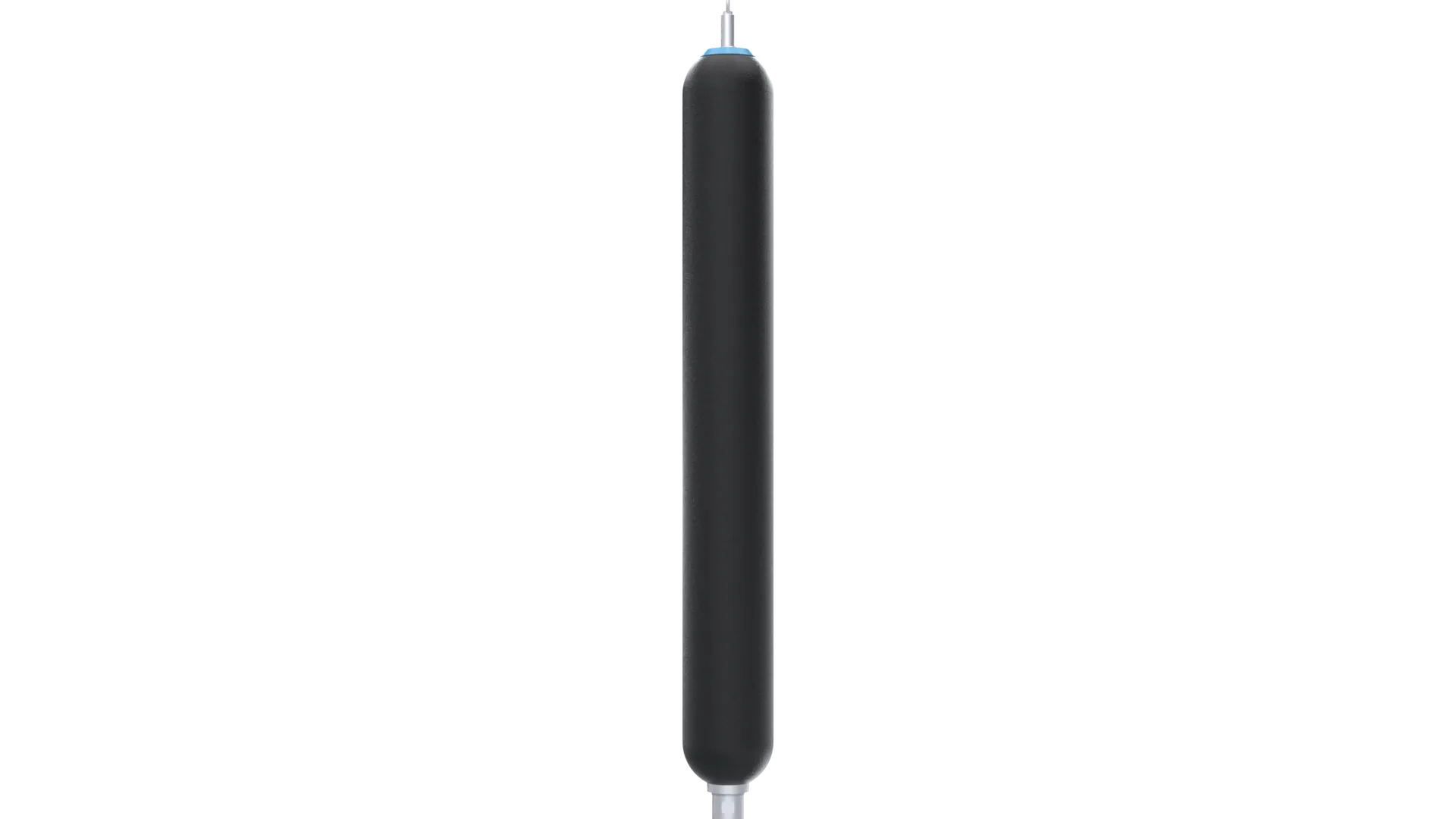

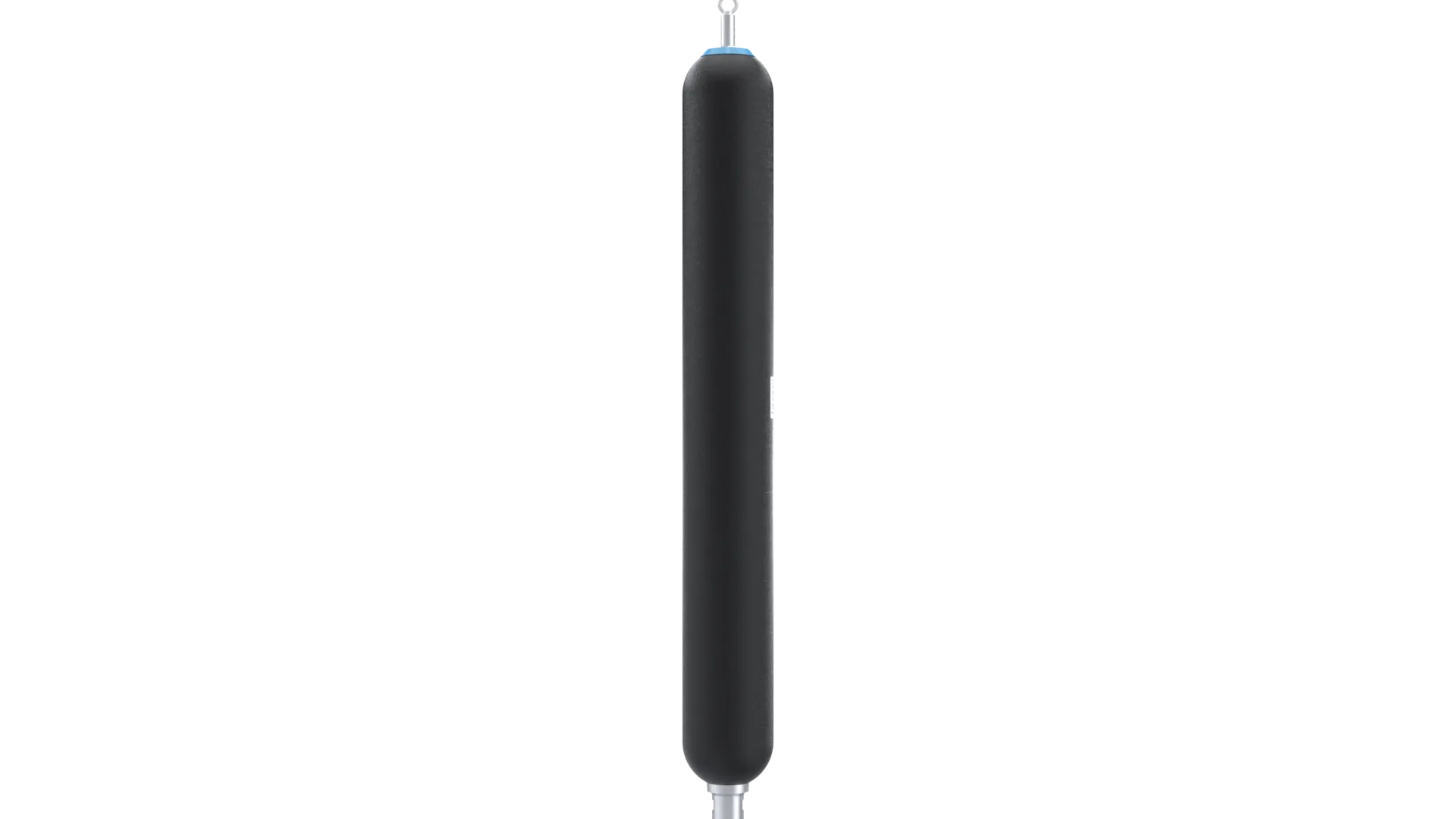

Dimensional Drawings
