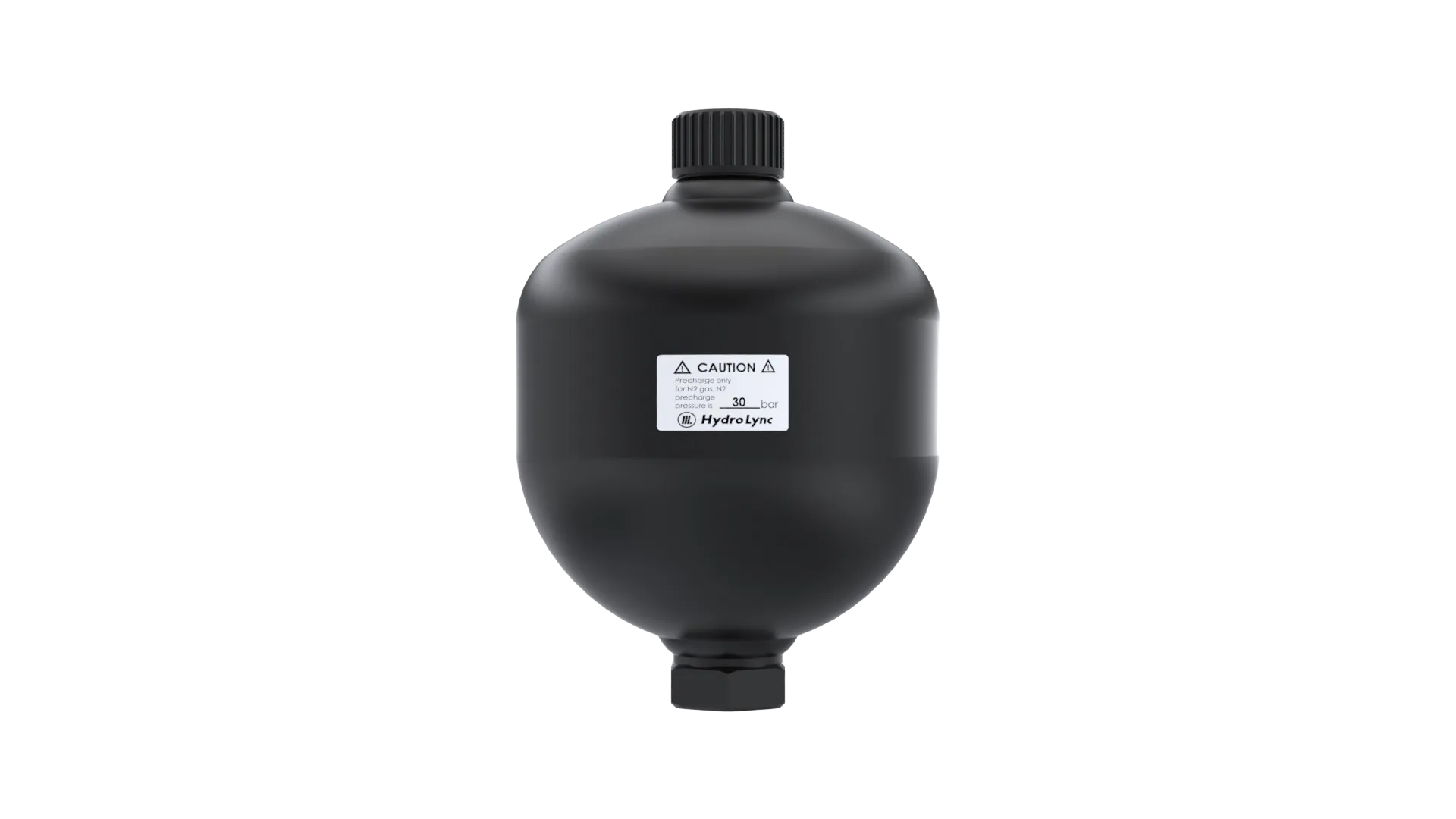

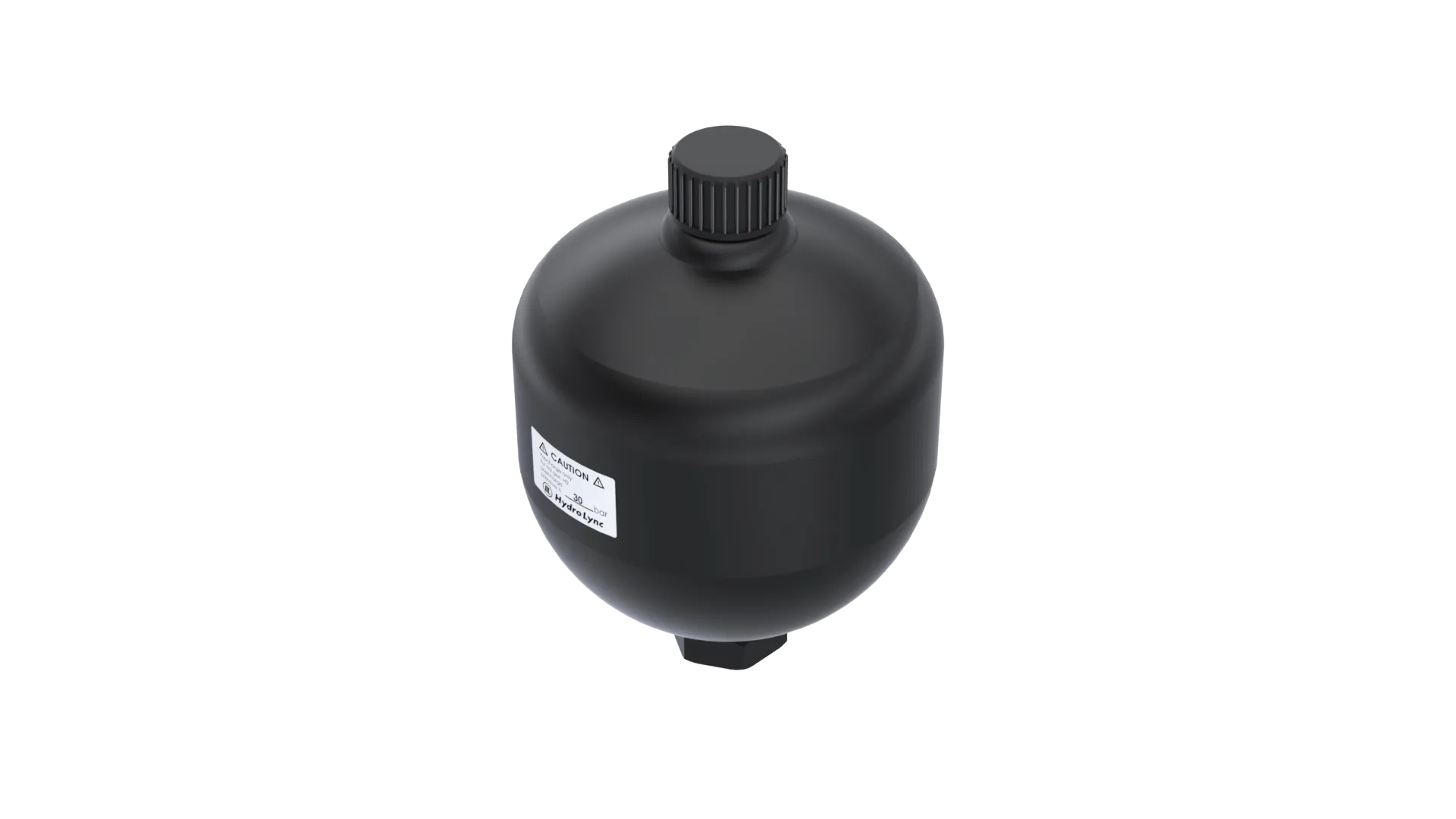

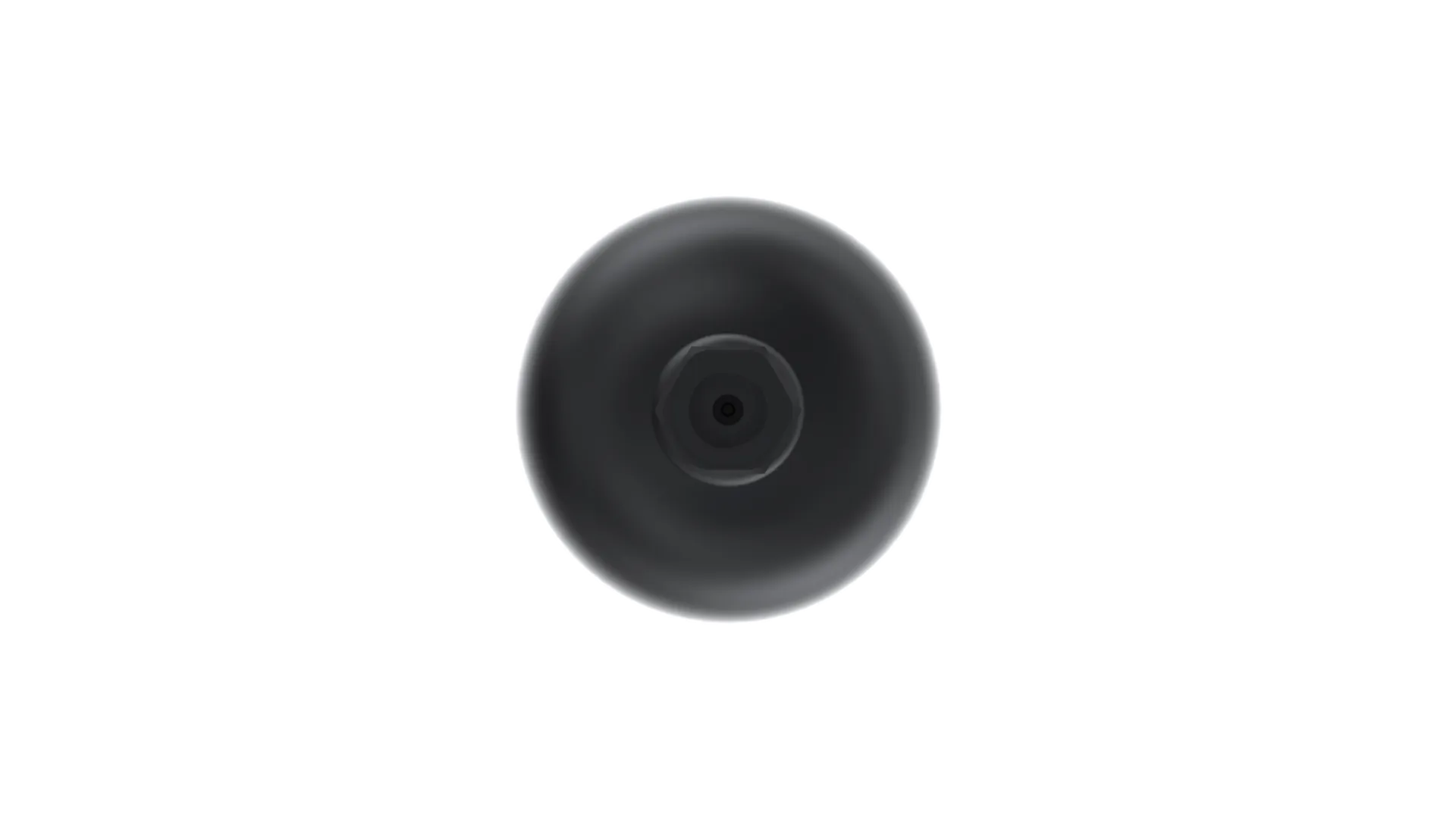

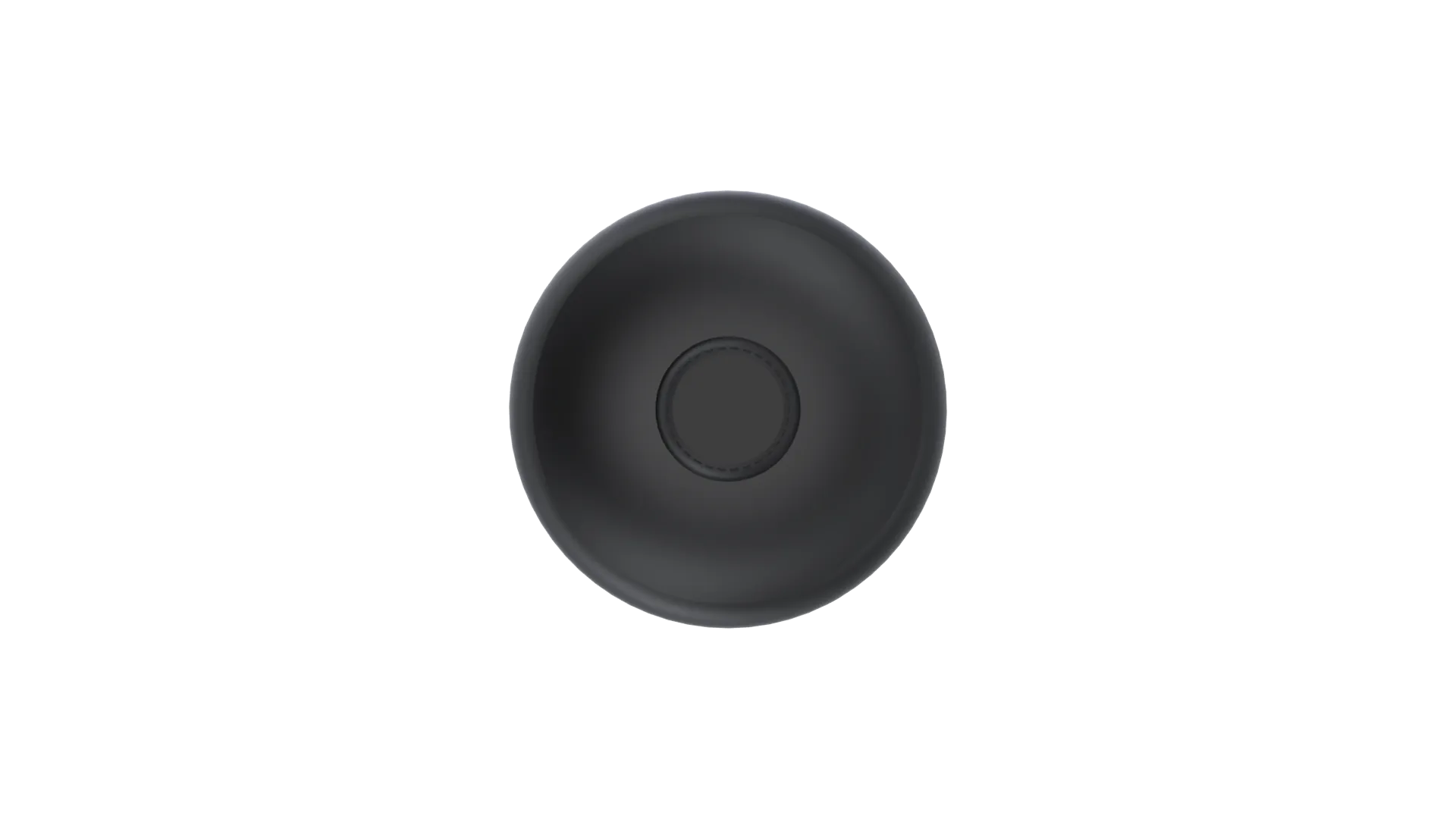

HDA-0.75L-210-R
Product specifications and documentation
HDA-0.75L-210-R
Quick Specifications
Accumulator TypeR
Compression Ratio8:1
Gas PortM28x1.5
Designed Max. Pressure210bar
Net Weight2.6kg
Detailed Specifications
Technical Specifications
| Accumulator Type | R |
|---|---|
| Compression Ratio | 8:1 |
| Gas Port | M28x1.5 |
| Designed Max. Pressure | 210 bar |
| Net Weight | 2.6 kg |
| Volume | 0.75 L |
Dimensions
| Diameter (D) | 120 mm |
|---|---|
| Height (H) | 168 mm |
| Dimension C (HEX) | 41 mm |
Connections
| Air/Gas Port | M28x1.5 |
|---|---|
| Oil Port | G1/2HEX |
