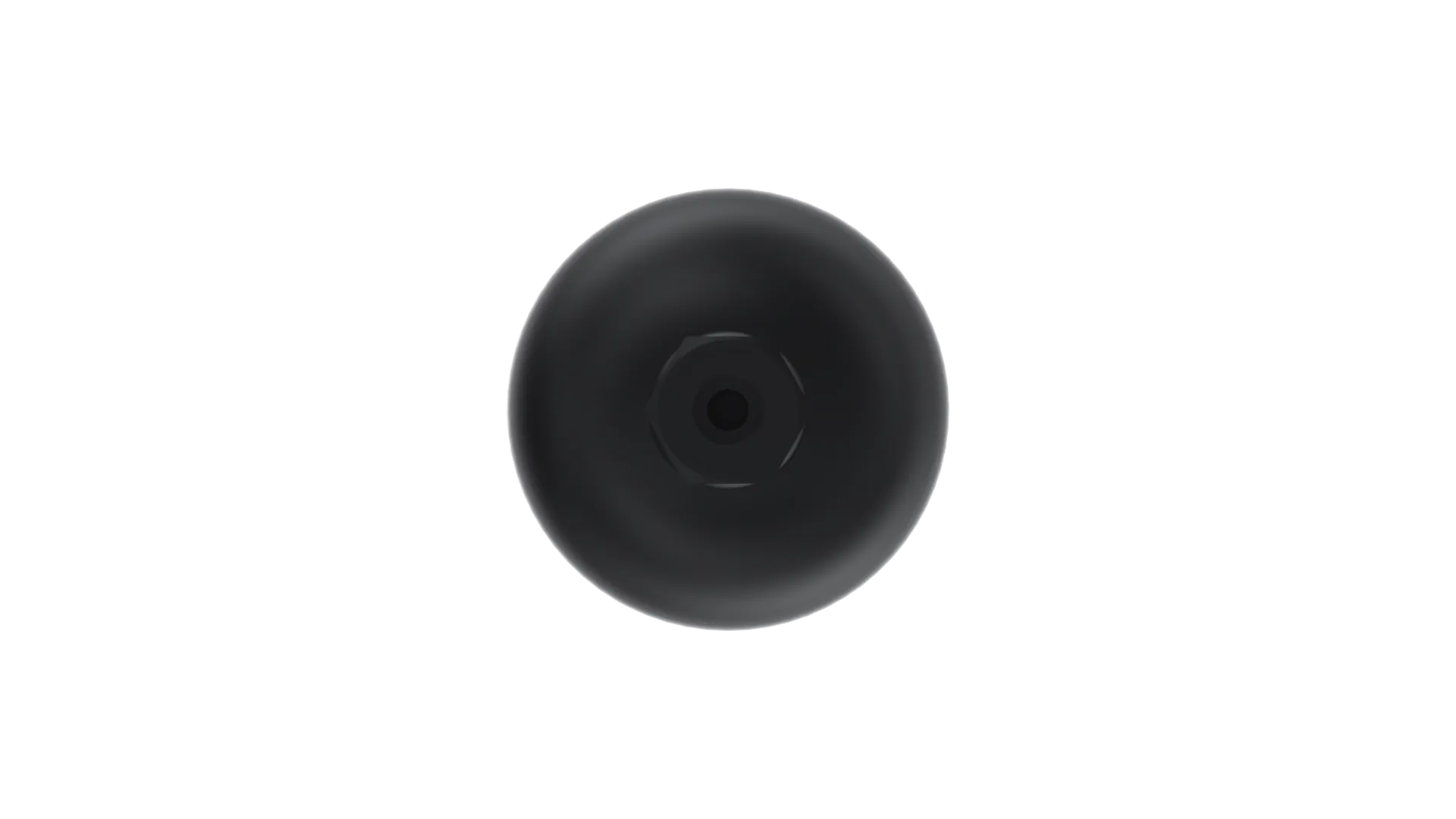

HDA-1.0L-210-R
Product specifications and documentation
HDA-1.0L-210-R
Quick Specifications
Accumulator TypeR
Compression Ratio6:1
Gas PortM28x1.5
Designed Max. Pressure210bar
Net Weight4kg
Detailed Specifications
Technical Specifications
| Accumulator Type | R |
|---|---|
| Compression Ratio | 6:1 |
| Gas Port | M28x1.5 |
| Designed Max. Pressure | 210 bar |
| Net Weight | 4 kg |
| Volume | 1 L |
Dimensions
| Diameter (D) | 136 mm |
|---|---|
| Height (H) | 178 mm |
| Dimension C (HEX) | 41 mm |
Connections
| Air/Gas Port | M28x1.5 |
|---|---|
| Oil Port | G1/2HEX |
