HLA2 03-2 AC Motor Cooler
Product specifications and documentation
HLA2 03-2 AC Motor Cooler

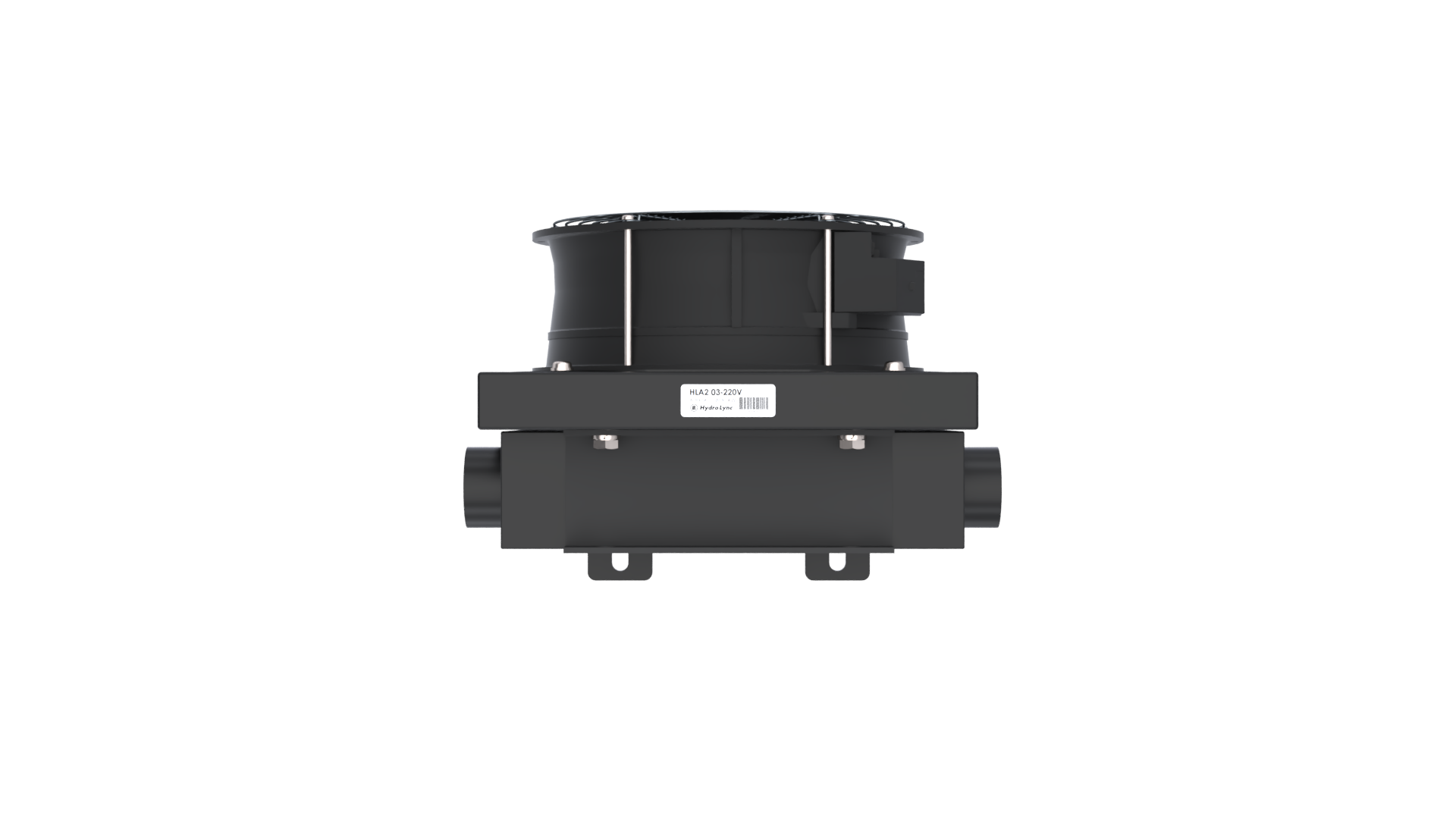

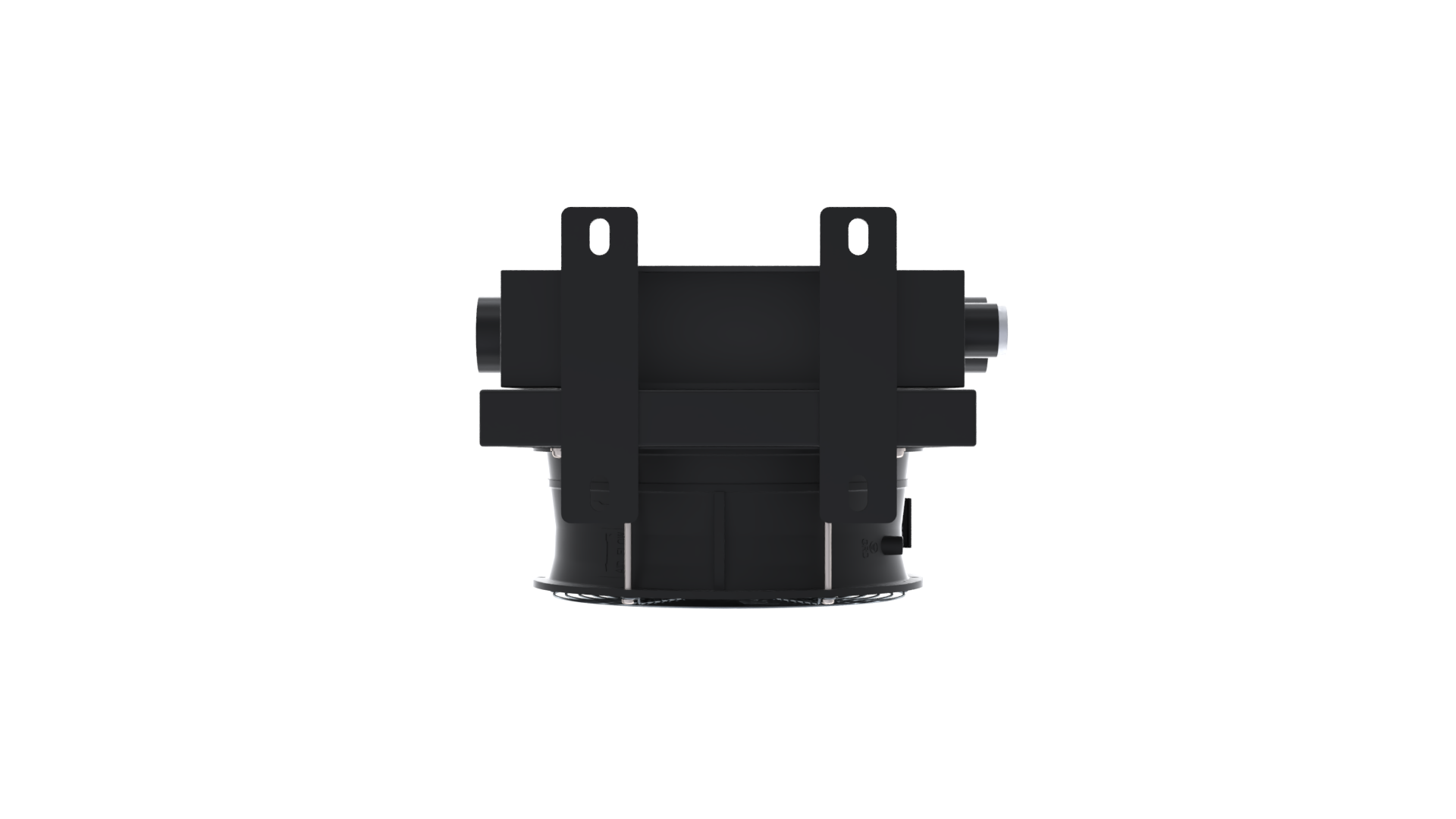

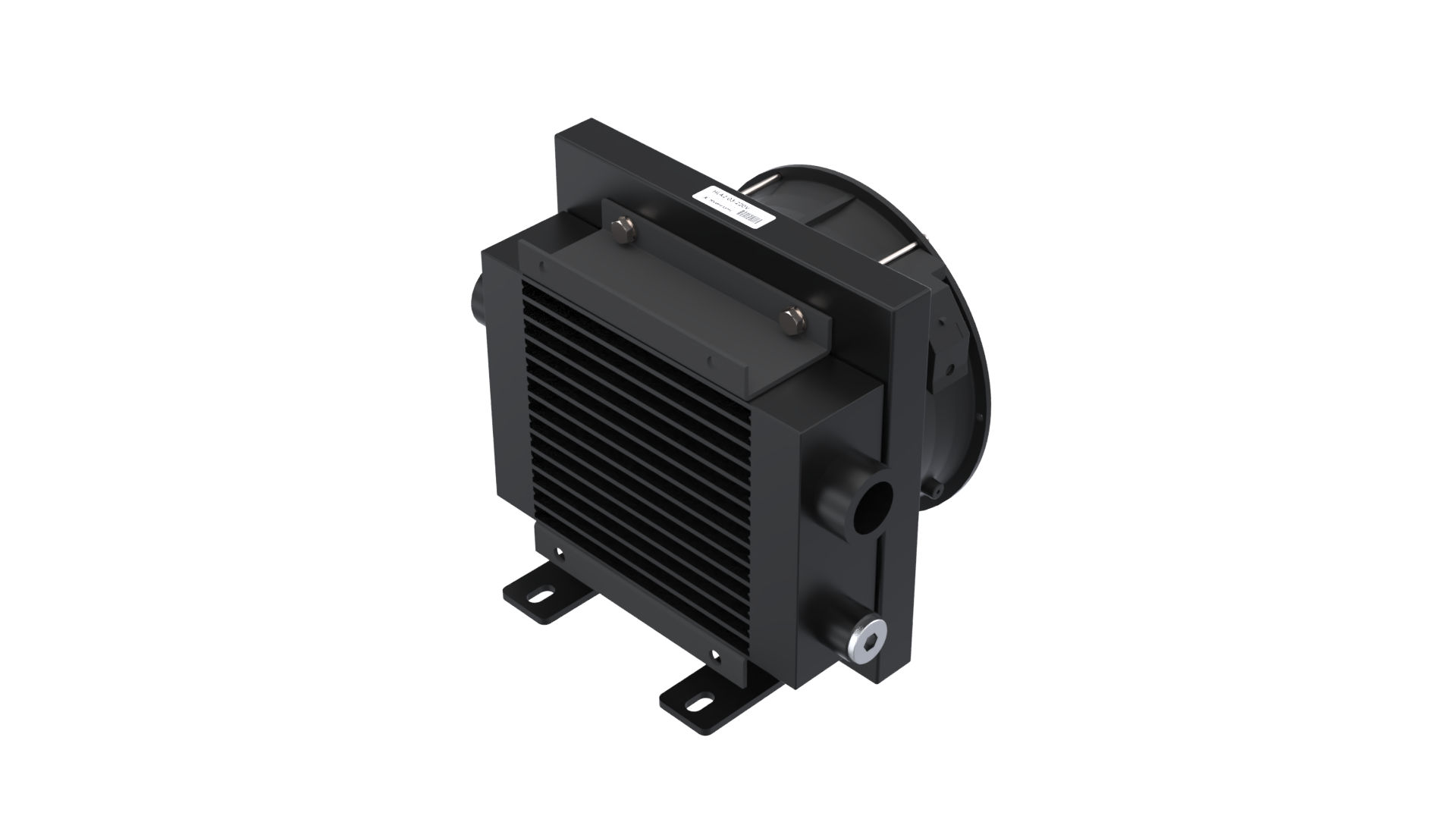

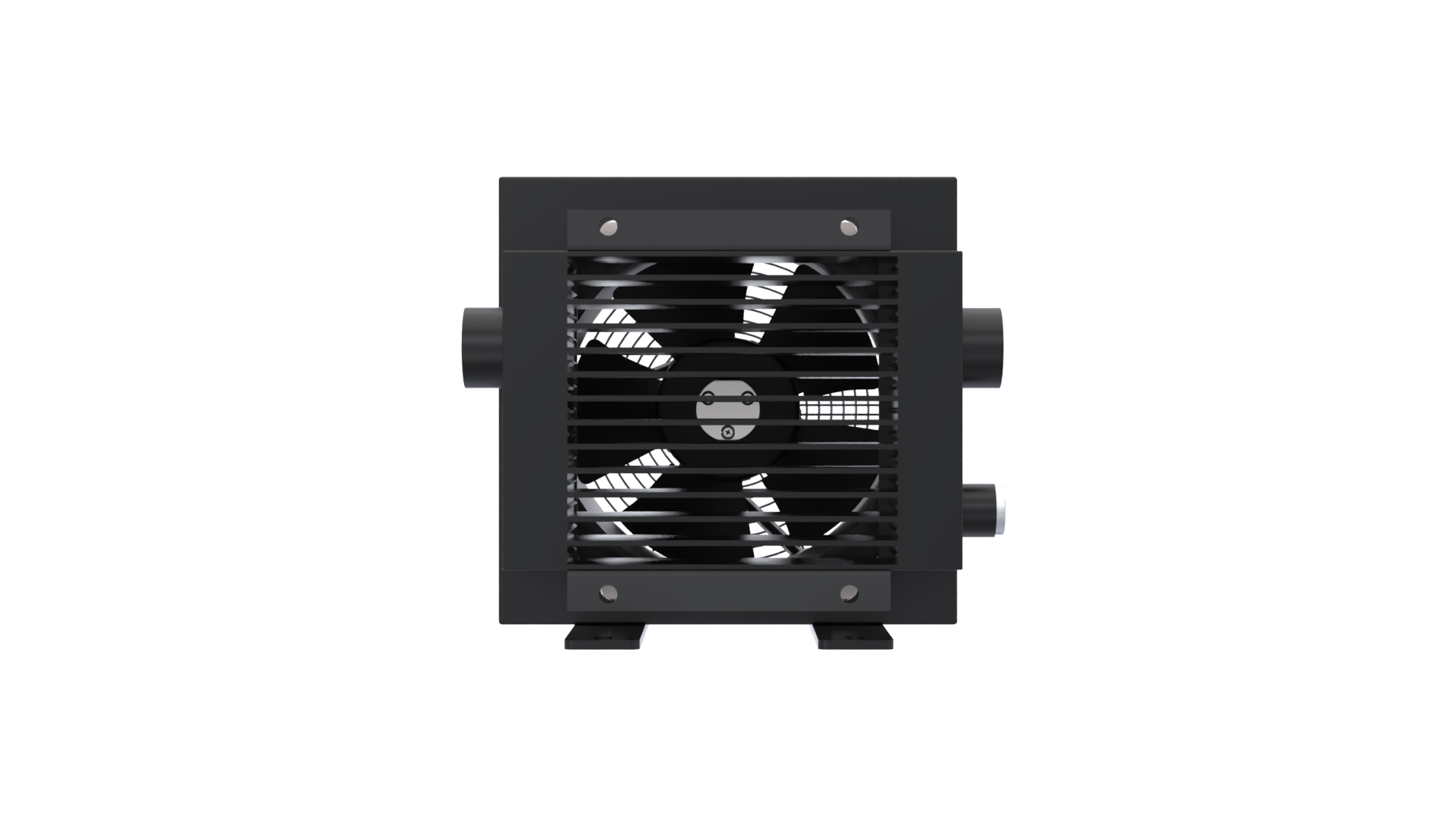

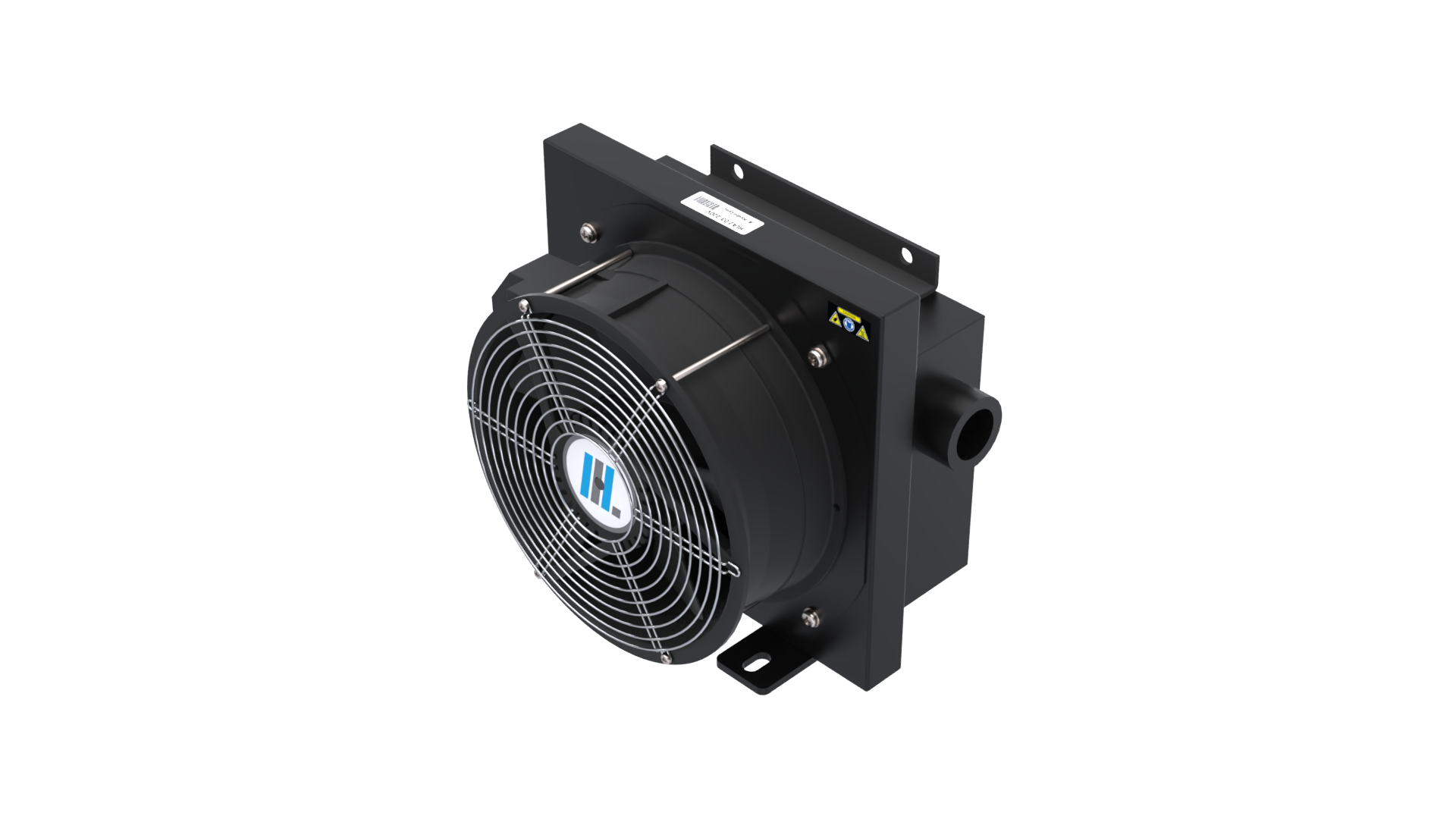

HydroLync HLA2 03-2 AC motor driven air-oil cooler with 2-pole motor
Quick Specifications
Cooling Capacity0.085kW/°C
Heat Dissipation3.4kW
Heat Dissipation (kcal)2,924kcal/h
Max Flow Rate100L/min
Motor Poles2
Detailed Specifications
Performance
| Cooling Capacity | 0.085 kW/°C |
|---|---|
| Heat Dissipation | 3.4 kW |
| Heat Dissipation (kcal) | 2,924 kcal/h |
| Max Flow Rate | 100 L/min |
| Motor Poles | 2 |
Dimensions
| Bracket Hole | 4x(Ø10x19) |
|---|---|
| Depth (D) | 180 mm |
| Dimension E | 63 mm |
| Dimension F | 89.5 mm |
| Dimension G | 71 mm |
| Dimension H | 164 mm |
| Dimension I | 133 mm |
| Dimension J | 134 mm |
| Dimension K | 160.5 mm |
| Height (C) | 258 mm |
| Length (A) | 253 mm |
| Width (B) | 259 mm |
Electrical
| AC Motor Type | Three Phase |
|---|---|
| Motor Type | 2-Pole AC Motor |
