HLA2 11-4 AC Motor Cooler
Product specifications and documentation
HLA2 11-4 AC Motor Cooler

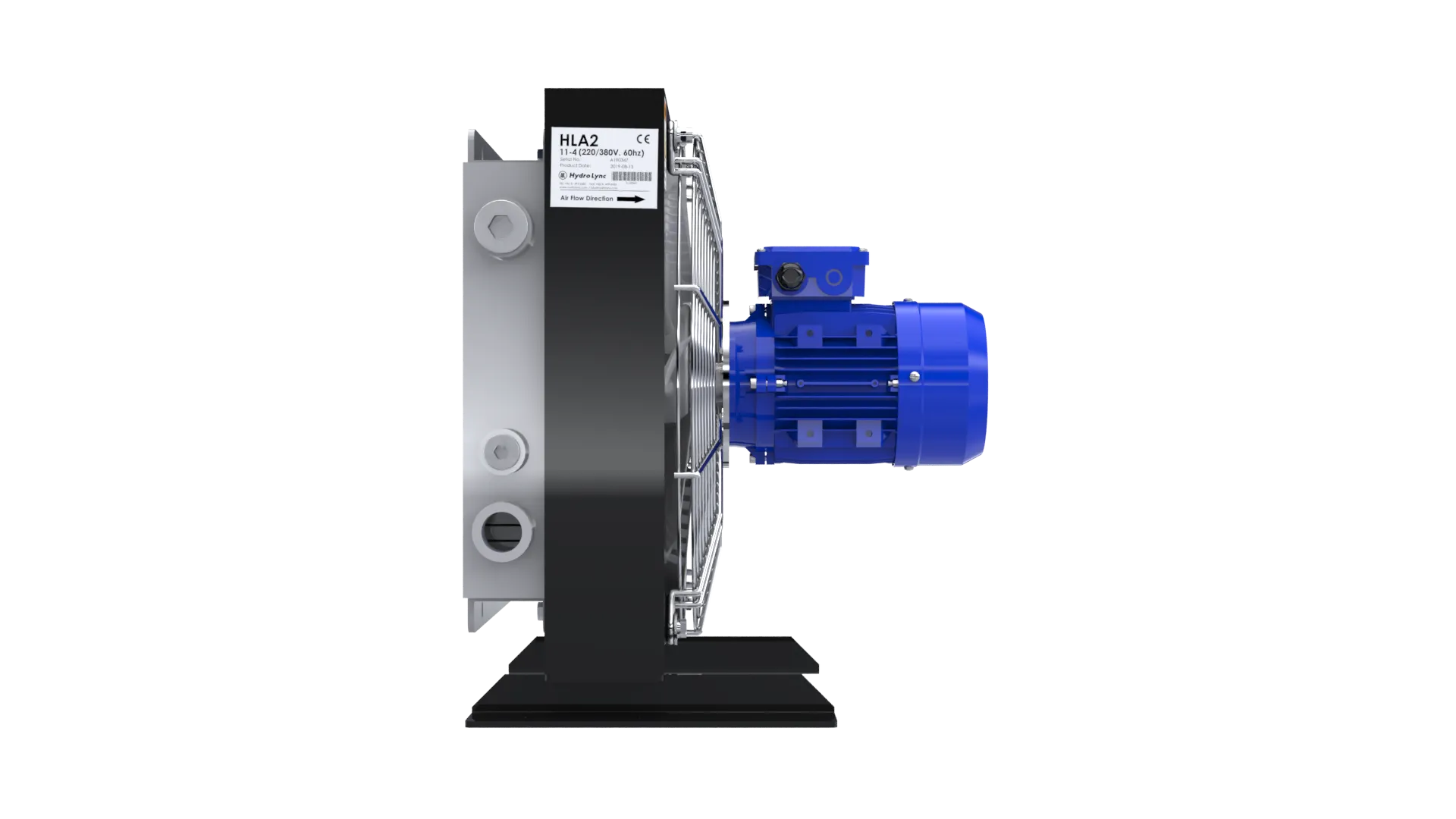

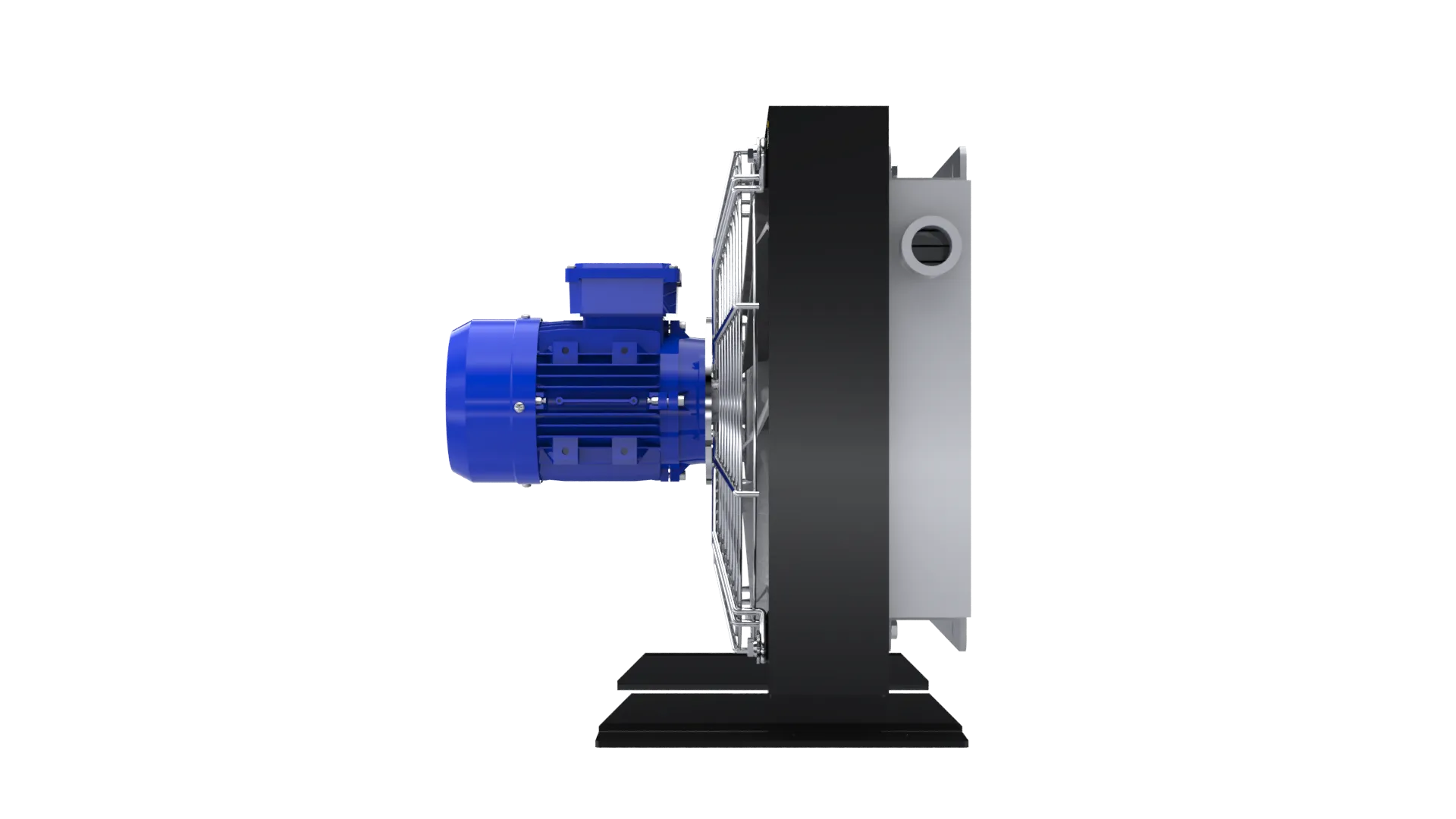

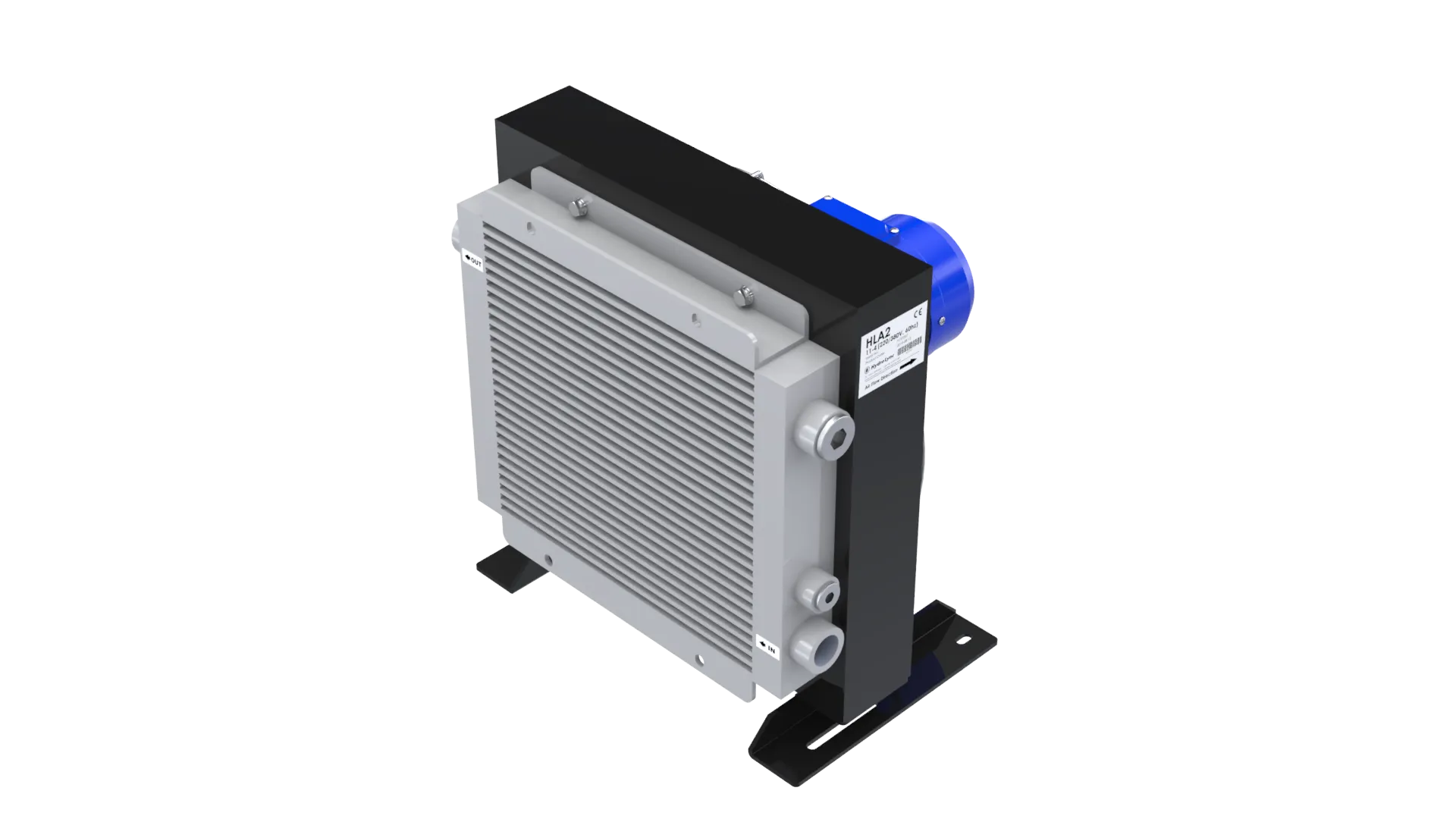

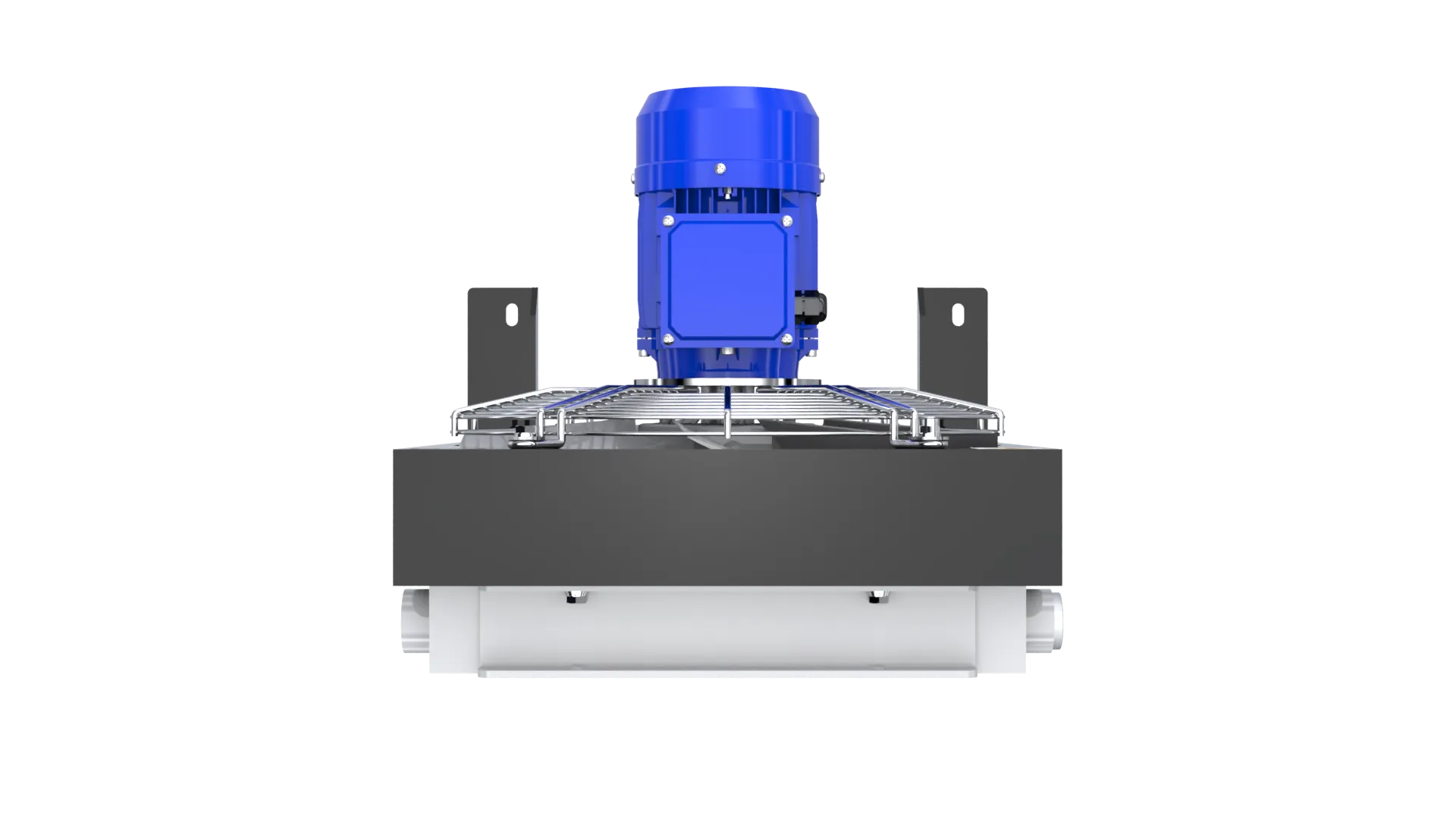

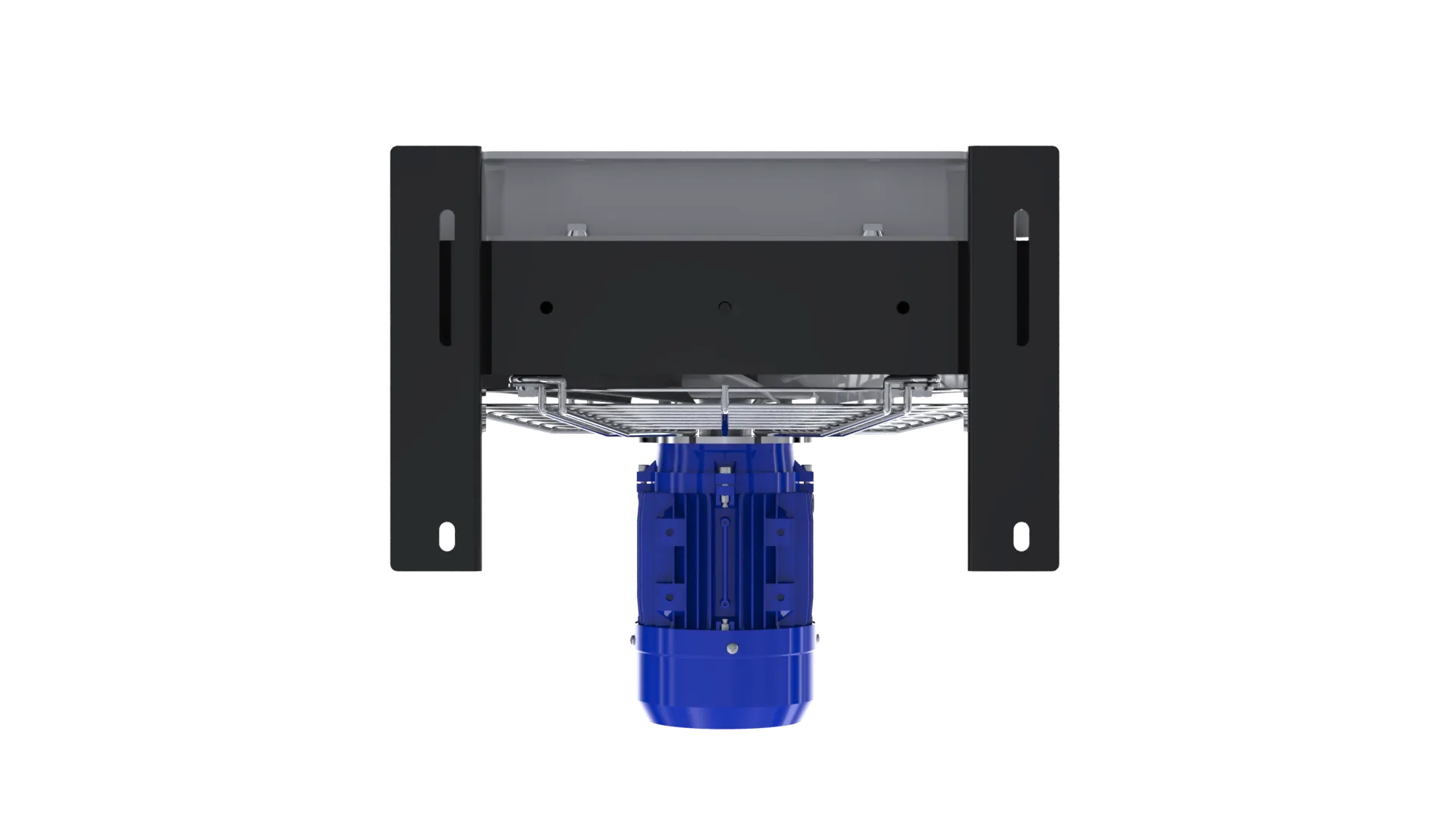

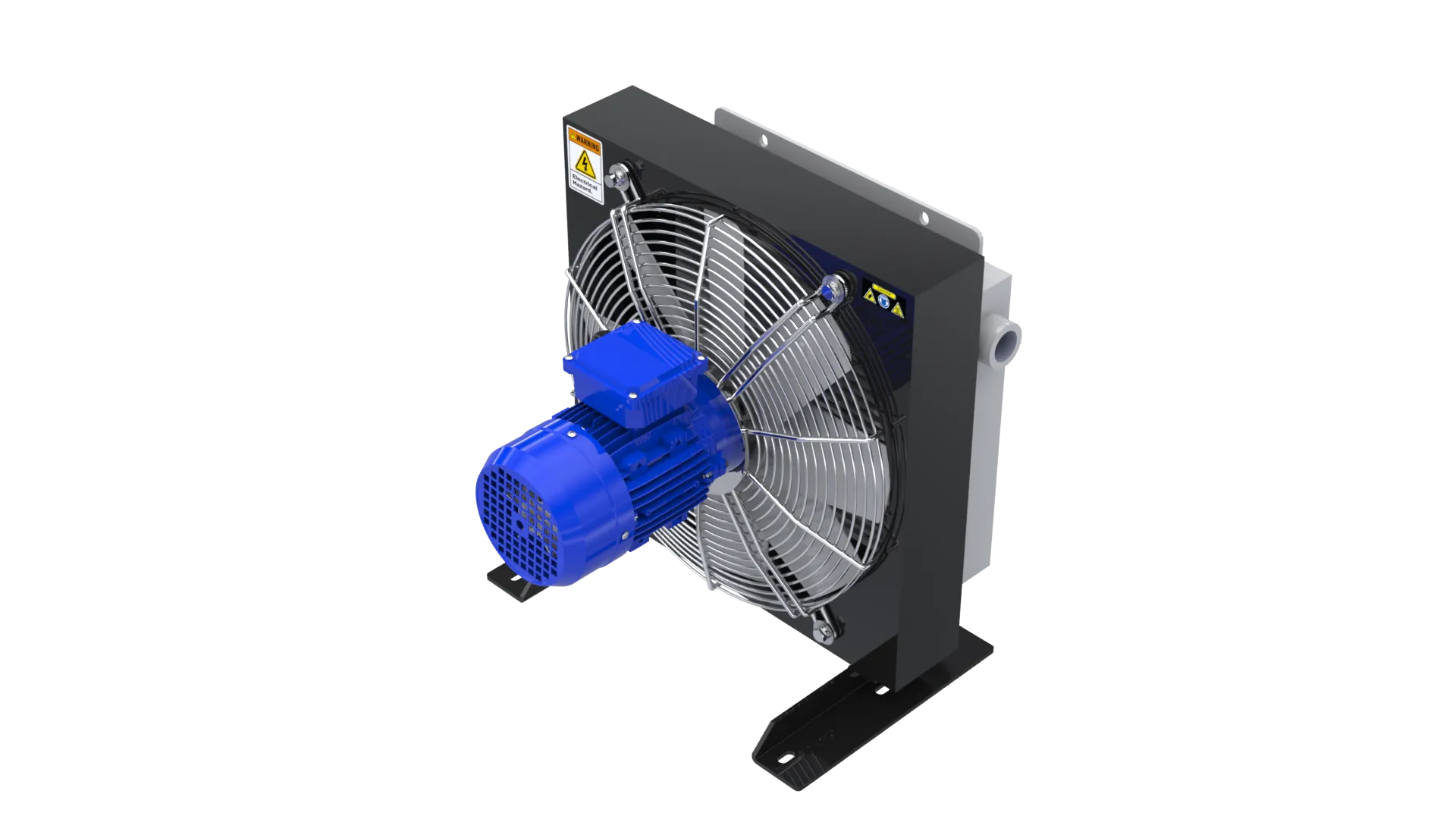

HydroLync HLA2 11-4 AC motor driven air-oil cooler with 4-pole motor
Quick Specifications
Cooling Capacity0.38kW/°C
Heat Dissipation15.2kW
Heat Dissipation (kcal)13,072kcal/h
Max Flow Rate150L/min
Motor Poles4
Detailed Specifications
Performance
| Cooling Capacity | 0.38 kW/°C |
|---|---|
| Heat Dissipation | 15.2 kW |
| Heat Dissipation (kcal) | 13,072 kcal/h |
| Max Flow Rate | 150 L/min |
| Motor Poles | 4 |
Dimensions
| Depth (D) | 412.7 mm |
|---|---|
| Dimension E | 63 mm |
| Dimension F | 228 mm |
| Dimension G | 146 mm |
| Dimension H | 280 mm |
| Dimension I | 170 mm |
| Dimension J | 390 mm |
| Dimension K | 374 mm |
| Height (C) | 480 mm |
| Length (A) | 440 mm |
| Net Weight | 23 kg |
| Mounting Slot | ø10x90 ø10x19 |
| Width (B) | 440 mm |
Electrical
| Motor Type | 4-Pole AC Motor |
|---|
Downloads
Catalogs & Documents
HLA2 Series Selection Guide 2026 V04EN
Air Oil Cooler Series User Manual 2026KO
HLA2 Series Selection Guide 2026 V04KO
HLA2 Series Selection Guide 2026 V04ZH
HydroLync Complete Selection Guide 2026 V05 (EN)EN
HydroLync Complete Selection Guide 2026 V05 (KR)KO
HydroLync Complete Selection Guide 2026 V05 (CN)ZH
Dimensional Drawings
