HLA2 113-6 AC Motor Cooler

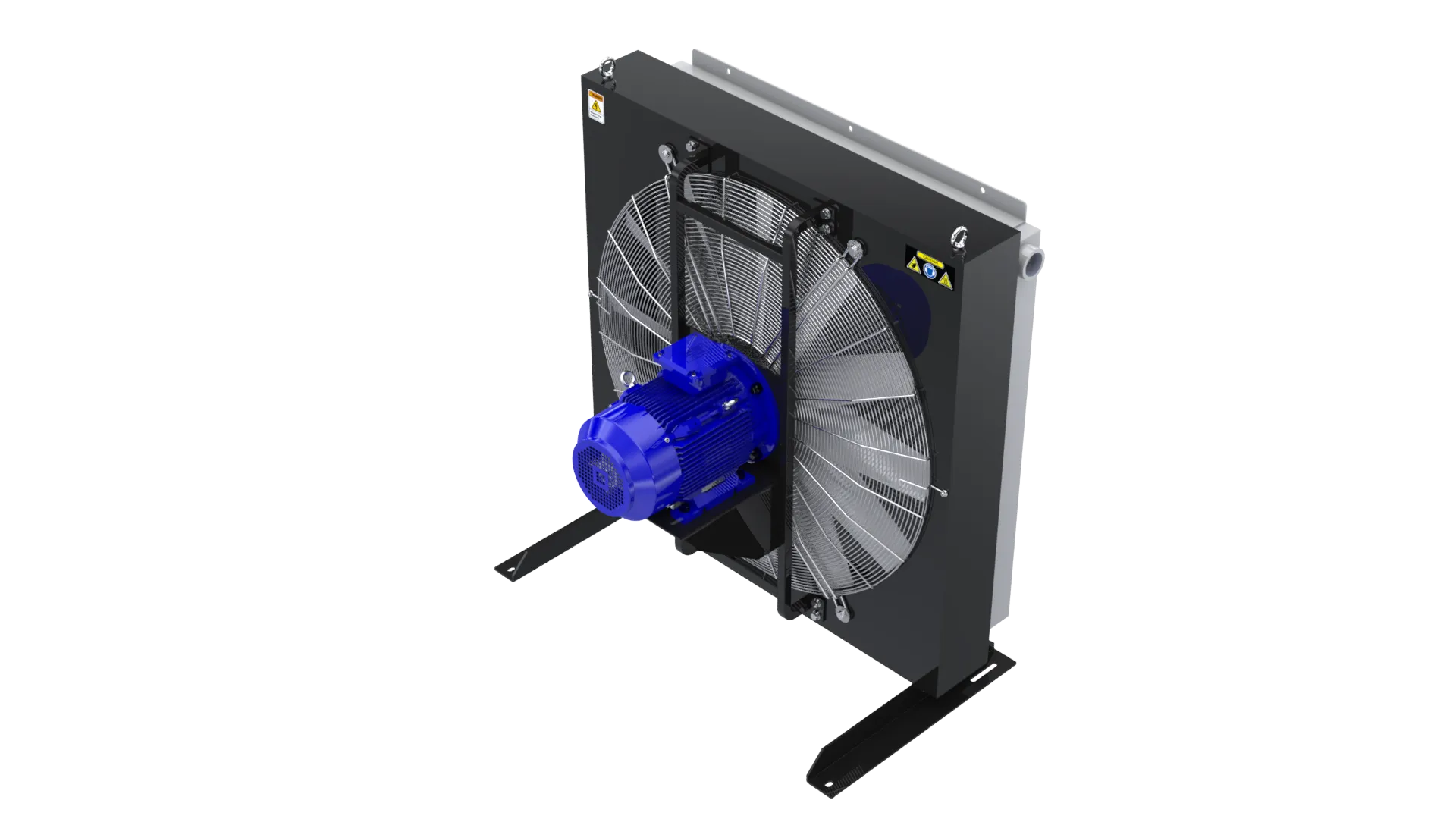

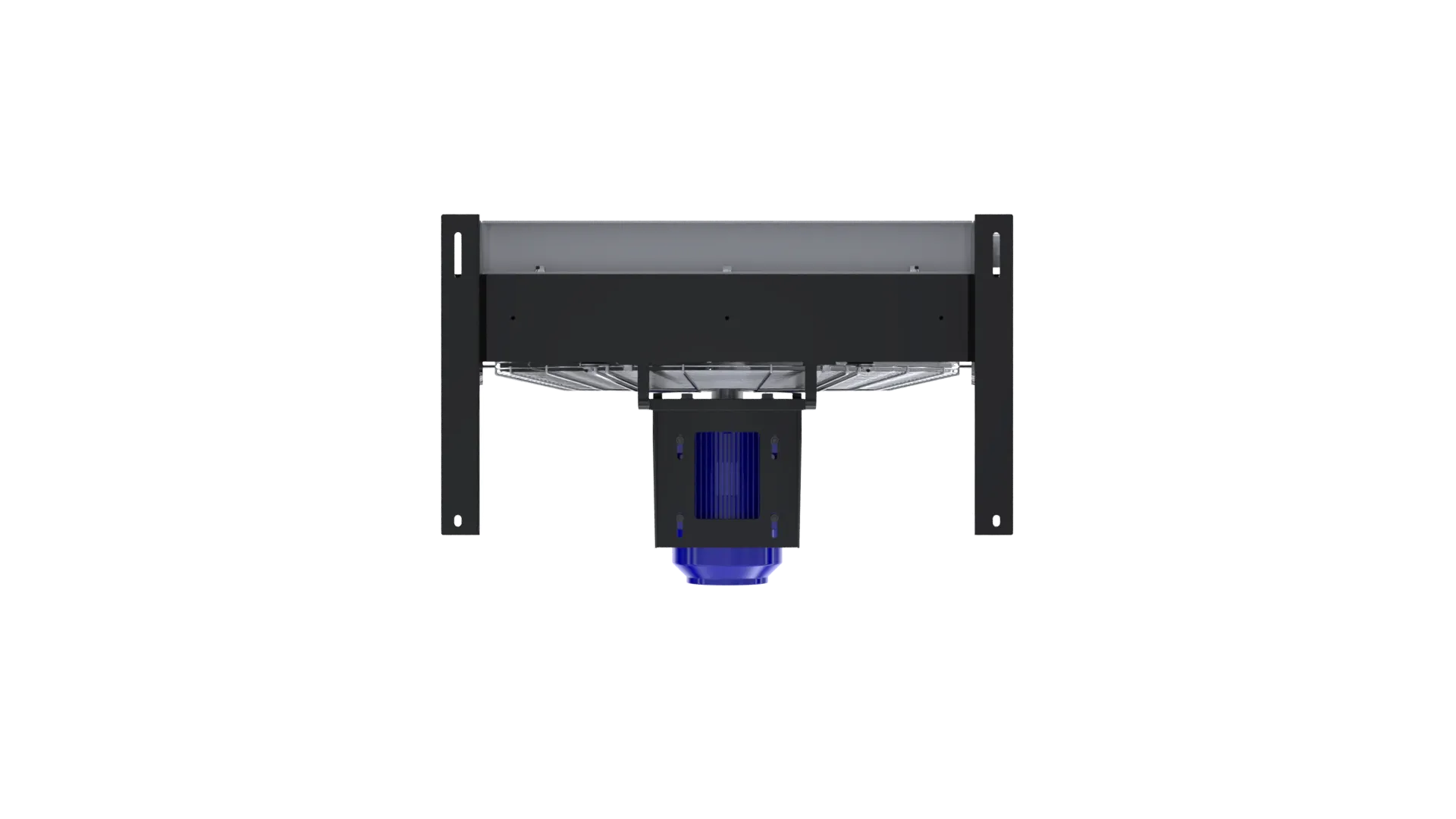

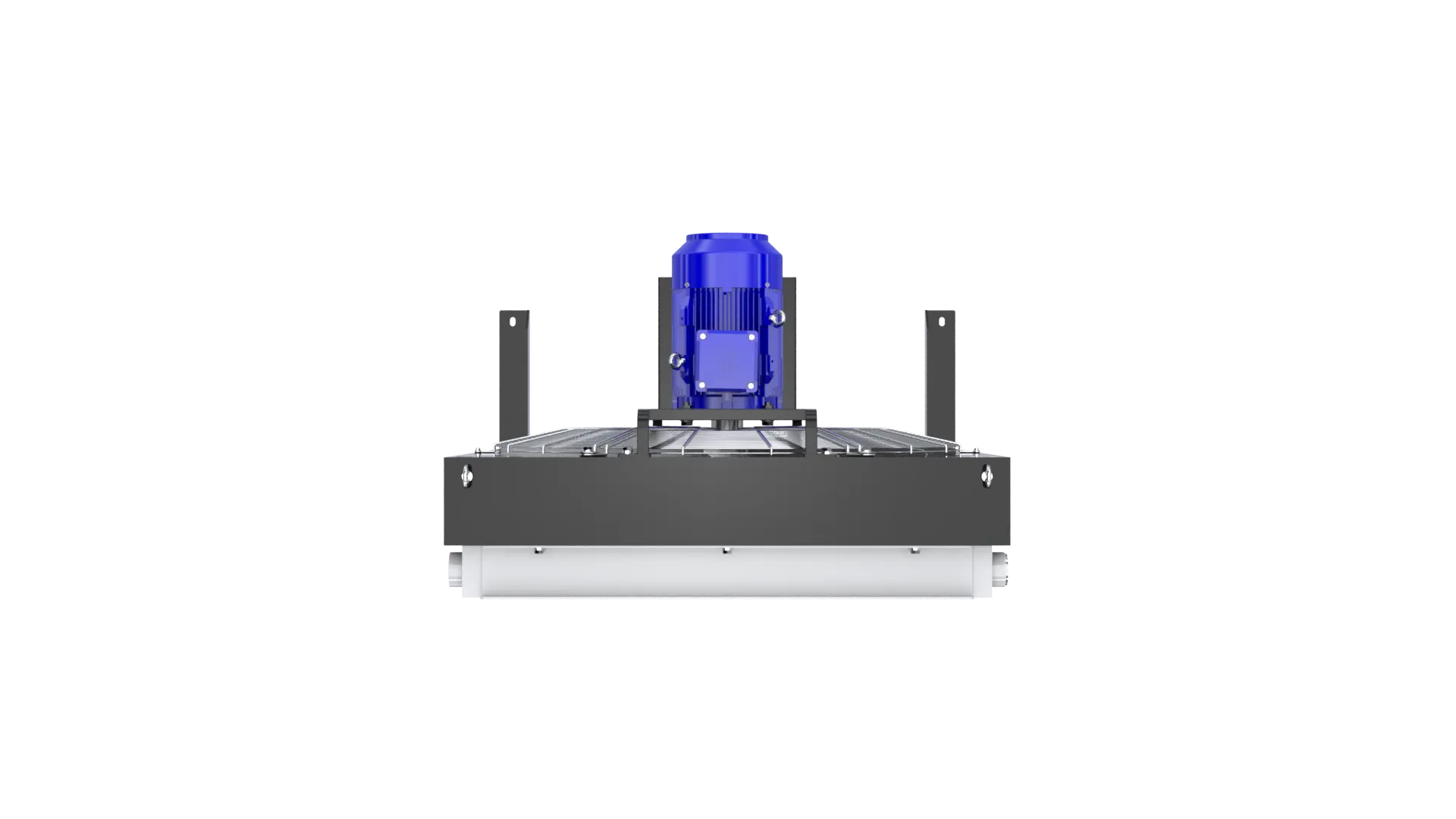

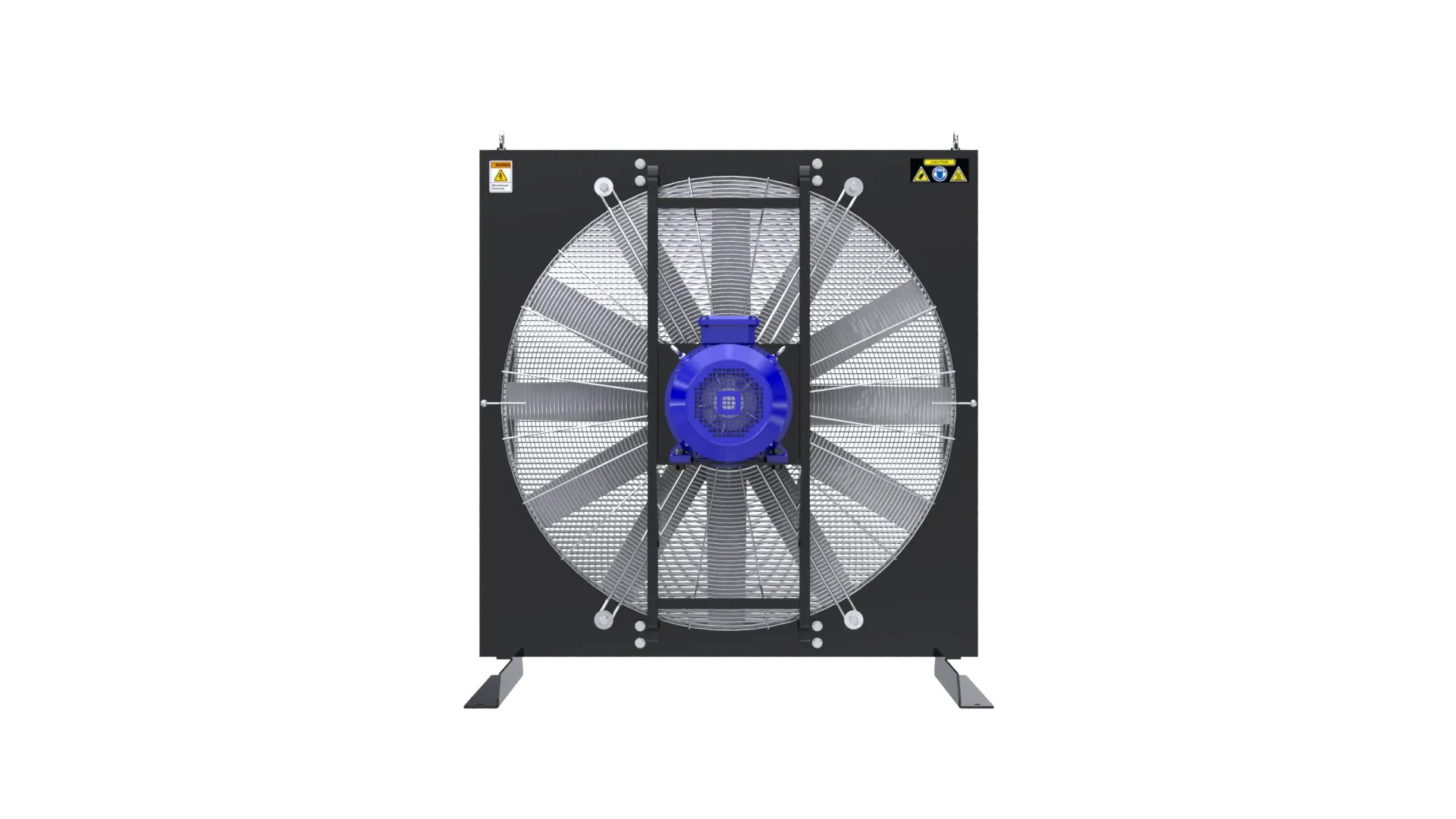

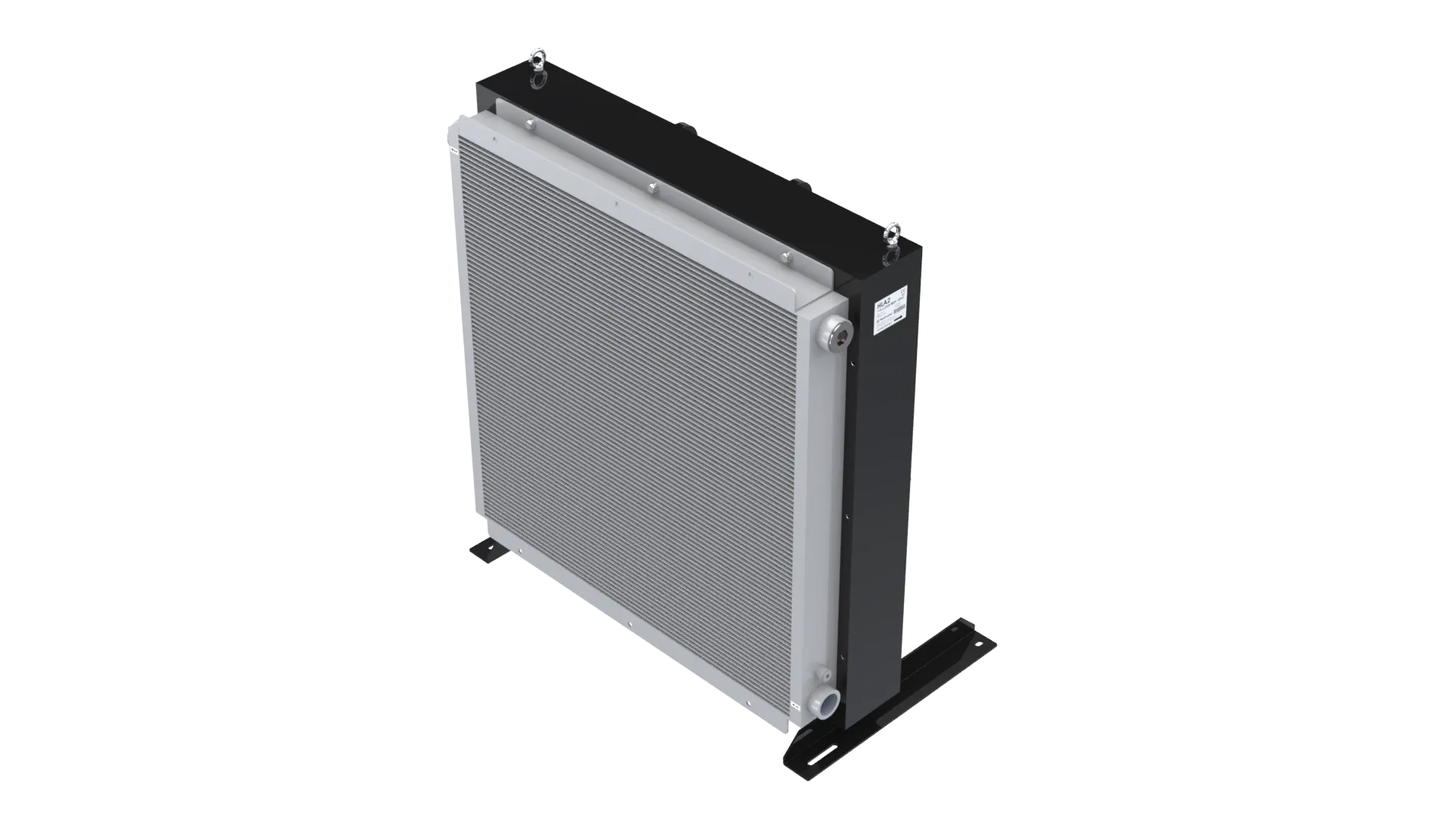

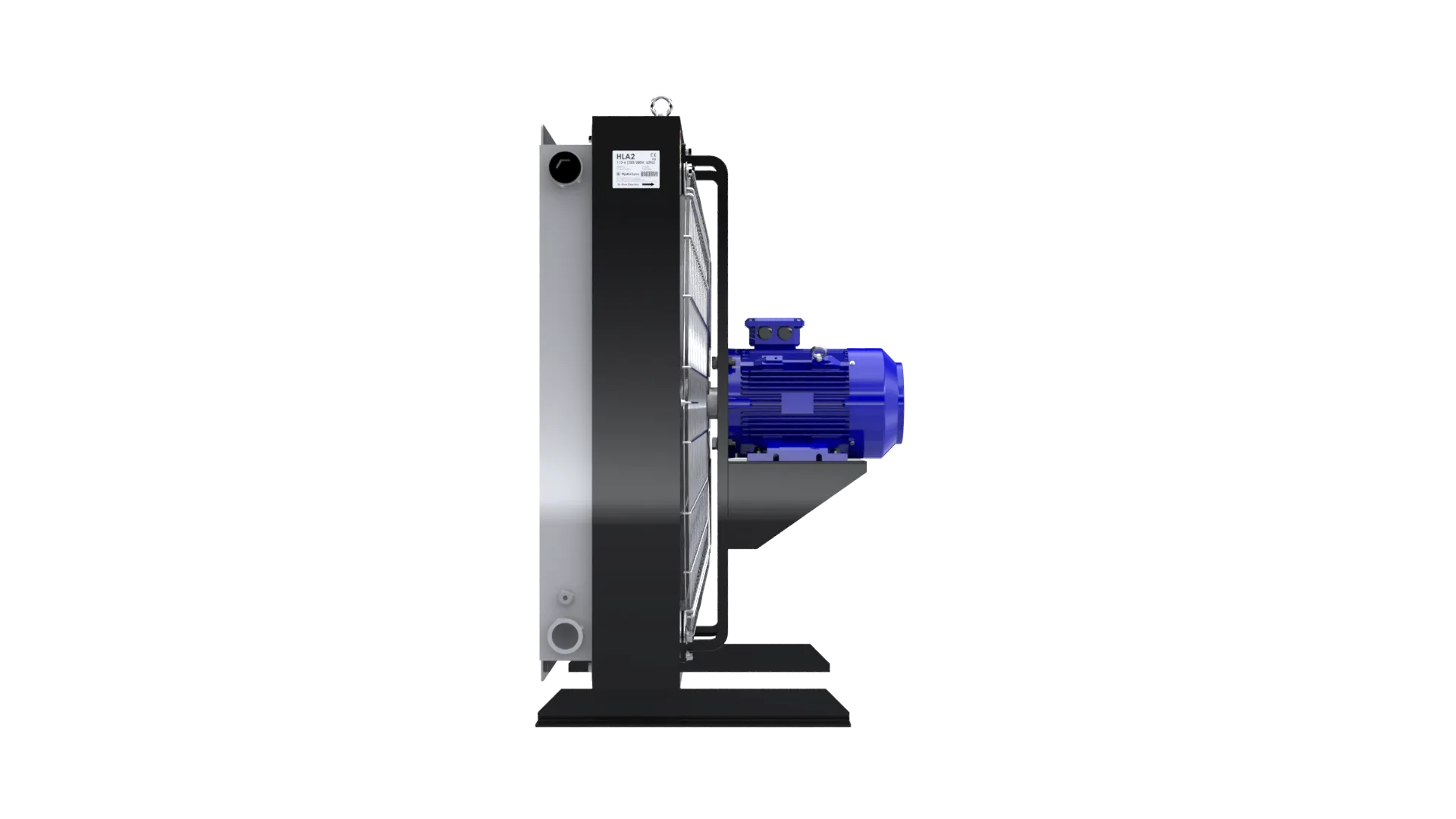

HydroLync HLA2 113-6 AC motor driven air-oil cooler with 6-pole motor
Quick Specifications
Cooling Capacity4.2kW/°C
Heat Dissipation168kW
Heat Dissipation (kcal)144,480kcal/h
Max Flow Rate500L/min
Motor Poles6
Detailed Specifications
Performance
| Cooling Capacity | 4.2 kW/°C |
|---|---|
| Heat Dissipation | 168 kW |
| Heat Dissipation (kcal) | 144,480 kcal/h |
| Max Flow Rate | 500 L/min |
| Motor Poles | 6 |
Dimensions
| Depth (D) | 788 mm |
|---|---|
| Dimension E | 113 mm |
| Dimension F | 985 mm |
| Dimension G | 192 mm |
| Dimension H | 665 mm |
| Dimension I | 550 mm |
| Dimension J | 1,115 mm |
| Dimension K | 1,177 mm |
| Height (C) | 1,285 mm |
| Length (A) | 1,205 mm |
| Net Weight | 250 kg |
| Mounting Slot | ø14x94 ø14x23 |
| Width (B) | 1,185 mm |
Electrical
| Motor Power | 5.5 kW |
|---|---|
| Motor Type | 6-Pole AC Motor |
Downloads
Catalogs & Documents
HLA2 Series Selection Guide 2026 V04EN
Air Oil Cooler Series User Manual 2026KO
HLA2 Series Selection Guide 2026 V04KO
HLA2 Series Selection Guide 2026 V04ZH
HydroLync Complete Selection Guide 2026 V05 (EN)EN
HydroLync Complete Selection Guide 2026 V05 (KR)KO
HydroLync Complete Selection Guide 2026 V05 (CN)ZH
Dimensional Drawings
