HLA2 16-6 AC Motor Cooler
Product specifications and documentation
HLA2 16-6 AC Motor Cooler

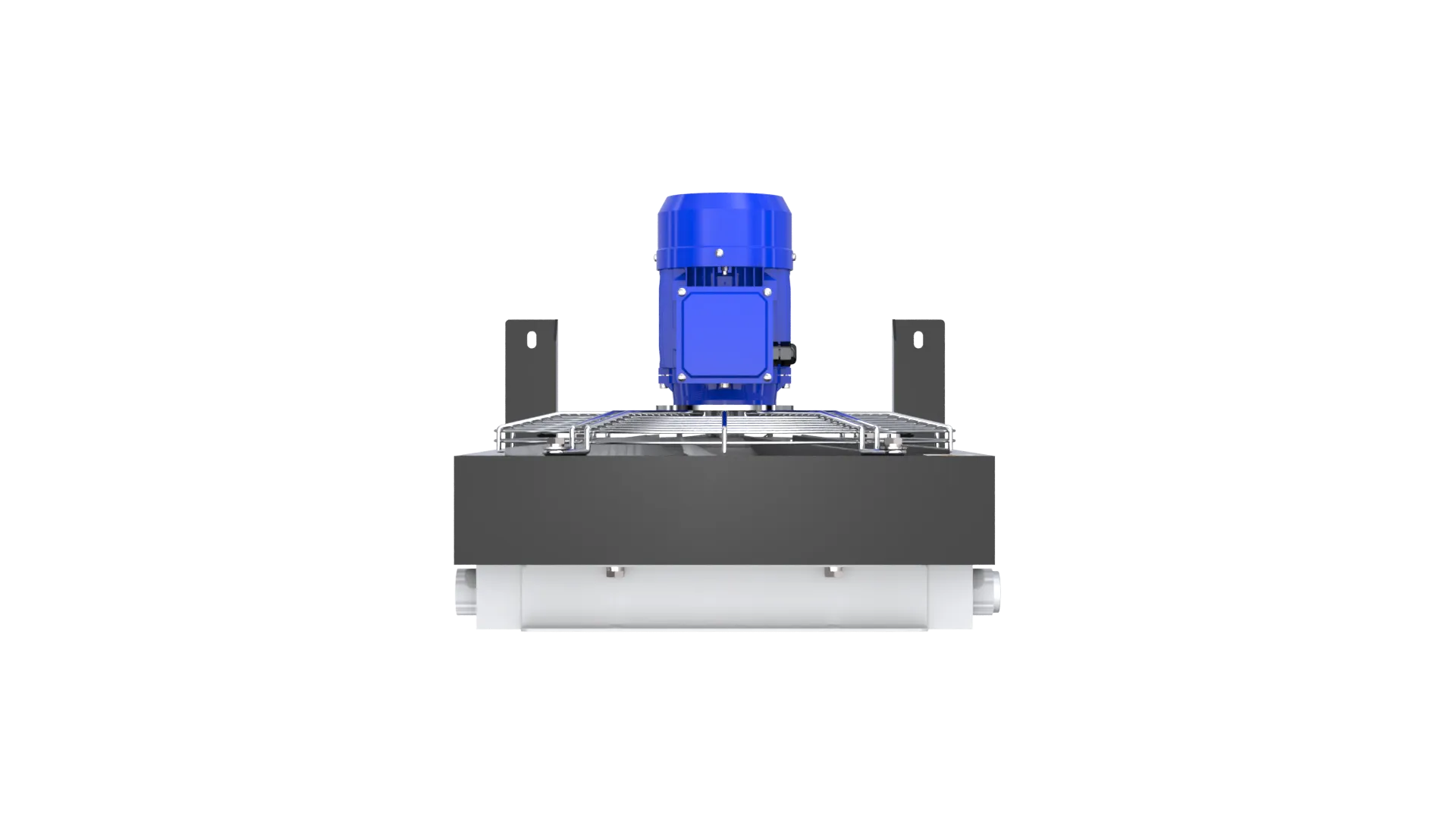

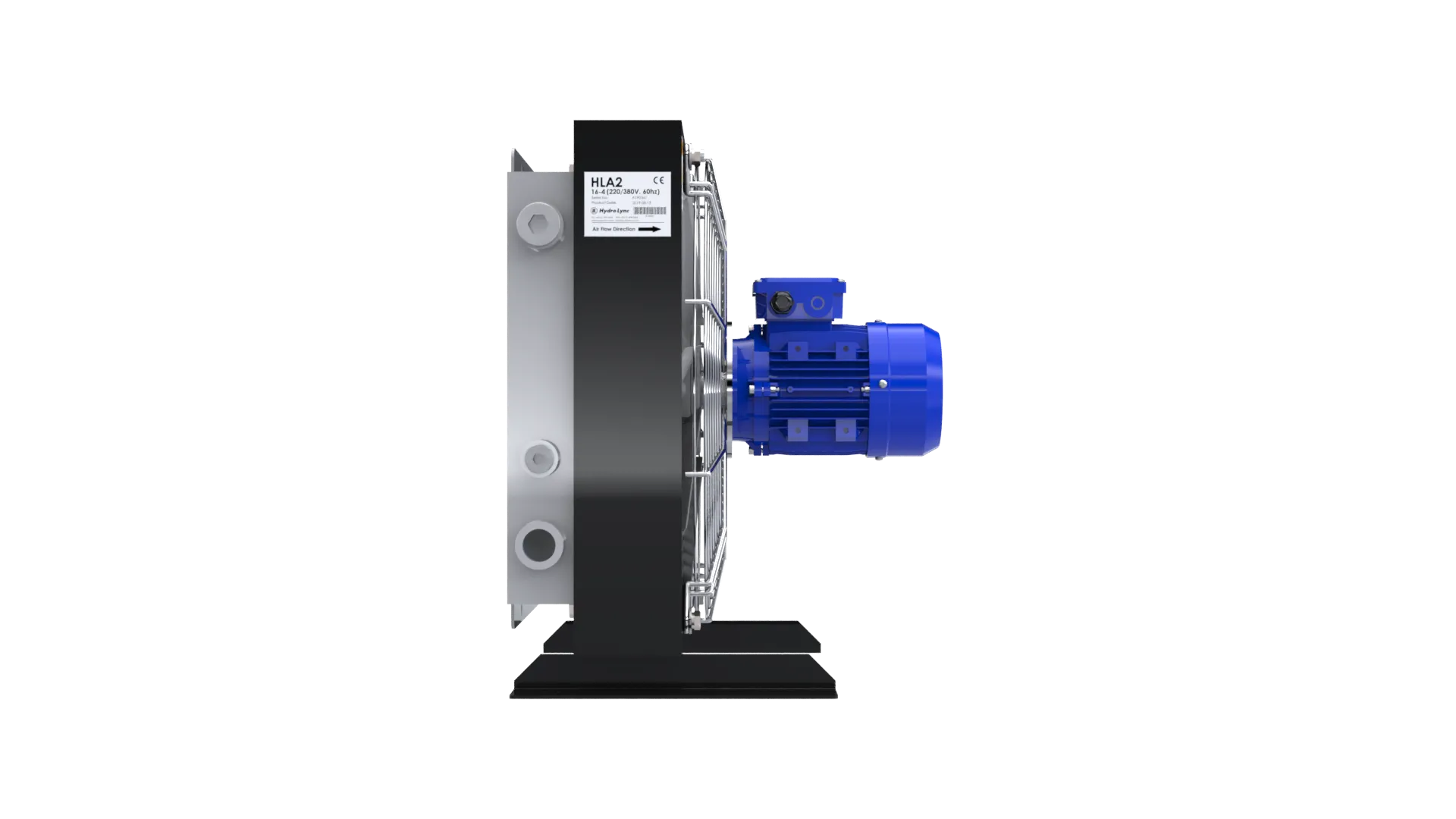

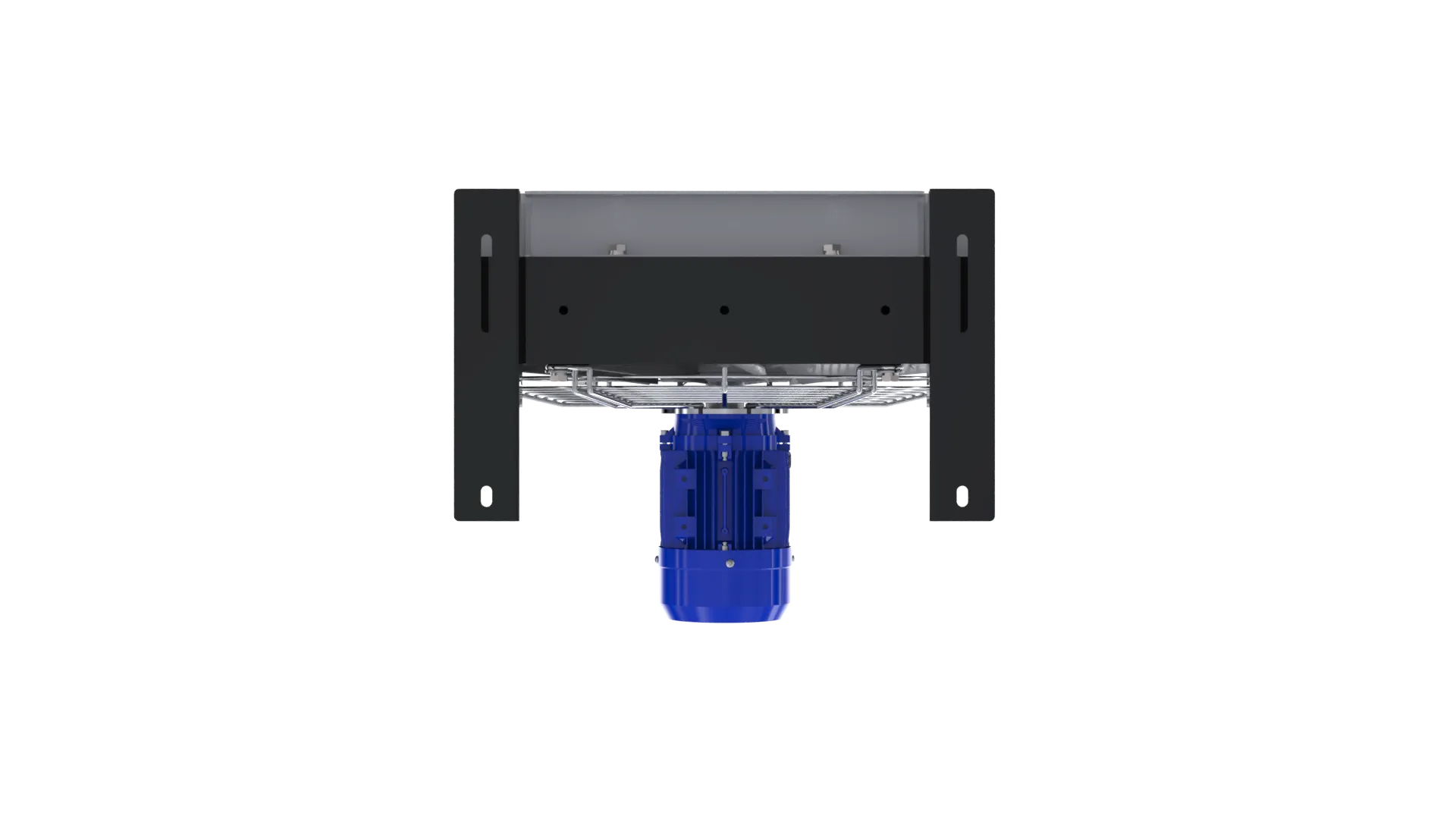

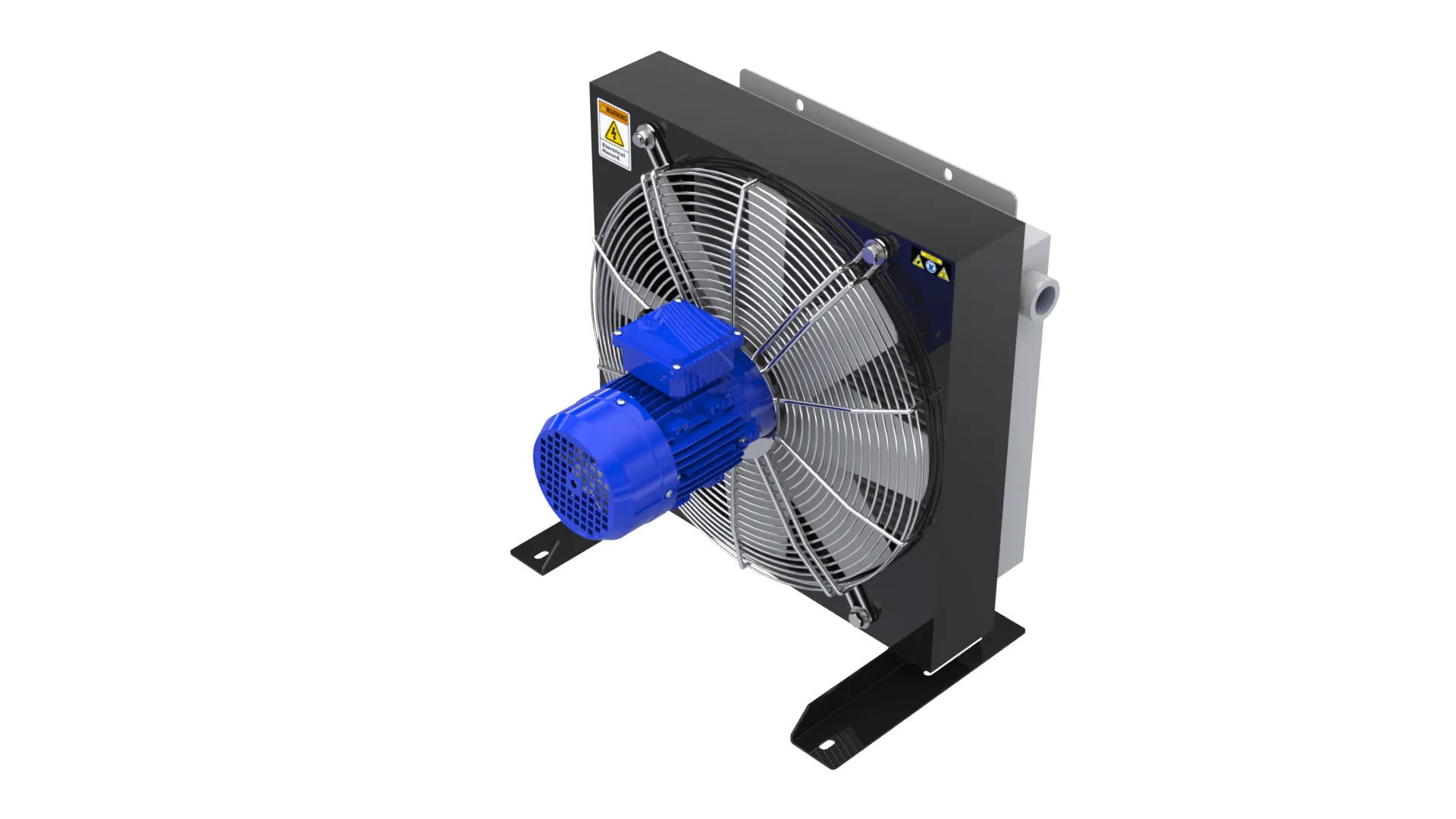

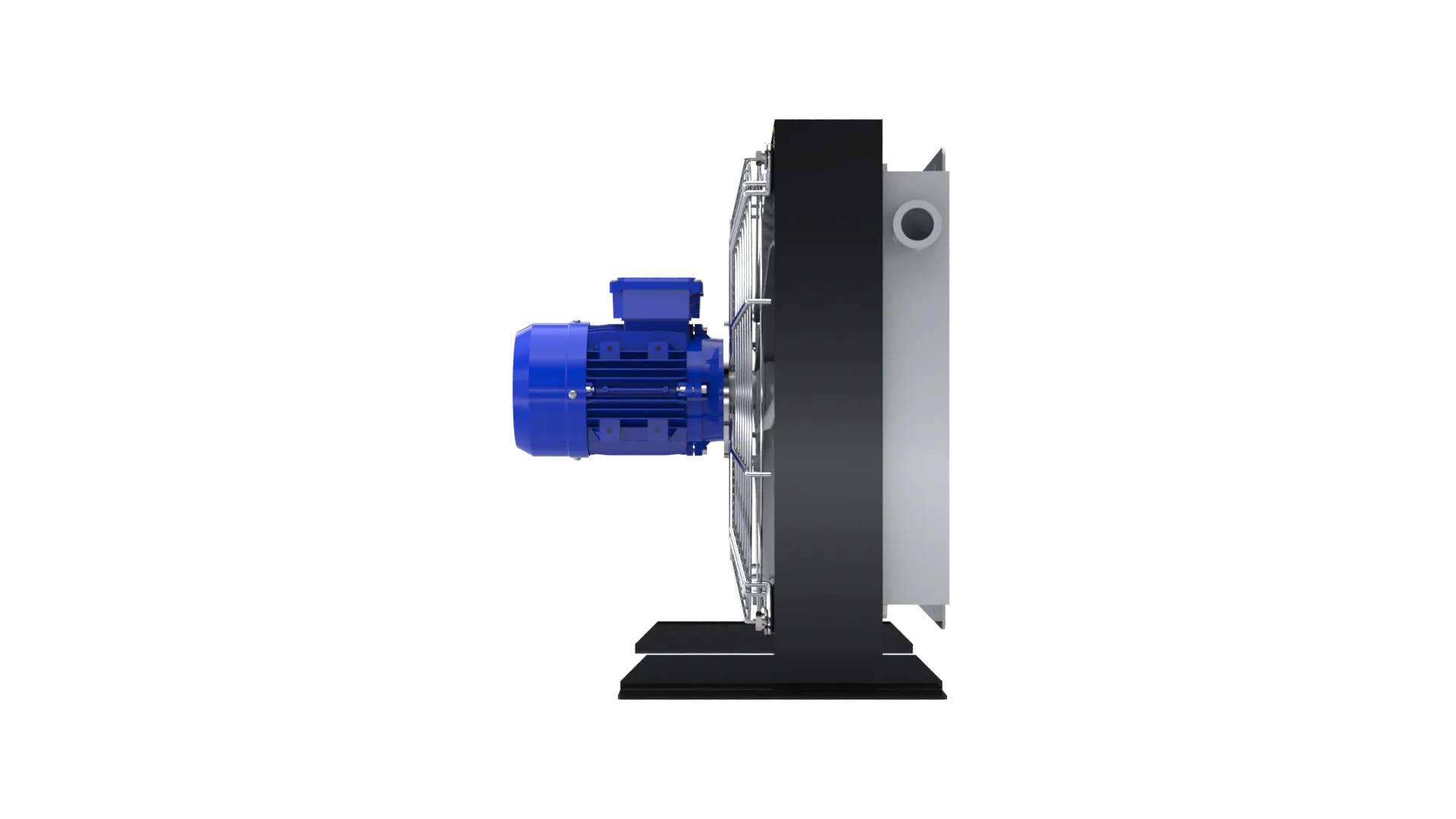

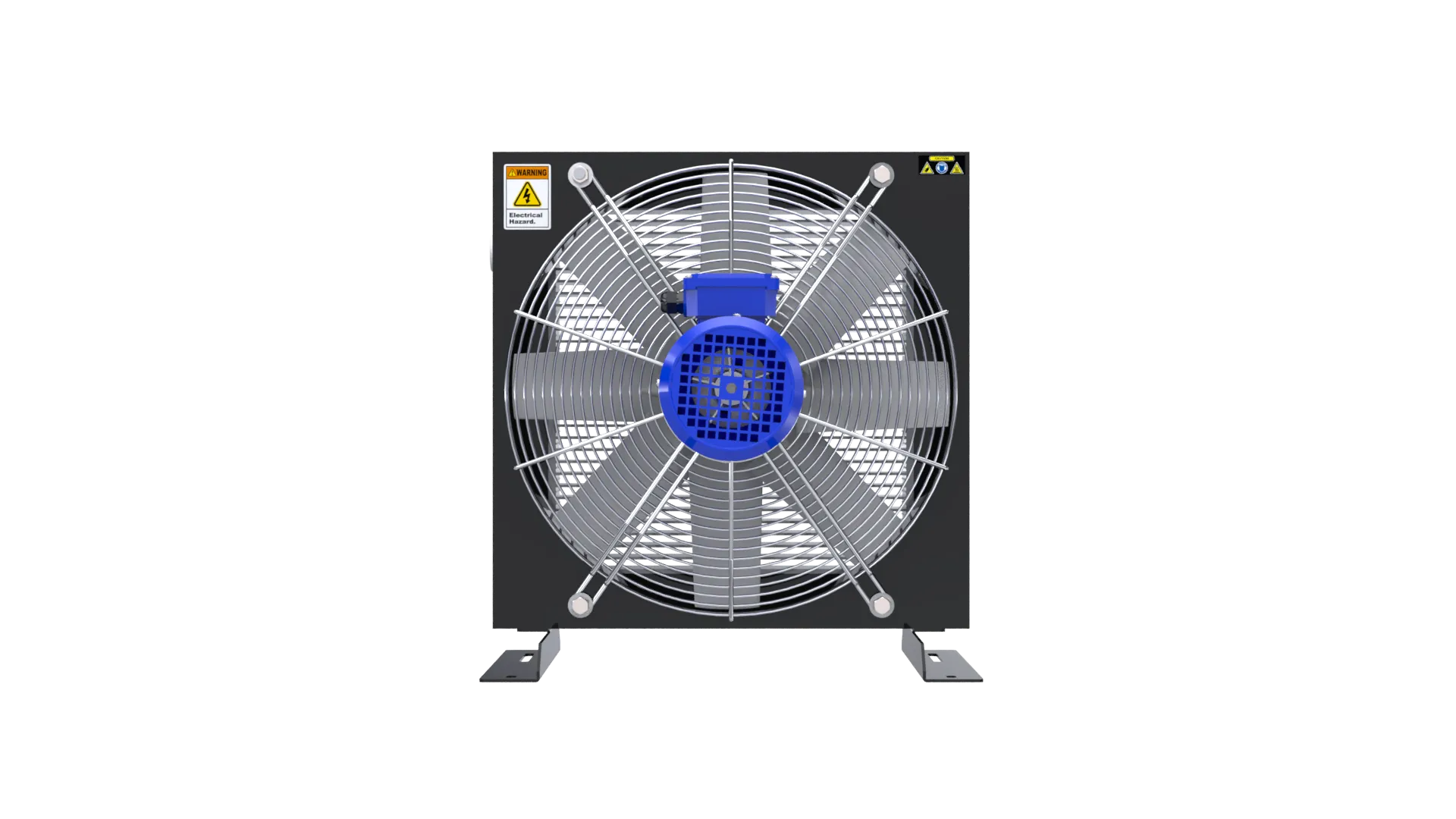

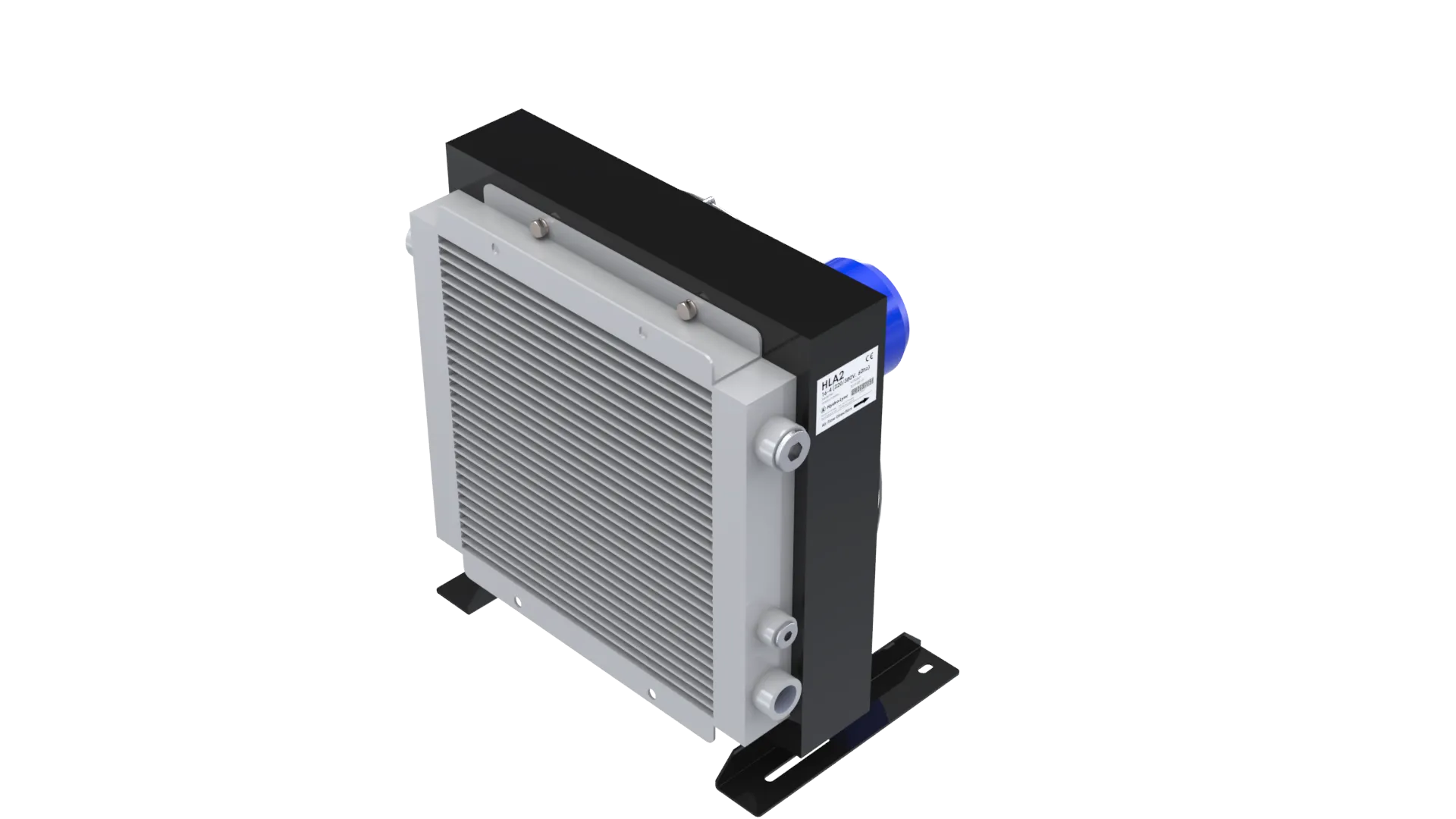

HydroLync HLA2 16-6 AC motor driven air-oil cooler with 6-pole motor
Quick Specifications
Cooling Capacity0.44kW/°C
Heat Dissipation17.8kW
Heat Dissipation (kcal)15,308kcal/h
Max Flow Rate200L/min
Motor Poles6
Detailed Specifications
Performance
| Cooling Capacity | 0.44 kW/°C |
|---|---|
| Heat Dissipation | 17.8 kW |
| Heat Dissipation (kcal) | 15,308 kcal/h |
| Max Flow Rate | 200 L/min |
| Motor Poles | 6 |
Dimensions
| Depth (D) | 421.1 mm |
|---|---|
| Dimension E | 63 mm |
| Dimension F | 296 mm |
| Dimension G | 142.5 mm |
| Dimension H | 305 mm |
| Dimension I | 195 mm |
| Dimension J | 436 mm |
| Dimension K | 483.5 mm |
| Height (C) | 536 mm |
| Length (A) | 496 mm |
| Net Weight | 28 kg |
| Mounting Slot | ø10x90 ø10x19 |
| Width (B) | 496 mm |
Electrical
| Motor Type | 6-Pole AC Motor |
|---|
Downloads
Catalogs & Documents
HLA2 Series Selection Guide 2026 V04EN
Air Oil Cooler Series User Manual 2026KO
HLA2 Series Selection Guide 2026 V04KO
HLA2 Series Selection Guide 2026 V04ZH
HydroLync Complete Selection Guide 2026 V05 (EN)EN
HydroLync Complete Selection Guide 2026 V05 (KR)KO
HydroLync Complete Selection Guide 2026 V05 (CN)ZH
Dimensional Drawings
