HLA2 200-4 AC Motor Cooler
Product specifications and documentation
HLA2 200-4 AC Motor Cooler

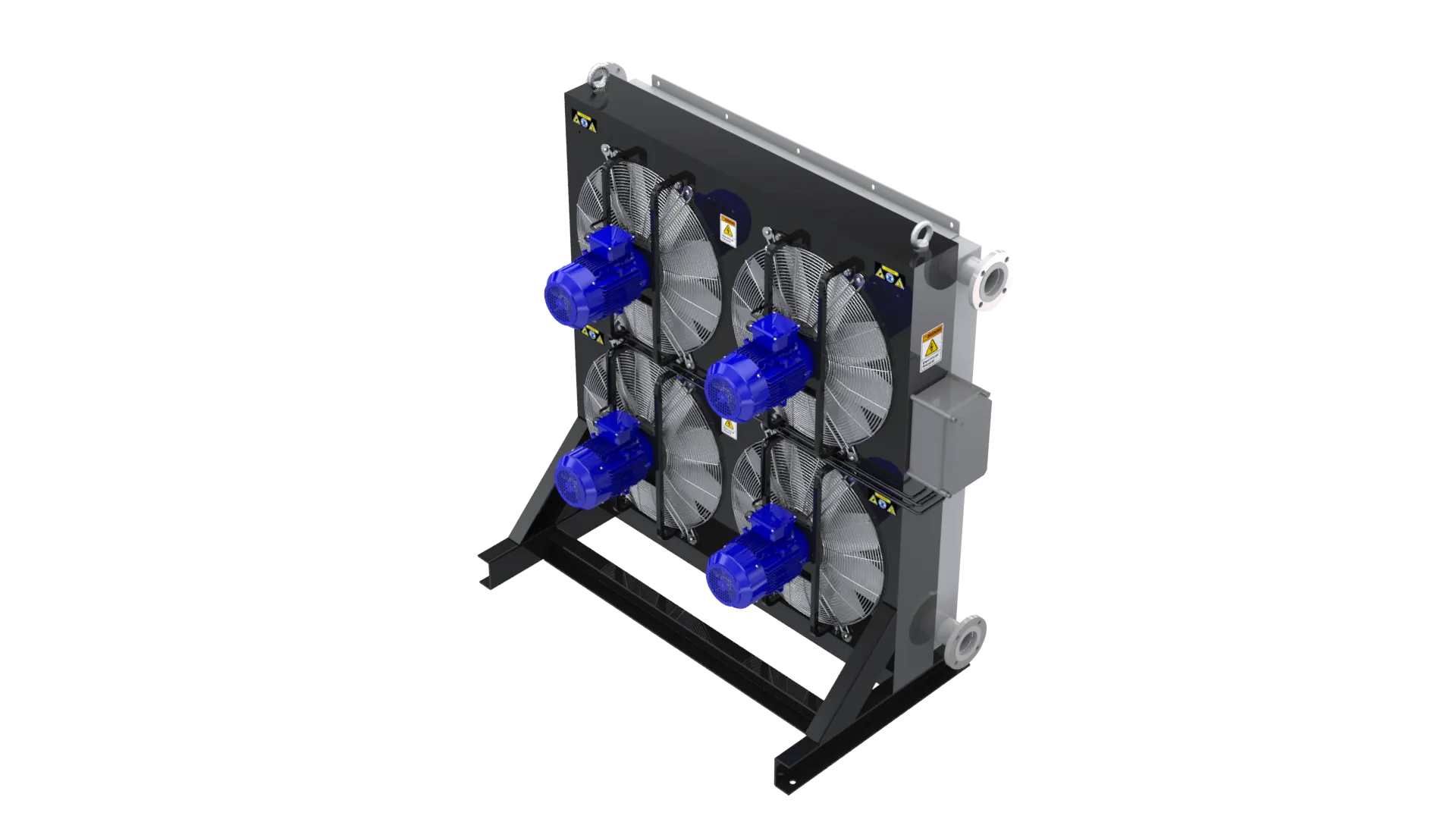

HydroLync HLA2 200-4 AC motor driven air-oil cooler with 4-pole motor
Quick Specifications
Cooling Capacity7.3kW/°C
Heat Dissipation292kW
Heat Dissipation (kcal)251,120kcal/h
Max Flow Rate1,000L/min
Motor Poles4
Detailed Specifications
Performance
| Cooling Capacity | 7.3 kW/°C |
|---|---|
| Heat Dissipation | 292 kW |
| Heat Dissipation (kcal) | 251,120 kcal/h |
| Max Flow Rate | 1,000 L/min |
| Motor Poles | 4 |
Dimensions
| Depth (D) | 939 mm |
|---|---|
| Dimension E | 100 mm |
| Dimension F | 1,285 mm |
| Dimension G | 169 mm |
| Dimension H | 820 mm |
| Dimension I | 680 mm |
| Dimension J | 1,440 mm |
| Dimension K | 1,574 mm |
| Height (C) | 1,690 mm |
| Length (A) | 1,610 mm |
| Net Weight | 385 kg |
| Mounting Slot | ø18x118 ø18x27 |
| Width (B) | 1,510 mm |
Electrical
| Motor Power | 11 kW |
|---|---|
| Motor Type | 4-Pole AC Motor |
Downloads
Catalogs & Documents
HLA2 Series Selection Guide 2026 V04EN
Air Oil Cooler Series User Manual 2026KO
HLA2 Series Selection Guide 2026 V04KO
HLA2 Series Selection Guide 2026 V04ZH
HydroLync Complete Selection Guide 2026 V05 (EN)EN
HydroLync Complete Selection Guide 2026 V05 (KR)KO
HydroLync Complete Selection Guide 2026 V05 (CN)ZH
Dimensional Drawings
