HLA2 23-6 AC Motor Cooler
Product specifications and documentation
HLA2 23-6 AC Motor Cooler

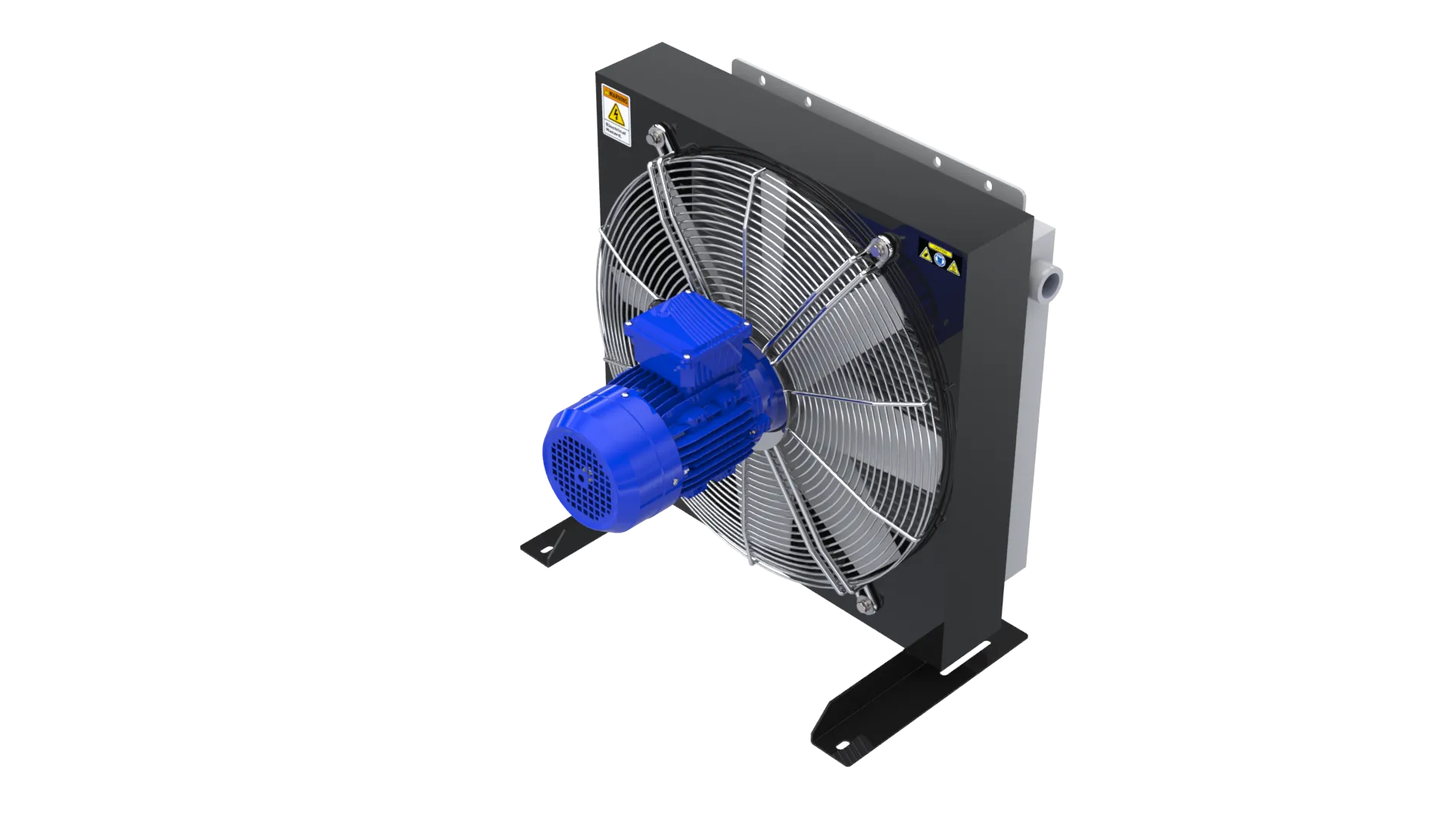

HydroLync HLA2 23-6 AC motor driven air-oil cooler with 6-pole motor
Quick Specifications
Cooling Capacity0.61kW/°C
Heat Dissipation24.2kW
Heat Dissipation (kcal)20,812kcal/h
Max Flow Rate200L/min
Motor Poles6
Detailed Specifications
Performance
| Cooling Capacity | 0.61 kW/°C |
|---|---|
| Heat Dissipation | 24.2 kW |
| Heat Dissipation (kcal) | 20,812 kcal/h |
| Max Flow Rate | 200 L/min |
| Motor Poles | 6 |
Dimensions
| Depth (D) | 436.1 mm |
|---|---|
| Dimension E | 63 mm |
| Dimension F | 378 mm |
| Dimension G | 150 mm |
| Dimension H | 330 mm |
| Dimension I | 220 mm |
| Dimension J | 520 mm |
| Dimension K | 528 mm |
| Height (C) | 629 mm |
| Length (A) | 579 mm |
| Net Weight | 34 kg |
| Mounting Slot | ø10x90 ø10x19 |
| Width (B) | 579 mm |
Electrical
| Motor Type | 6-Pole AC Motor |
|---|
Downloads
Catalogs & Documents
HLA2 Series Selection Guide 2026 V04EN
Air Oil Cooler Series User Manual 2026KO
HLA2 Series Selection Guide 2026 V04KO
HLA2 Series Selection Guide 2026 V04ZH
HydroLync Complete Selection Guide 2026 V05 (EN)EN
HydroLync Complete Selection Guide 2026 V05 (KR)KO
HydroLync Complete Selection Guide 2026 V05 (CN)ZH
Dimensional Drawings
