HLA2 33-6 AC Motor Cooler
Product specifications and documentation
HLA2 33-6 AC Motor Cooler

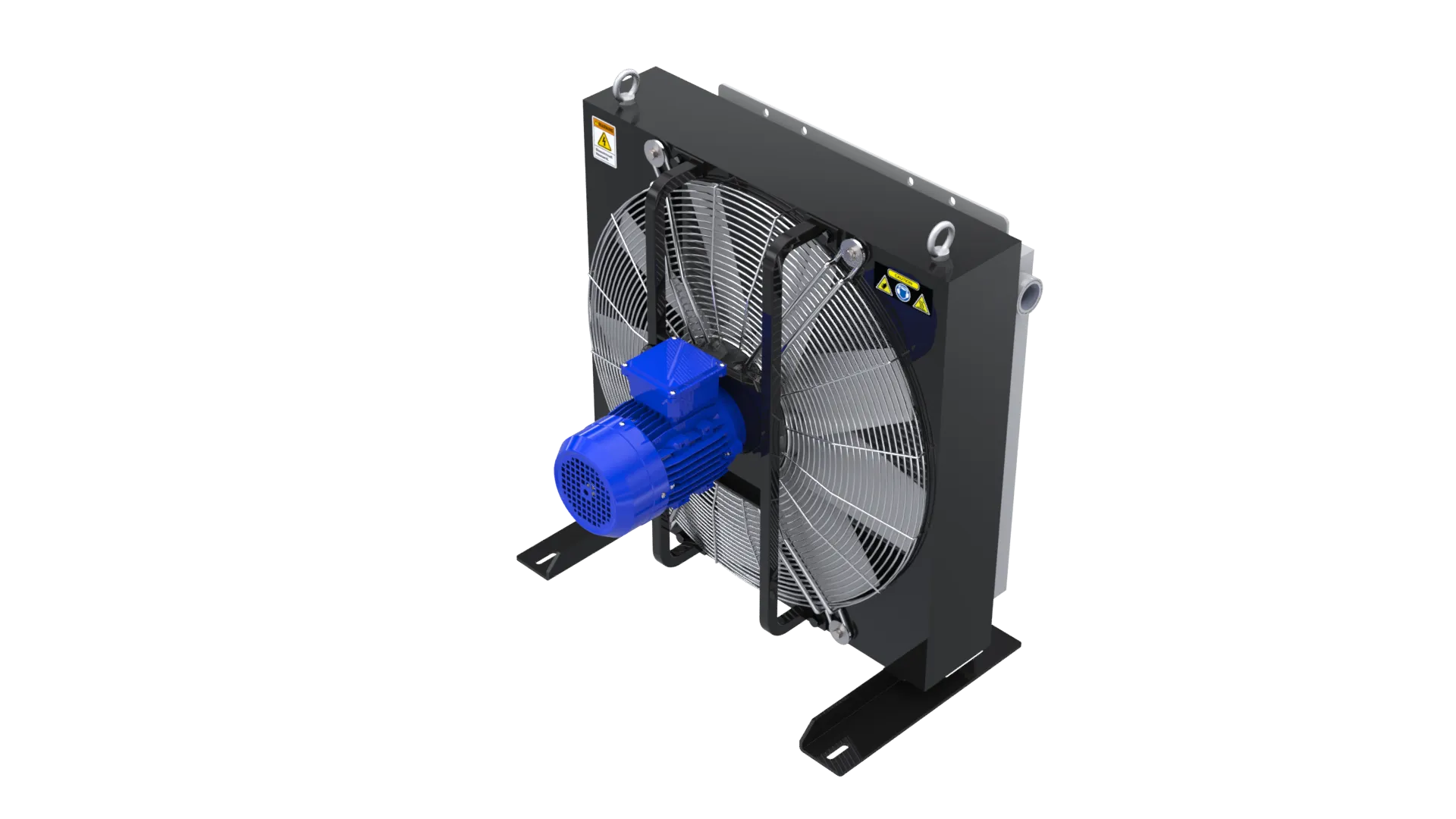

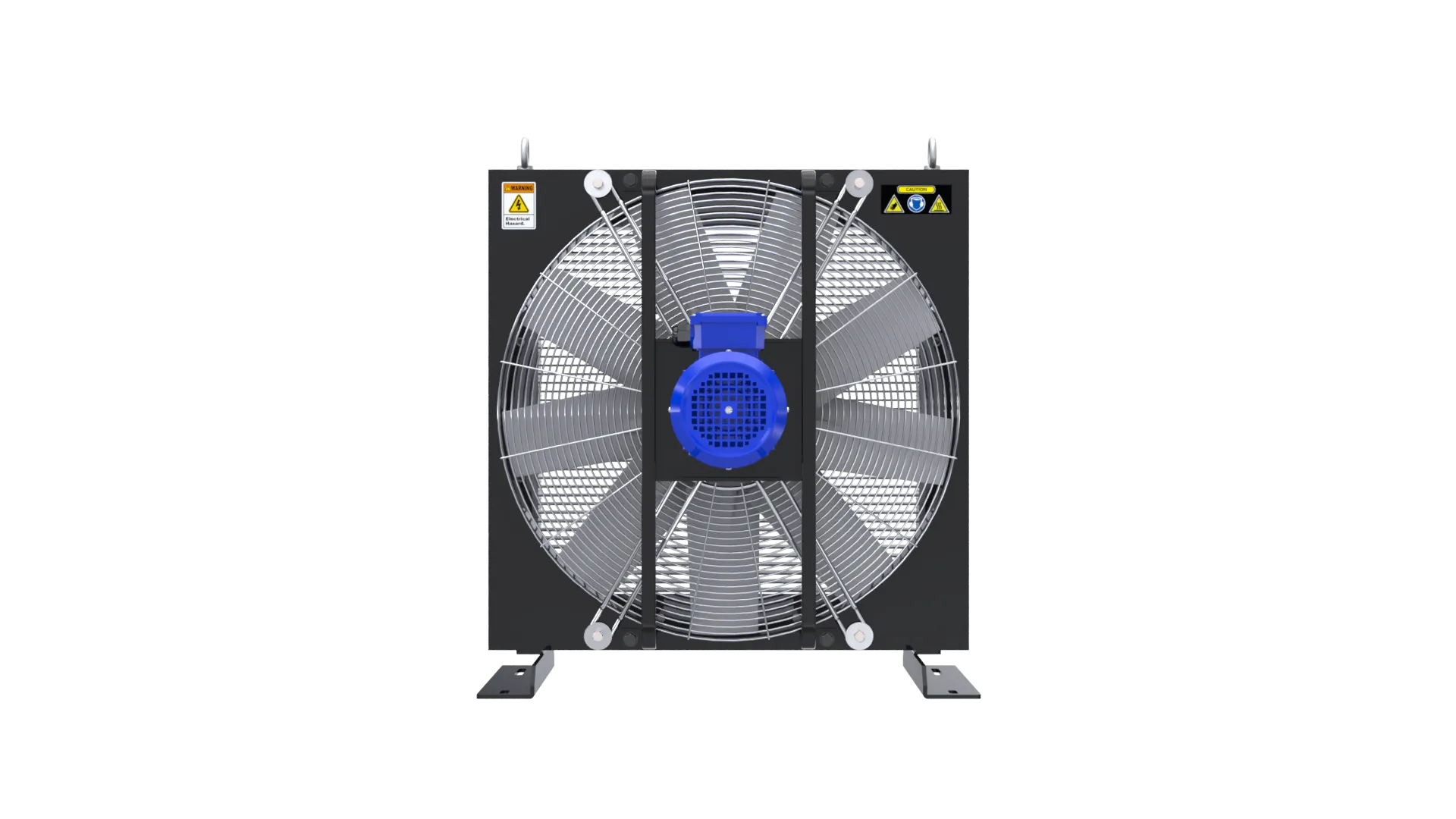

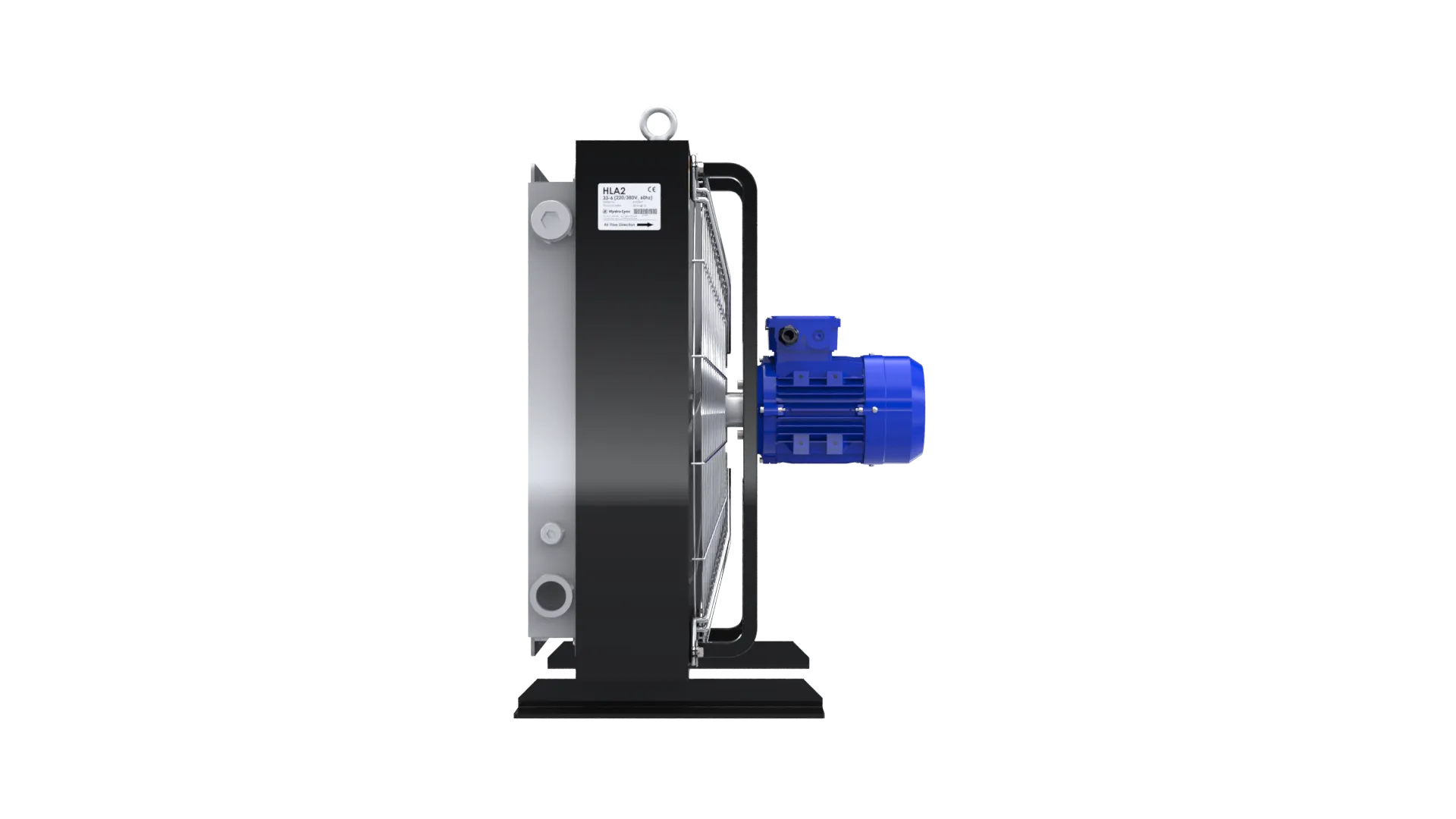

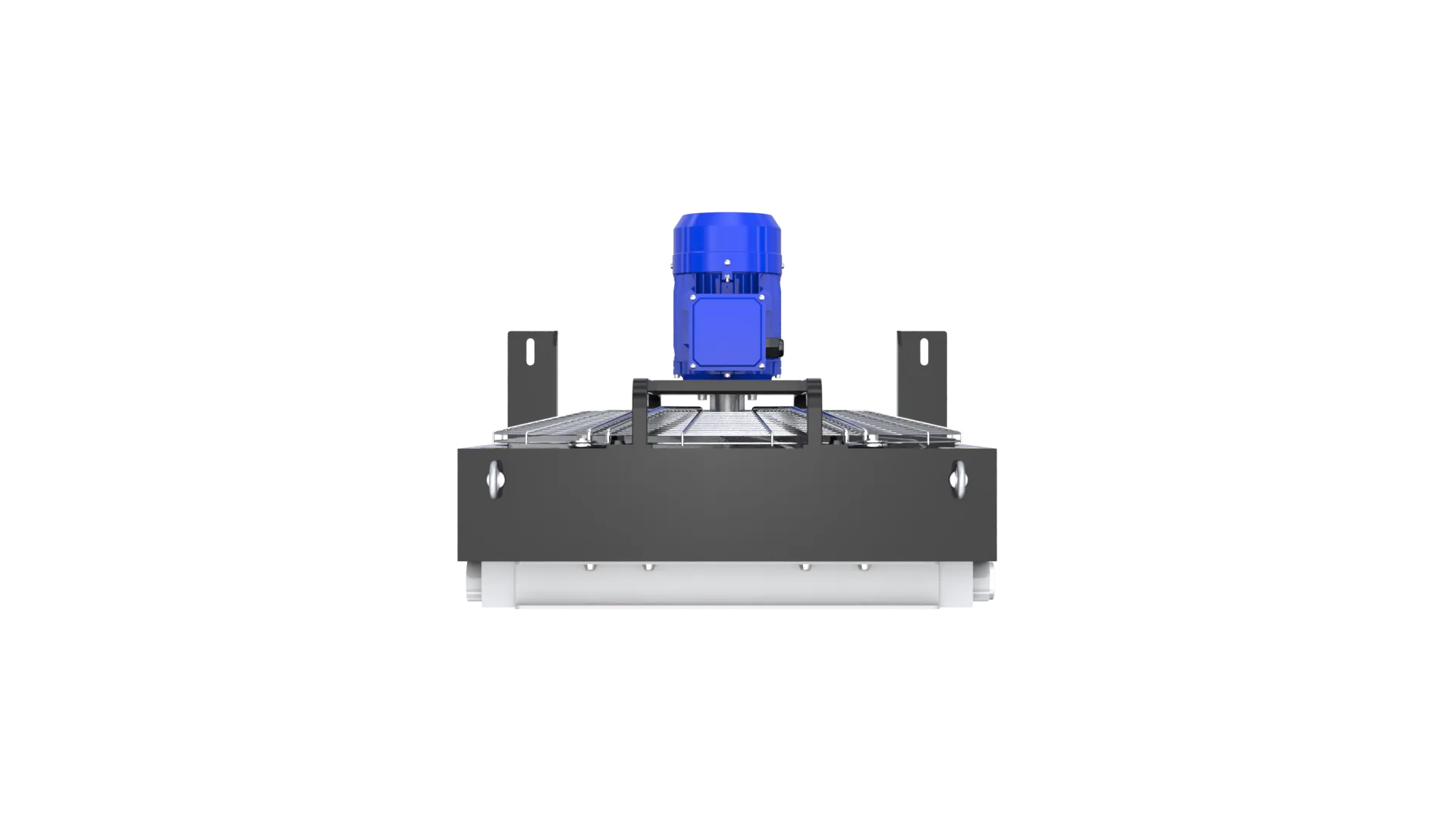

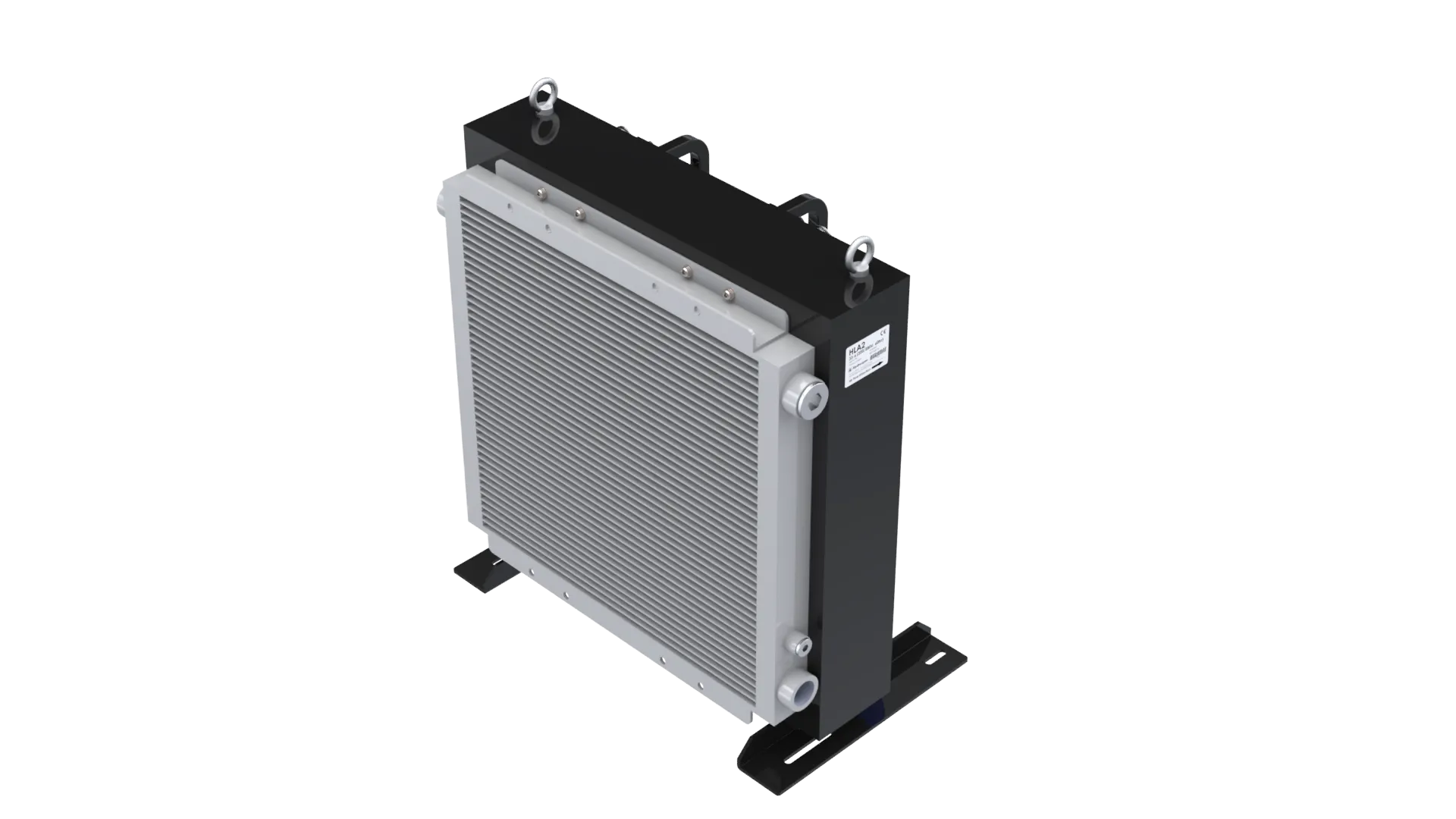

HydroLync HLA2 33-6 AC motor driven air-oil cooler with 6-pole motor
Quick Specifications
Cooling Capacity0.85kW/°C
Heat Dissipation34kW
Heat Dissipation (kcal)29,240kcal/h
Max Flow Rate300L/min
Motor Poles6
Detailed Specifications
Performance
| Cooling Capacity | 0.85 kW/°C |
|---|---|
| Heat Dissipation | 34 kW |
| Heat Dissipation (kcal) | 29,240 kcal/h |
| Max Flow Rate | 300 L/min |
| Motor Poles | 6 |
Dimensions
| Depth (D) | 539 mm |
|---|---|
| Dimension E | 63 mm |
| Dimension F | 482 mm |
| Dimension G | 157 mm |
| Dimension H | 400 mm |
| Dimension I | 270 mm |
| Dimension J | 620 mm |
| Dimension K | 639 mm |
| Height (C) | 742 mm |
| Length (A) | 692 mm |
| Net Weight | 49 kg |
| Mounting Slot | ø12x92 ø12x21 |
| Width (B) | 692 mm |
Electrical
| Motor Type | 6-Pole AC Motor |
|---|
