HLA2 35-4 AC Motor Cooler
Product specifications and documentation
HLA2 35-4 AC Motor Cooler

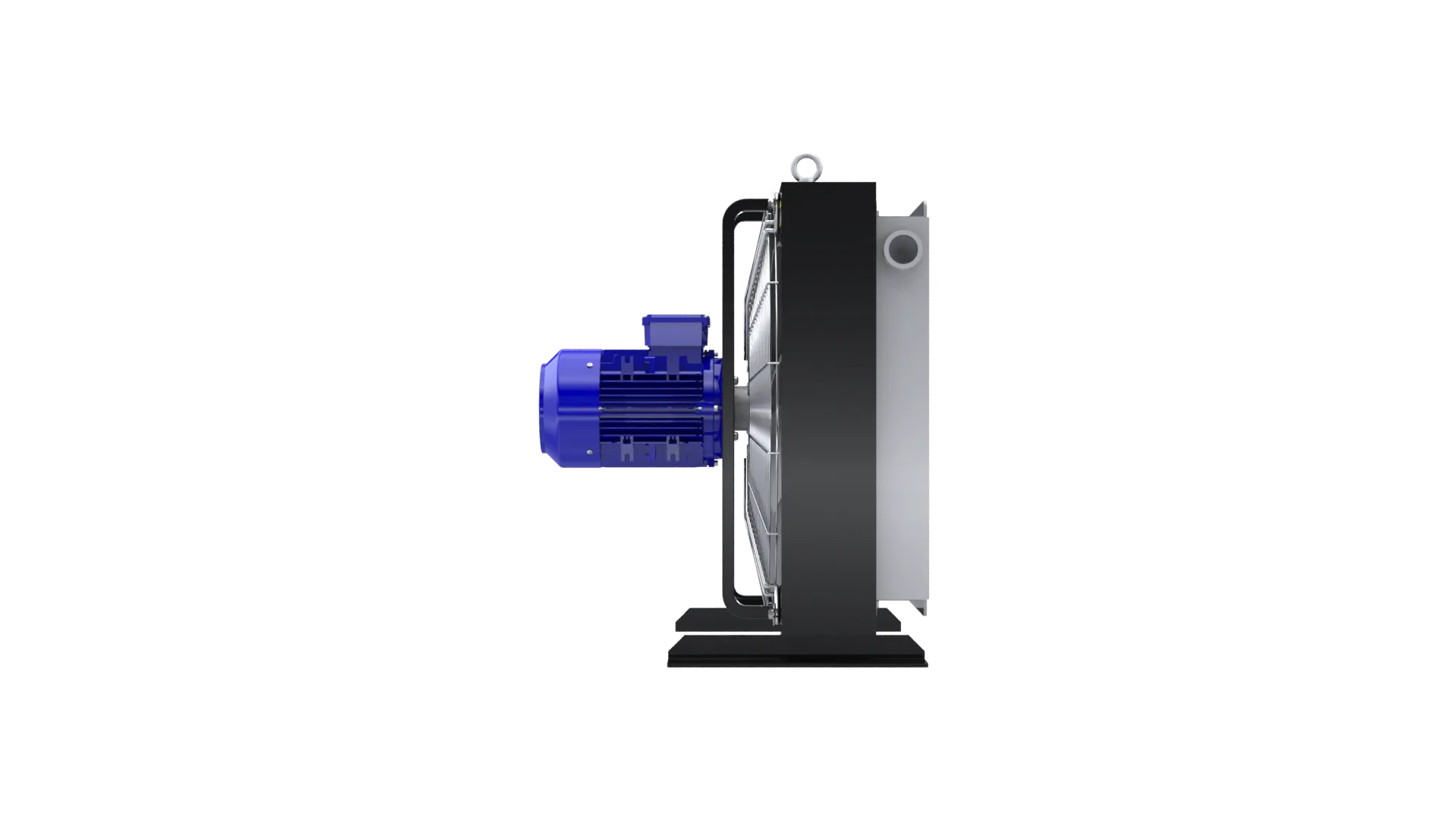

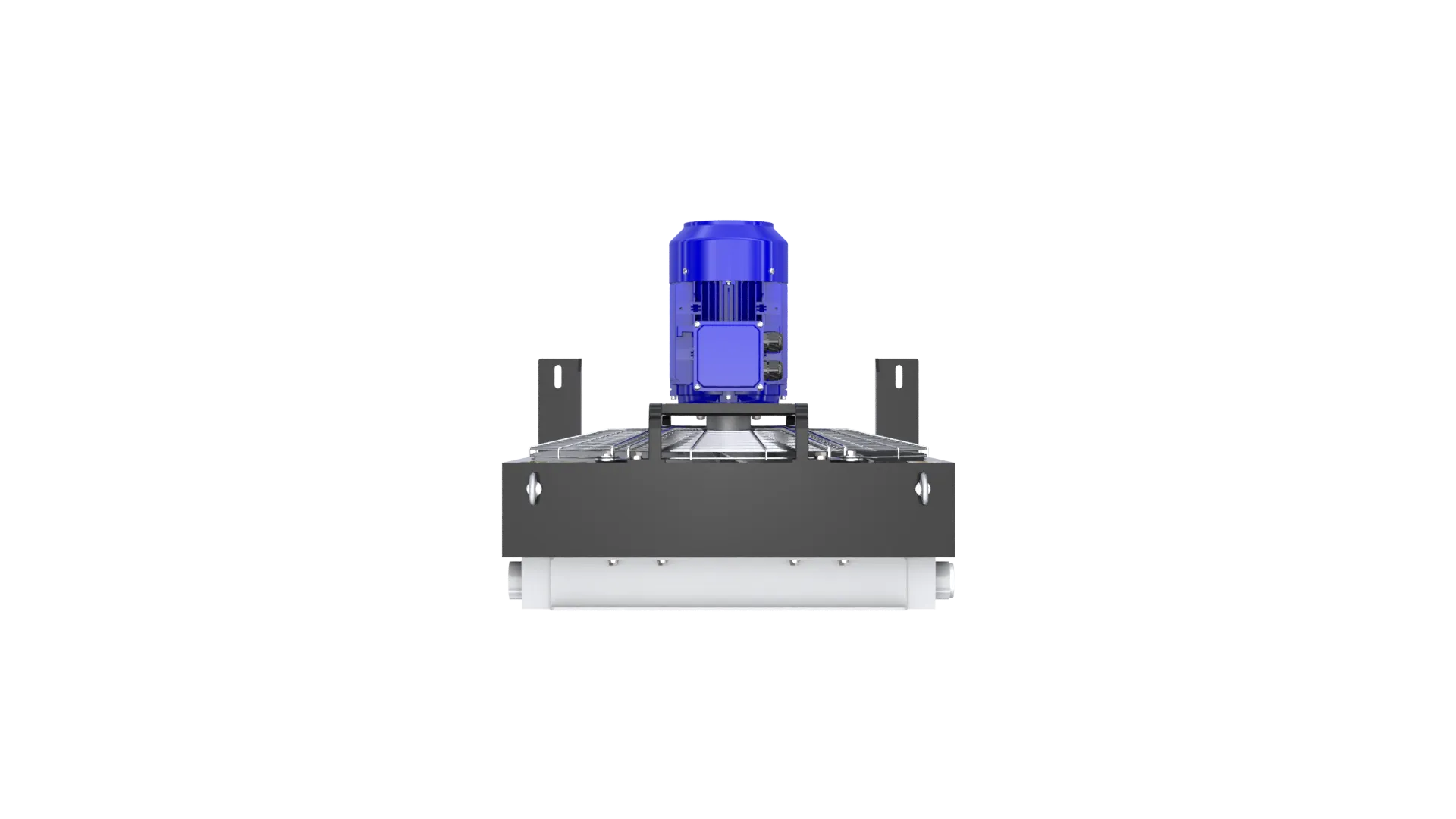

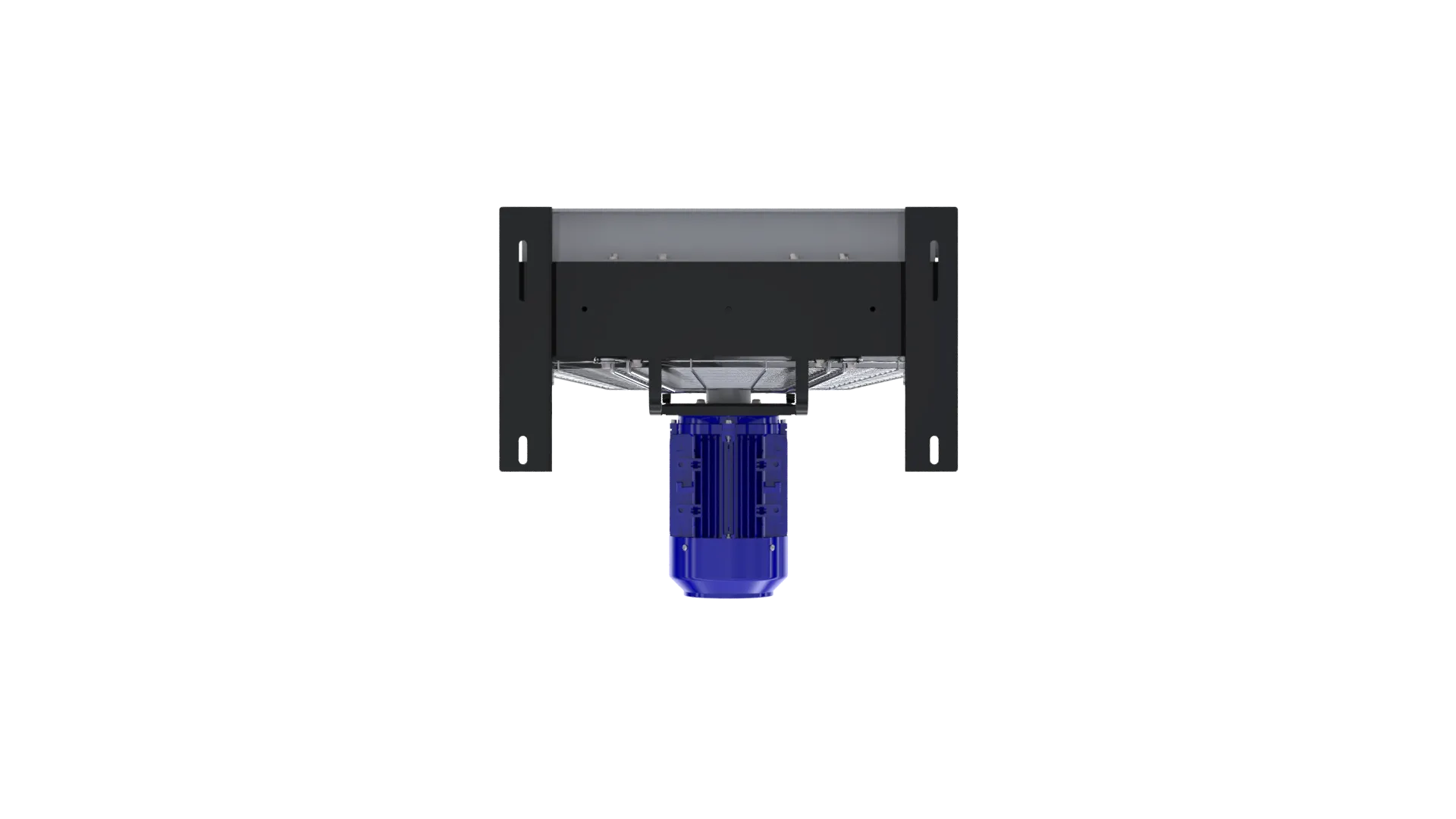

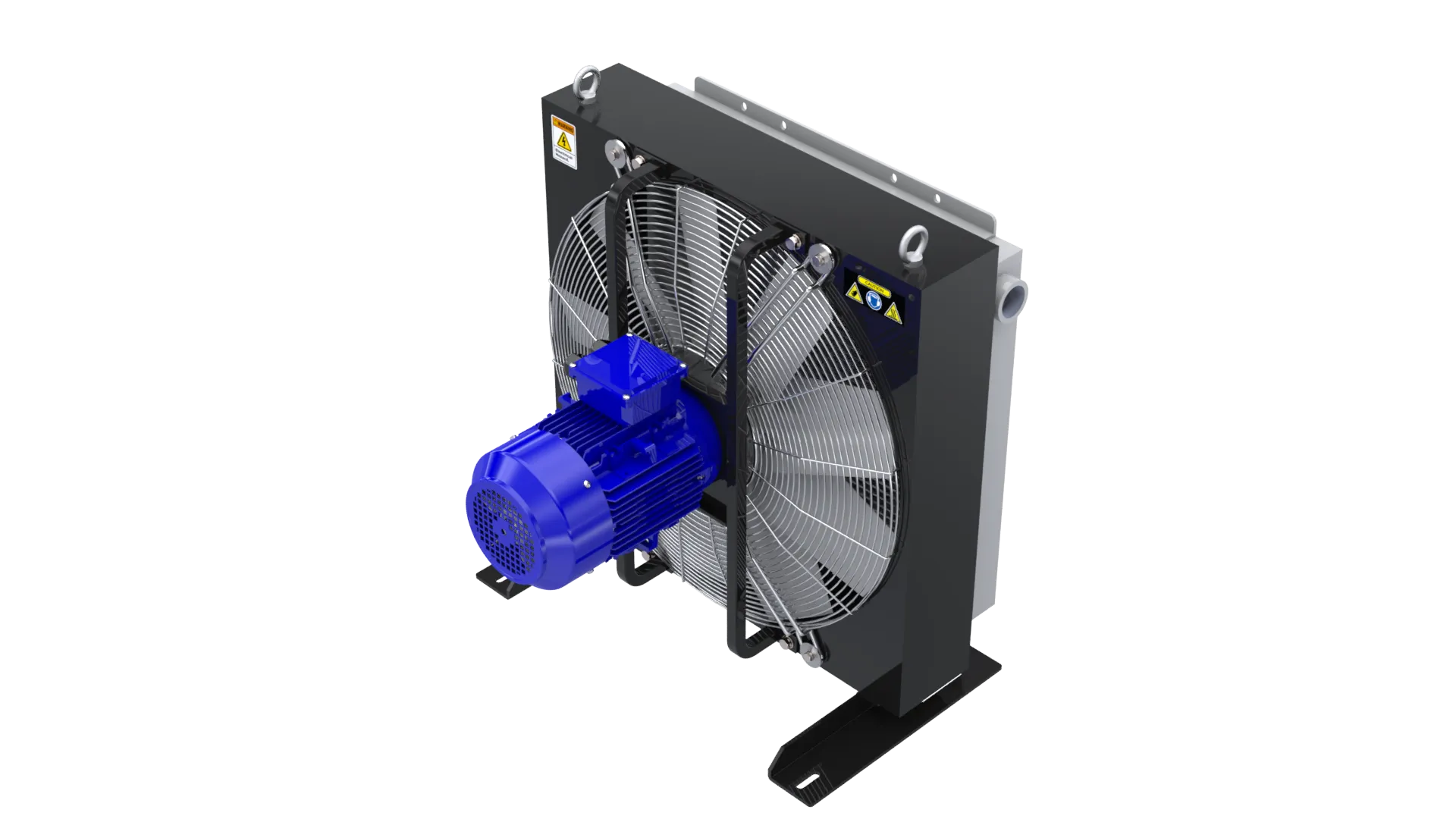

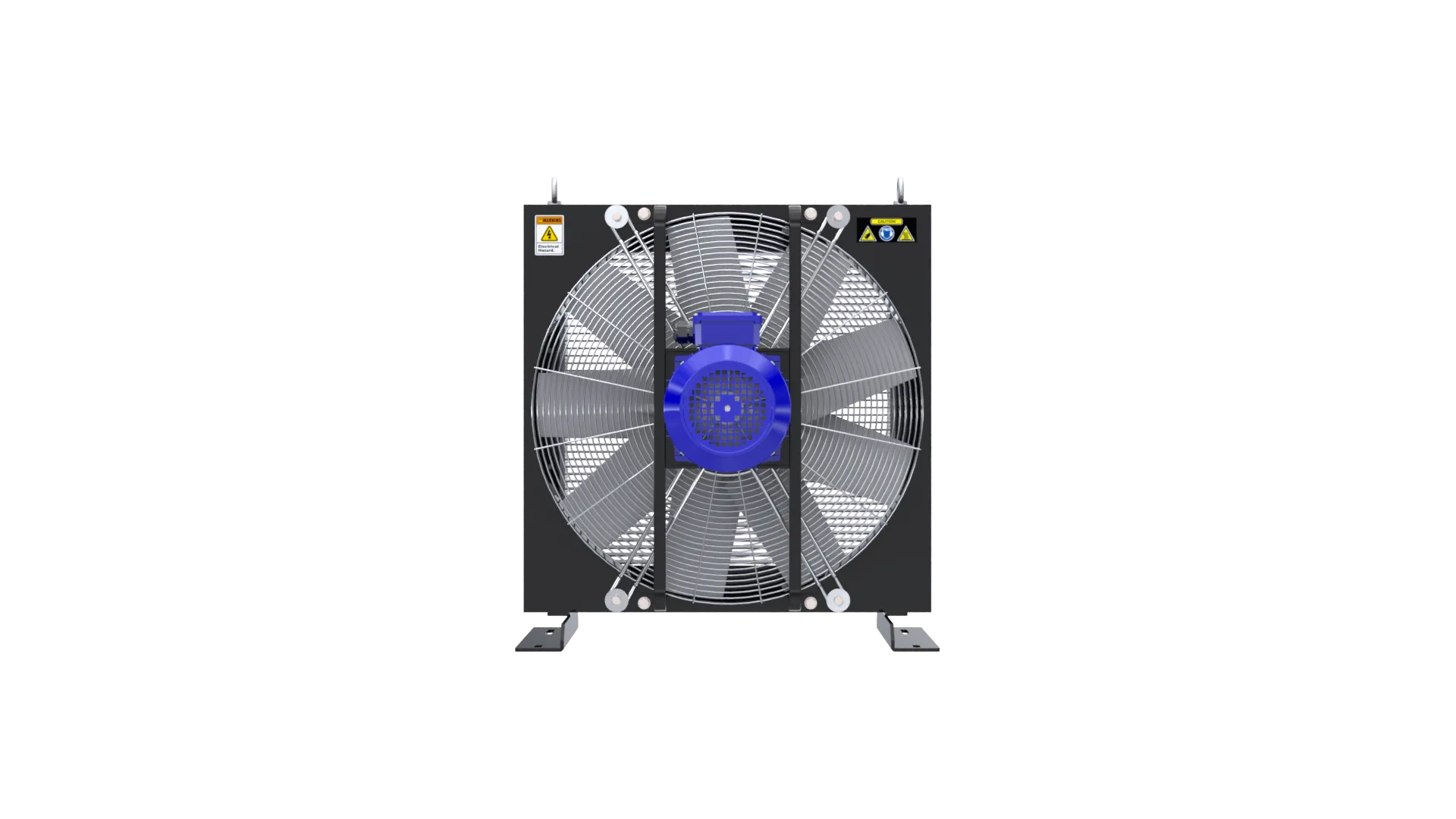

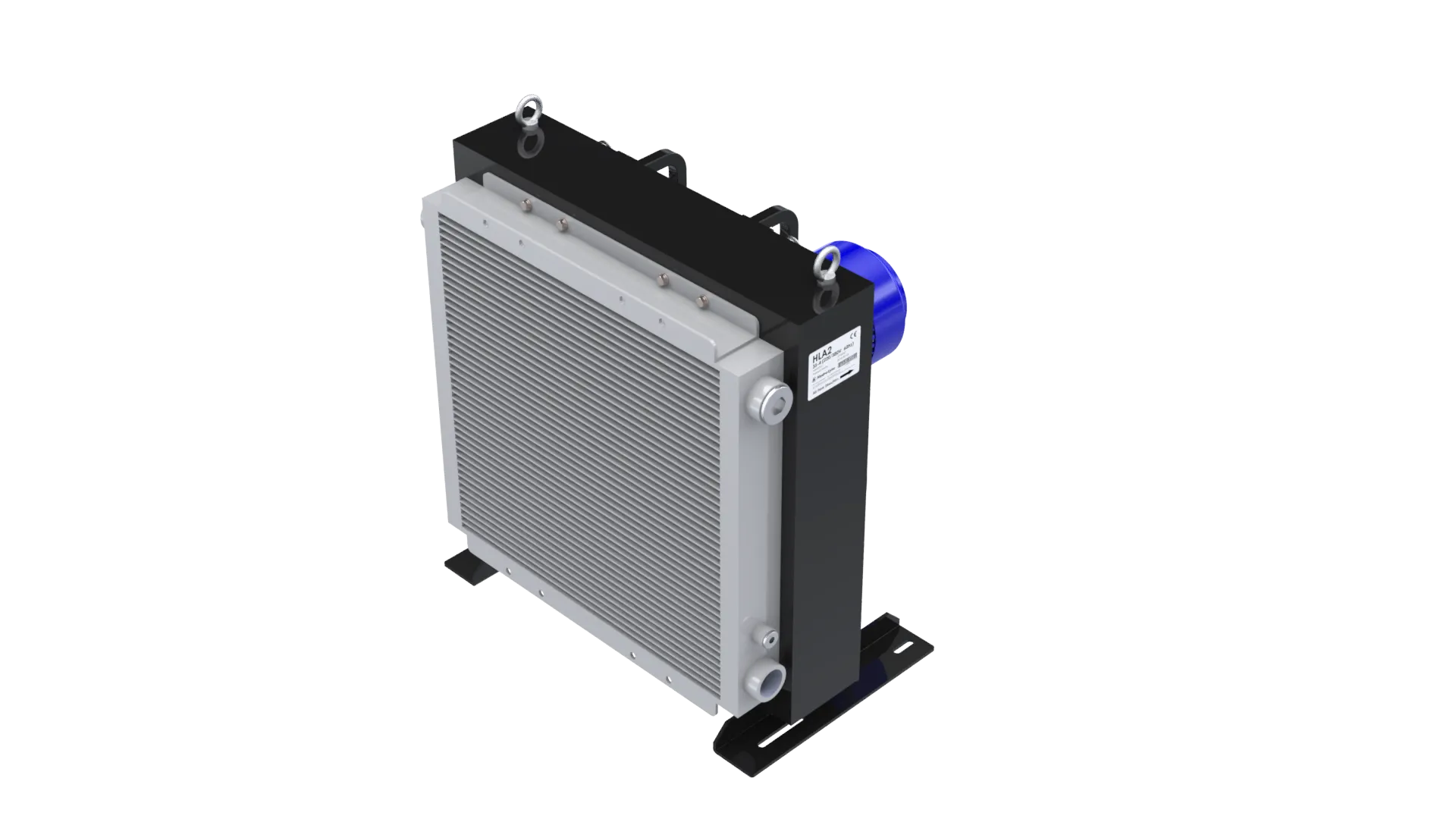

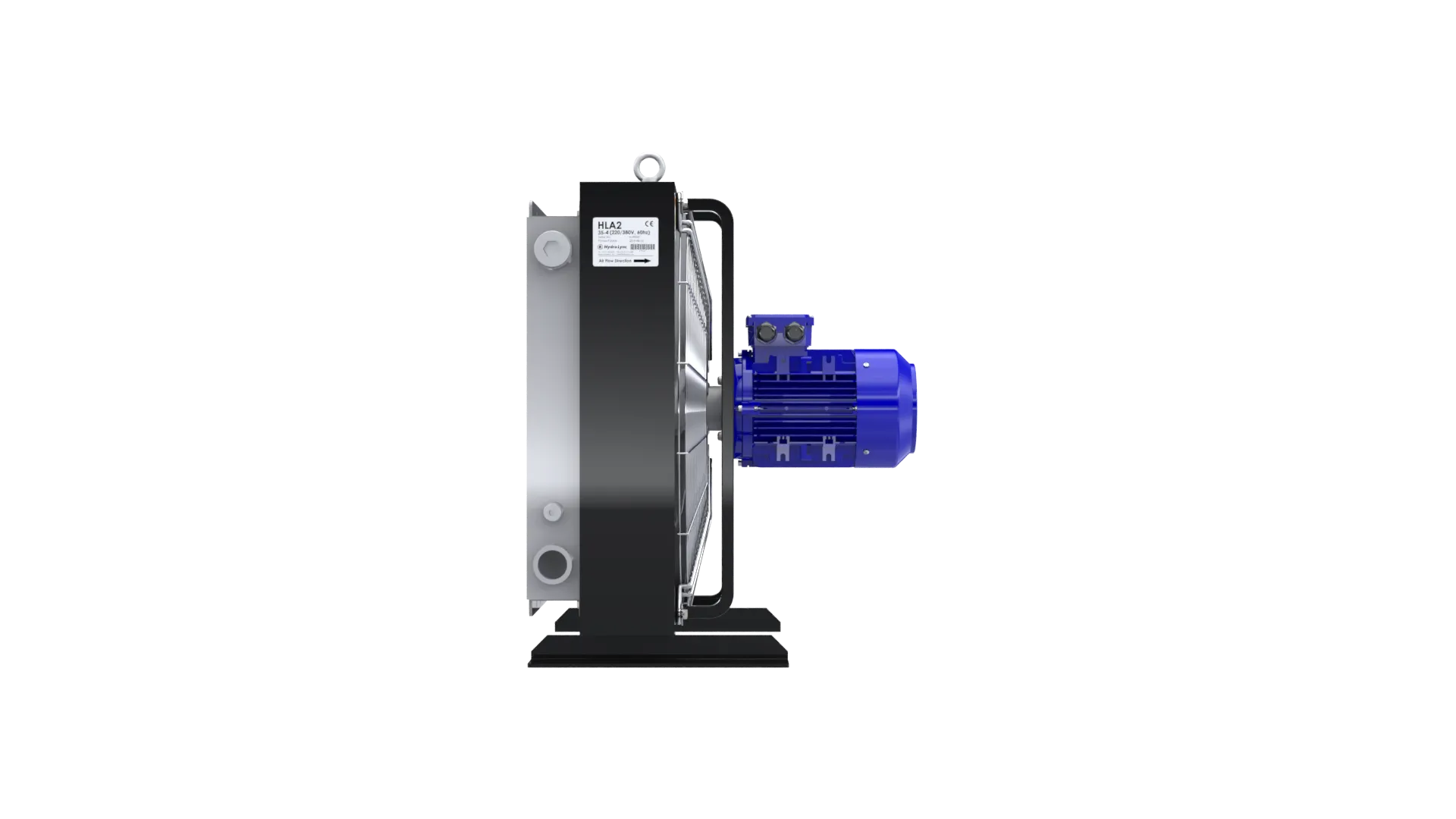

HydroLync HLA2 35-4 AC motor driven air-oil cooler with 4-pole motor
Quick Specifications
Cooling Capacity1.3kW/°C
Heat Dissipation52kW
Heat Dissipation (kcal)44,720kcal/h
Max Flow Rate350L/min
Motor Poles4
Detailed Specifications
Performance
| Cooling Capacity | 1.3 kW/°C |
|---|---|
| Heat Dissipation | 52 kW |
| Heat Dissipation (kcal) | 44,720 kcal/h |
| Max Flow Rate | 350 L/min |
| Motor Poles | 4 |
Dimensions
| Depth (D) | 622 mm |
|---|---|
| Dimension E | 83 mm |
| Dimension F | 482 mm |
| Dimension G | 157 mm |
| Dimension H | 400 mm |
| Dimension I | 270 mm |
| Dimension J | 620 mm |
| Dimension K | 639 mm |
| Height (C) | 742 mm |
| Length (A) | 692 mm |
| Net Weight | 70 kg |
| Mounting Slot | ø12x92 ø12x21 |
| Width (B) | 692 mm |
Electrical
| Motor Type | 4-Pole AC Motor |
|---|
