HLA2 76-6 AC Motor Cooler
Product specifications and documentation
HLA2 76-6 AC Motor Cooler

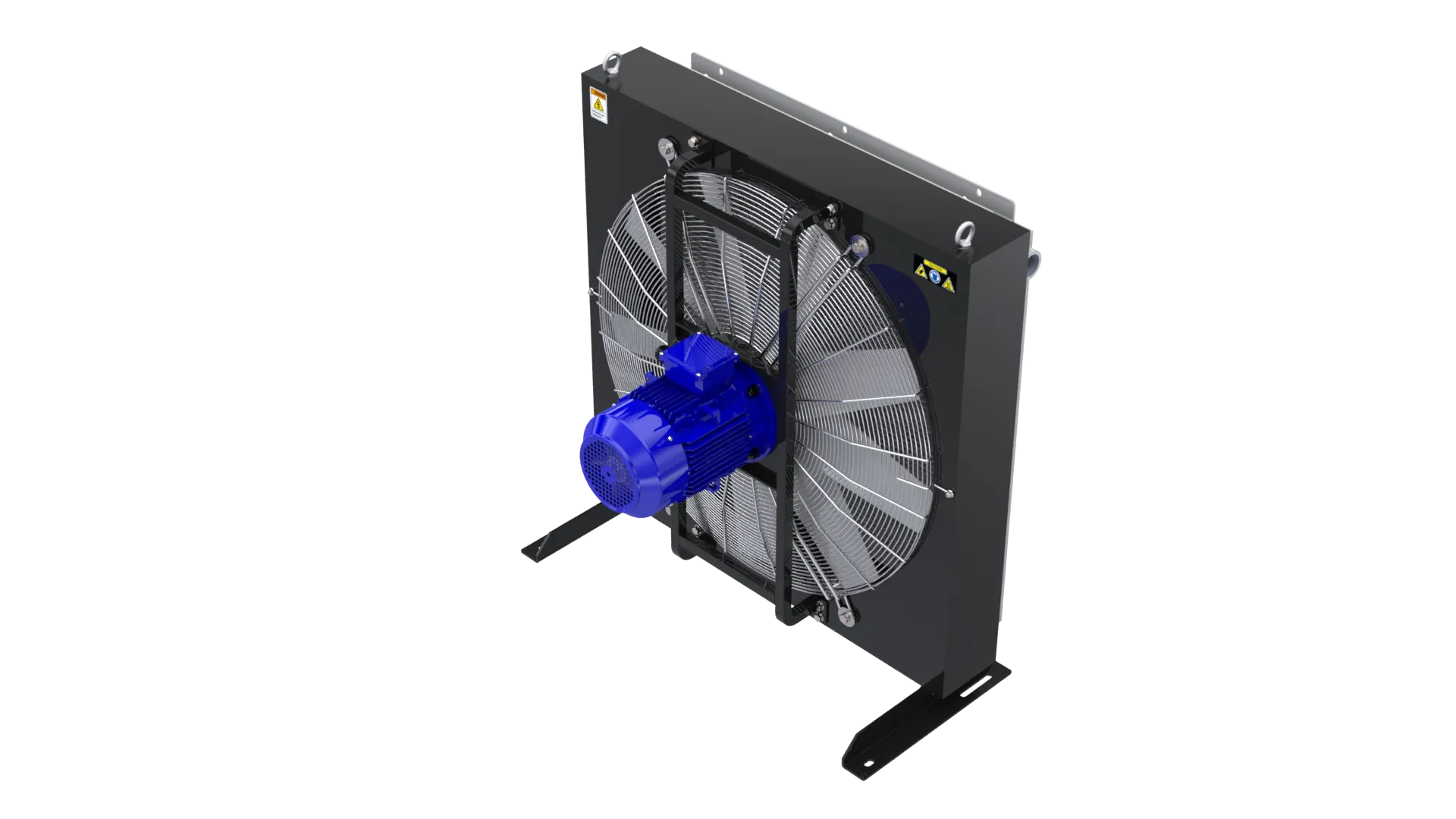

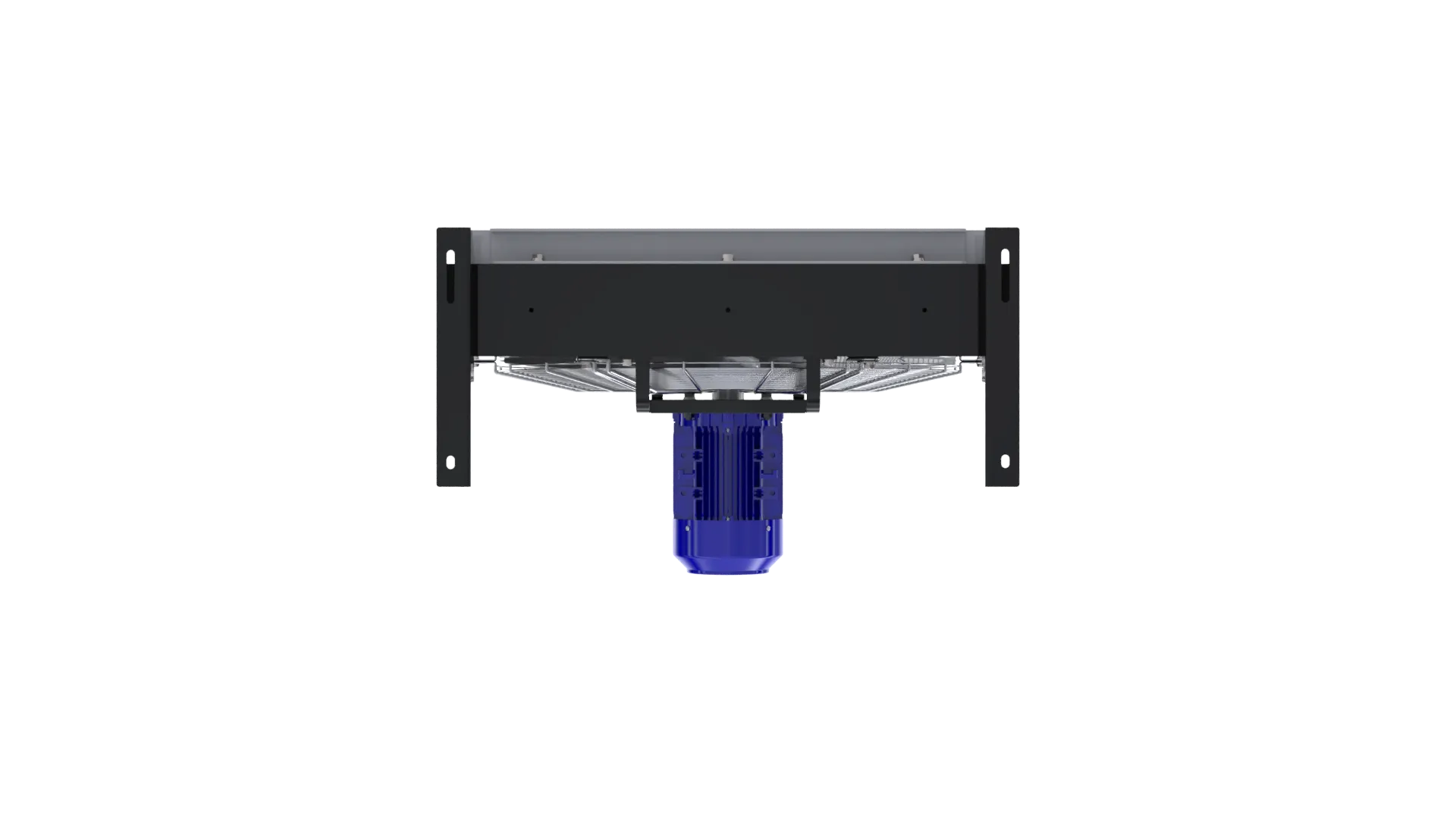

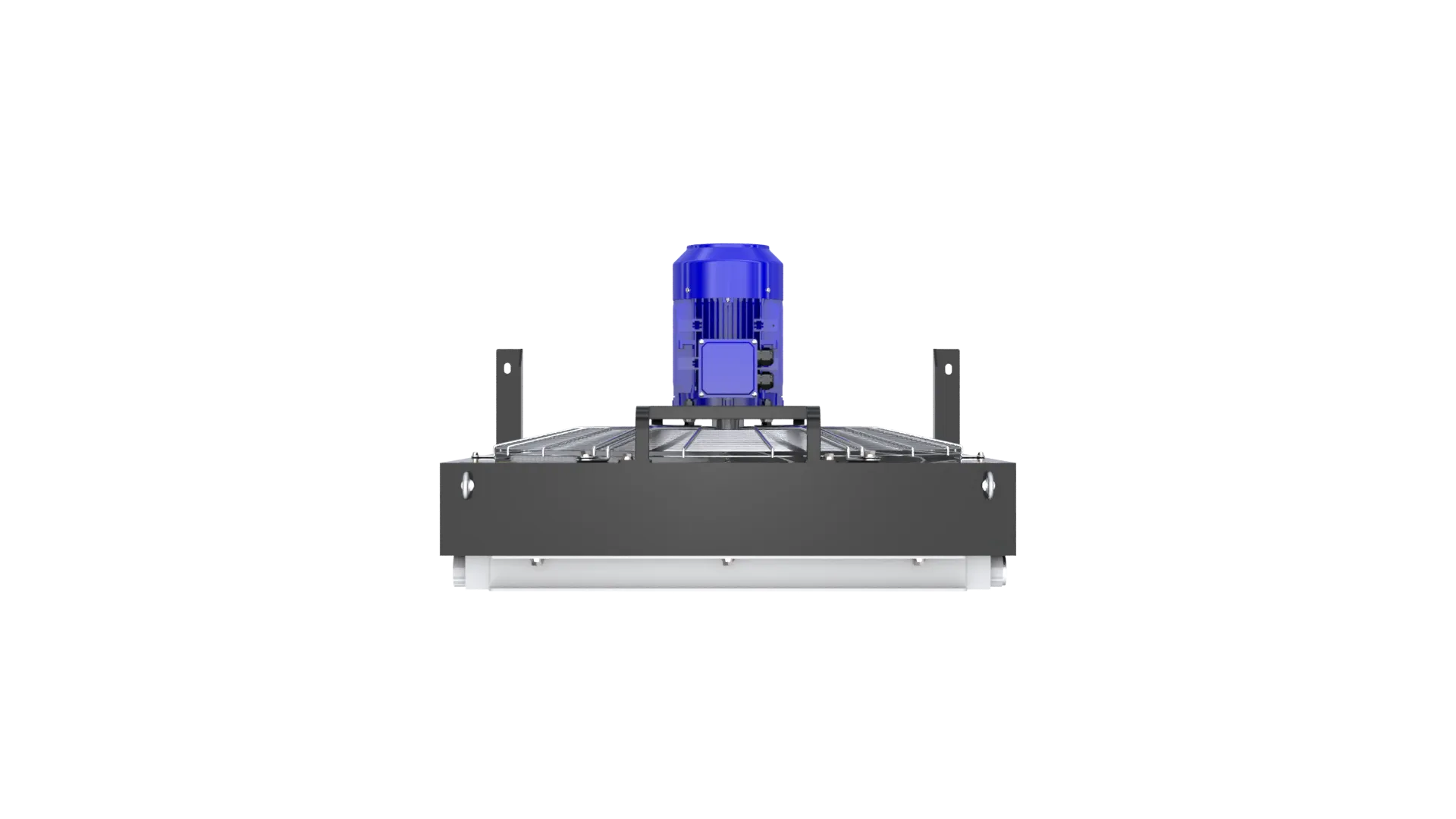

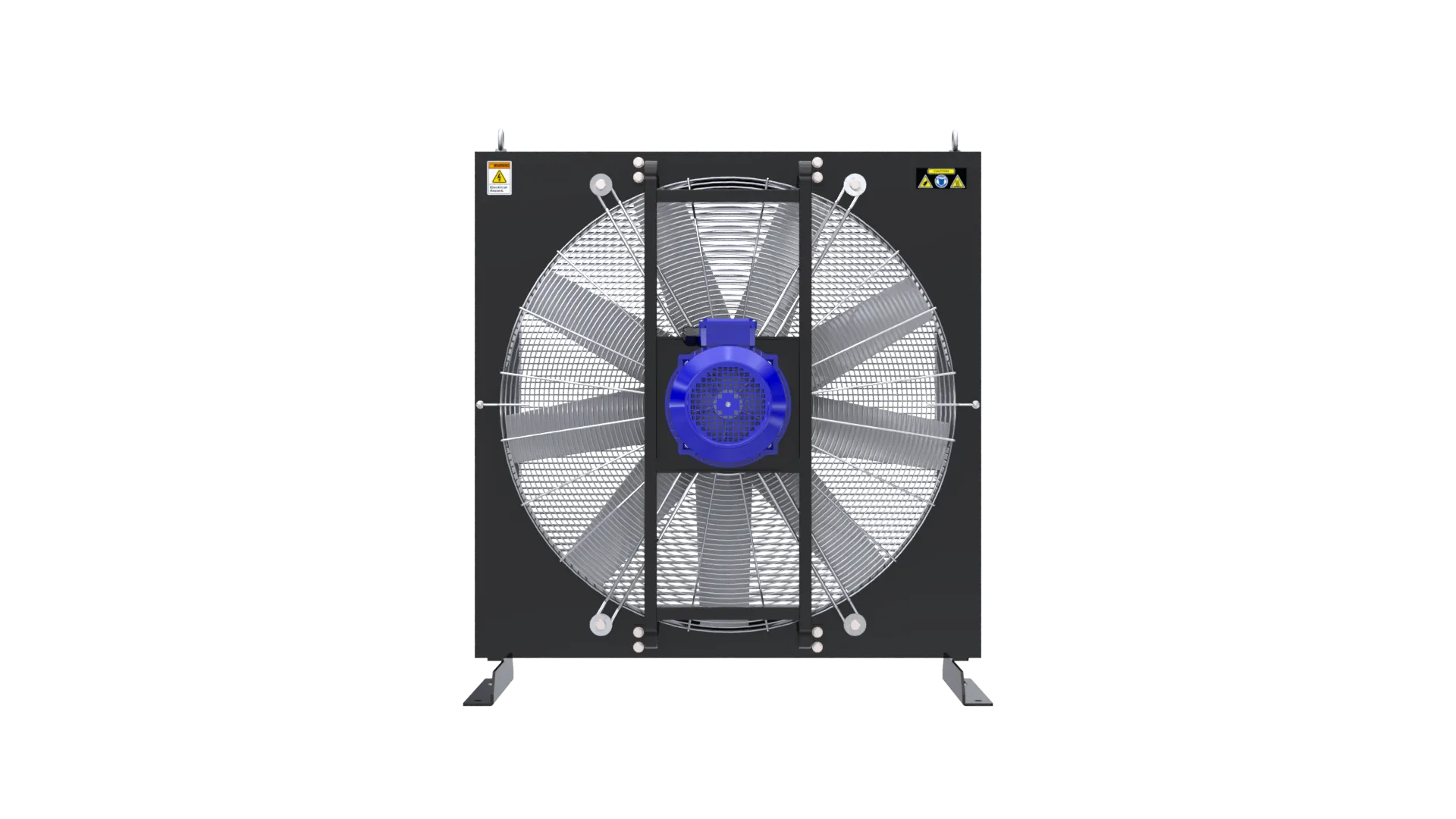

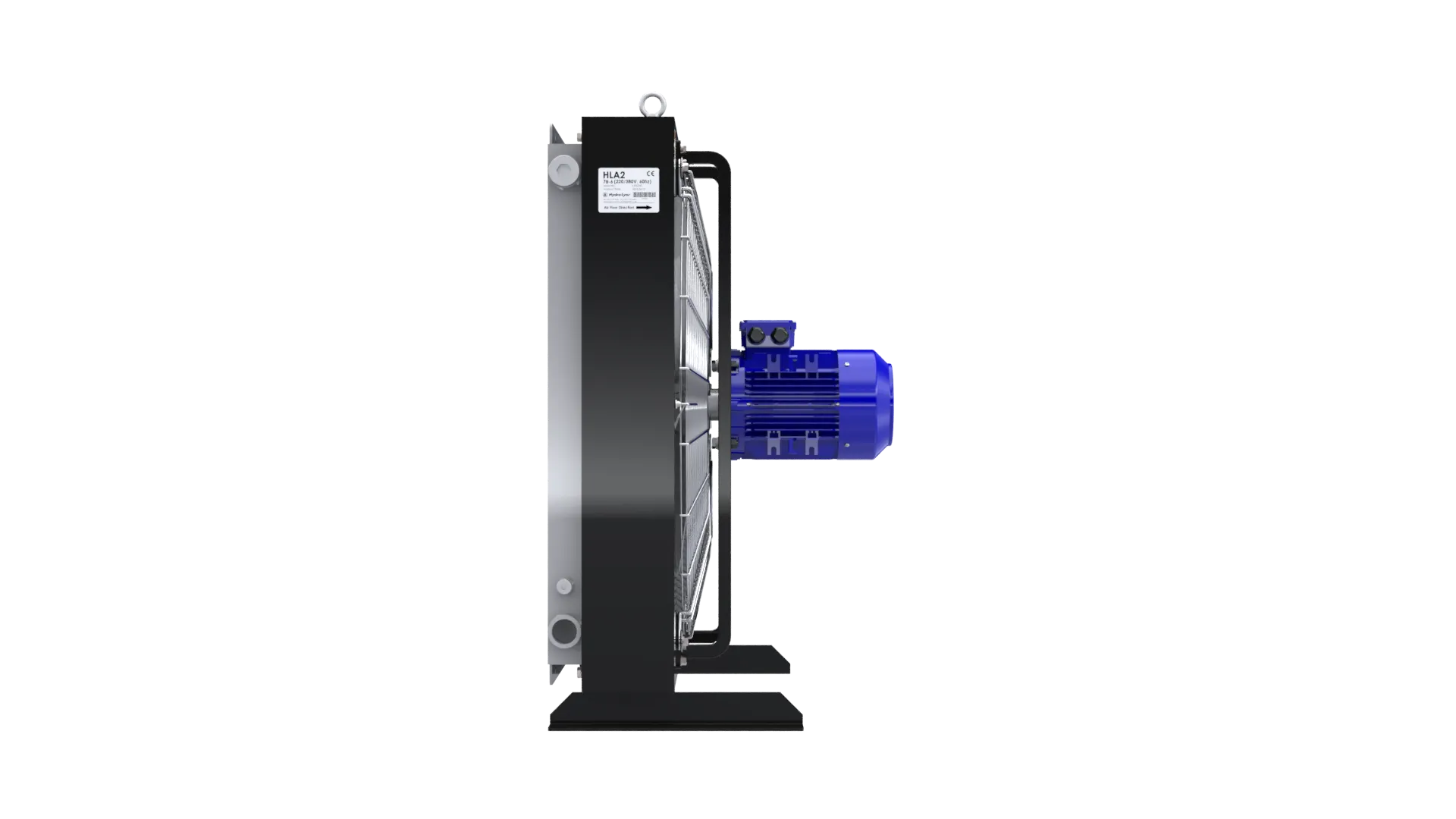

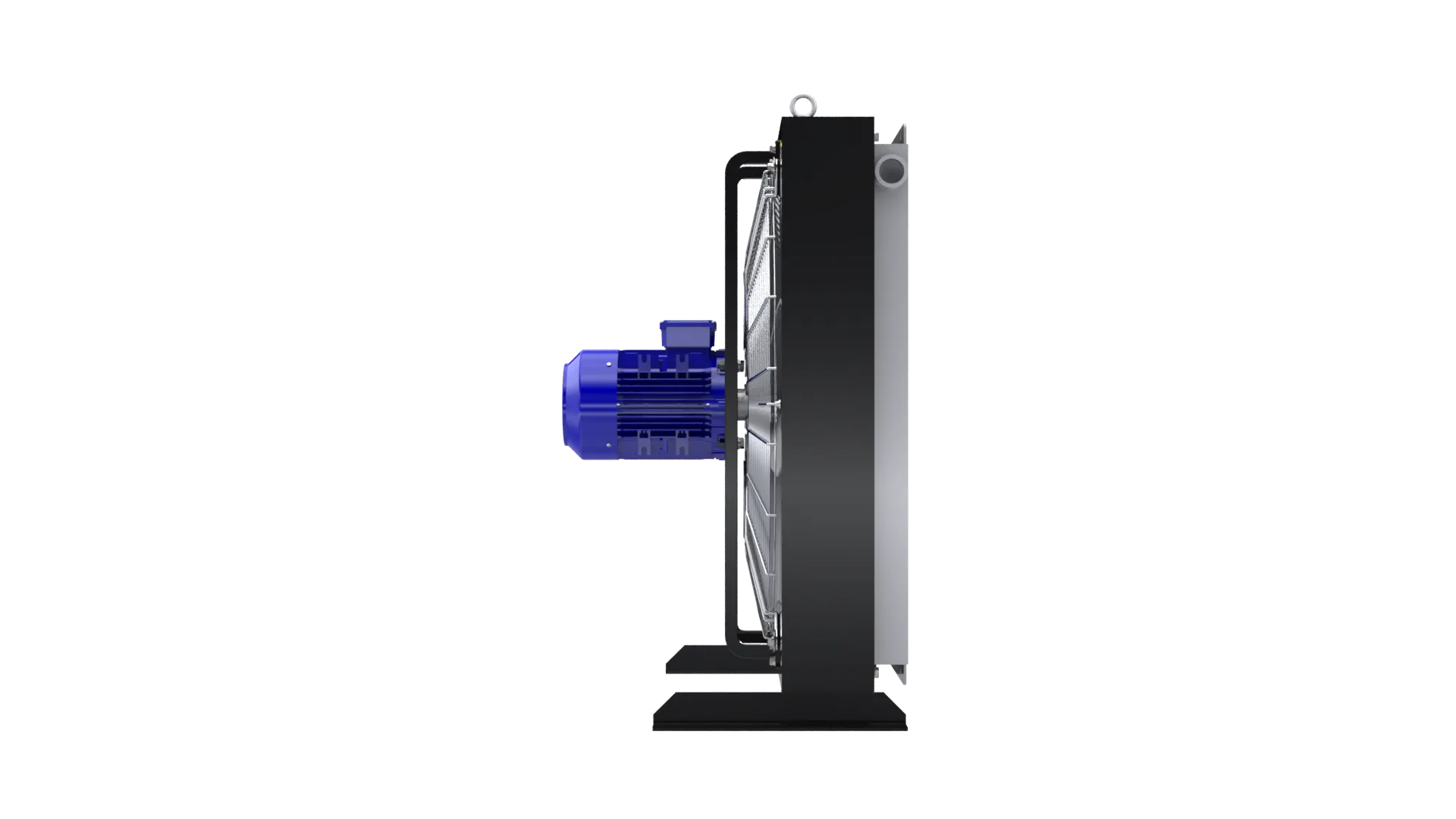

HydroLync HLA2 76-6 AC motor driven air-oil cooler with 6-pole motor
Quick Specifications
Cooling Capacity1.95kW/°C
Heat Dissipation78kW
Heat Dissipation (kcal)67,080kcal/h
Max Flow Rate400L/min
Motor Poles6
Detailed Specifications
Performance
| Cooling Capacity | 1.95 kW/°C |
|---|---|
| Heat Dissipation | 78 kW |
| Heat Dissipation (kcal) | 67,080 kcal/h |
| Max Flow Rate | 400 L/min |
| Motor Poles | 6 |
Dimensions
| Depth (D) | 642 mm |
|---|---|
| Dimension E | 63 mm |
| Dimension F | 821 mm |
| Dimension G | 176 mm |
| Dimension H | 455 mm |
| Dimension I | 325 mm |
| Dimension J | 972 mm |
| Dimension K | 997 mm |
| Height (C) | 1,092 mm |
| Length (A) | 1,022 mm |
| Net Weight | 126 kg |
| Mounting Slot | ø14x94 ø14x23 |
| Width (B) | 1,022 mm |
Electrical
| Motor Type | 6-Pole AC Motor |
|---|
