HLA2 78-6 AC Motor Cooler
Product specifications and documentation
HLA2 78-6 AC Motor Cooler

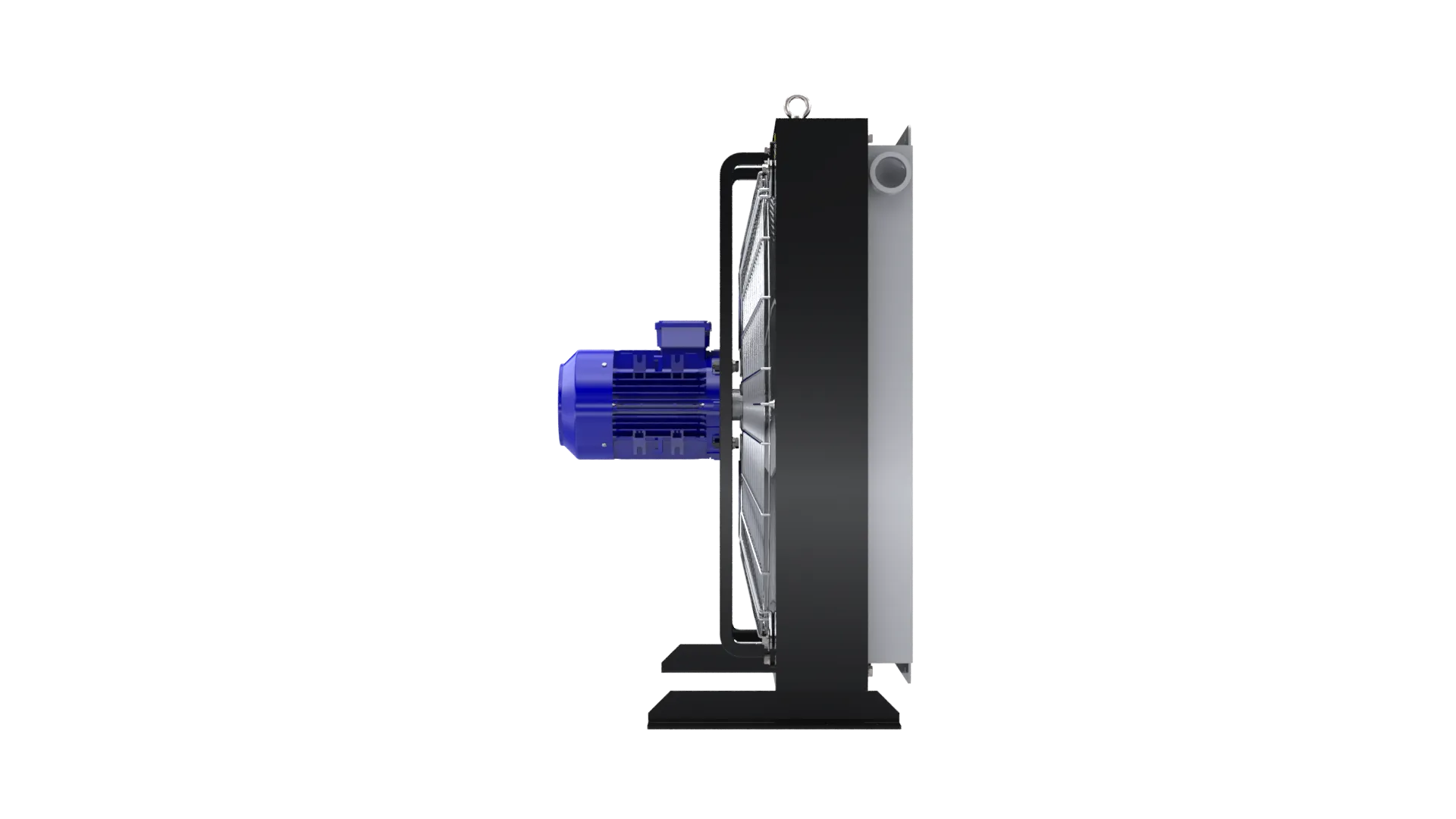

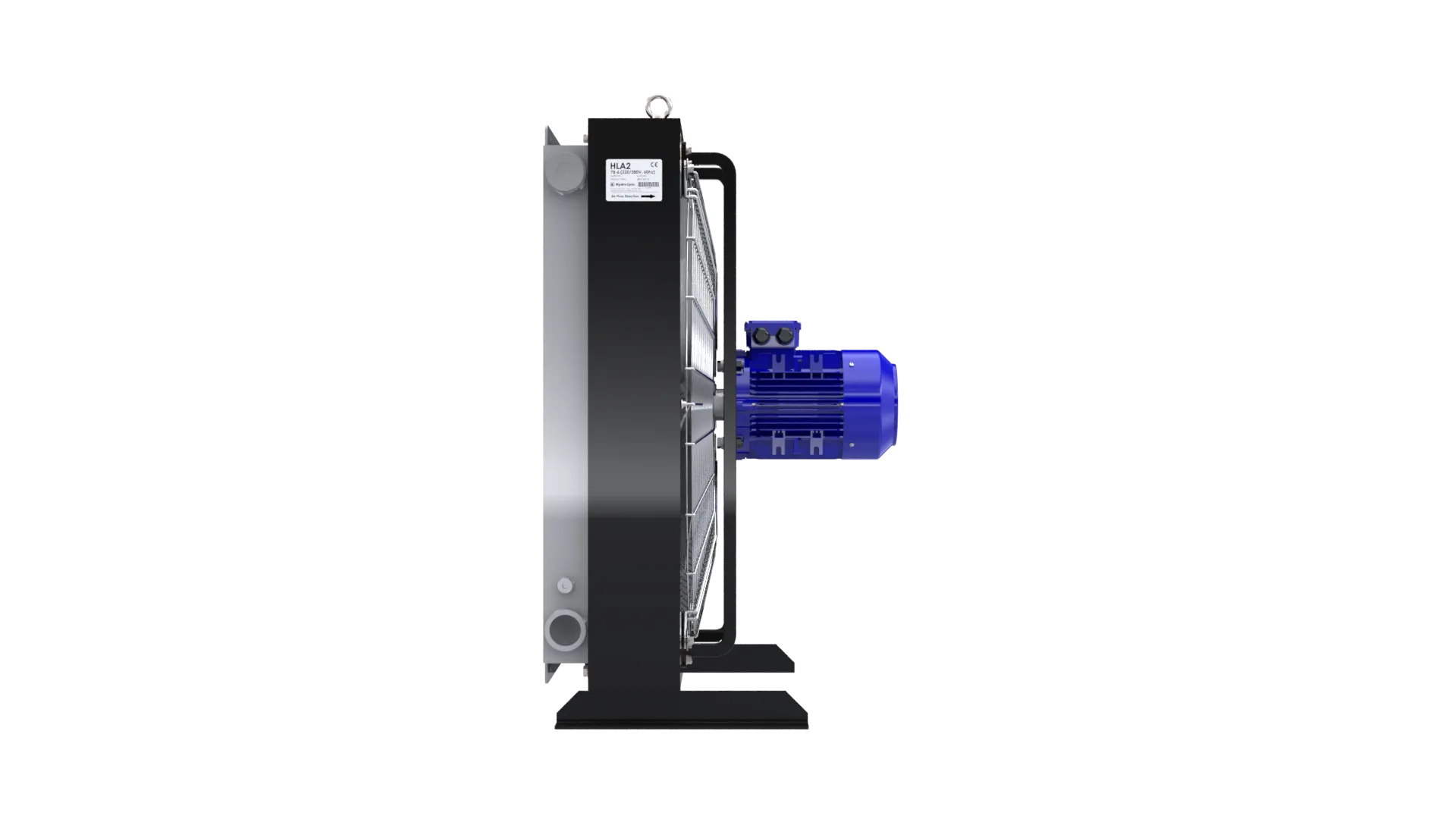

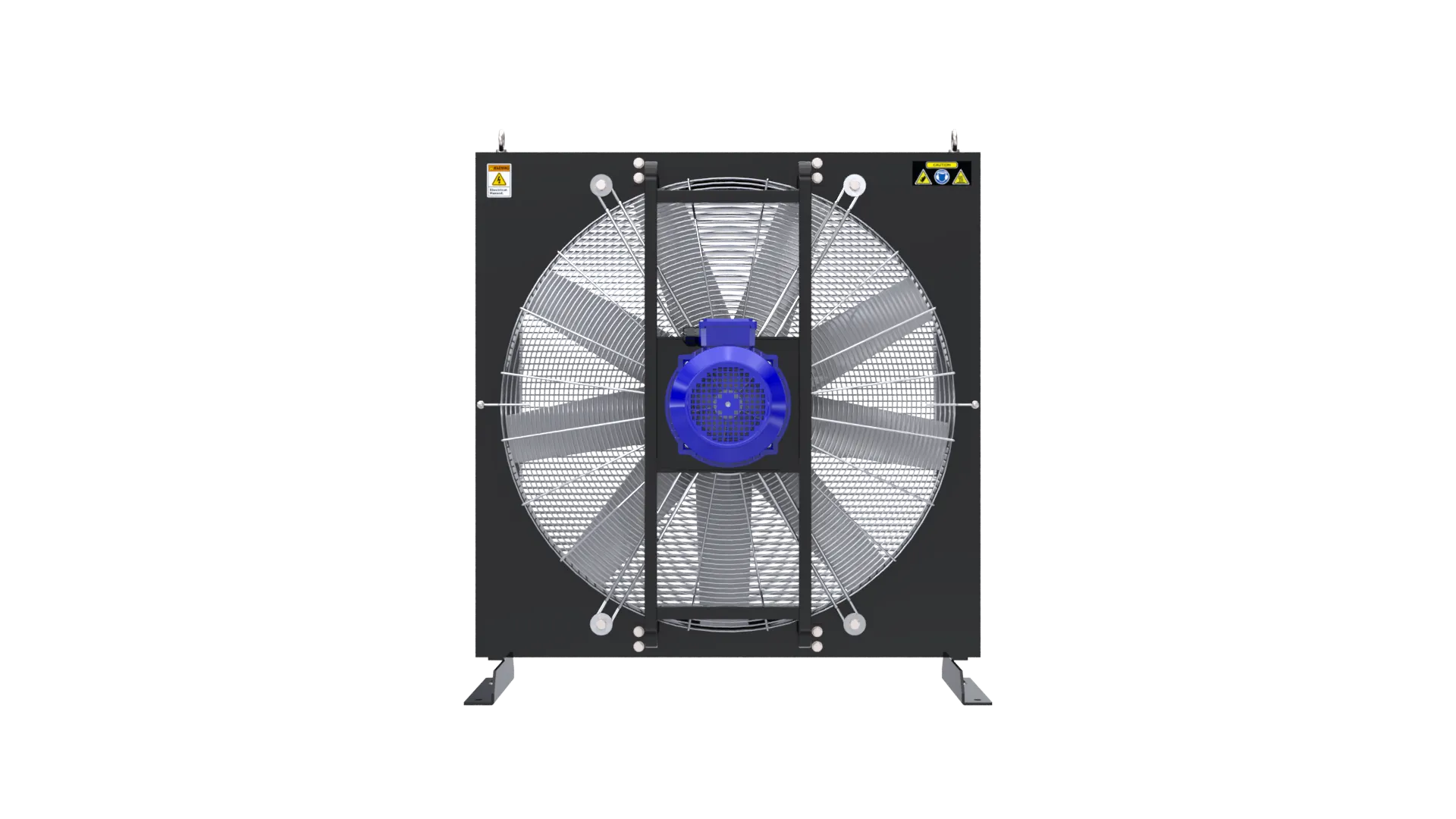

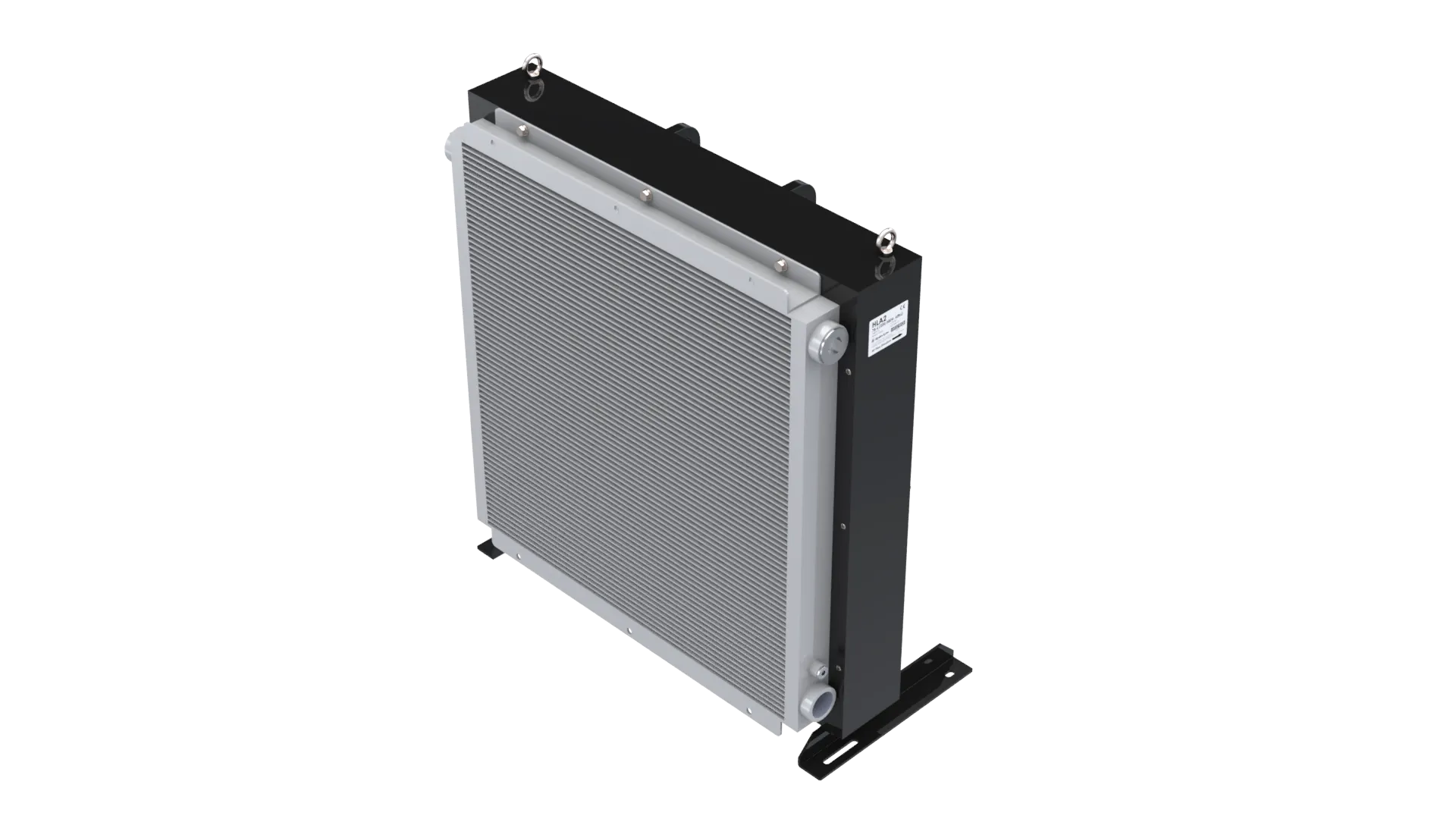

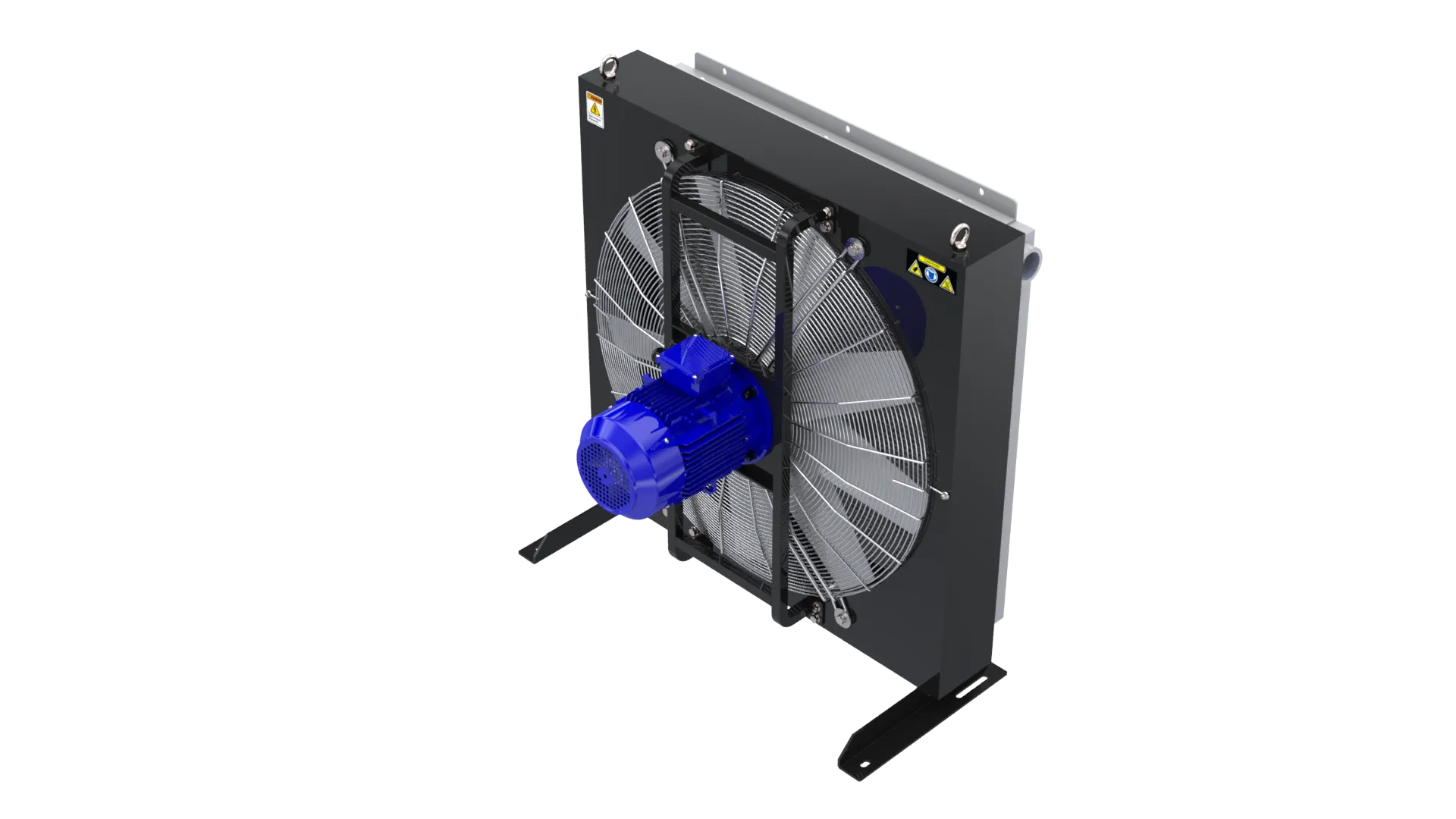

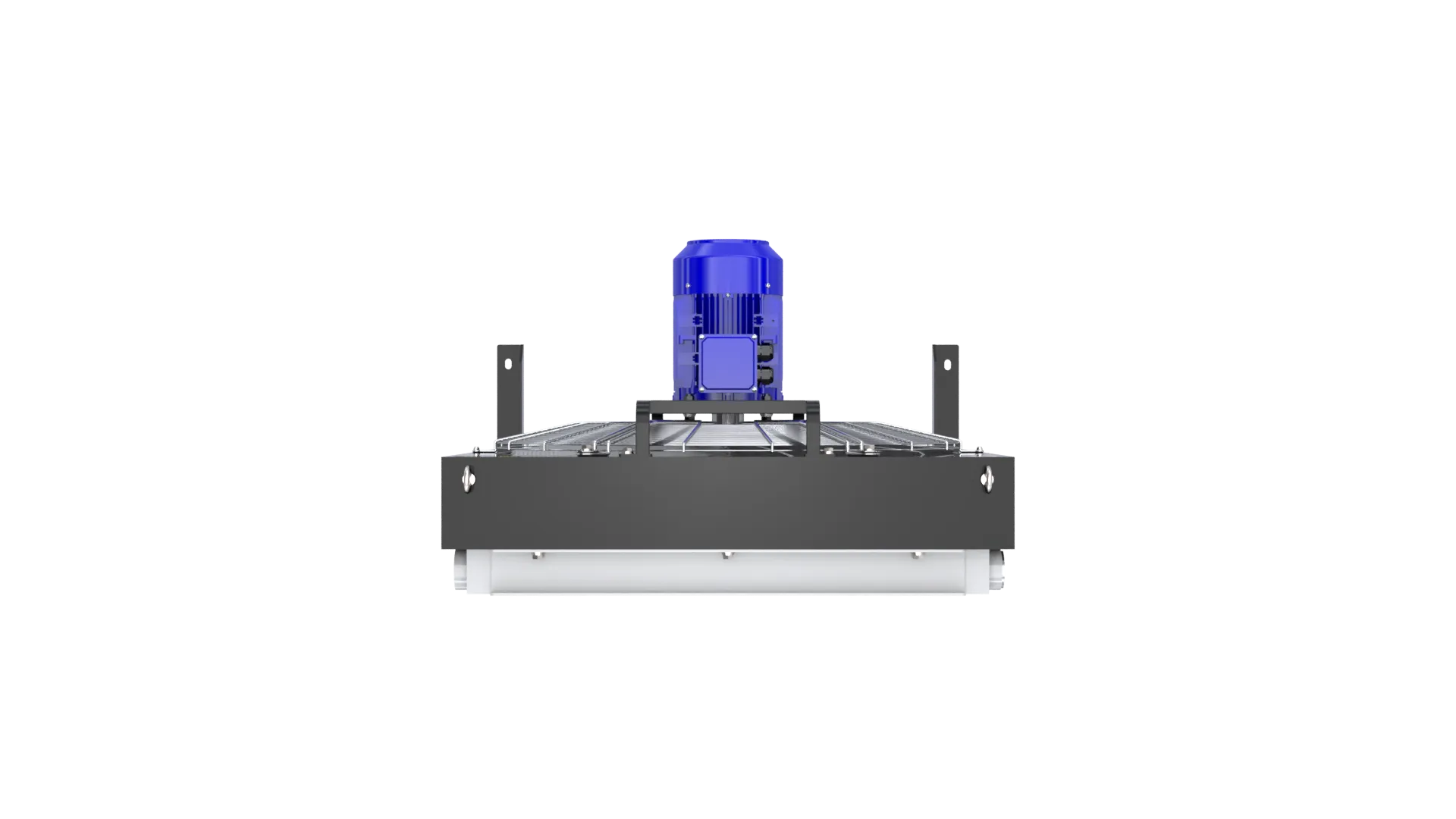

HydroLync HLA2 78-6 AC motor driven air-oil cooler with 6-pole motor
Quick Specifications
Cooling Capacity2.25kW/°C
Heat Dissipation90kW
Heat Dissipation (kcal)77,400kcal/h
Max Flow Rate500L/min
Motor Poles6
Detailed Specifications
Performance
| Cooling Capacity | 2.25 kW/°C |
|---|---|
| Heat Dissipation | 90 kW |
| Heat Dissipation (kcal) | 77,400 kcal/h |
| Max Flow Rate | 500 L/min |
| Motor Poles | 6 |
Dimensions
| Depth (D) | 662 mm |
|---|---|
| Dimension E | 83 mm |
| Dimension F | 821 mm |
| Dimension G | 176 mm |
| Dimension H | 455 mm |
| Dimension I | 325 mm |
| Dimension J | 972 mm |
| Dimension K | 997 mm |
| Height (C) | 1,092 mm |
| Length (A) | 1,022 mm |
| Net Weight | 135 kg |
| Mounting Slot | ø14x94 ø14x23 |
| Width (B) | 1,022 mm |
Electrical
| Motor Type | 6-Pole AC Motor |
|---|
Downloads
Catalogs & Documents
HLA2 Series Selection Guide 2026 V04EN
Air Oil Cooler Series User Manual 2026KO
HLA2 Series Selection Guide 2026 V04KO
HLA2 Series Selection Guide 2026 V04ZH
HydroLync Complete Selection Guide 2026 V05 (EN)EN
HydroLync Complete Selection Guide 2026 V05 (KR)KO
HydroLync Complete Selection Guide 2026 V05 (CN)ZH
Dimensional Drawings
