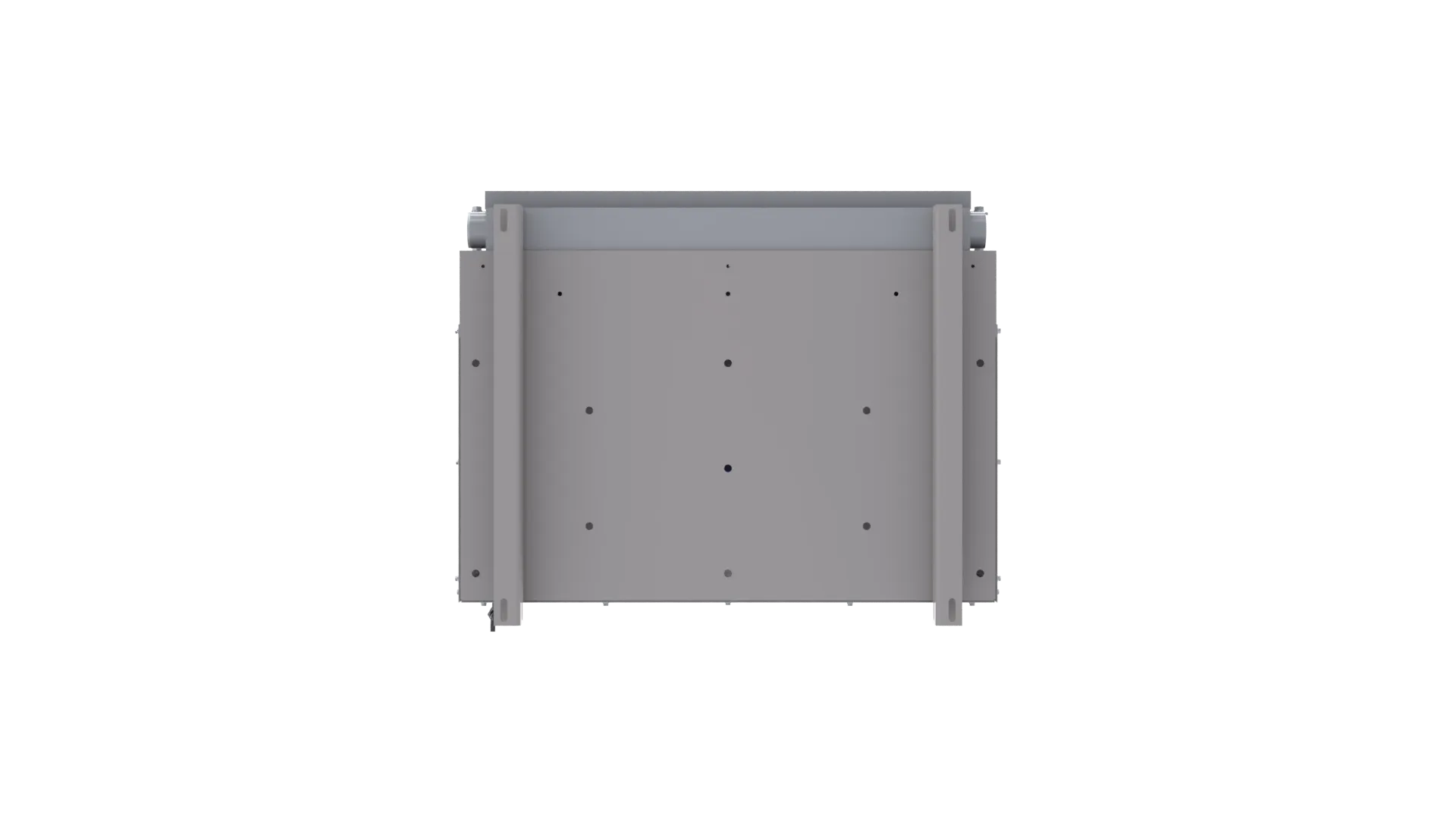

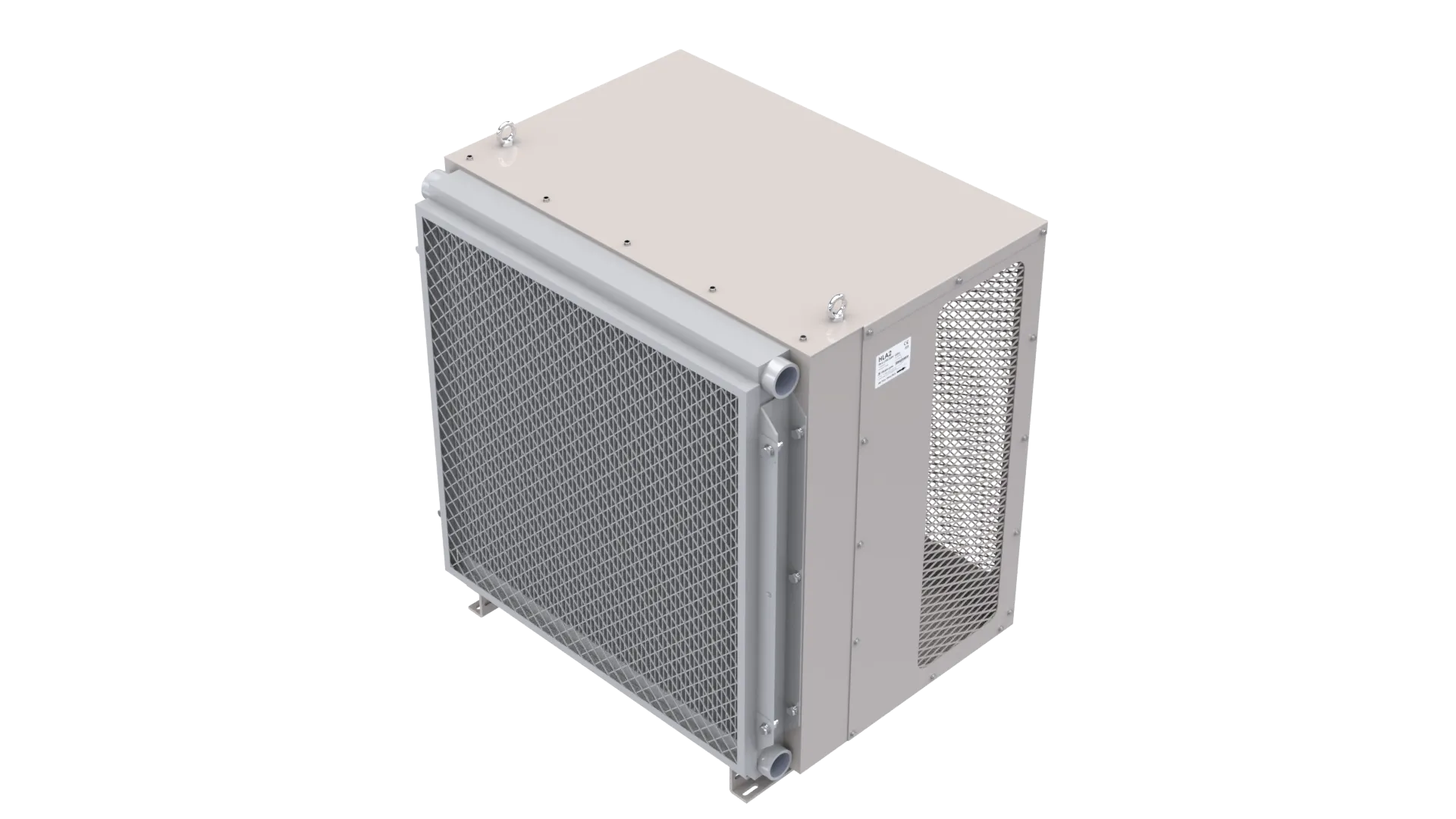

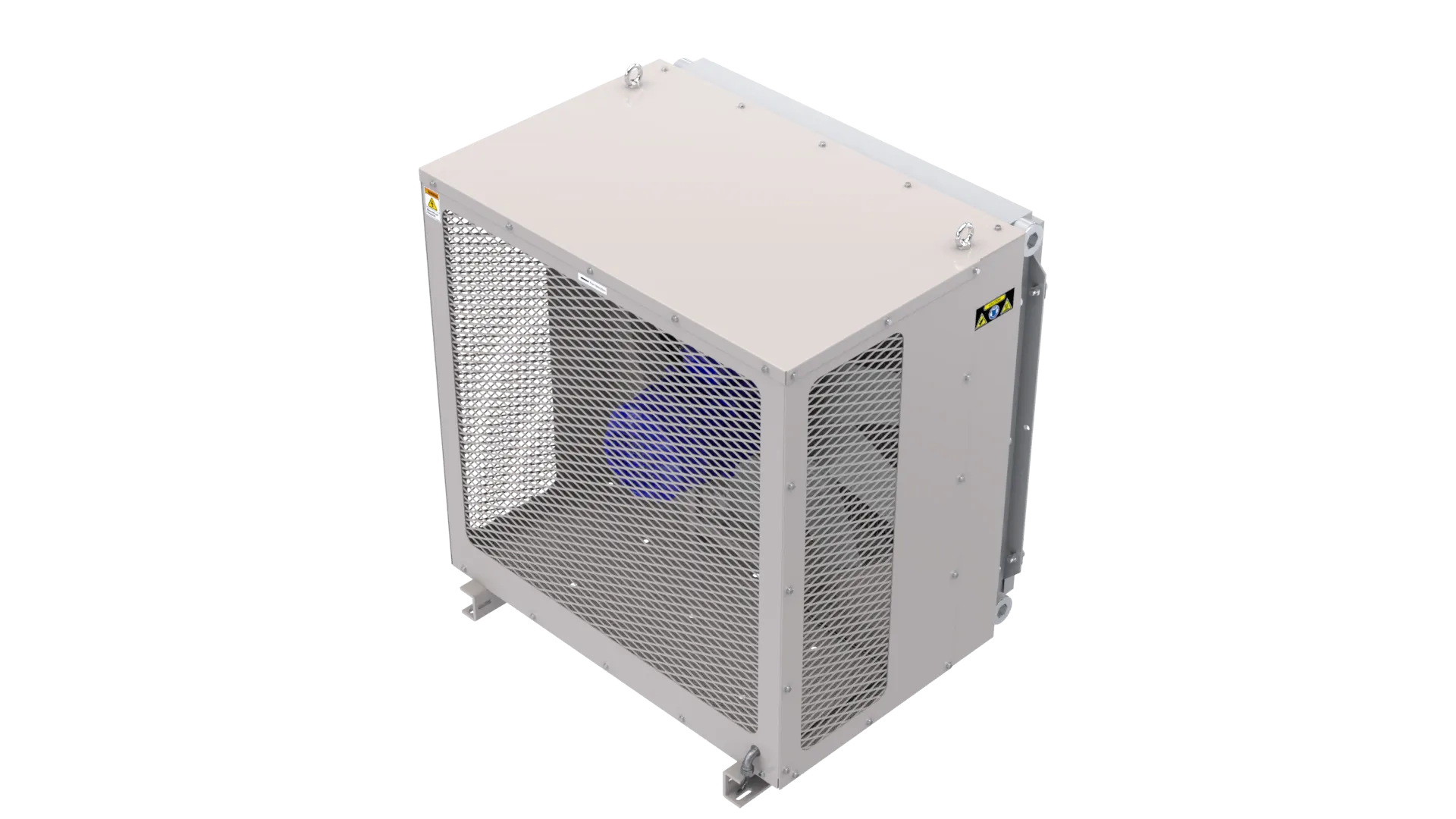

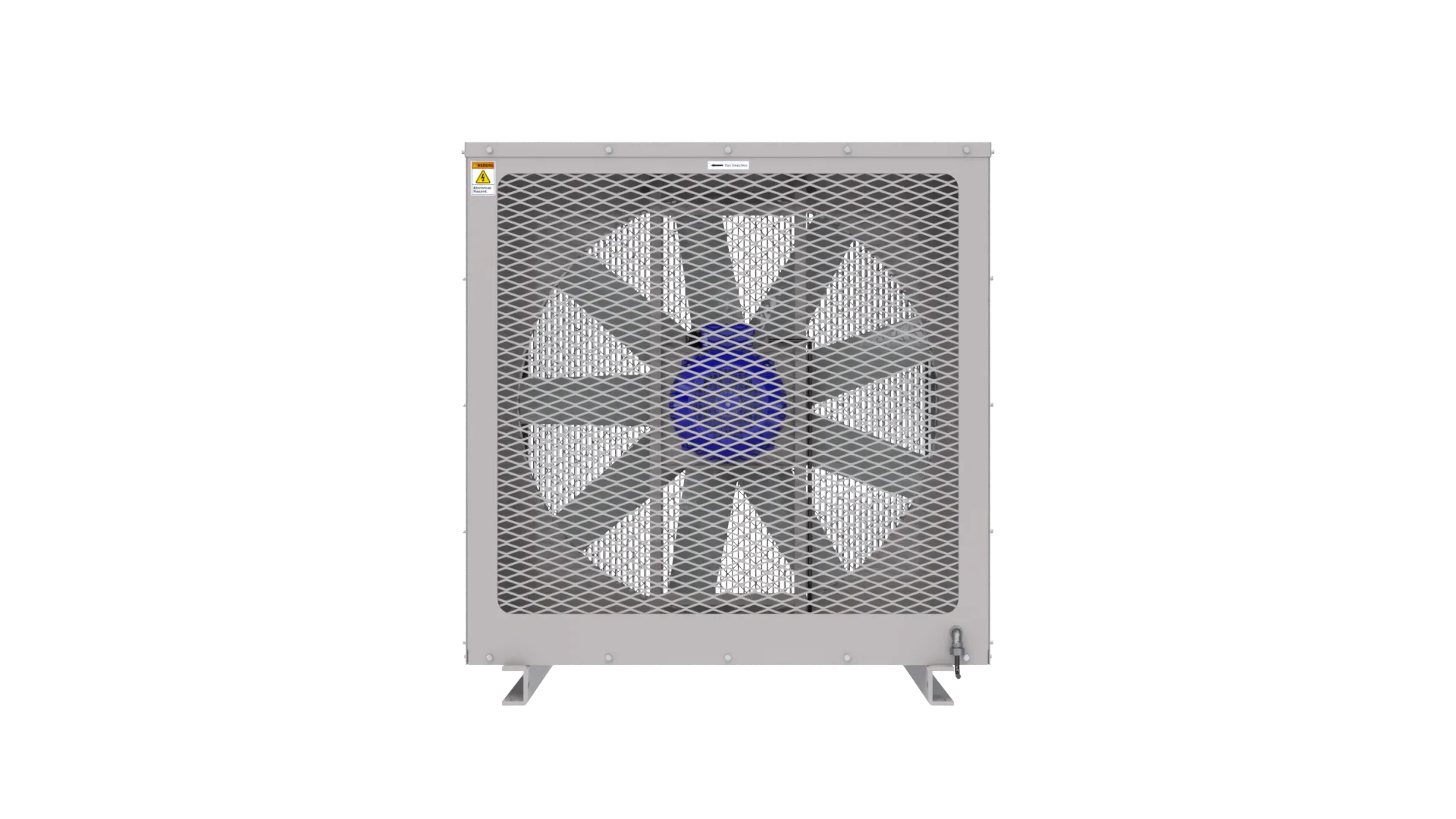

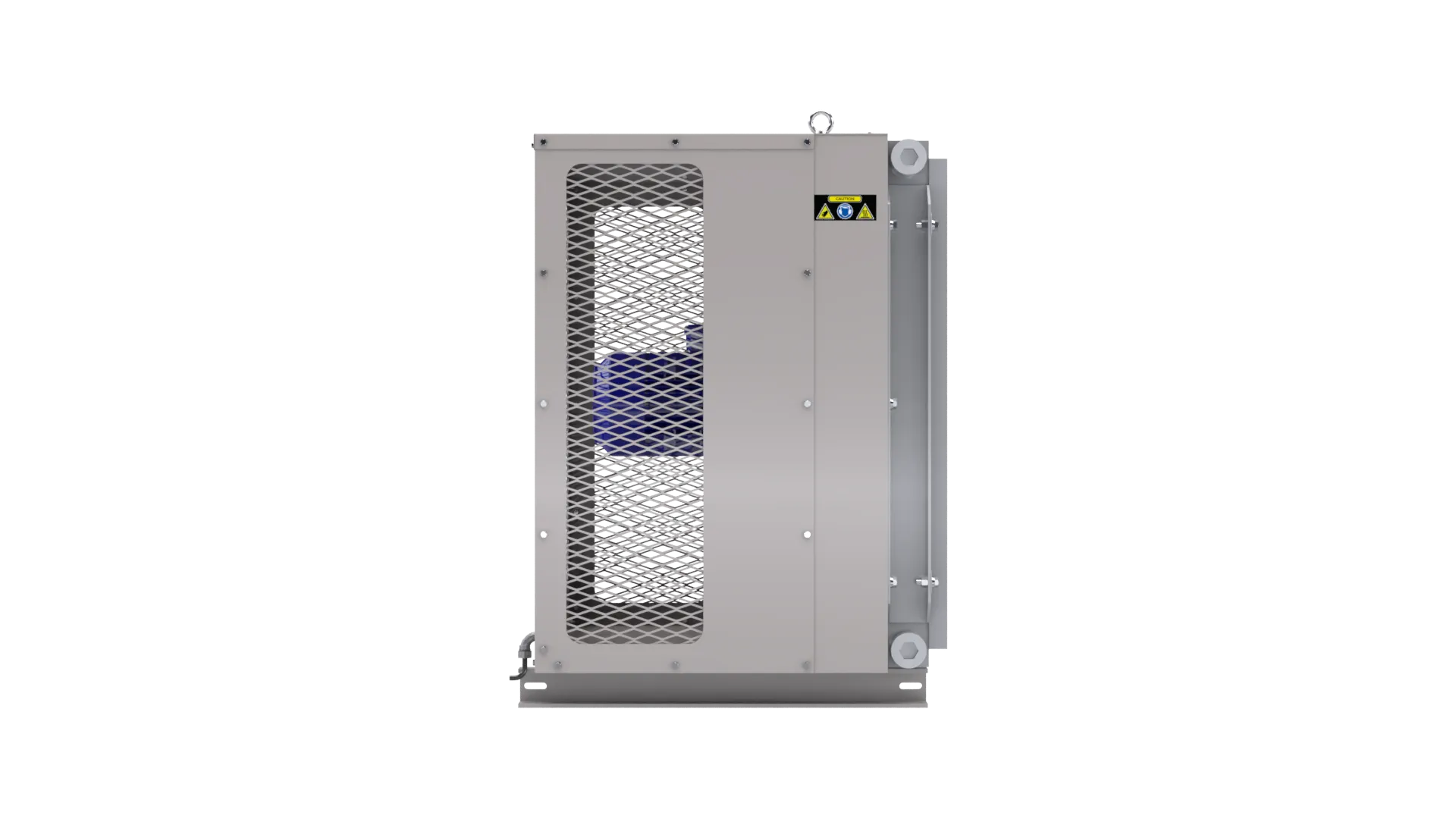

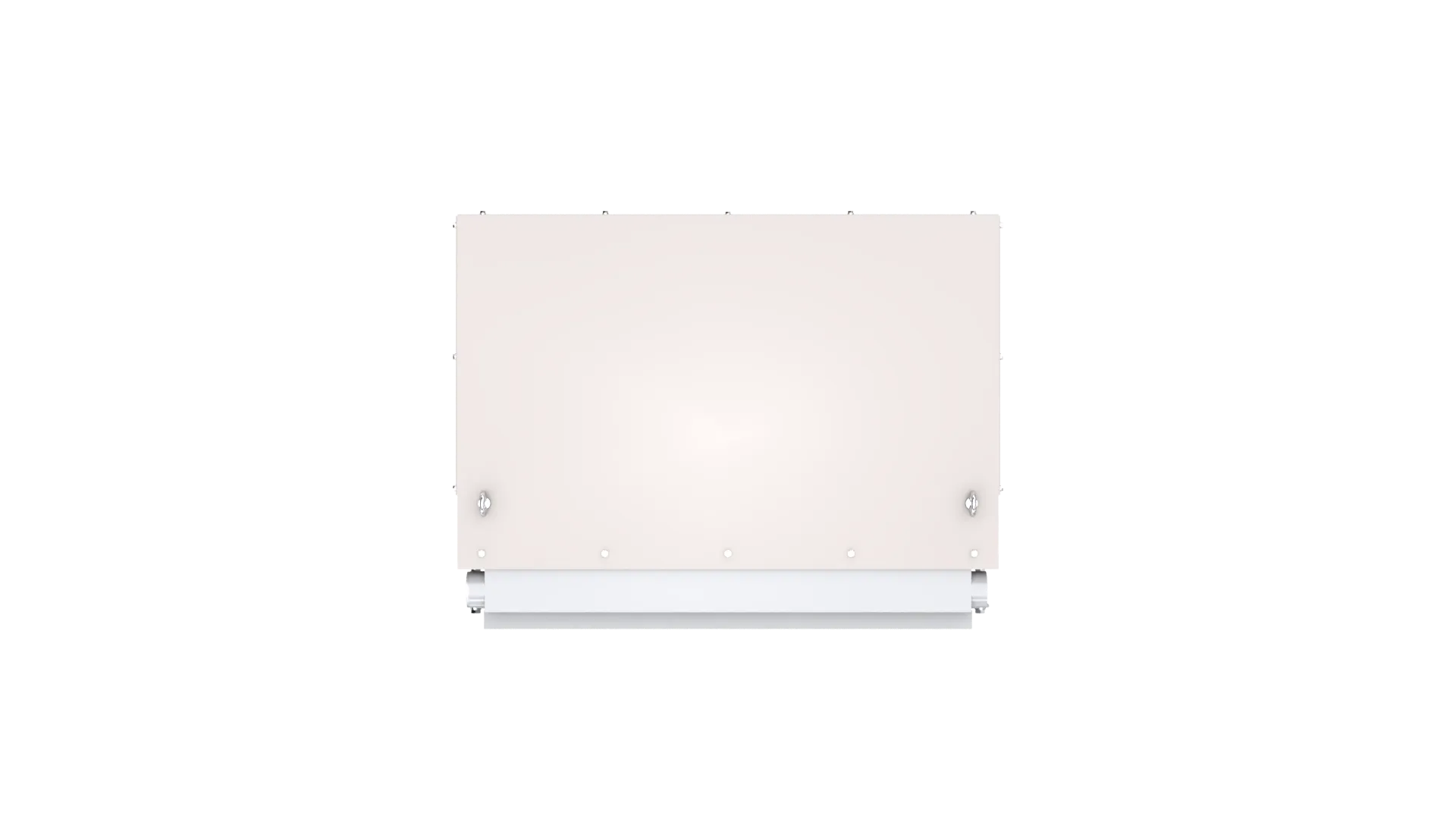

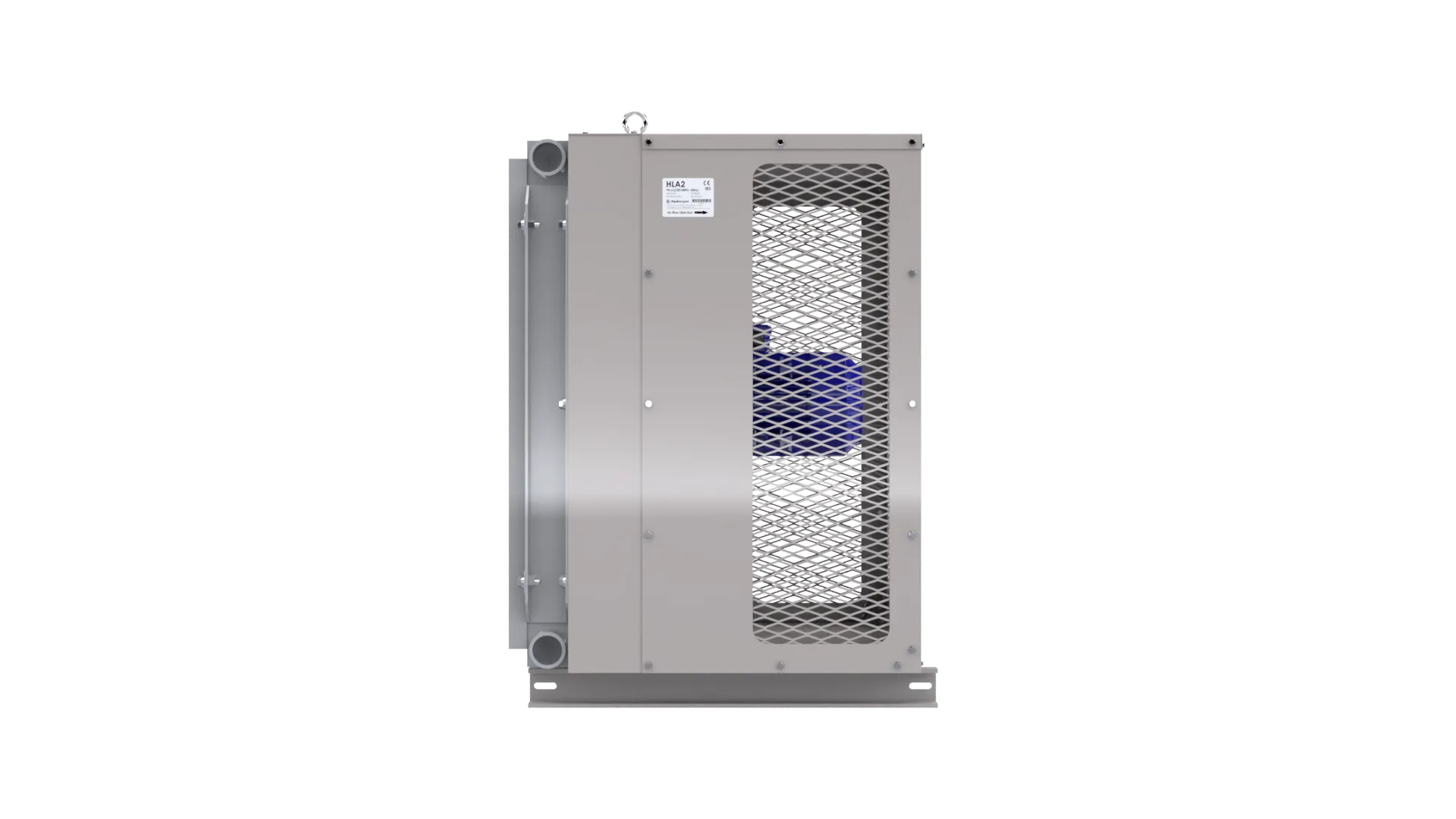

HLA2 HC V78-6 Air Oil Cooler (Special Type)

Product specifications and documentation

HLA2 HC V78-6 Air Oil Cooler (Special Type)

HLA2 HC V78-6 Air Oil Cooler (Special Type)

Request Quote

Quick Specifications

Cooling Capacity2.25kW/°C
Heat Dissipation90kW
Heat Dissipation (kcal)77,400kcal/h
Max Flow Rate500L/min
Motor Poles6

Detailed Specifications

Performance
Cooling Capacity2.25 kW/°C
Heat Dissipation90 kW
Heat Dissipation (kcal)77,400 kcal/h
Max Flow Rate500 L/min
Motor Poles6
Dimensions
HLA2 dimension drawing
Depth (D)662 mm
Dimension F821 mm
Dimension H455 mm
Dimension I325 mm
Dimension J972 mm
Dimension K997 mm
Height (C)1,092 mm
Length (A)1,022 mm
Net Weight135 kg
Width (B)1,022 mm
Electrical
Motor Type6-Pole AC Motor

Downloads

Accessories

DTM Digital Thermometer
DTM
Thermal Switch (DIN Connector)
TS-DIN
Thermal Switch (Wire Connector)
TS-WIRE
Matrix Stone Guard
STONE-GUARD
Matrix Dust Guard
DUST-GUARD
Matrix Dust + Stone Guard
COMBO-GUARD
