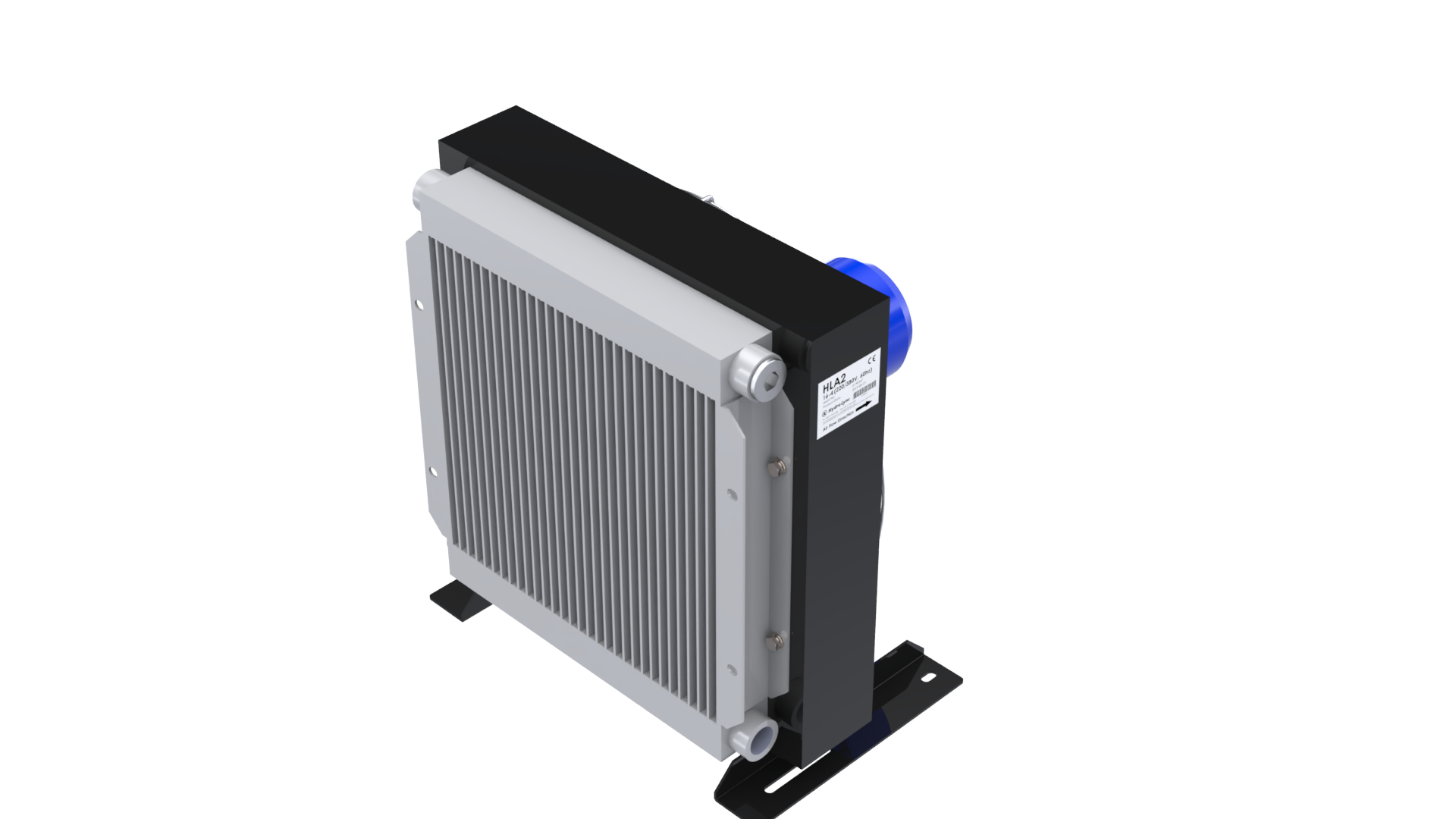

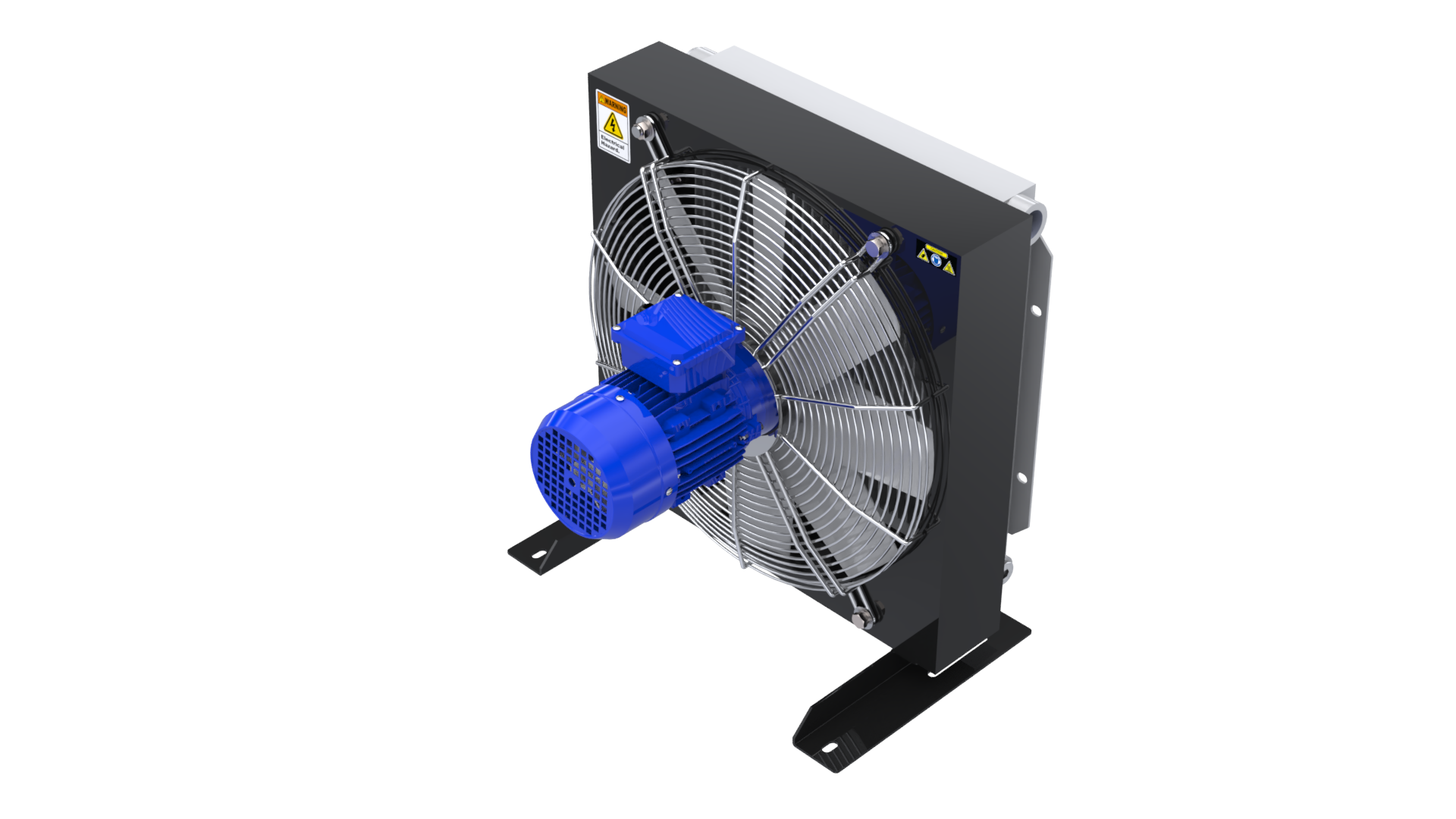

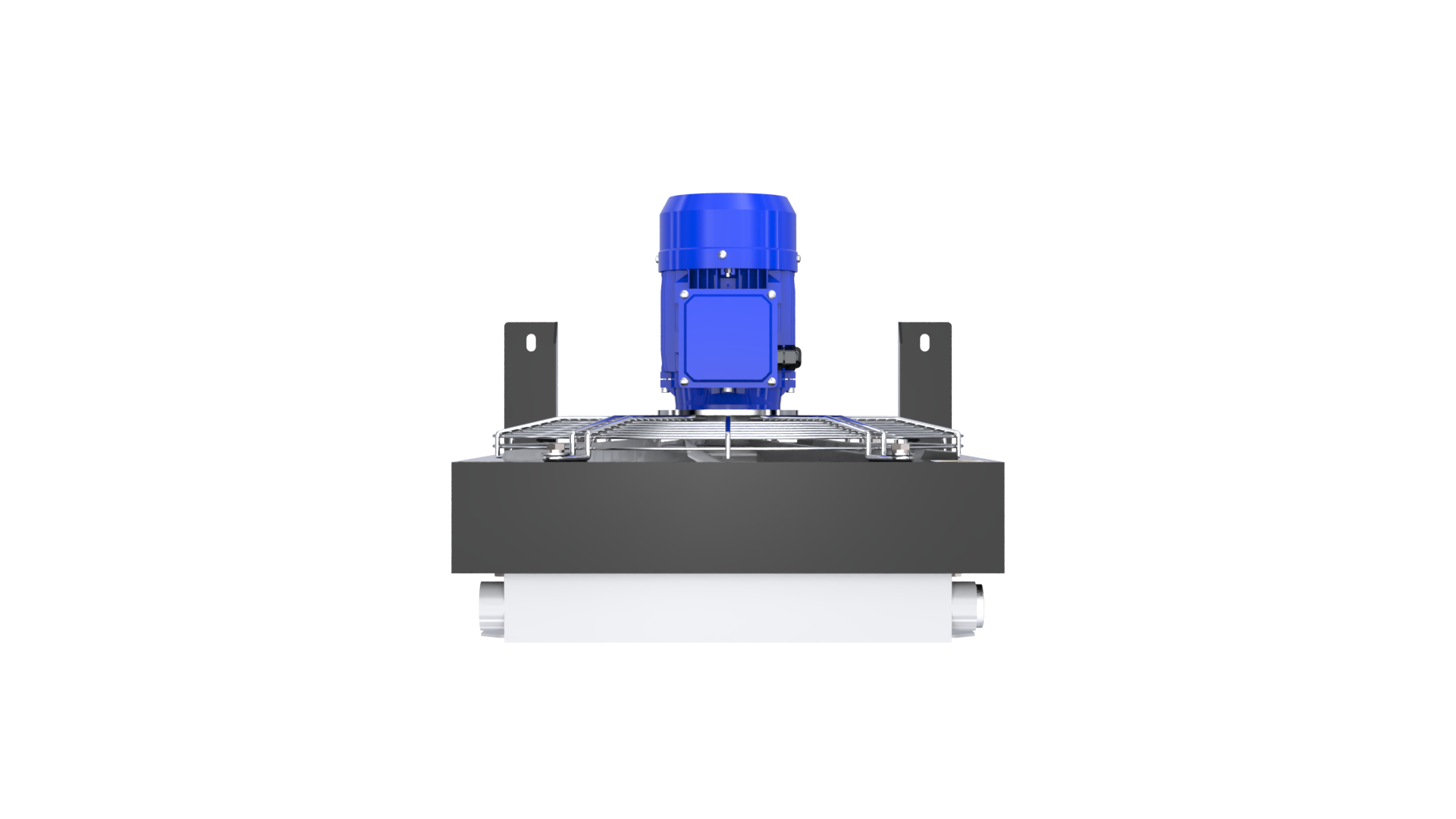

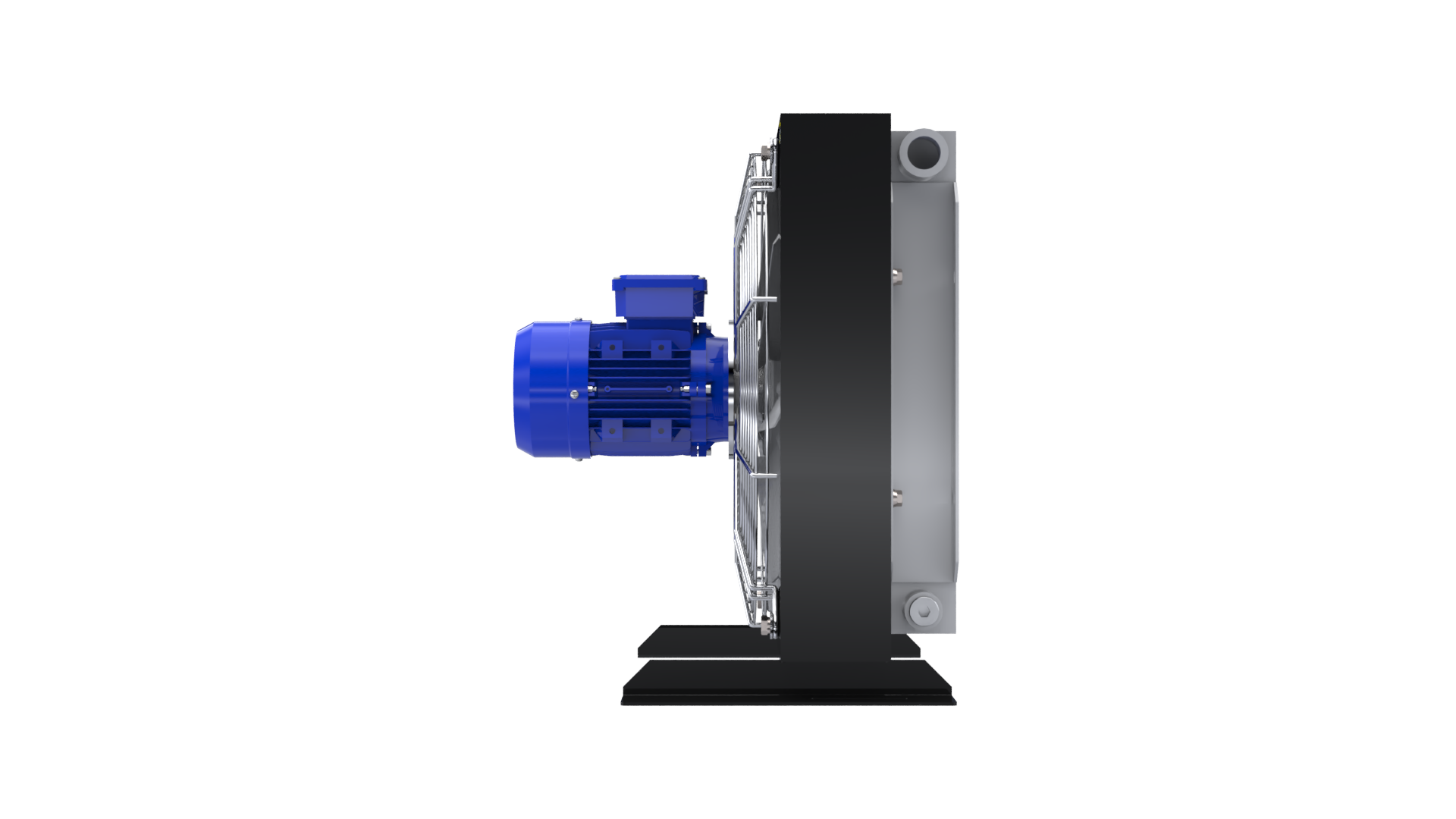

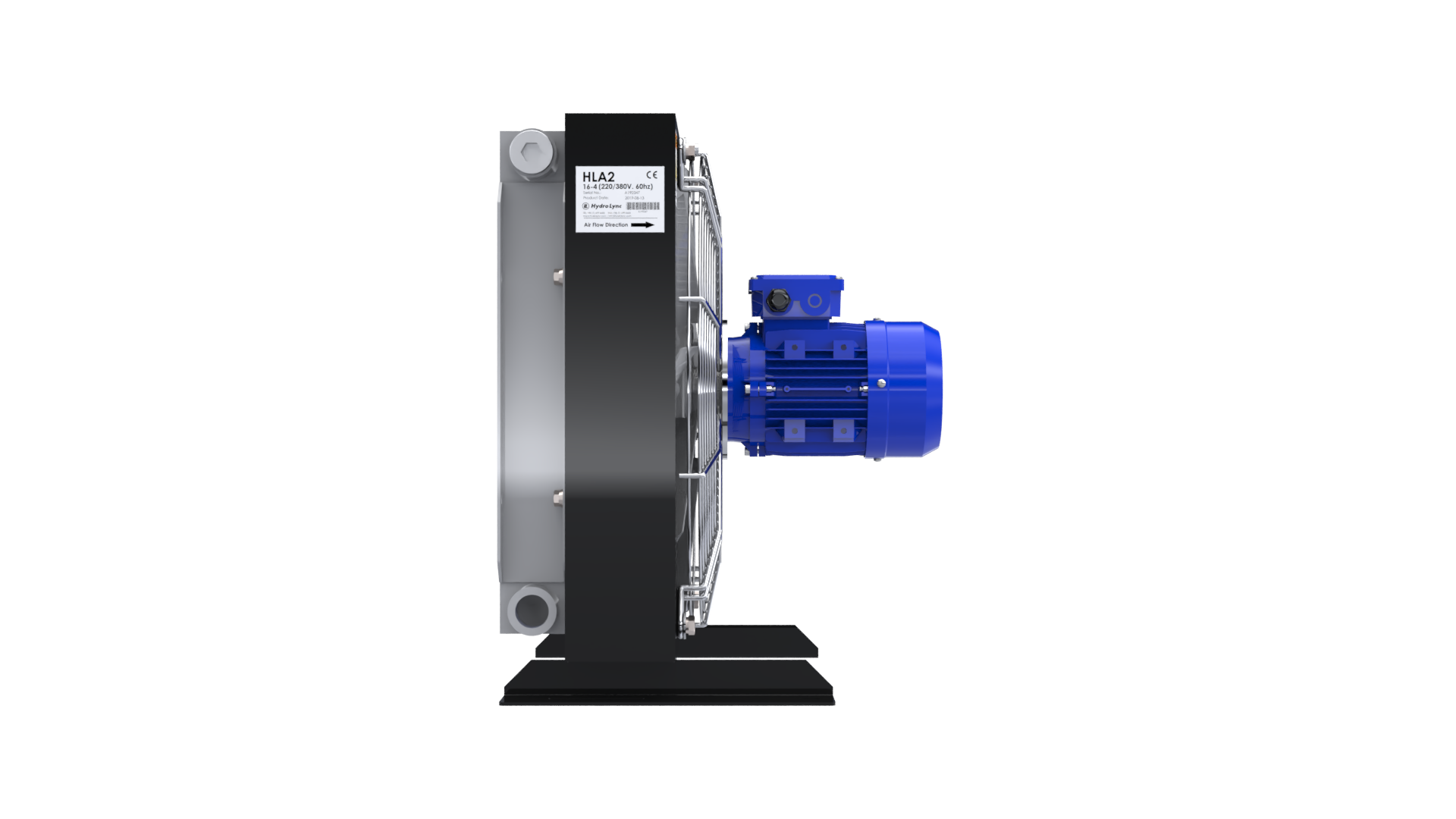

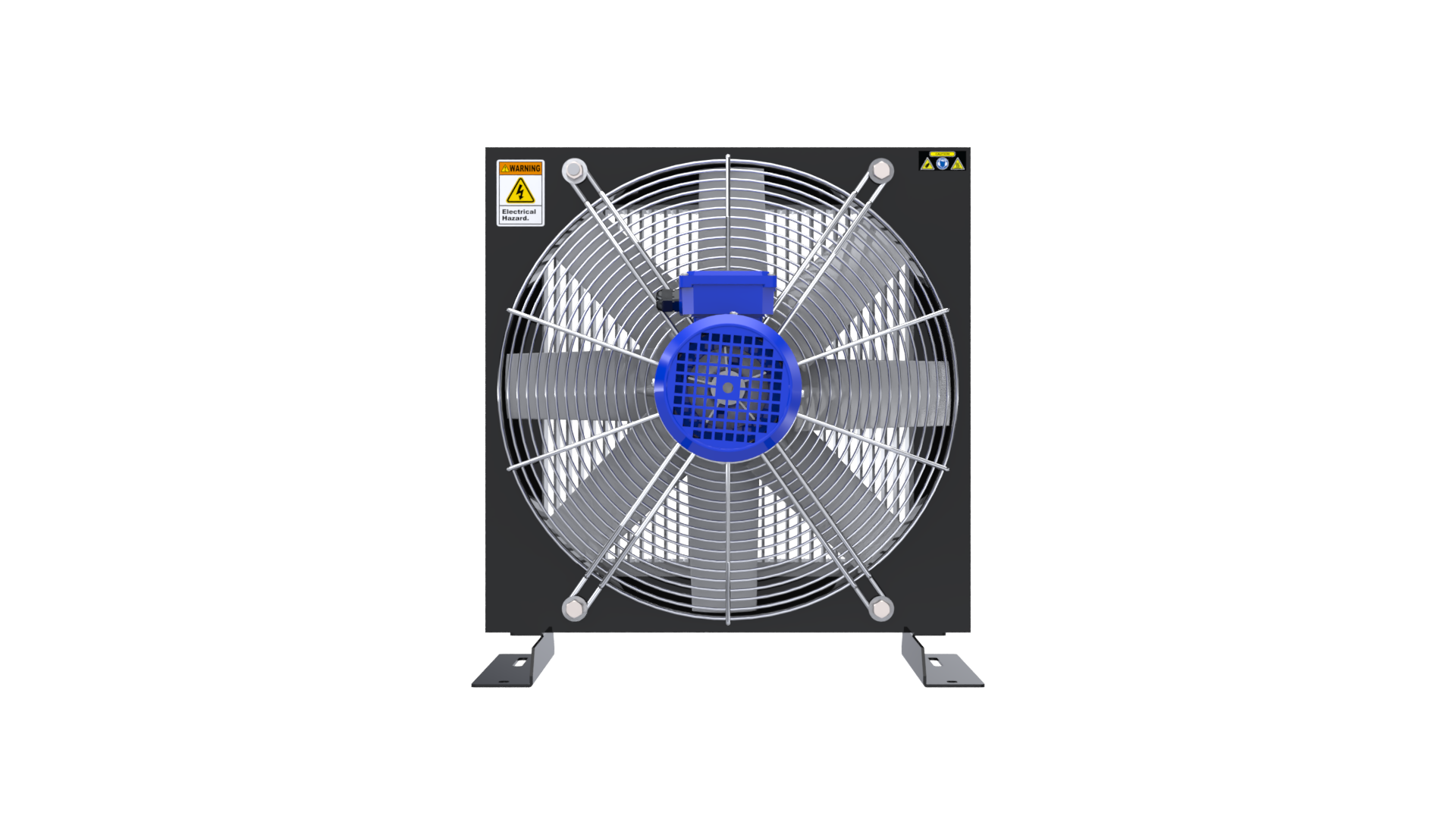

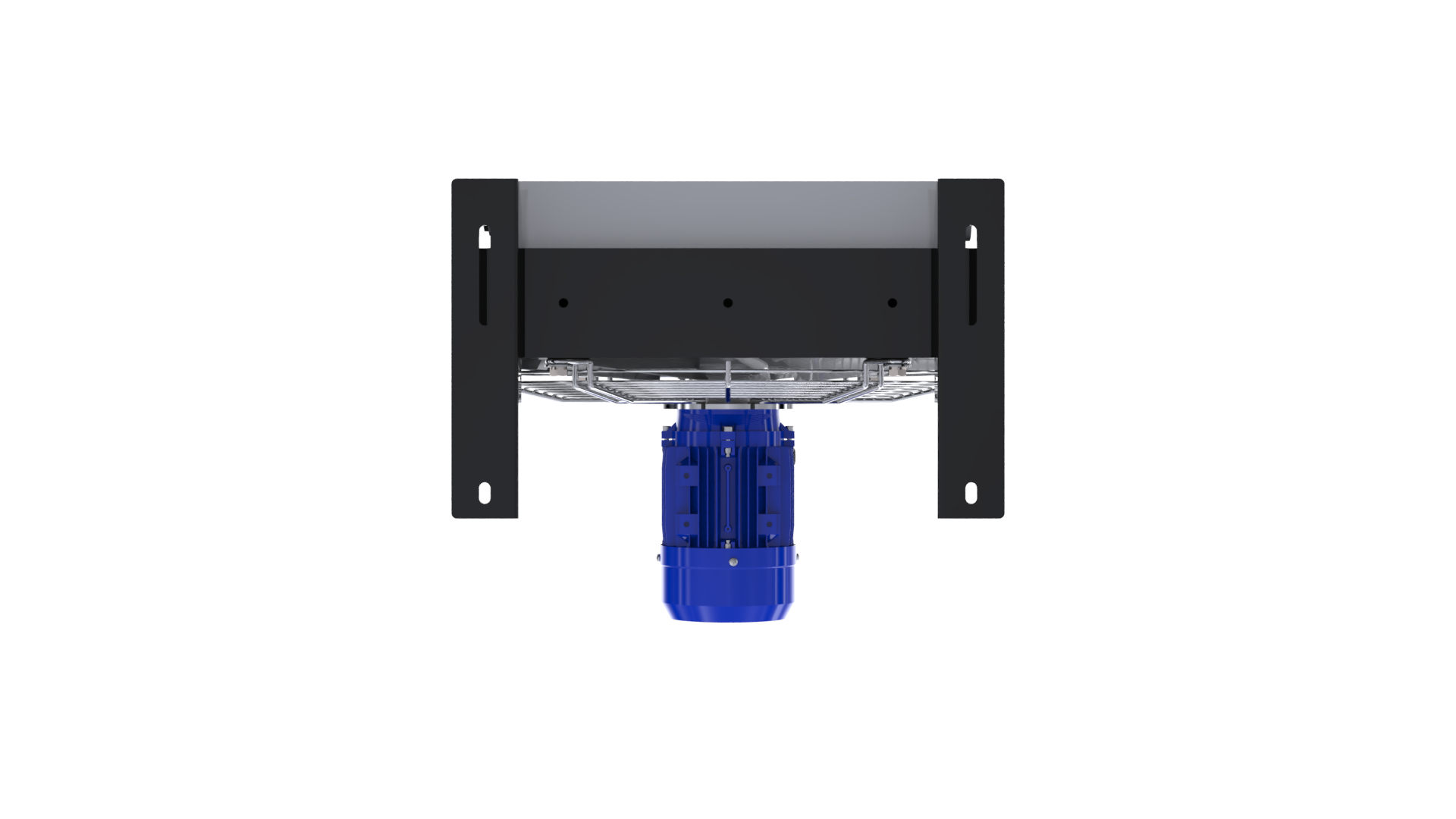

HLA2 V16-4
Product specifications and documentation
HLA2 V16-4
Quick Specifications
Cooling Capacity0.6kW/°C
Heat Dissipation24kW
Heat Dissipation (kcal)20,640kcal/h
Max Flow Rate200L/min
Motor Poles4
Detailed Specifications
Performance
| Cooling Capacity | 0.6 kW/°C |
|---|---|
| Heat Dissipation | 24 kW |
| Heat Dissipation (kcal) | 20,640 kcal/h |
| Max Flow Rate | 200 L/min |
| Motor Poles | 4 |
Dimensions
| Depth (D) | 422.5 mm |
|---|---|
| Dimension F | 296 mm |
| Dimension H | 305 mm |
| Dimension I | 195 mm |
| Dimension J | 436 mm |
| Dimension K | 483.5 mm |
| Height (C) | 536 mm |
| Length (A) | 496 mm |
| Net Weight | 29 kg |
| Width (B) | 496 mm |
Electrical
| Motor Type | 4-Pole AC Motor |
|---|
