HLAX 16-4 Axial Motor Cooler
Product specifications and documentation
HLAX 16-4 Axial Motor Cooler

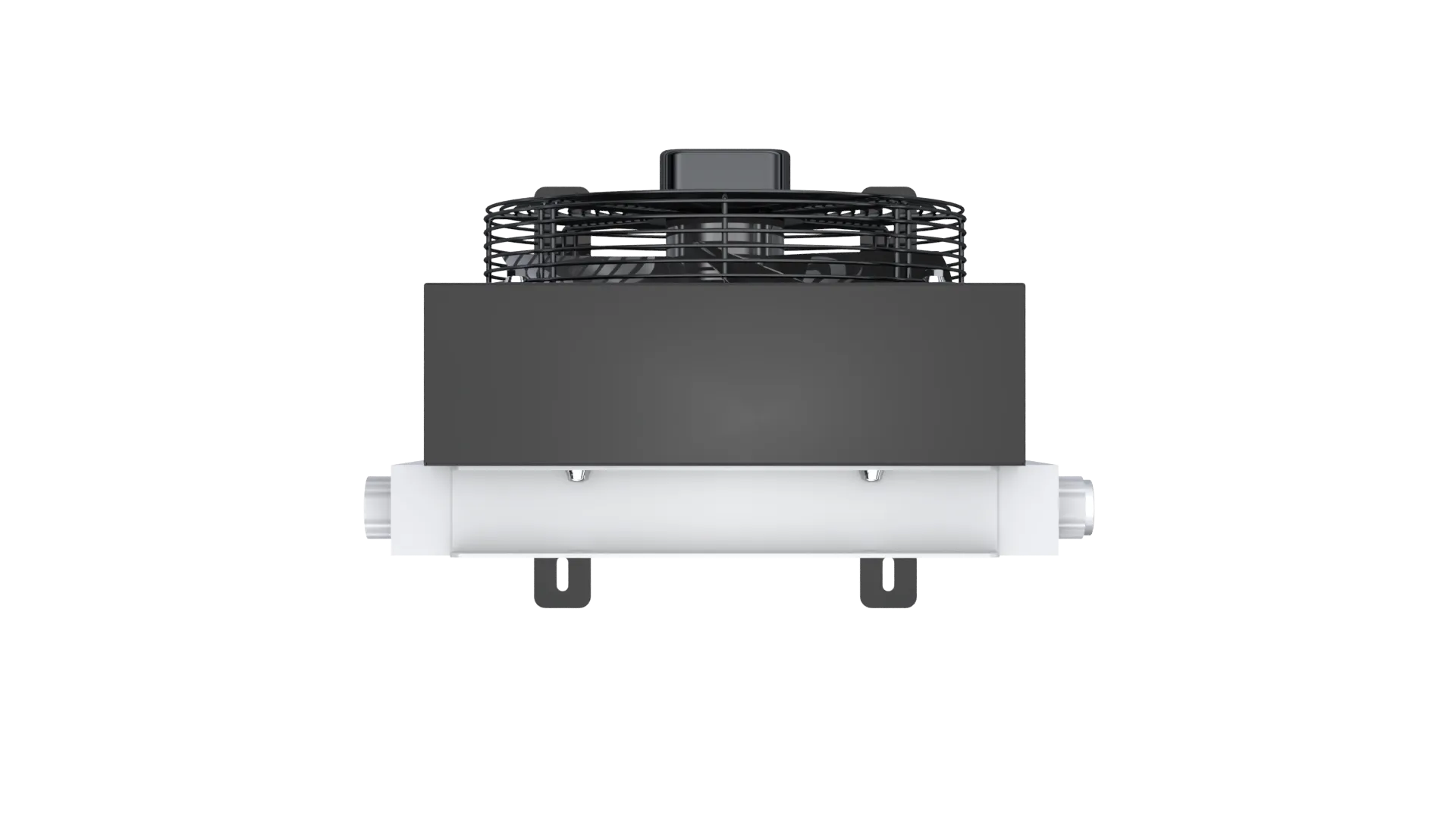

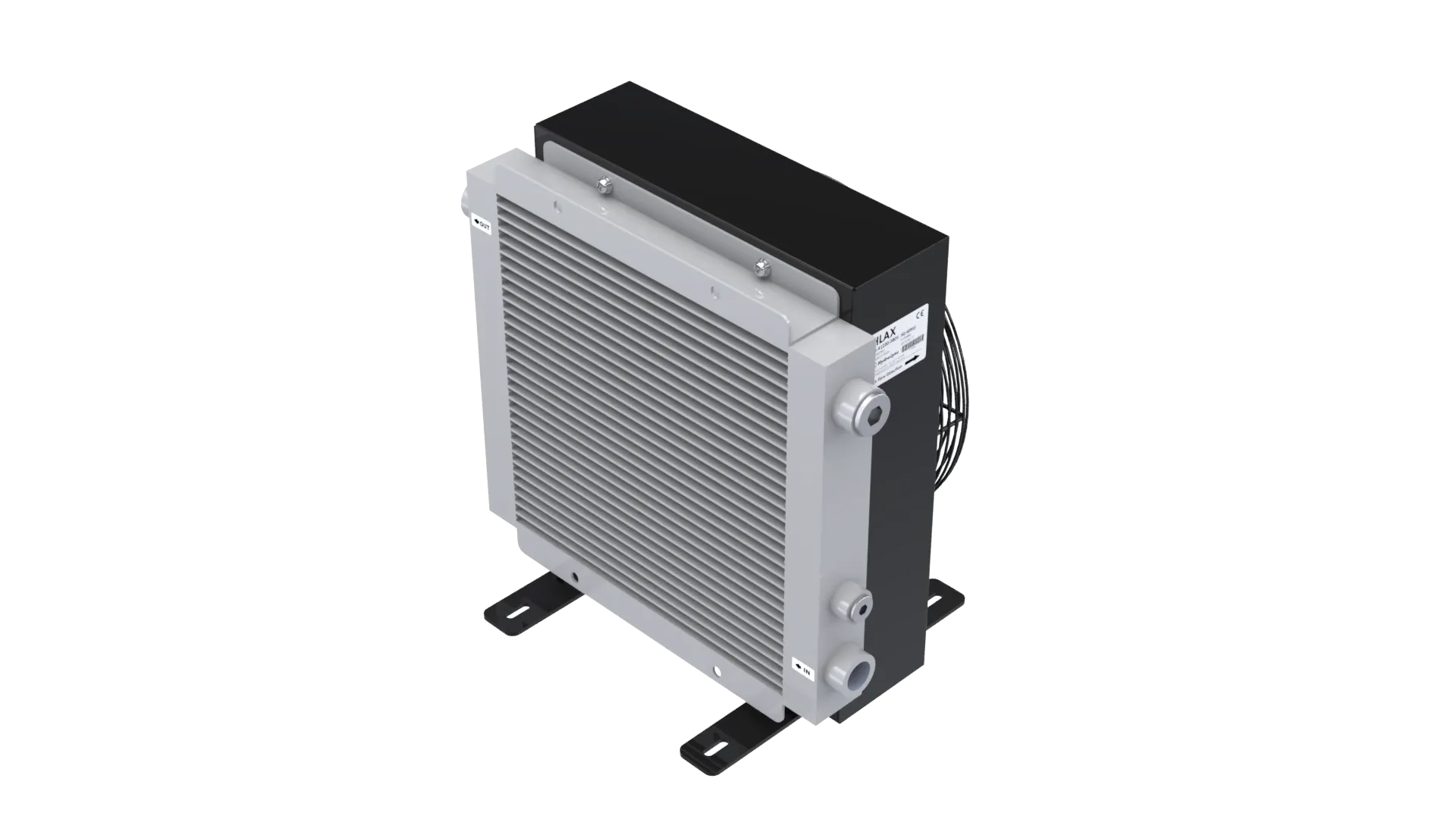

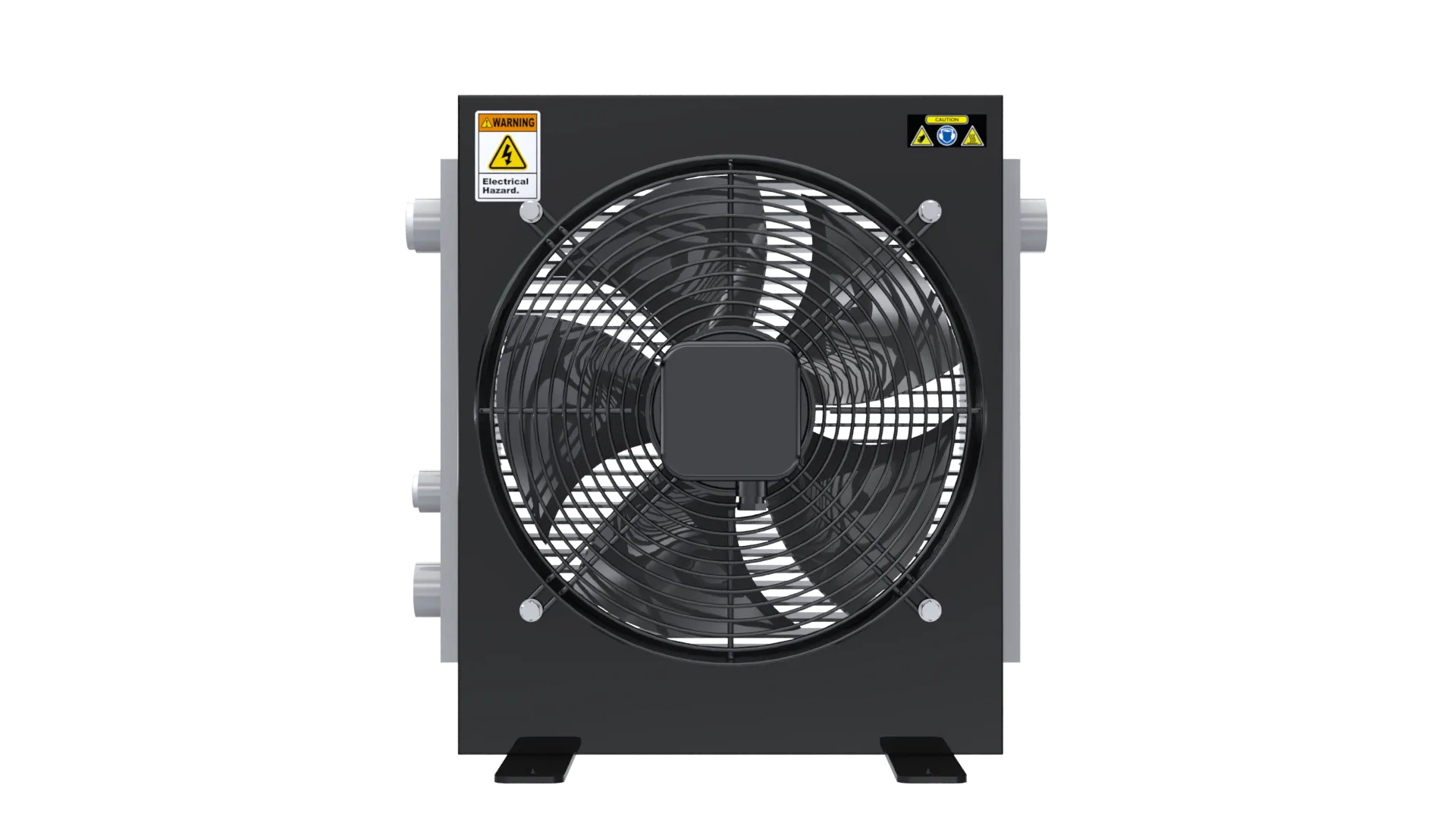

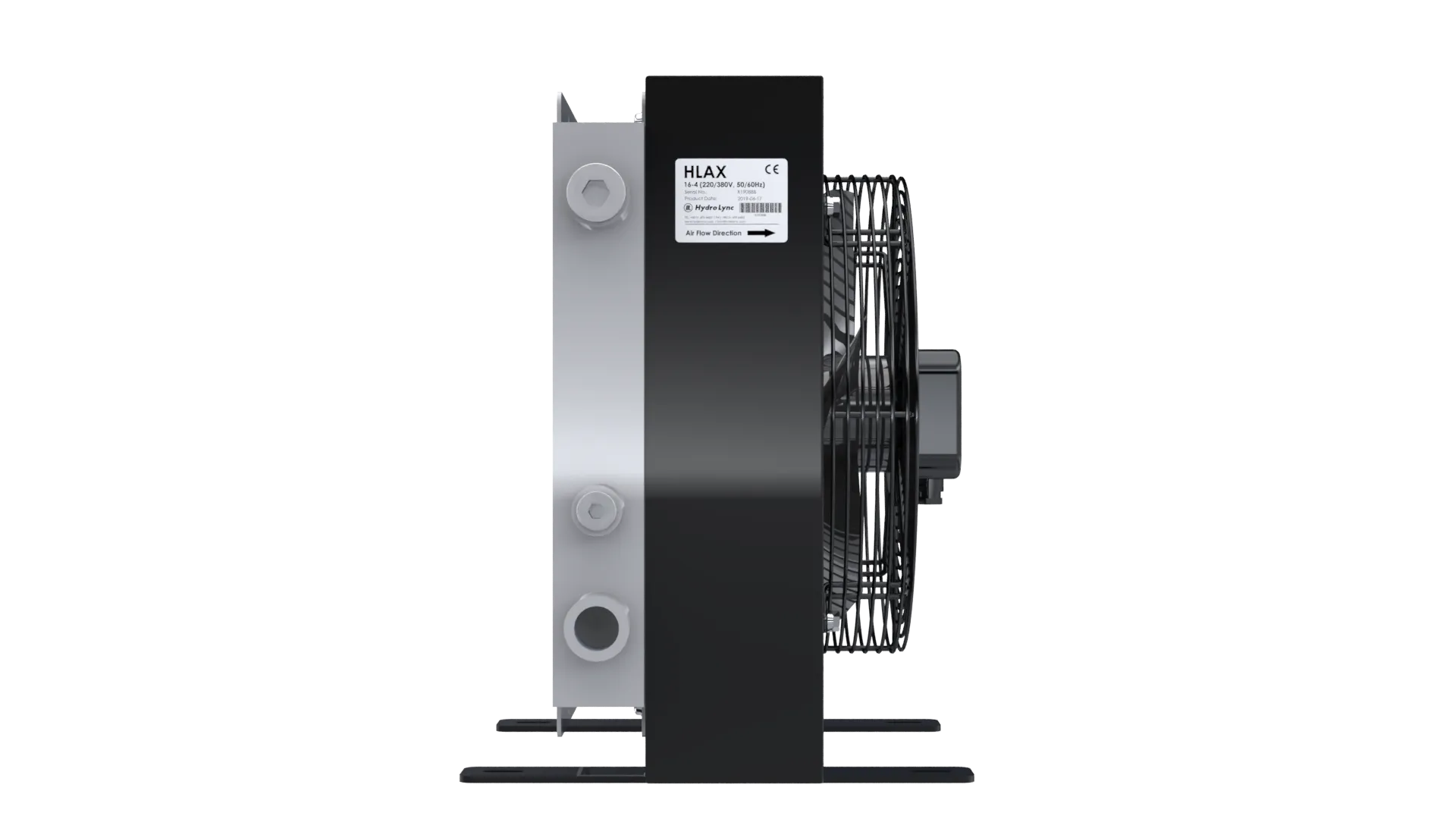

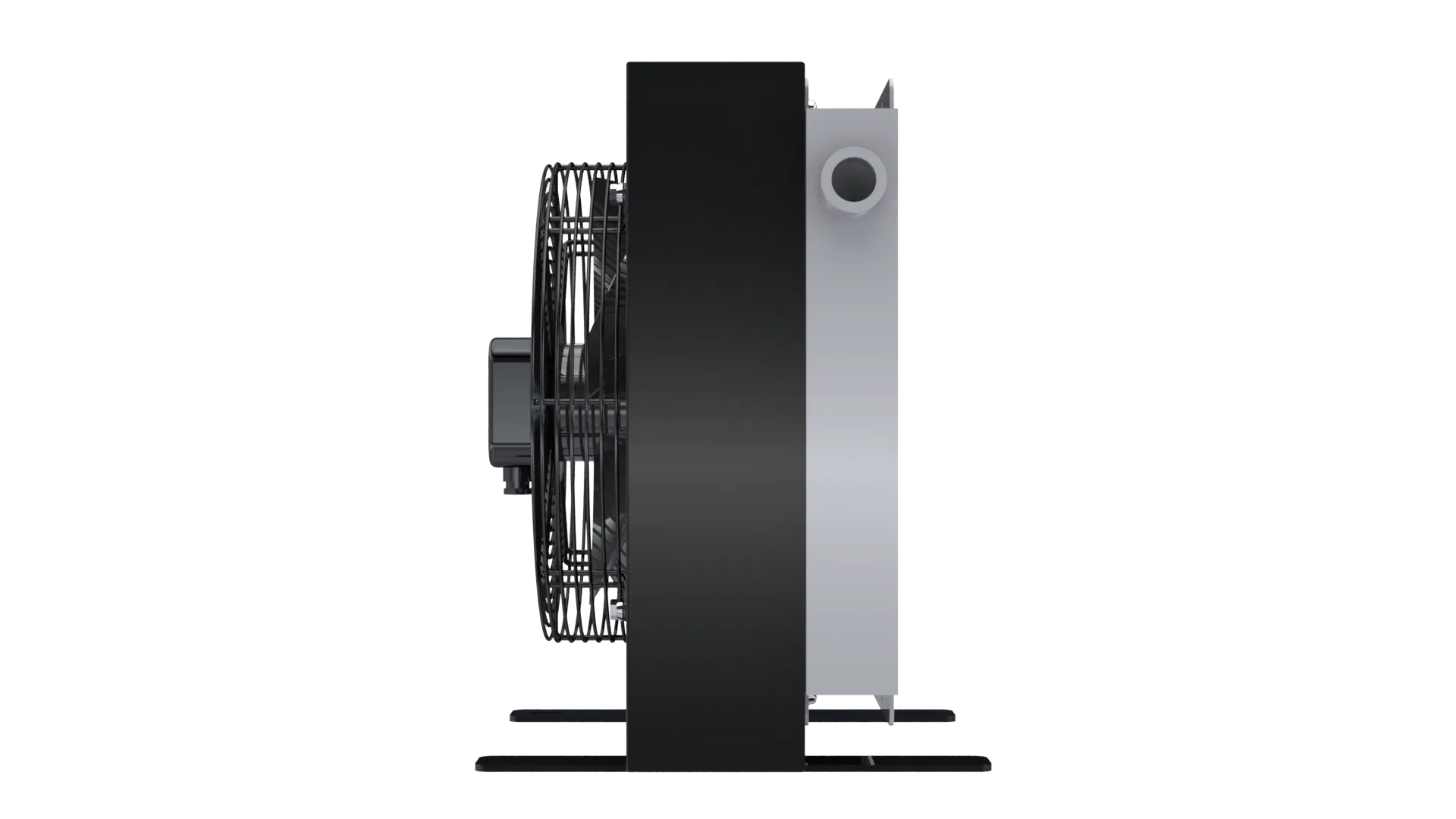

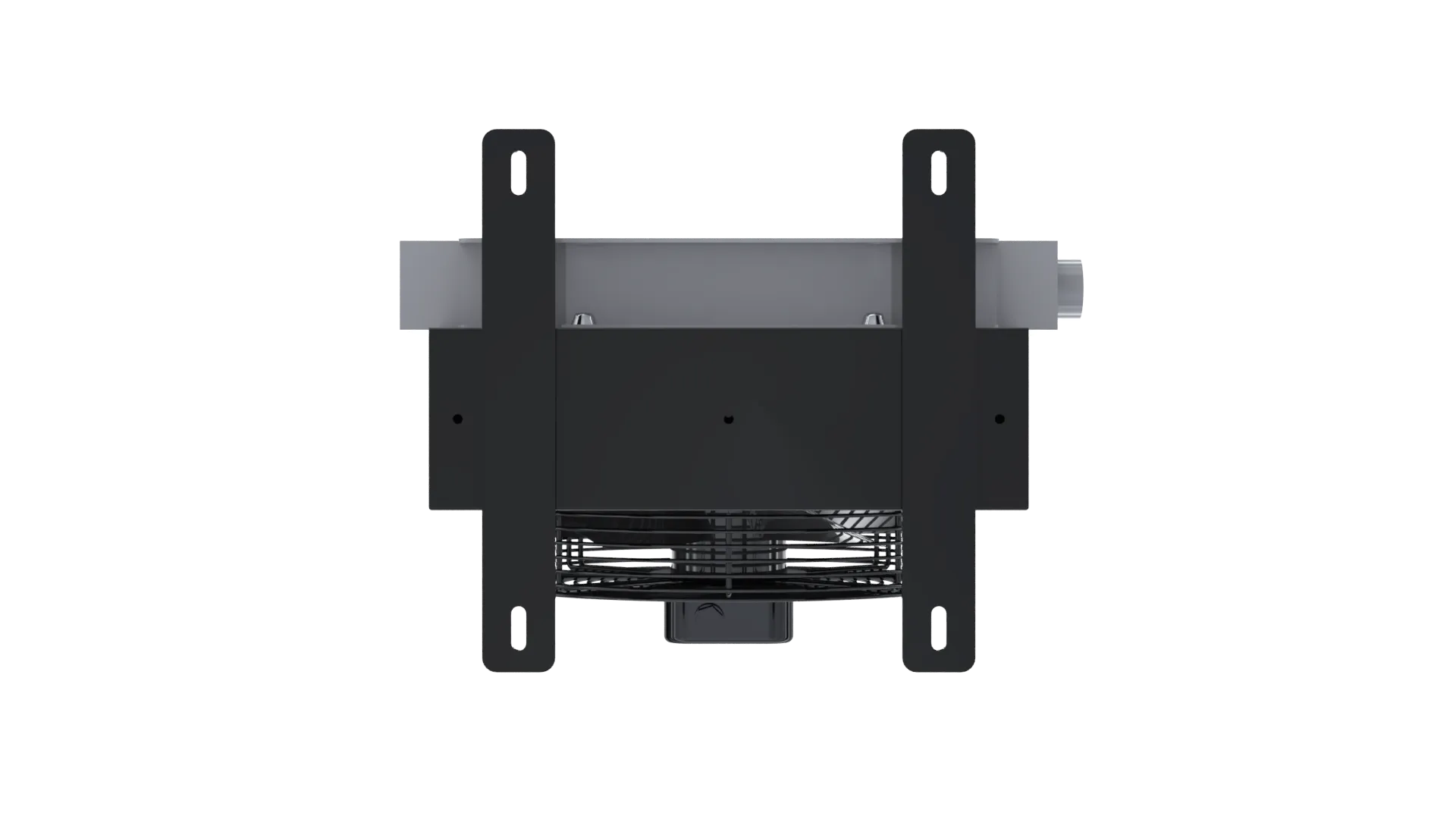

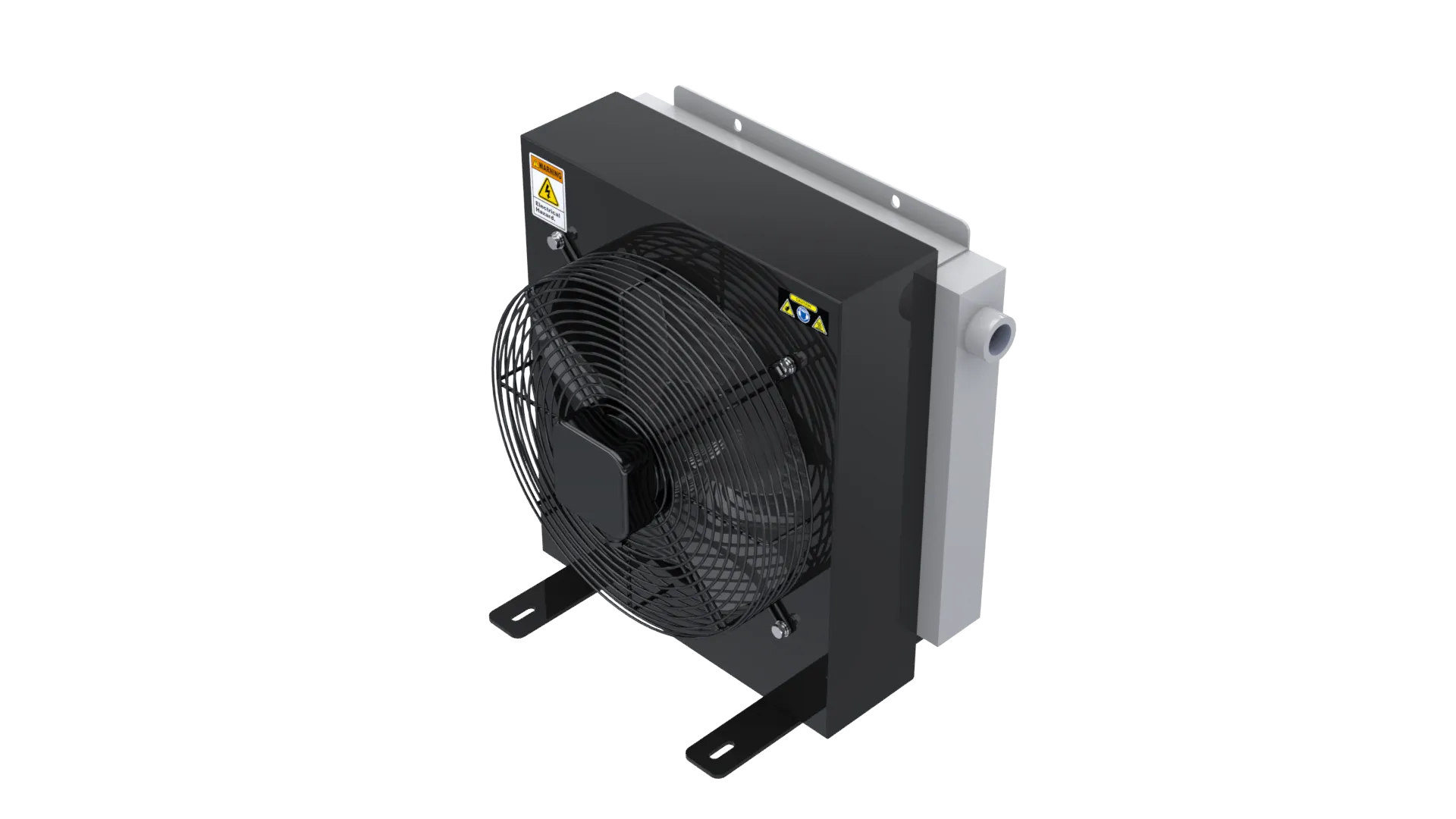

HydroLync HLAX 16-4 axial motor driven air-oil cooler
Quick Specifications
Cooling Capacity0.495kW/°C
Heat Dissipation19.8kW
Heat Dissipation (kcal/h)17,028kcal/h
Detailed Specifications
Performance
| Cooling Capacity | 0.495 kW/°C |
|---|---|
| Heat Dissipation | 19.8 kW |
| Heat Dissipation (kcal/h) | 17,028 kcal/h |
Dimensions
| Length (A) | 496 mm |
|---|---|
| Width (B) | 464 mm |
| Height (C) | 501 mm |
| Depth (D) | 299 mm |
| Dimension E | 63 mm |
| Dimension F | 296 mm |
| Dimension G | 118 mm |
| Dimension H | 370 mm |
| Dimension I | 310 mm |
| Dimension J | 286 mm |
| Dimension K | 414 mm |
| Mounting Slot | ø10x30 |
Electrical
| Insulation Grade | B, F |
|---|---|
| Max Speed (50Hz) | 1,500 RPM |
| Max Speed (60Hz) | 1,800 RPM |
| Motor Poles | 4 |
| Voltage | 220/380V |
Downloads
Catalogs & Documents
HLAX Series Selection Guide 2026 V04EN
Air Oil Cooler Series User Manual 2026KO
HLAX Series Selection Guide 2026 V04KO
HLAX Series Selection Guide 2026 V04ZH
HydroLync Complete Selection Guide 2026 V05 (EN)EN
HydroLync Complete Selection Guide 2026 V05 (KR)KO
HydroLync Complete Selection Guide 2026 V05 (CN)ZH
Dimensional Drawings
