HLAX 23-4 Axial Motor Cooler
Product specifications and documentation
HLAX 23-4 Axial Motor Cooler

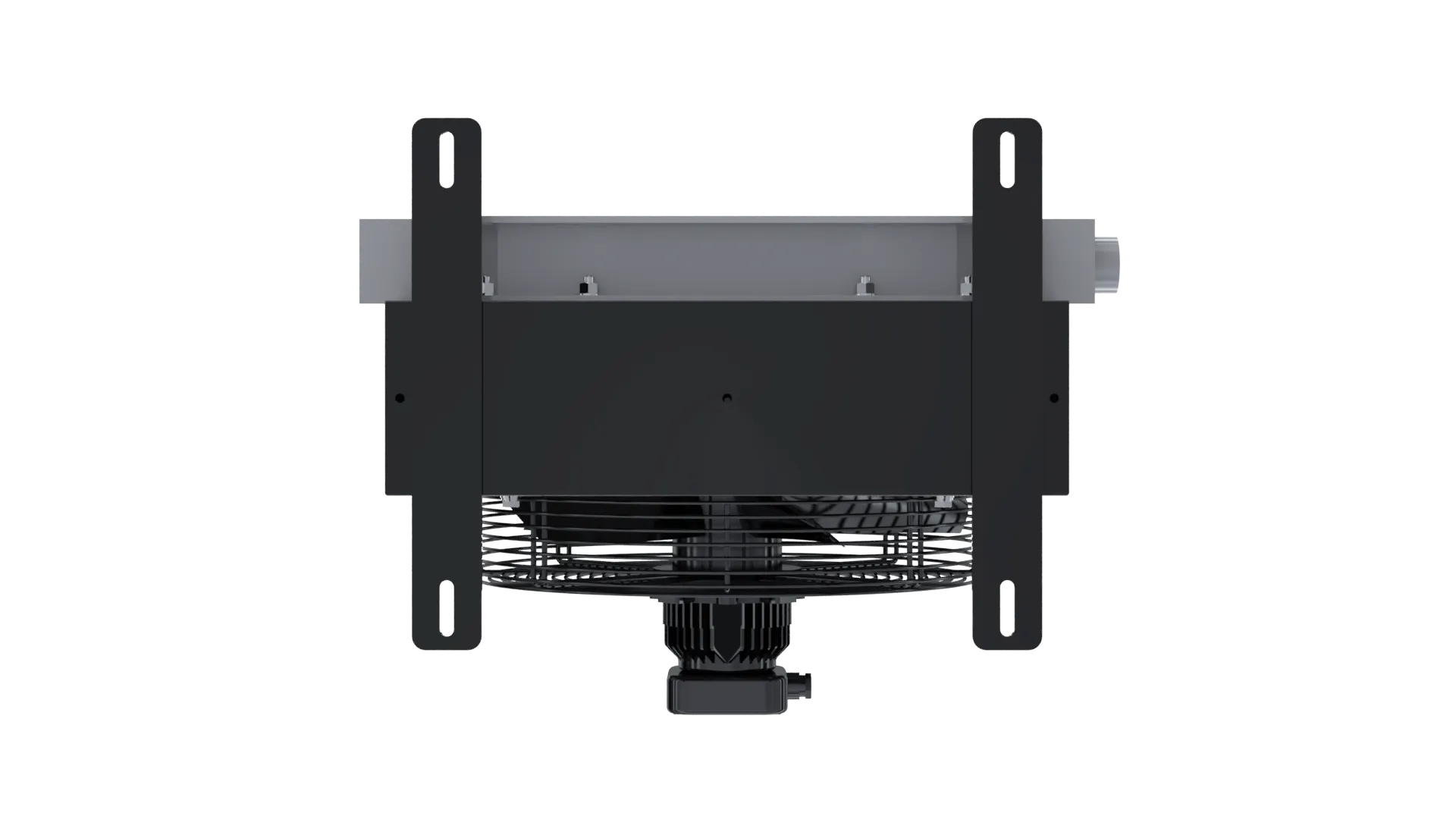

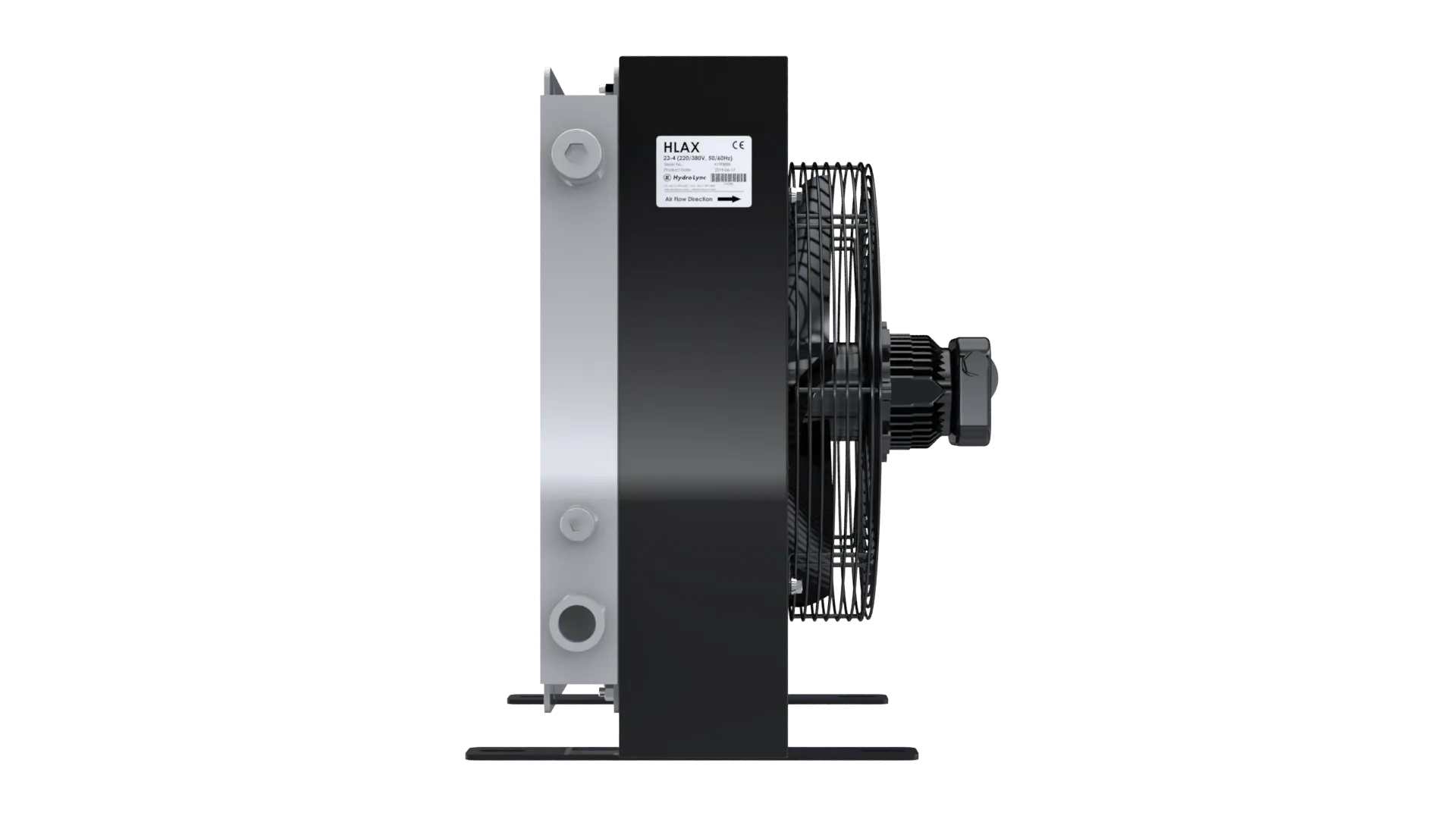

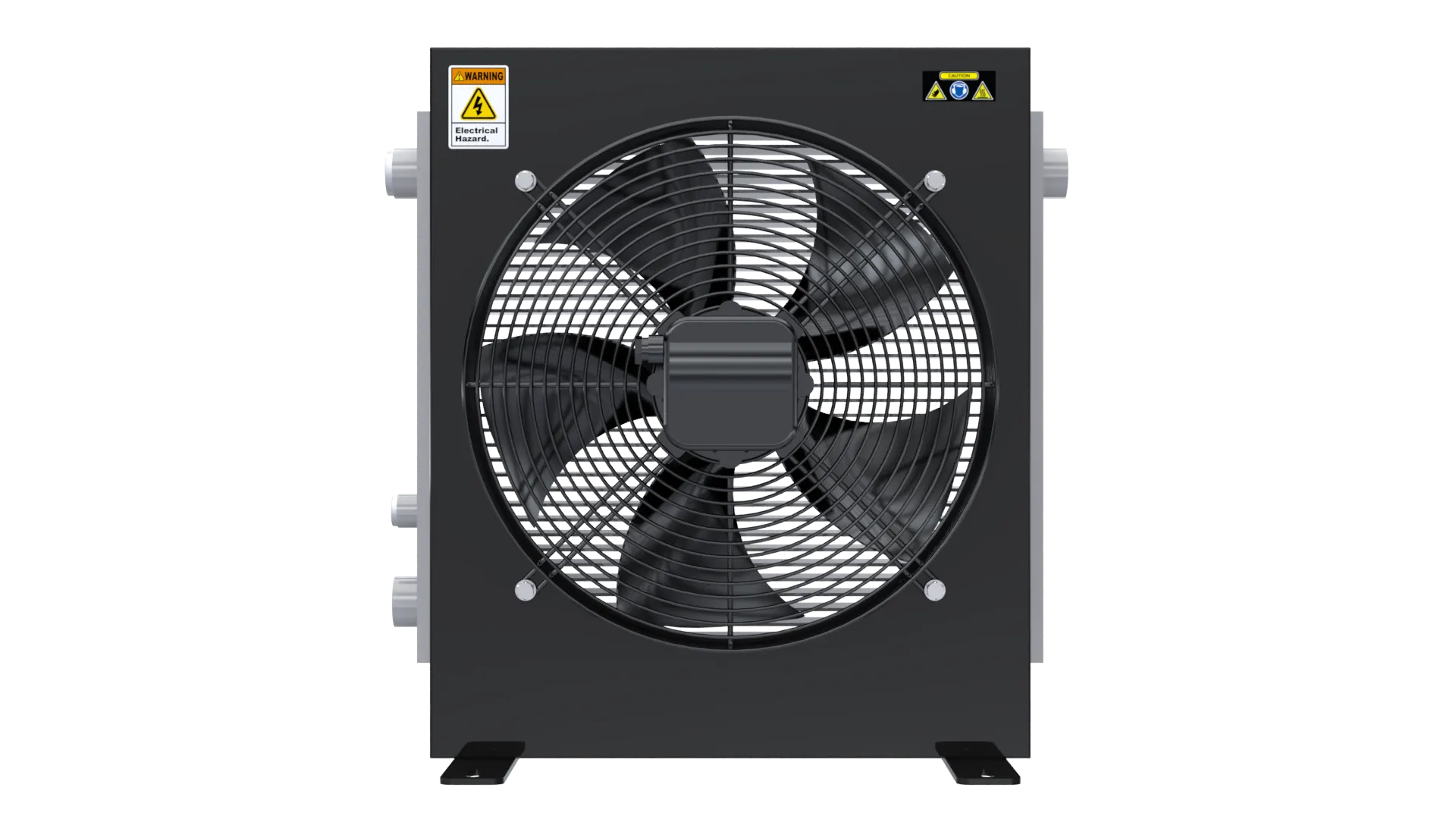

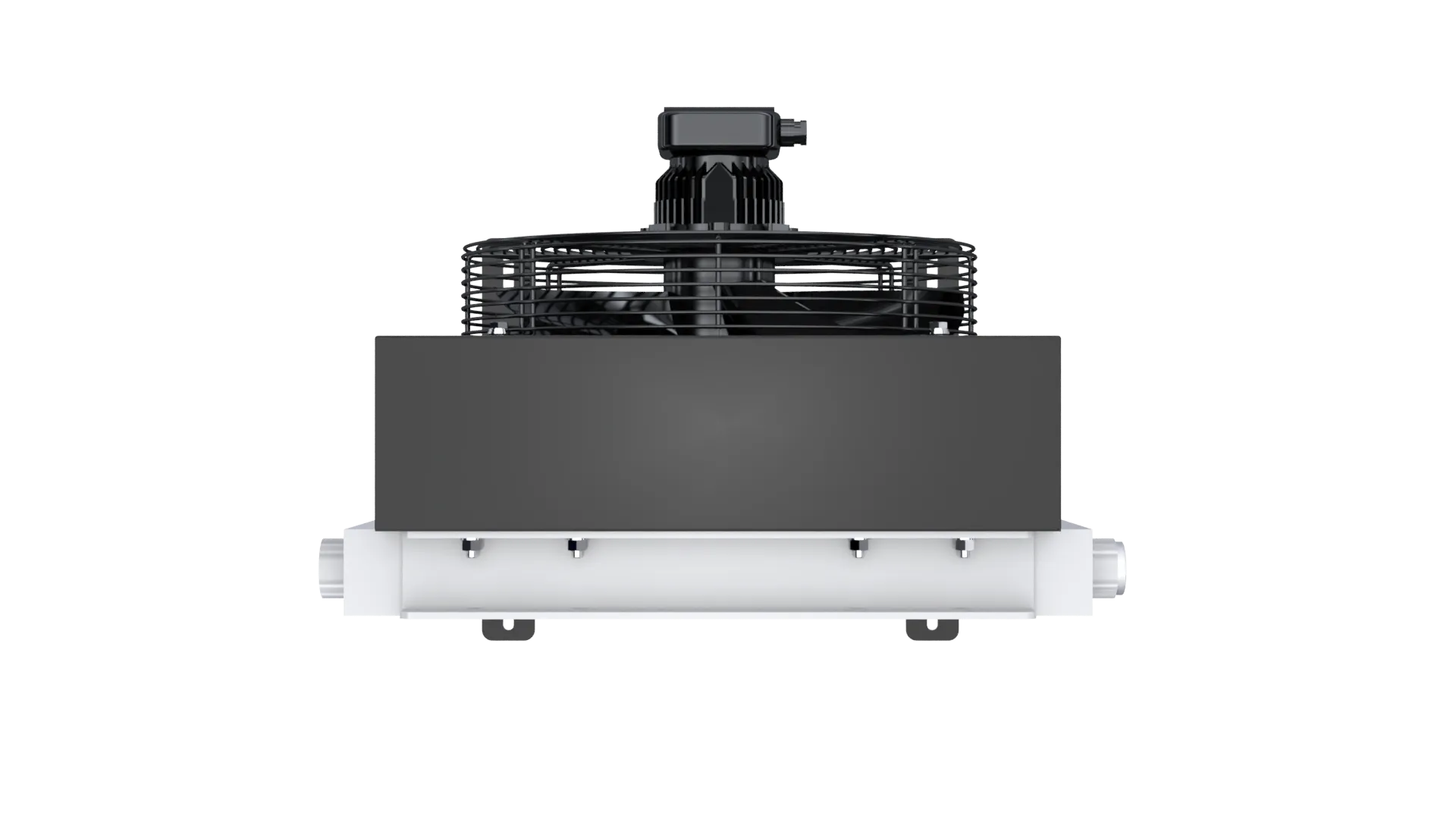

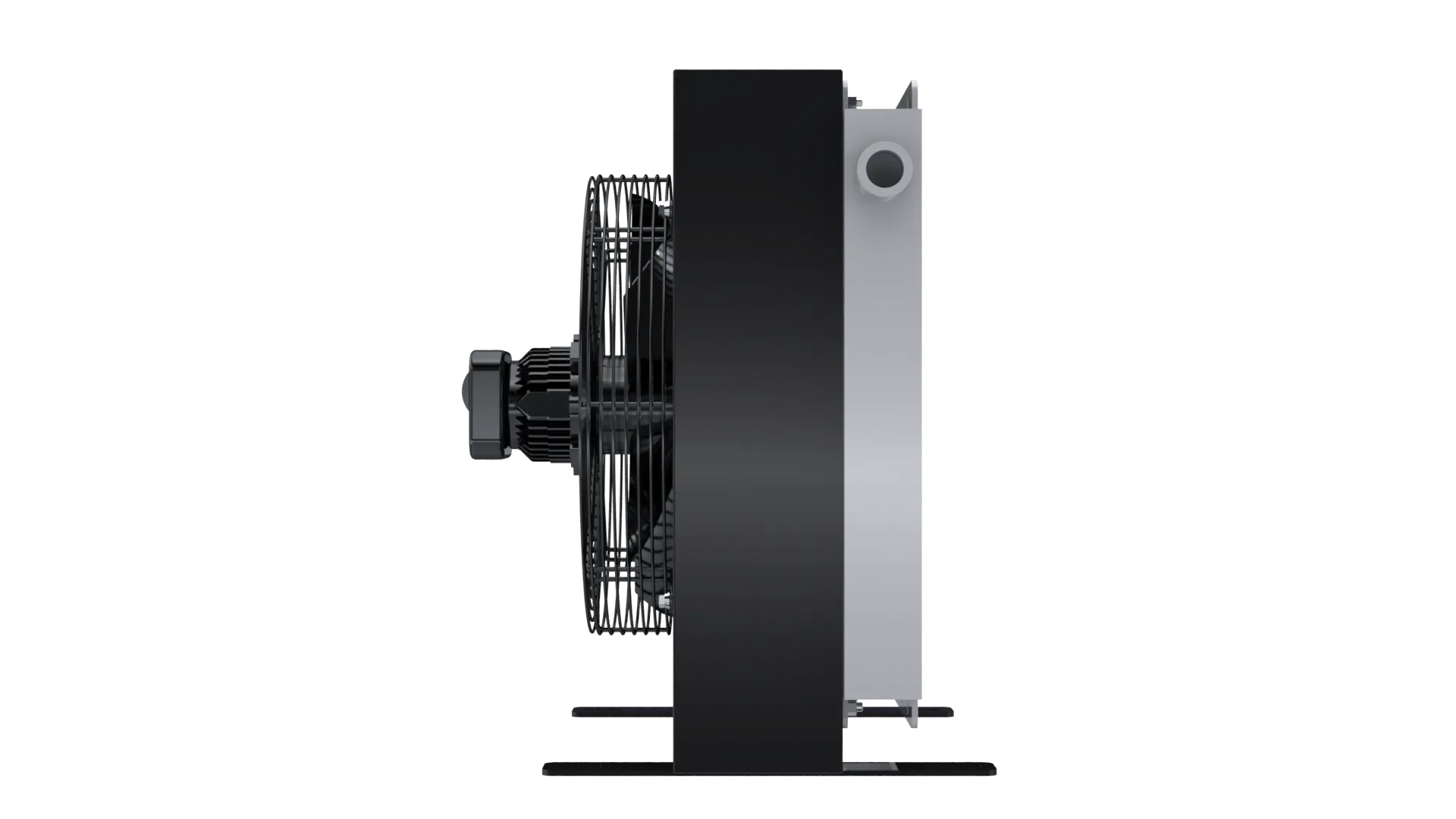

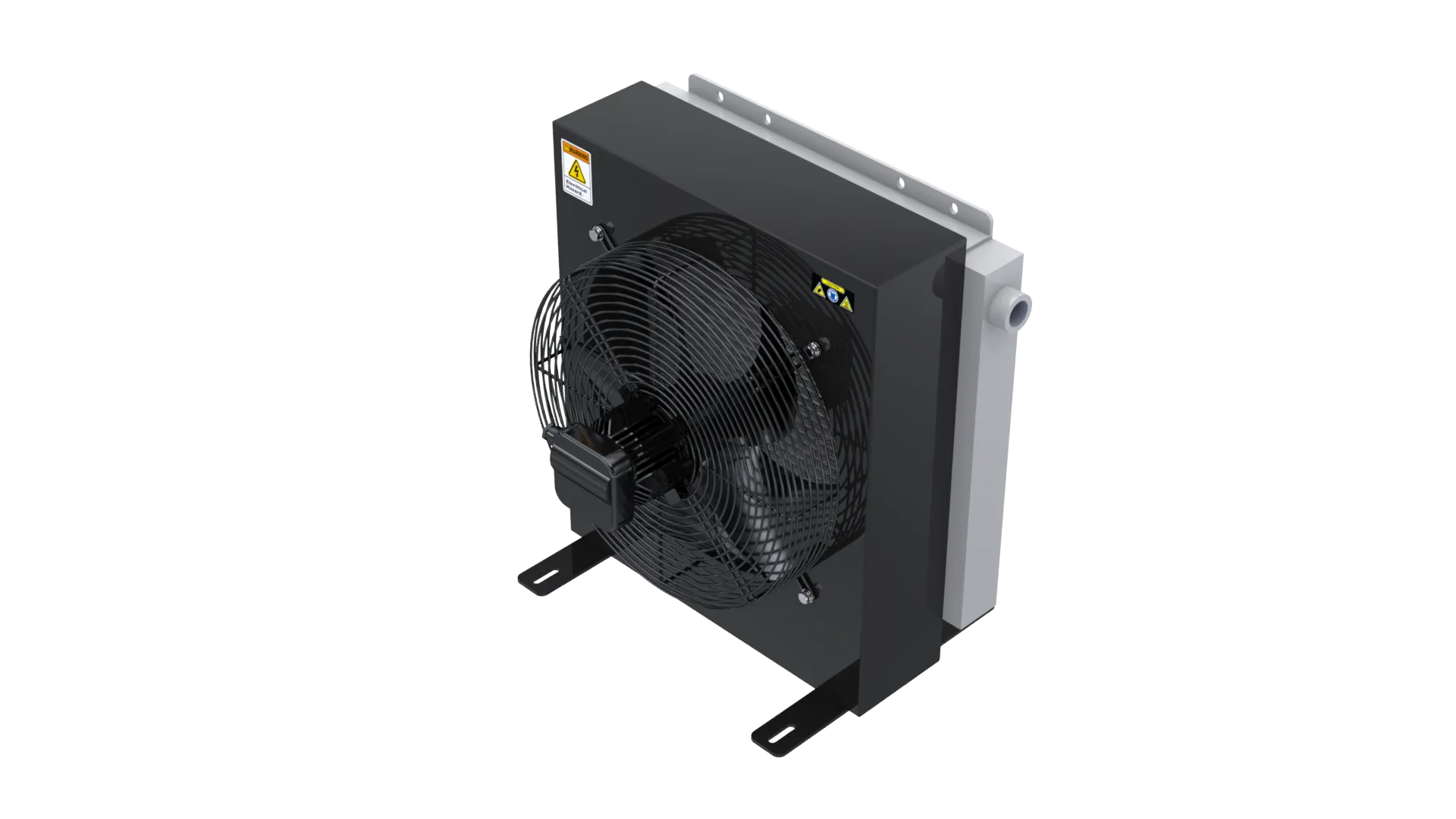

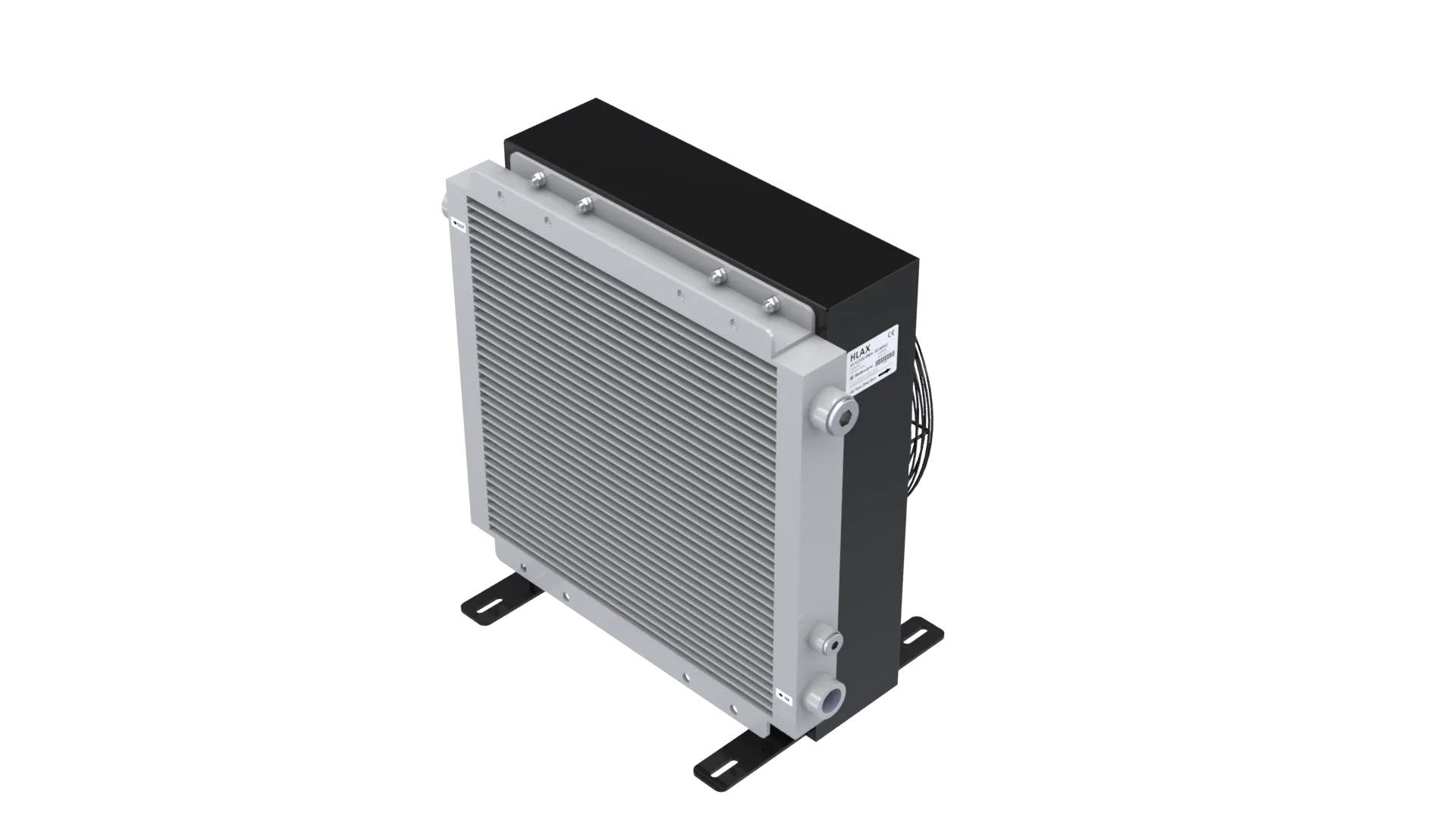

HydroLync HLAX 23-4 axial motor driven air-oil cooler
Quick Specifications
Cooling Capacity0.7kW/°C
Heat Dissipation28kW
Heat Dissipation (kcal/h)24,080kcal/h
Detailed Specifications
Performance
| Cooling Capacity | 0.7 kW/°C |
|---|---|
| Heat Dissipation | 28 kW |
| Heat Dissipation (kcal/h) | 24,080 kcal/h |
Dimensions
| Length (A) | 580 mm |
|---|---|
| Width (B) | 545 mm |
| Height (C) | 585 mm |
| Depth (D) | 314 mm |
| Dimension E | 63 mm |
| Dimension F | 378 mm |
| Dimension G | 120 mm |
| Dimension H | 380 mm |
| Dimension I | 320 mm |
| Dimension J | 400 mm |
| Dimension K | 498 mm |
| Mounting Slot | ø10x40 |
Electrical
| Insulation Grade | B, F |
|---|---|
| Max Speed (50Hz) | 1,500 RPM |
| Max Speed (60Hz) | 1,800 RPM |
| Motor Poles | 4 |
| Voltage | 220/380V |
