HLAX 35-4 Axial Motor Cooler
Product specifications and documentation
HLAX 35-4 Axial Motor Cooler

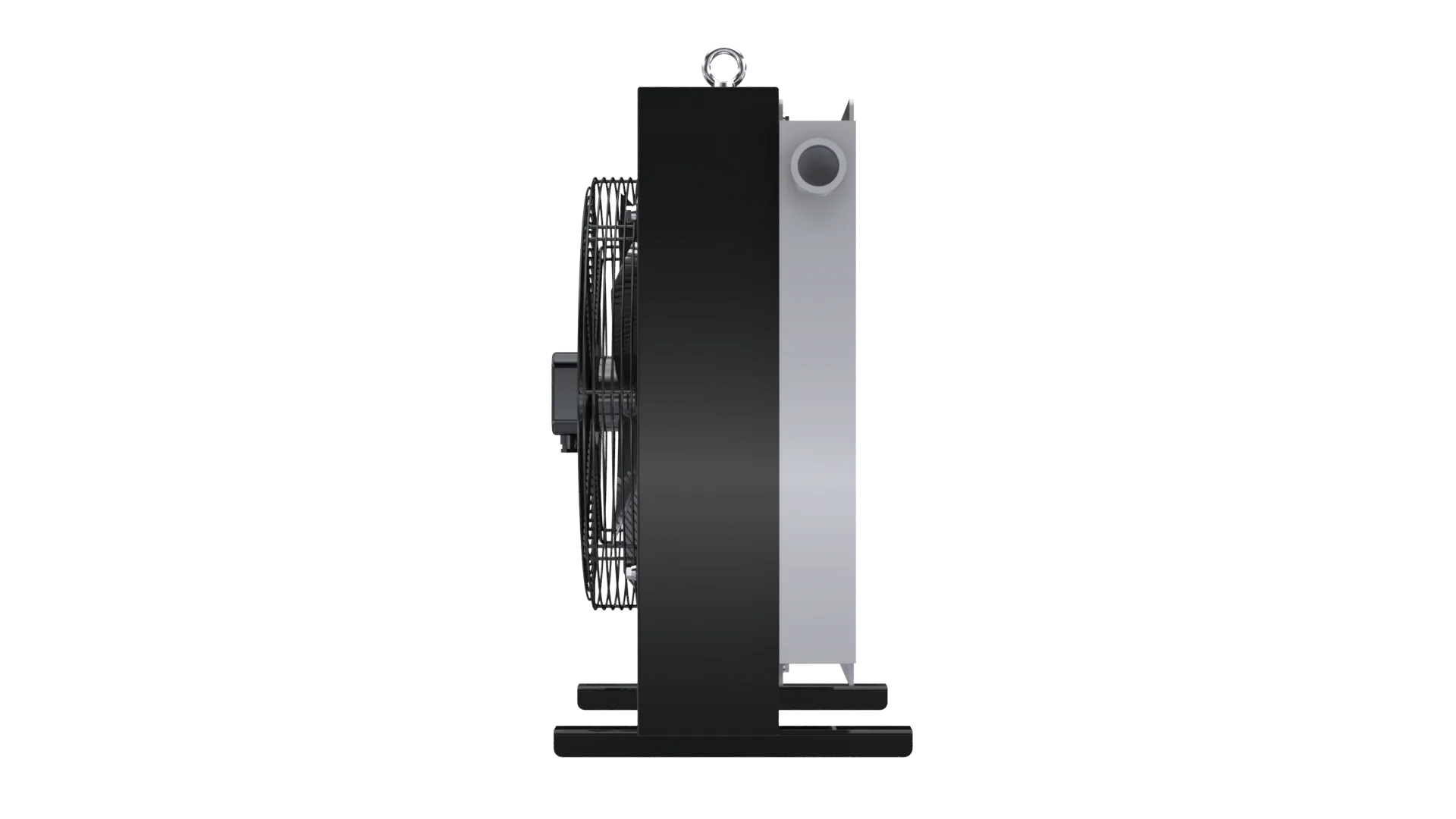

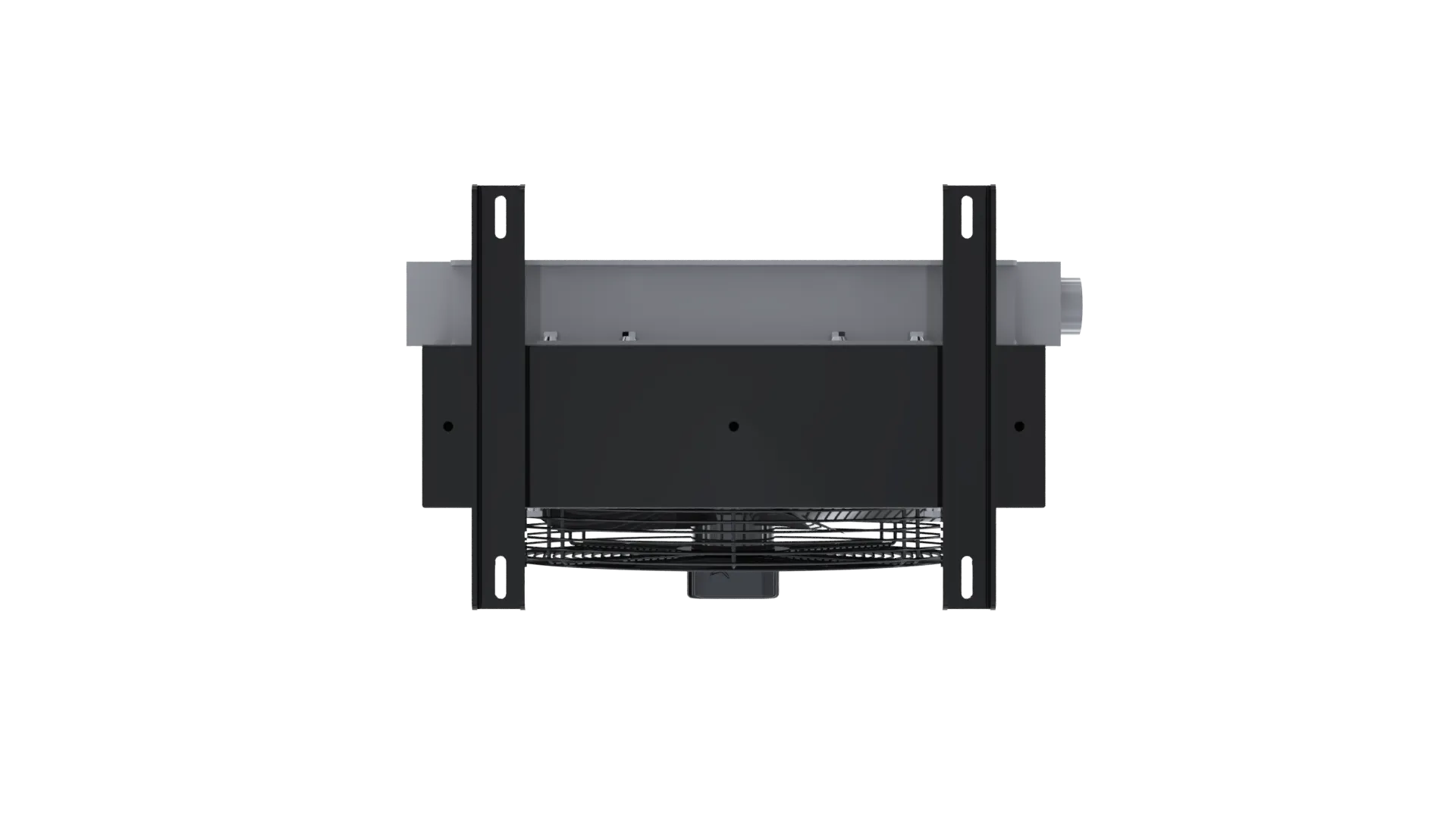

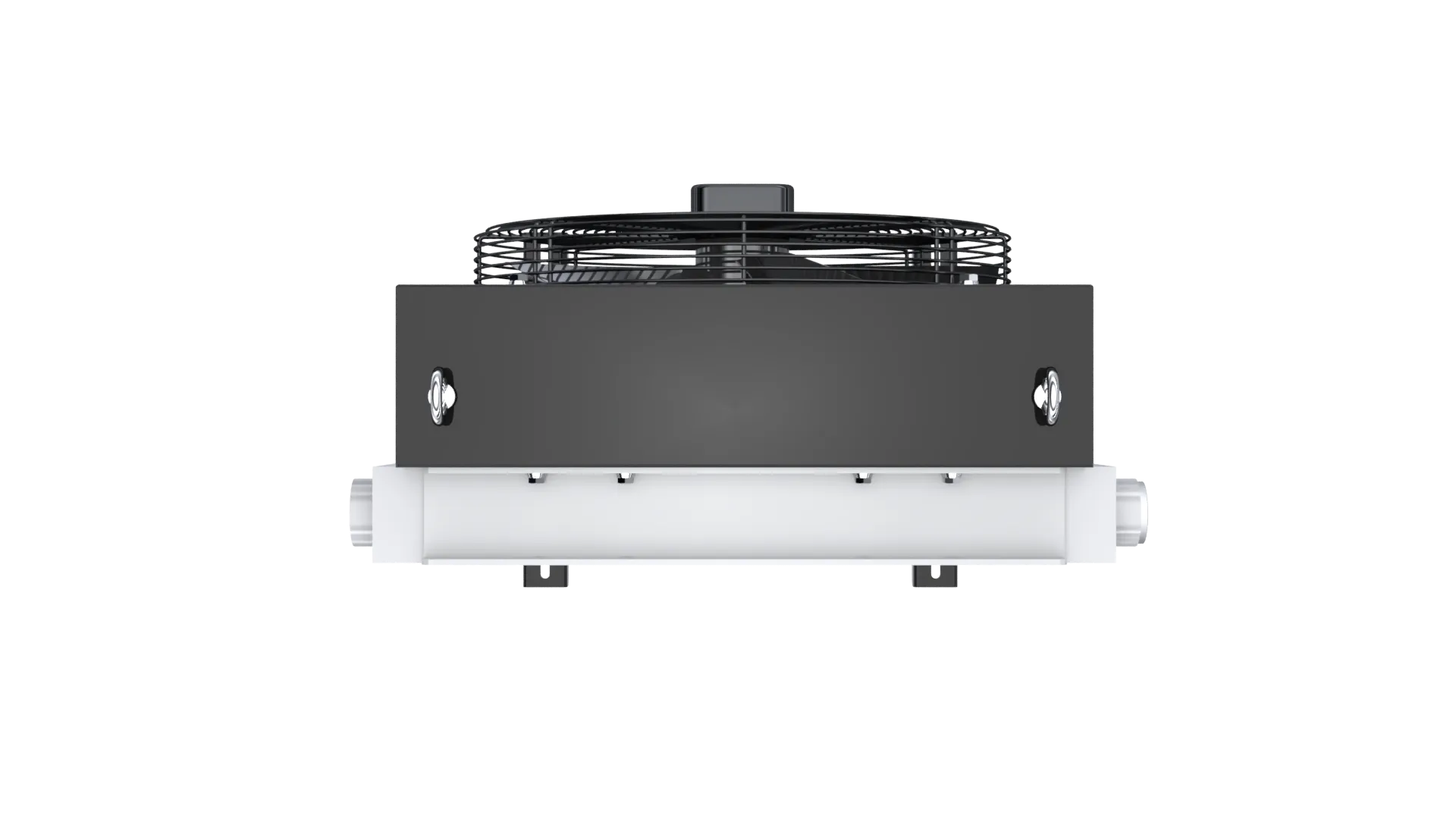

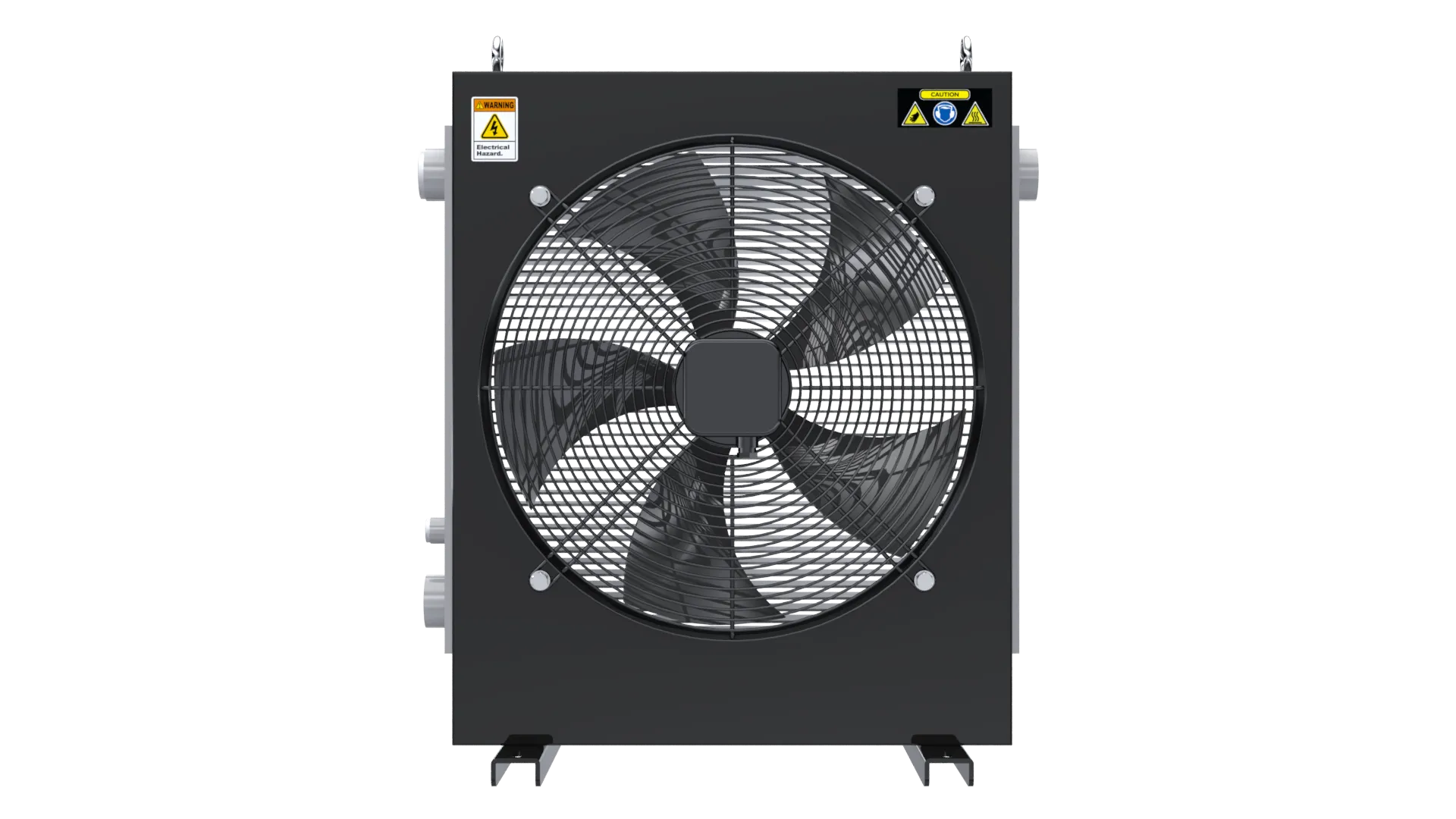

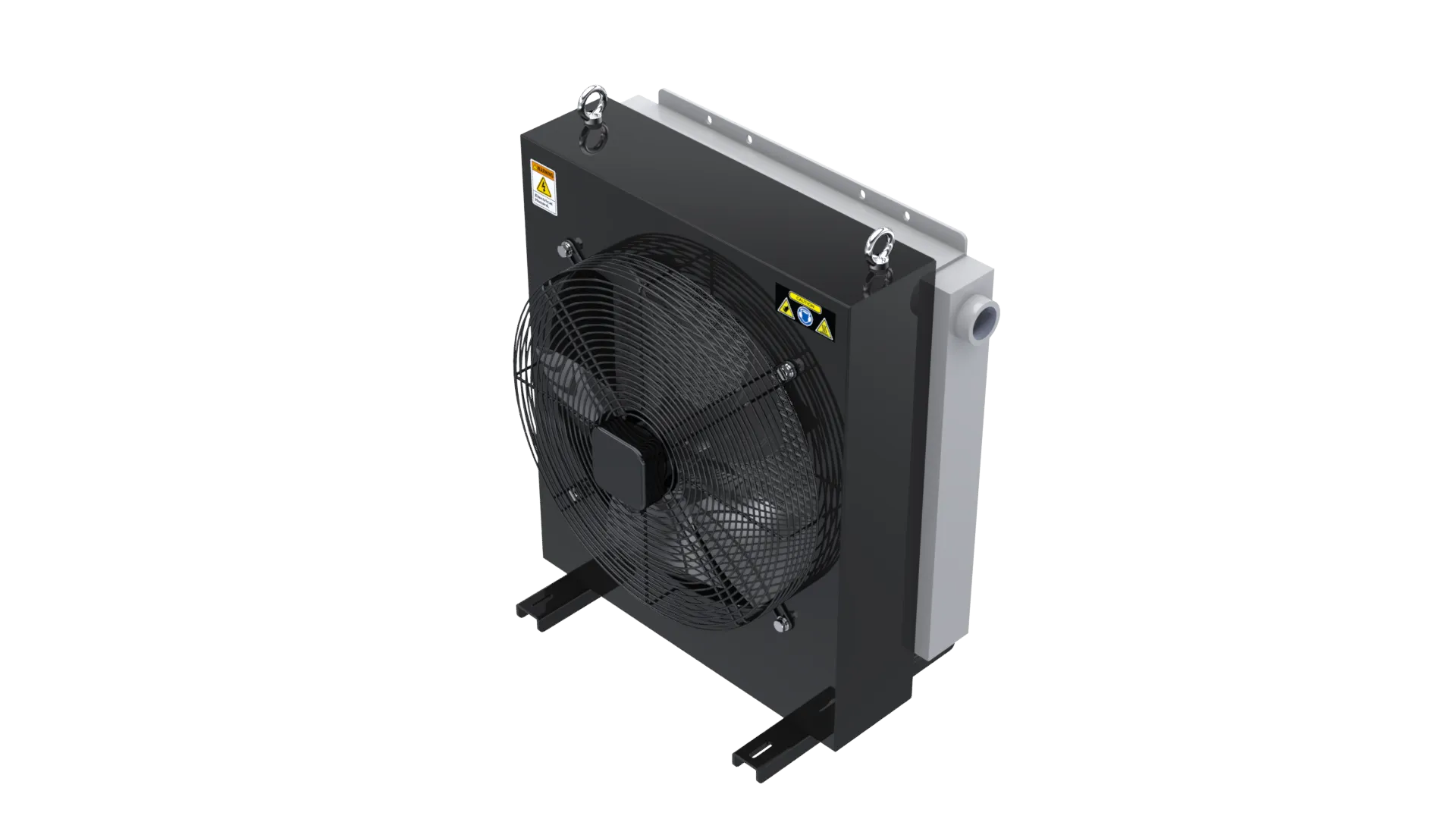

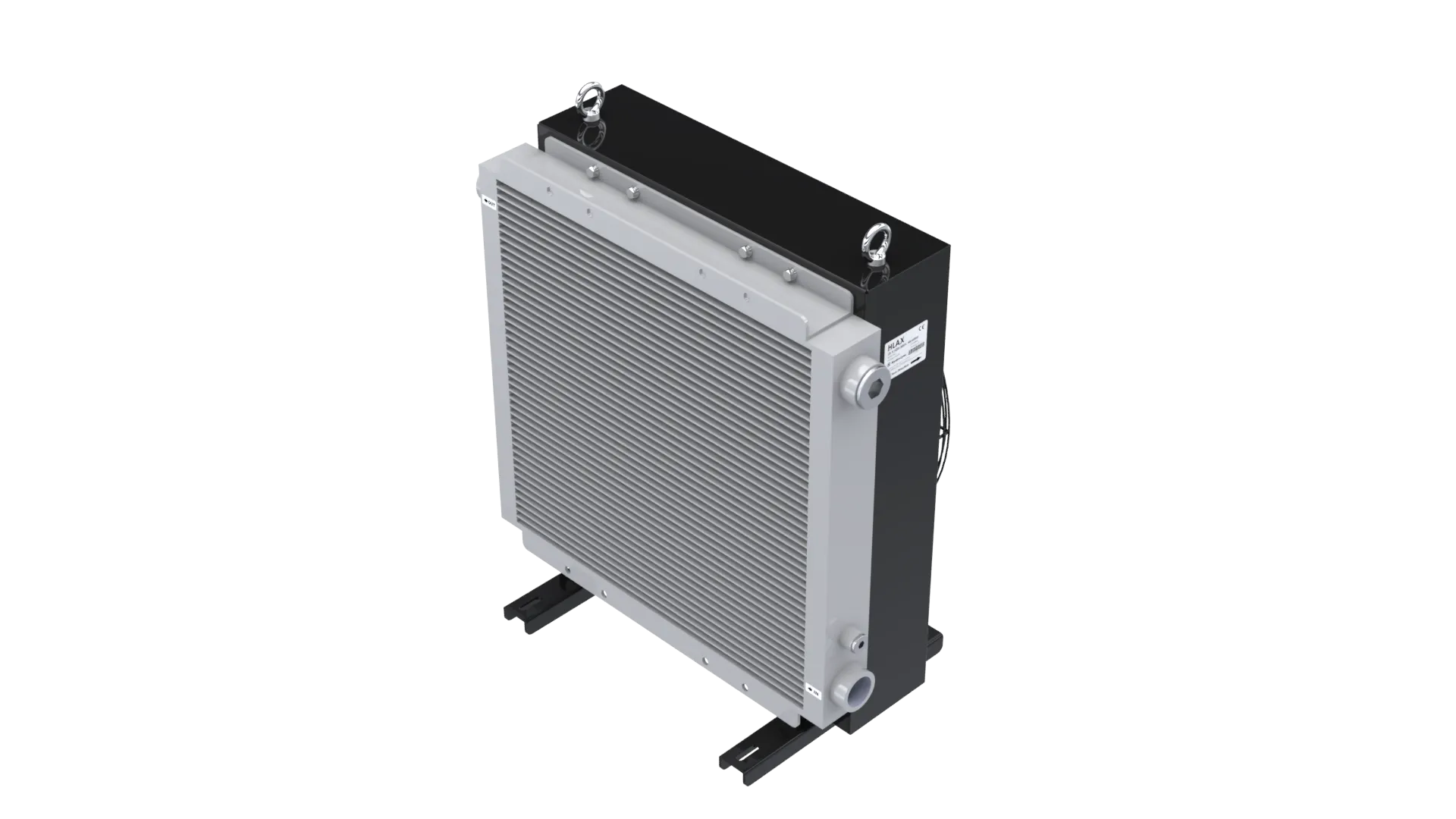

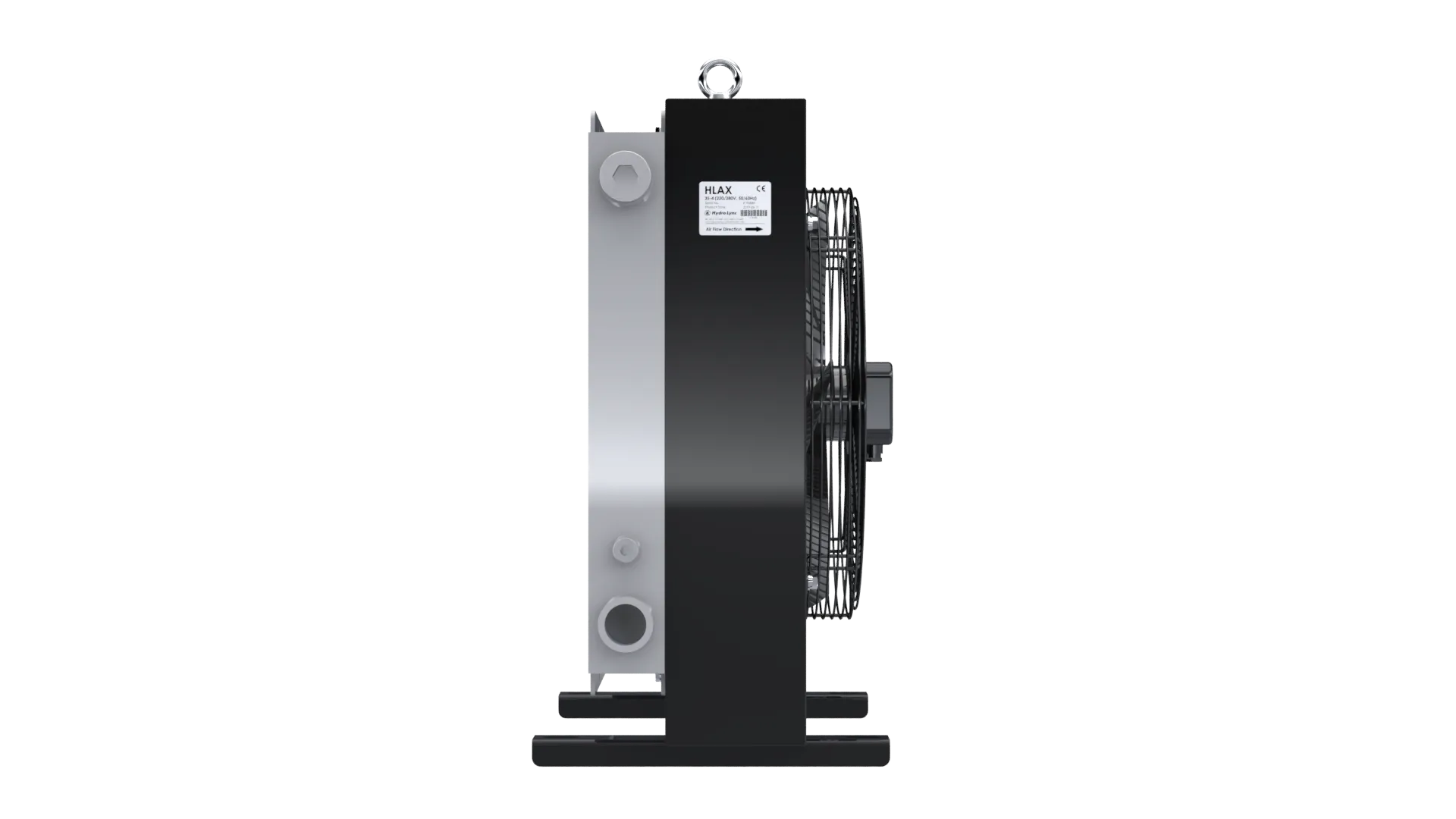

HydroLync HLAX 35-4 axial motor driven air-oil cooler
Quick Specifications
Cooling Capacity1.2kW/°C
Heat Dissipation48kW
Heat Dissipation (kcal/h)41,280kcal/h
Detailed Specifications
Performance
| Cooling Capacity | 1.2 kW/°C |
|---|---|
| Heat Dissipation | 48 kW |
| Heat Dissipation (kcal/h) | 41,280 kcal/h |
Dimensions
| Length (A) | 740 mm |
|---|---|
| Width (B) | 640 mm |
| Height (C) | 740 mm |
| Depth (D) | 354 mm |
| Dimension E | 83 mm |
| Dimension F | 482 mm |
| Dimension G | 167 mm |
| Dimension H | 400 mm |
| Dimension I | 340 mm |
| Dimension J | 440 mm |
| Dimension K | 649 mm |
| Mounting Slot | ø10x40 |
Electrical
| Insulation Grade | B, F |
|---|---|
| Max Speed (50Hz) | 1,500 RPM |
| Max Speed (60Hz) | 1,800 RPM |
| Motor Poles | 4 |
| Voltage | 220/380V |
Hydraulic
| Max Flow Rate | 350 L/min |
|---|---|
| Max Working Pressure (bar) | 14 bar |
| Oil Port (P1/P2/P3) | G1 1/2" |
Environmental
| Noise Level (1m) | 73 dB(A) |
|---|
Mechanical
| Net Weight | 56 kg |
|---|
Other
| Ingress Protection | IP54 |
|---|---|
| Max Working Temperature (°C) | 120 °C |
