HLAX 76-6 Axial Motor Cooler
Product specifications and documentation
HLAX 76-6 Axial Motor Cooler

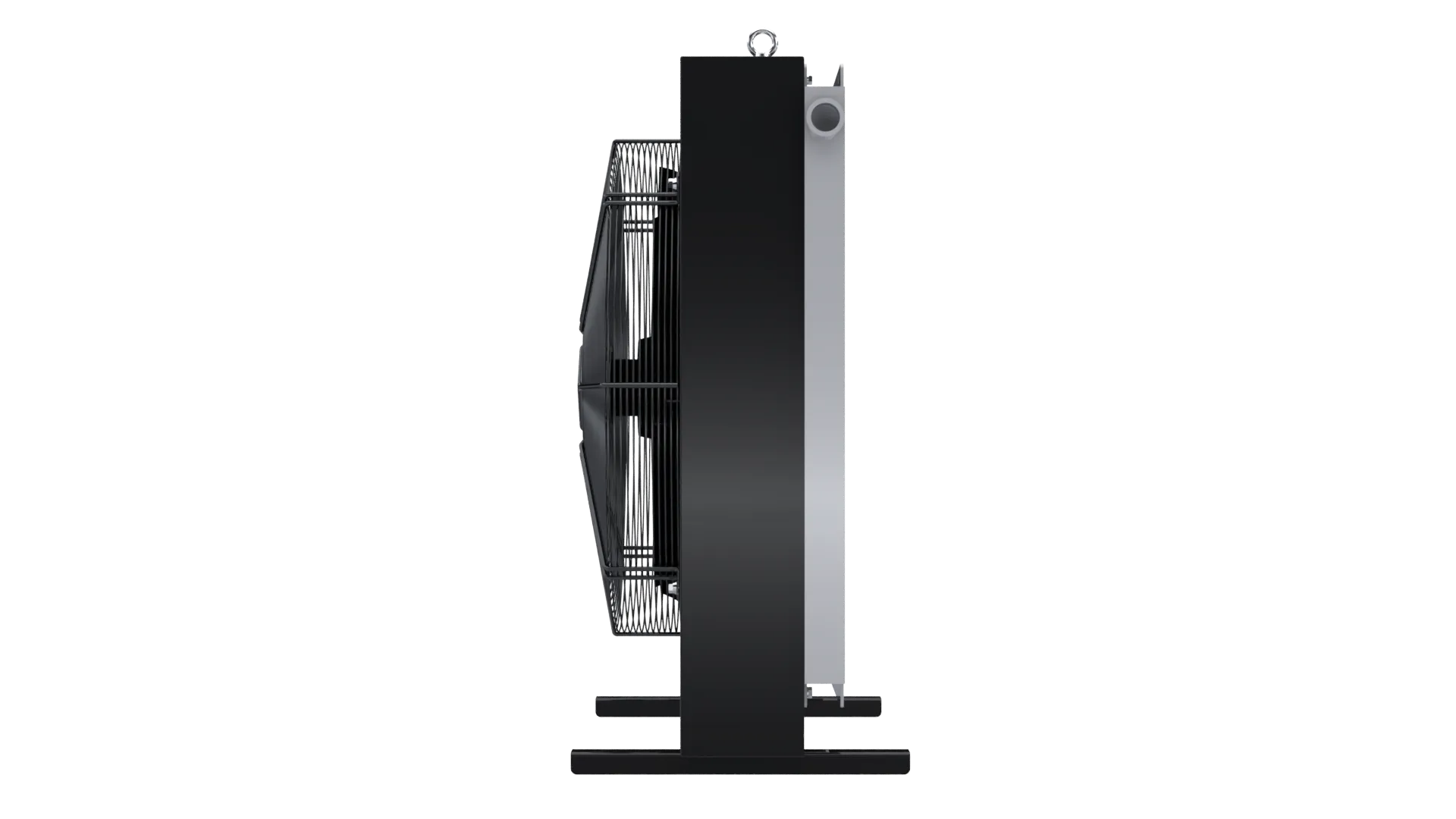

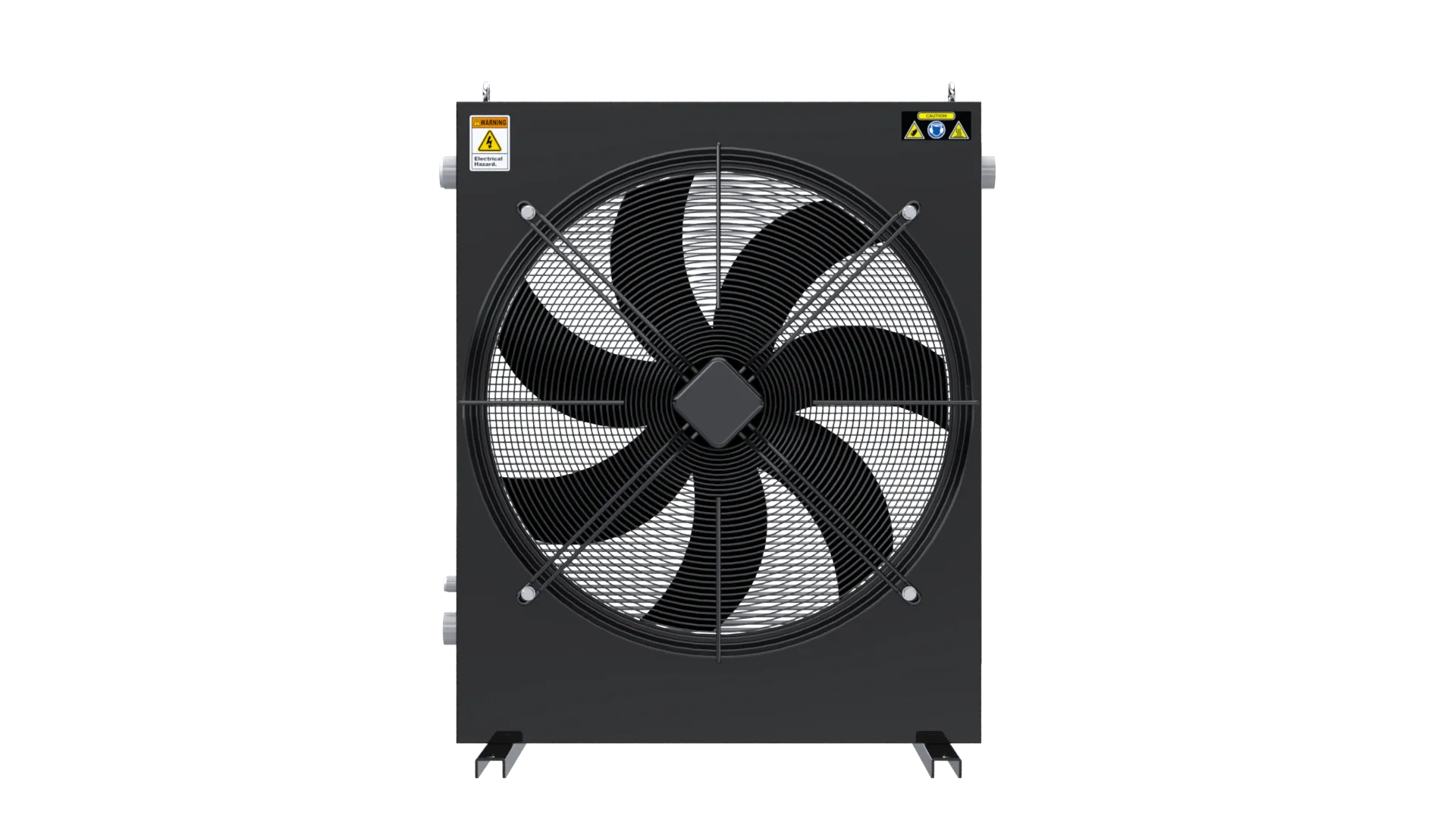

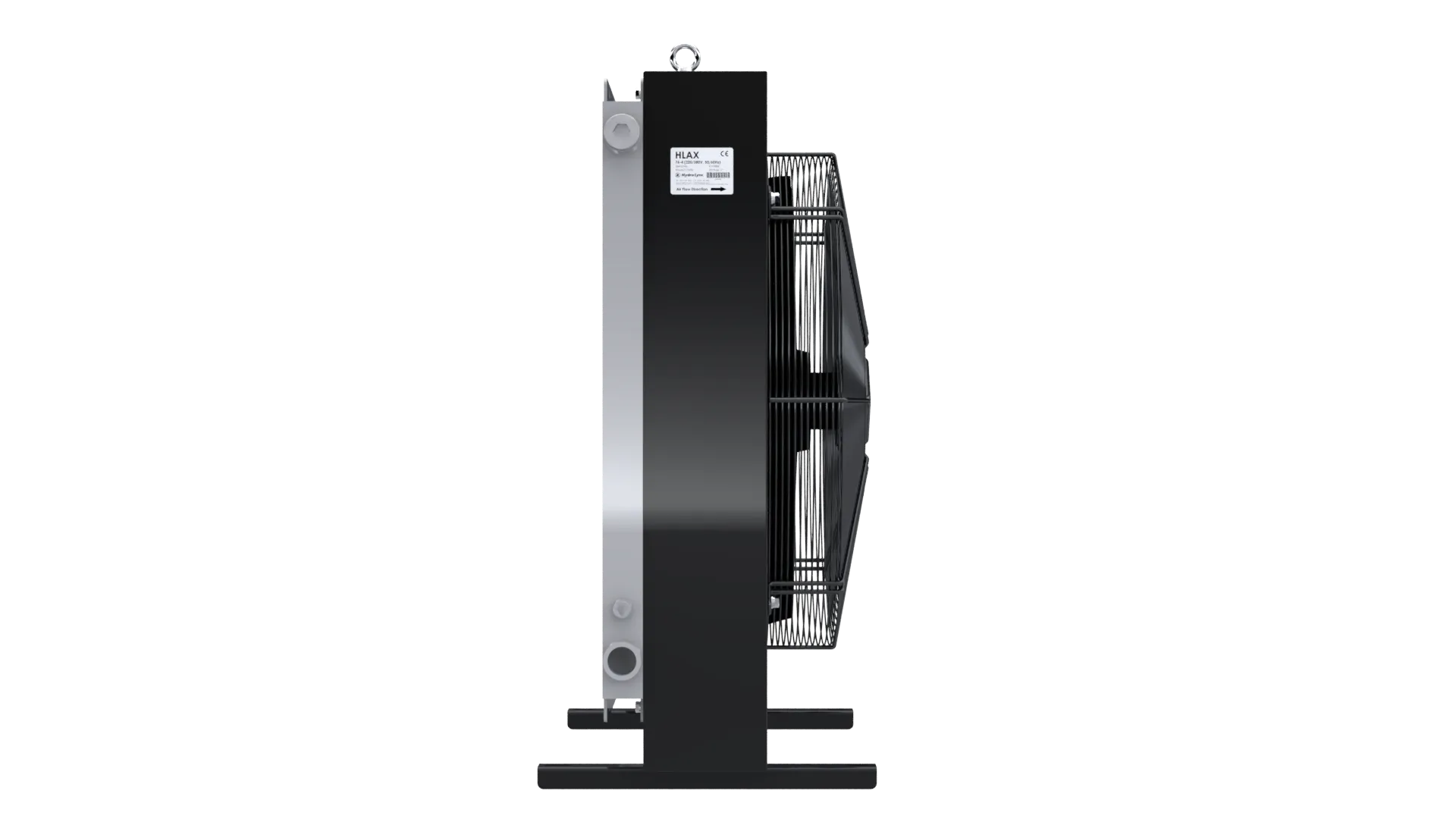

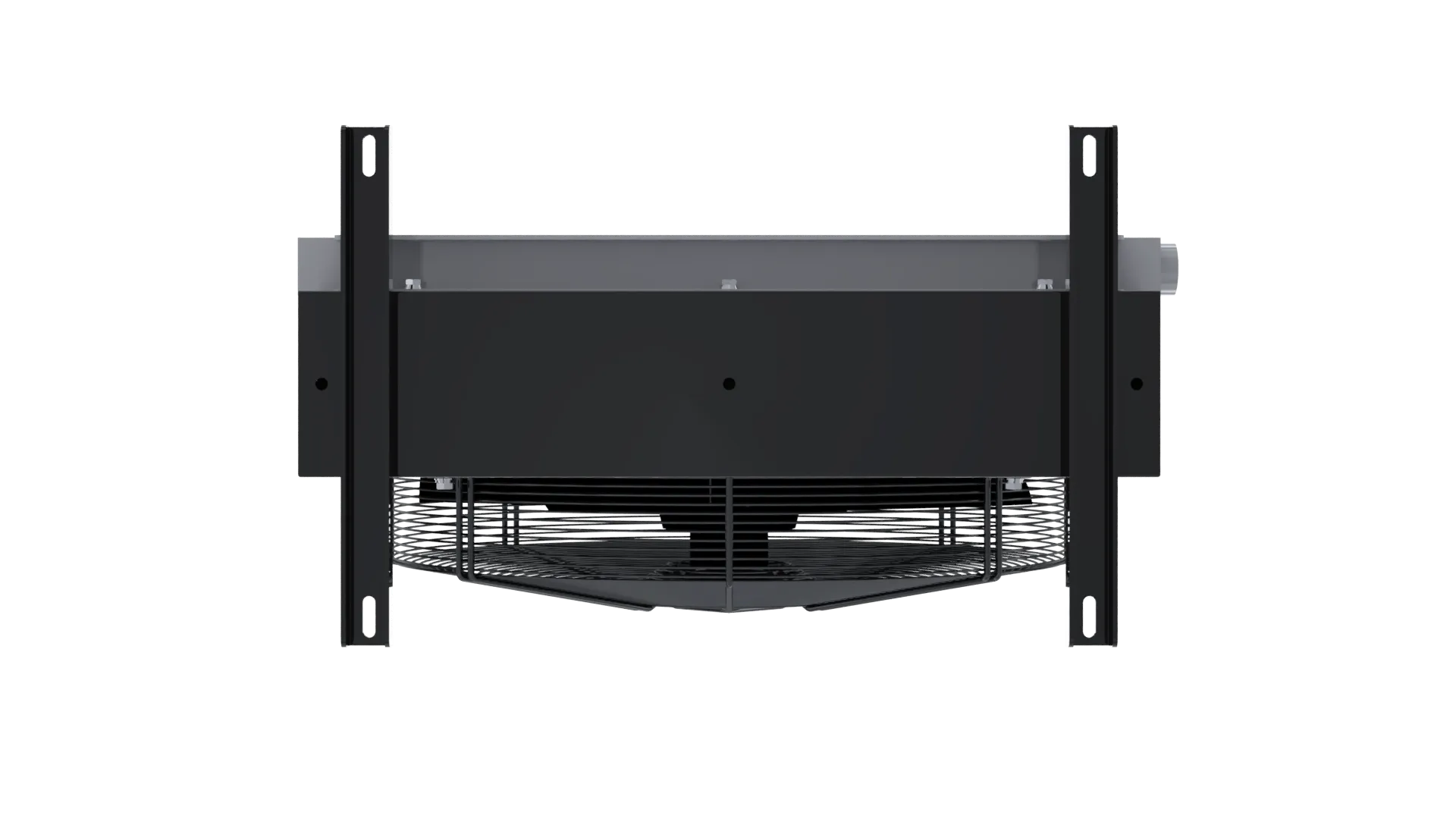

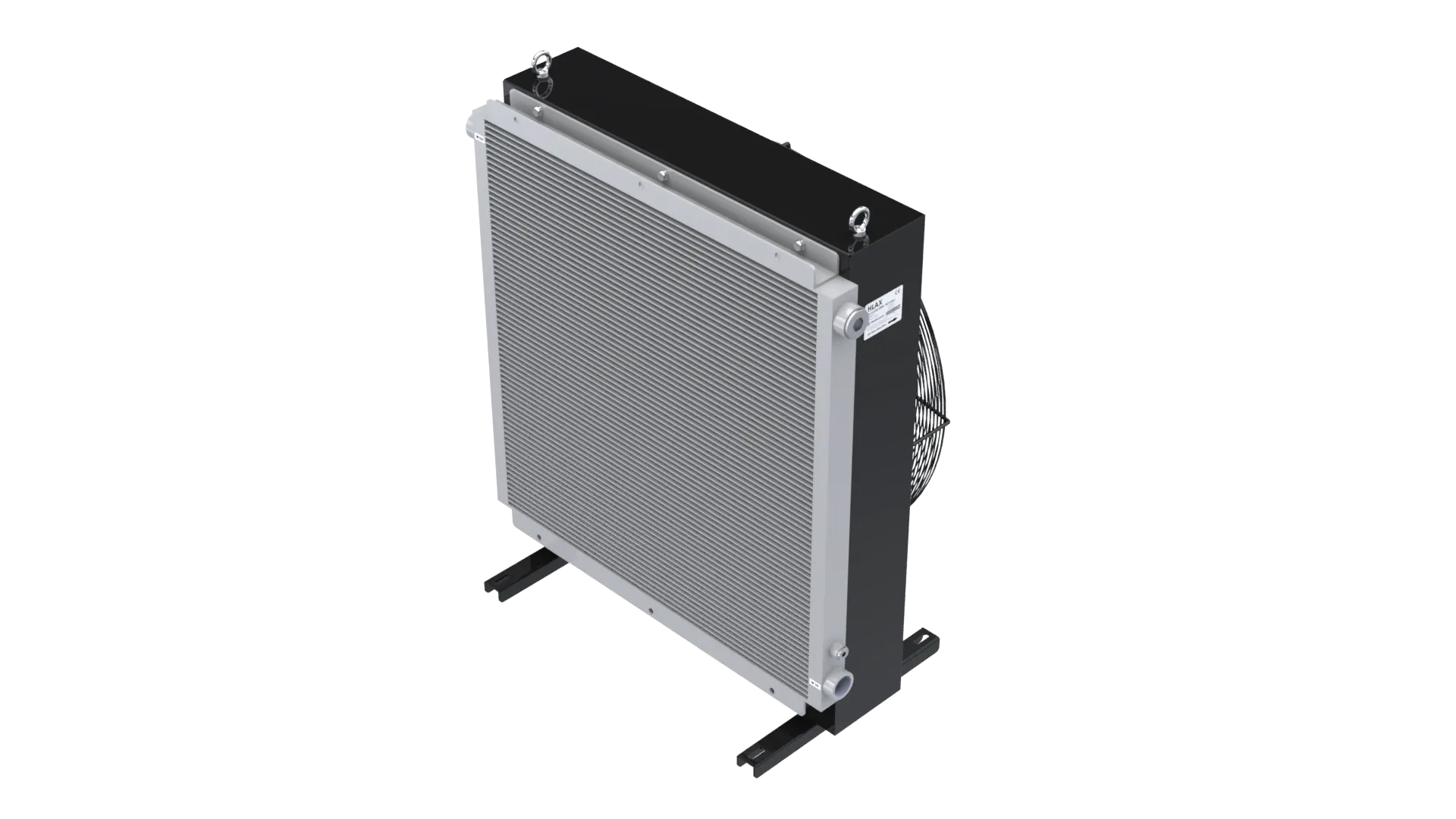

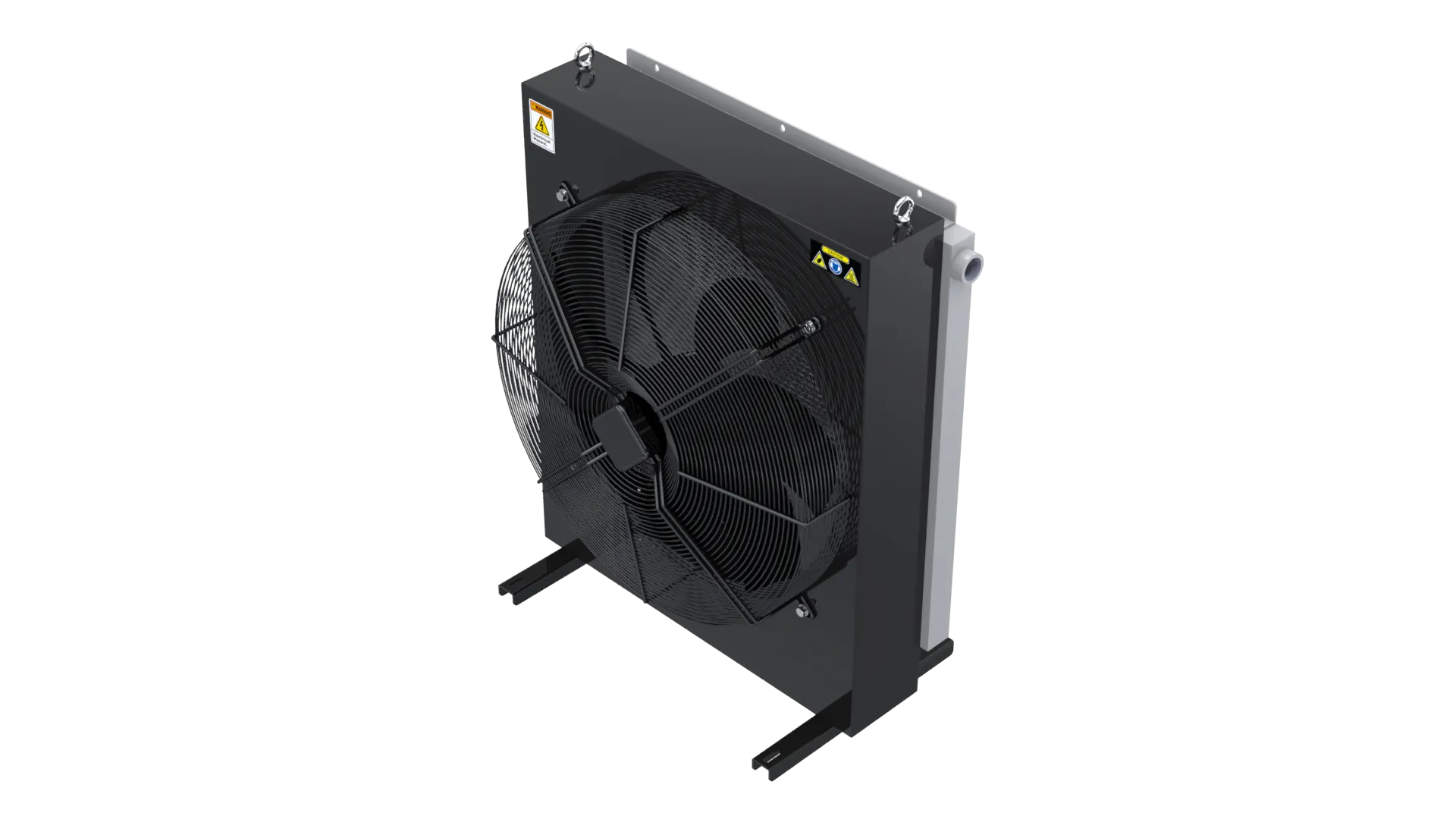

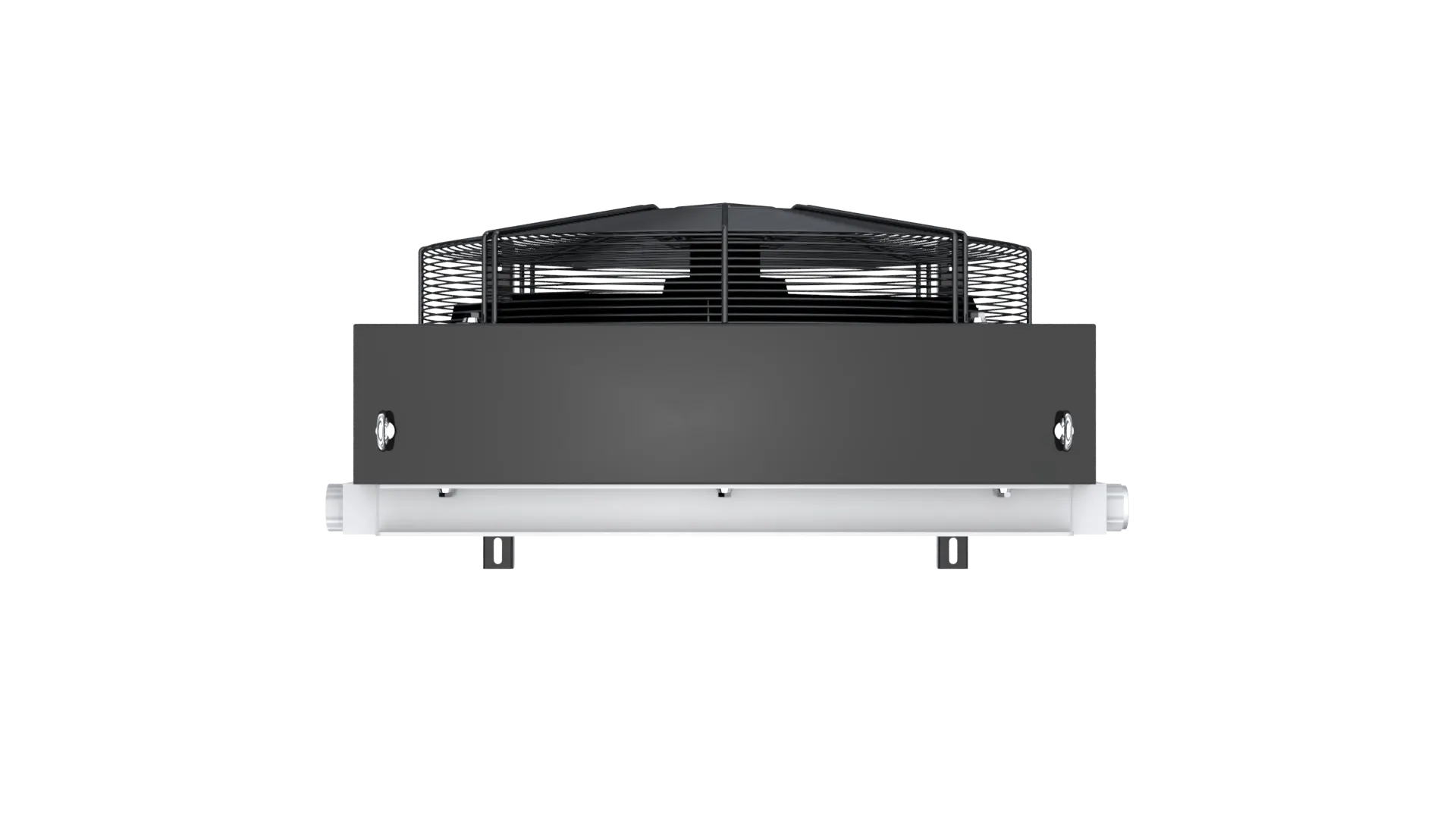

HydroLync HLAX 76-6 axial motor driven air-oil cooler
Quick Specifications
Cooling Capacity1.75kW/°C
Heat Dissipation70kW
Heat Dissipation (kcal/h)60,200kcal/h
Detailed Specifications
Performance
| Cooling Capacity | 1.75 kW/°C |
|---|---|
| Heat Dissipation | 70 kW |
| Heat Dissipation (kcal/h) | 60,200 kcal/h |
Dimensions
| Length (A) | 1,100 mm |
|---|---|
| Width (B) | 940 mm |
| Height (C) | 1,135 mm |
| Depth (D) | 442 mm |
| Dimension E | 63 mm |
| Dimension F | 821 mm |
| Dimension G | 213 mm |
| Dimension H | 540 mm |
| Dimension I | 480 mm |
| Dimension J | 750 mm |
| Dimension K | 1,034 mm |
| Mounting Slot | ø13x43 |
Electrical
| Insulation Grade | B, F |
|---|---|
| Max Speed (50Hz) | 1,000 RPM |
| Max Speed (60Hz) | 1,200 RPM |
| Motor Poles | 6 |
| Voltage | 380V |
