HLD-04-24V-W50
Product specifications and documentation

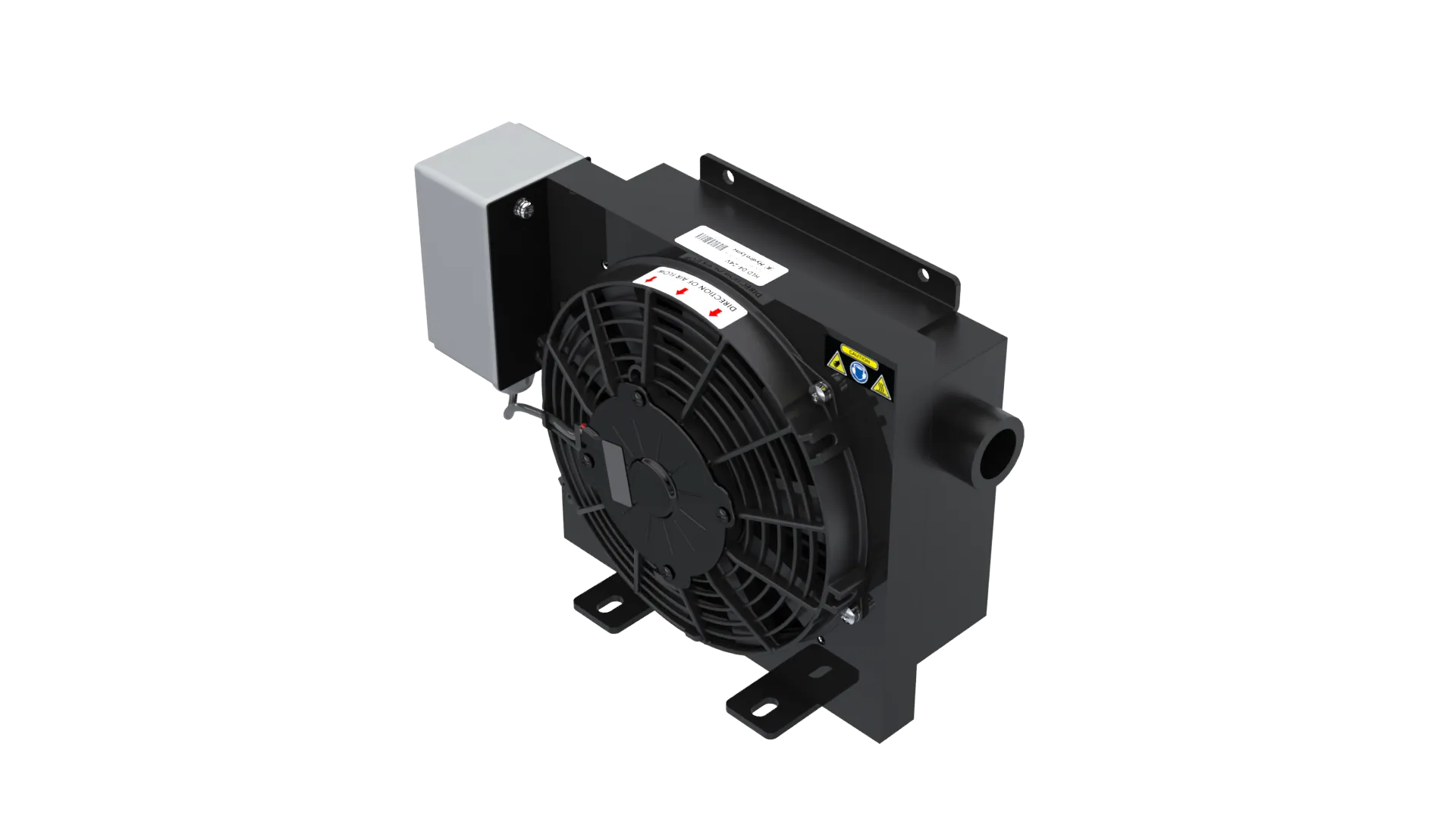

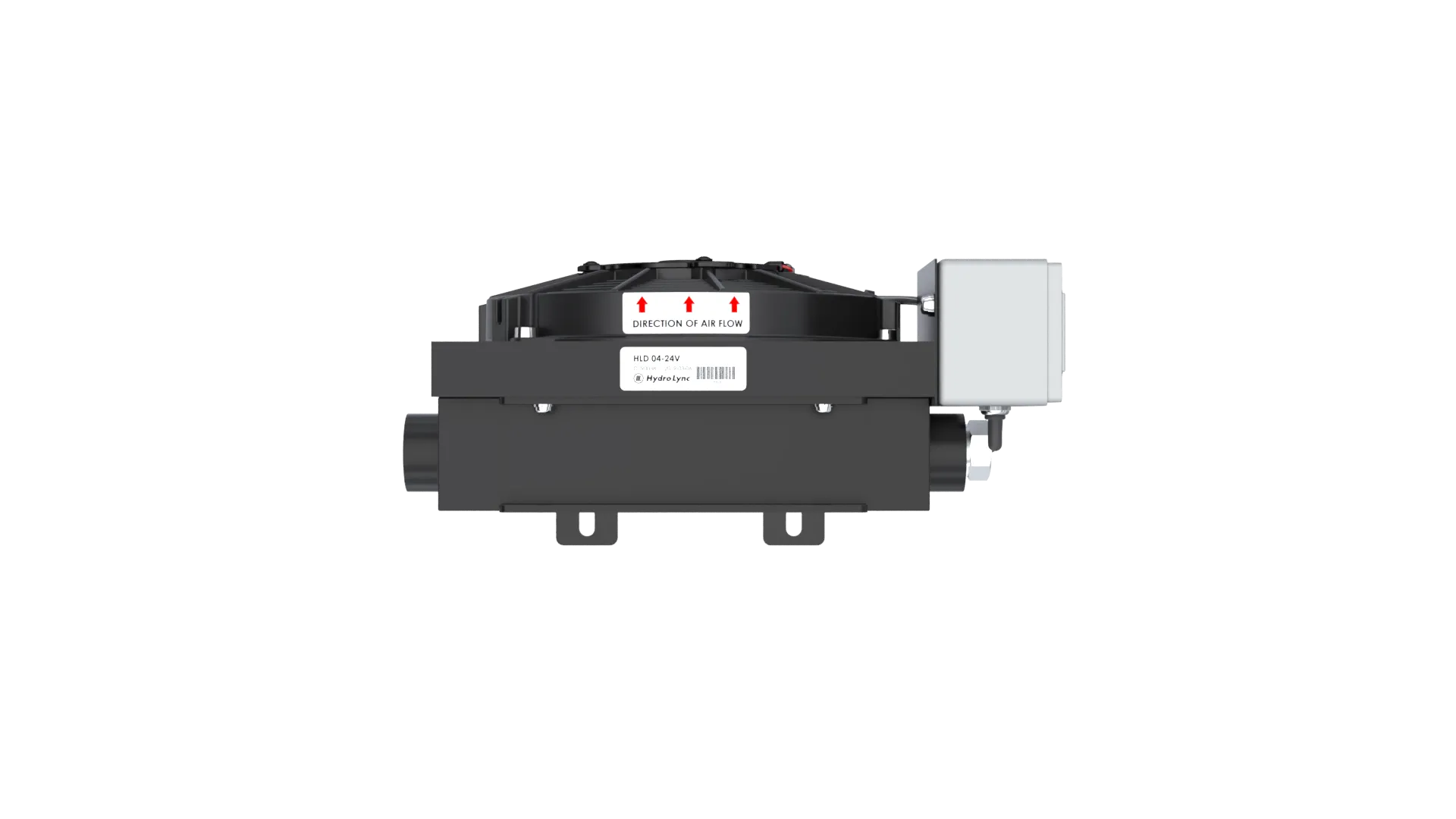

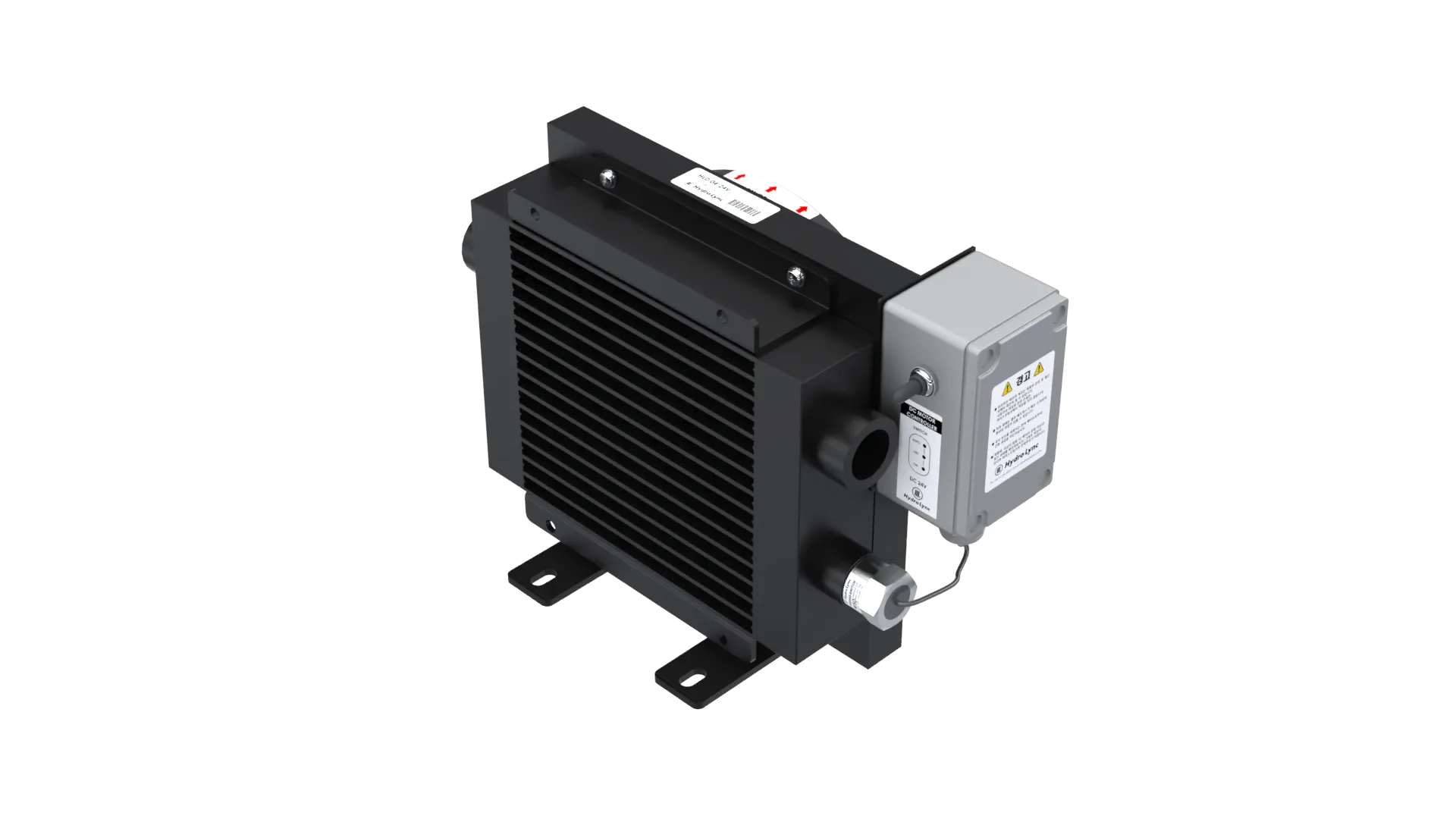

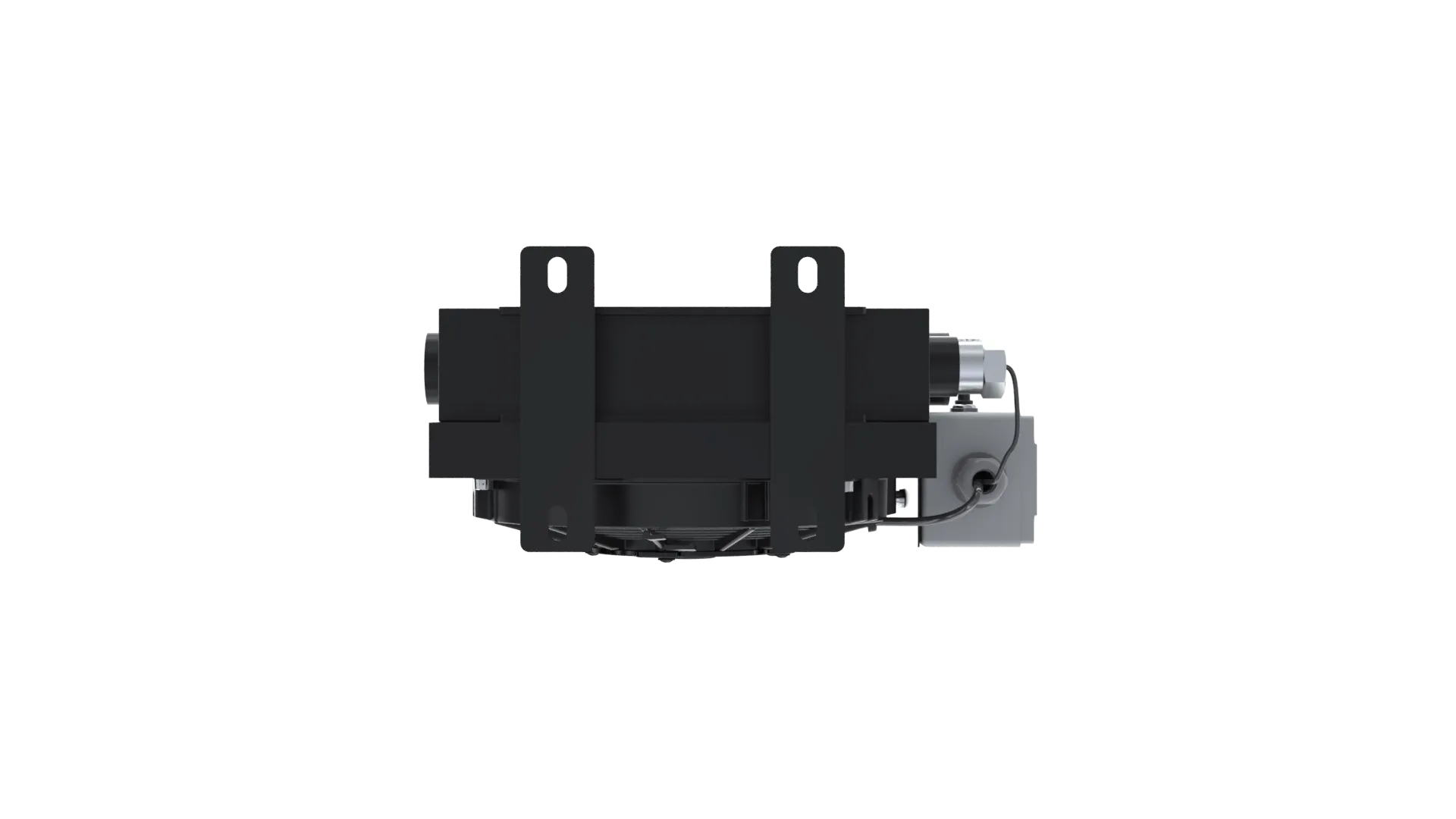

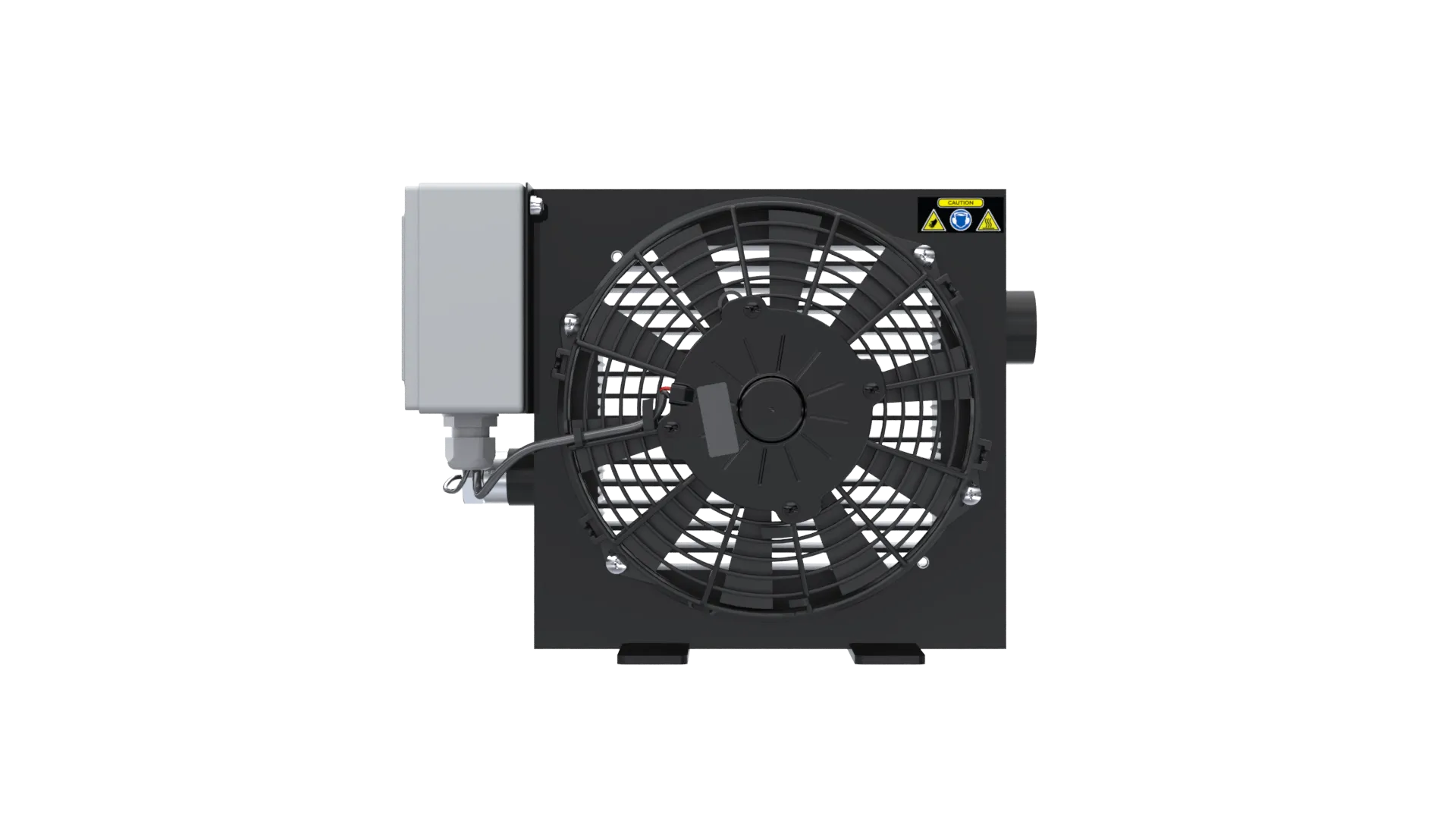

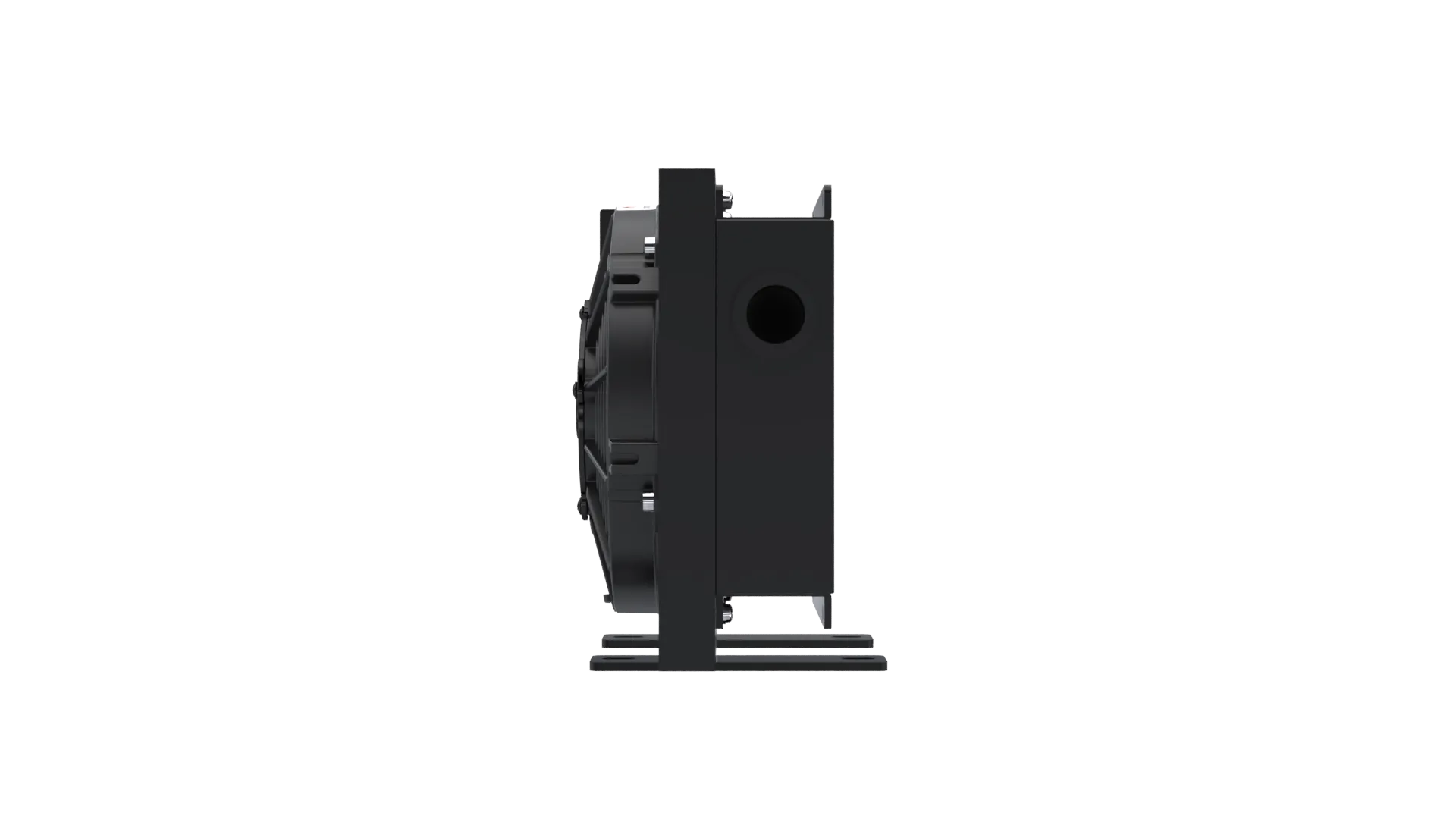

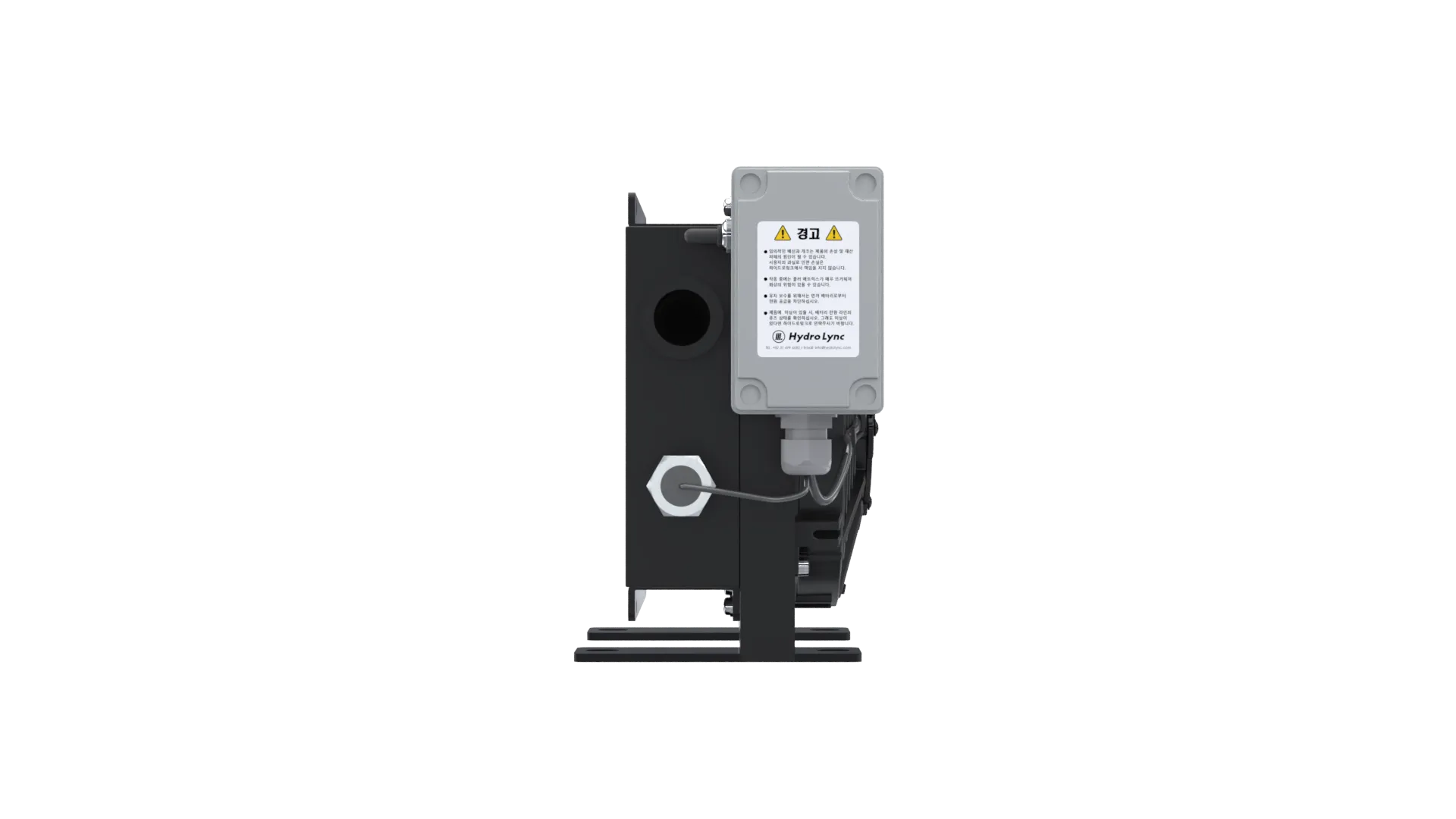

HLD-04-24V-W50
Quick Specifications
Cooling Capacity0.125kW/°C
Heat Dissipation (kW)5kW
Heat Dissipation (kcal/h)4,300kcal/h
Max Flow Rate100LPM
Motor RPM3,060RPM
Detailed Specifications
Performance
| Cooling Capacity | 0.125 kW/°C |
|---|---|
| Heat Dissipation (kW) | 5 kW |
| Heat Dissipation (kcal/h) | 4,300 kcal/h |
| Max Flow Rate | 100 LPM |
| Motor RPM | 3,060 RPM |
| Noise Level | 68 dBA |
| Oil Flow (Max) | Max. 100 LPM |
| Working Pressure (Max) | 14 bar |
Dimensions
| Length (A) | 266 mm |
|---|---|
| Width (B) | 273 mm |
| Height (C) | 271 mm |
| Depth (D) | 160.2 mm |
| Dimension E | 63 mm |
| Dimension F | 90 mm |
| Dimension G | 105 mm |
| Dimension H | 164 mm |
| Dimension I | 133 mm |
| Dimension J | 134 mm |
| Dimension K | 195 mm |
| Net Weight | 6 kg |
| Bracket Hole | 4x(⌀10x19) |
Electrical
| DC Voltage | 12V/24 V |
|---|---|
| 12V Motor Specs | 12V / 8A @3,350rpm |
| 24V Motor Specs | 24V / 4A @3,350rpm |
| Insulation Class | H (180℃/356℉) |
Hydraulic
| P1 Port Thread | G1 |
|---|---|
| P2 Port Thread | G1/2 |
| P3 Port Thread | G1 |
Environmental
| Ingress Protection | IP68 |
|---|
