HLD-16
Product specifications and documentation
HLD-16

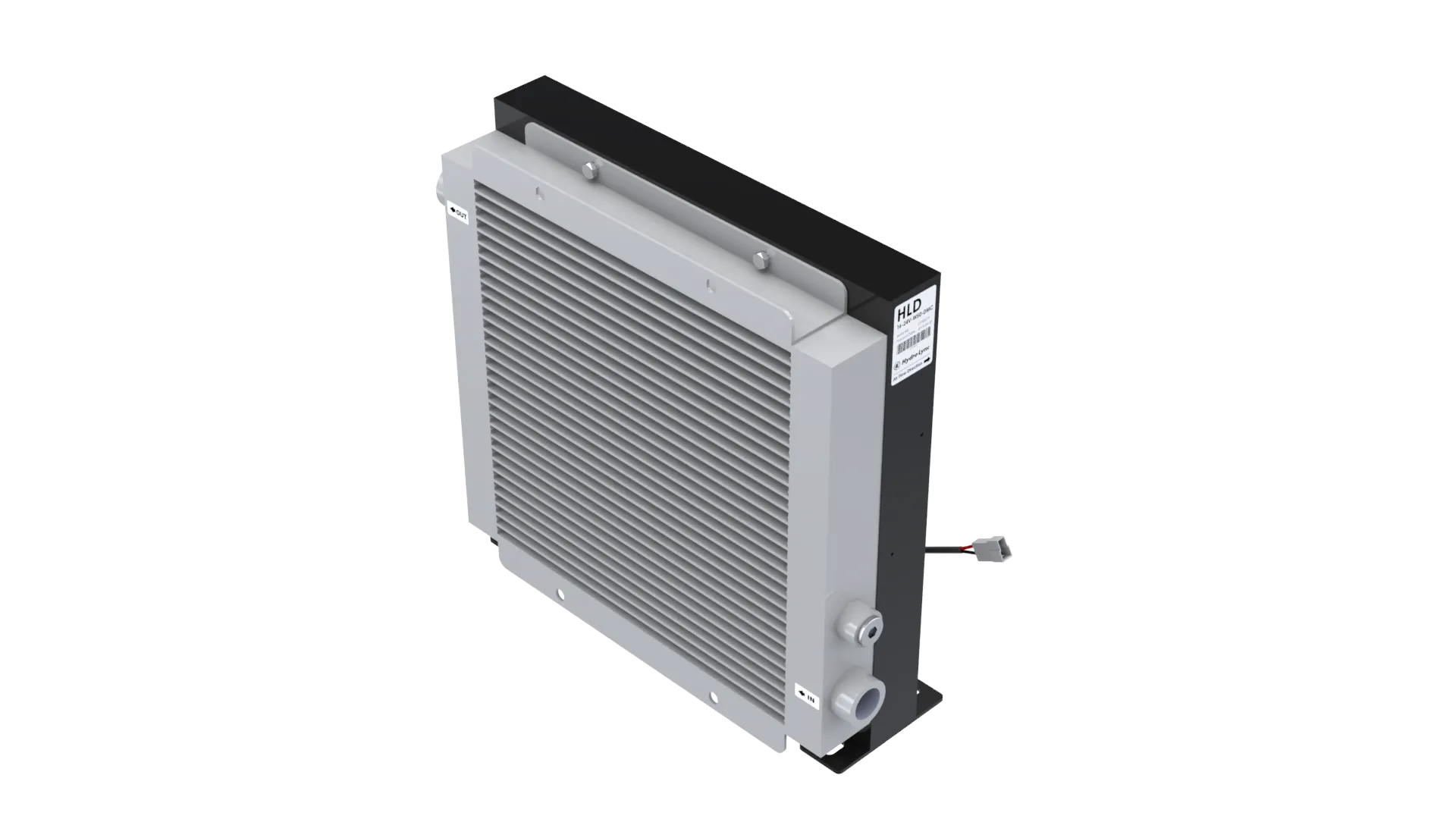

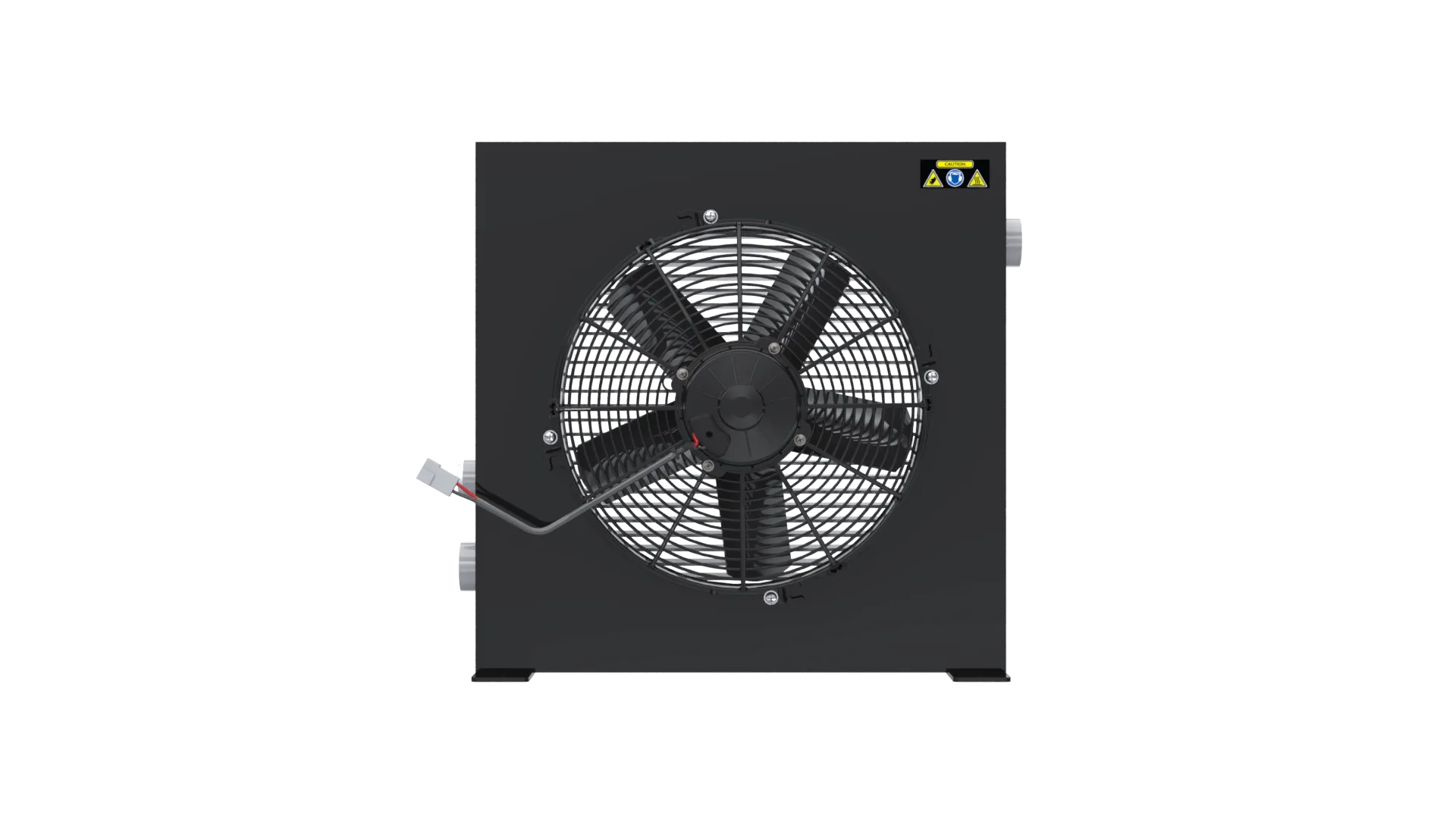

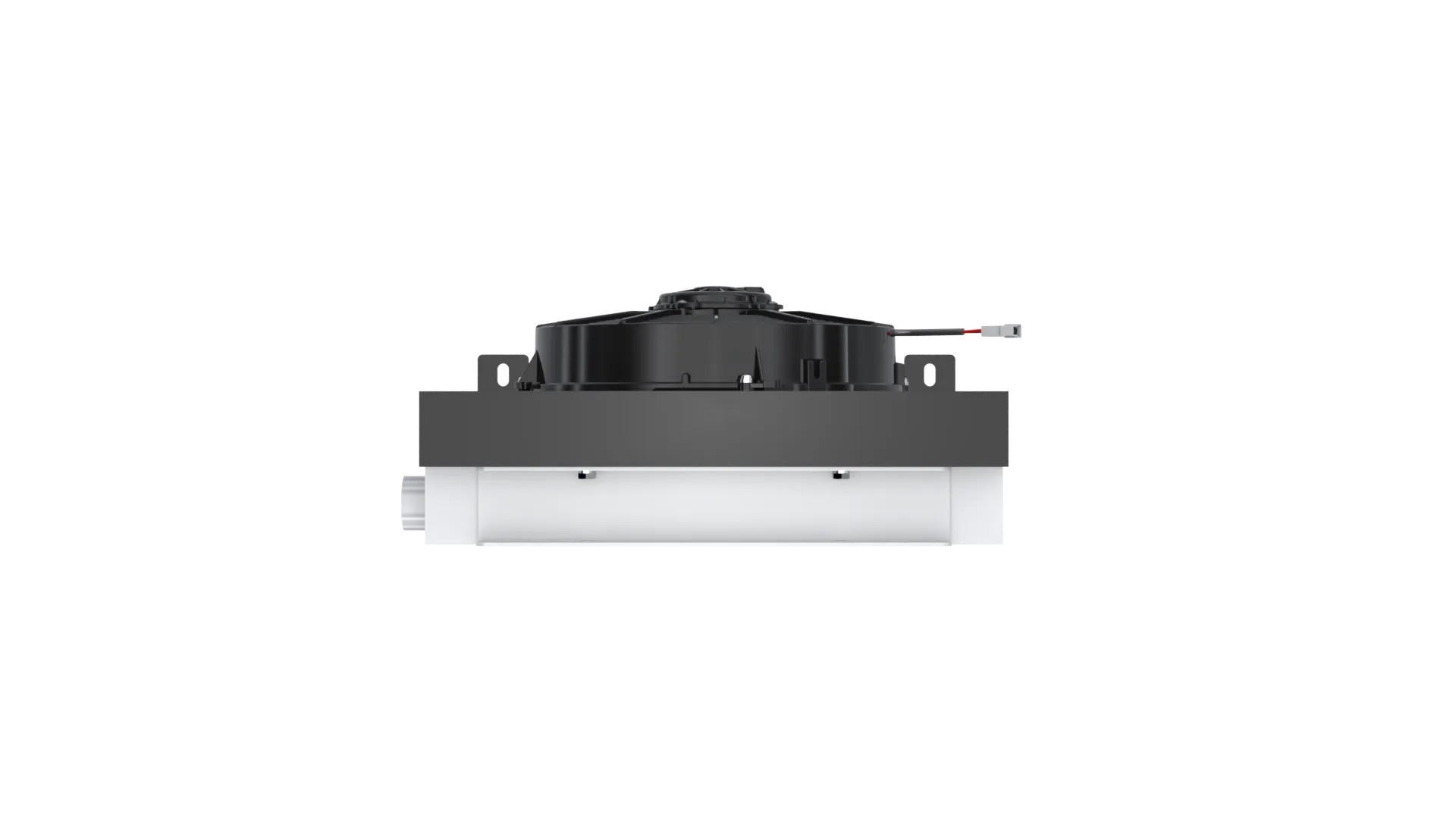

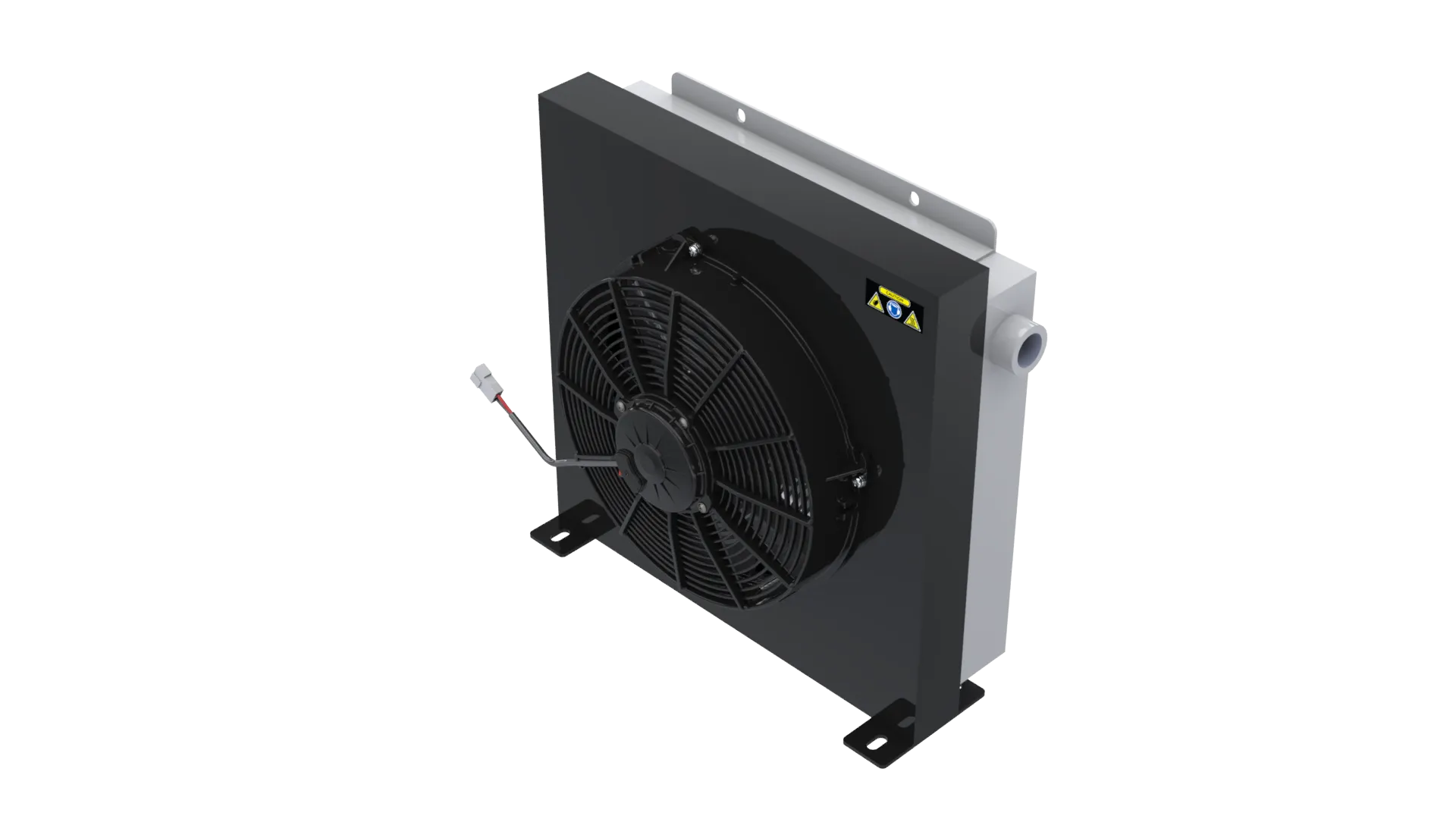

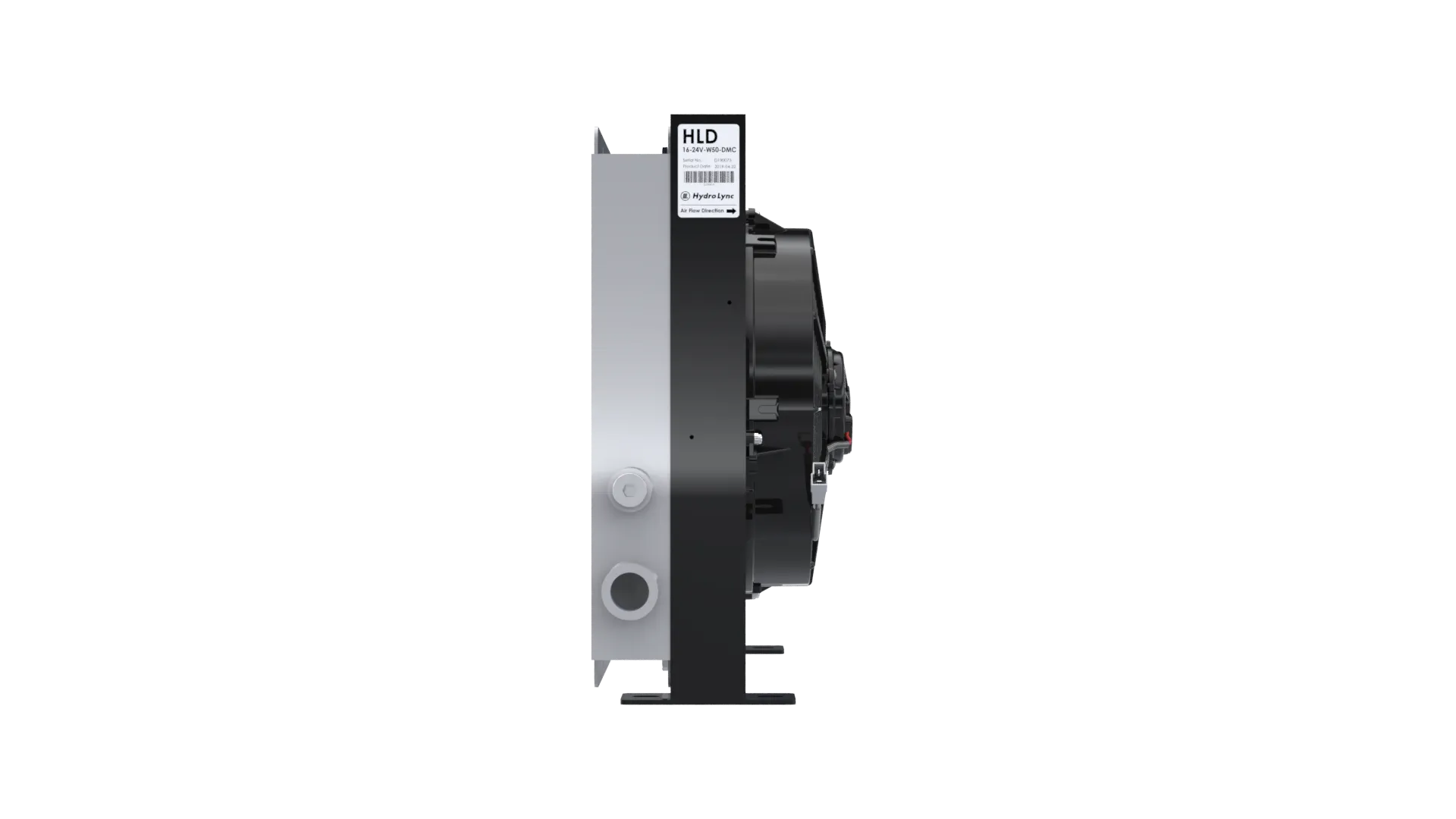

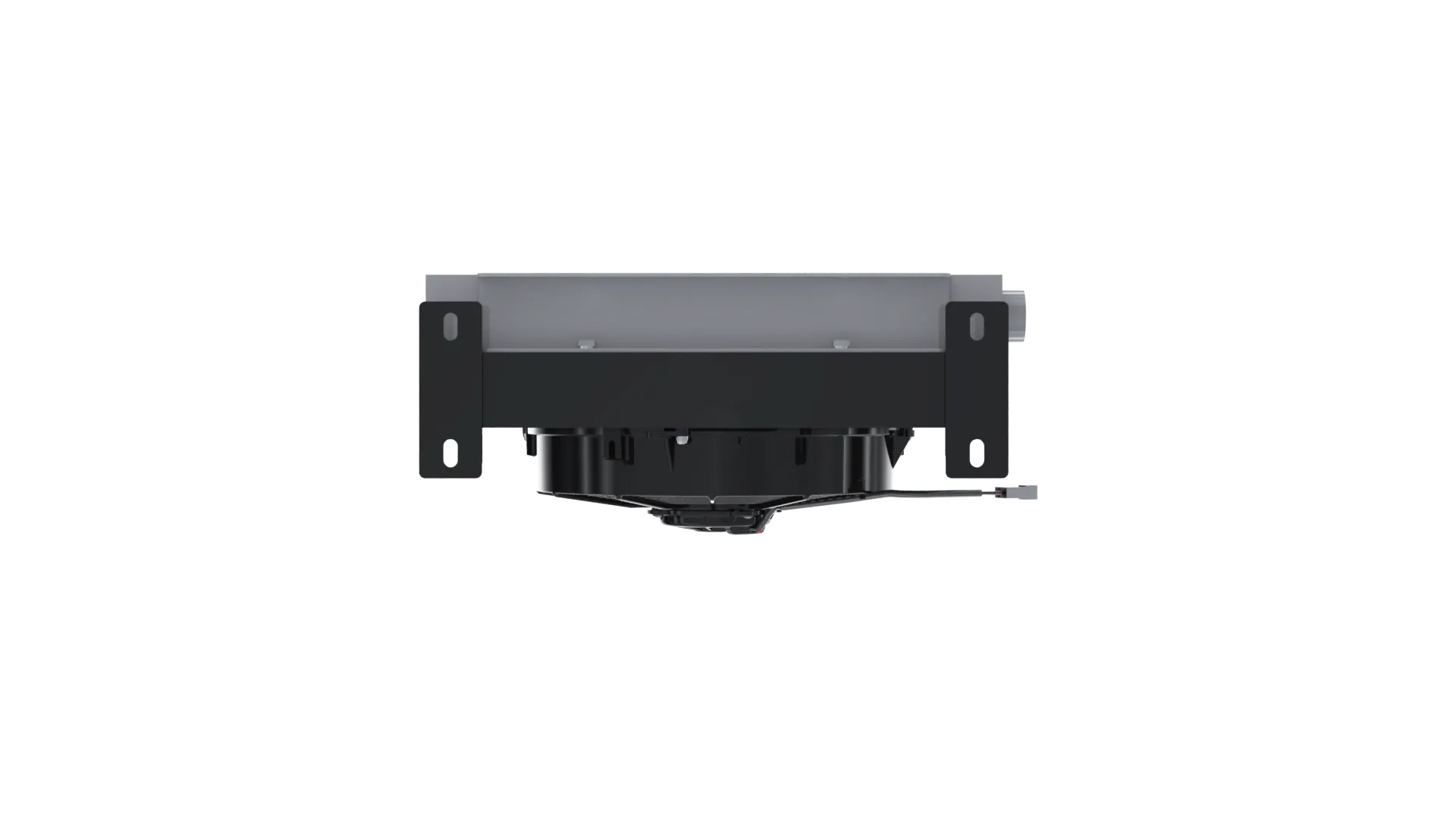

HydroLync HLD 16 DC motor driven air-oil cooler
Quick Specifications
Cooling Capacity0.39kW/°C
Heat Dissipation (kW)15.6kW
Heat Dissipation (kcal/h)13,416kcal/h
Max Flow Rate200LPM
Motor RPM3,060RPM
Detailed Specifications
Performance
| Cooling Capacity | 0.39 kW/°C |
|---|---|
| Heat Dissipation (kW) | 15.6 kW |
| Heat Dissipation (kcal/h) | 13,416 kcal/h |
| Max Flow Rate | 200 LPM |
| Motor RPM | 3,060 RPM |
| Noise Level | 74 dBA |
| Oil Flow (Max) | Max. 200 LPM |
| Working Pressure (Max) | 14 bar |
Dimensions
| Length (A) | 466 mm |
|---|---|
| Width (B) | 466 mm |
| Height (C) | 470 mm |
| Depth (D) | 218 mm |
| Dimension E | 63 mm |
| Dimension F | 296 mm |
| Dimension G | 92 mm |
| Dimension H | 140 mm |
| Dimension I | 100 mm |
| Dimension J | 416 mm |
| Dimension K | 388 mm |
| Net Weight | 15 kg |
| Bracket Hole | 11x22 |
Electrical
| DC Voltage | 12V/24 V |
|---|---|
| 12V Motor Specs | 12V / 20A @3,060rpm |
| 24V Motor Specs | 24V / 10A @3,060rpm |
| Insulation Class | H (180℃/356℉) |
