HLD-33
Product specifications and documentation
HLD-33

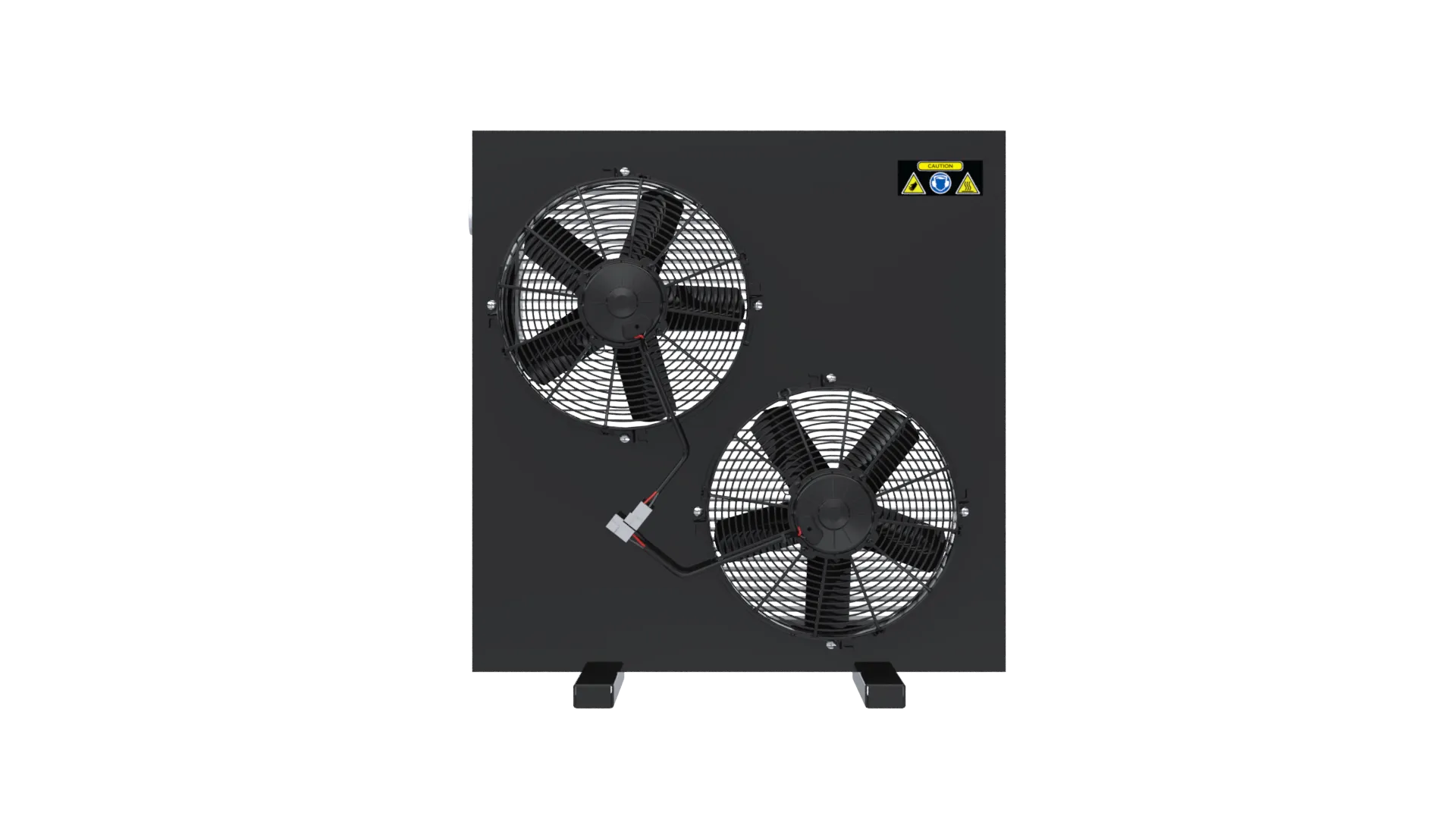

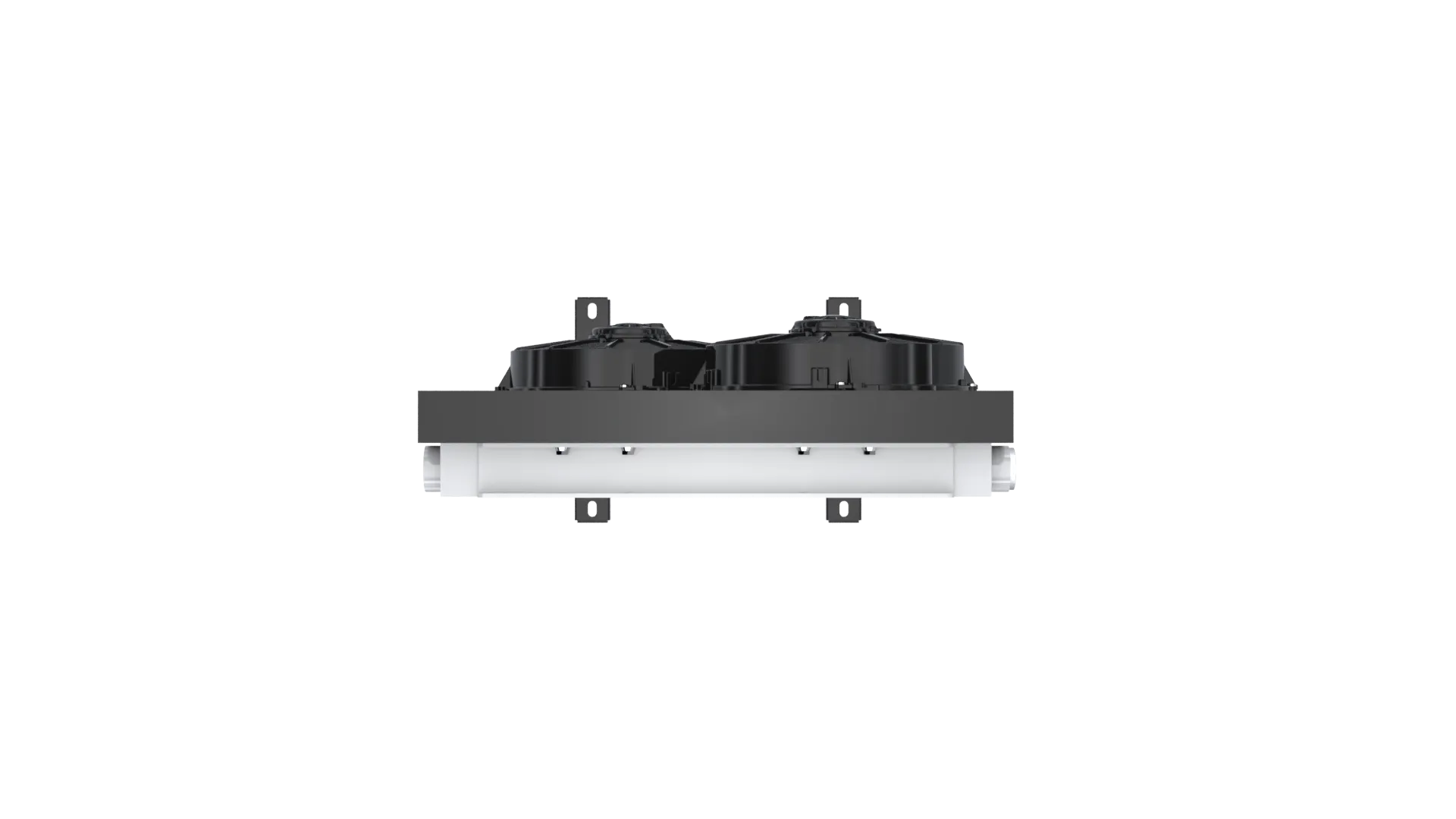

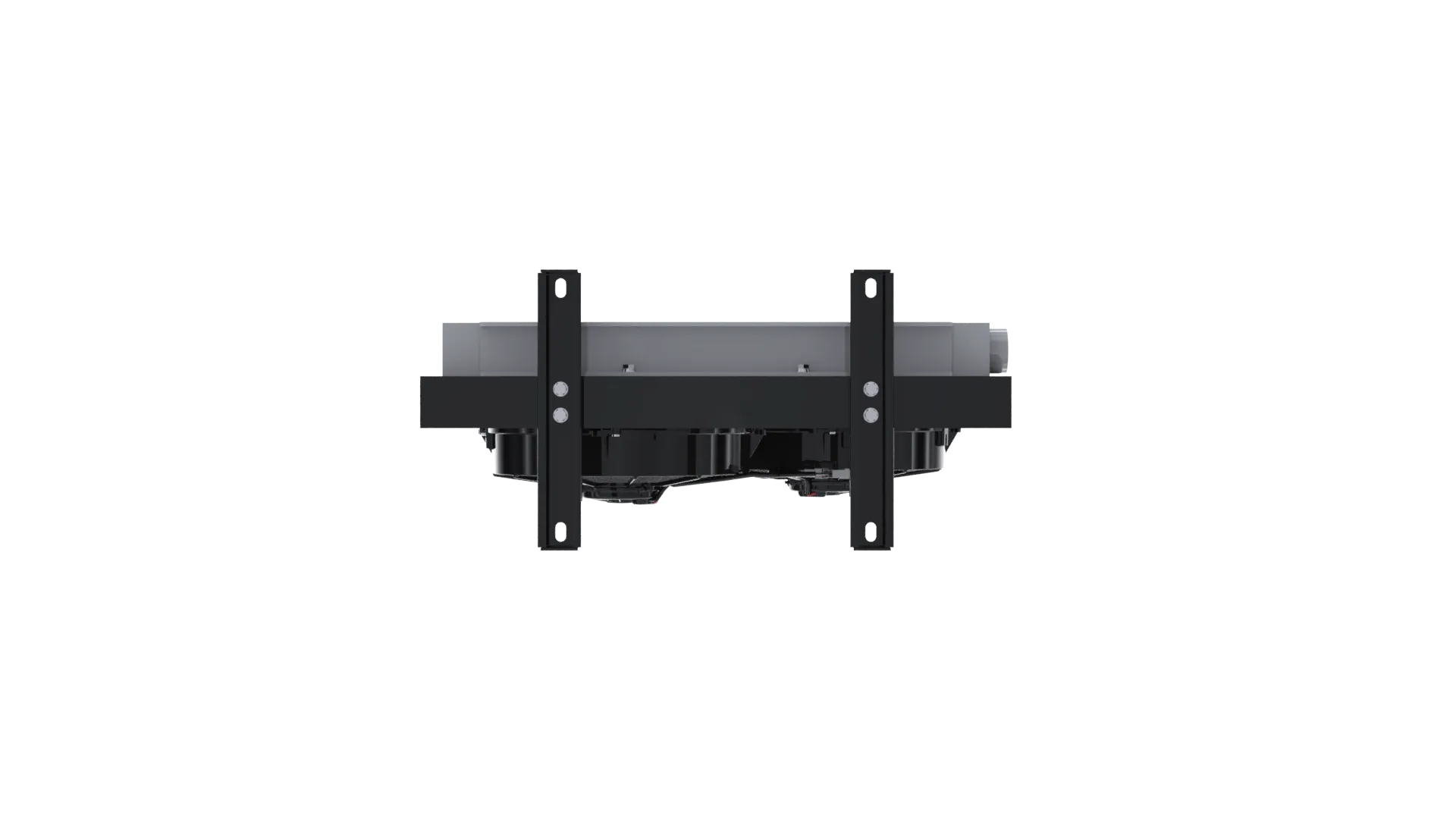

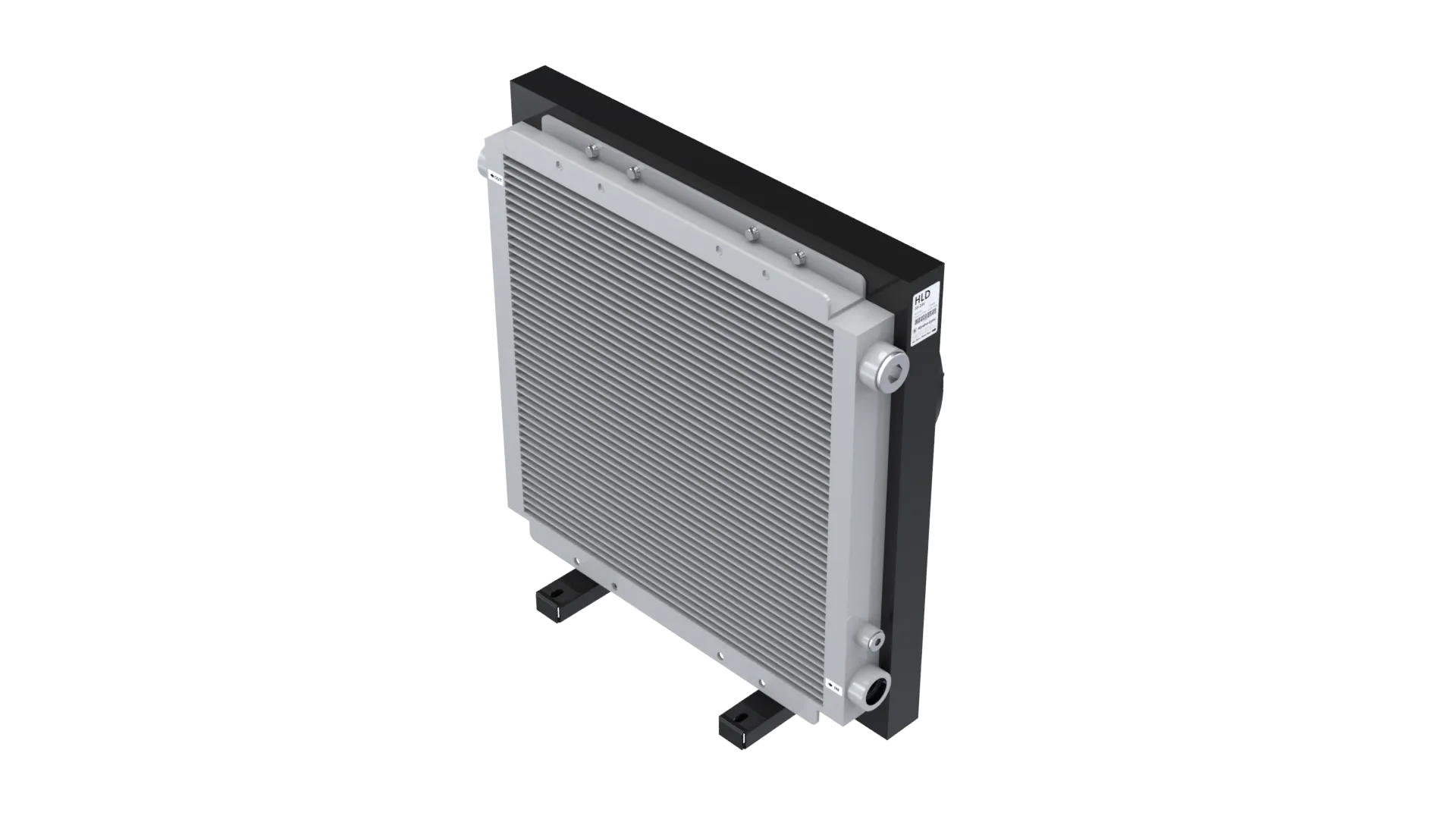

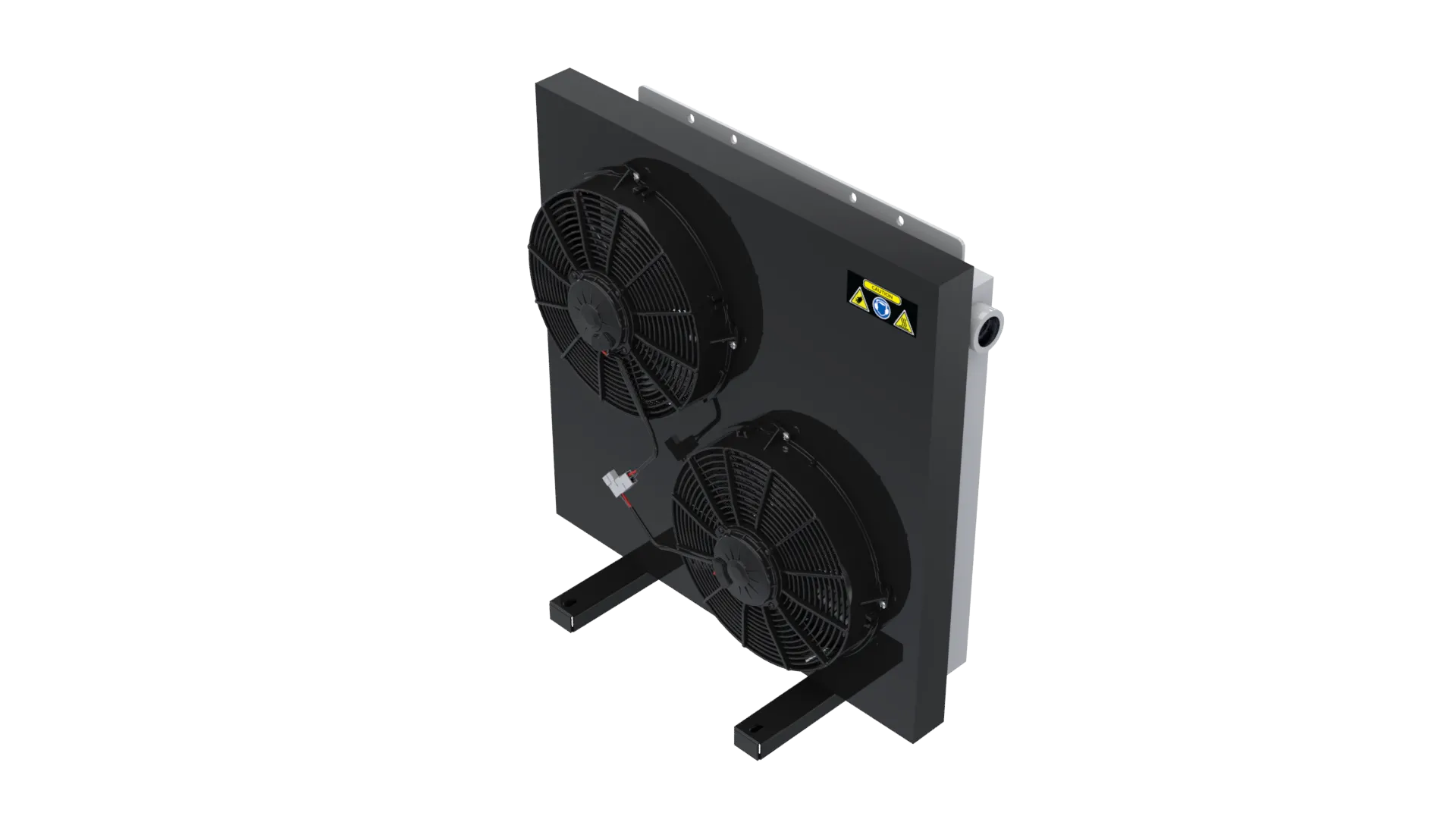

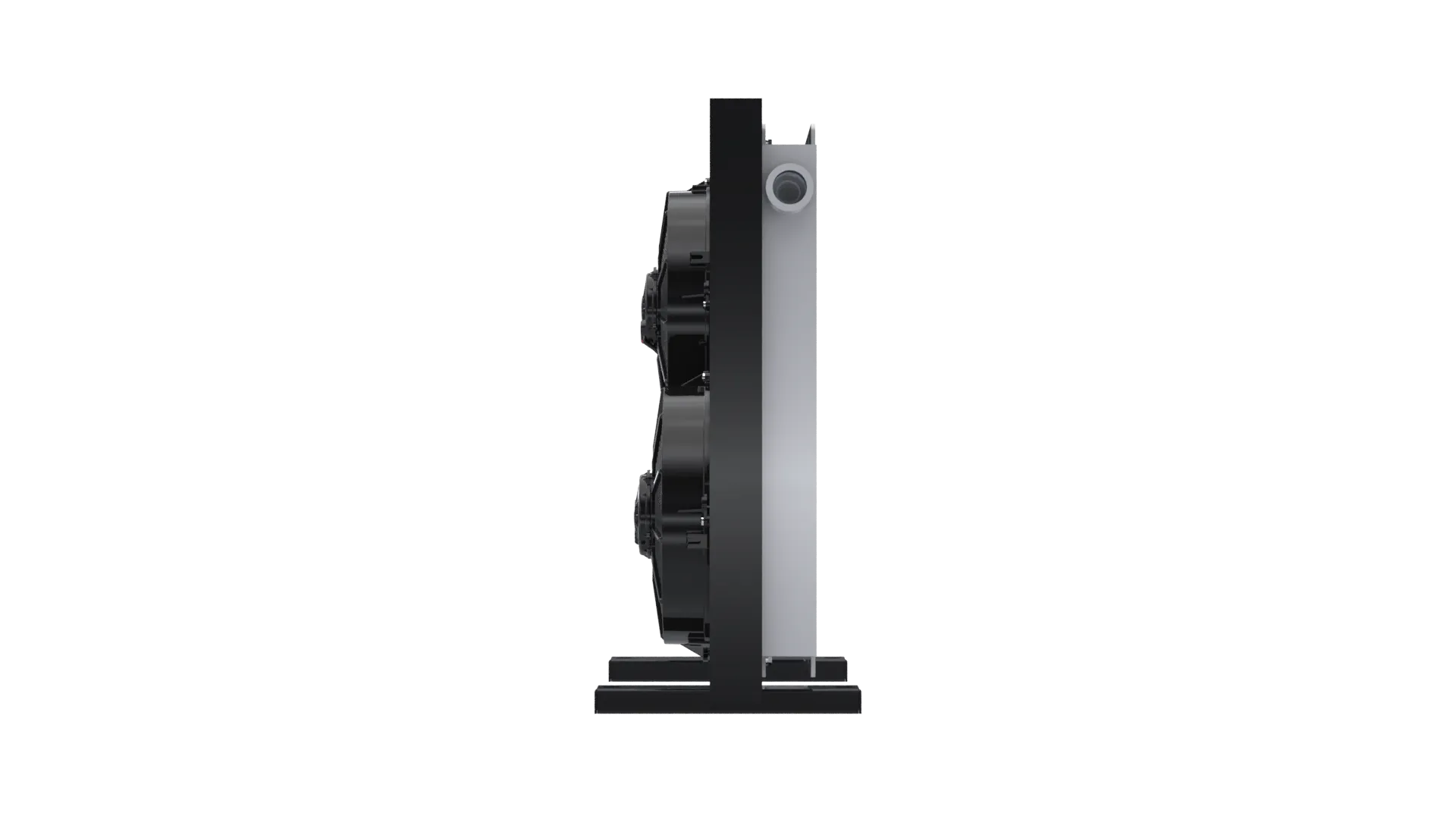

HydroLync HLD 33 DC motor driven air-oil cooler
Quick Specifications
Cooling Capacity0.72kW/°C
Heat Dissipation (kW)28.8kW
Heat Dissipation (kcal/h)24,768kcal/h
Max Flow Rate300LPM
Motor RPM3,060RPM
Detailed Specifications
Performance
| Cooling Capacity | 0.72 kW/°C |
|---|---|
| Heat Dissipation (kW) | 28.8 kW |
| Heat Dissipation (kcal/h) | 24,768 kcal/h |
| Max Flow Rate | 300 LPM |
| Motor RPM | 3,060 RPM |
| Noise Level | 77 dBA |
| Oil Flow (Max) | Max. 300 LPM |
| Working Pressure (Max) | 14 bar |
Dimensions
| Length (A) | 690 mm |
|---|---|
| Width (B) | 680 mm |
| Height (C) | 720 mm |
| Depth (D) | 218 mm |
| Dimension E | 63 mm |
| Dimension F | 482 mm |
| Dimension G | 136 mm |
| Dimension H | 320 mm |
| Dimension I | 280 mm |
| Dimension J | 356 mm |
| Dimension K | 618 mm |
| Net Weight | 30 kg |
| Bracket Hole | 12x22 |
Electrical
| DC Voltage | 12V/24 V |
|---|---|
| 12V Motor Specs | 12V / 2×20A @3,060rpm |
| 24V Motor Specs | 24V / 2×10A @3,060rpm |
| Insulation Class | H (180℃/356℉) |
