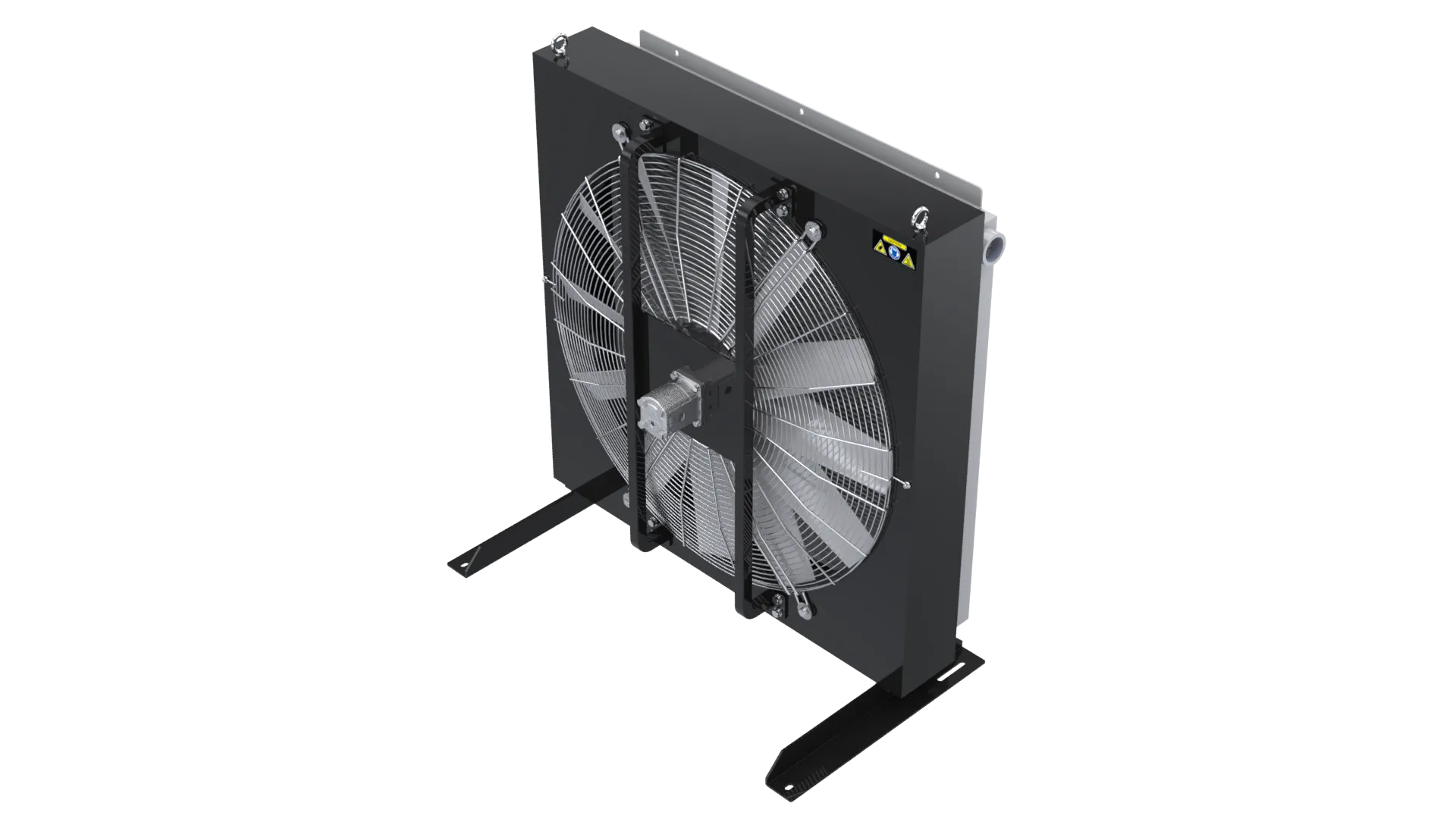

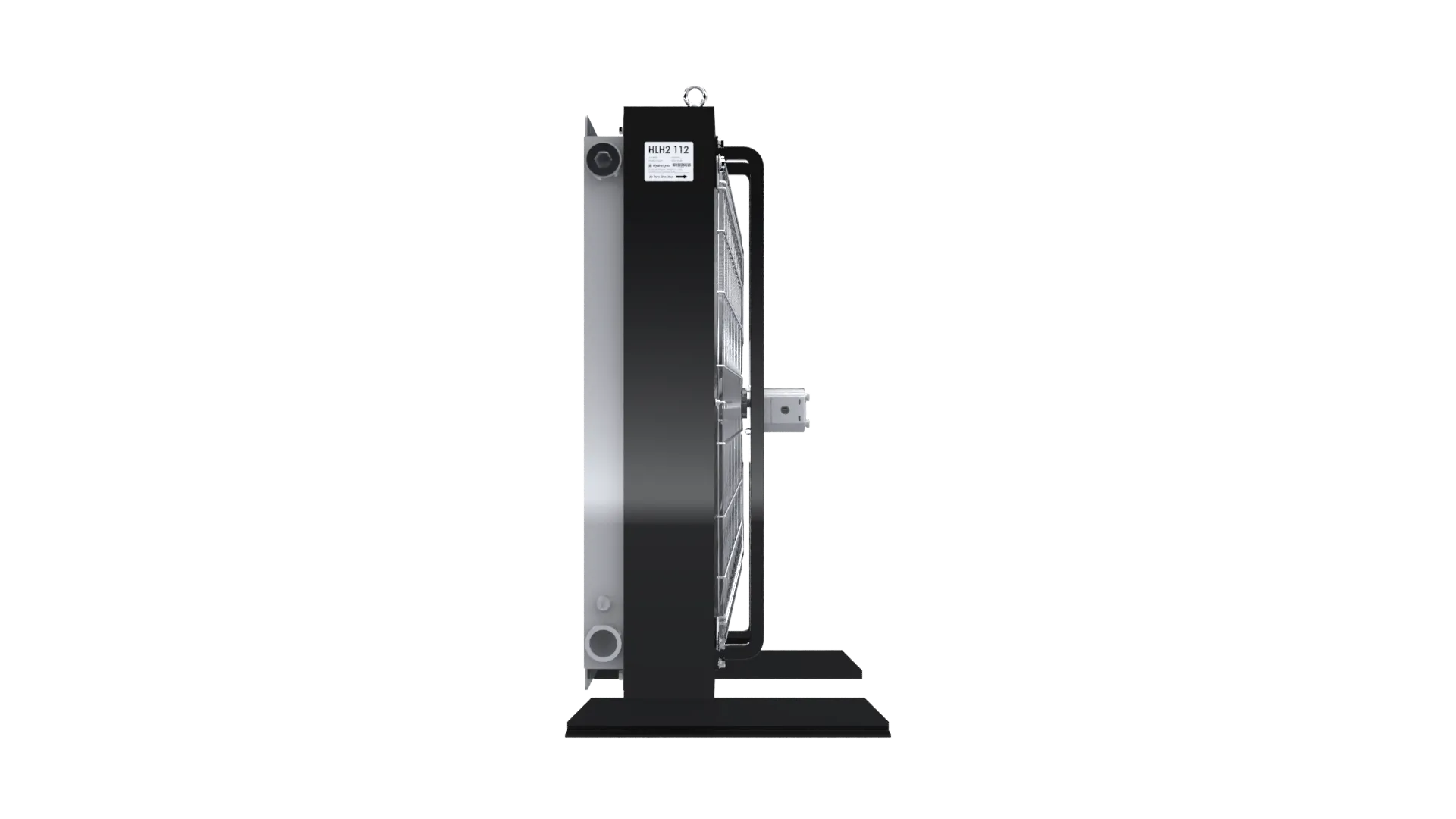

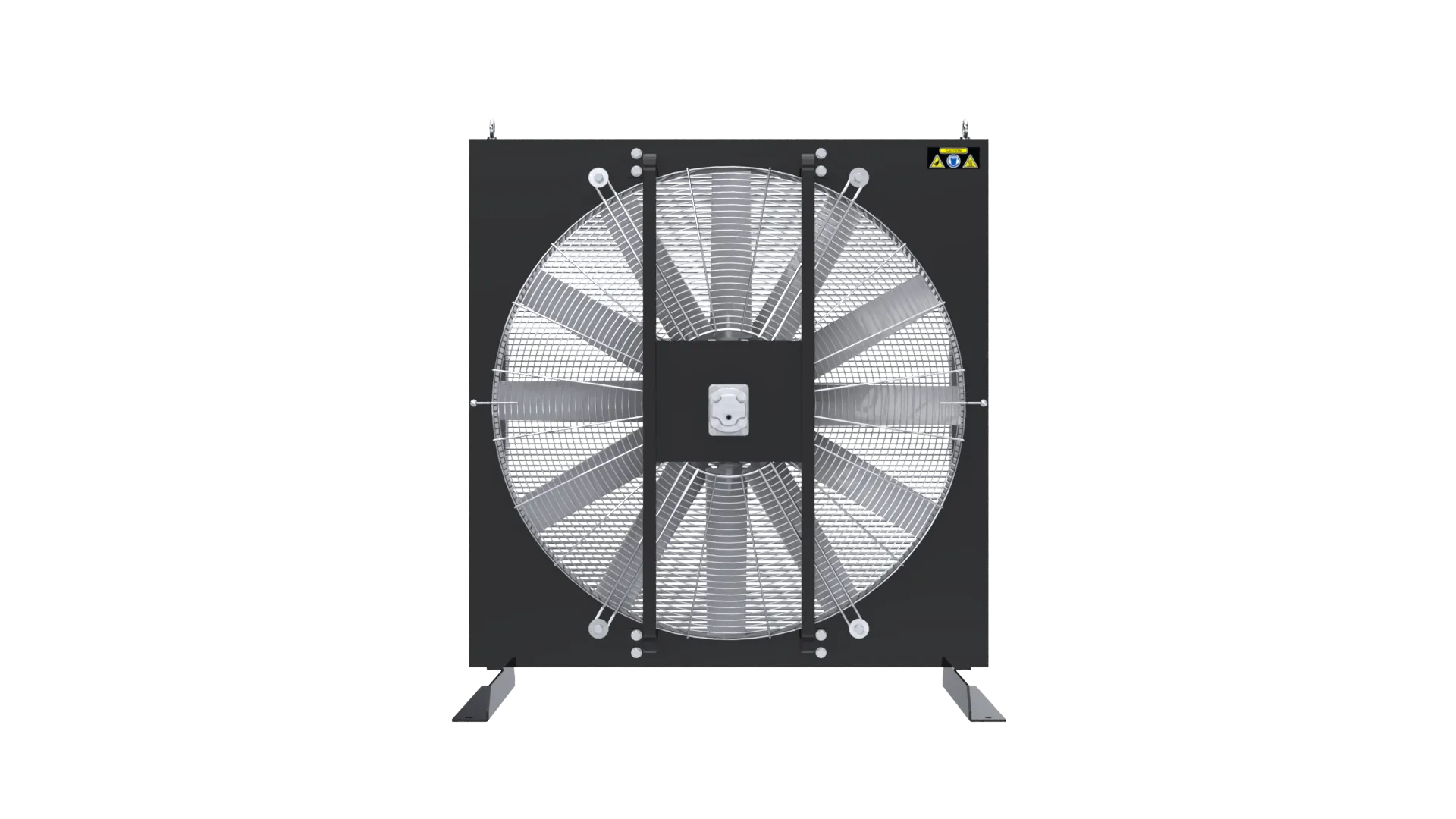

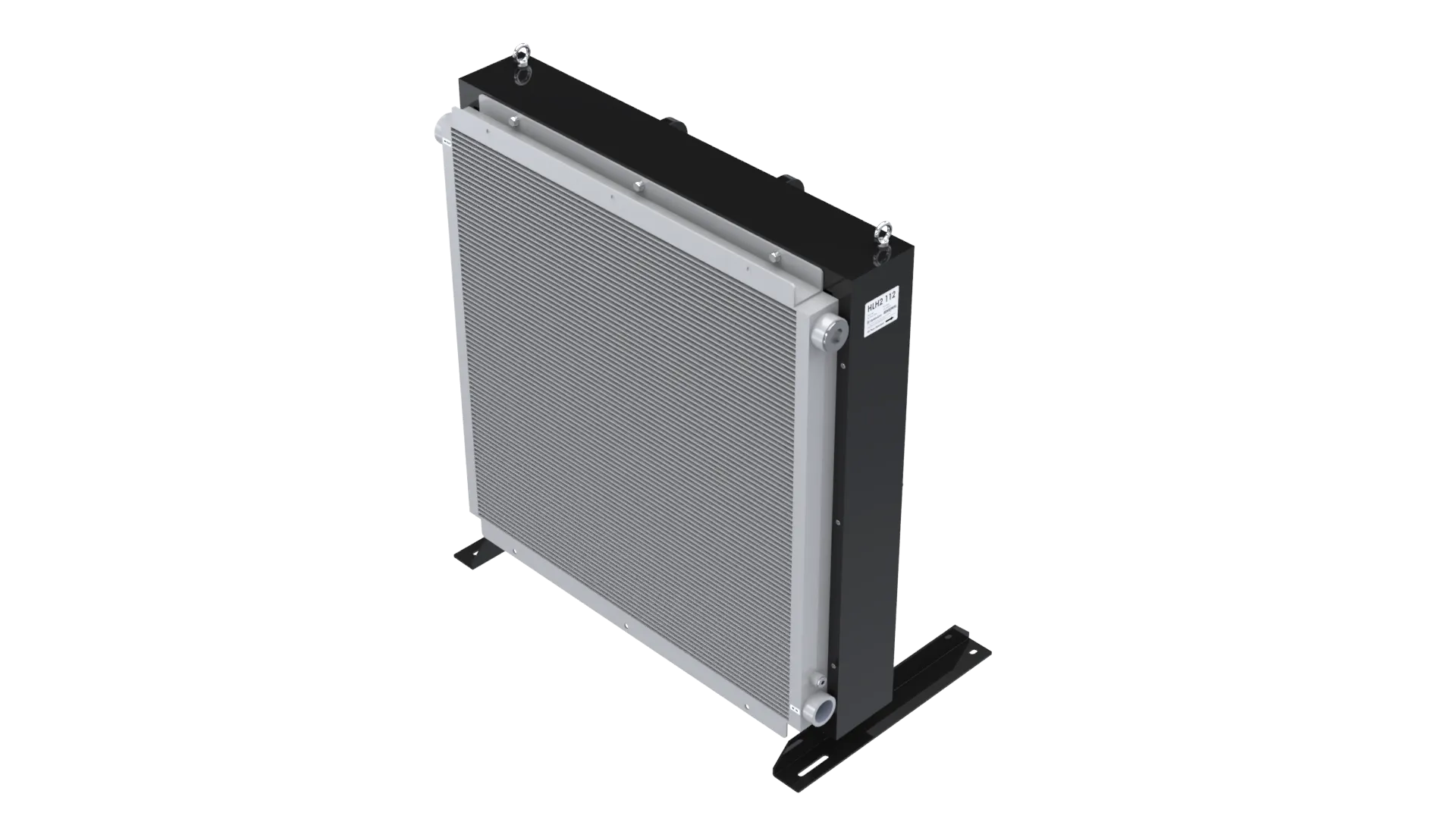

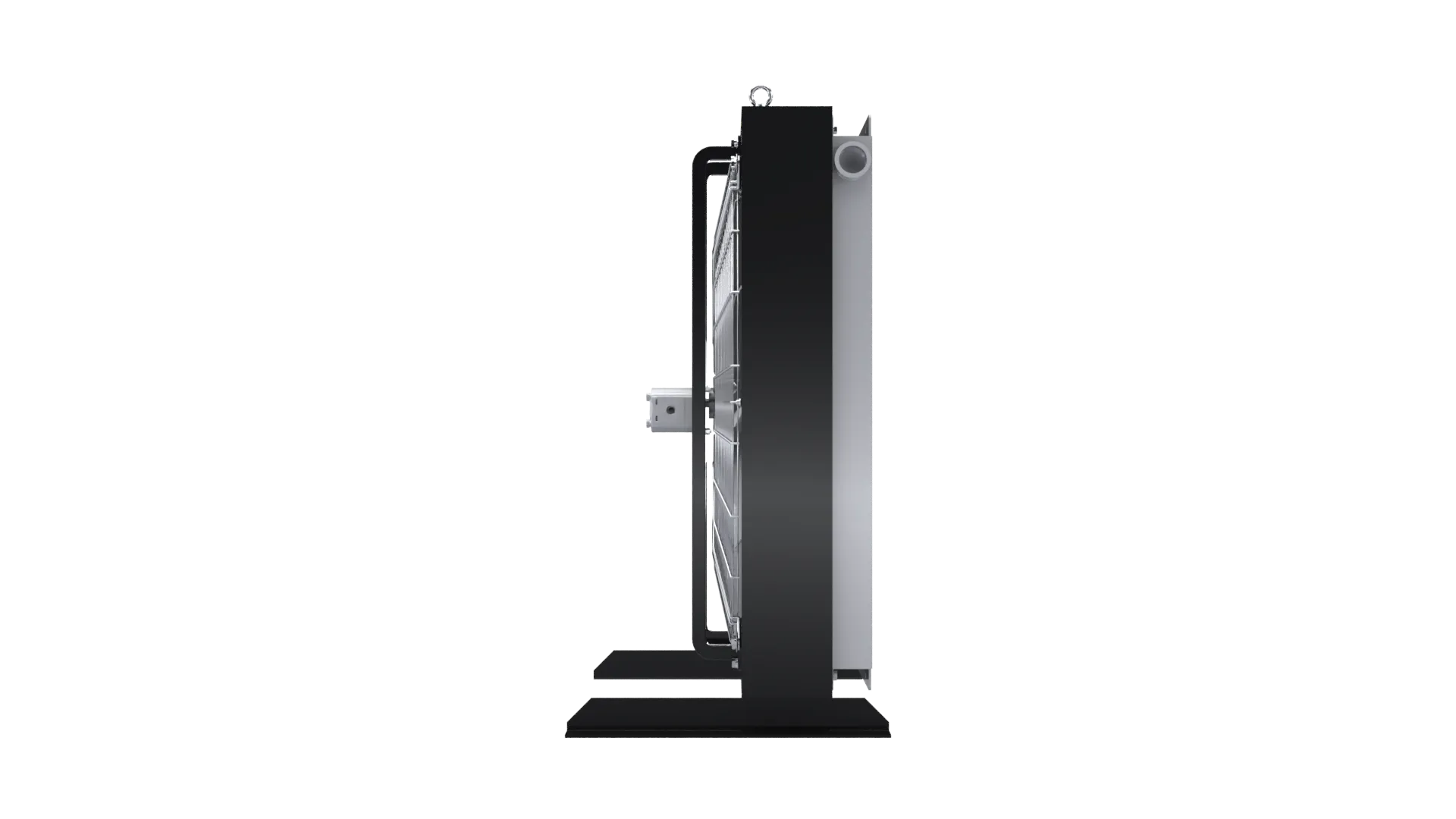

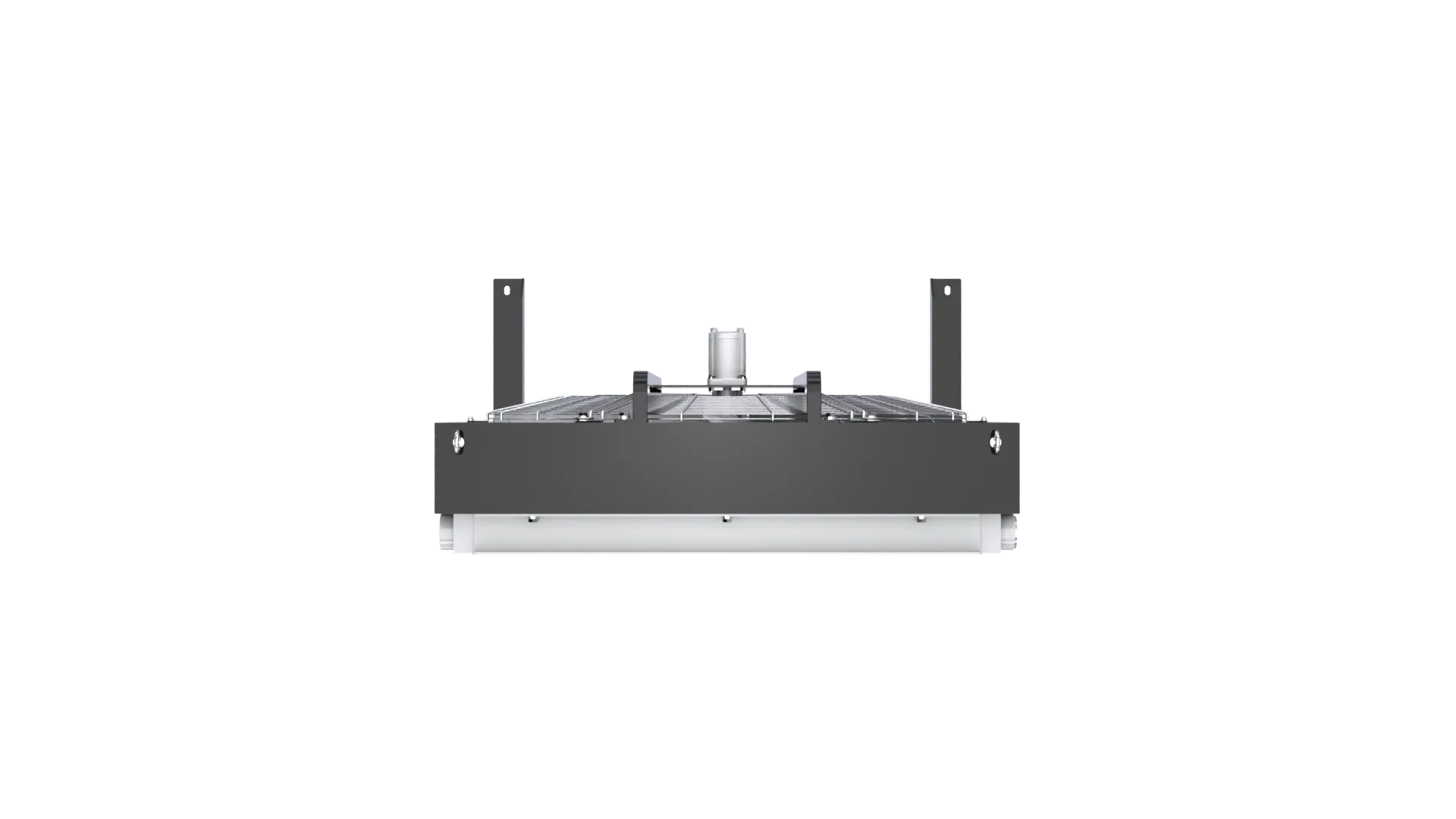

HLH2 112 Hydraulic Motor Cooler
Product specifications and documentation
HLH2 112 Hydraulic Motor Cooler
Quick Specifications
Cooling Capacity3.3kW/°C
Heat Dissipation (kcal/h)113,520kcal/h
Heat Dissipation132kW
Max Speed1,440rpm
Detailed Specifications
Performance
| Cooling Capacity | 3.3 kW/°C |
|---|---|
| Heat Dissipation (kcal/h) | 113,520 kcal/h |
| Heat Dissipation | 132 kW |
| Max Speed | 1,440 rpm |
Dimensions
| Net Weight | 125 kg |
|---|---|
| Length (A) | 1,205 mm |
| Width (B) | 1,185 mm |
| Height (C) | 1,285 mm |
| Depth (D) | 480 mm |
| Dimension E | 83 mm |
| Dimension F | 985 mm |
| Dimension G | 192 mm |
| Dimension H | 665 mm |
| Dimension I | 550 mm |
| Dimension J | 1,115 mm |
| Dimension K | 1,177 mm |
| Dimension L | 666 mm |
| Mounting Slot | ø14x94 / ø14x23 |
Hydraulic Motor
| Max Flow Rate | 500 L/min |
|---|---|
| Oil Port (P1/P2/P3) | G2" |
