HLH2 16 Hydraulic Motor Cooler
Product specifications and documentation
HLH2 16 Hydraulic Motor Cooler

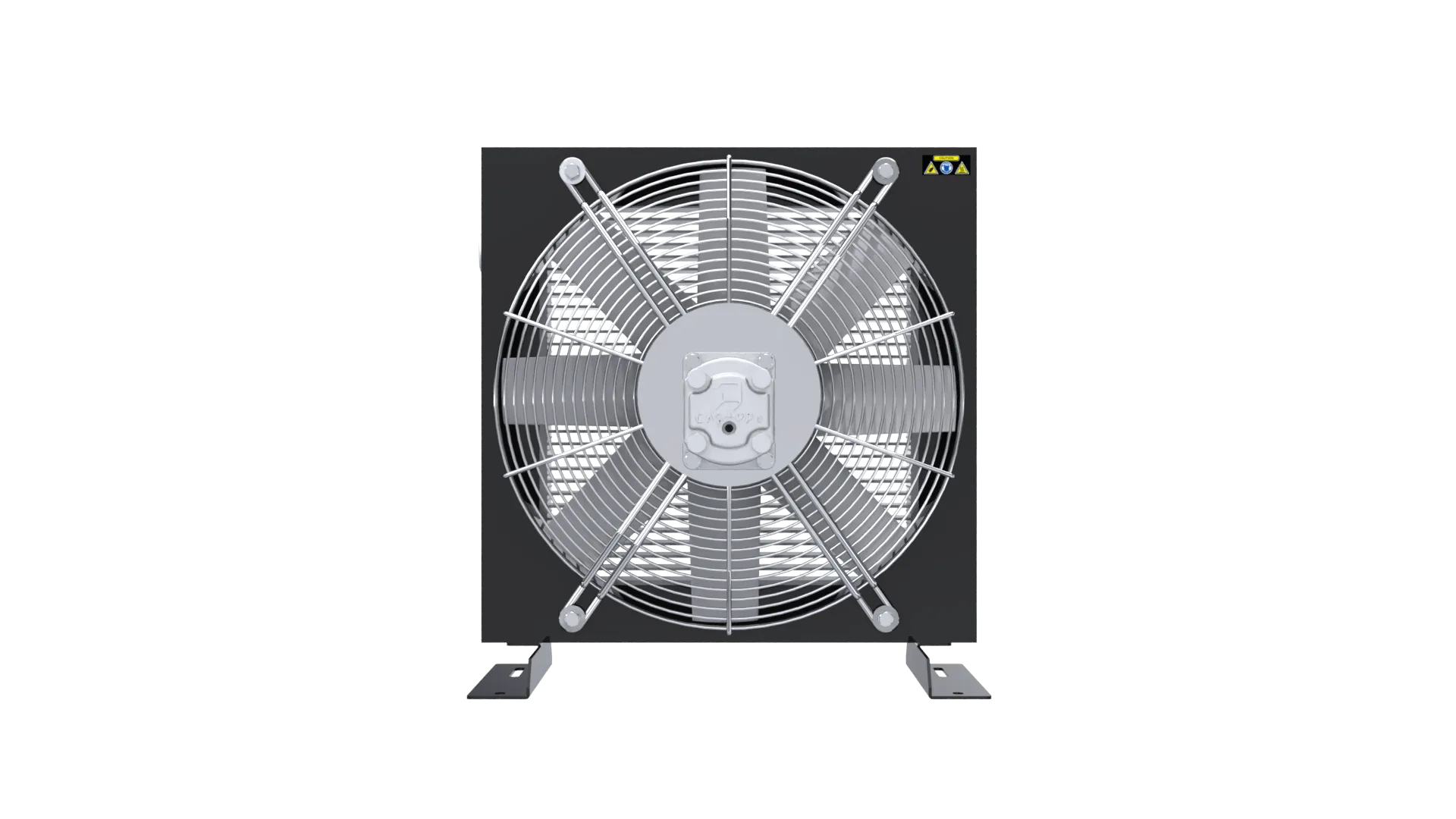

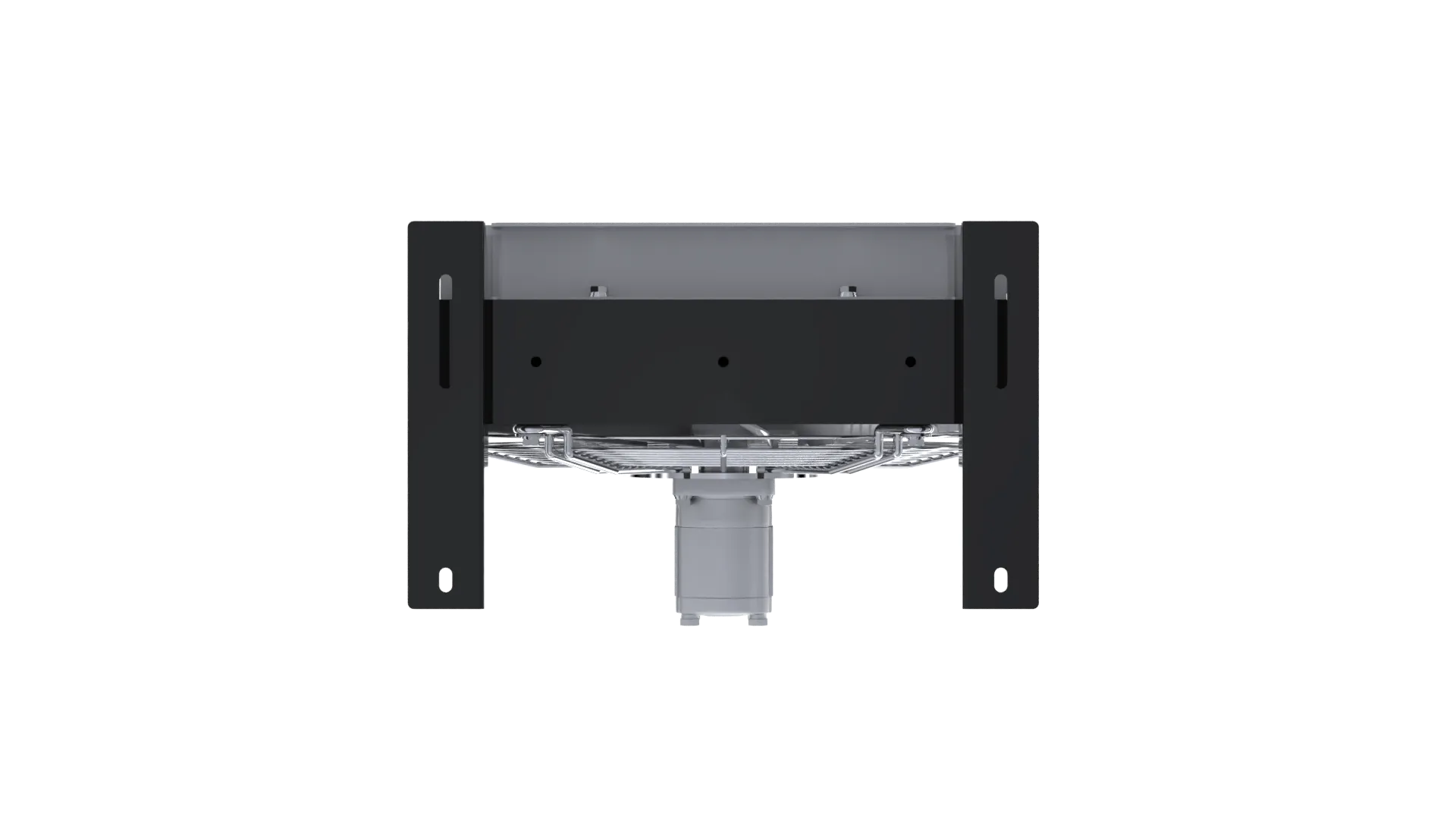

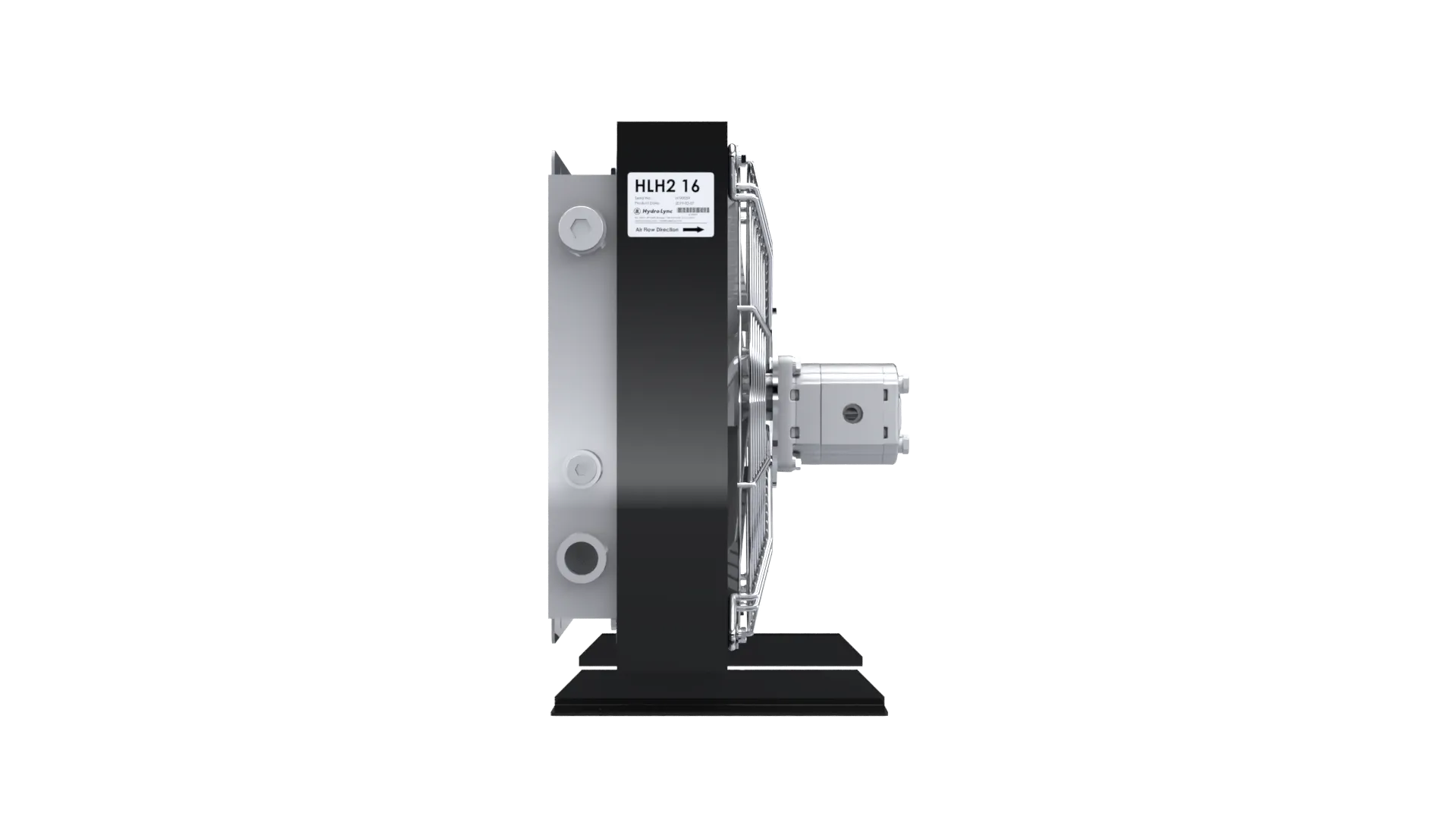

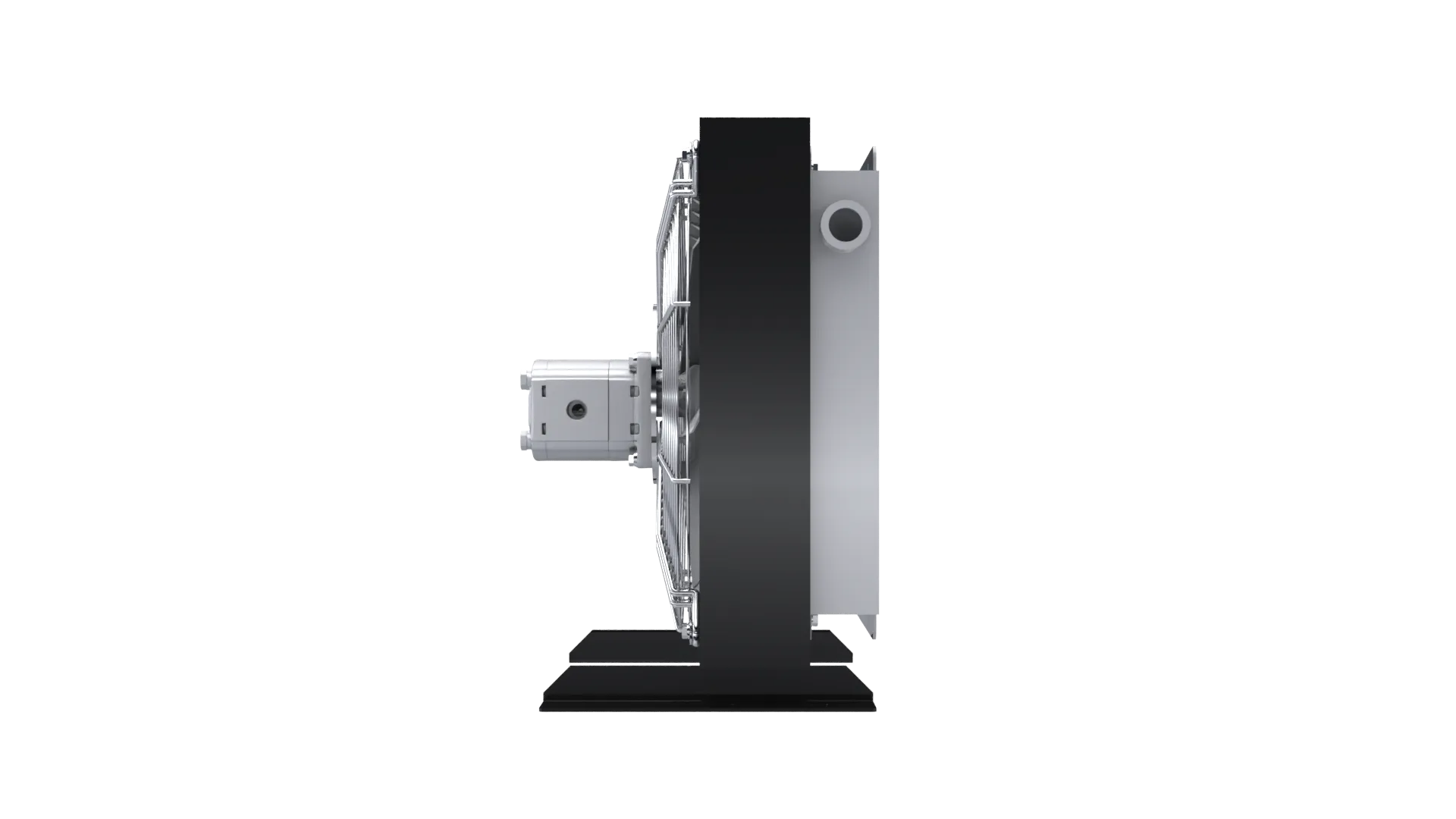

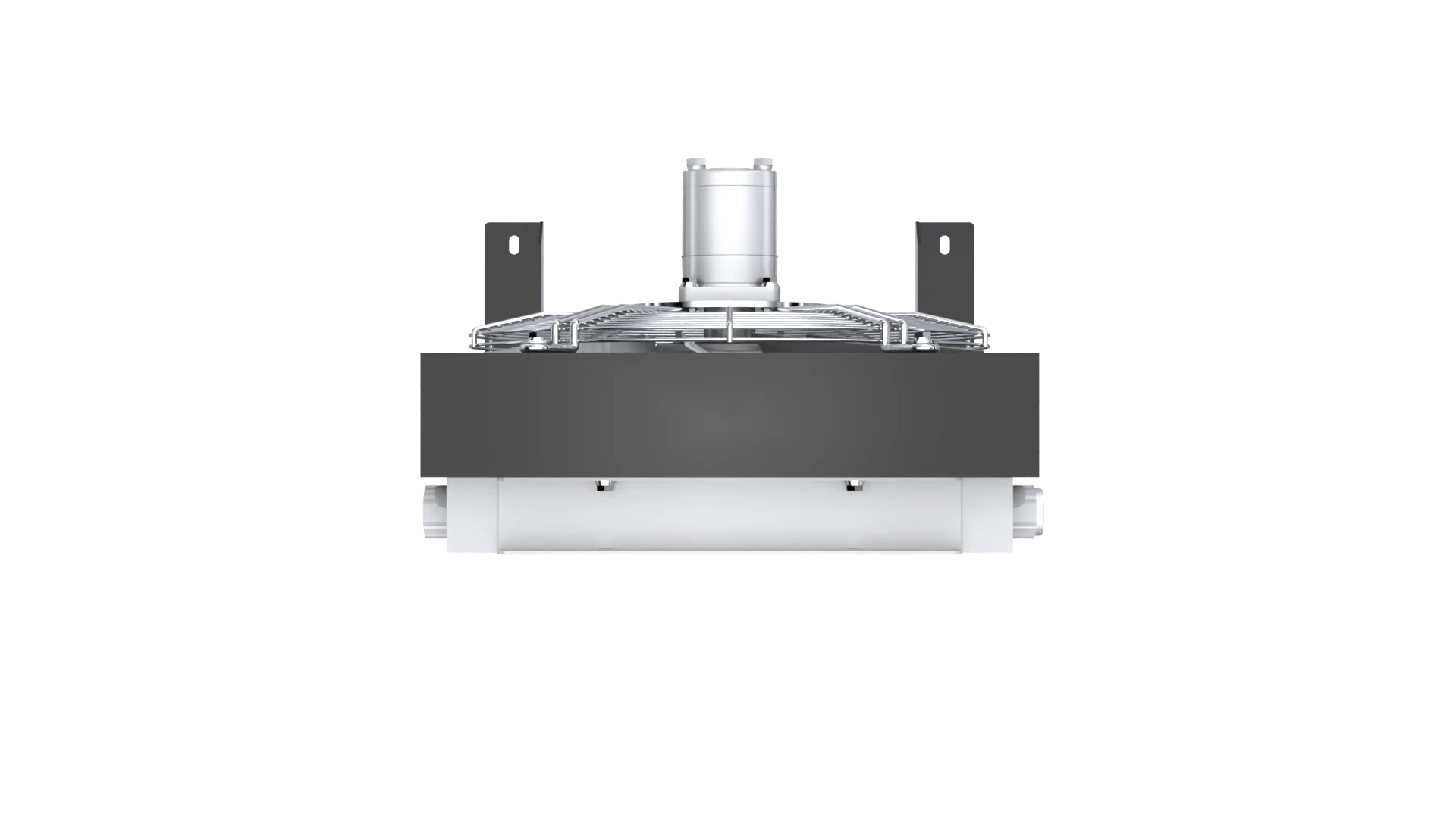

HydroLync HLH2 16 hydraulic motor driven air-oil cooler
Quick Specifications
Cooling Capacity0.625kW/°C
Heat Dissipation (kcal/h)21,500kcal/h
Heat Dissipation25kW
Max Speed3,500rpm
Detailed Specifications
Performance
| Cooling Capacity | 0.625 kW/°C |
|---|---|
| Heat Dissipation (kcal/h) | 21,500 kcal/h |
| Heat Dissipation | 25 kW |
| Max Speed | 3,500 rpm |
Dimensions
| Length (A) | 496 mm |
|---|---|
| Width (B) | 496 mm |
| Height (C) | 536 mm |
| Depth (D) | 342 mm |
| Dimension E | 63 mm |
| Dimension F | 296 mm |
| Dimension G | 143 mm |
| Dimension H | 305 mm |
| Dimension I | 195 mm |
| Dimension J | 436 mm |
| Dimension K | 484 mm |
| Dimension L | 272 mm |
| Mounting Slot | ø10x90 / ø10x19 |
| Net Weight | 20 kg |
Hydraulic
| Max Flow Rate | 200 L/min |
|---|---|
| Oil Port (P1/P2/P3) | G1" |
Environmental
| Noise Level (1m) | 86 dB(A) |
|---|---|
| Noise Test RPM | 3,000 rpm |
| Noise Level | 86 dBA |
Mechanical
| Max RPM | 3,000 RPM |
|---|---|
| Net Weight | 20 kg |
| Motor Type | A |
| Motor Displacement | 11.23 cm³/rev |
| Max Pressure p1 (Continuous) | 250 bar |
| Max Pressure p2 (Intermittent) | 280 bar |
| Max Pressure p3 (Peak) | 300 bar |
| Motor Max Speed | 3,500 rpm |
| Motor Min Speed | 600 rpm |
