HLH2 23 Hydraulic Motor Cooler
Product specifications and documentation
HLH2 23 Hydraulic Motor Cooler

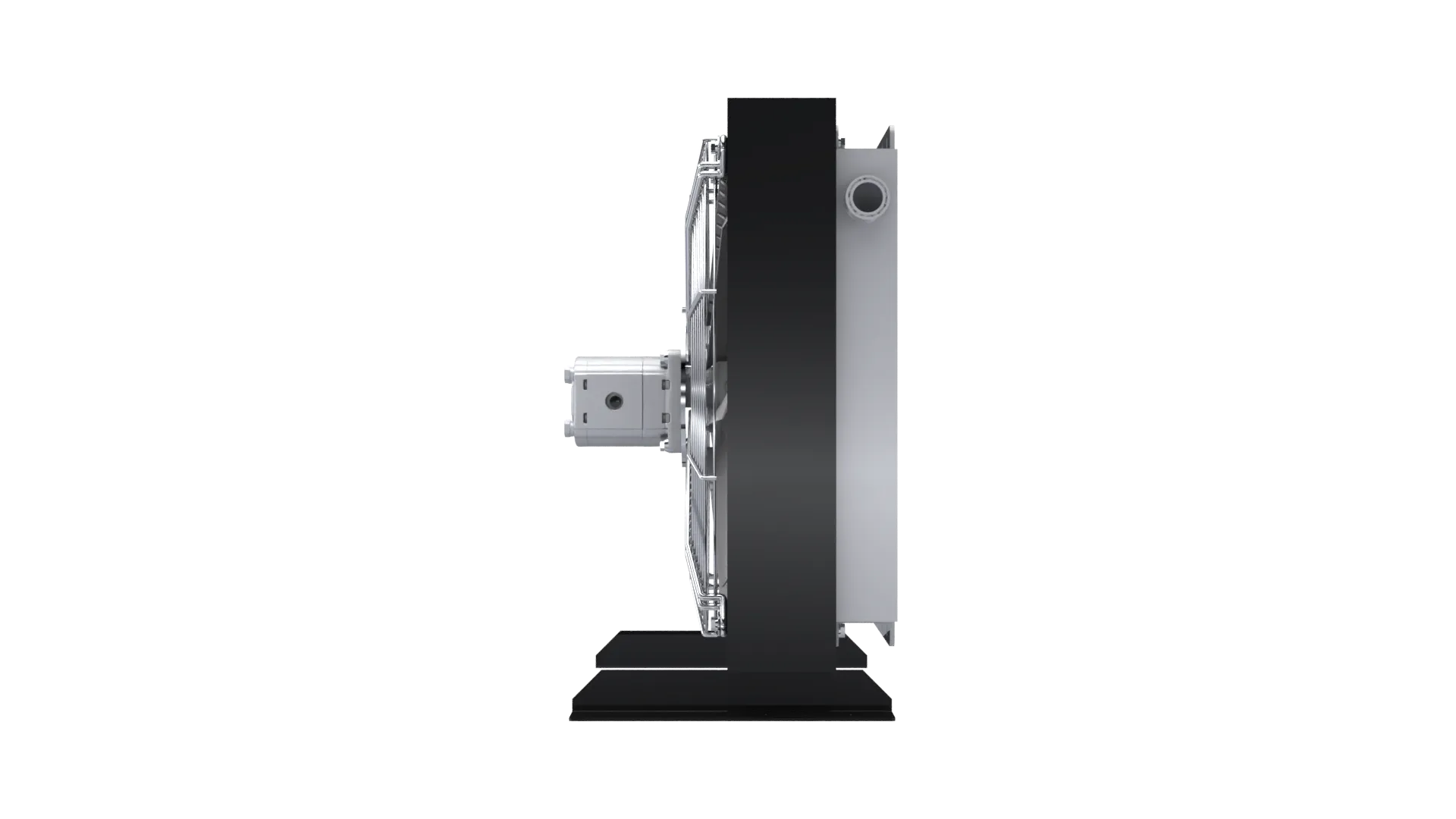

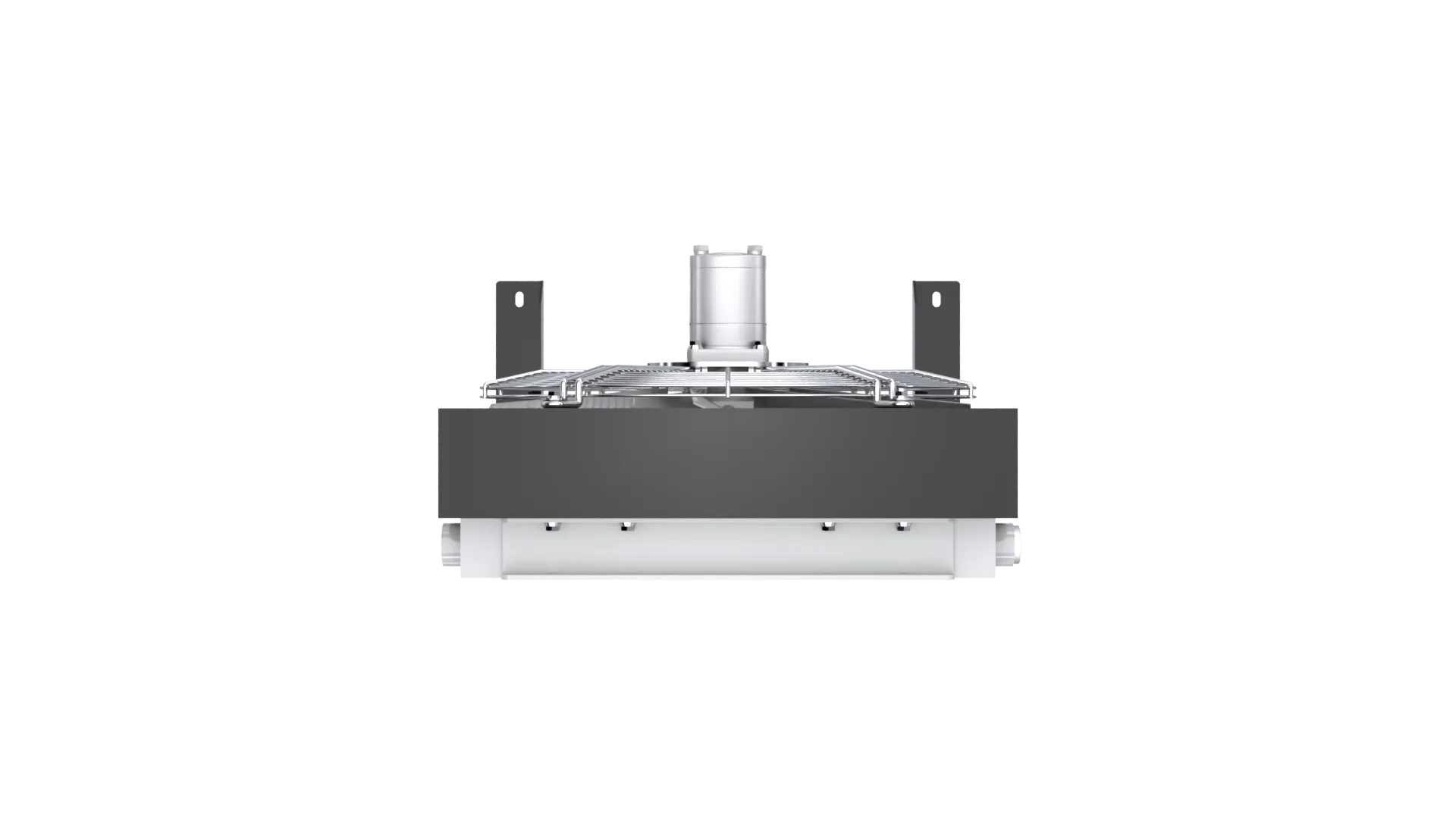

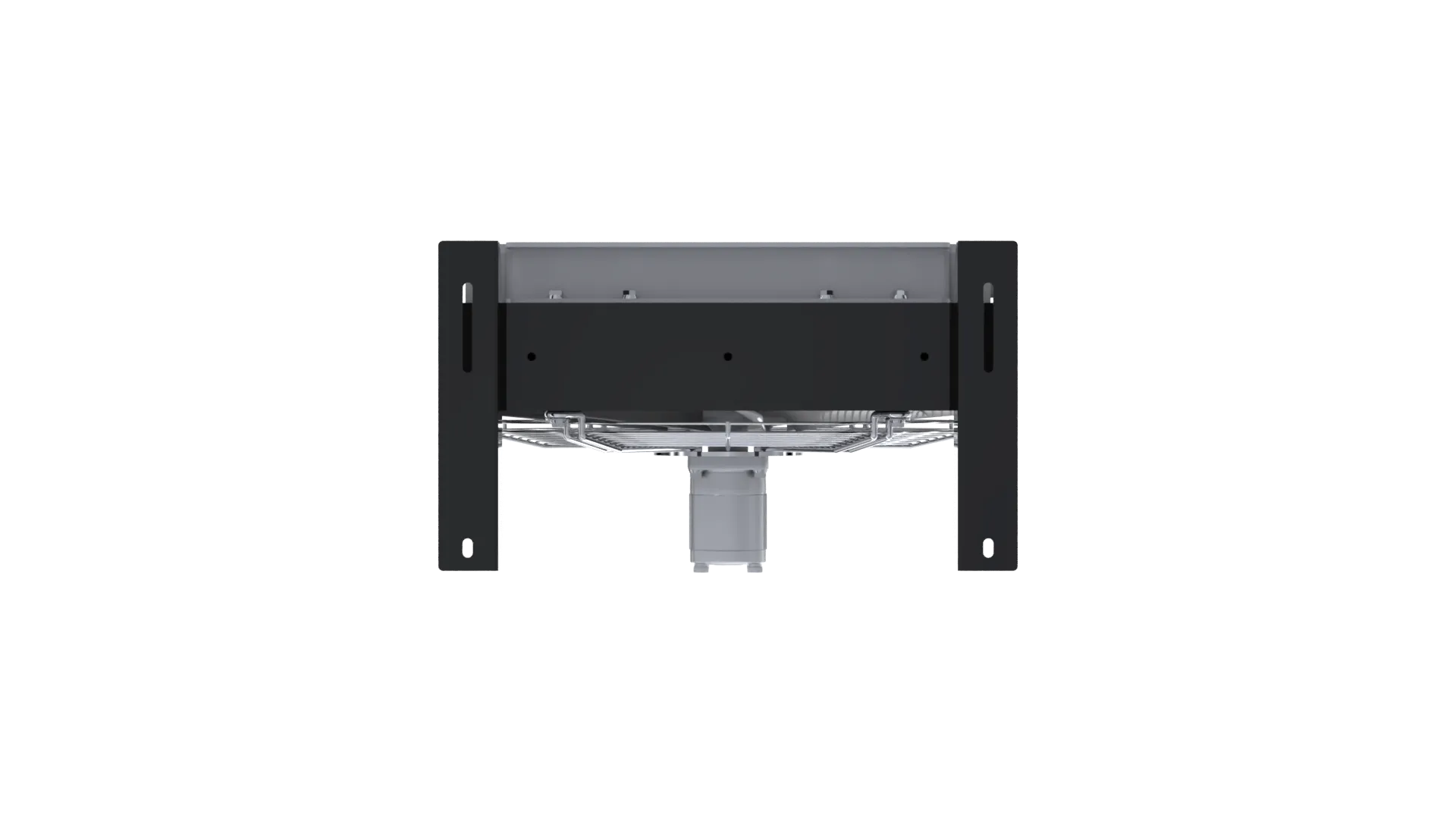

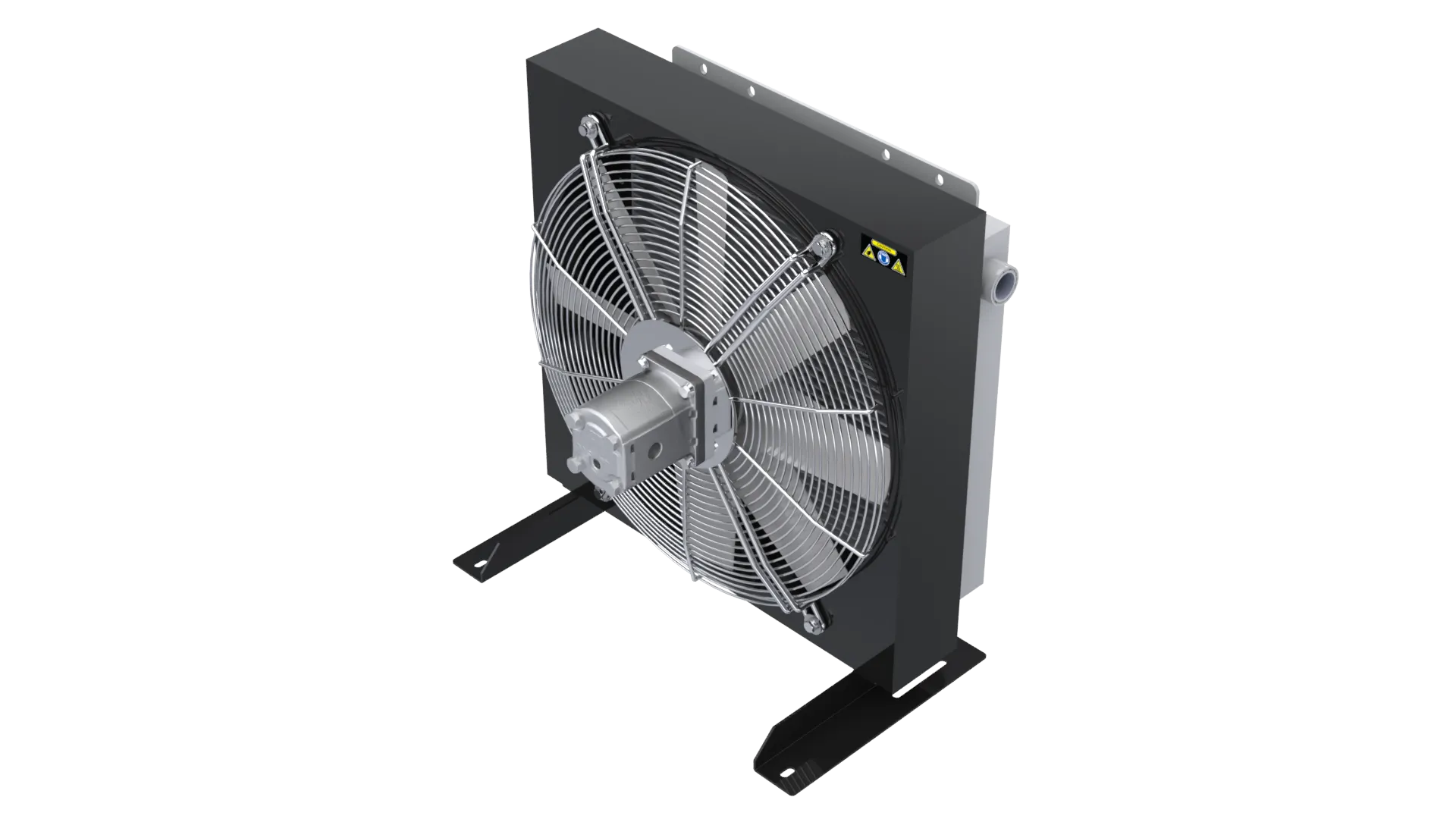

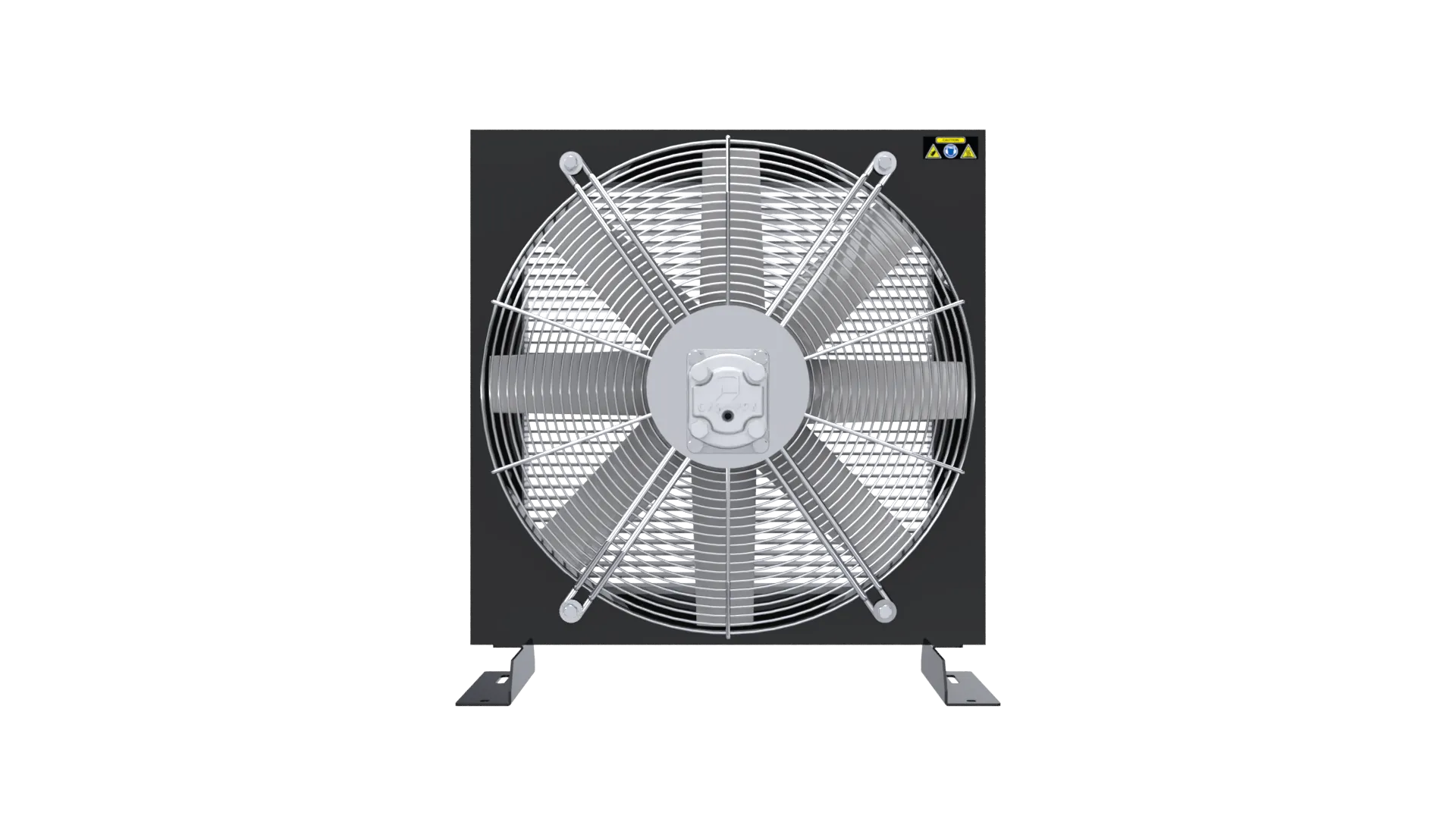

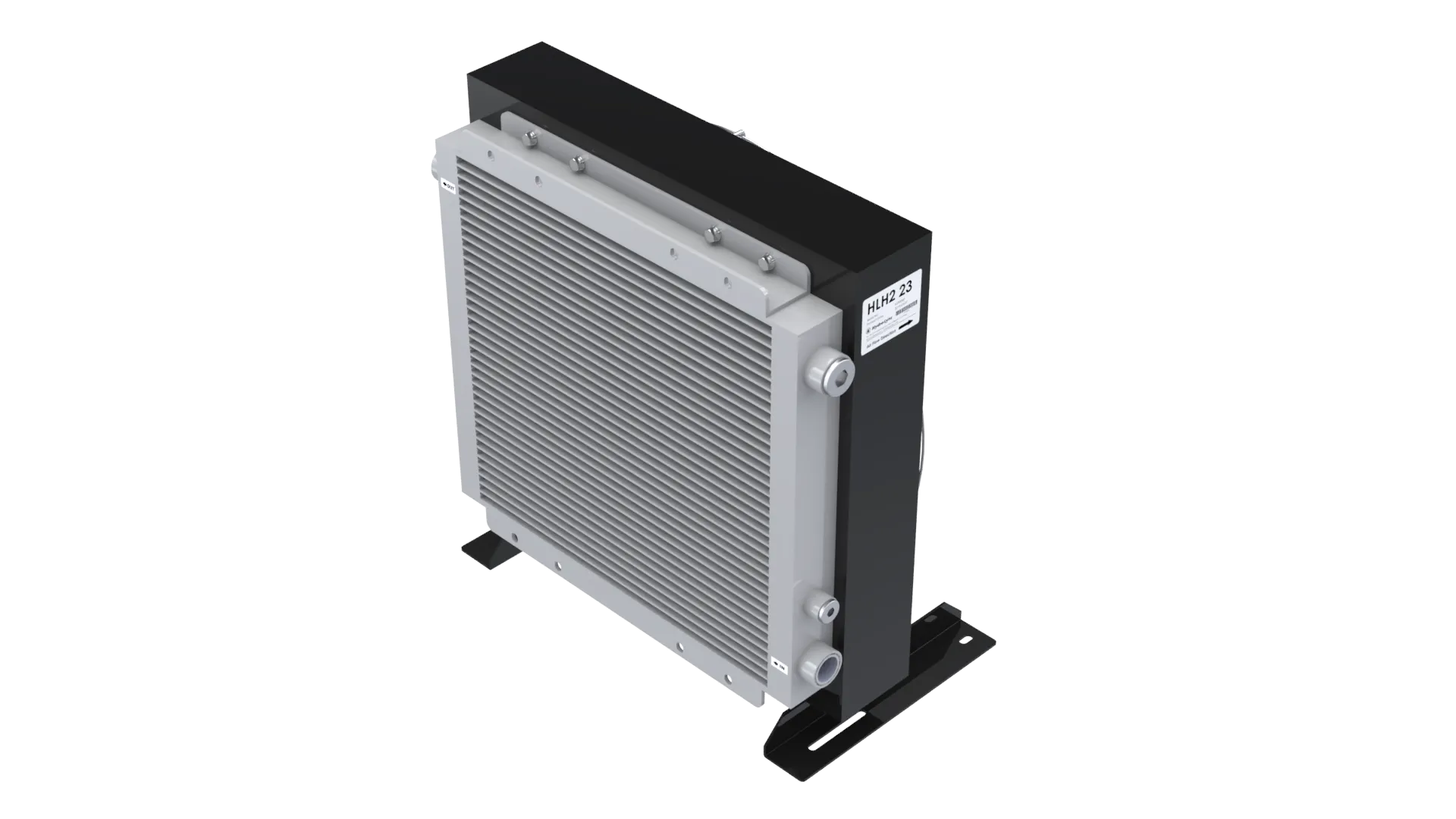

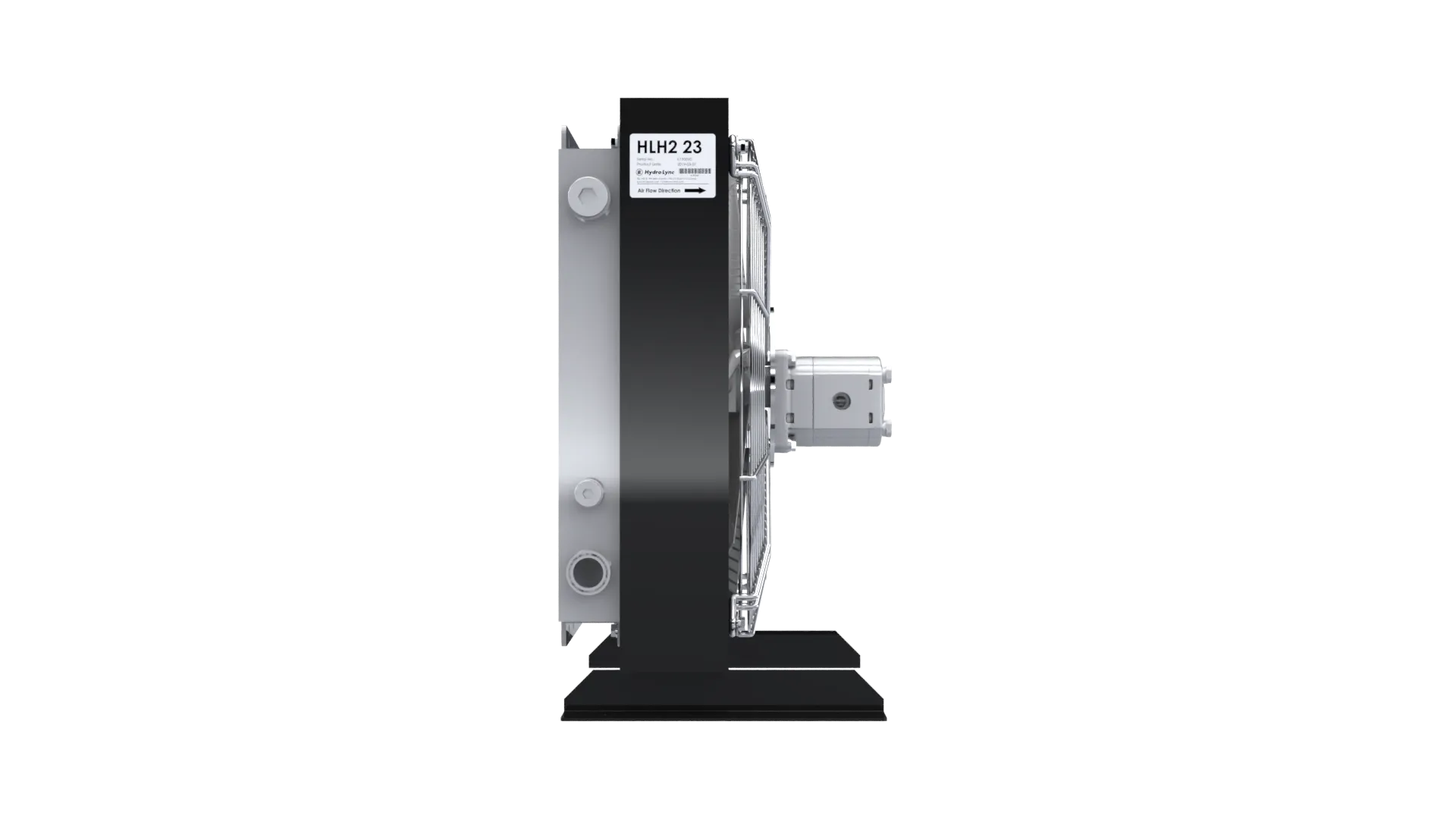

HydroLync HLH2 23 hydraulic motor driven air-oil cooler
Quick Specifications
Cooling Capacity0.7kW/°C
Heat Dissipation (kcal/h)24,080kcal/h
Heat Dissipation28kW
Max Speed2,840rpm
Detailed Specifications
Performance
| Cooling Capacity | 0.7 kW/°C |
|---|---|
| Heat Dissipation (kcal/h) | 24,080 kcal/h |
| Heat Dissipation | 28 kW |
| Max Speed | 2,840 rpm |
Dimensions
| Length (A) | 579 mm |
|---|---|
| Width (B) | 579 mm |
| Height (C) | 629 mm |
| Depth (D) | 354 mm |
| Dimension E | 63 mm |
| Dimension F | 378 mm |
| Dimension G | 150 mm |
| Dimension H | 330 mm |
| Dimension I | 220 mm |
| Dimension J | 520 mm |
| Dimension K | 528 mm |
| Dimension L | 323 mm |
| Mounting Slot | ø10x90 / ø10x19 |
| Net Weight | 32 kg |
Hydraulic Motor
| Max Flow Rate | 200 L/min |
|---|---|
| Oil Port (P1/P2/P3) | G1" |
