HLH2 76 Hydraulic Motor Cooler
Product specifications and documentation
HLH2 76 Hydraulic Motor Cooler

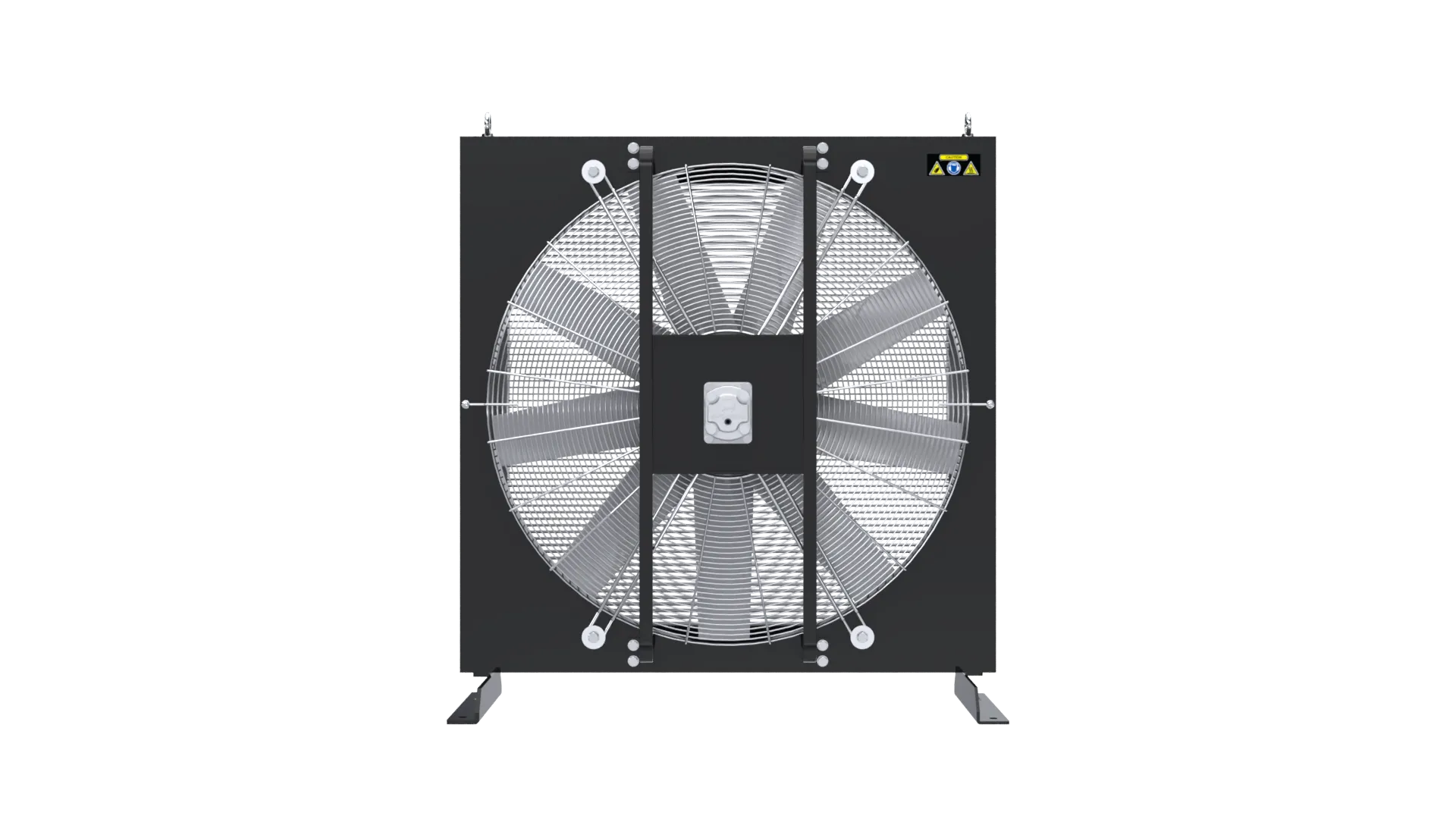

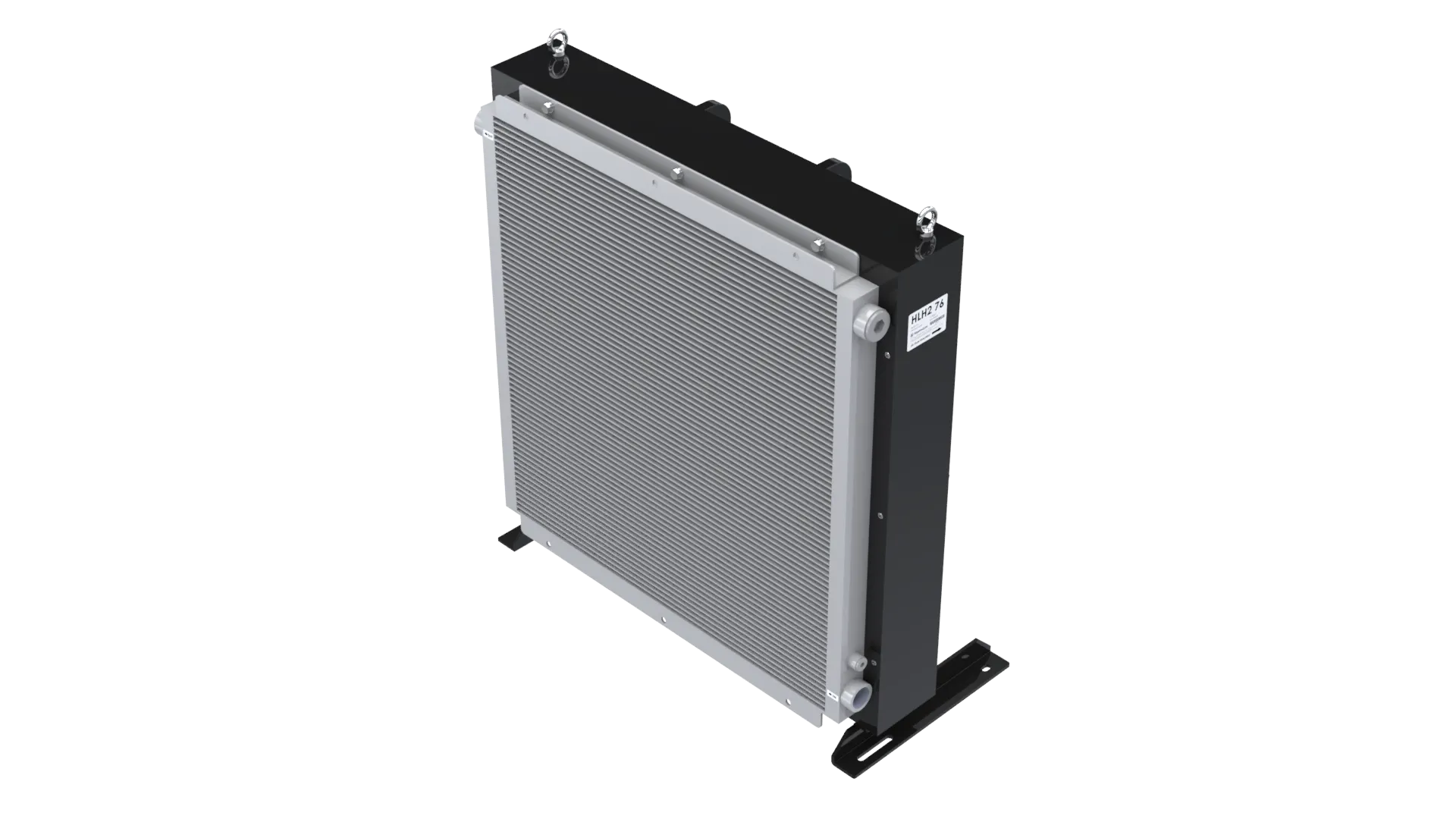

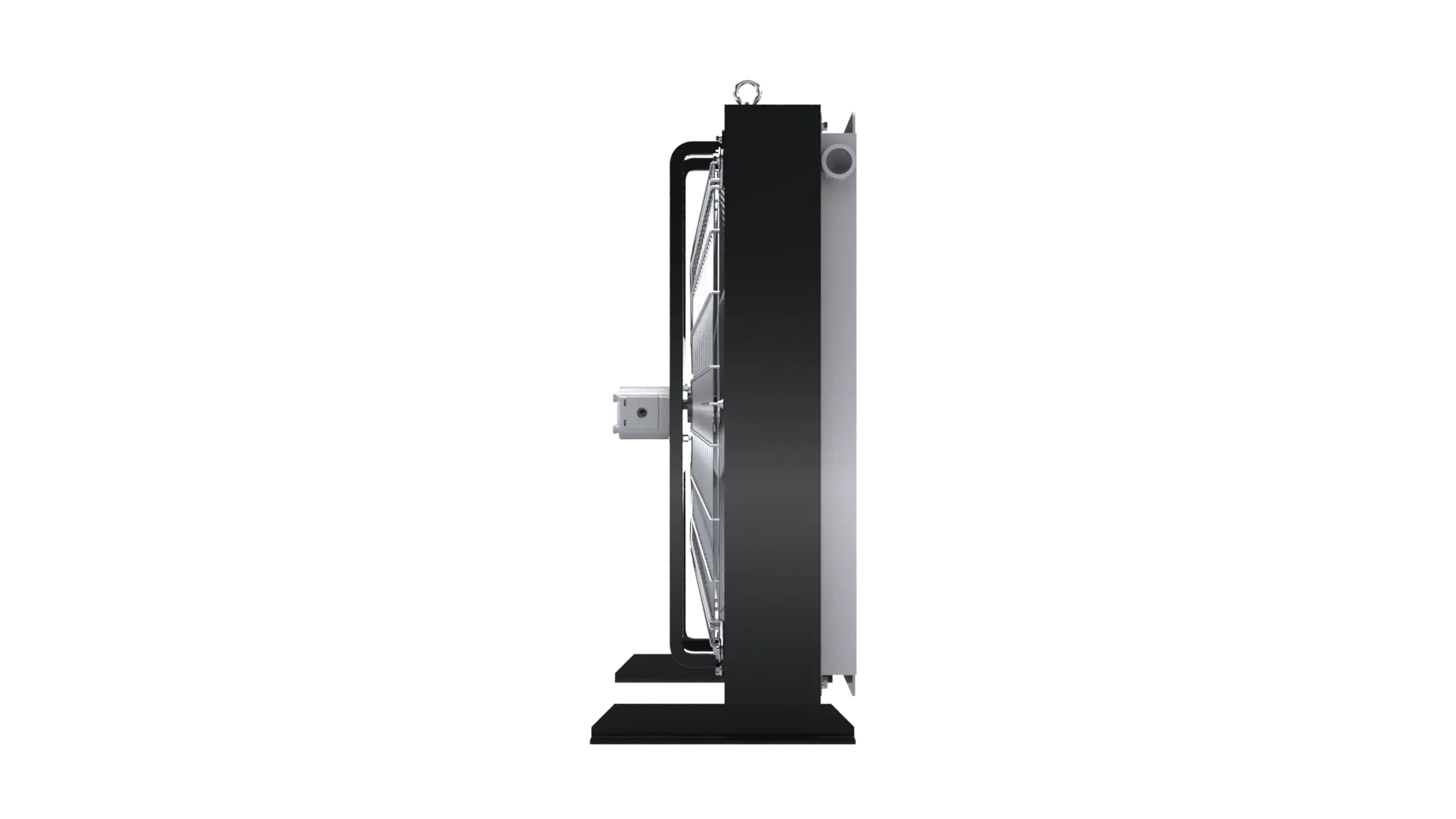

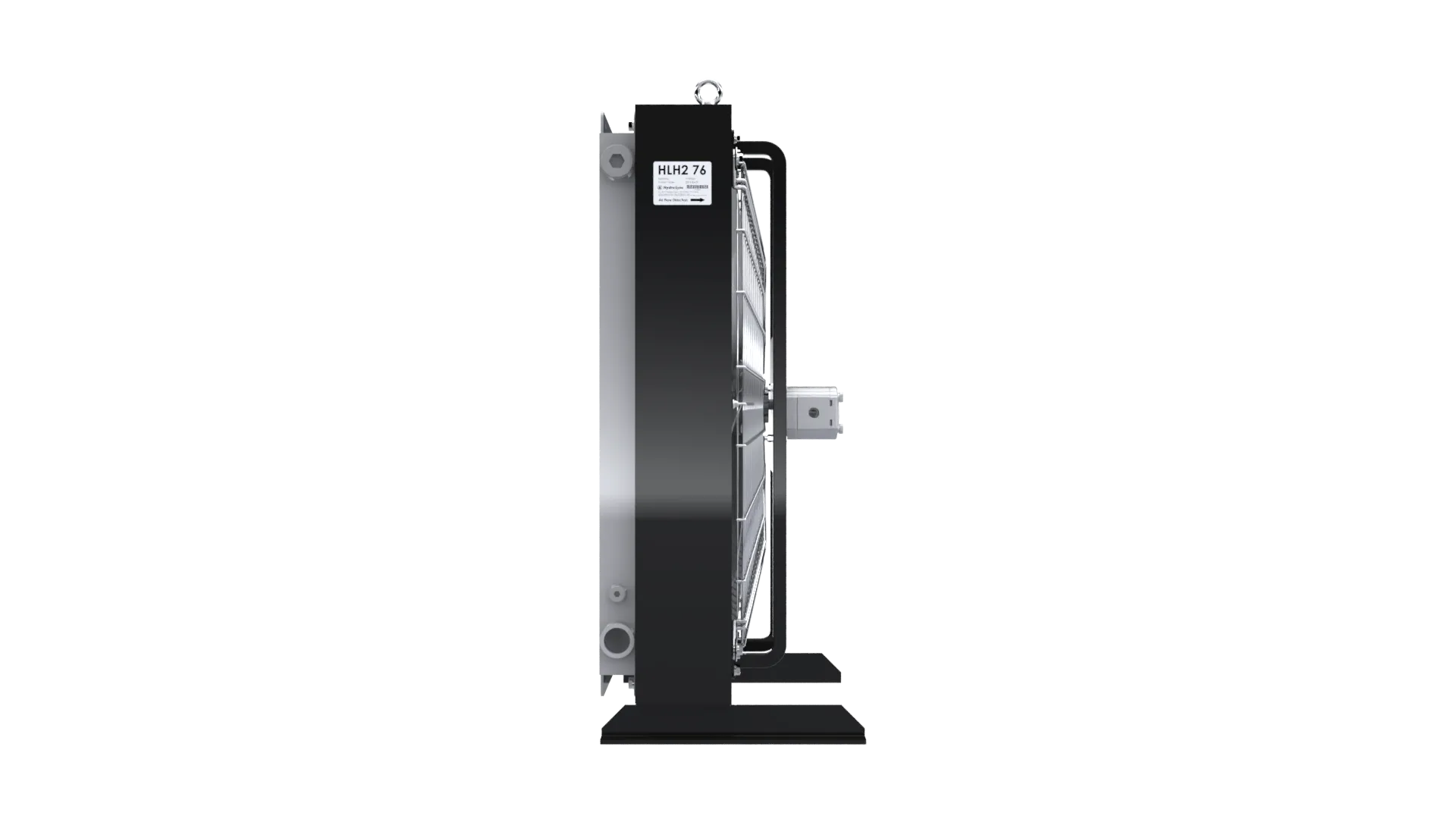

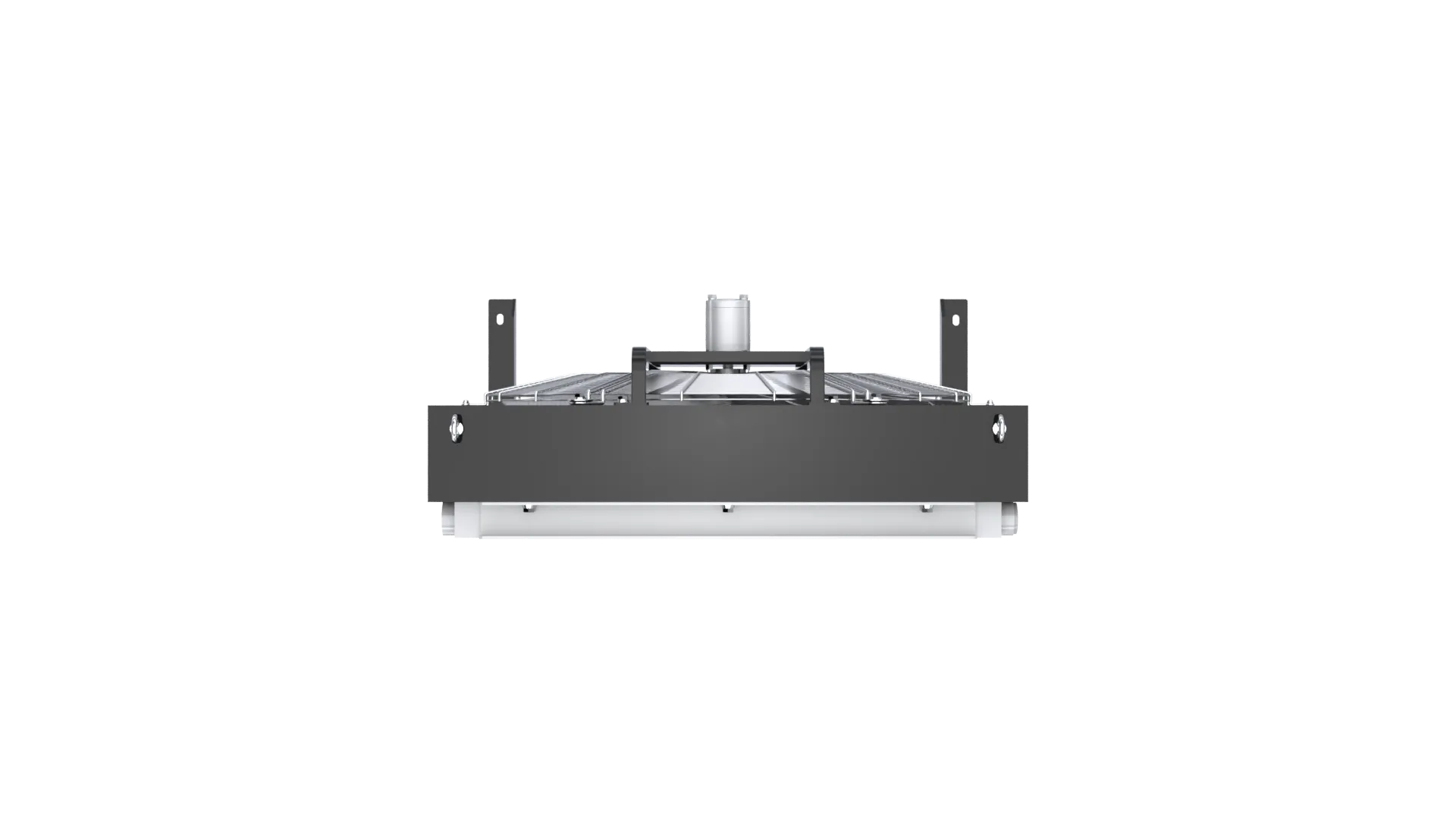

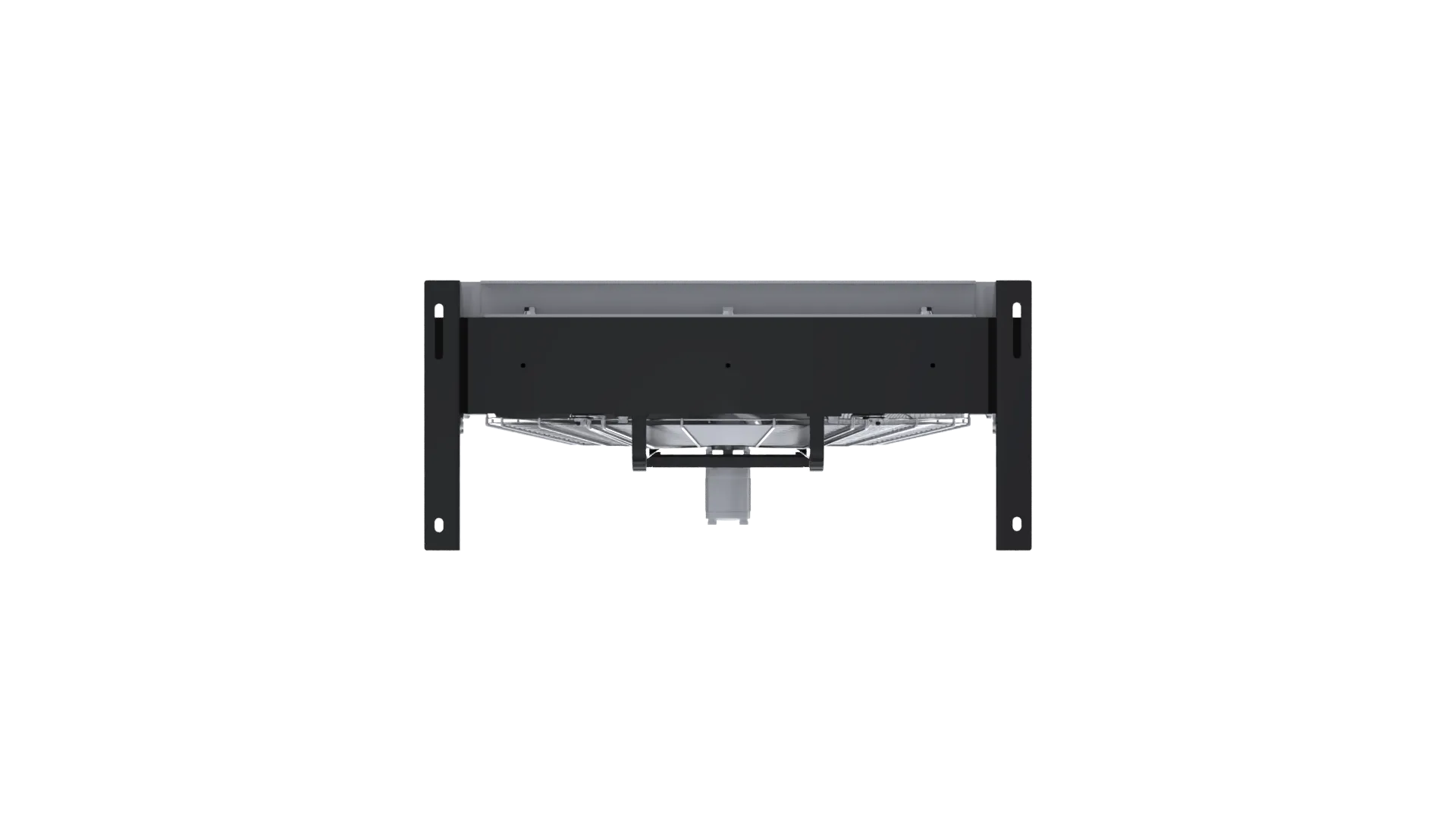

HydroLync HLH2 76 hydraulic motor driven air-oil cooler
Quick Specifications
Cooling Capacity1.95kW/°C
Heat Dissipation (kcal/h)67,080kcal/h
Heat Dissipation78kW
Max Speed1,690rpm
Detailed Specifications
Performance
| Cooling Capacity | 1.95 kW/°C |
|---|---|
| Heat Dissipation (kcal/h) | 67,080 kcal/h |
| Heat Dissipation | 78 kW |
| Max Speed | 1,690 rpm |
Dimensions
| Length (A) | 1,022 mm |
|---|---|
| Width (B) | 1,022 mm |
| Height (C) | 1,092 mm |
| Depth (D) | 440 mm |
| Dimension E | 63 mm |
| Dimension F | 821 mm |
| Dimension G | 176 mm |
| Dimension H | 455 mm |
| Dimension I | 325 mm |
| Dimension J | 972 mm |
| Dimension K | 997 mm |
| Dimension L | 565 mm |
| Mounting Slot | ø14x94 / ø14x23 |
| Net Weight | 110 kg |
Hydraulic Motor
| Max Flow Rate | 400 L/min |
|---|---|
| Oil Port (P1/P2/P3) | G1 1/2" |
Downloads
Catalogs & Documents
HLH2 Series Selection Guide 2026 V04EN
Air Oil Cooler Series User Manual 2026KO
HLH2 Series Selection Guide 2026 V04KO
HLH2 Series Selection Guide 2026 V04ZH
HydroLync Complete Selection Guide 2026 V05 (EN)EN
HydroLync Complete Selection Guide 2026 V05 (KR)KO
HydroLync Complete Selection Guide 2026 V05 (CN)ZH
Dimensional Drawings
