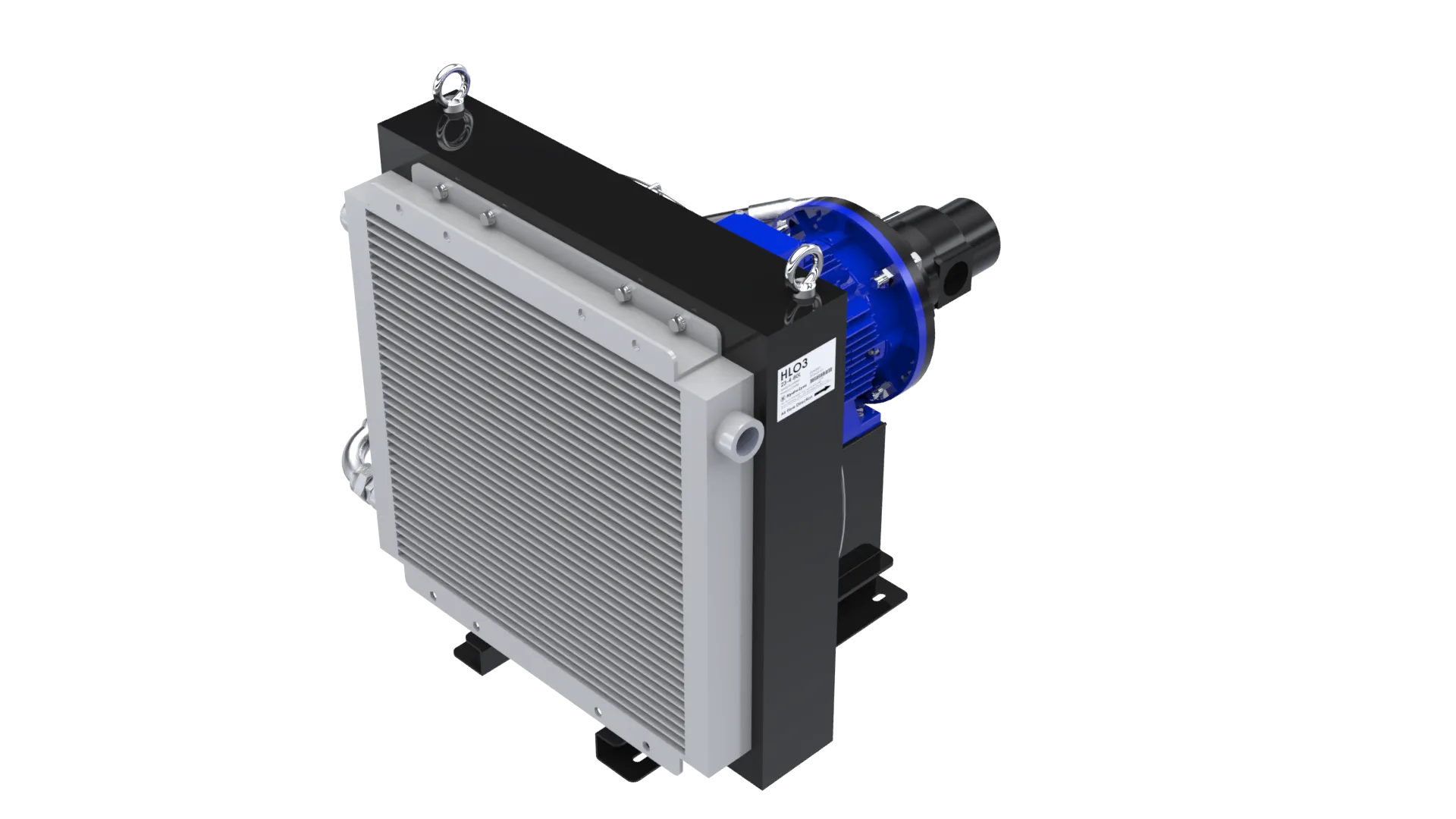

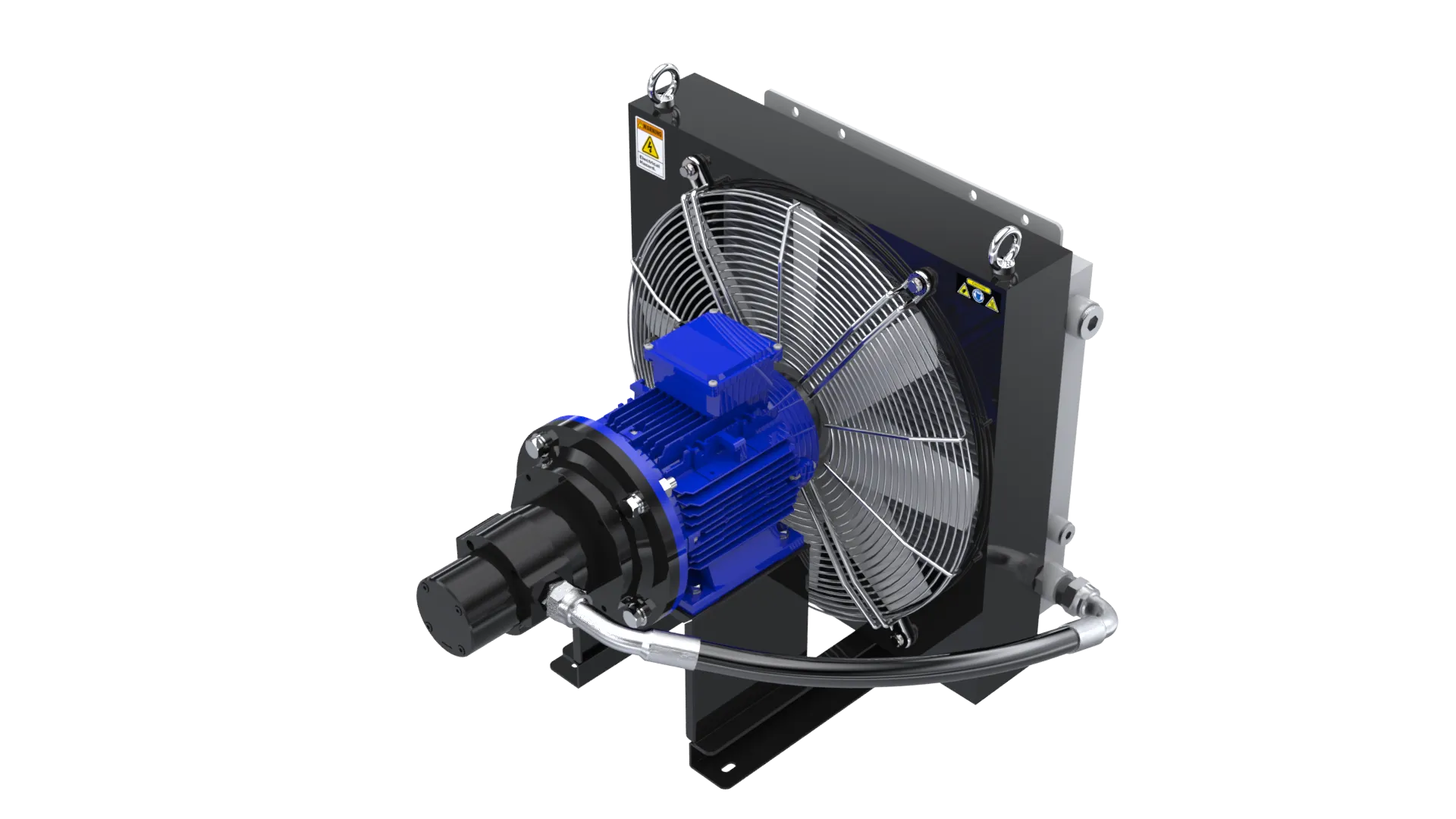

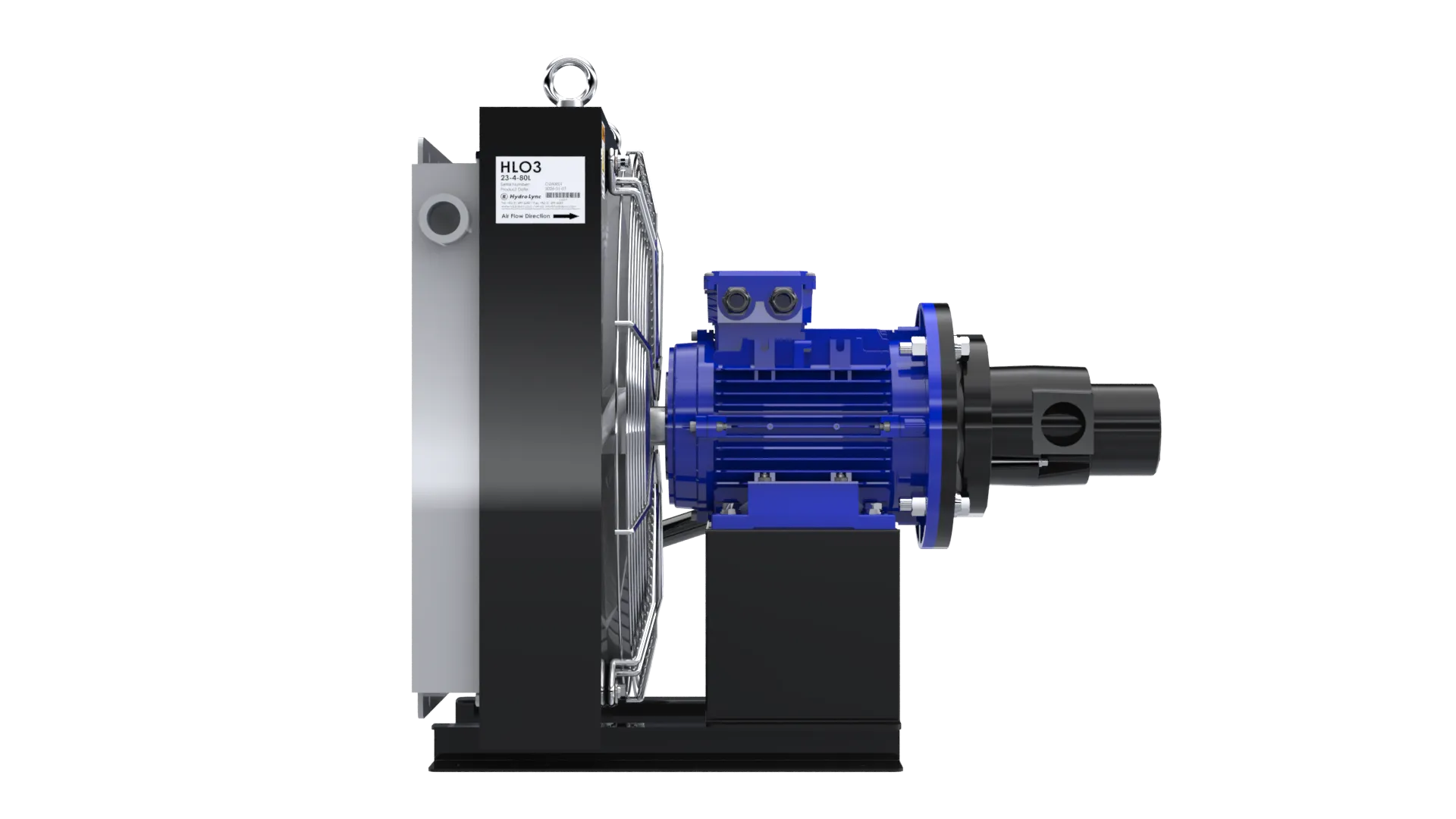

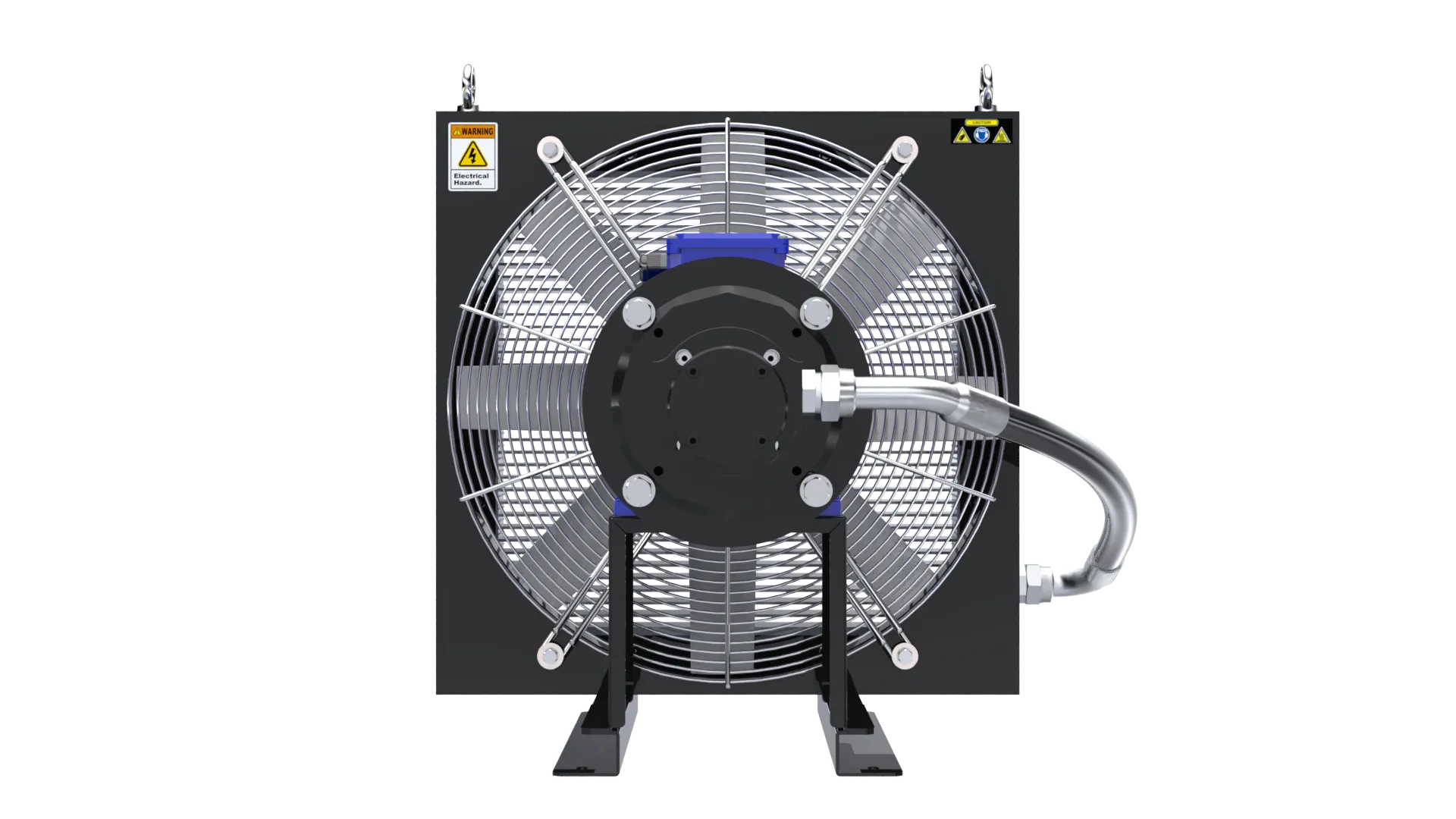

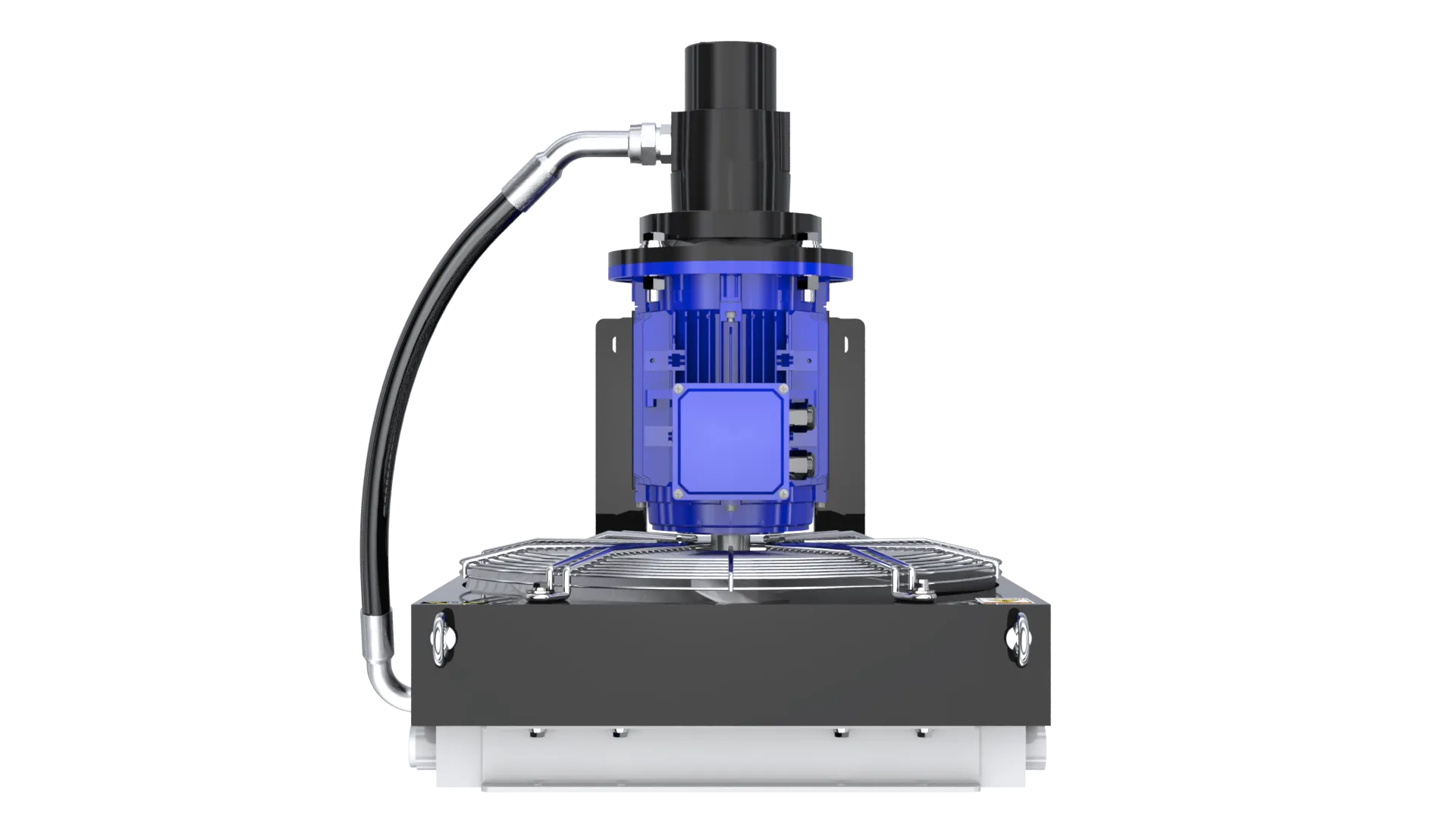

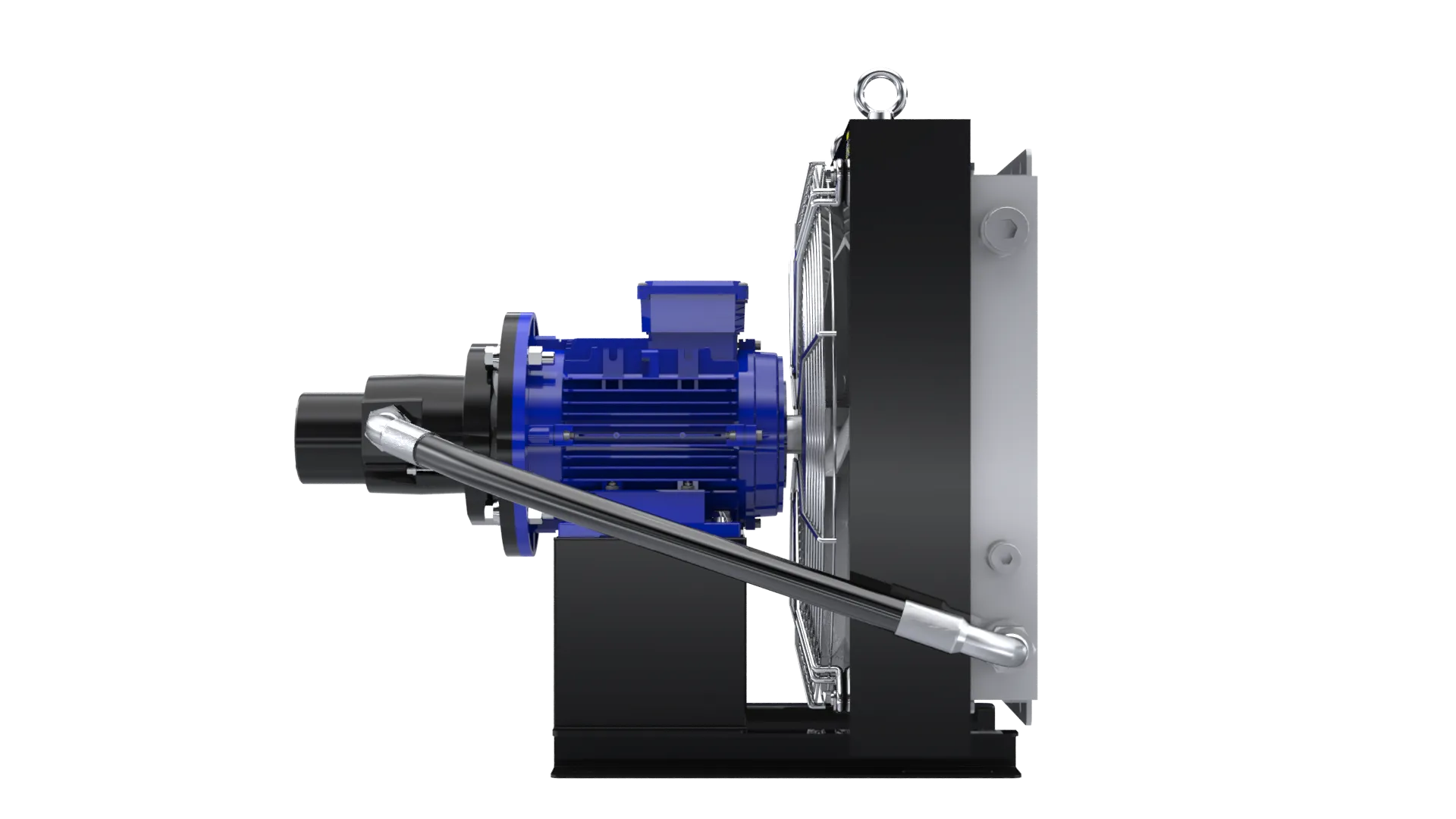

HLO3 23-4-80L Circulation Pump Cooler

Product specifications and documentation

HLO3 23-4-80L Circulation Pump Cooler

HLO3 23-4-80L Circulation Pump Cooler

Request Quote

Quick Specifications

Oil Flow (1710 RPM)94L/min
Pump Displacement55cc/rev
Max Oil Flow Rate94L/min
Pump Inlet Port (P4)G 1 1/2"

Detailed Specifications

Performance
Oil Flow (1710 RPM)94 L/min
Pump Displacement55 cc/rev
Max Oil Flow Rate94 L/min
Pump Inlet Port (P4)G 1 1/2"
Dimensions
HLO3 dimension drawing
Dim A (Width)579 mm
Dim B (Height)579 mm
Dim C (Depth incl. fan)619 mm
Dim D (Motor center)676 mm
Dim E (Port offset)63 mm
Dim F (Matrix width)378 mm
Dim G (Fan clearance)140 mm
Dim H (Mount height)455 mm
Dim I (Mount depth)355 mm
Dim J (Foot spacing X)260 mm
Dim K (Foot spacing Y)518 mm
Dim L (Port center)332 mm
Mounting Slot HoleO10x90 / O10x19
Oil Port P1/P2/P3G1"
Electrical
Motor Power4 kW
Voltage220/380/440 V

Downloads

Accessories

Thermal Switch (DIN Connector)
TS-DIN
Thermal Switch (Wire Connector)
TS-WIRE
Matrix Stone Guard
STONE-GUARD
Matrix Dust Guard
DUST-GUARD
Matrix Dust + Stone Guard
COMBO-GUARD
