HLA2 07-4 AC Motor Cooler

Product specifications and documentation

HLA2 07-4 AC Motor Cooler
HLA2-07-4

HLA2 07-4 AC Motor Cooler

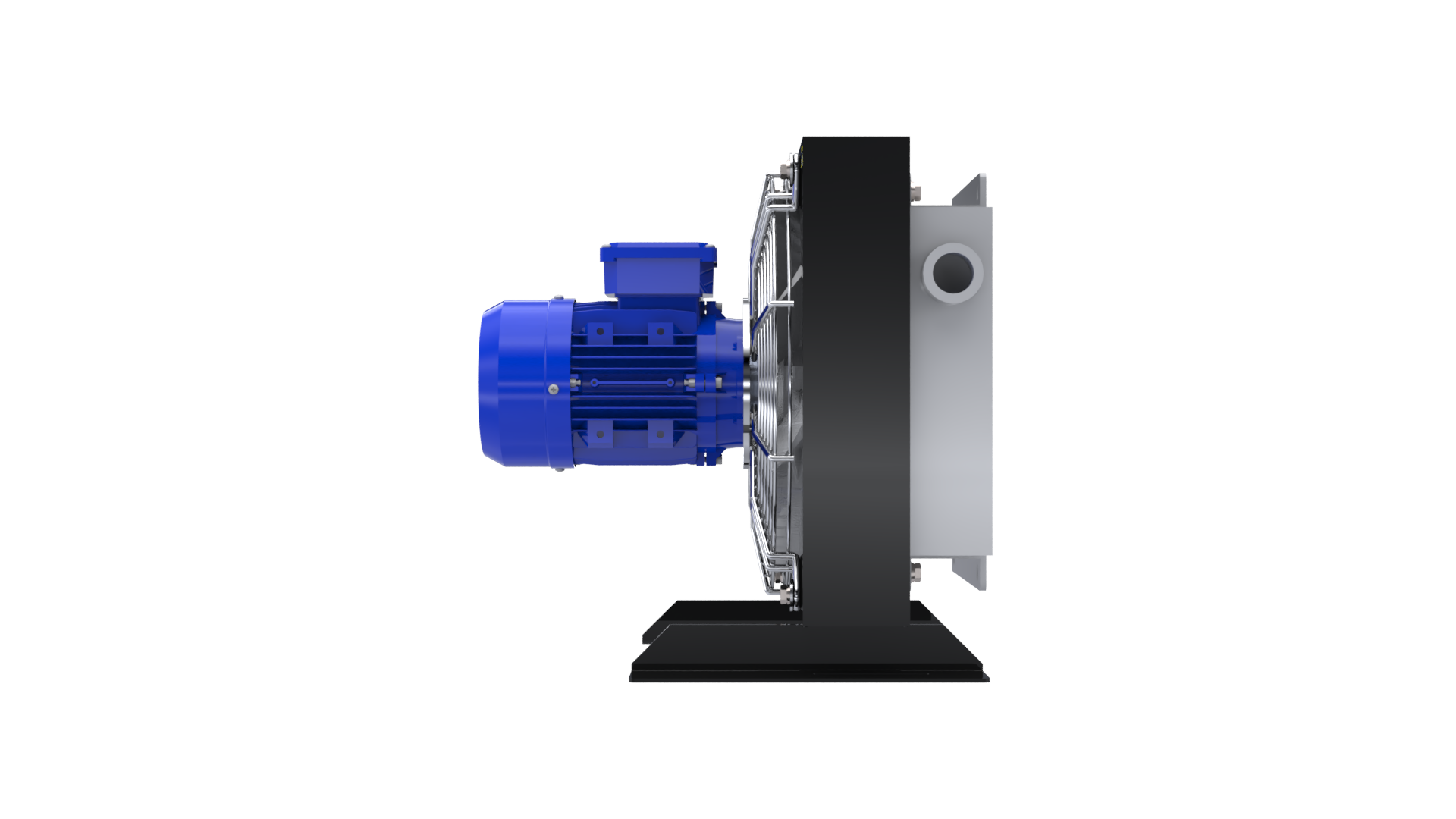

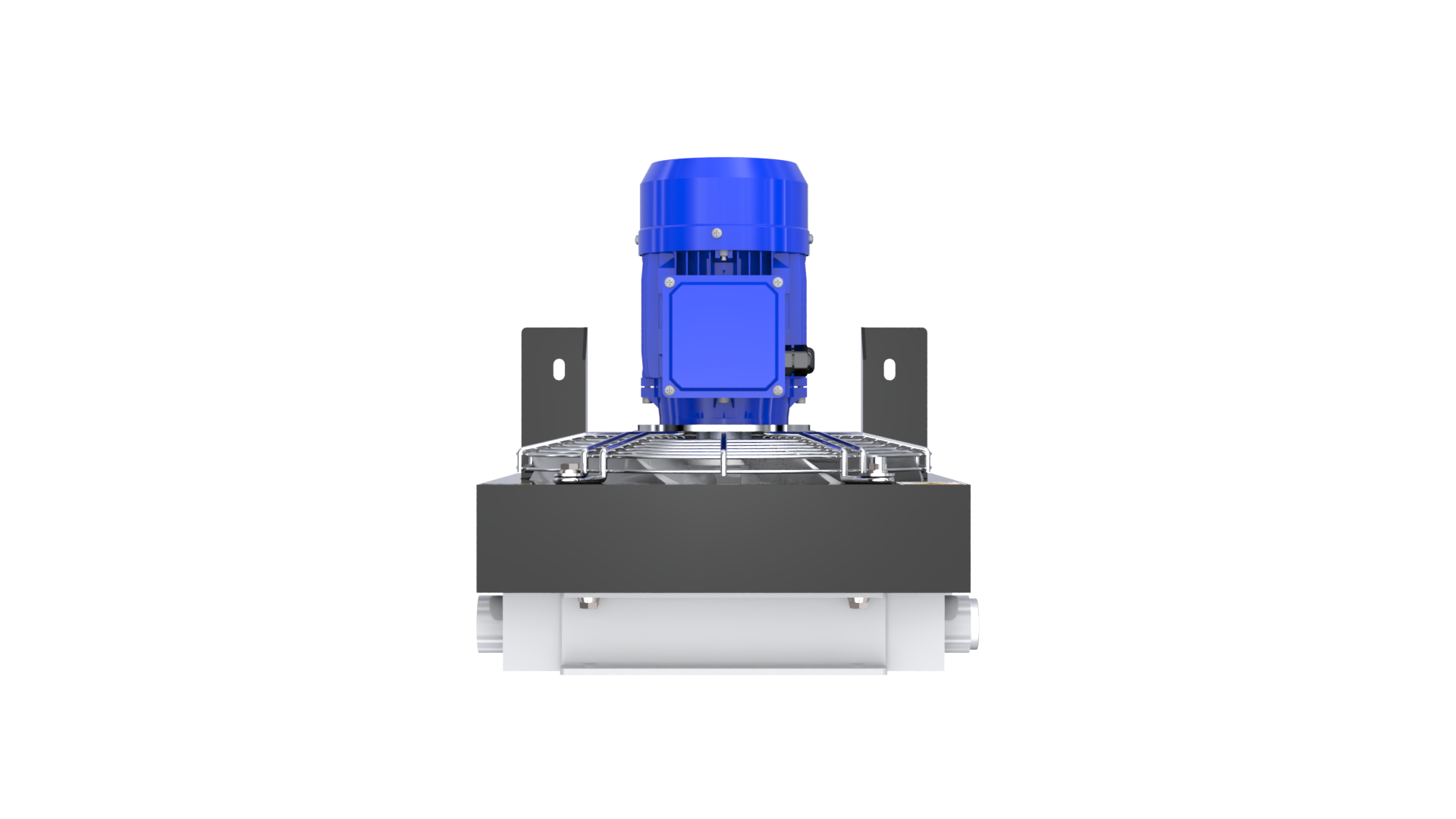

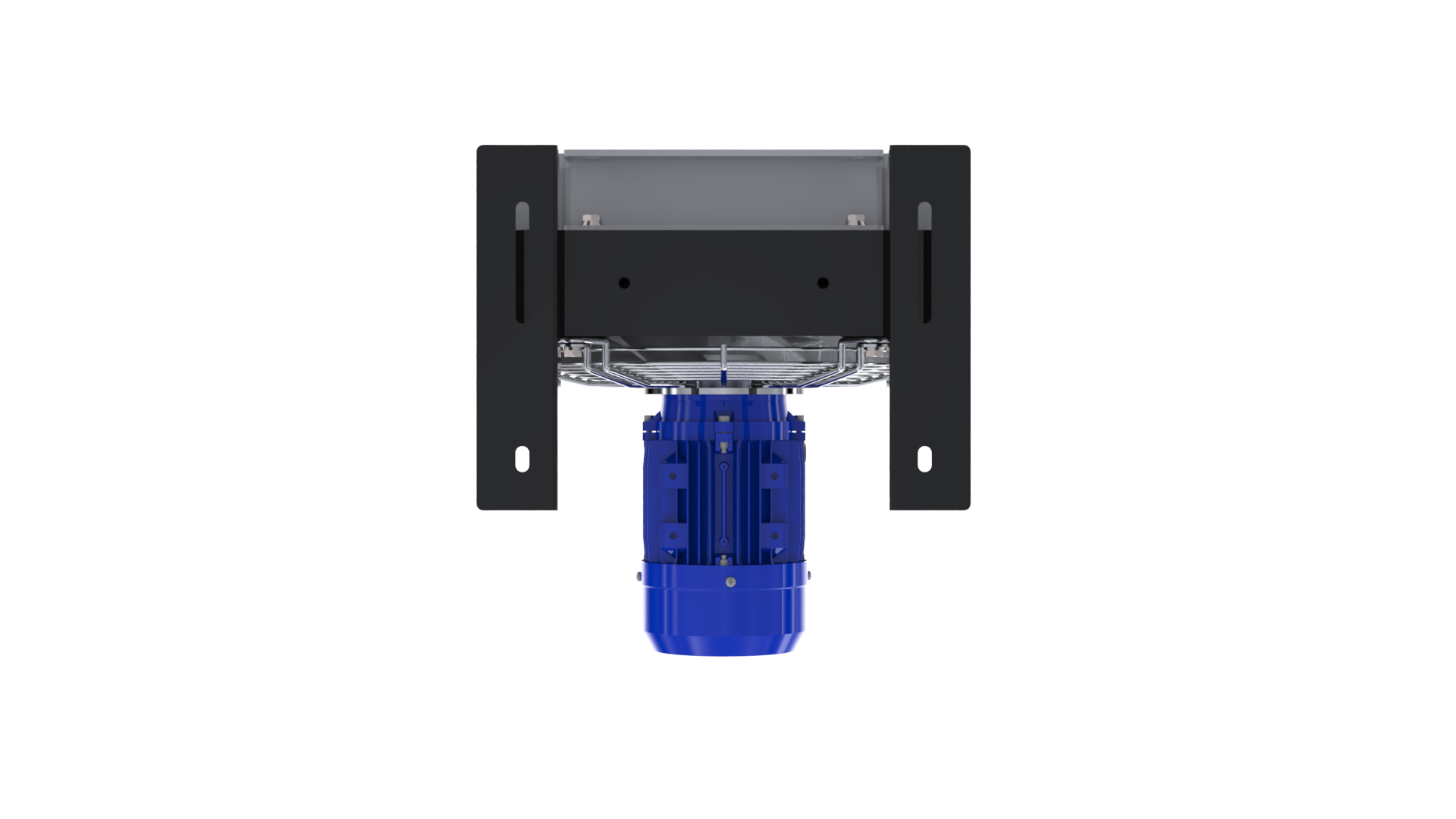

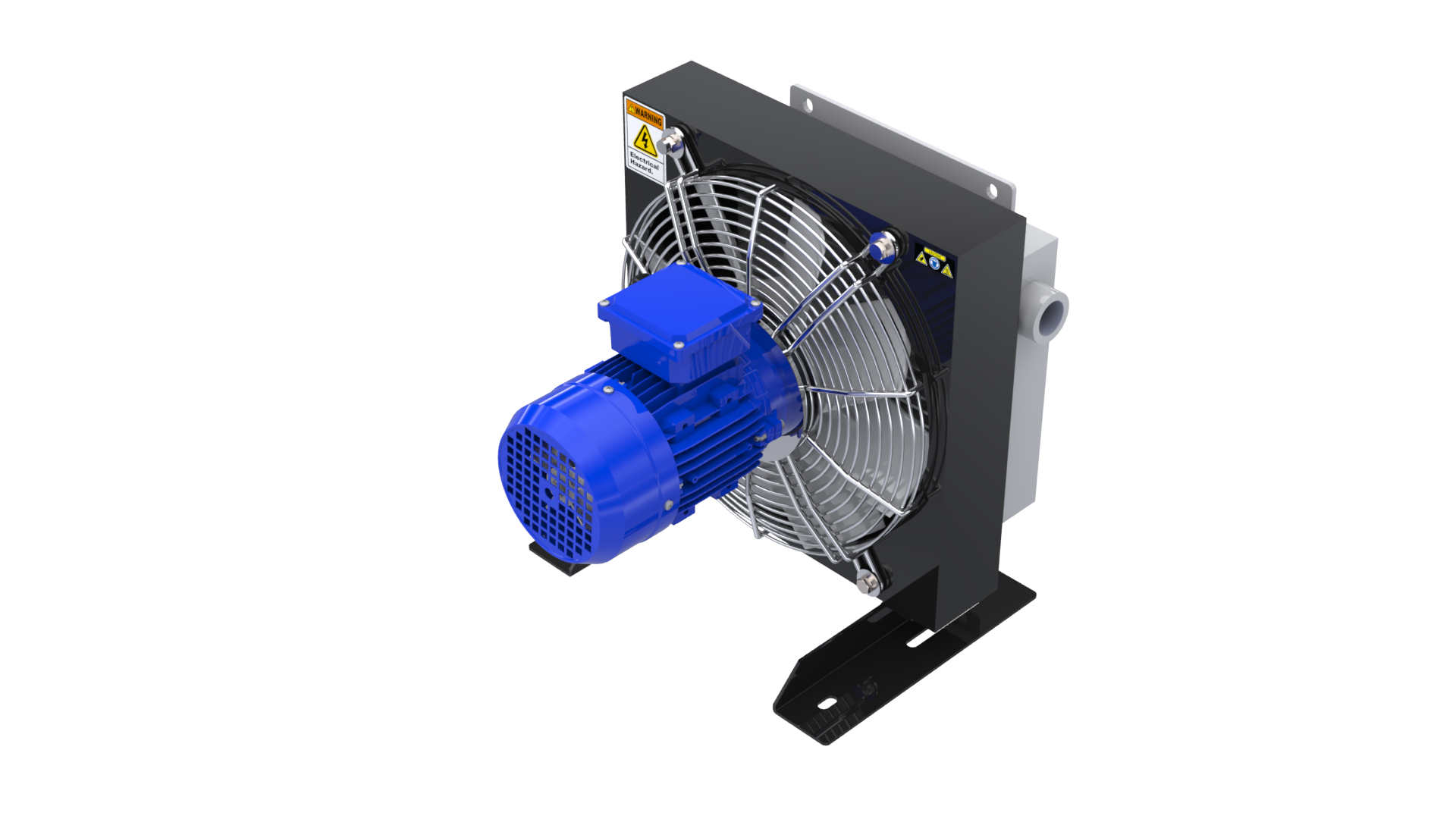

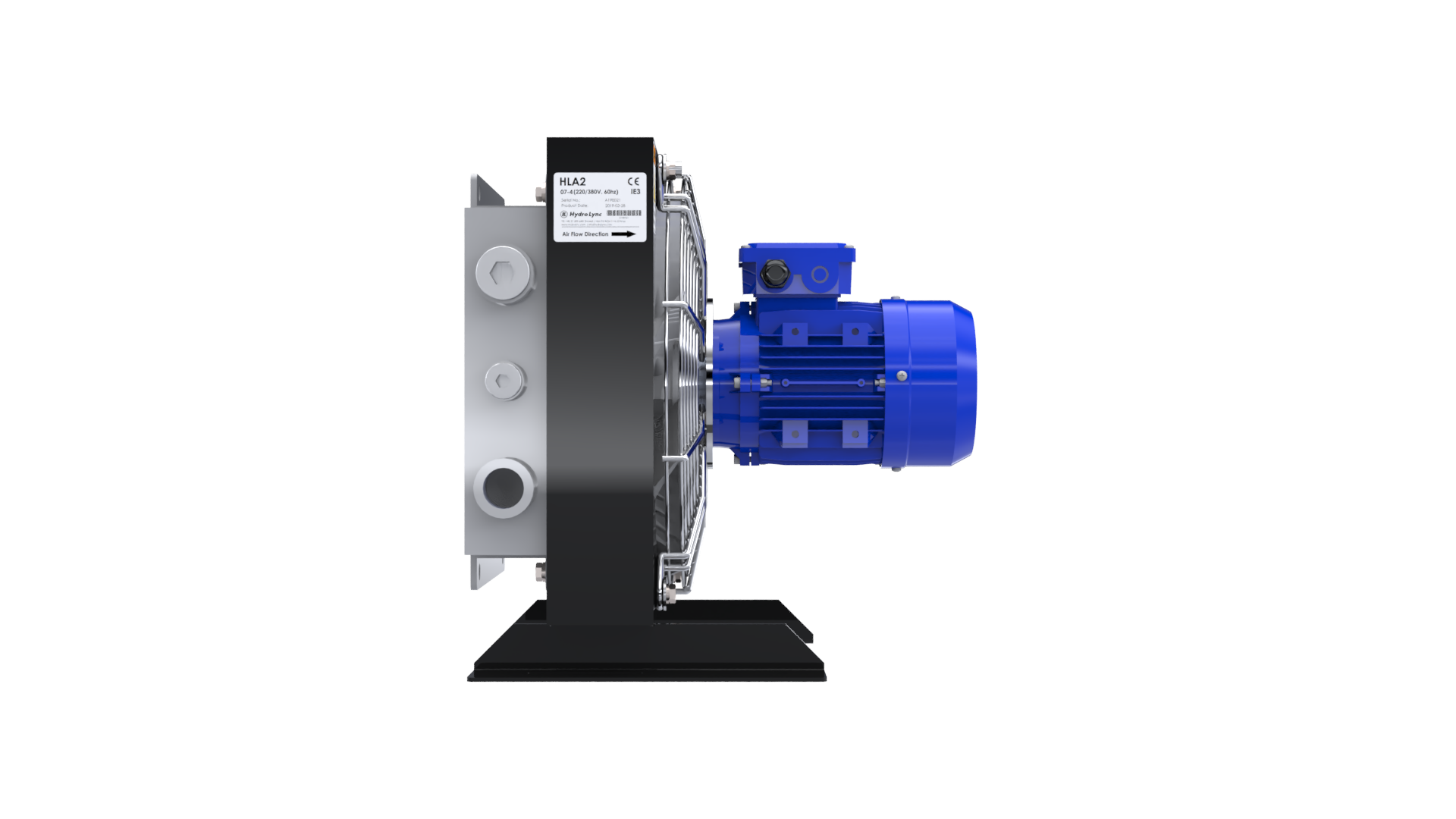

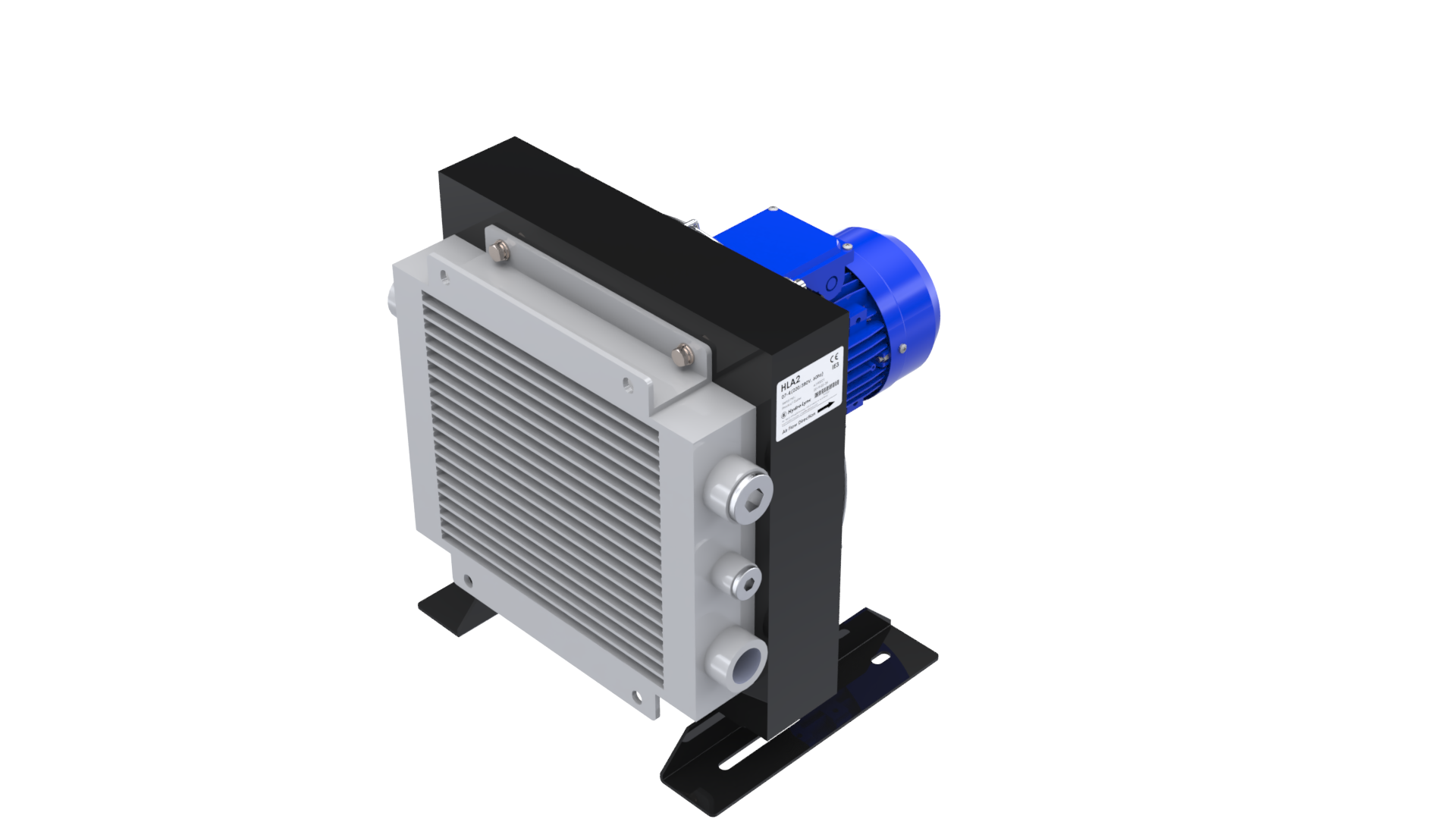

HydroLync HLA2 07-4 AC motor driven air-oil cooler with 4-pole motor

Request Quote

Quick Specifications

Cooling Capacity0.15 kW/°C
Heat Dissipation6 kW
Heat Dissipation (kcal)5160 kcal/h
Max Flow Rate125 L/min

Detailed Specifications

Performance

Cooling Capacity
0.15 kW/°C
Heat Dissipation
6 kW
Heat Dissipation (kcal)
5160 kcal/h
Max Flow Rate
125 L/min
Motor Poles
4

Dimensions

HLA2 dimension drawing
Depth (D)
397.5 mm
Dimension E
63 mm
Dimension F
160 mm
Dimension G
145 mm
Dimension H
270 mm
Dimension I
145 mm
Dimension J
297 mm
Dimension K
305 mm
Height (C)
407.5 mm
Length (A)
365 mm
Net Weight
19 kg
Mounting Slot
ø10x90 ø10x19
Width (B)
365 mm

Electrical

Motor Type
4-Pole AC Motor

Downloads

Accessories

DTM Digital Thermometer
DTM
Thermal Switch (DIN Connector)
TS-DIN
Thermal Switch (Wire Connector)
TS-WIRE
Matrix Stone Guard
STONE-GUARD
Matrix Dust Guard
DUST-GUARD
Matrix Dust + Stone Guard
COMBO-GUARD
