HLA2 110-6 AC Motor Cooler

Product specifications and documentation

HLA2 110-6 AC Motor Cooler
HLA2-110-6

HLA2 110-6 AC Motor Cooler

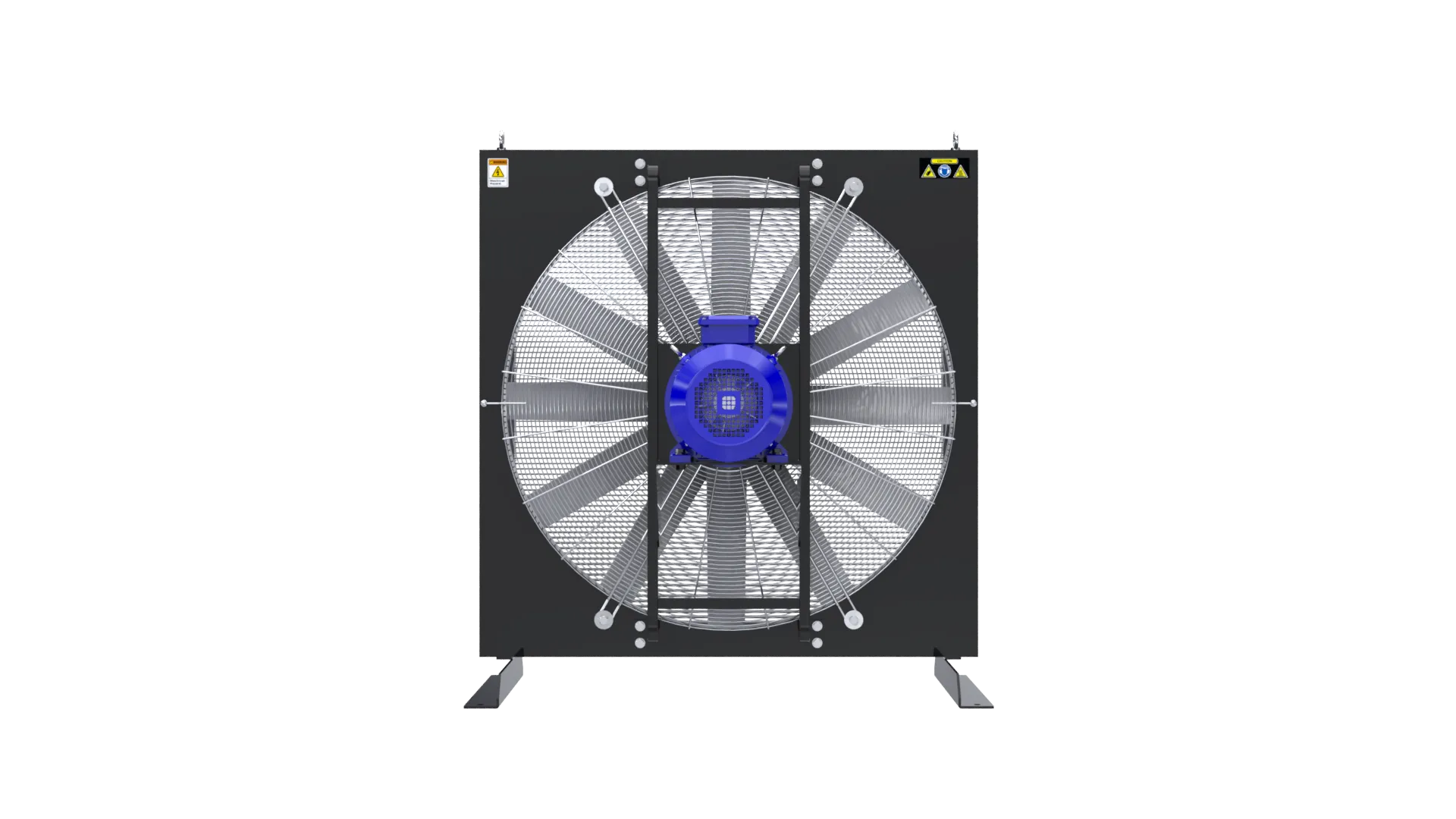

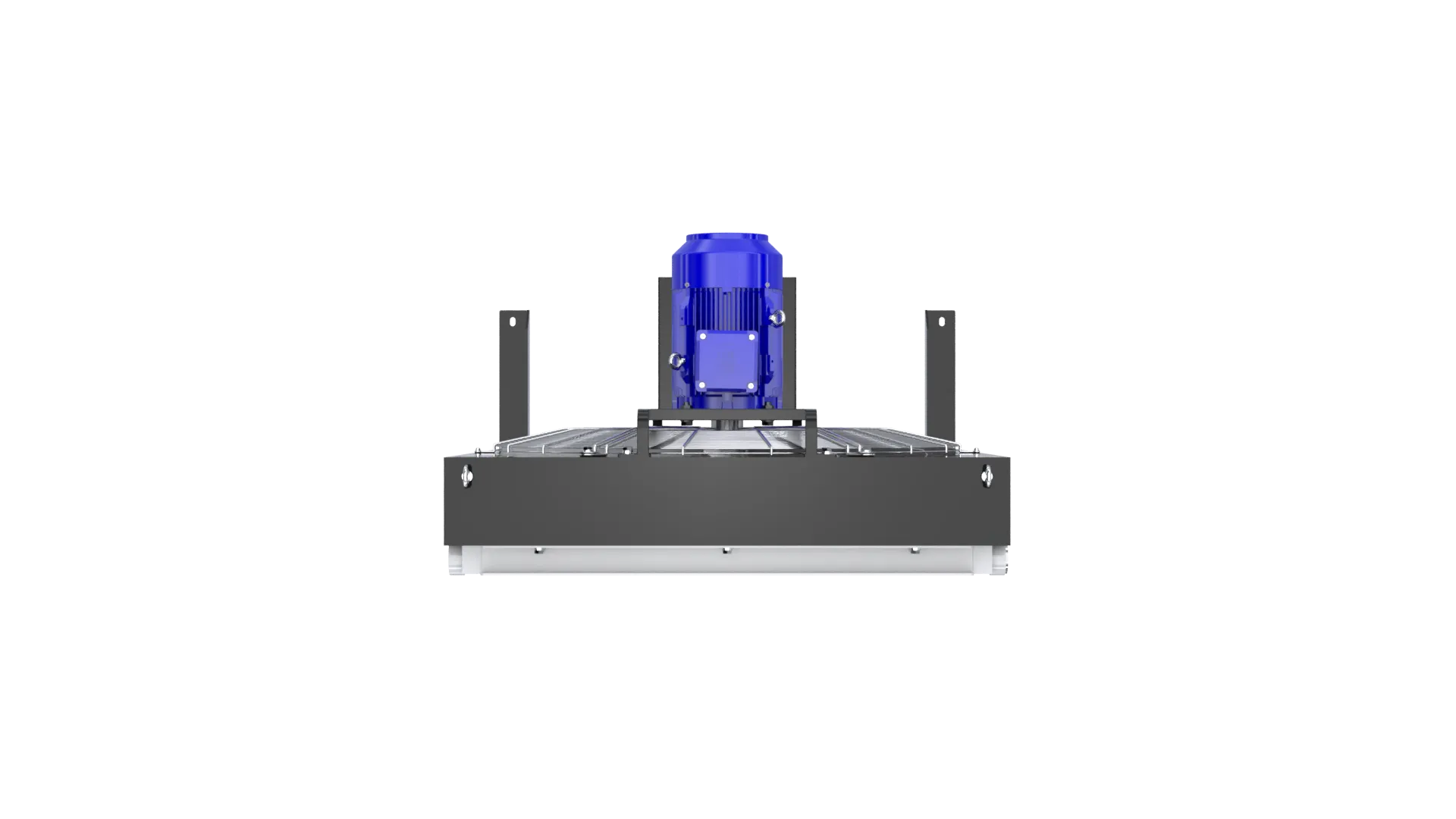

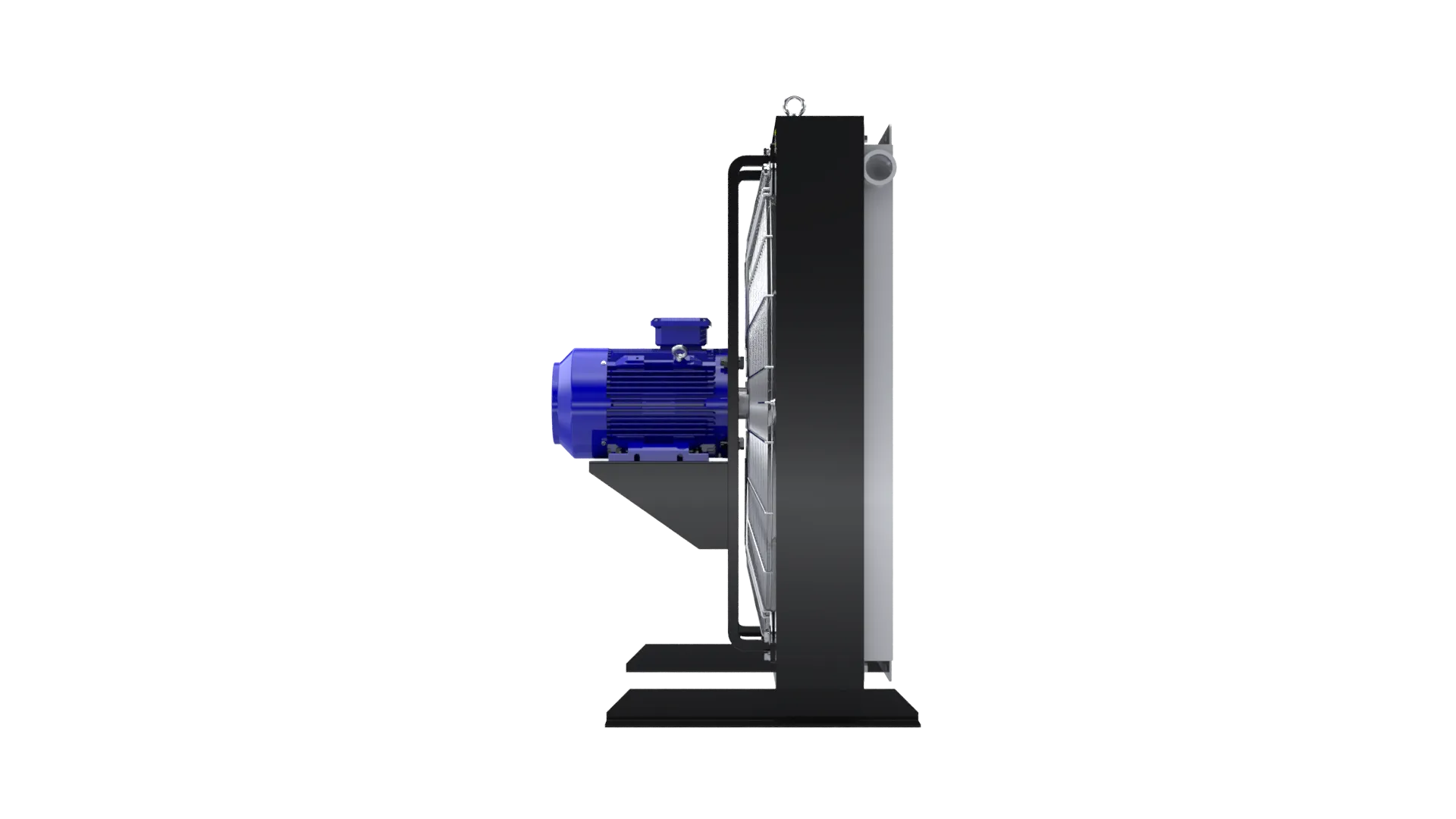

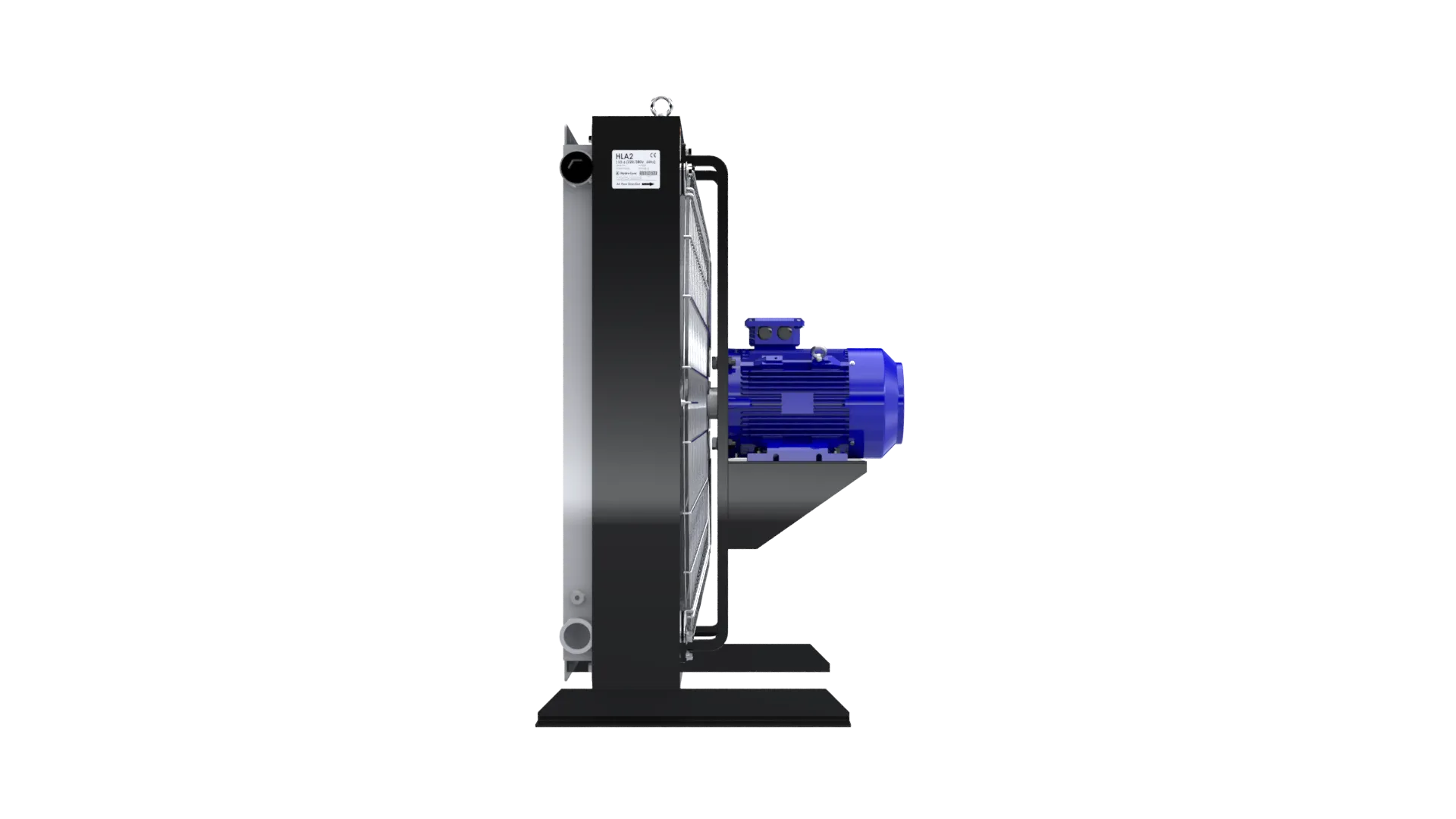

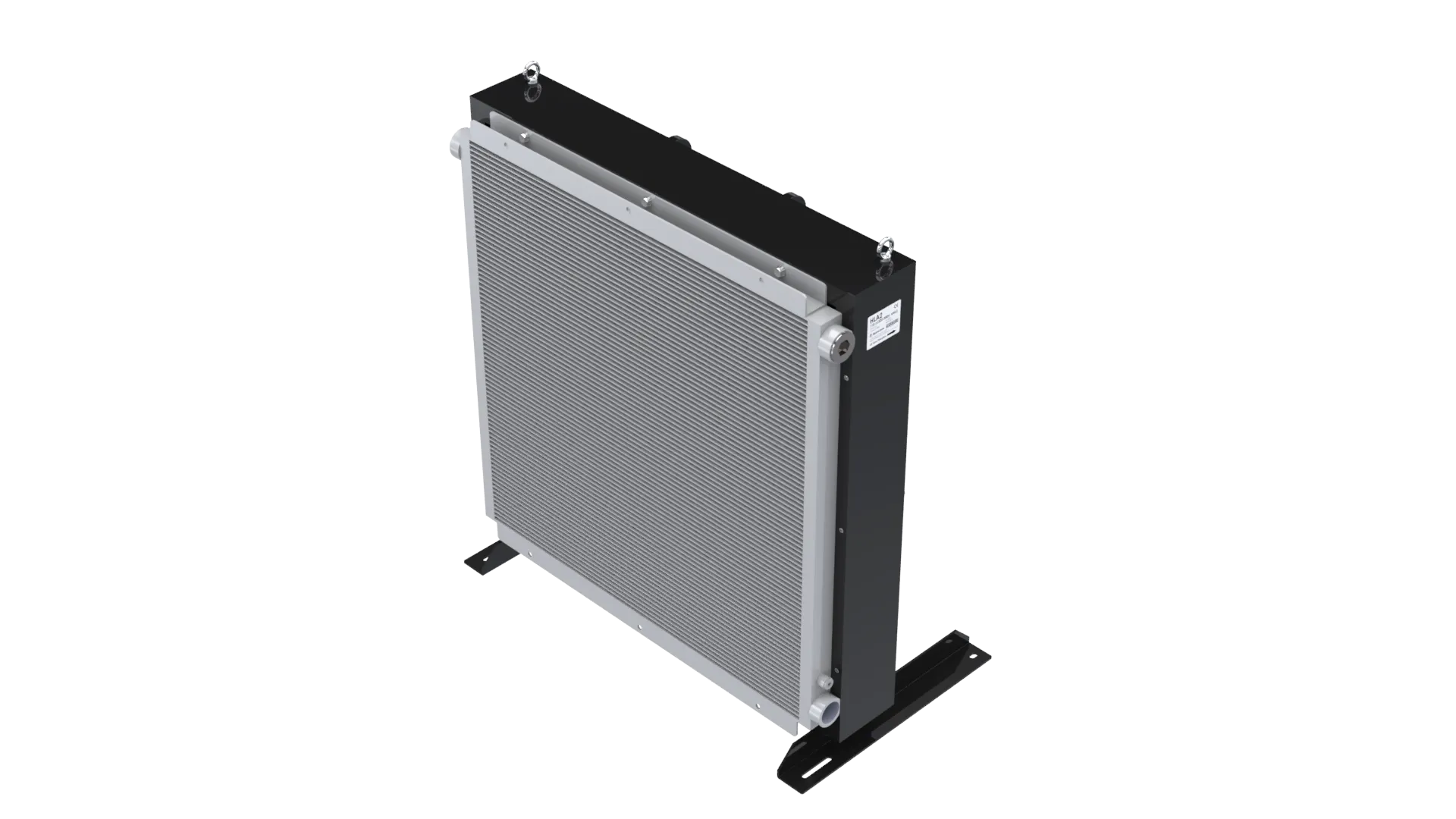

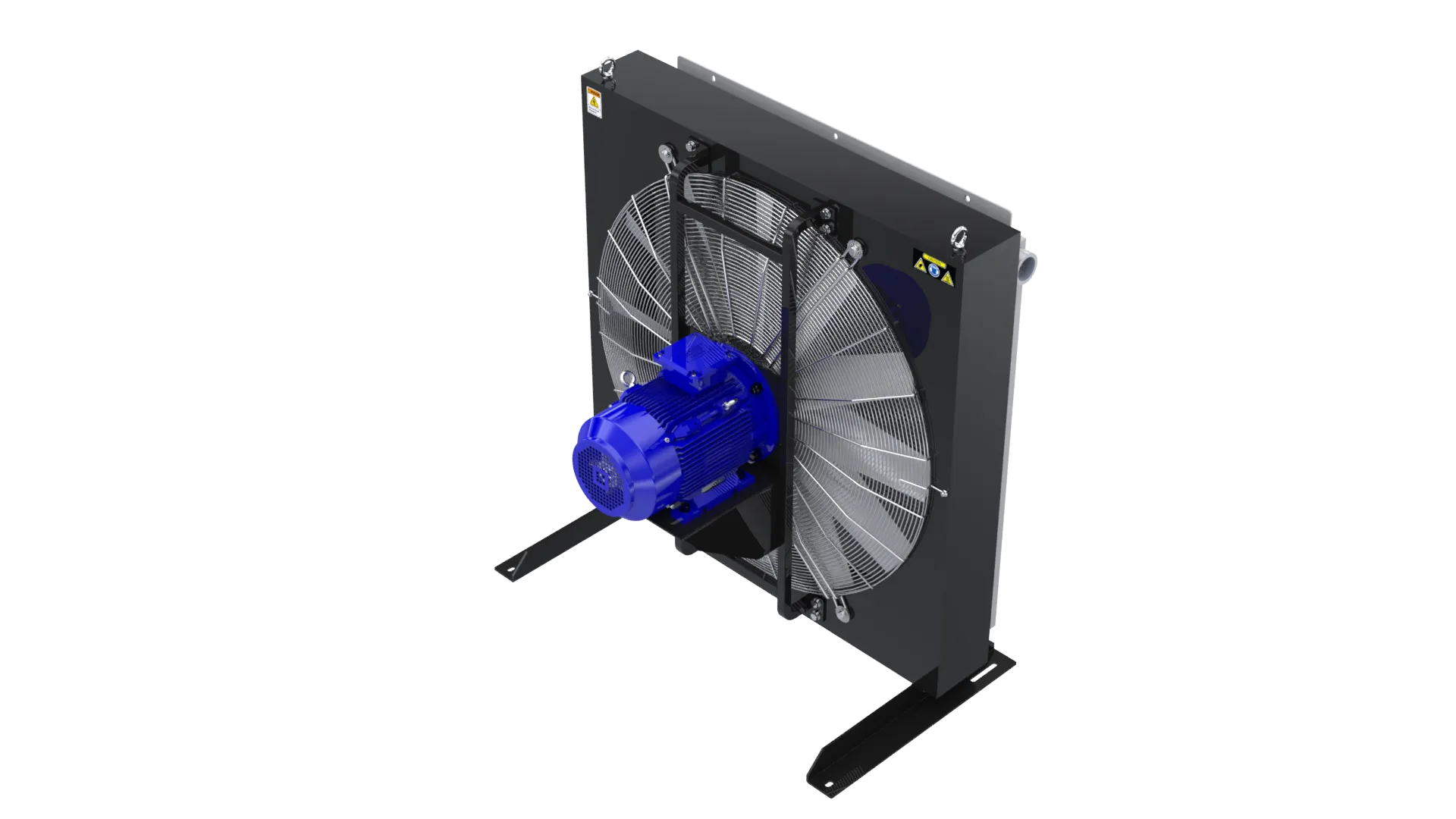

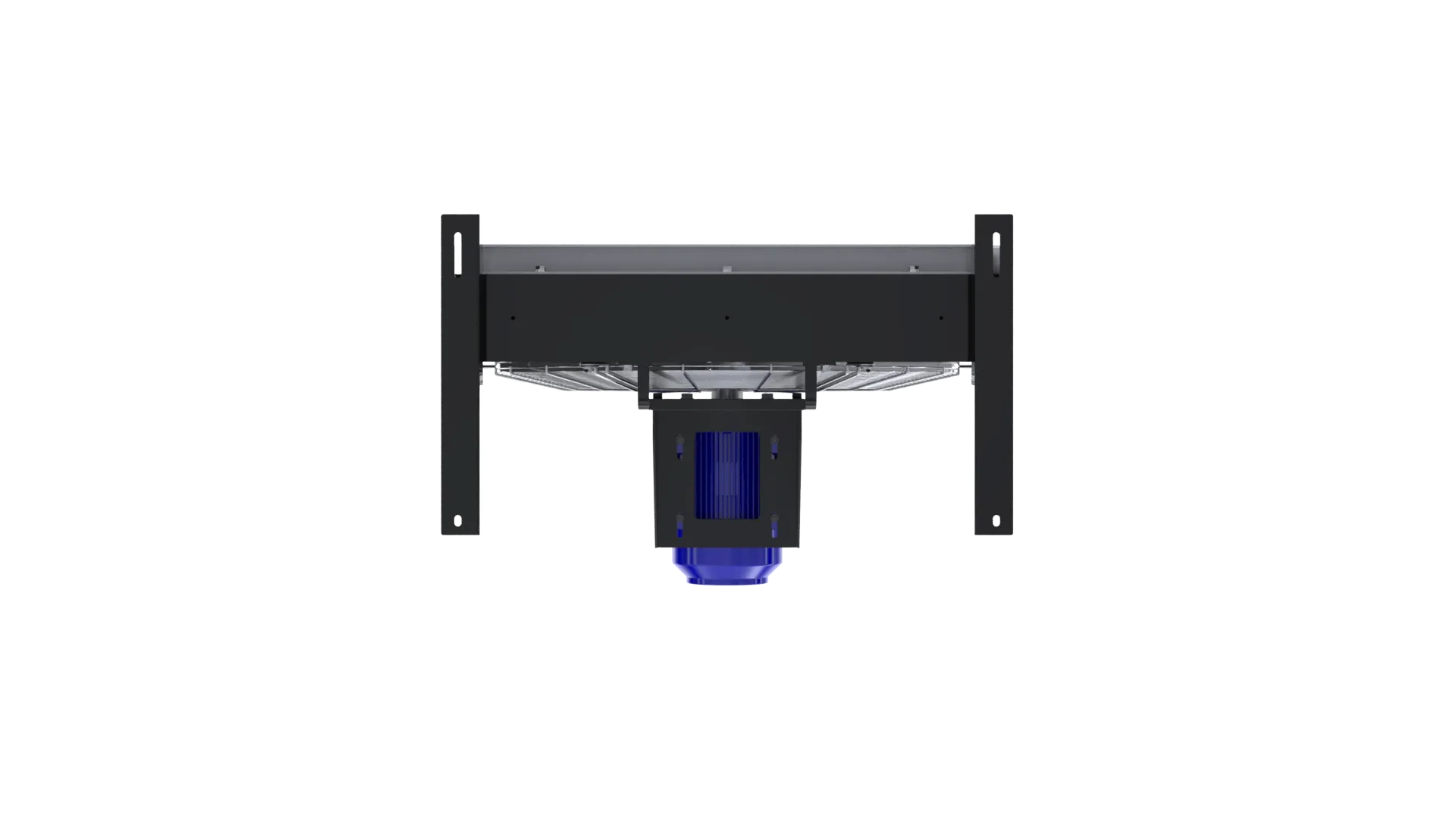

HydroLync HLA2 110-6 AC motor driven air-oil cooler with 6-pole motor

Request Quote

Quick Specifications

Cooling Capacity2.37 kW/°C
Heat Dissipation94.8 kW
Heat Dissipation (kcal)81528 kcal/h
Max Flow Rate500 L/min

Detailed Specifications

Performance

Cooling Capacity
2.37 kW/°C
Heat Dissipation
94.8 kW
Heat Dissipation (kcal)
81528 kcal/h
Max Flow Rate
500 L/min
Motor Poles
6

Dimensions

Depth (D)
738 mm
Dimension E
63 mm
Dimension F
985 mm
Dimension G
192 mm
Dimension H
665 mm
Dimension I
550 mm
Dimension J
1115 mm
Dimension K
1177 mm
Height (C)
1285 mm
Length (A)
1205 mm
Net Weight
205 kg
Mounting Slot
ø14x94 ø14x23
Width (B)
1185 mm

Electrical

Motor Power
5.5 kW
Motor Type
6-Pole AC Motor

Hydraulic

Oil Port (P1/P2/P3)
G2"

Environmental

Noise Level
90 dB

Downloads

Accessories

DTM Digital Thermometer
DTM
Thermal Switch (DIN Connector)
TS-DIN
Thermal Switch (Wire Connector)
TS-WIRE
Matrix Stone Guard
STONE-GUARD
Matrix Dust Guard
DUST-GUARD
Matrix Dust + Stone Guard
COMBO-GUARD
