HLA2 112-6 AC Motor Cooler
HLA2-112-6

HLA2 112-6 AC Motor Cooler

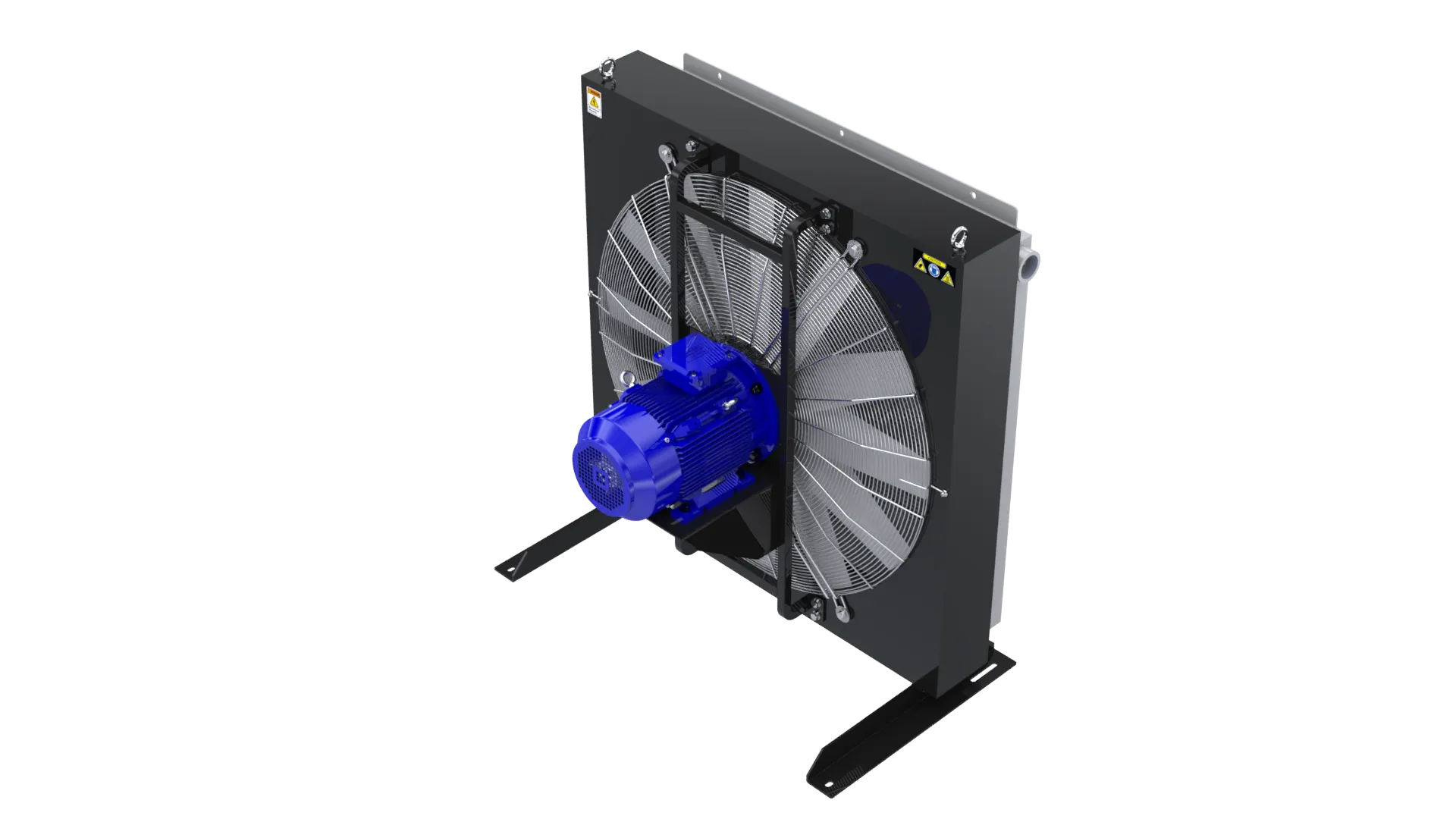

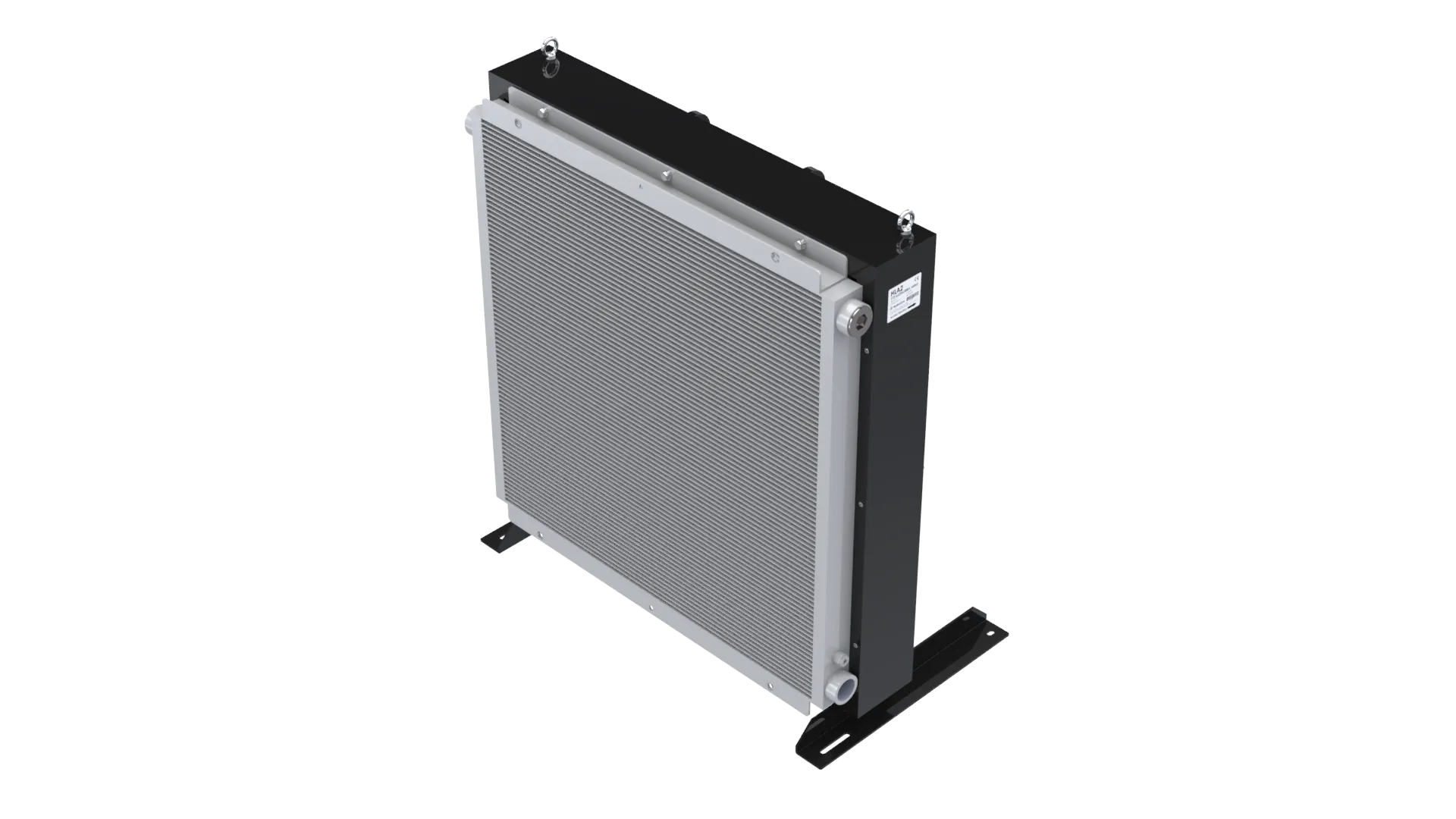

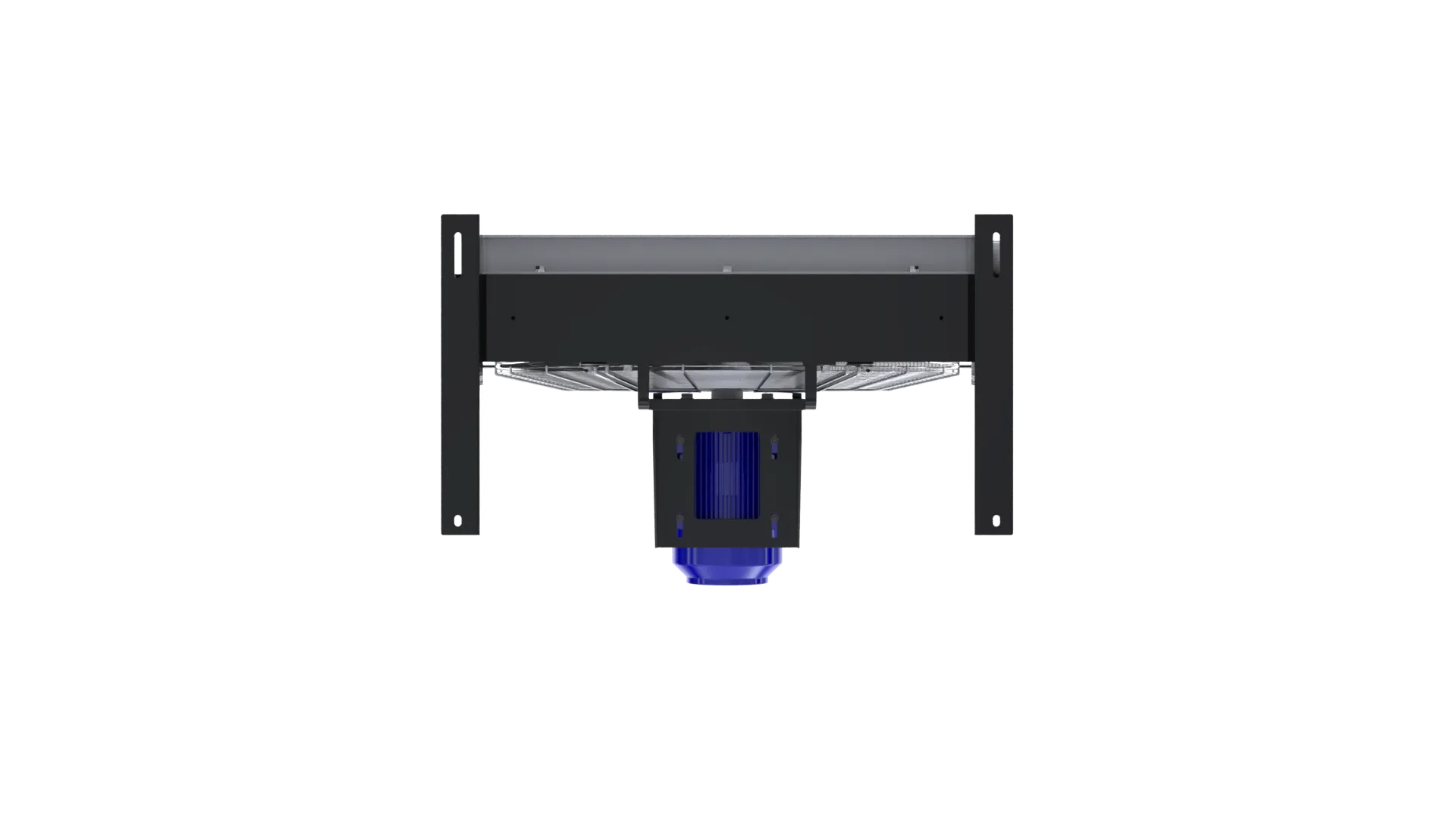

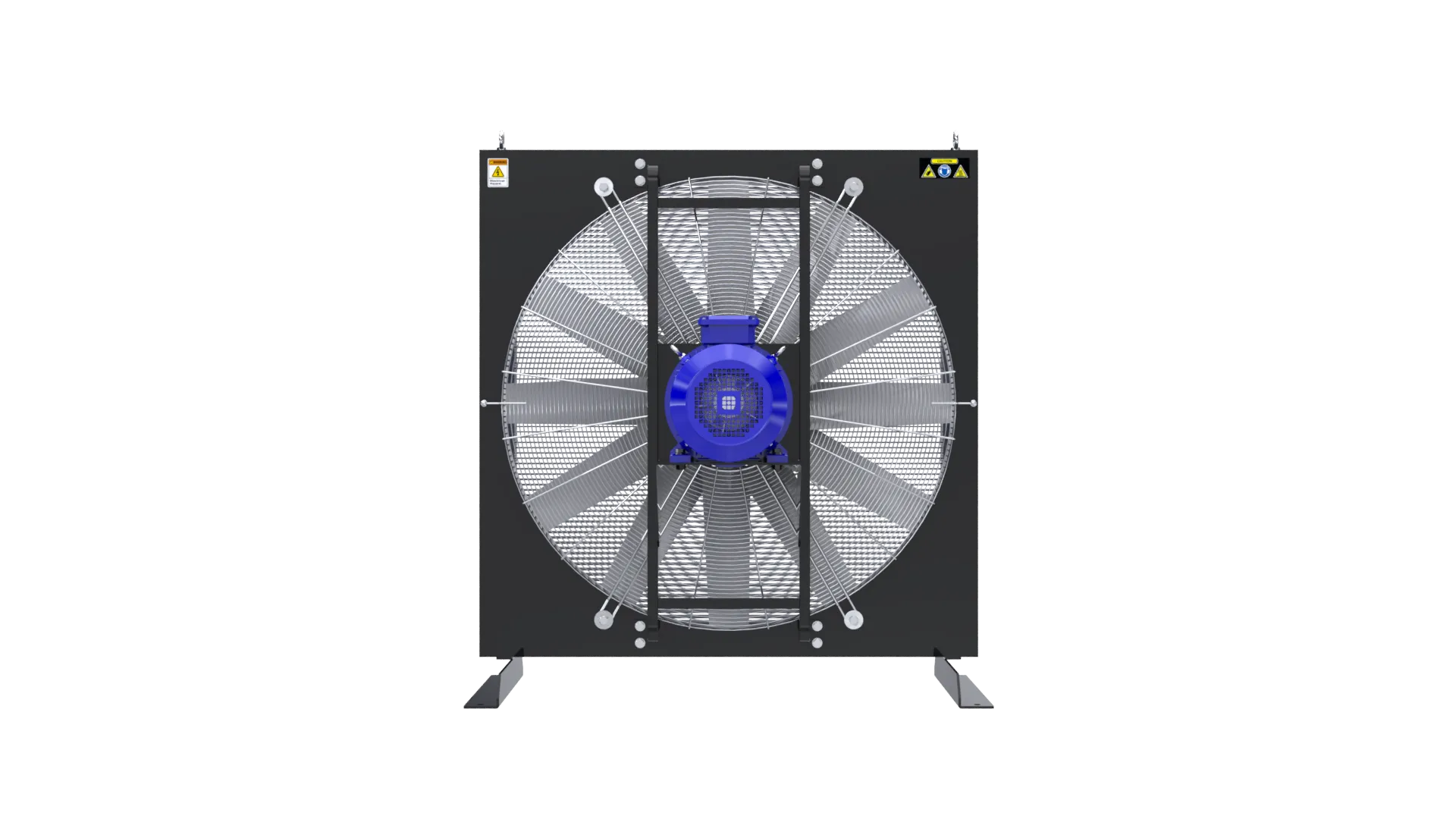

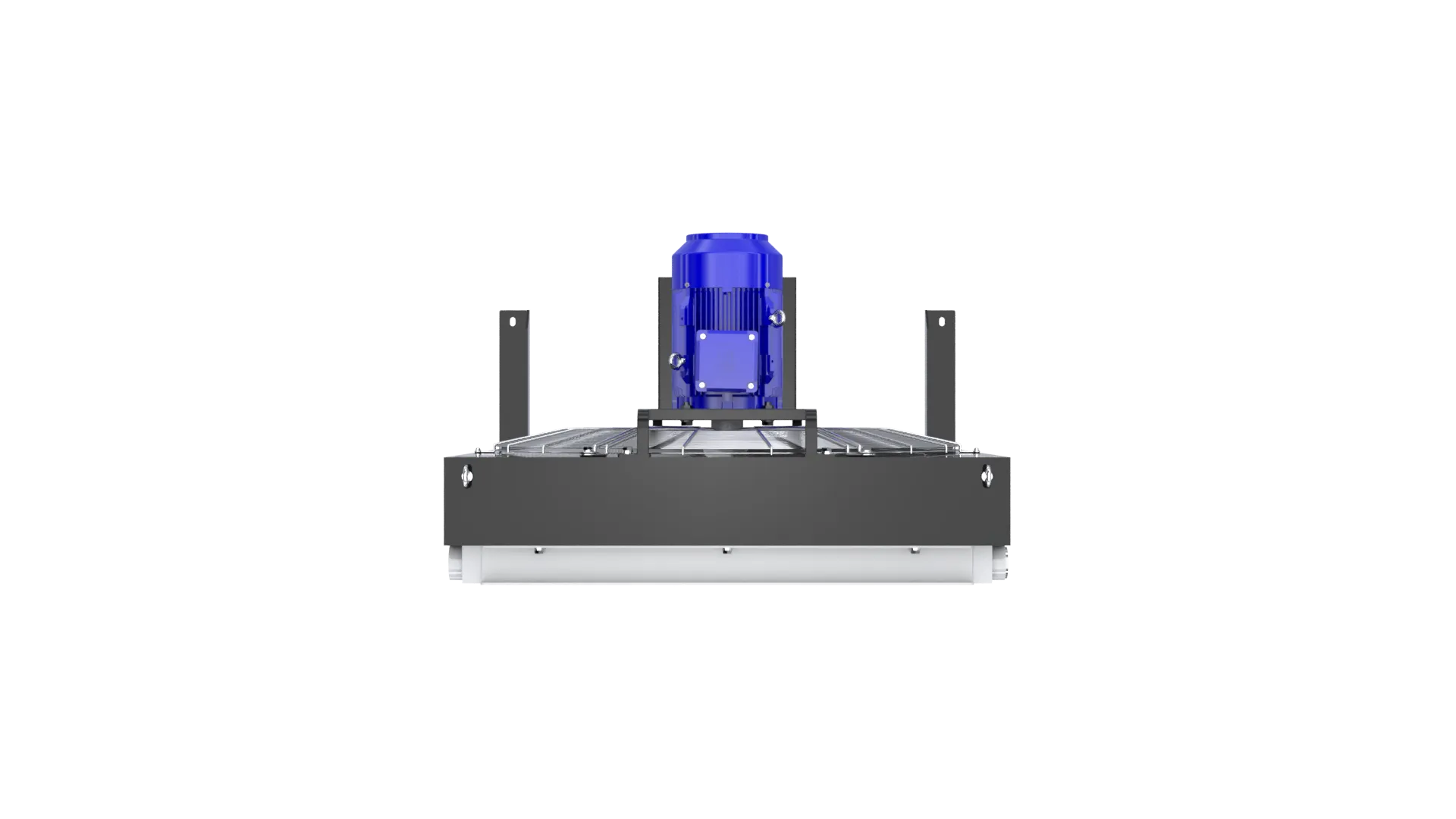

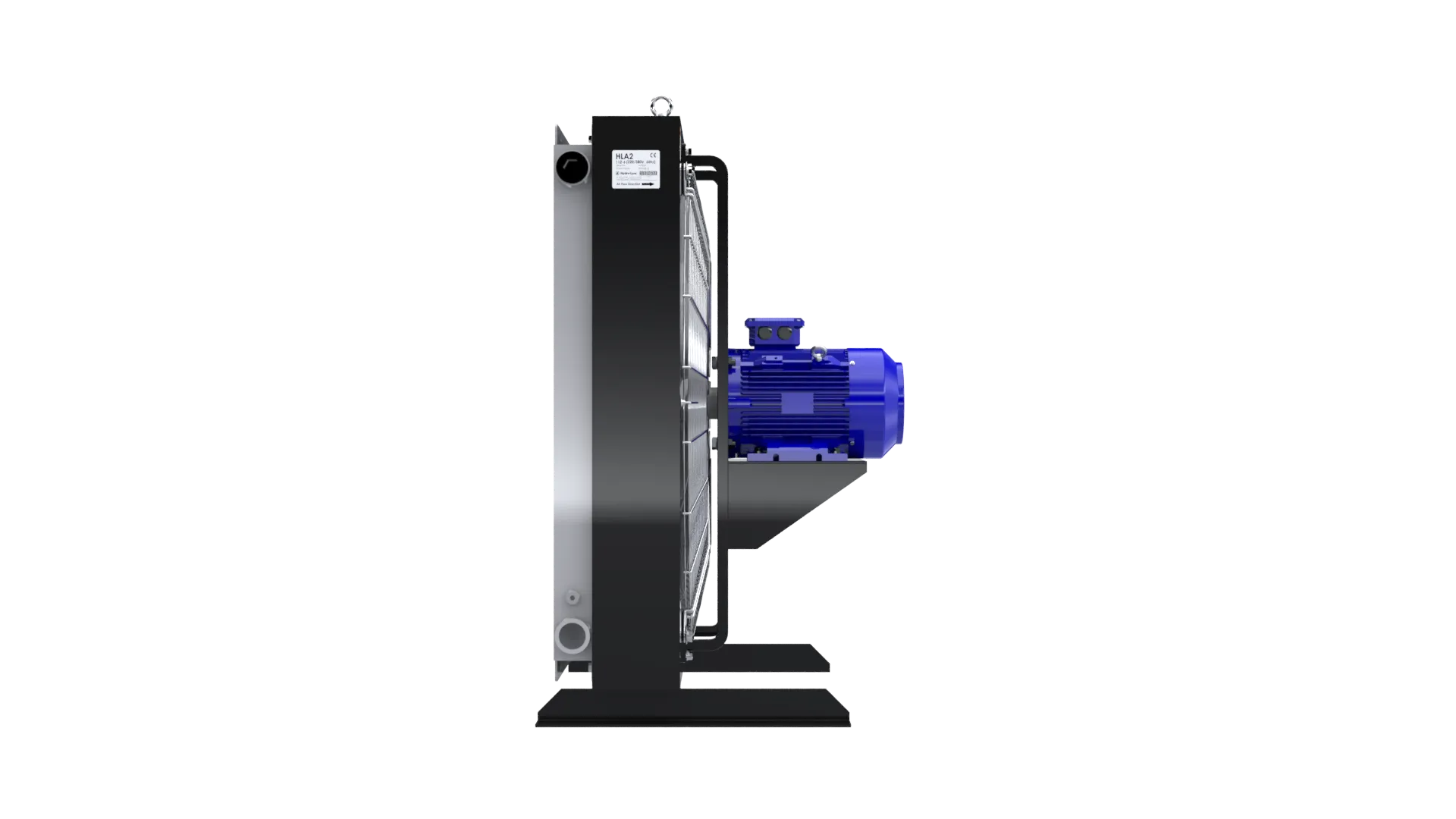

HydroLync HLA2 112-6 AC motor driven air-oil cooler with 6-pole motor

Request Quote

Quick Specifications

Cooling Capacity3.3 kW/°C
Heat Dissipation132 kW
Heat Dissipation (kcal)113520 kcal/h
Max Flow Rate500 L/min

Detailed Specifications

Performance

Cooling Capacity
3.3 kW/°C
Heat Dissipation
132 kW
Heat Dissipation (kcal)
113520 kcal/h
Max Flow Rate
500 L/min
Motor Poles
6

Dimensions

HLA2 dimension drawing
Depth (D)
758 mm
Dimension E
83 mm
Dimension F
985 mm
Dimension G
192 mm
Dimension H
665 mm
Dimension I
550 mm
Dimension J
1115 mm
Dimension K
1177 mm
Height (C)
1285 mm
Length (A)
1205 mm
Net Weight
224 kg
Mounting Slot
ø14x94 ø14x23
Width (B)
1185 mm

Electrical

Motor Power
5.5 kW
Motor Type
6-Pole AC Motor

Downloads

Accessories

DTM Digital Thermometer
DTM
Thermal Switch (DIN Connector)
TS-DIN
Thermal Switch (Wire Connector)
TS-WIRE
Matrix Stone Guard
STONE-GUARD
Matrix Dust Guard
DUST-GUARD
Matrix Dust + Stone Guard
COMBO-GUARD
