HLA2 33-4 AC Motor Cooler

Product specifications and documentation

HLA2 33-4 AC Motor Cooler
HLA2-33-4

HLA2 33-4 AC Motor Cooler

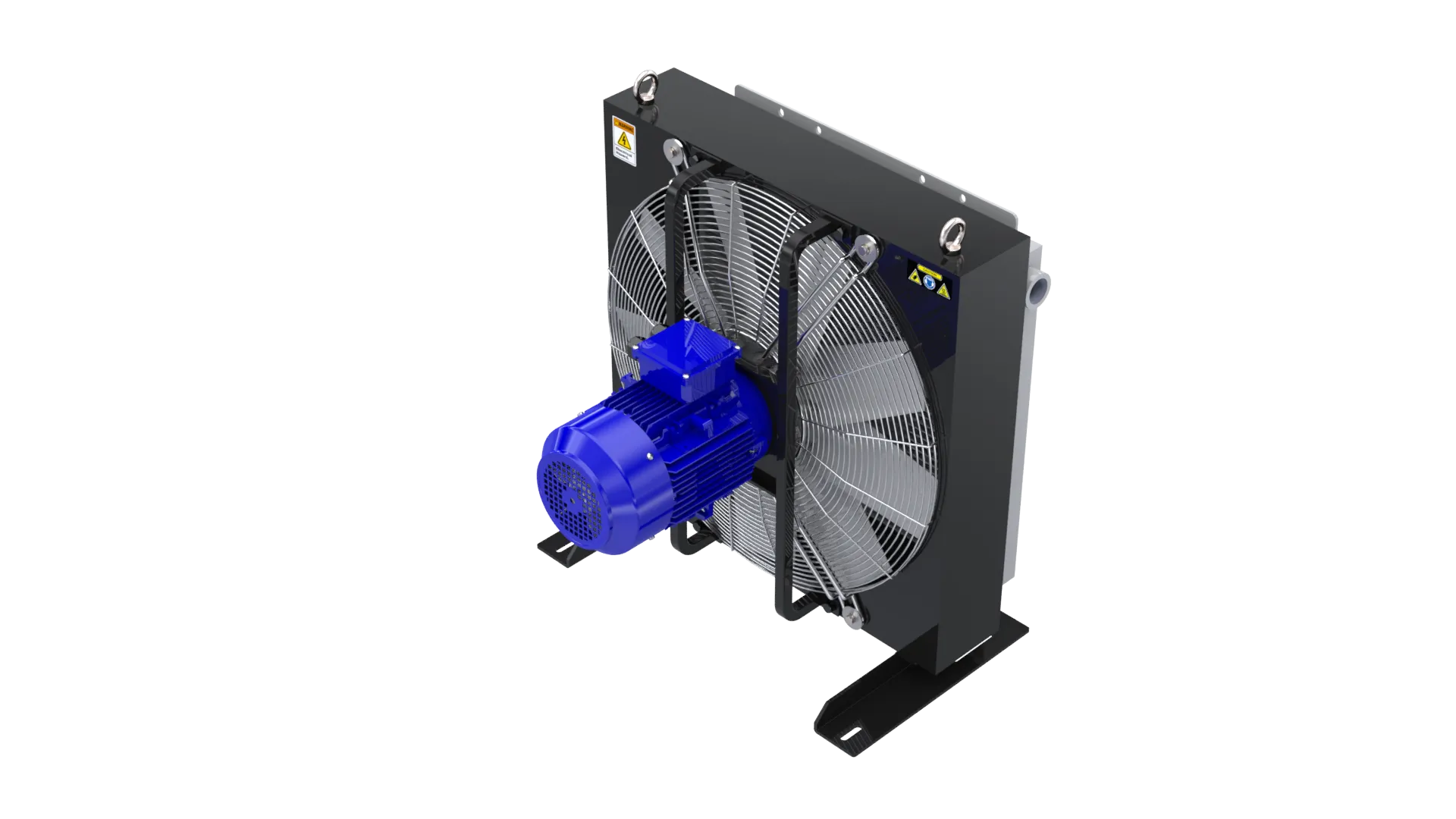

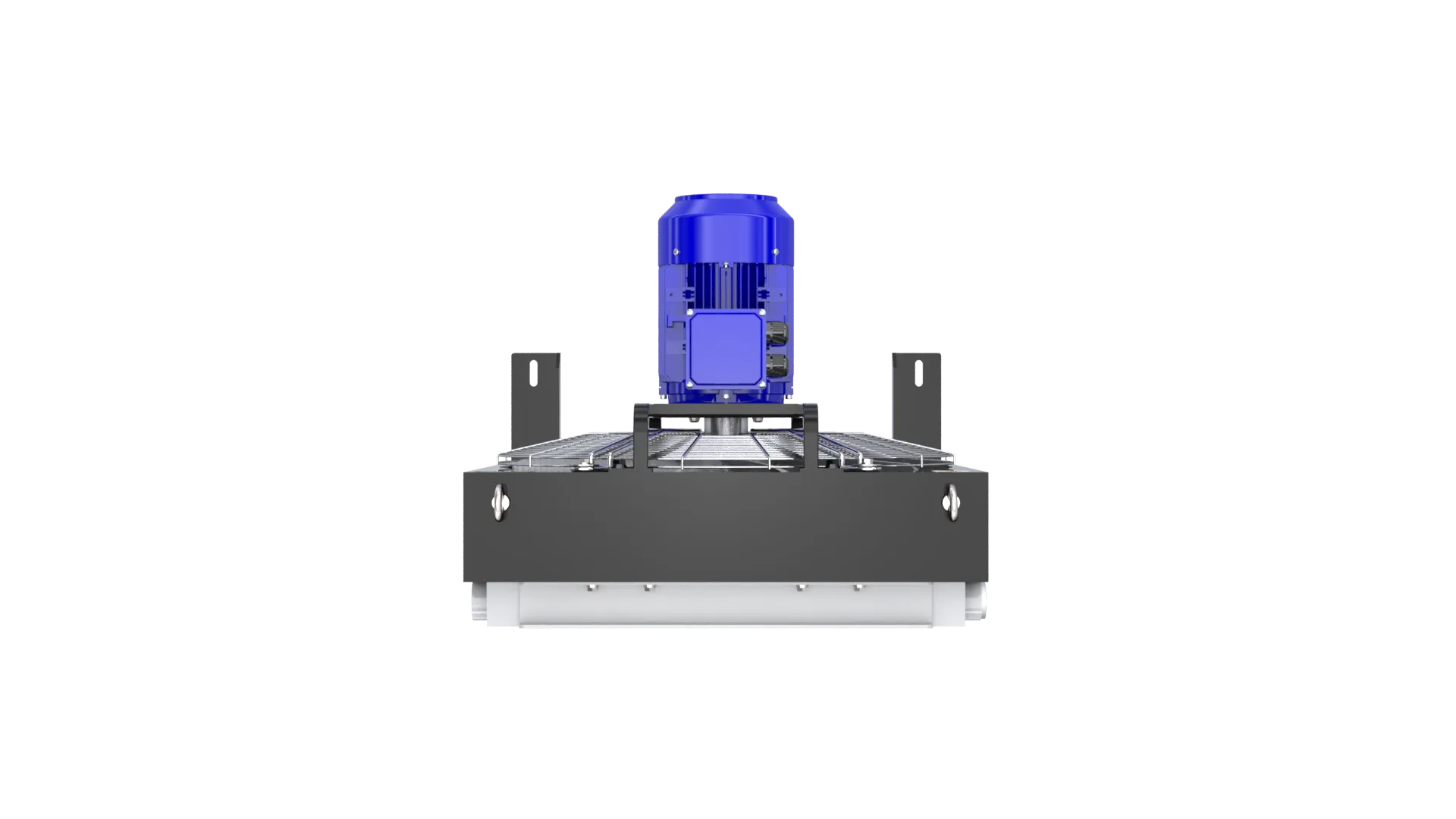

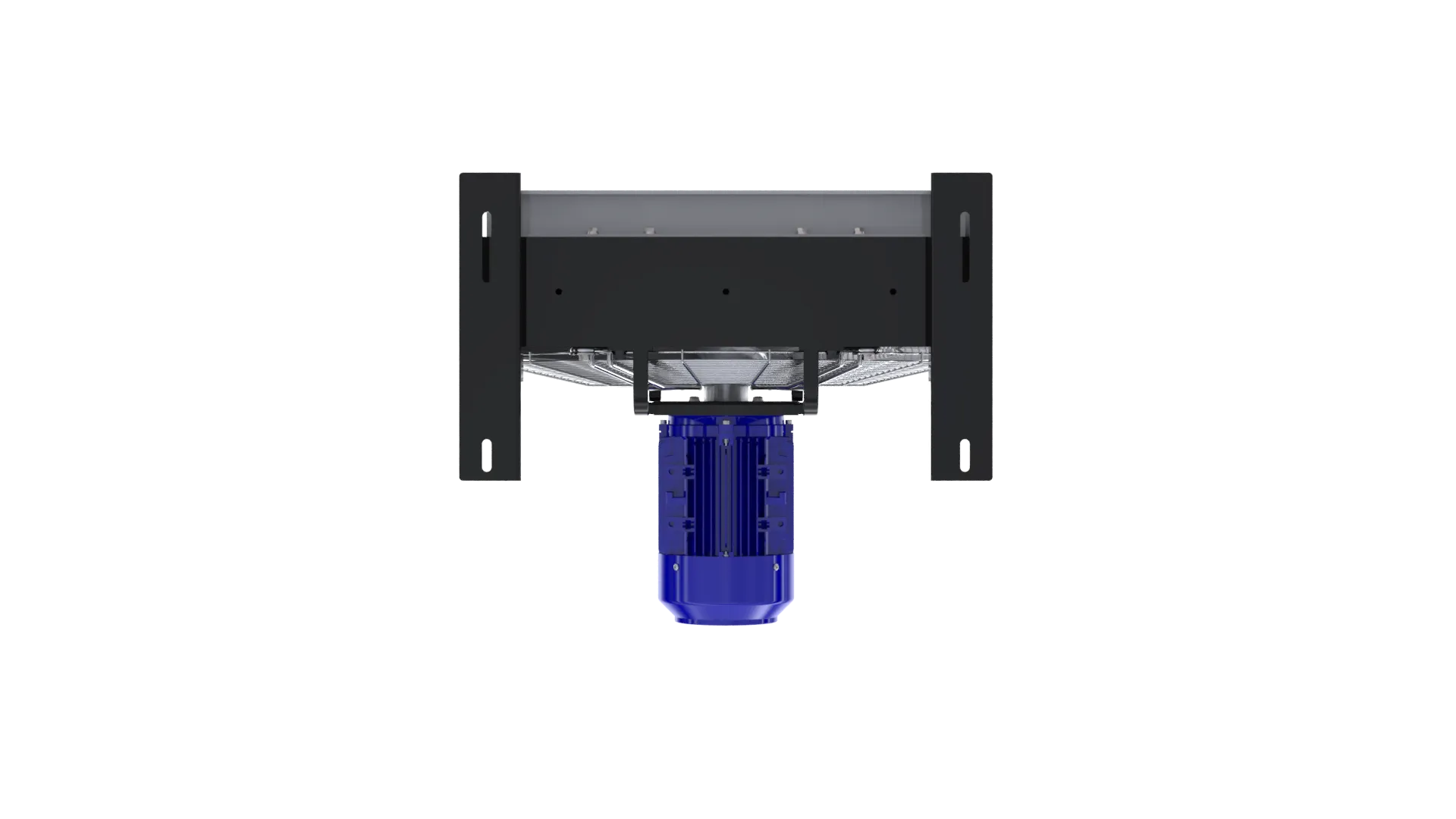

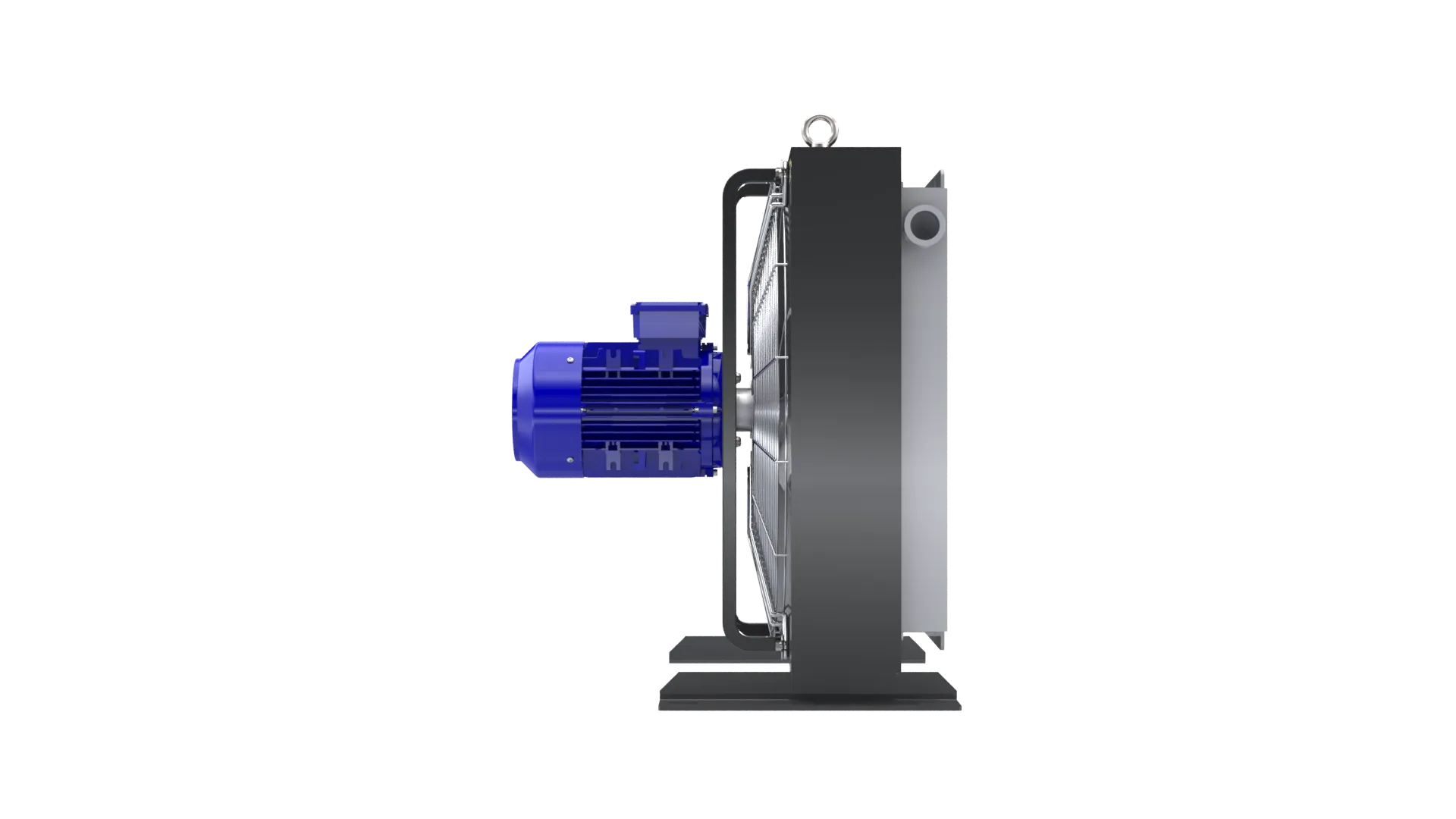

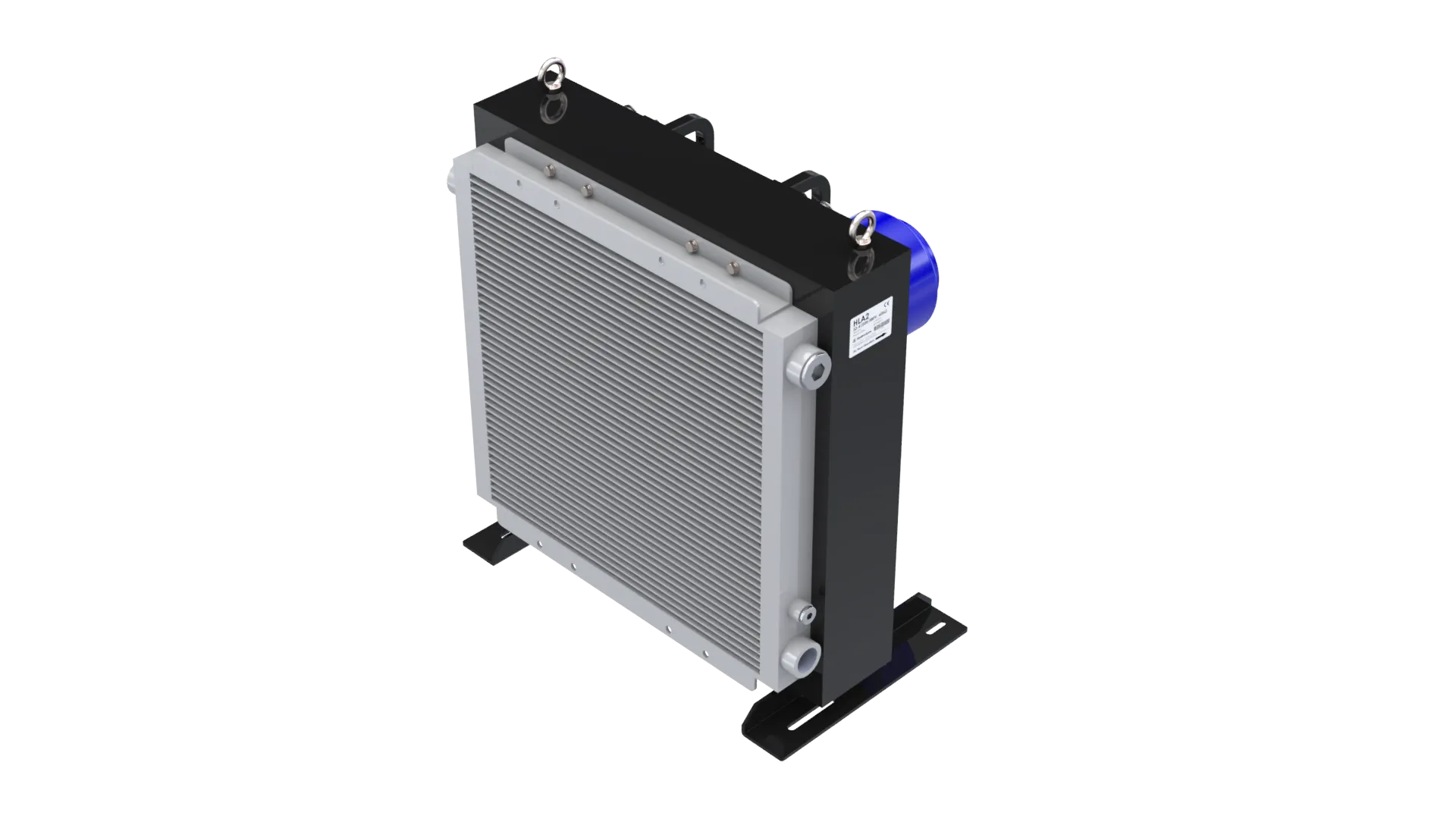

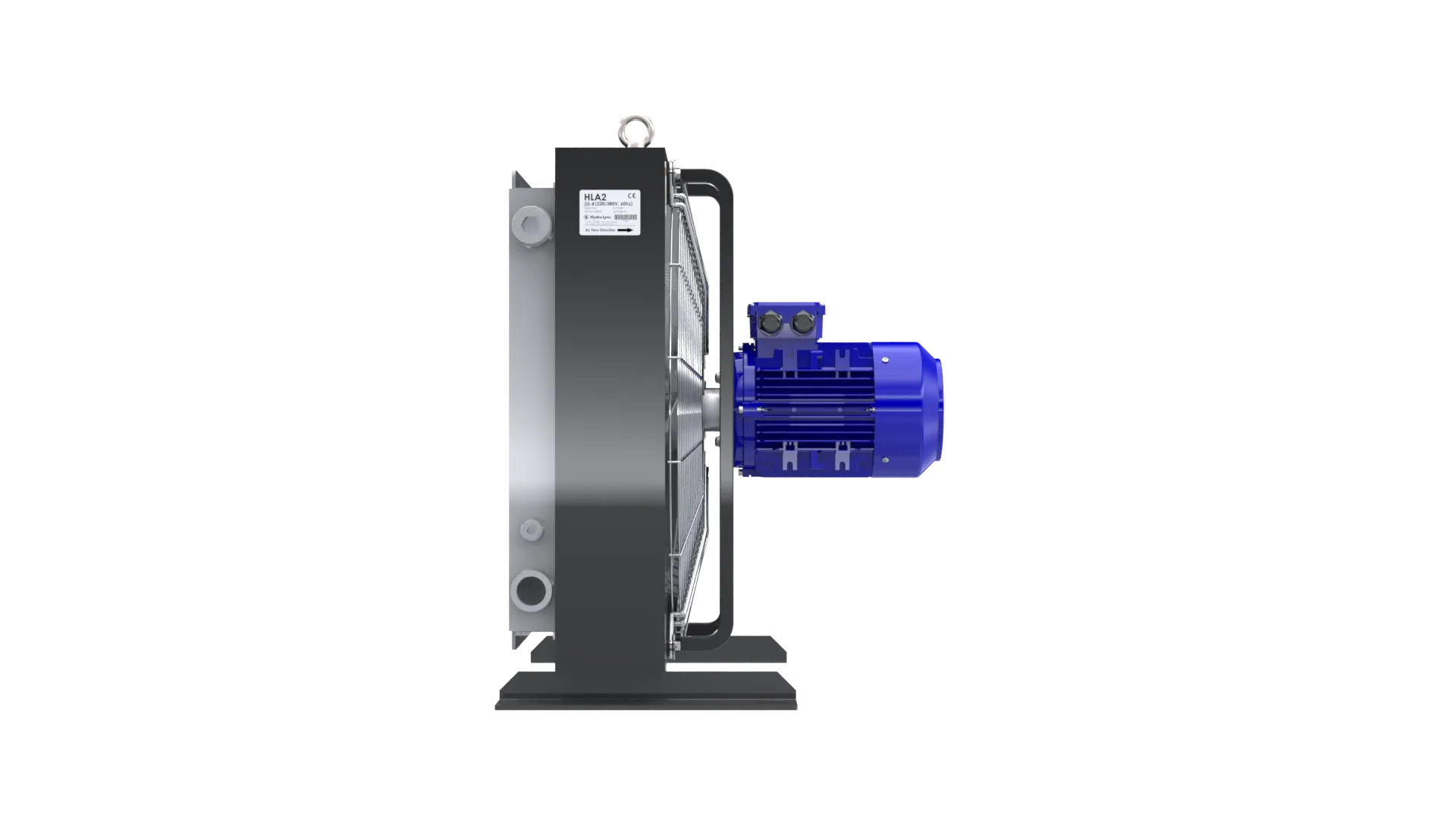

HydroLync HLA2 33-4 AC motor driven air-oil cooler with 4-pole motor

Request Quote

Quick Specifications

Cooling Capacity1.1 kW/°C
Heat Dissipation44 kW
Heat Dissipation (kcal)37840 kcal/h
Max Flow Rate300 L/min

Detailed Specifications

Performance

Cooling Capacity
1.1 kW/°C
Heat Dissipation
44 kW
Heat Dissipation (kcal)
37840 kcal/h
Max Flow Rate
300 L/min
Motor Poles
4

Dimensions

HLA2 dimension drawing
Depth (D)
602 mm
Dimension E
63 mm
Dimension F
482 mm
Dimension G
157 mm
Dimension H
400 mm
Dimension I
270 mm
Dimension J
620 mm
Dimension K
639 mm
Height (C)
742 mm
Length (A)
692 mm
Net Weight
64 kg
Mounting Slot
ø12x92 ø12x21
Width (B)
692 mm

Electrical

Motor Type
4-Pole AC Motor

Downloads

Accessories

DTM Digital Thermometer
DTM
Thermal Switch (DIN Connector)
TS-DIN
Thermal Switch (Wire Connector)
TS-WIRE
Matrix Stone Guard
STONE-GUARD
Matrix Dust Guard
DUST-GUARD
Matrix Dust + Stone Guard
COMBO-GUARD
