HLA2 35-6 AC Motor Cooler

Product specifications and documentation

HLA2 35-6 AC Motor Cooler
HLA2-35-6

HLA2 35-6 AC Motor Cooler

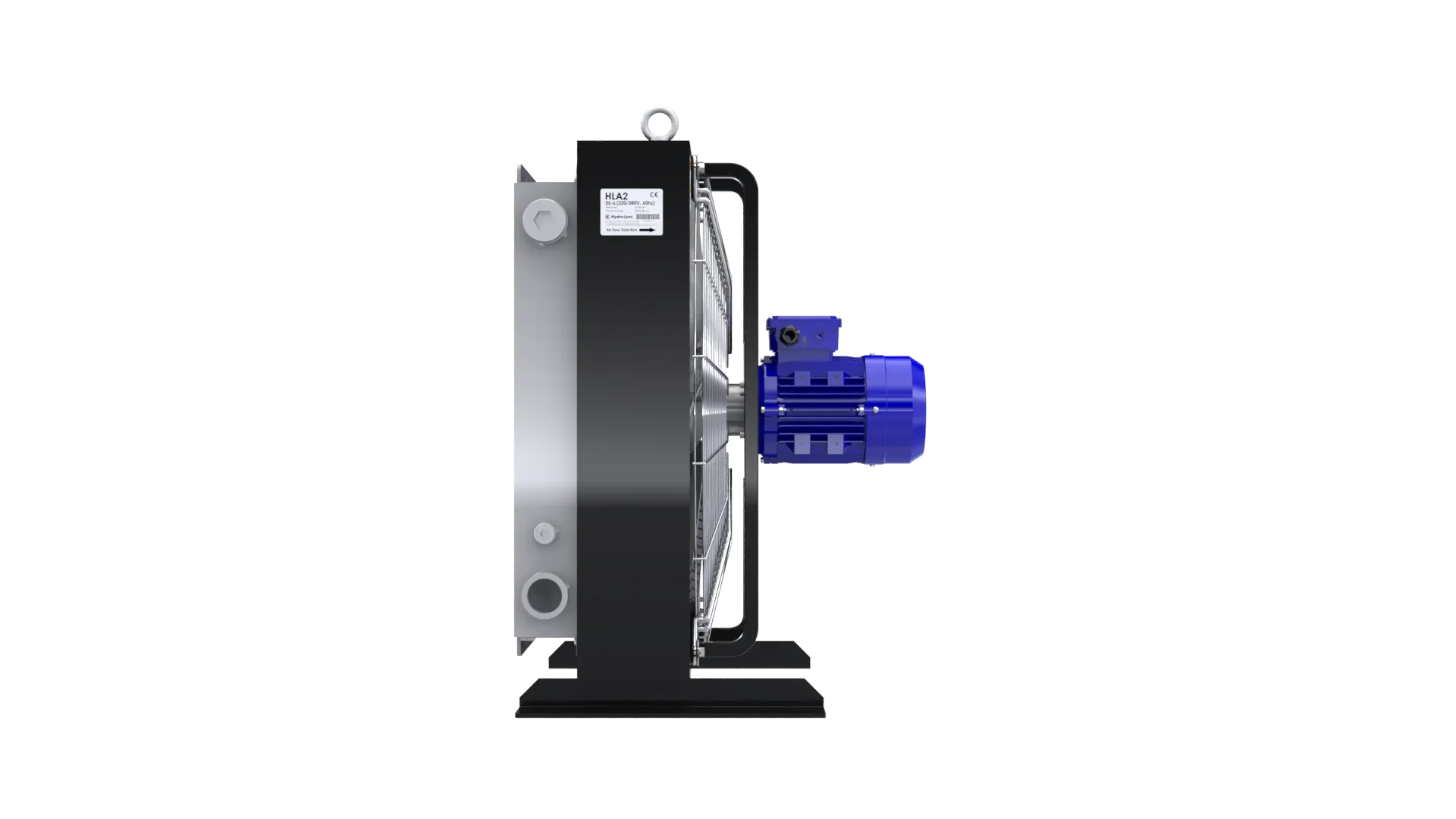

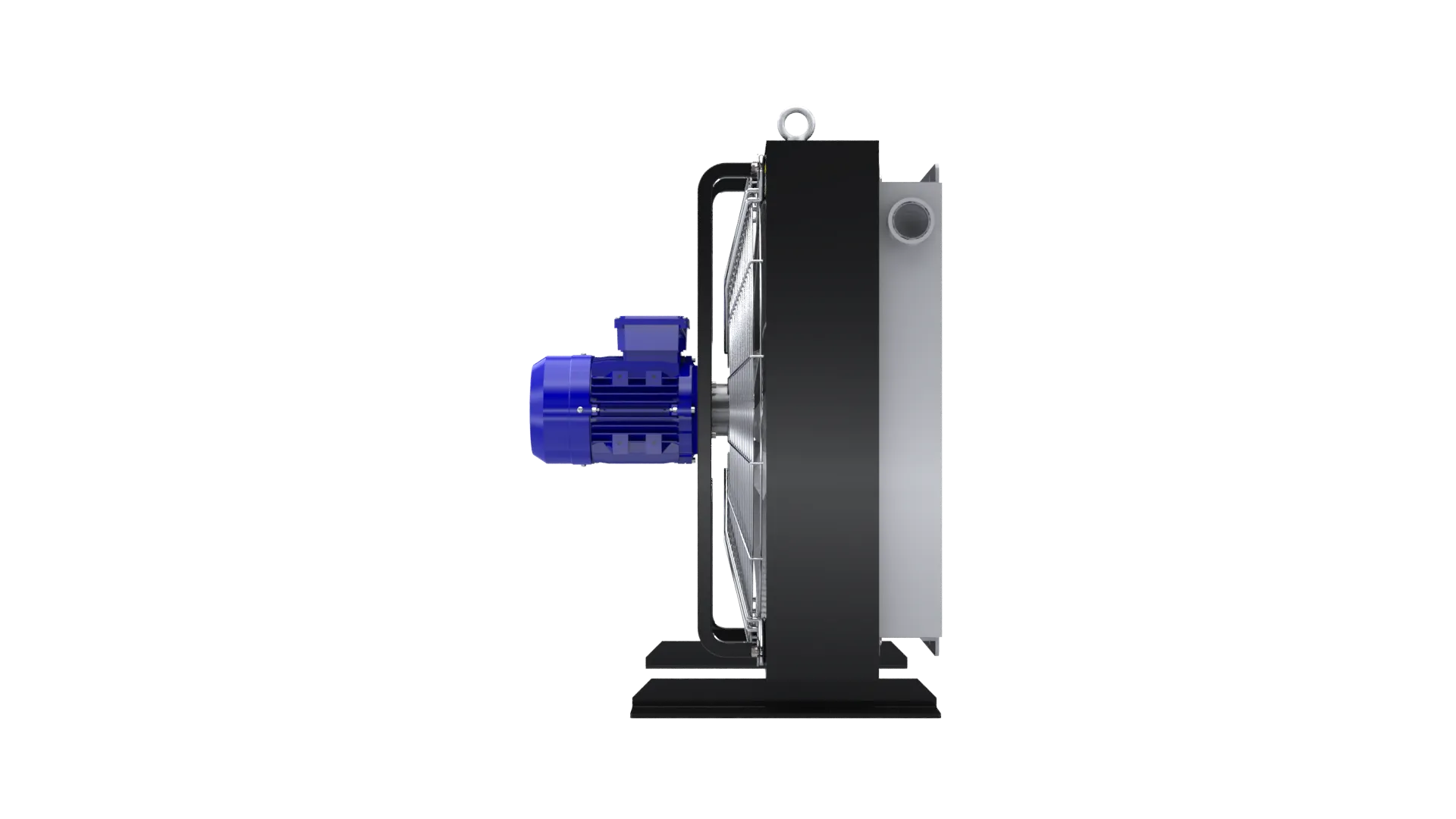

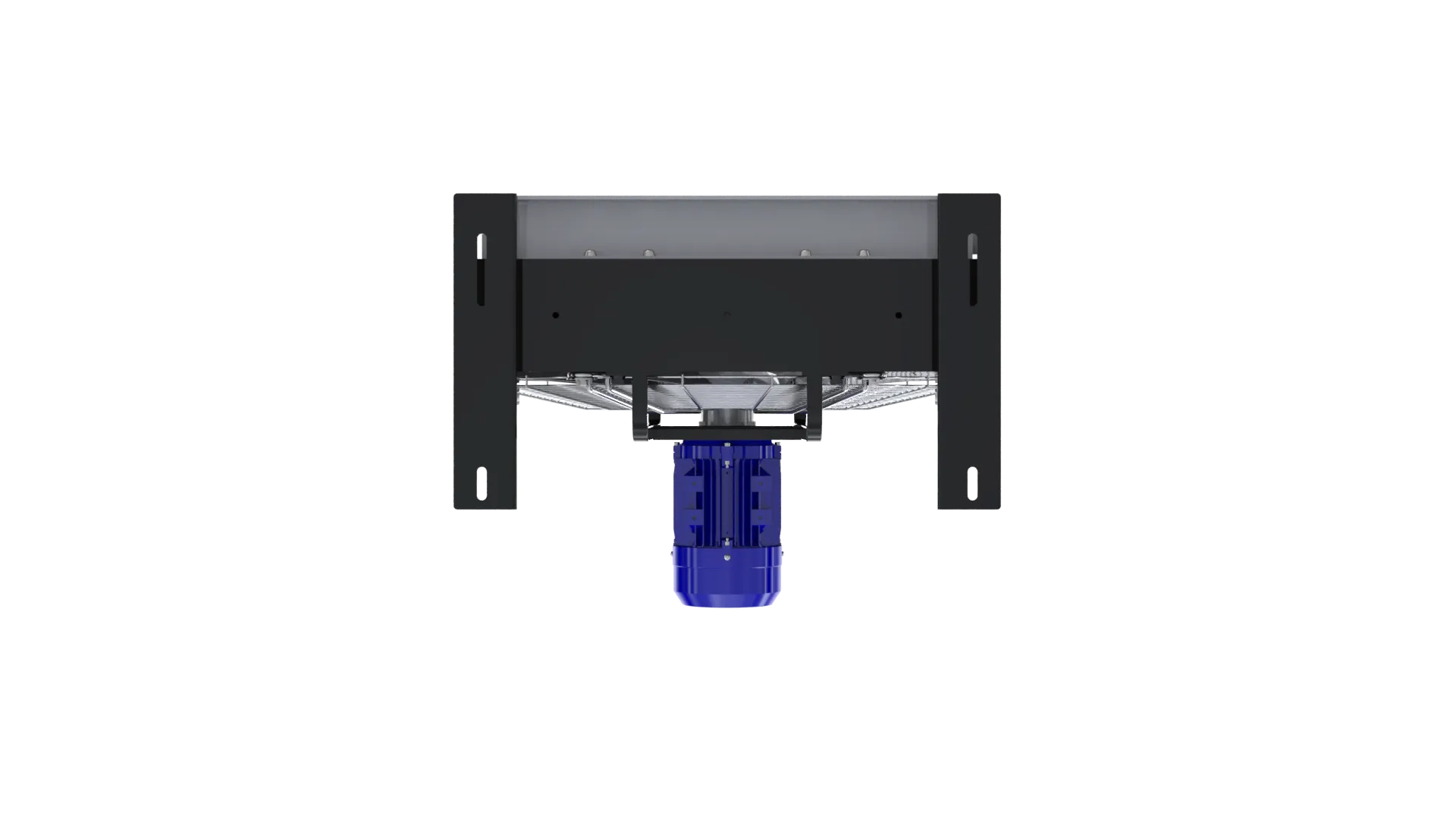

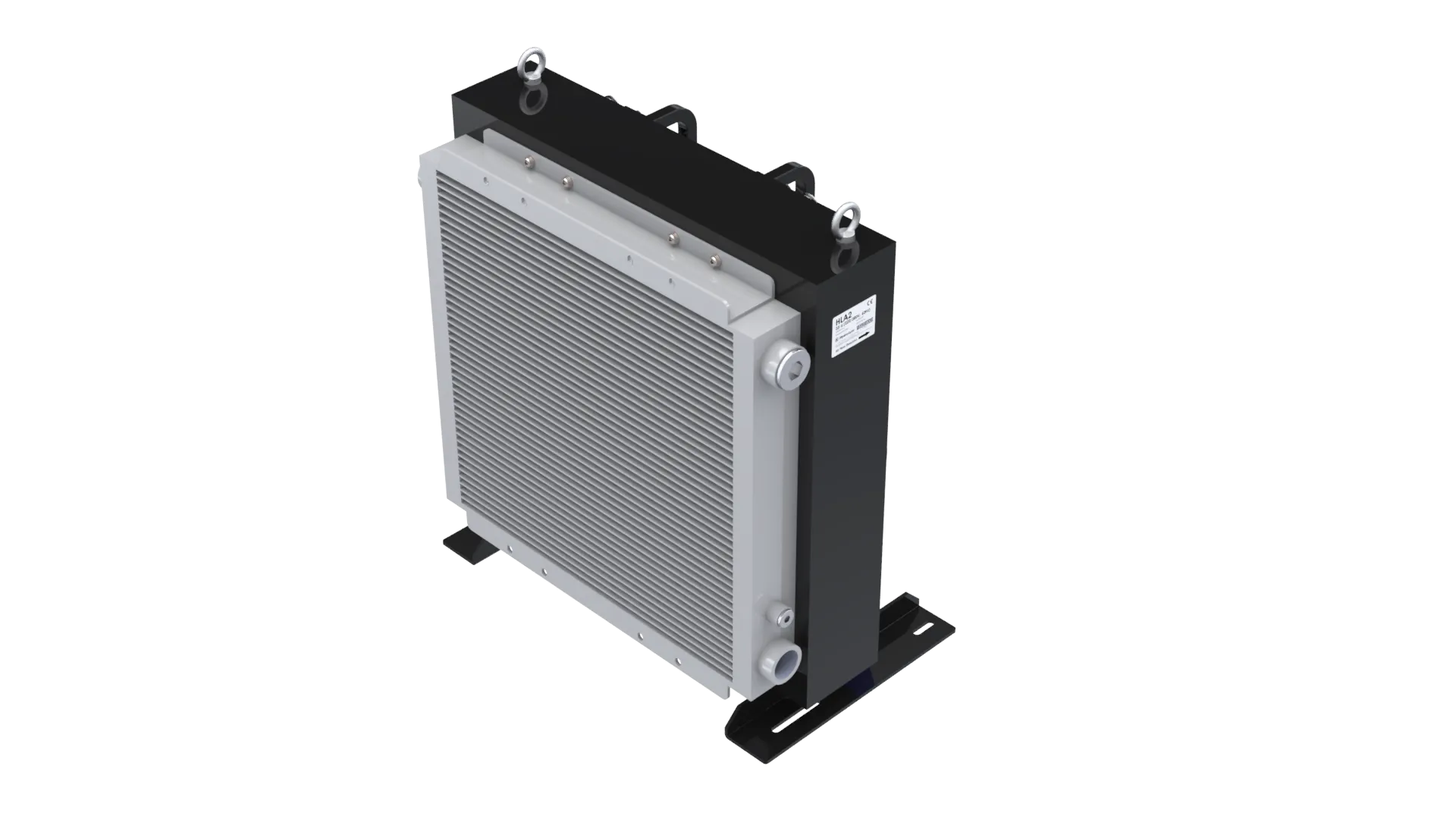

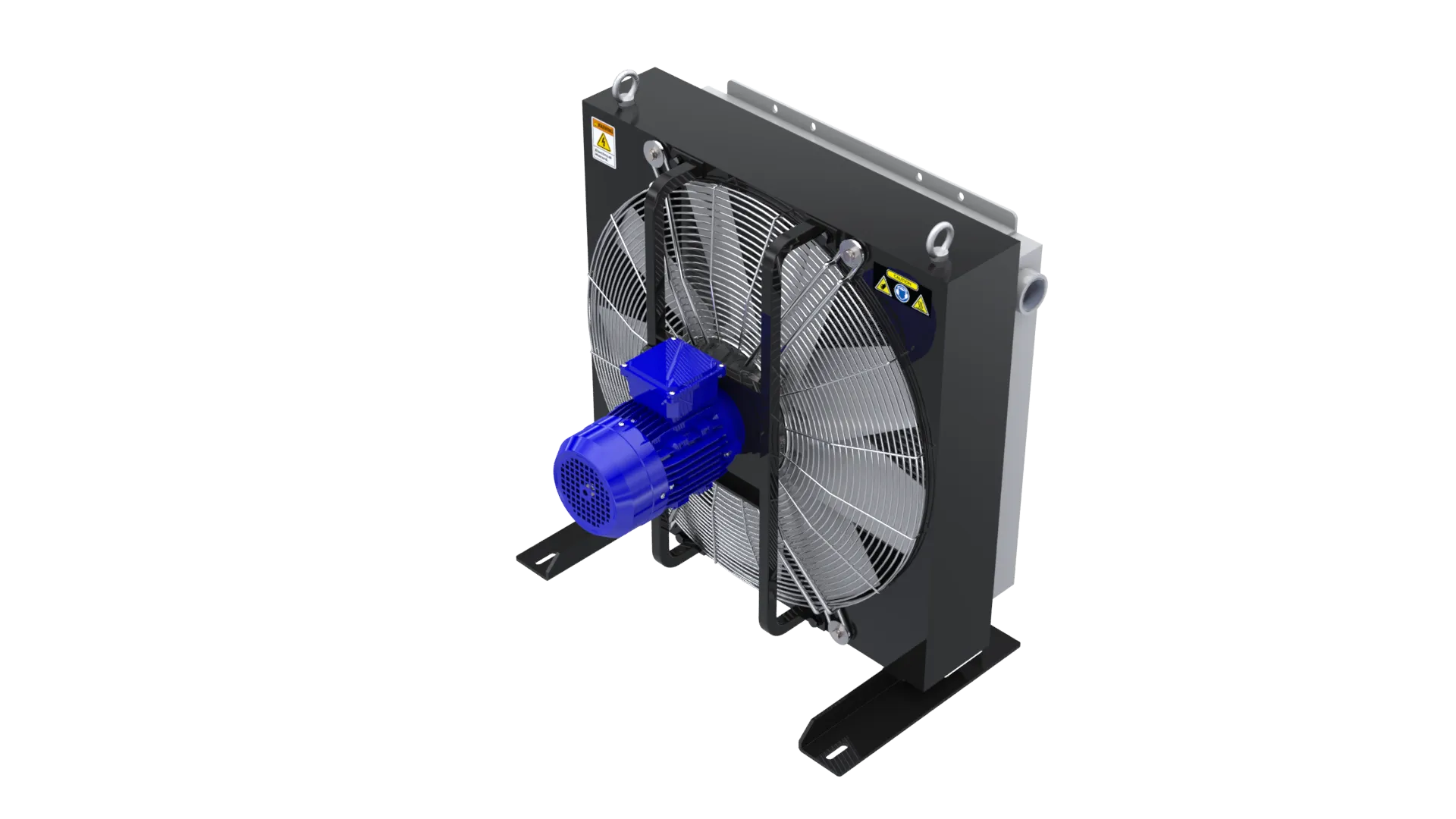

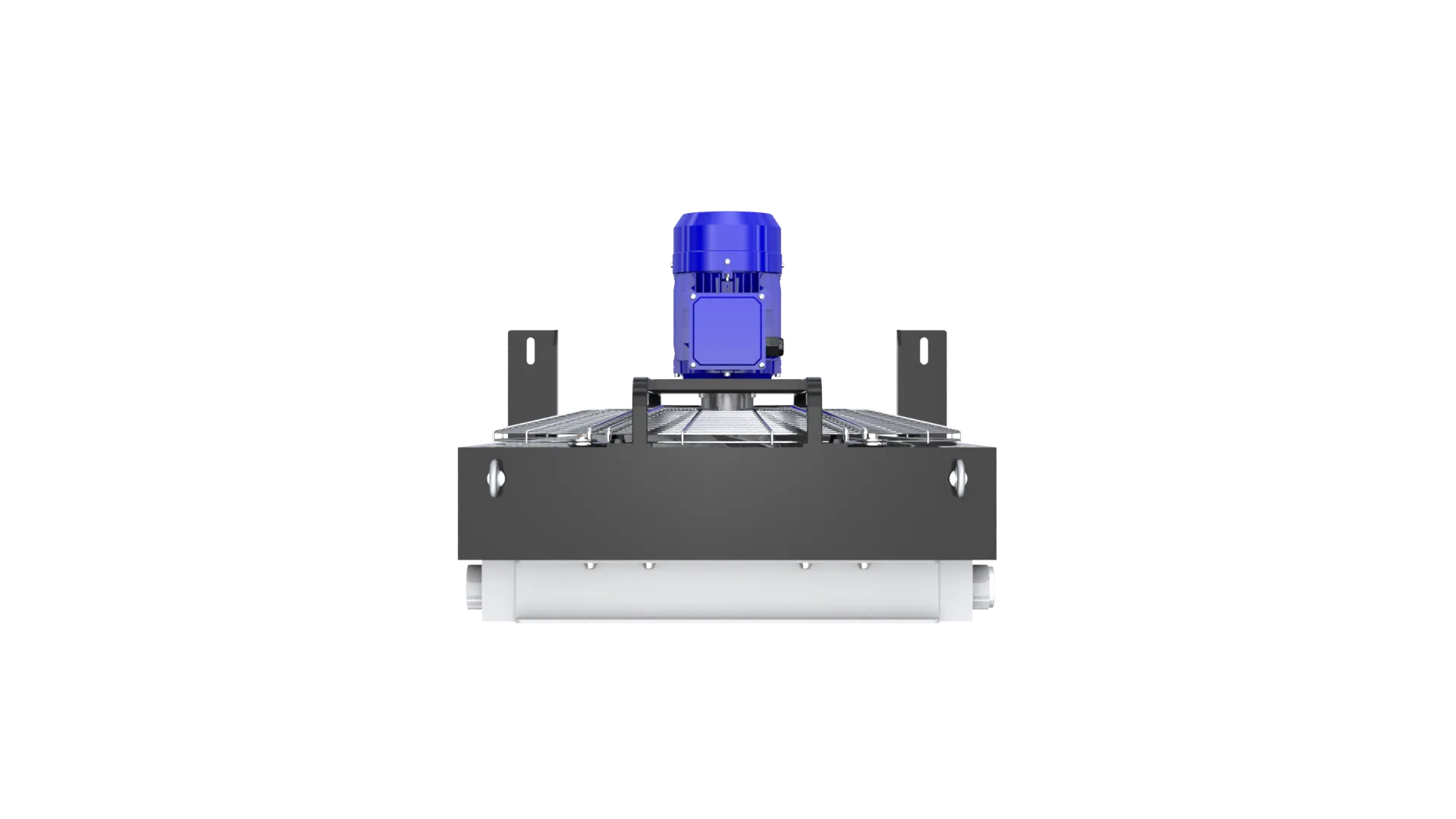

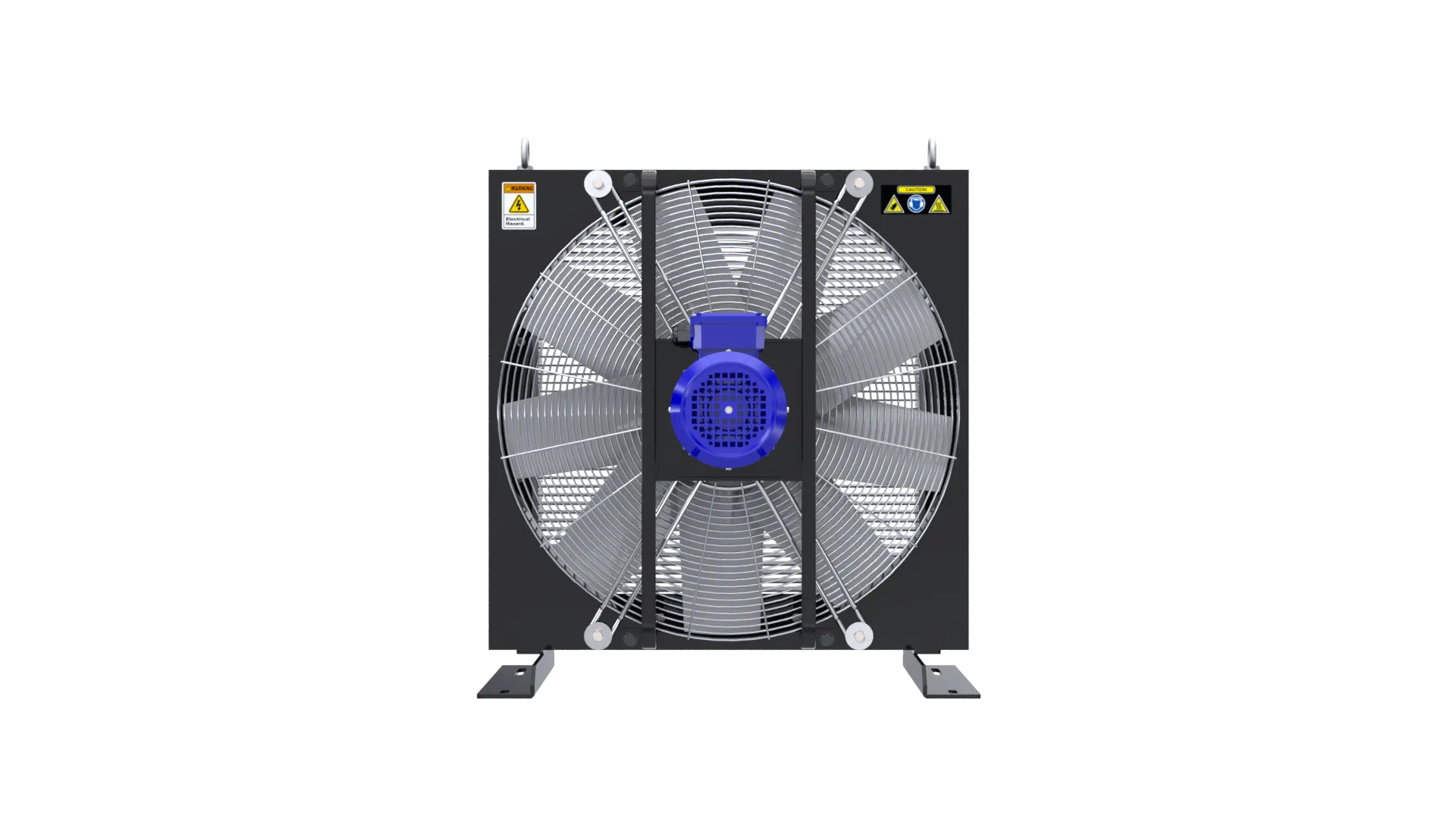

HydroLync HLA2 35-6 AC motor driven air-oil cooler with 6-pole motor

Request Quote

Quick Specifications

Cooling Capacity1.2 kW/°C
Heat Dissipation48 kW
Heat Dissipation (kcal)41280 kcal/h
Max Flow Rate350 L/min

Detailed Specifications

Performance

Cooling Capacity
1.2 kW/°C
Heat Dissipation
48 kW
Heat Dissipation (kcal)
41280 kcal/h
Max Flow Rate
350 L/min
Motor Poles
6

Dimensions

HLA2 dimension drawing
Depth (D)
559 mm
Dimension E
83 mm
Dimension F
482 mm
Dimension G
157 mm
Dimension H
400 mm
Dimension I
270 mm
Dimension J
620 mm
Dimension K
639 mm
Height (C)
742 mm
Length (A)
692 mm
Net Weight
55 kg
Mounting Slot
ø12x92 ø12x21
Width (B)
692 mm

Electrical

Motor Type
6-Pole AC Motor

Downloads

Accessories

DTM Digital Thermometer
DTM
Thermal Switch (DIN Connector)
TS-DIN
Thermal Switch (Wire Connector)
TS-WIRE
Matrix Stone Guard
STONE-GUARD
Matrix Dust Guard
DUST-GUARD
Matrix Dust + Stone Guard
COMBO-GUARD
