HLA2 58-6 AC Motor Cooler

Product specifications and documentation

HLA2 58-6 AC Motor Cooler
HLA2-58-6

HLA2 58-6 AC Motor Cooler

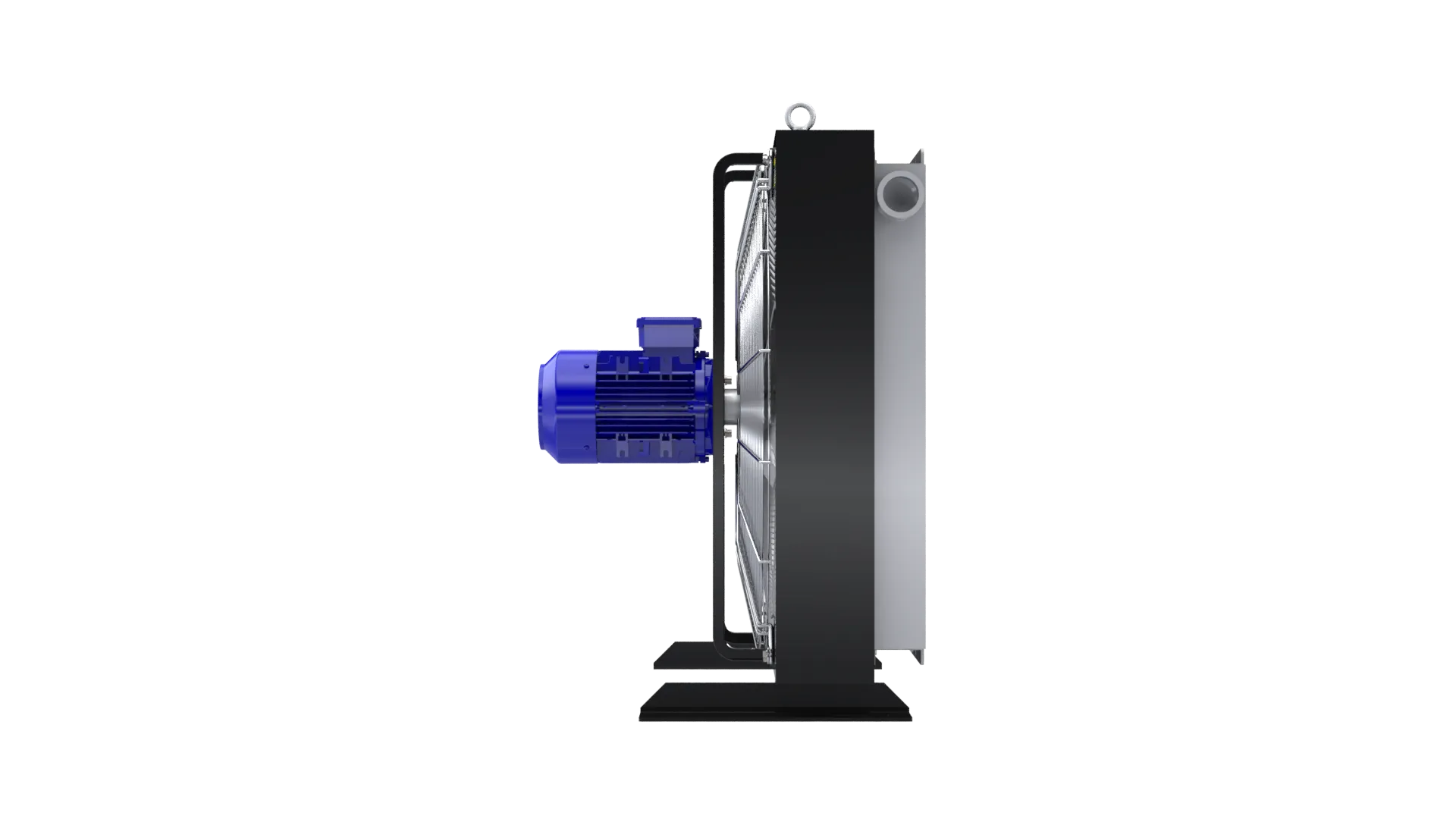

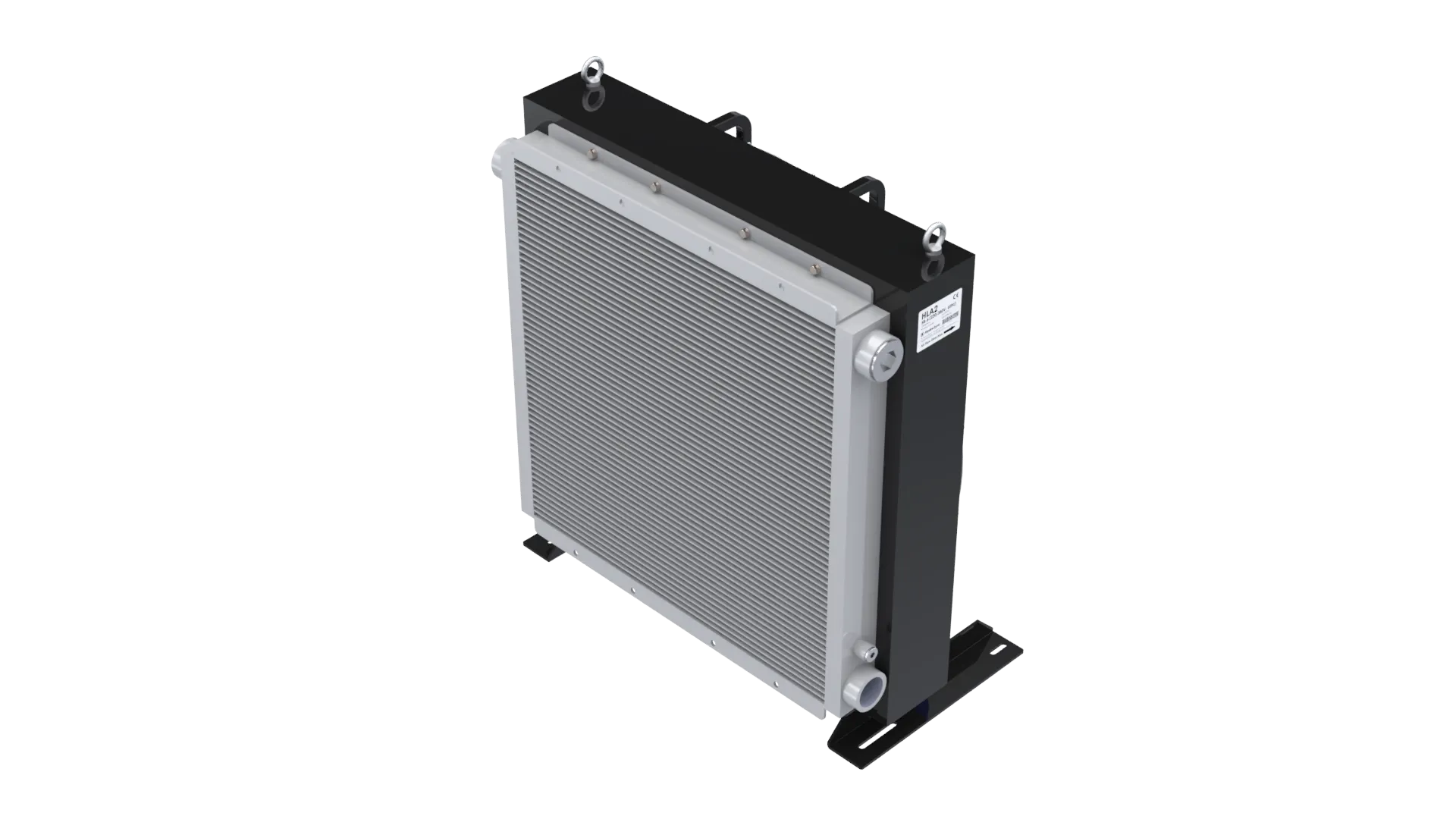

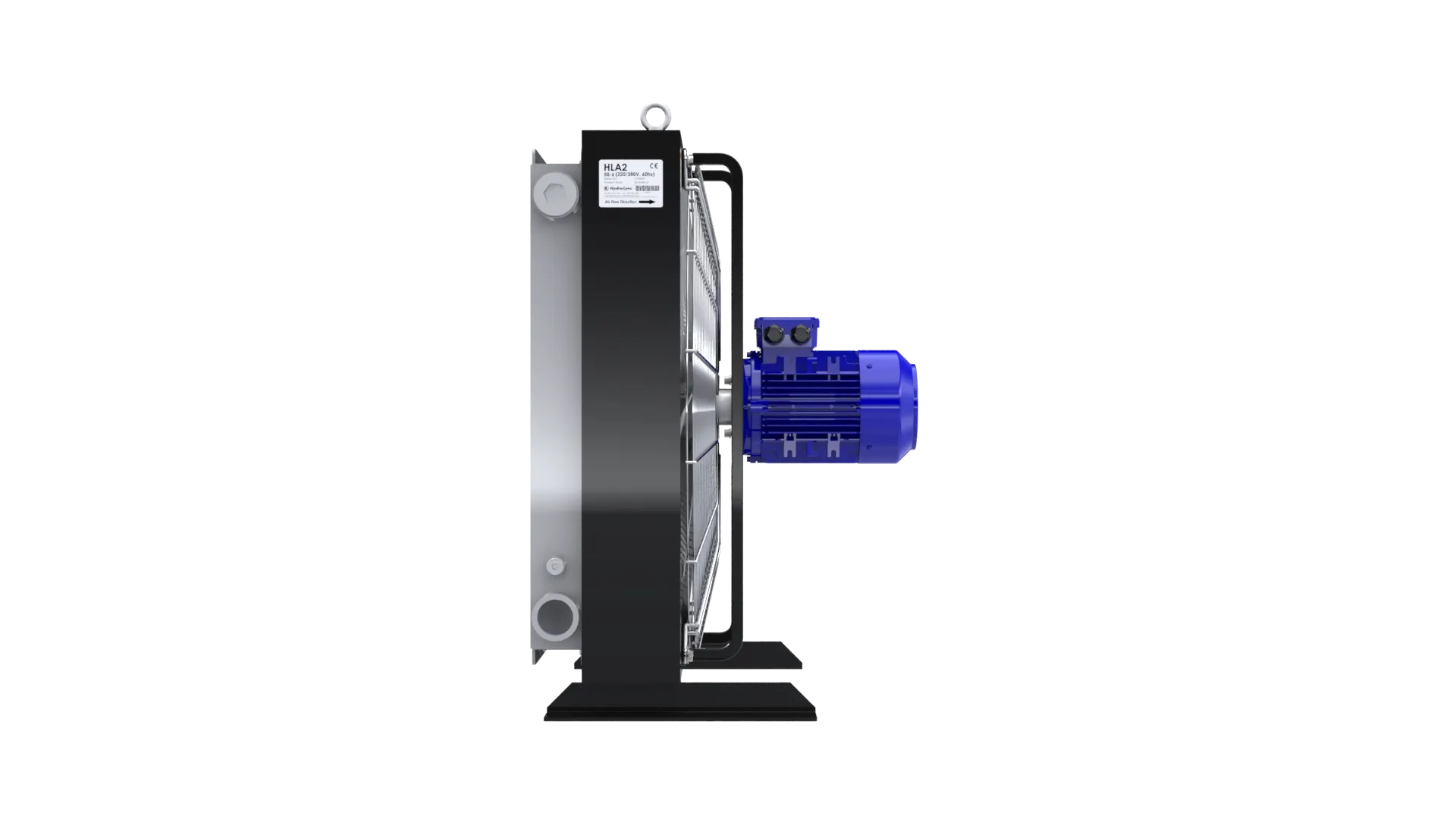

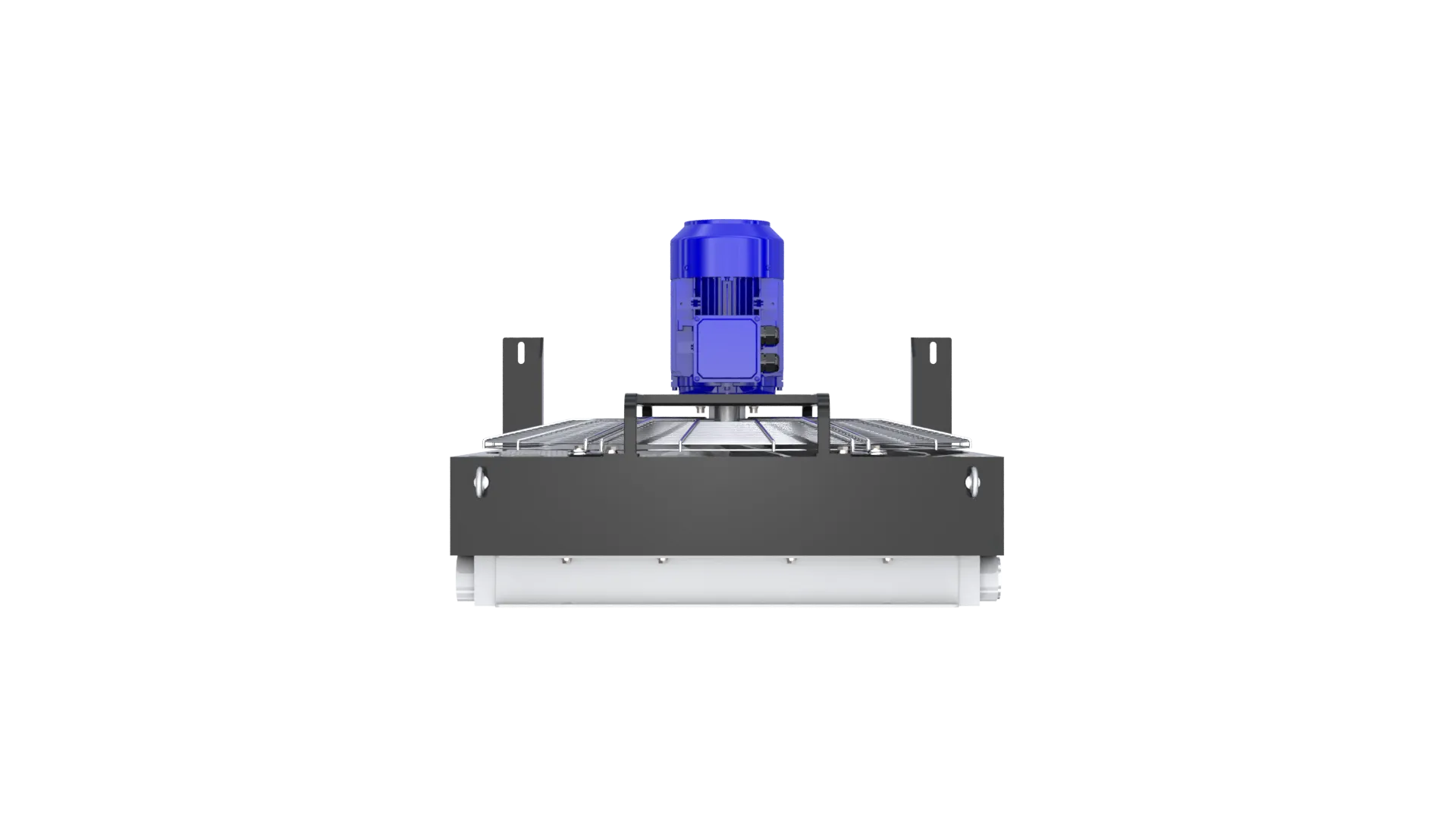

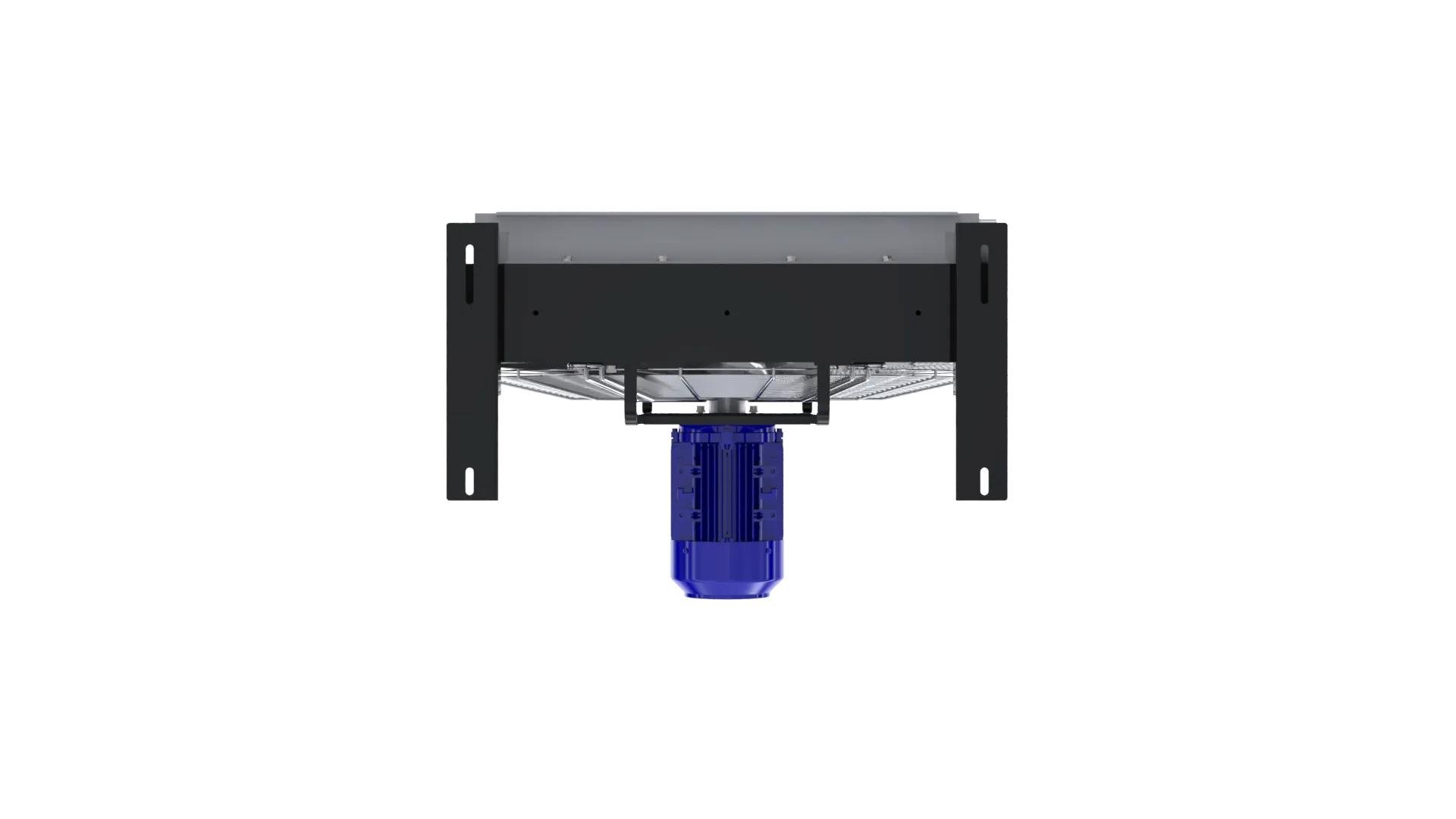

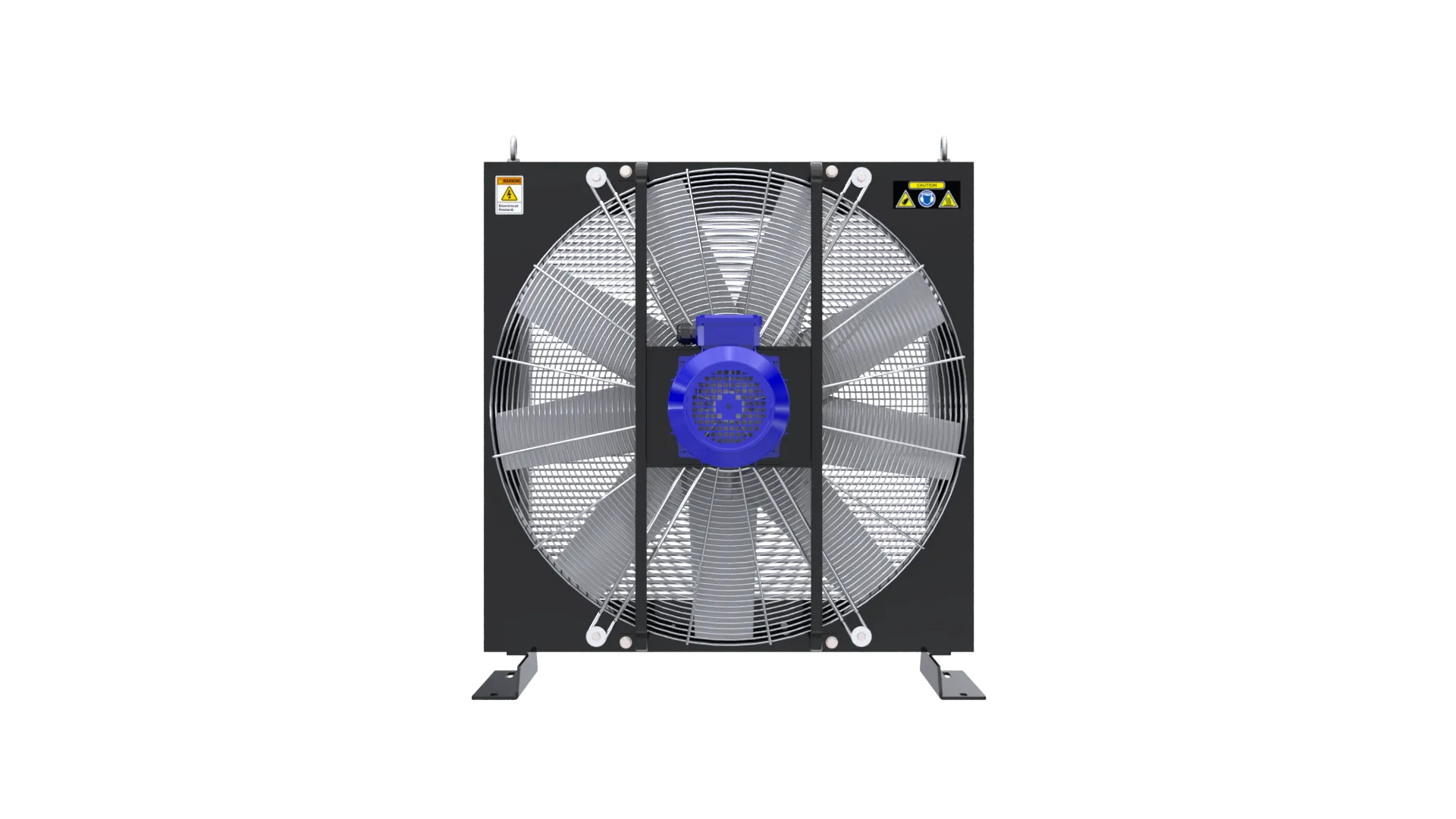

HydroLync HLA2 58-6 AC motor driven air-oil cooler with 6-pole motor

Request Quote

Quick Specifications

Cooling Capacity1.7 kW/°C
Heat Dissipation68 kW
Heat Dissipation (kcal)58480 kcal/h
Max Flow Rate400 L/min

Detailed Specifications

Performance

Cooling Capacity
1.7 kW/°C
Heat Dissipation
68 kW
Heat Dissipation (kcal)
58480 kcal/h
Max Flow Rate
400 L/min
Motor Poles
6

Dimensions

HLA2 dimension drawing
Depth (D)
639 mm
Dimension E
83 mm
Dimension F
664 mm
Dimension G
163 mm
Dimension H
430 mm
Dimension I
320 mm
Dimension J
796 mm
Dimension K
827 mm
Height (C)
928 mm
Length (A)
868 mm
Net Weight
89 kg
Mounting Slot
ø12x92 ø12x21
Width (B)
868 mm

Electrical

Motor Type
6-Pole AC Motor

Downloads

Accessories

DTM Digital Thermometer
DTM
Thermal Switch (DIN Connector)
TS-DIN
Thermal Switch (Wire Connector)
TS-WIRE
Matrix Stone Guard
STONE-GUARD
Matrix Dust Guard
DUST-GUARD
Matrix Dust + Stone Guard
COMBO-GUARD
