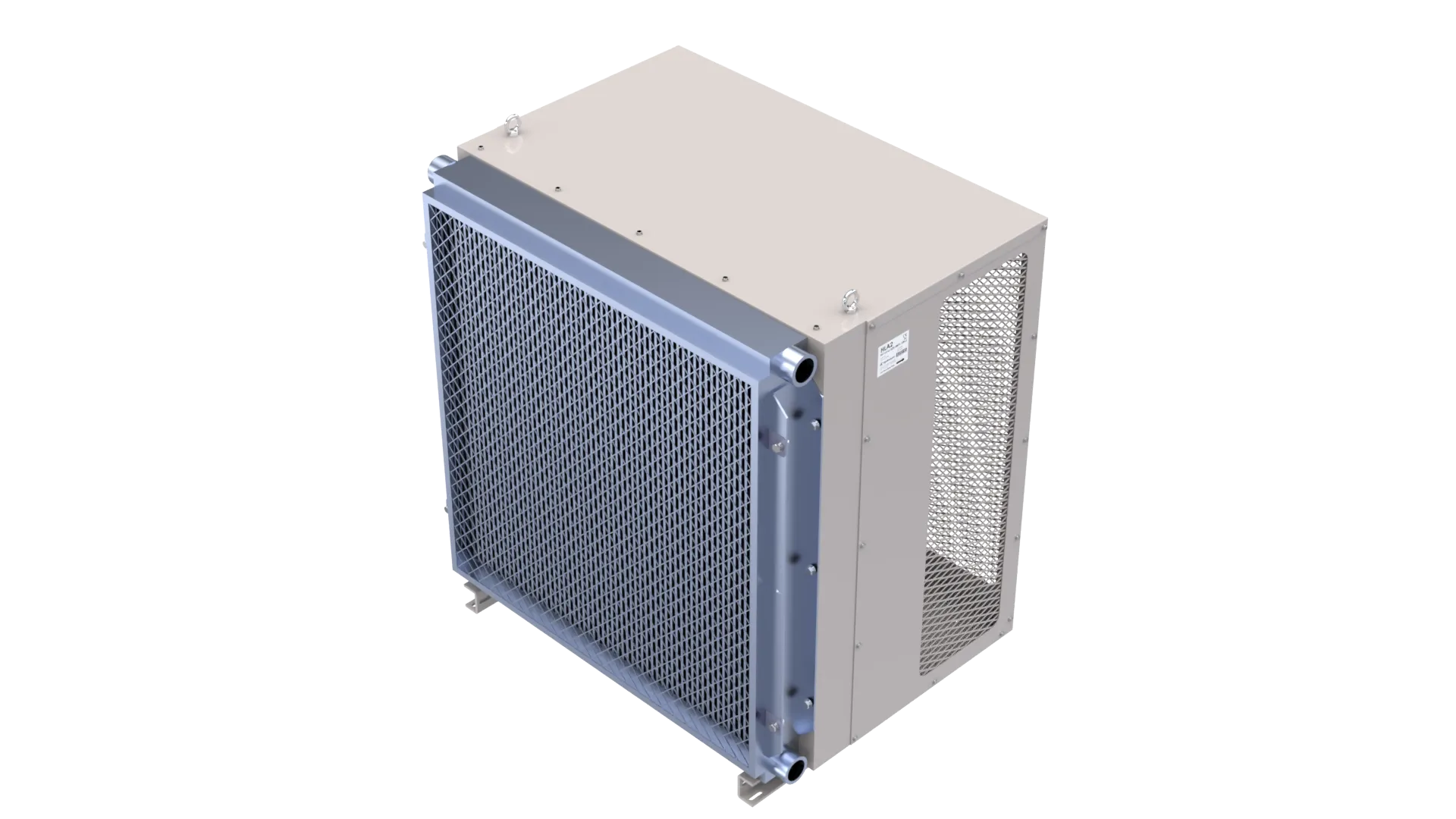

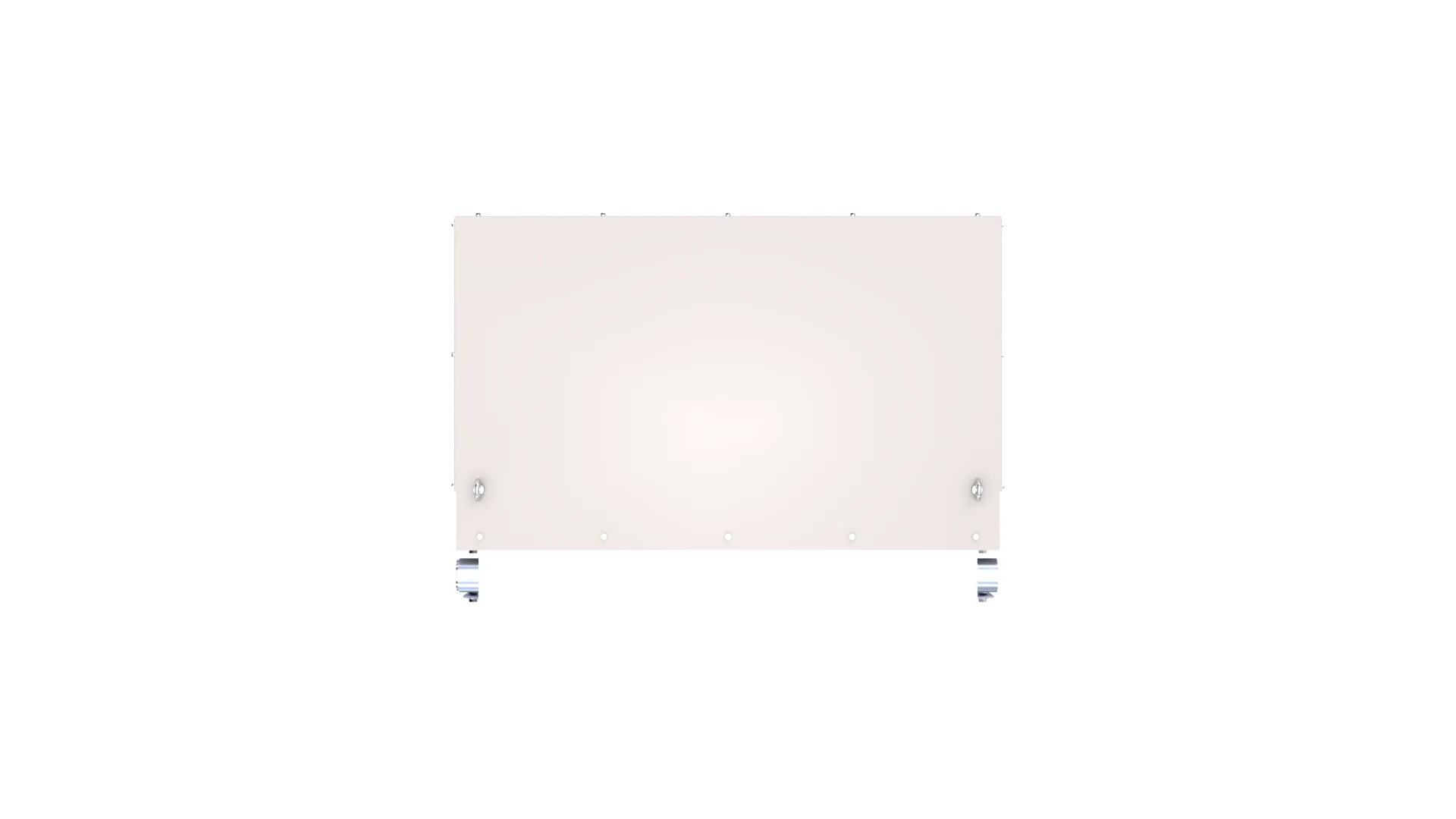

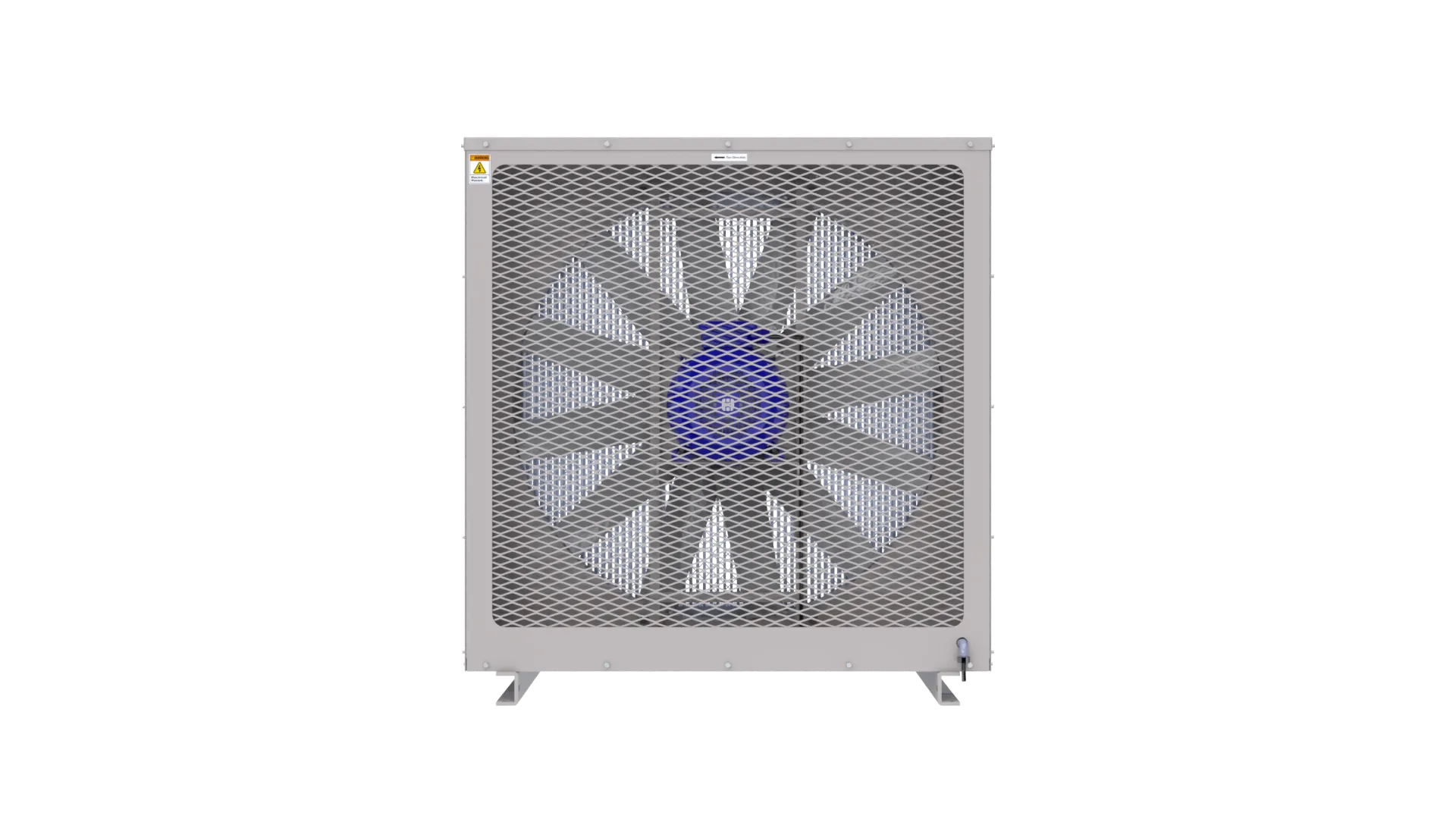

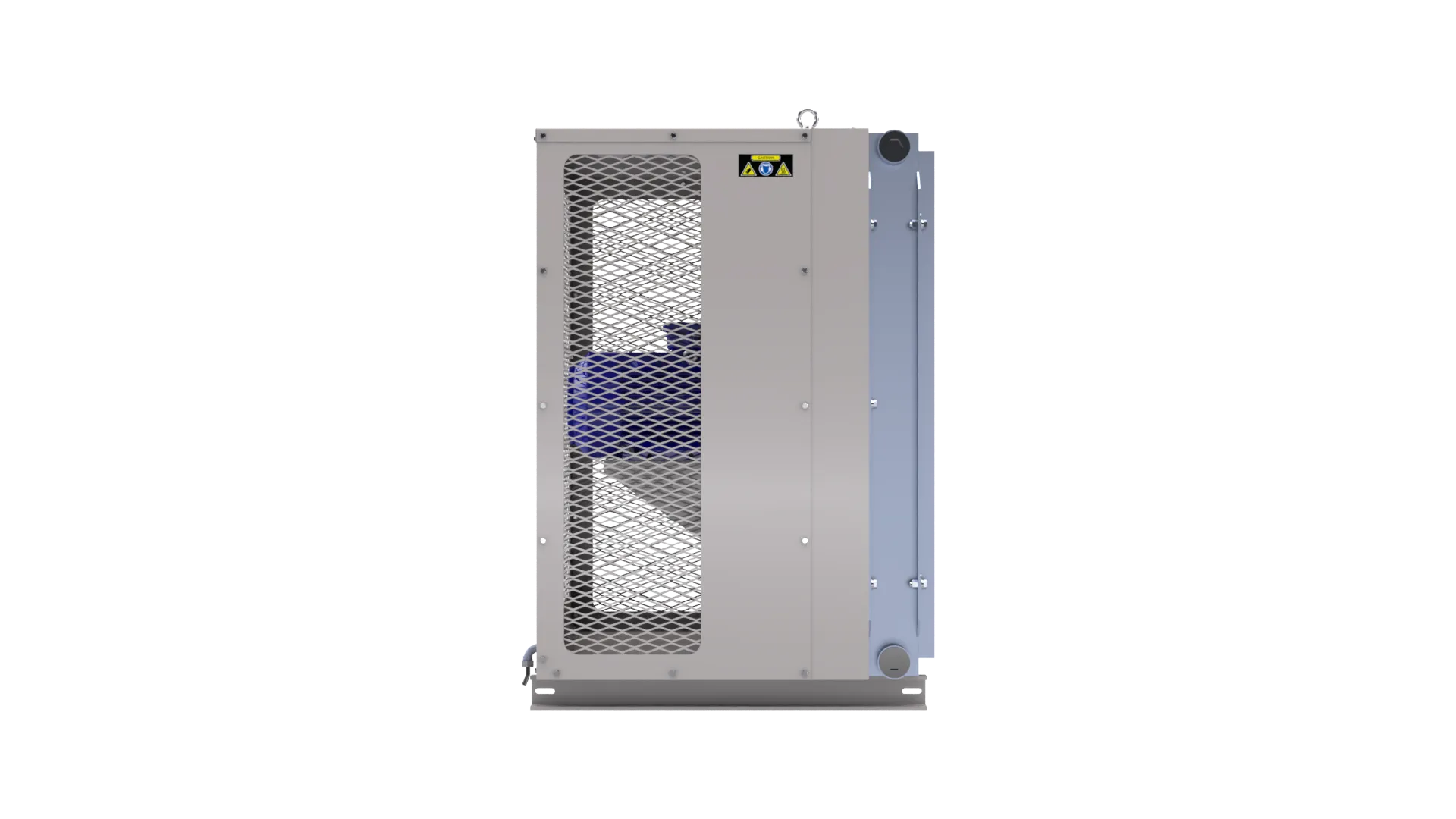

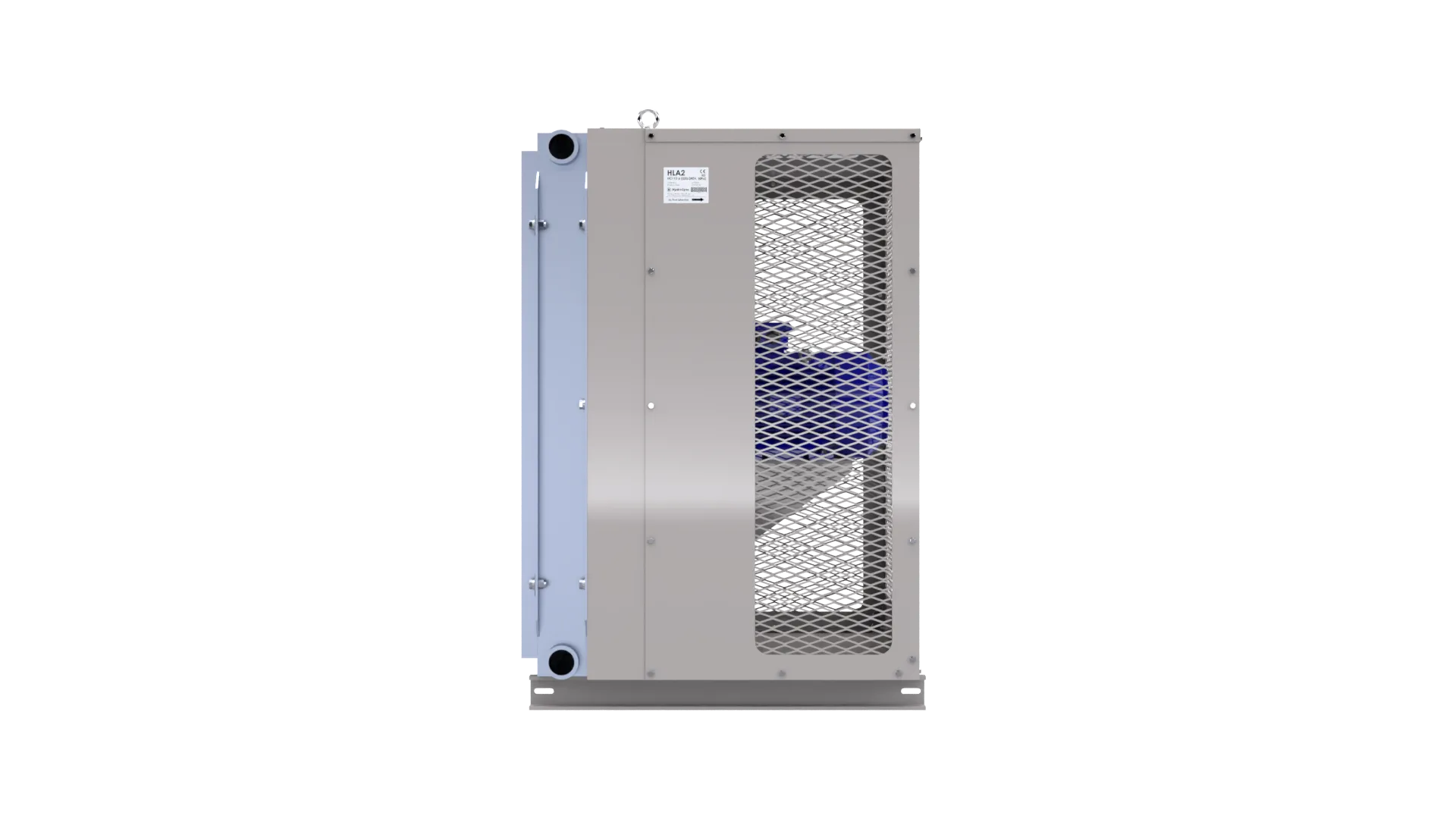

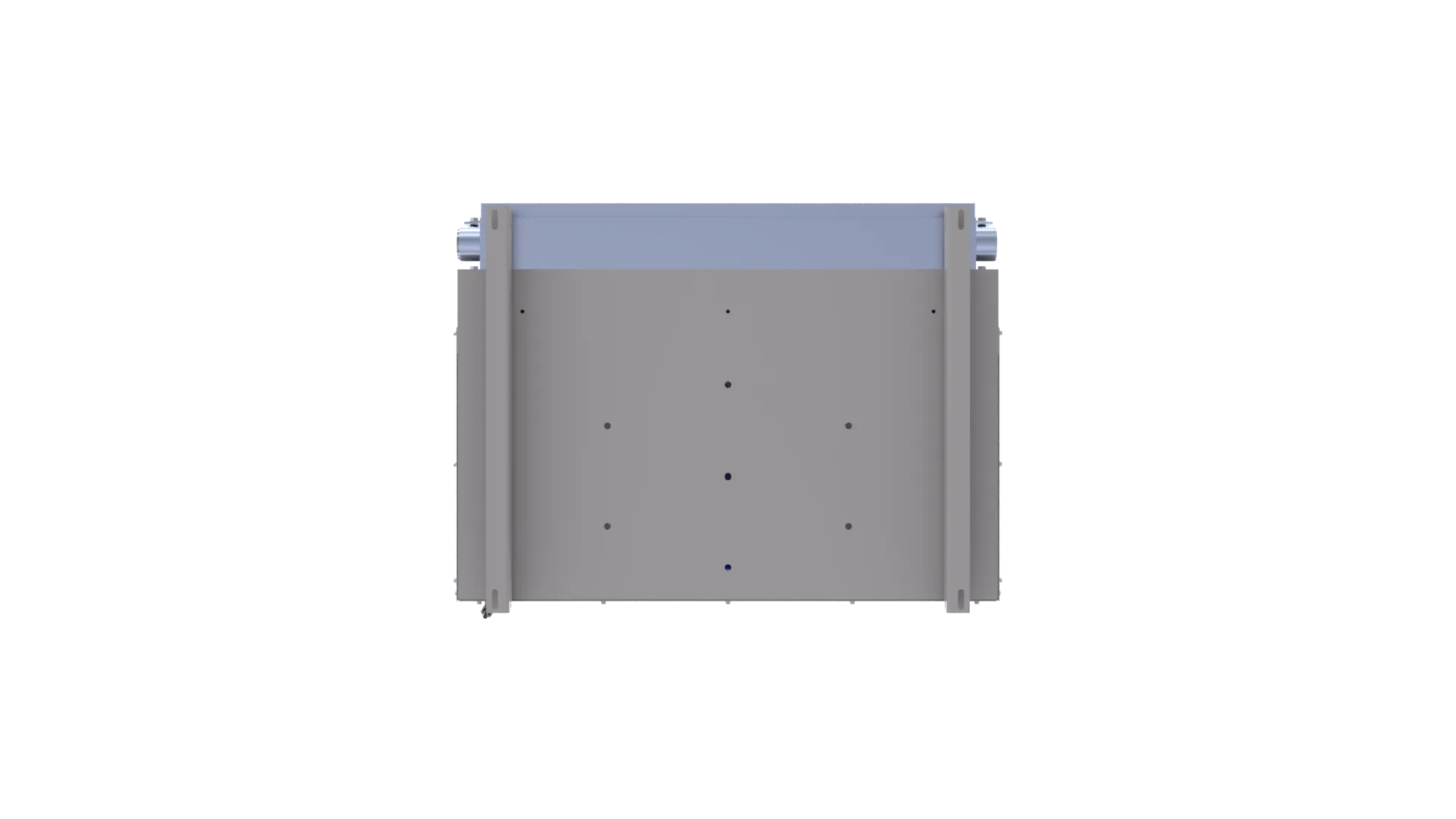

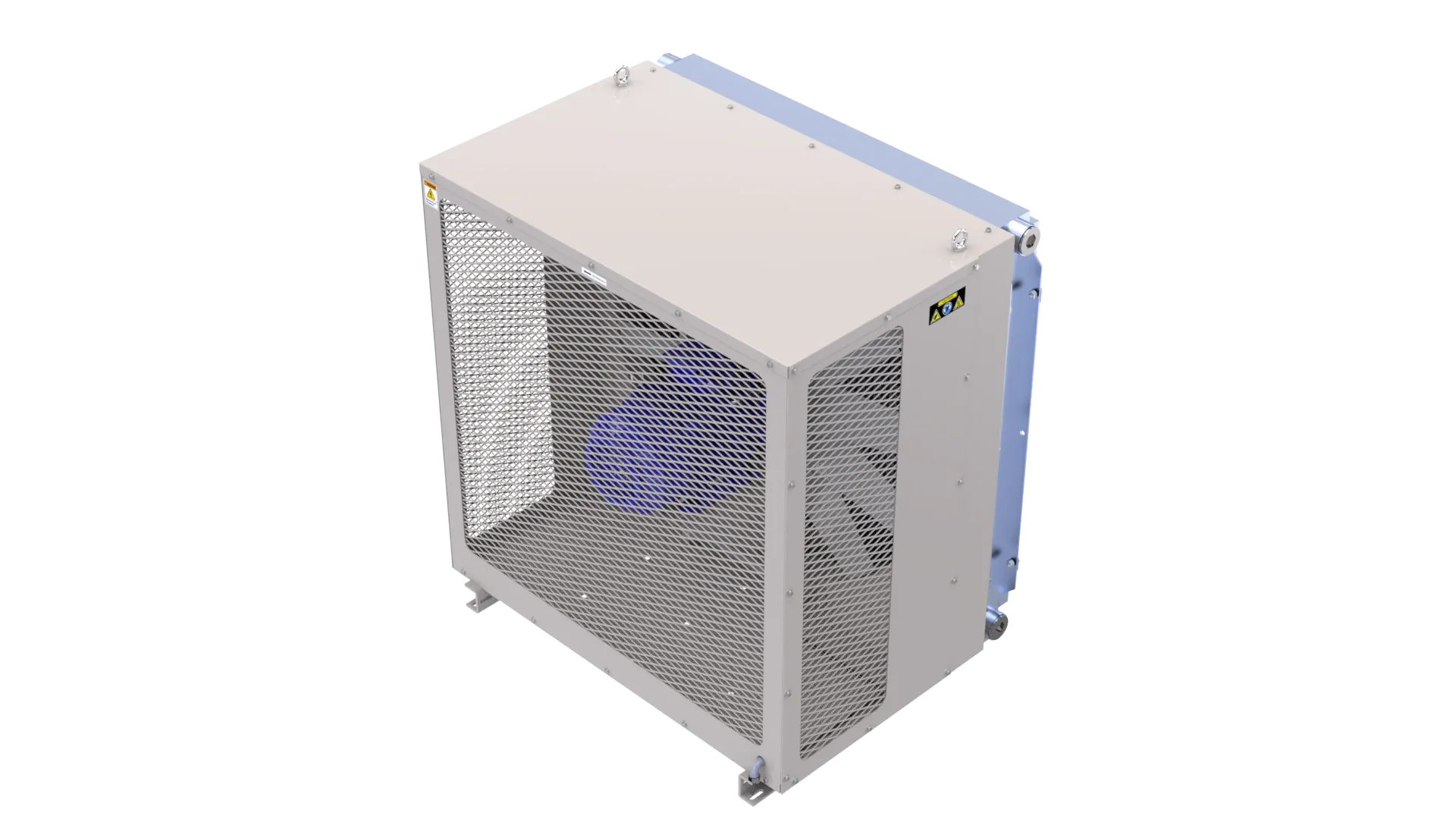

HLA2 HC V113-6 Air Oil Cooler (Special Type)

Product specifications and documentation

HLA2 HC V113-6 Air Oil Cooler (Special Type)
HLA2-HC-V113-6

HLA2 HC V113-6 Air Oil Cooler (Special Type)

Request Quote

Quick Specifications

Cooling Capacity4.2 kW/°C
Heat Dissipation168 kW
Heat Dissipation (kcal)144480 kcal/h
Max Flow Rate500 L/min

Detailed Specifications

Performance

Cooling Capacity
4.2 kW/°C
Heat Dissipation
168 kW
Heat Dissipation (kcal)
144480 kcal/h
Max Flow Rate
500 L/min
Motor Poles
6

Dimensions

HLA2 dimension drawing
Depth (D)
788 mm
Dimension F
985 mm
Dimension H
665 mm
Dimension I
550 mm
Dimension J
1115 mm
Dimension K
1177 mm
Height (C)
1285 mm
Length (A)
1205 mm
Net Weight
250 kg
Width (B)
1185 mm

Electrical

Motor Type
6-Pole AC Motor

Downloads

Accessories

DTM Digital Thermometer
DTM
Thermal Switch (DIN Connector)
TS-DIN
Thermal Switch (Wire Connector)
TS-WIRE
Matrix Stone Guard
STONE-GUARD
Matrix Dust Guard
DUST-GUARD
Matrix Dust + Stone Guard
COMBO-GUARD
