HLAX 07-2 Axial Motor Cooler

Product specifications and documentation

HLAX 07-2 Axial Motor Cooler
HLAX-07-2

HLAX 07-2 Axial Motor Cooler

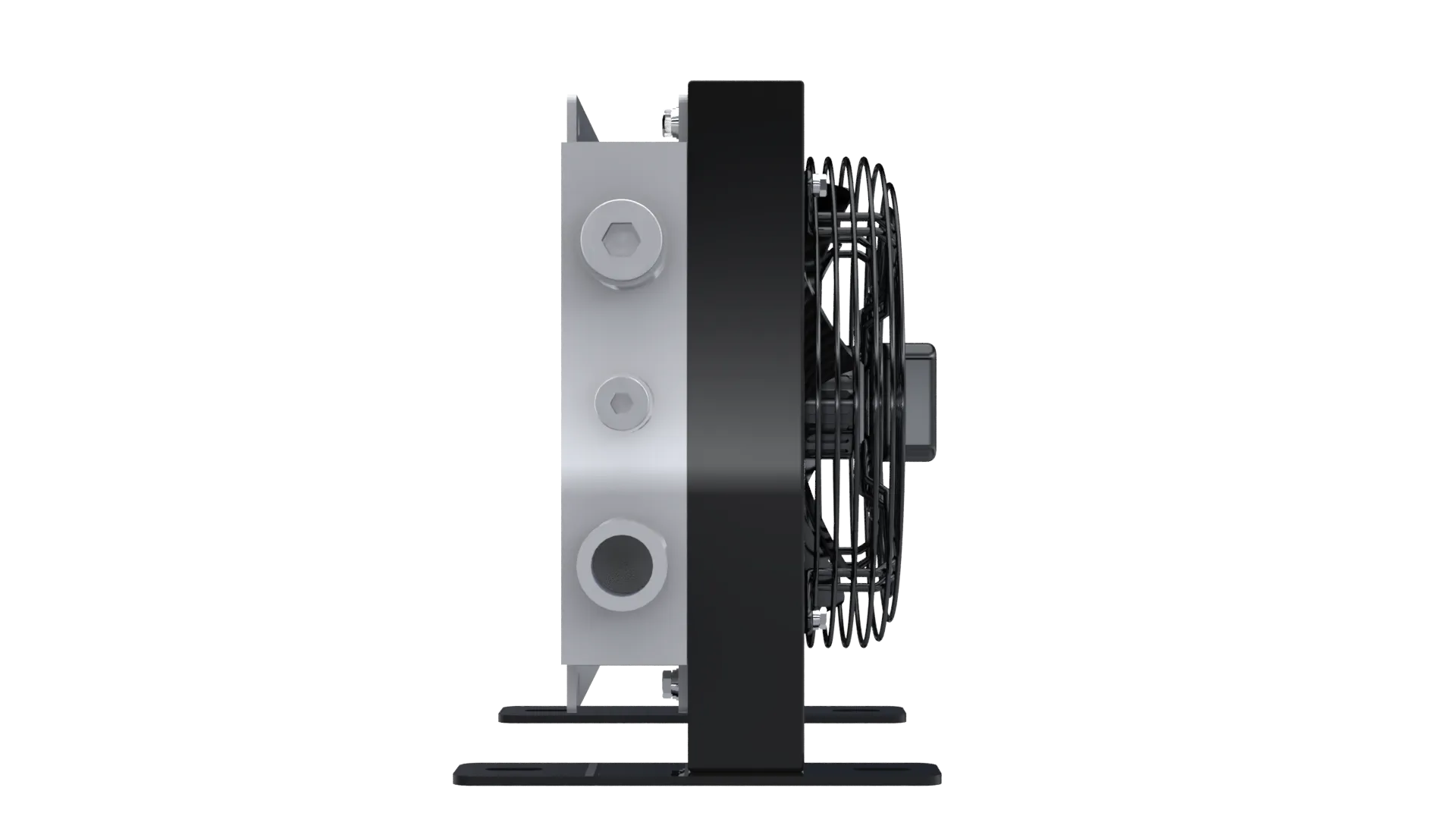

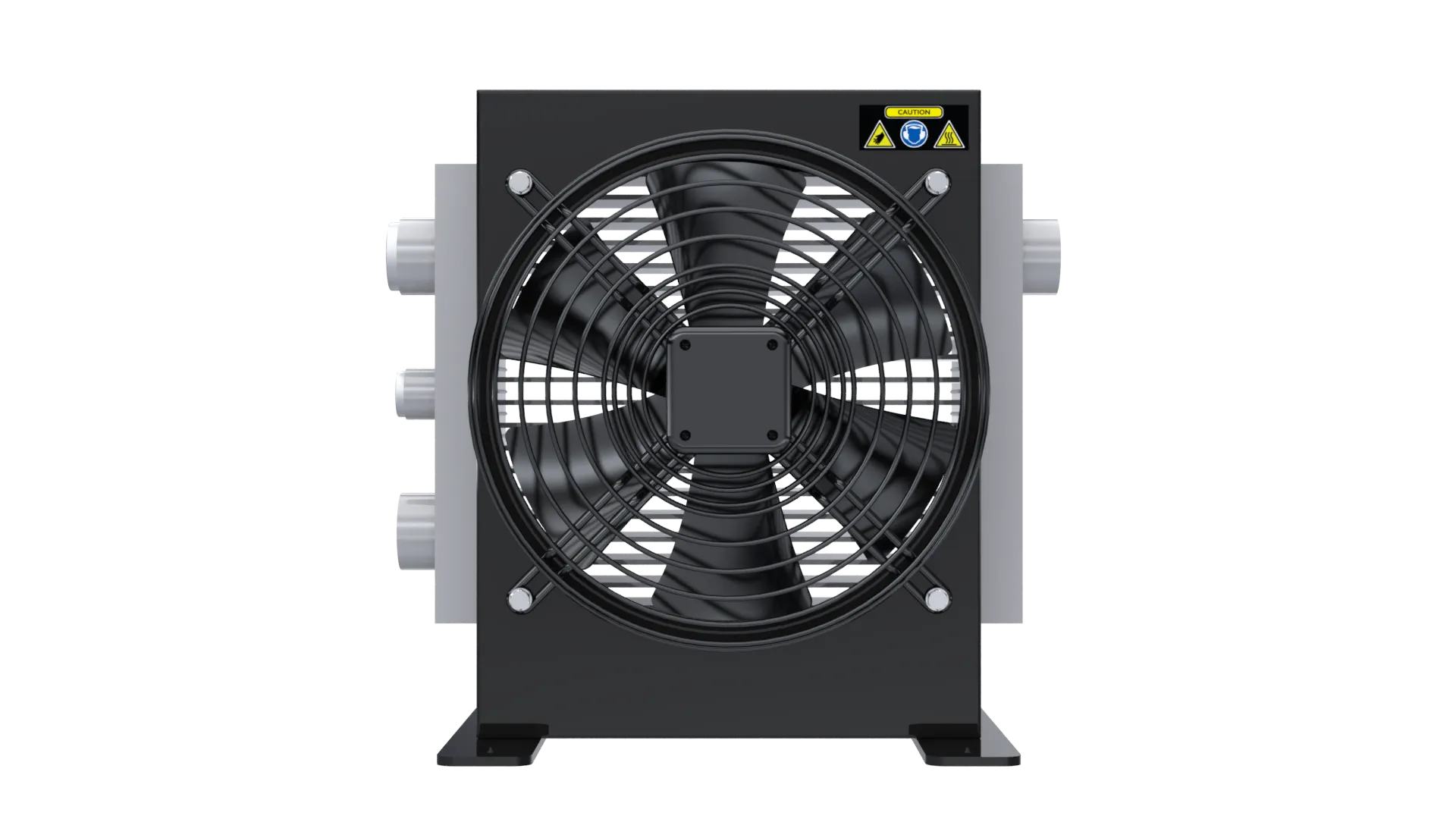

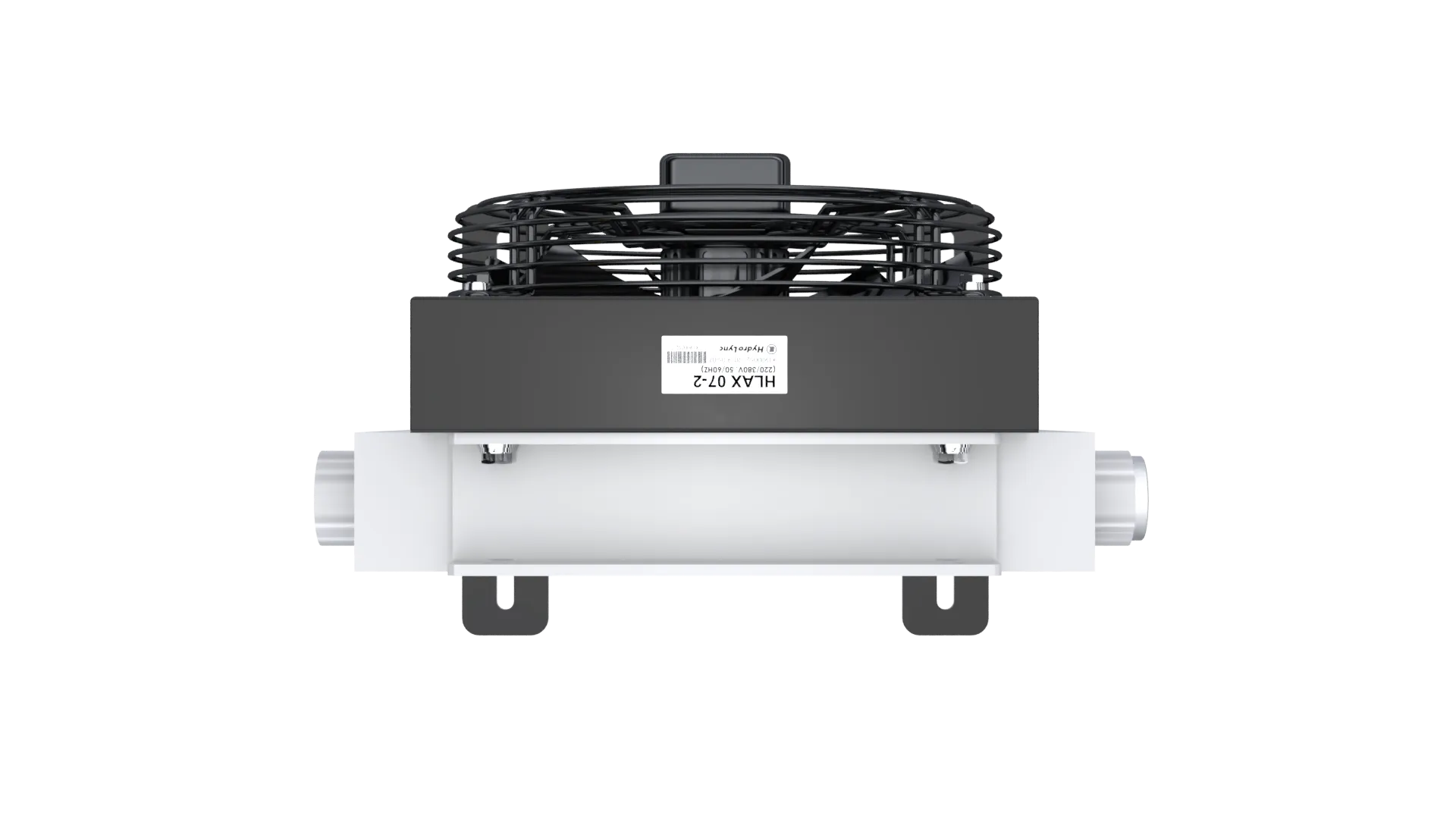

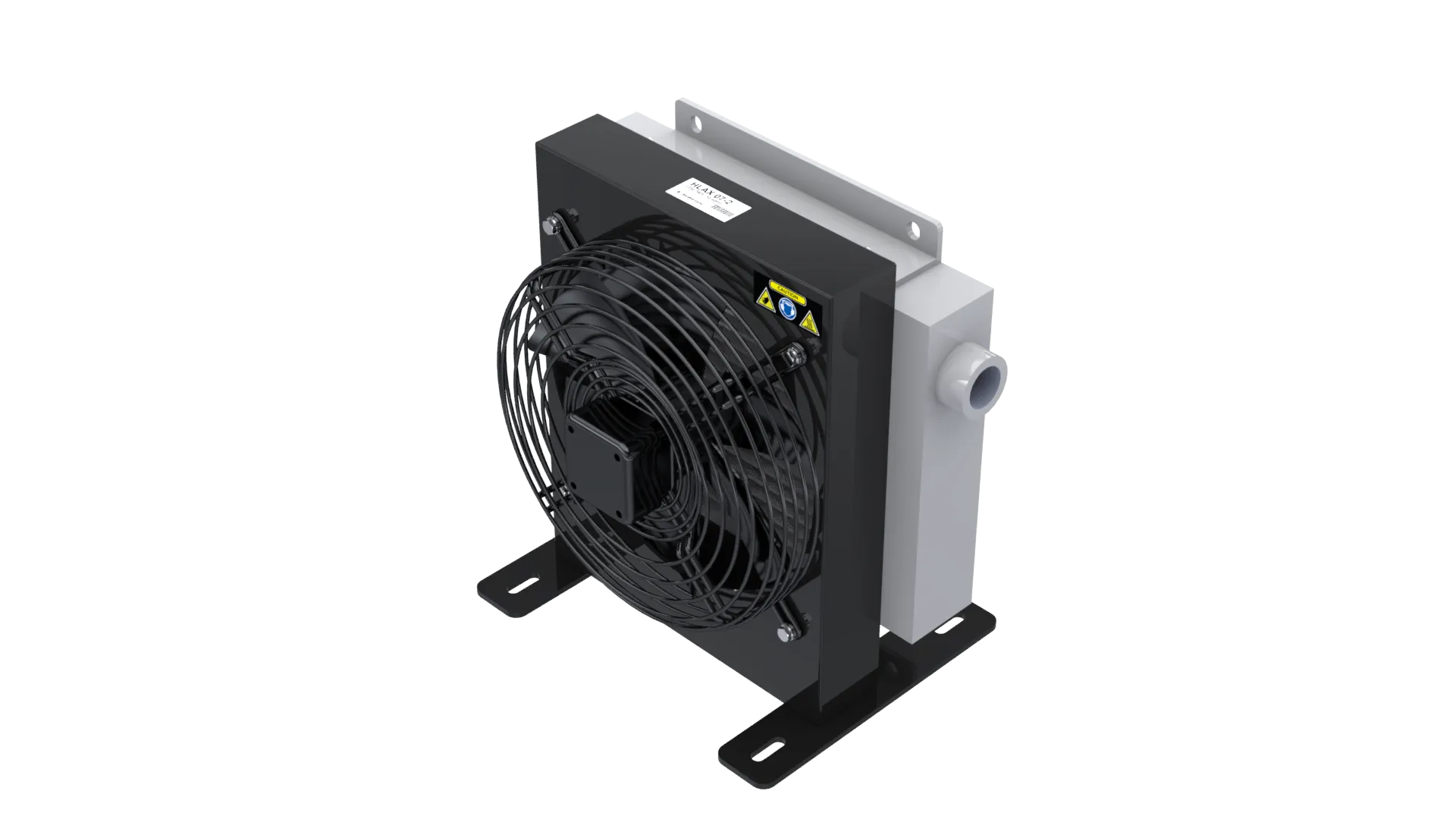

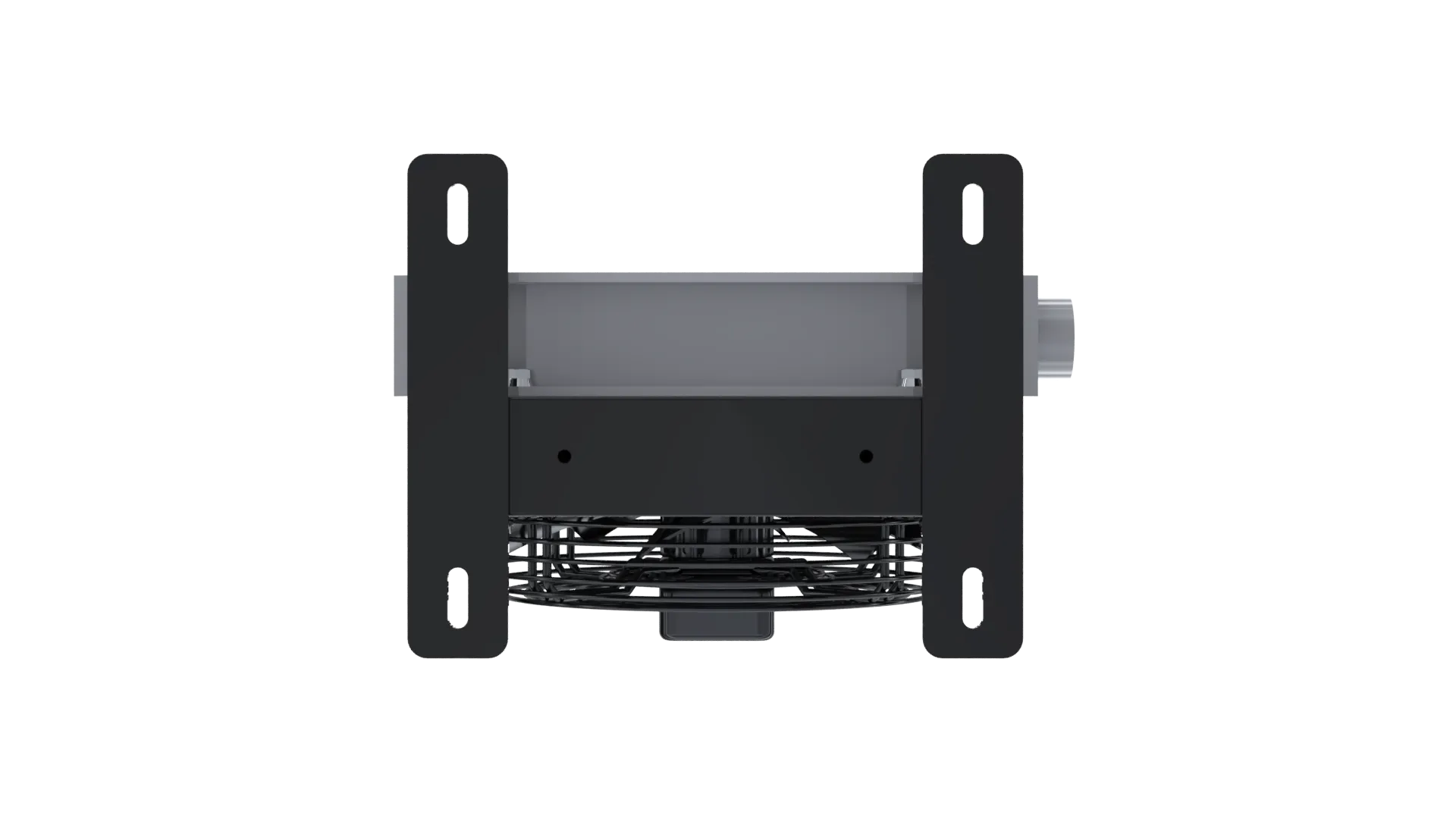

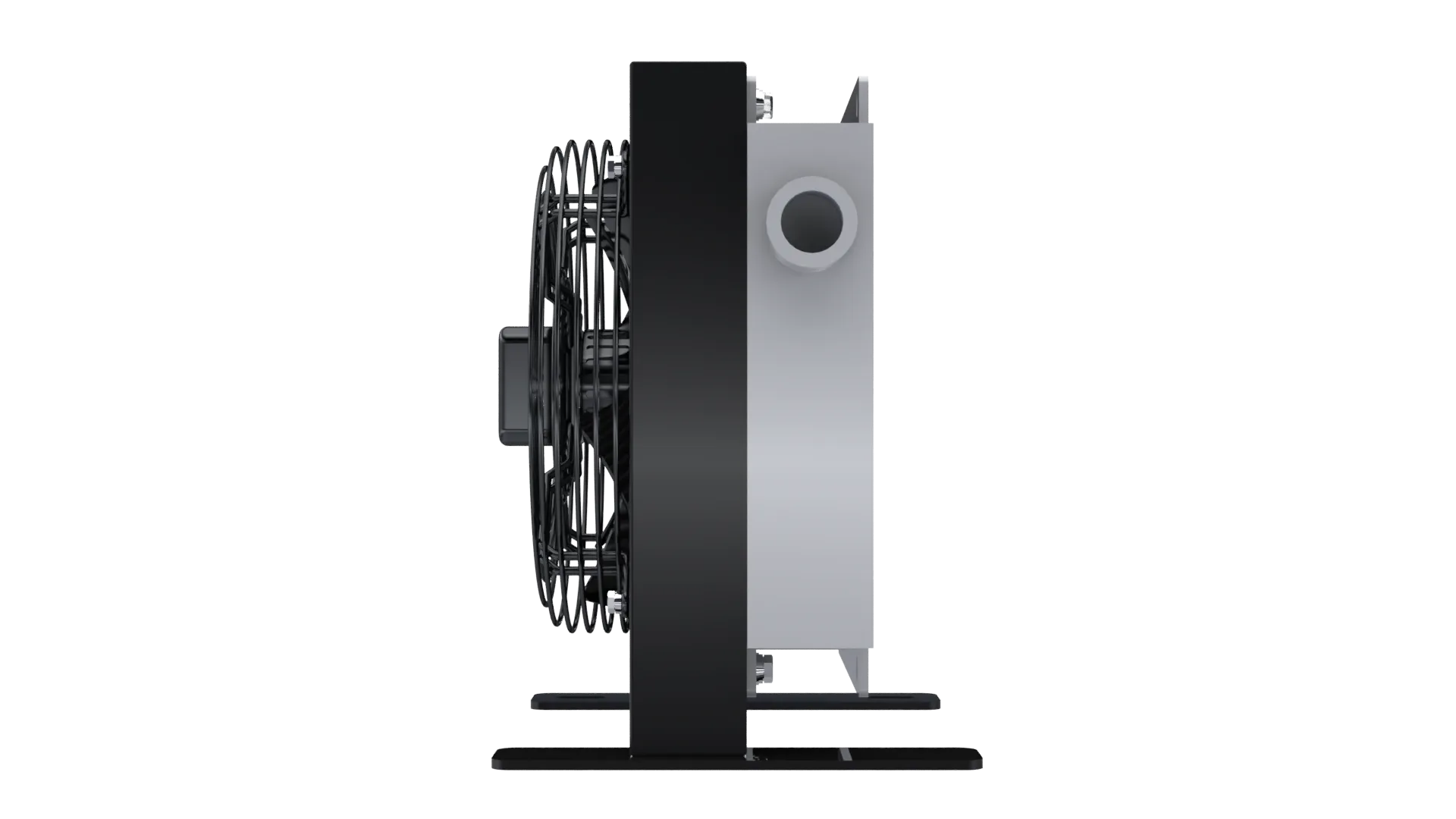

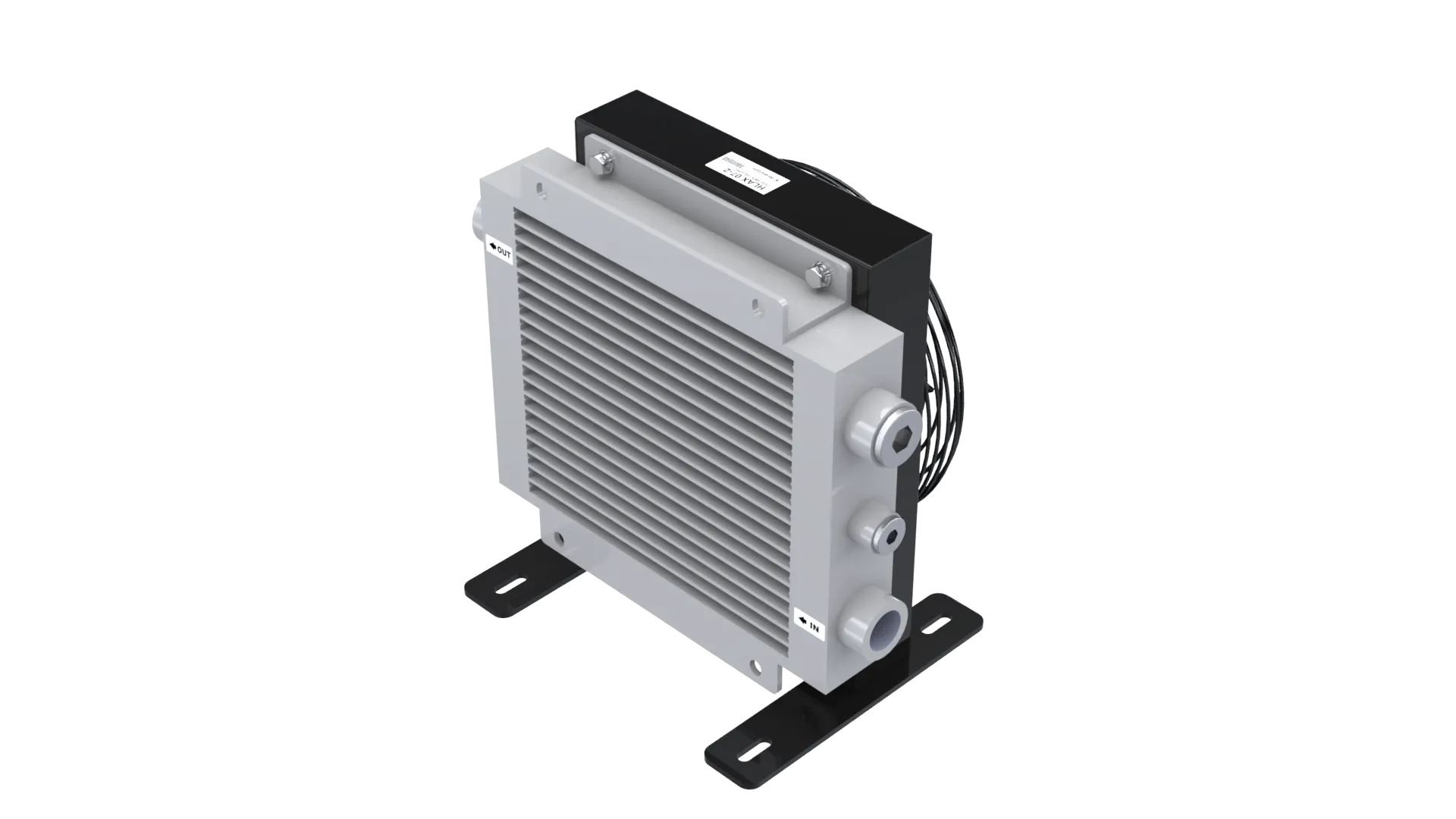

HydroLync HLAX 07-2 axial motor driven air-oil cooler

Request Quote

Quick Specifications

Cooling Capacity0.19 kW/°C
Heat Dissipation7.6 kW
Heat Dissipation (kcal/h)6536 kcal/h
Length (A)355 mm

Detailed Specifications

Performance

Cooling Capacity
0.19 kW/°C
Heat Dissipation
7.6 kW
Heat Dissipation (kcal/h)
6536 kcal/h

Dimensions

Length (A)
355 mm
Width (B)
335 mm
Height (C)
360 mm
Depth (D)
199 mm
Dimension E
63 mm
Dimension F
160 mm
Dimension G
114 mm
Dimension H
250 mm
Dimension I
190 mm
Dimension J
255 mm
Dimension K
274 mm
Mounting Slot
ø10x30

Electrical

Insulation Grade
B, F
Max Speed (50Hz)
3000 RPM
Max Speed (60Hz)
3600 RPM
Motor Poles
2
Voltage
220/380V

Hydraulic

Max Flow Rate
125 L/min
Max Working Pressure (bar)
14 bar
Oil Port (P1/P2/P3)
G1"

Environmental

Noise Level (1m)
60 dB(A)

Mechanical

Net Weight
11.7 kg

Other

Ingress Protection
IP54
Max Working Temperature (°C)
120 °C

Downloads

Accessories

Thermal Switch (DIN Connector)
TS-DIN
Thermal Switch (Wire Connector)
TS-WIRE
Matrix Stone Guard
STONE-GUARD
Matrix Dust Guard
DUST-GUARD
Matrix Dust + Stone Guard
COMBO-GUARD
