HLAX 11-4 Axial Motor Cooler

Product specifications and documentation

HLAX 11-4 Axial Motor Cooler
HLAX-11-2

HLAX 11-4 Axial Motor Cooler

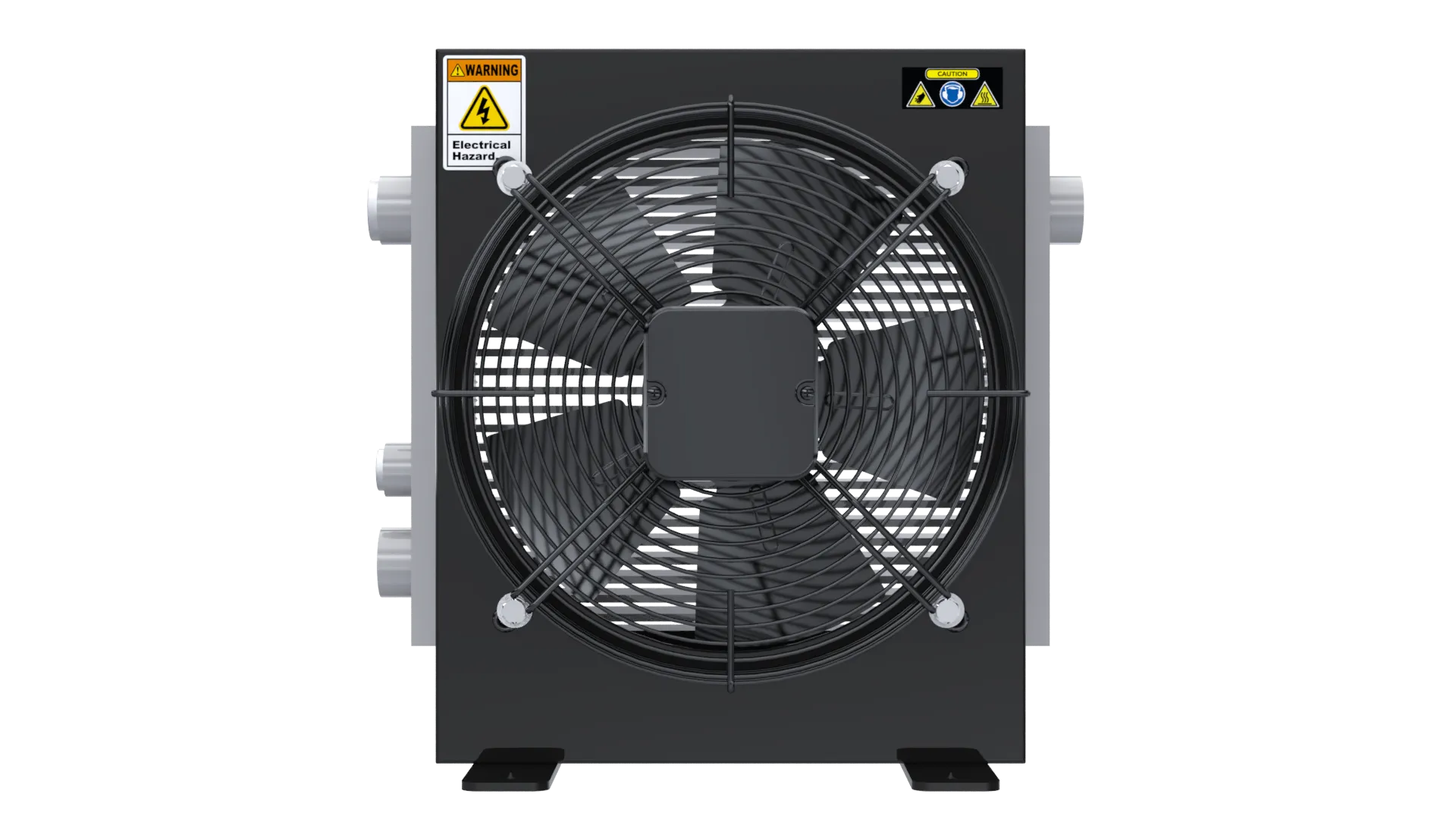

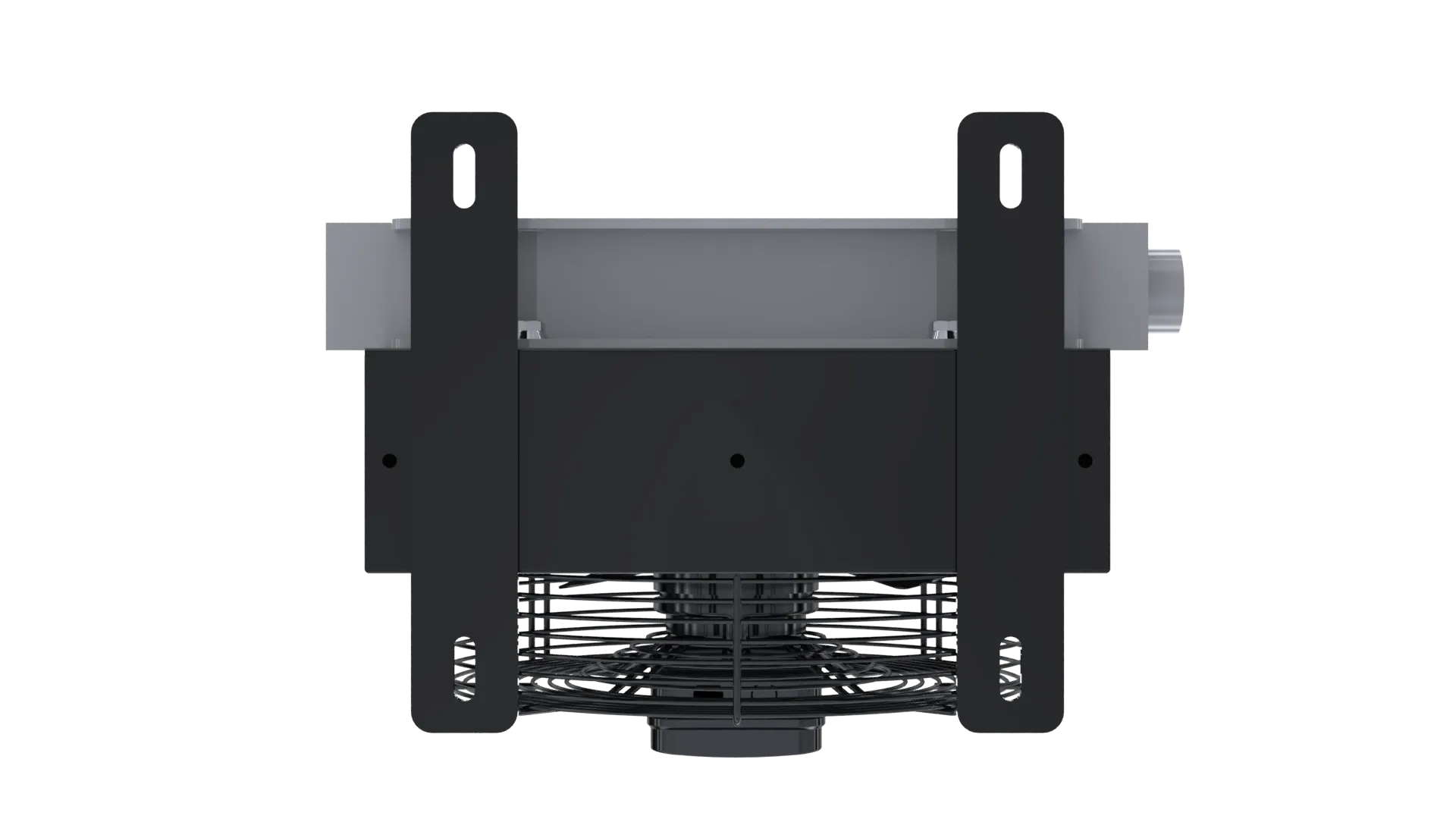

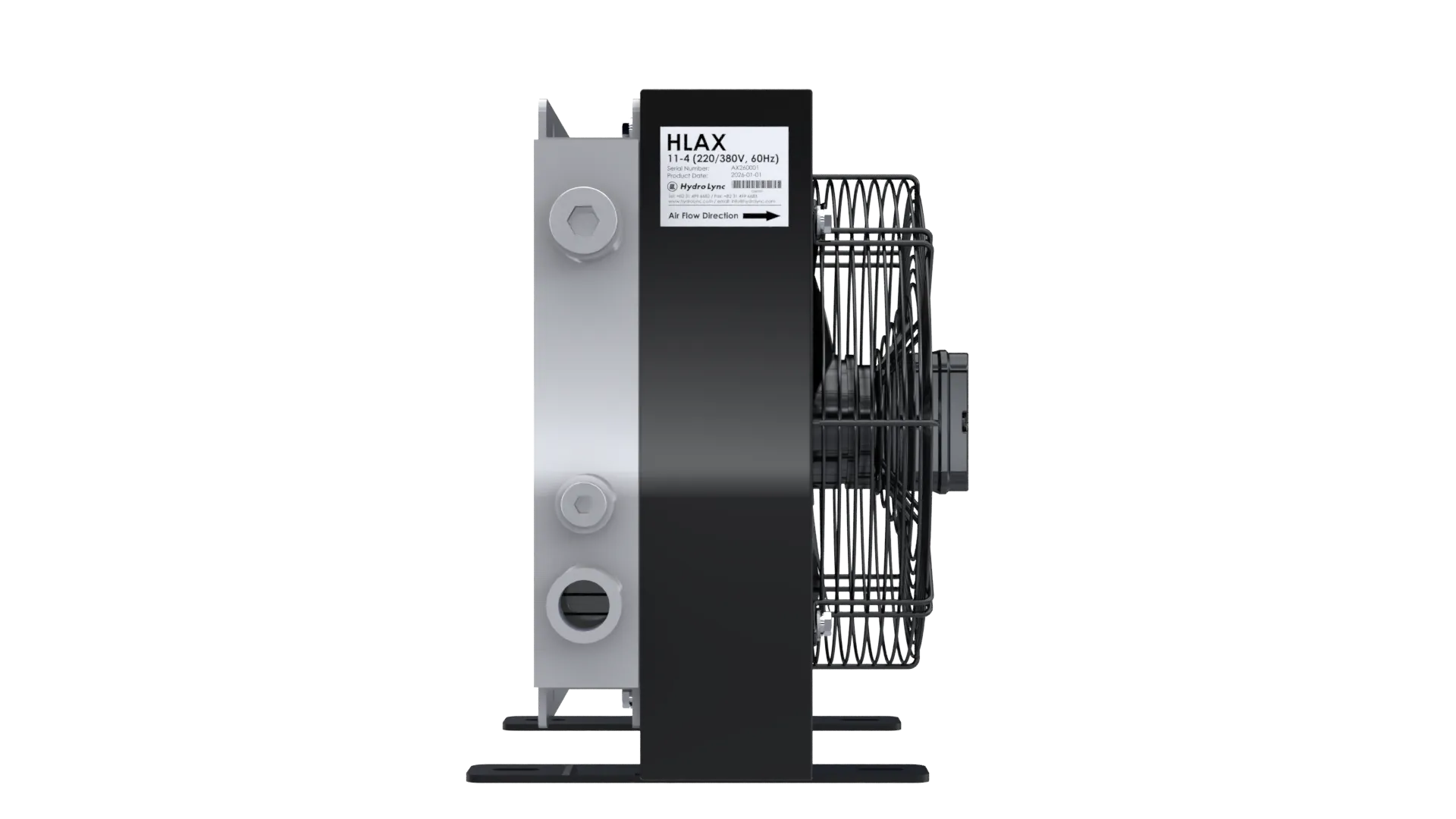

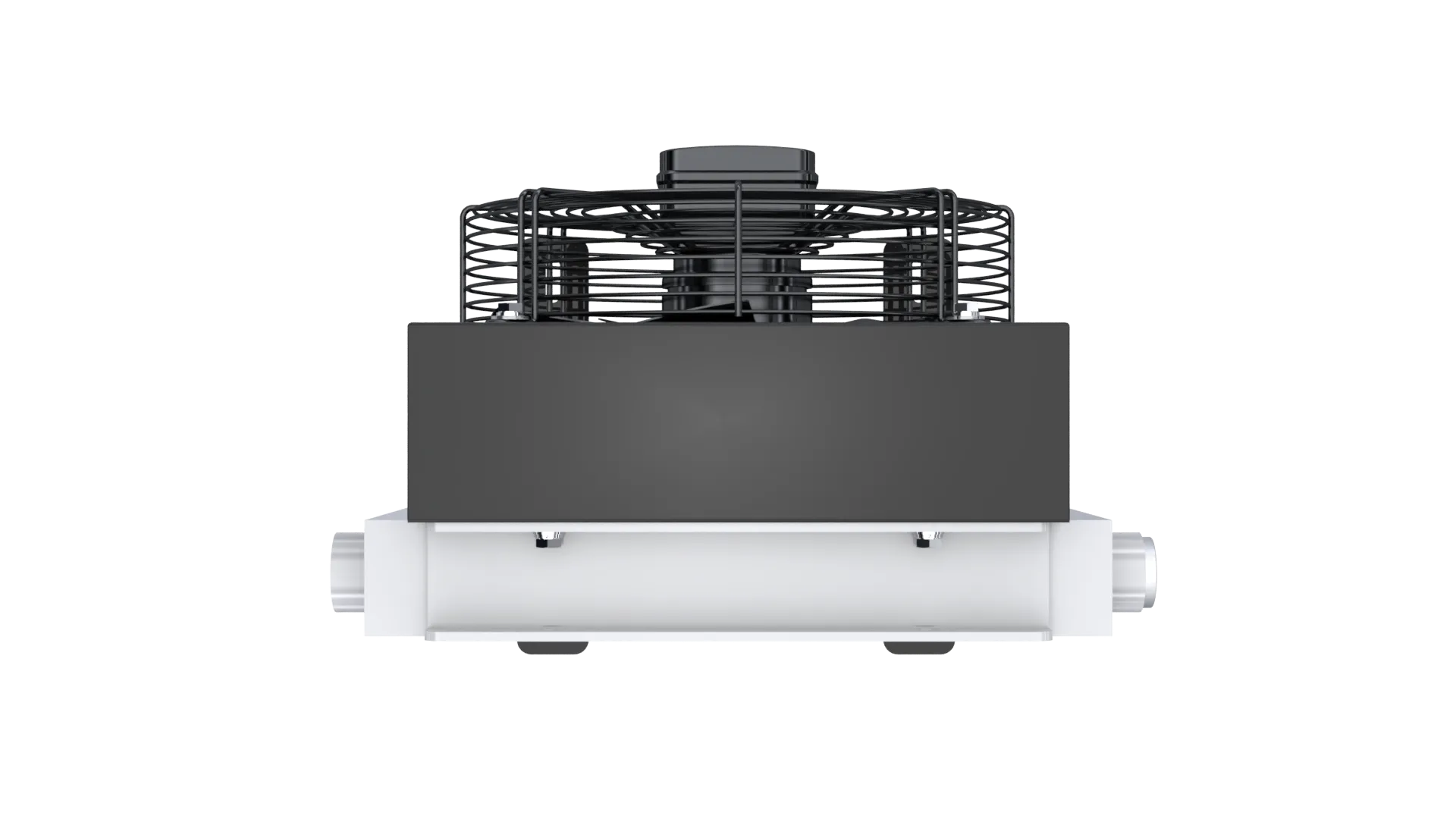

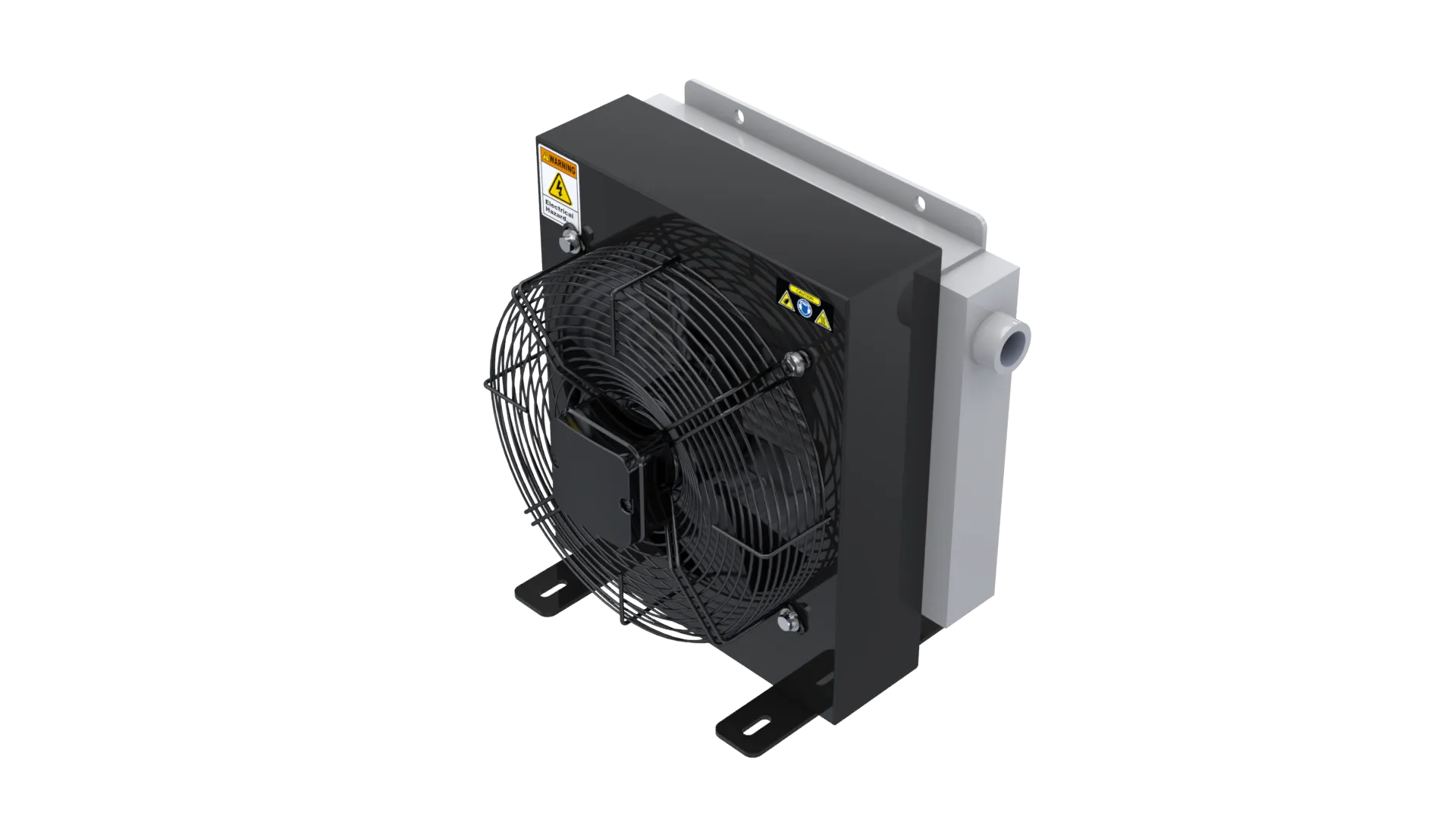

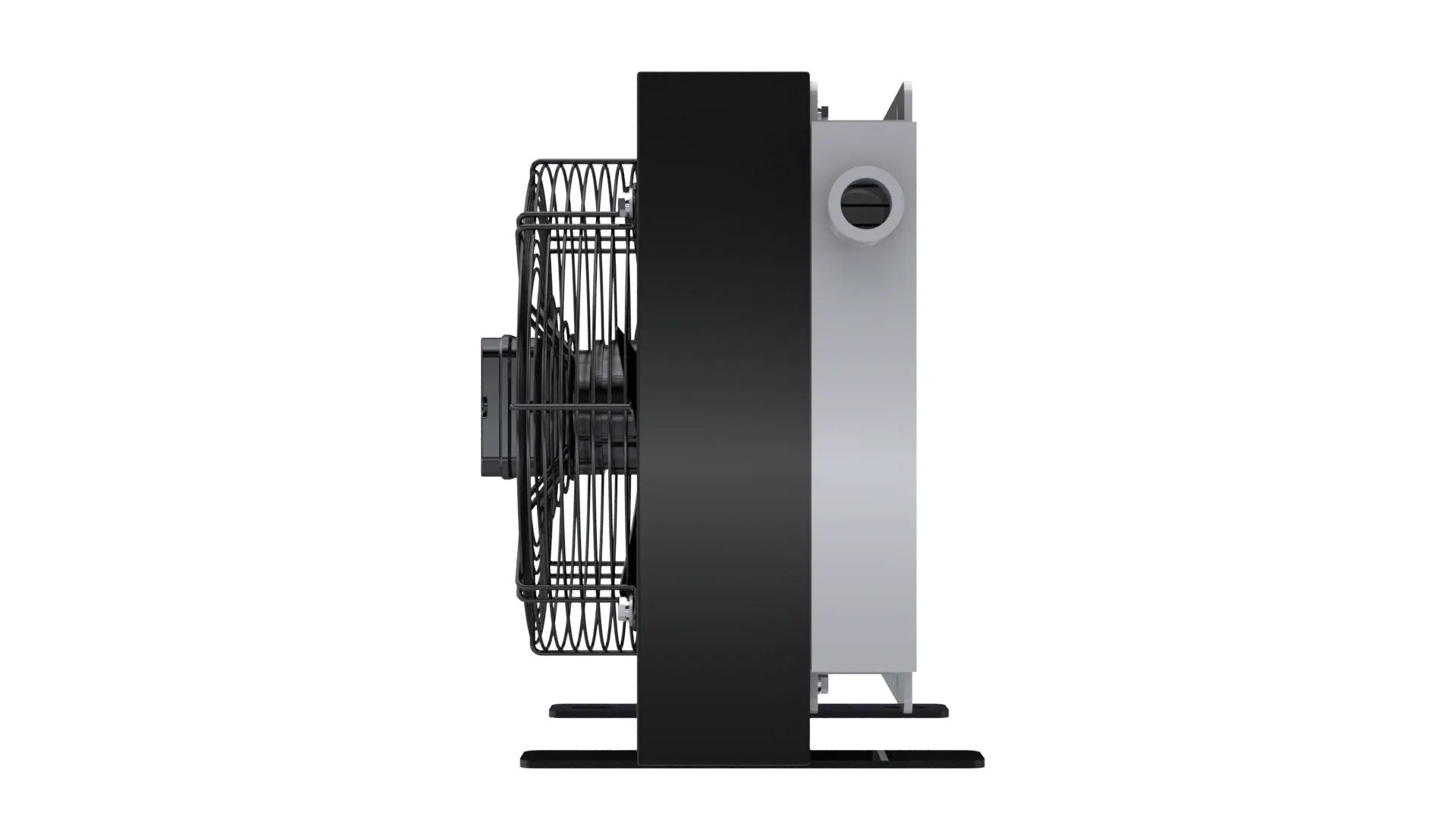

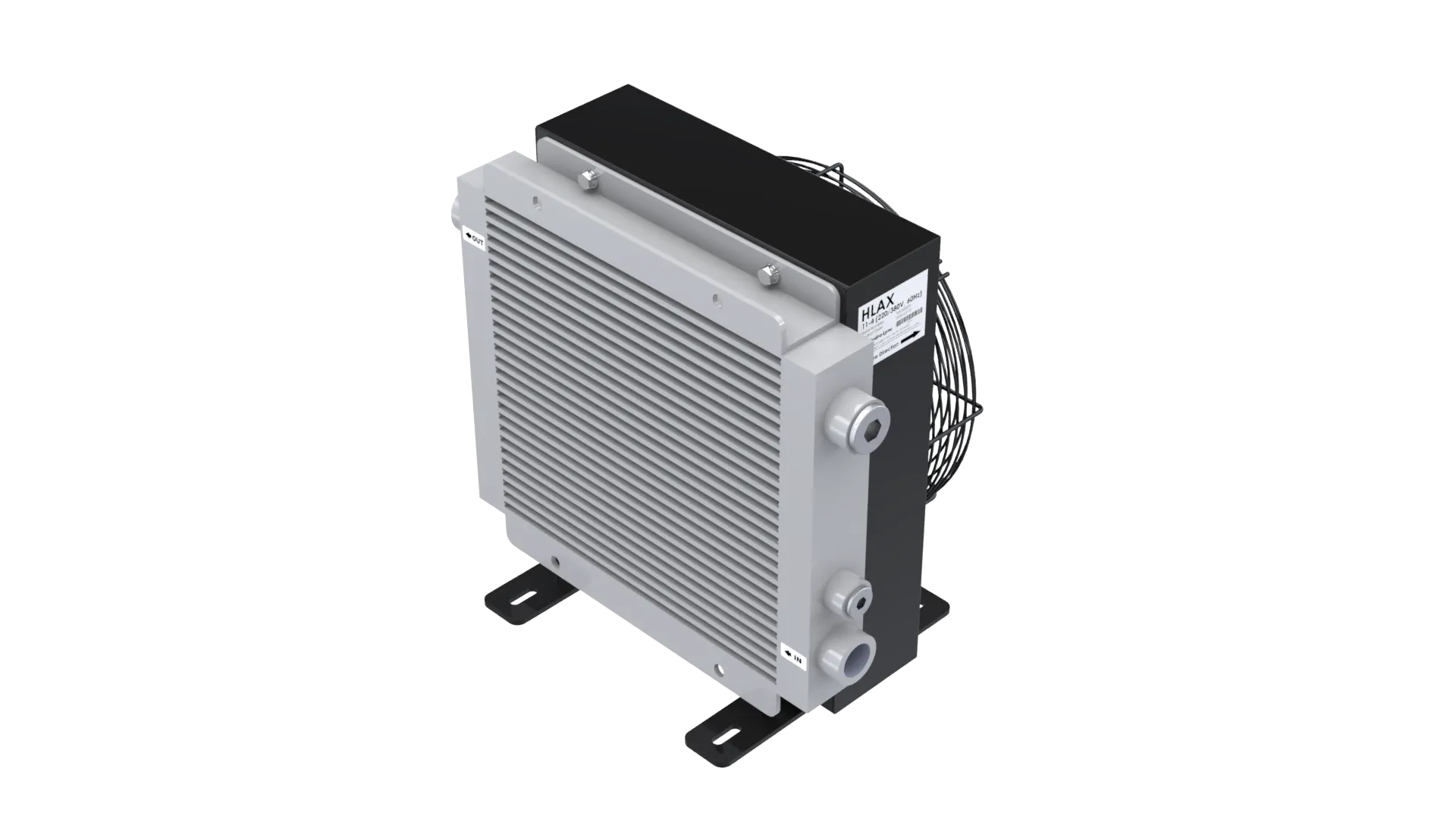

HydroLync HLAX 11-2 axial motor driven air-oil cooler

Request Quote

Quick Specifications

Cooling Capacity0.38 kW/°C
Heat Dissipation15.2 kW
Heat Dissipation (kcal/h)13024 kcal/h
Length (A)424 mm

Detailed Specifications

Performance

Cooling Capacity
0.38 kW/°C
Heat Dissipation
15.2 kW
Heat Dissipation (kcal/h)
13024 kcal/h

Dimensions

HLAX dimension drawing
Length (A)
424 mm
Width (B)
405 mm
Height (C)
429 mm
Depth (D)
278 mm
Dimension E
63 mm
Dimension F
228 mm
Dimension G
116 mm
Dimension H
290 mm
Dimension I
230 mm
Dimension J
255 mm
Dimension K
344 mm
Mounting Slot
ø10x30

Electrical

Insulation Grade
B, F
Max Speed (50Hz)
3000 RPM
Max Speed (60Hz)
3600 RPM
Motor Poles
2
Voltage
220/380V

Downloads

Accessories

Thermal Switch (DIN Connector)
TS-DIN
Thermal Switch (Wire Connector)
TS-WIRE
Matrix Stone Guard
STONE-GUARD
Matrix Dust Guard
DUST-GUARD
Matrix Dust + Stone Guard
COMBO-GUARD
