HLAX 33-4 Axial Motor Cooler

Product specifications and documentation

HLAX 33-4 Axial Motor Cooler
HLAX-33-4

HLAX 33-4 Axial Motor Cooler

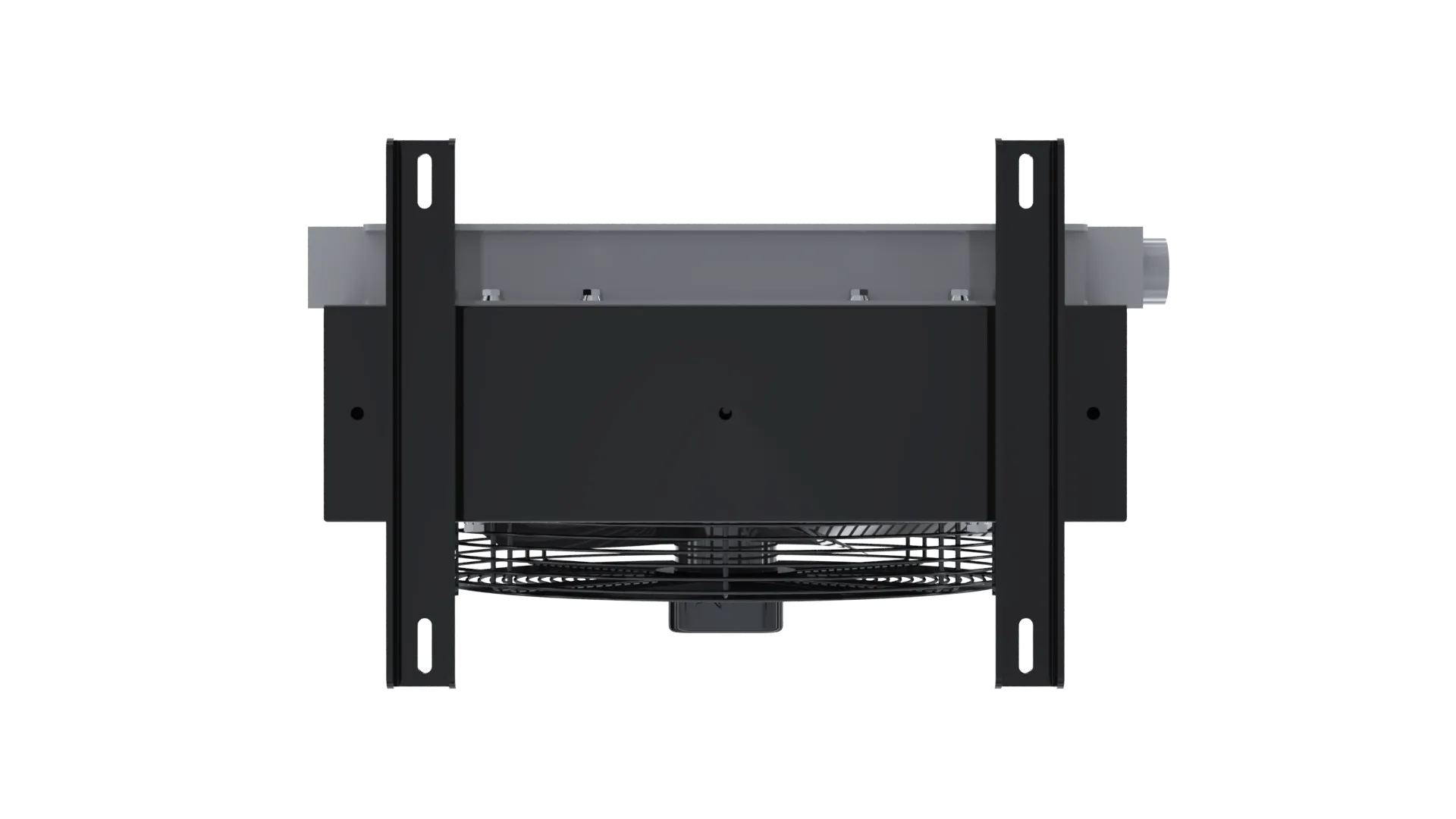

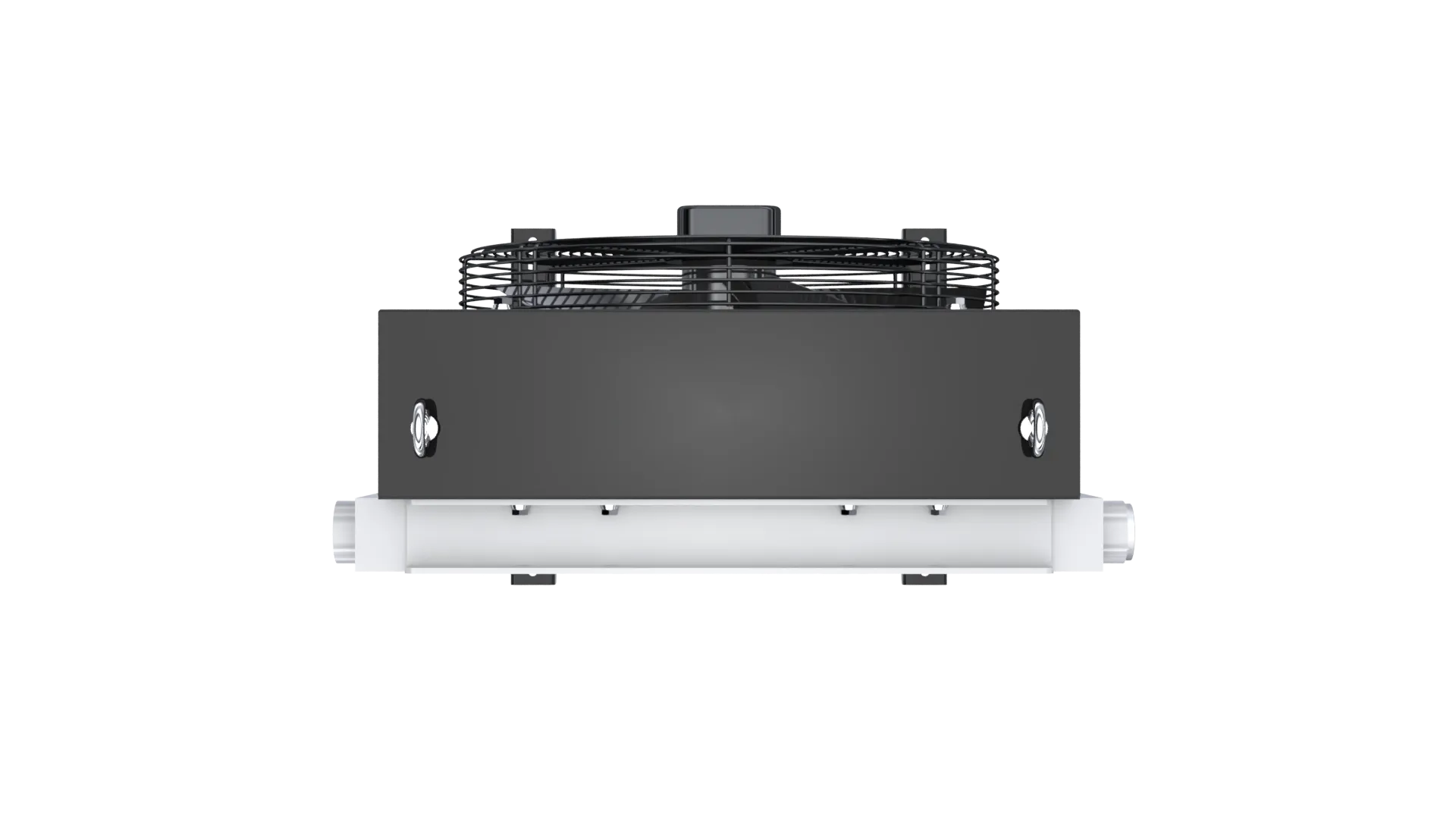

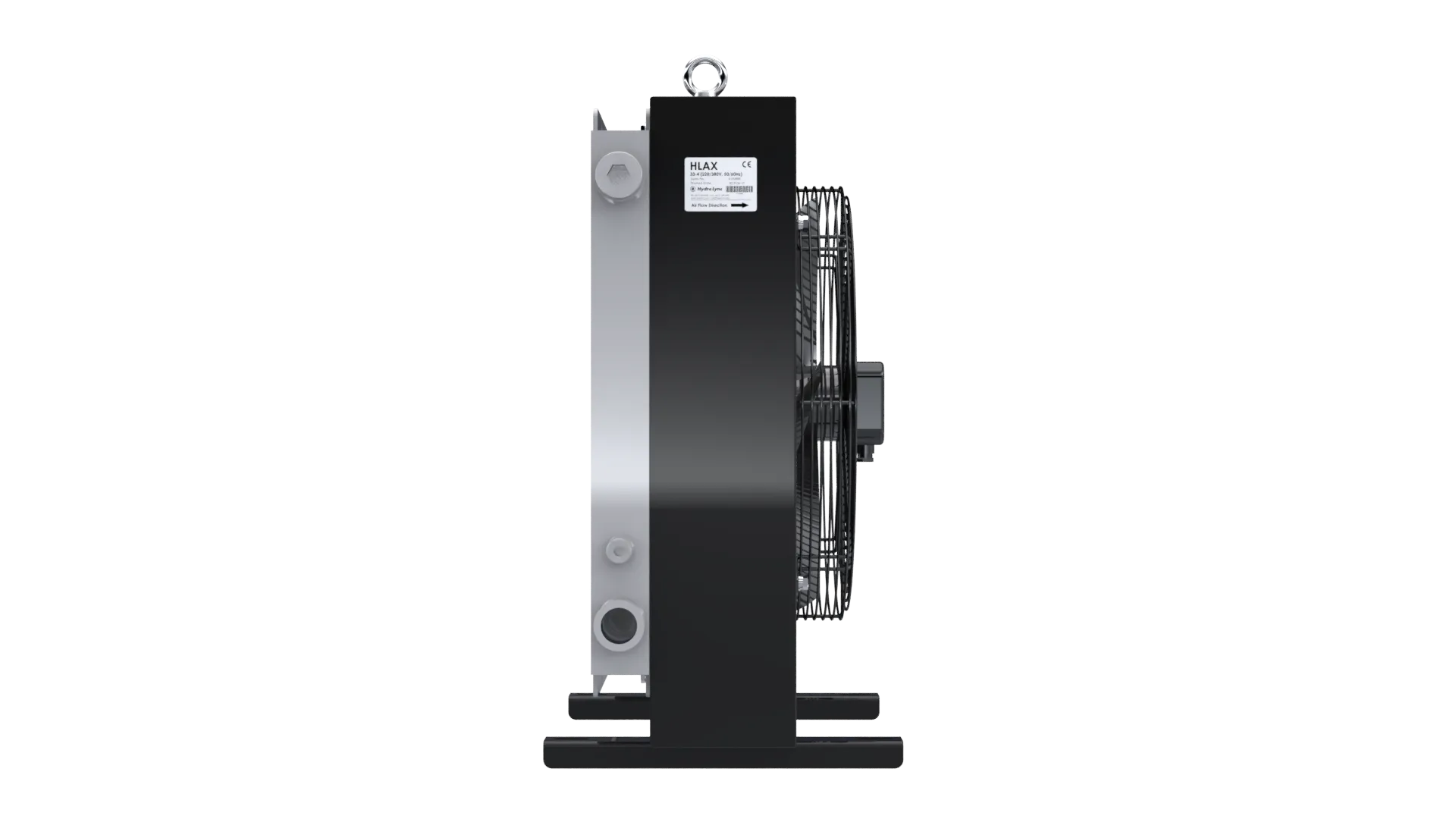

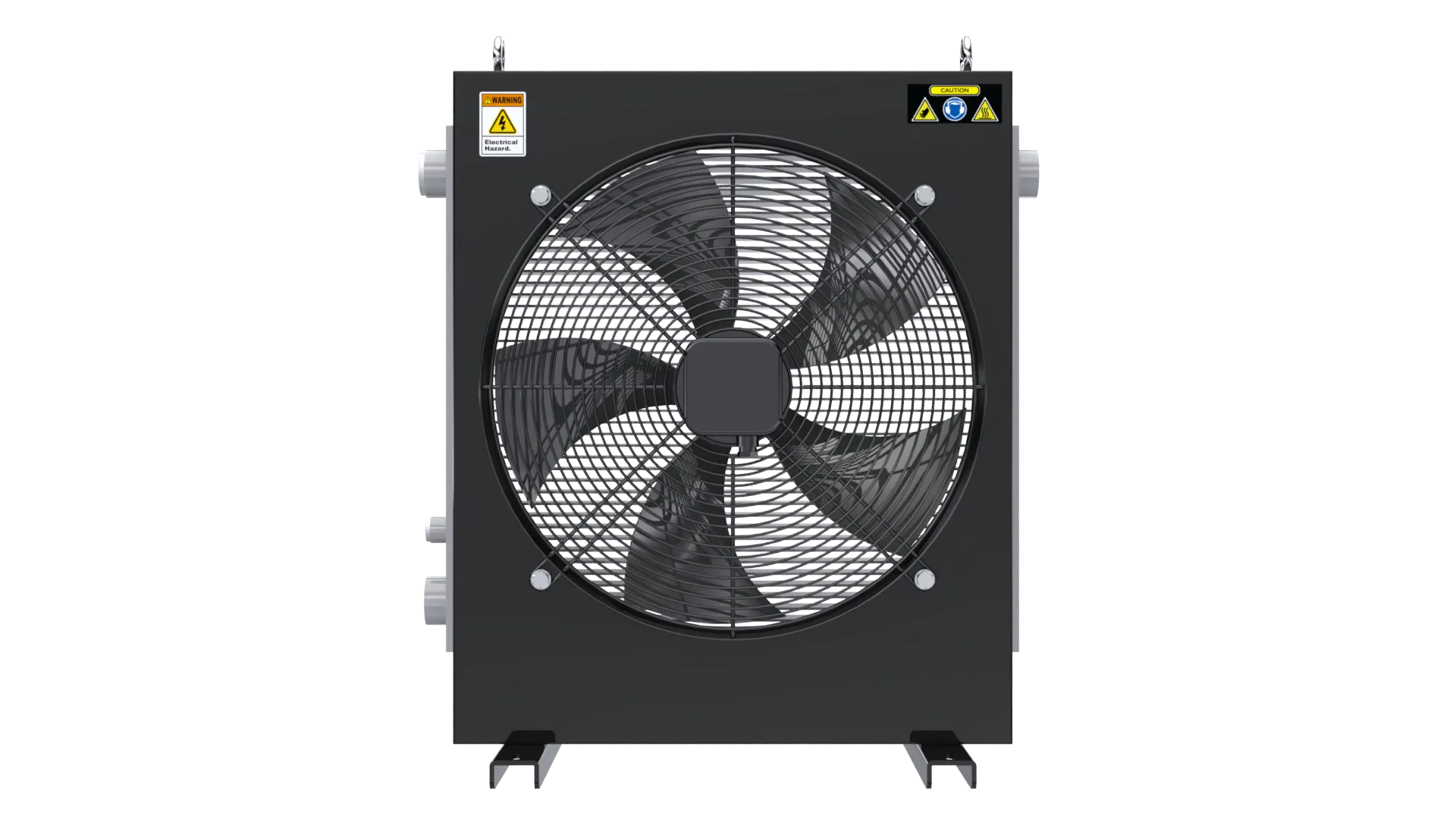

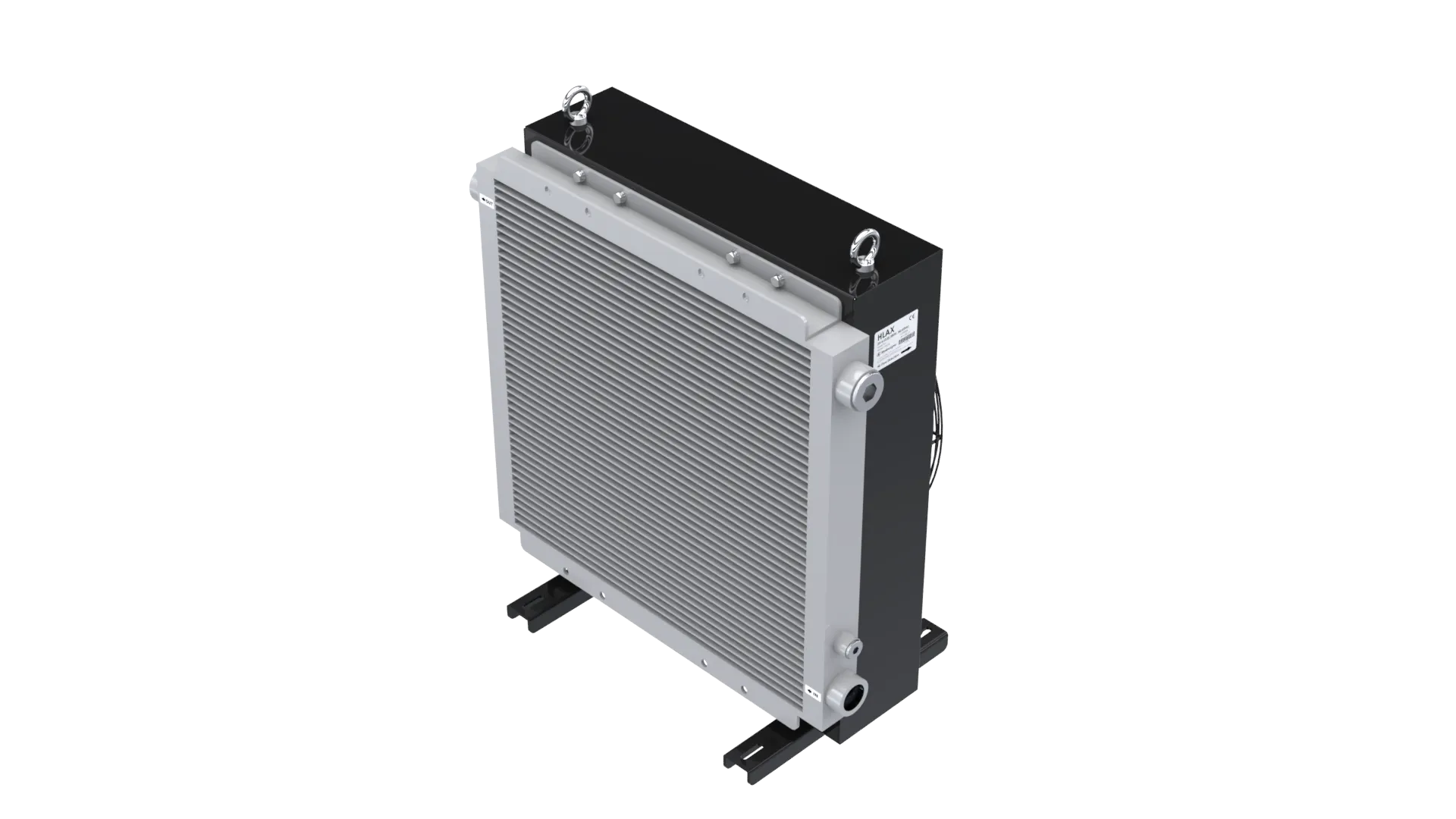

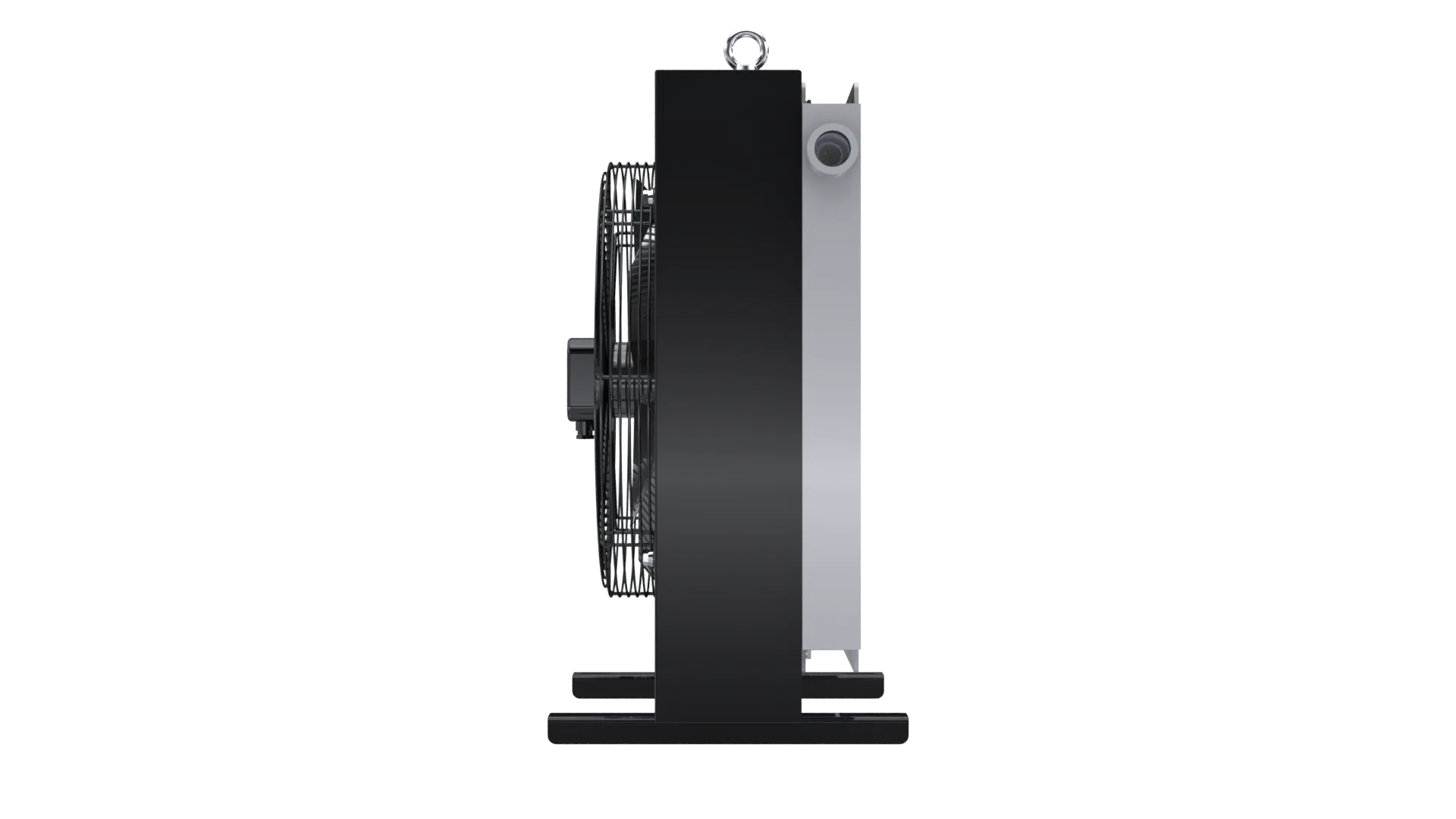

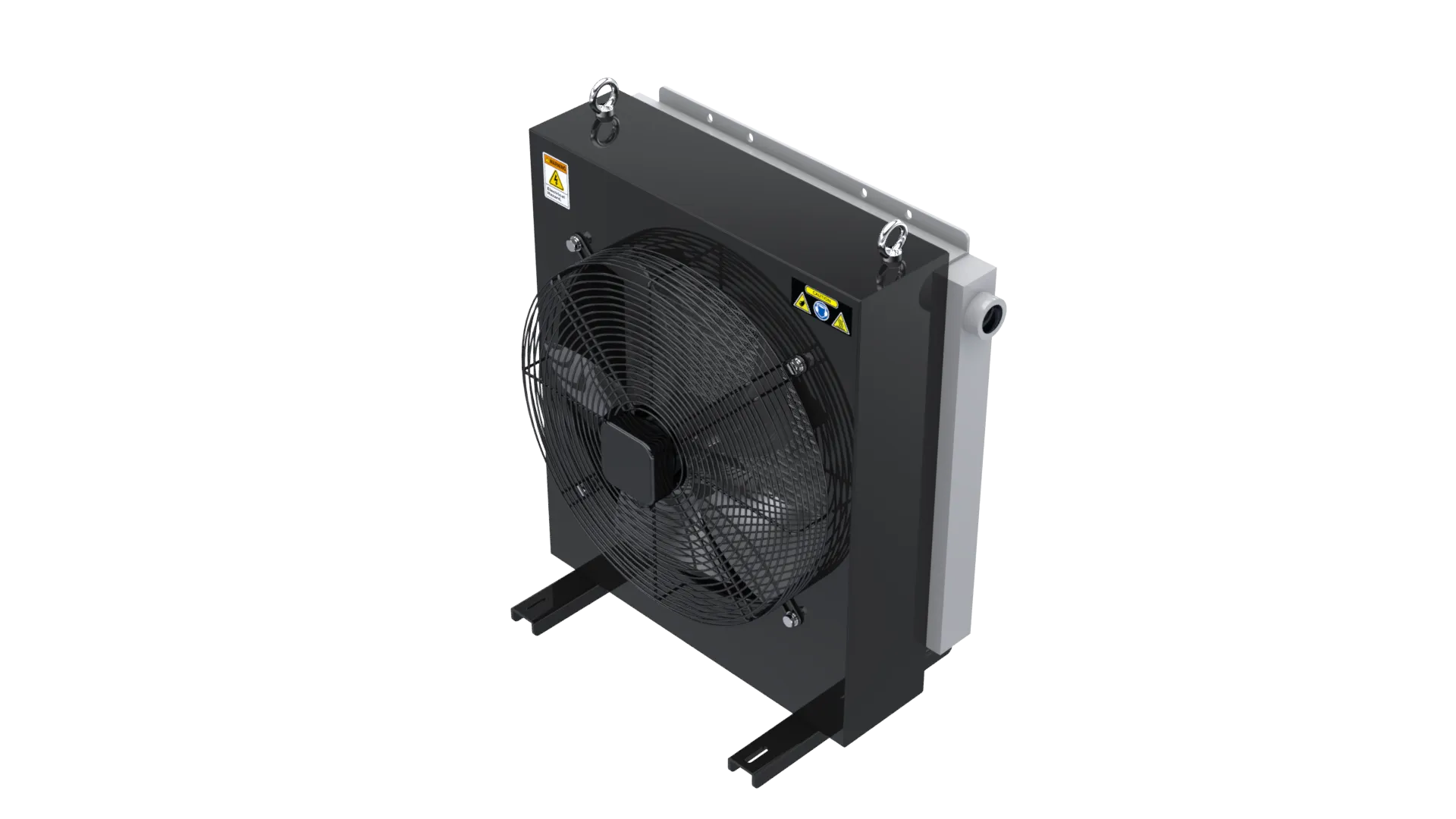

HydroLync HLAX 33-4 axial motor driven air-oil cooler

Request Quote

Quick Specifications

Cooling Capacity0.9 kW/°C
Heat Dissipation36 kW
Heat Dissipation (kcal/h)30960 kcal/h
Length (A)710 mm

Detailed Specifications

Performance

Cooling Capacity
0.9 kW/°C
Heat Dissipation
36 kW
Heat Dissipation (kcal/h)
30960 kcal/h

Dimensions

HLAX dimension drawing
Length (A)
710 mm
Width (B)
640 mm
Height (C)
740 mm
Depth (D)
334 mm
Dimension E
63 mm
Dimension F
482 mm
Dimension G
167 mm
Dimension H
400 mm
Dimension I
340 mm
Dimension J
440 mm
Dimension K
649 mm
Mounting Slot
ø10x40

Electrical

Insulation Grade
B, F
Max Speed (50Hz)
1500 RPM
Max Speed (60Hz)
1800 RPM
Motor Poles
4
Voltage
220/380V

Downloads

Accessories

Thermal Switch (DIN Connector)
TS-DIN
Thermal Switch (Wire Connector)
TS-WIRE
Matrix Stone Guard
STONE-GUARD
Matrix Dust Guard
DUST-GUARD
Matrix Dust + Stone Guard
COMBO-GUARD
