HLAX 58-4 Axial Motor Cooler

Product specifications and documentation

HLAX 58-4 Axial Motor Cooler
HLAX-58-6

HLAX 58-4 Axial Motor Cooler

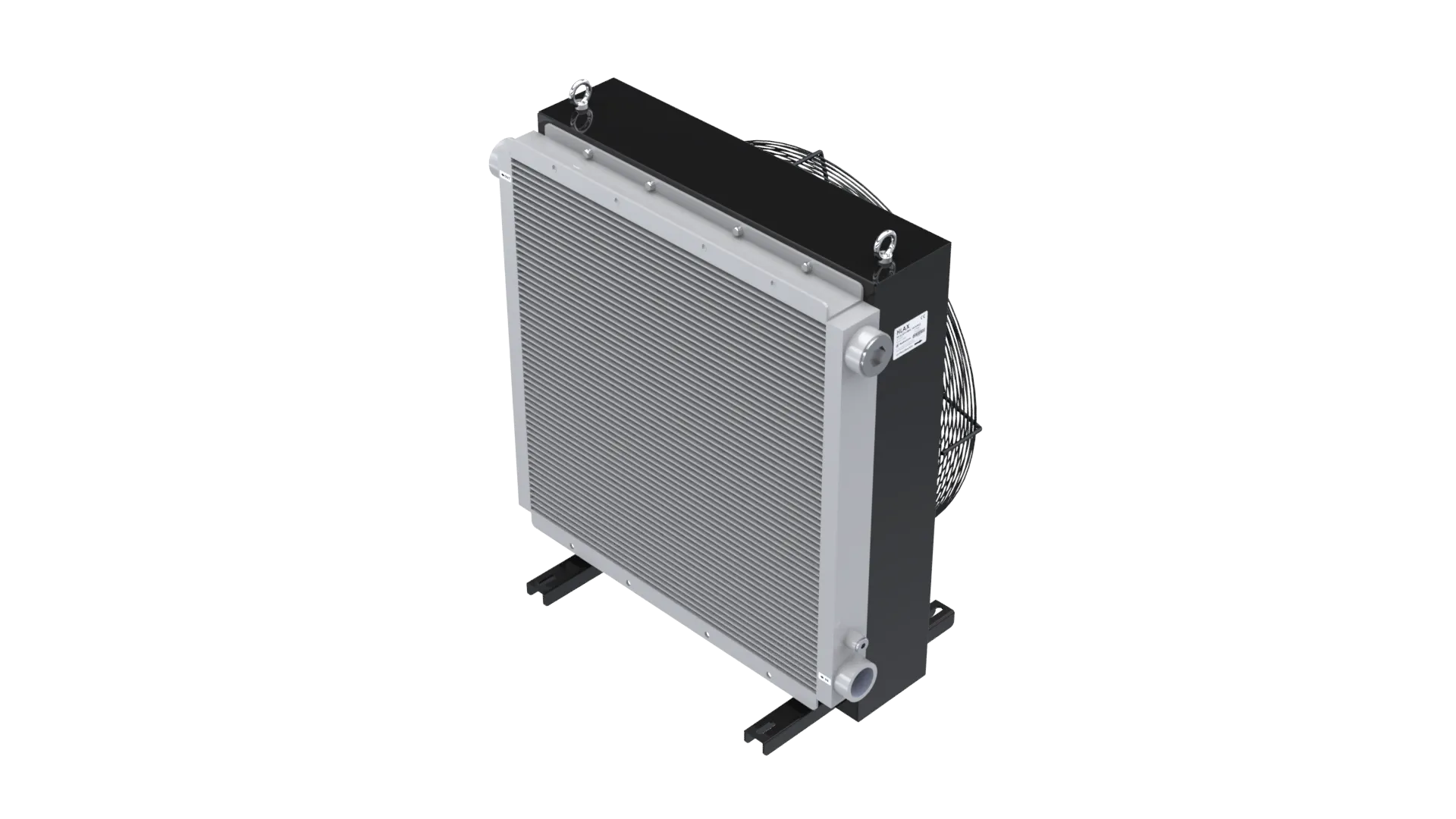

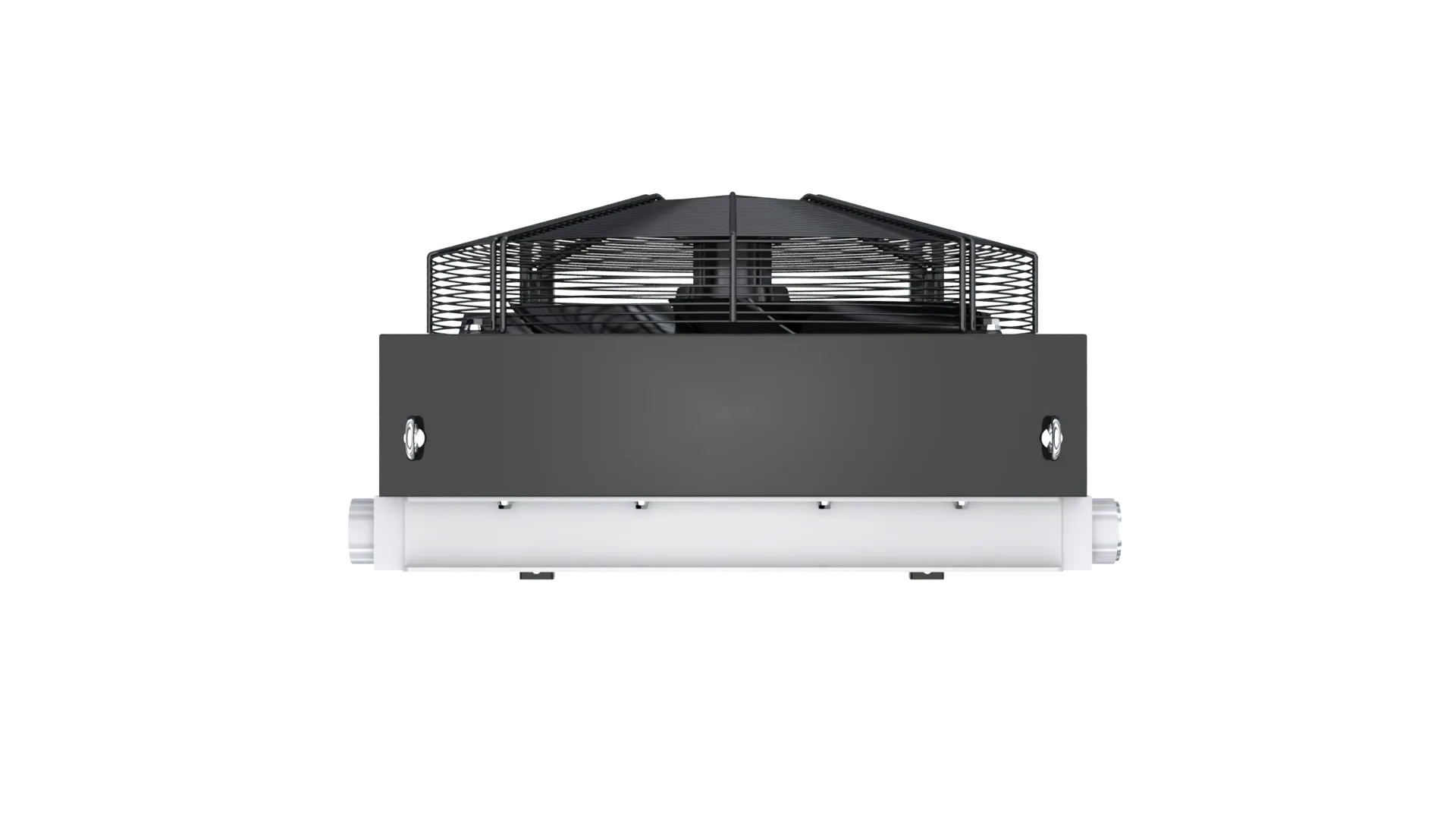

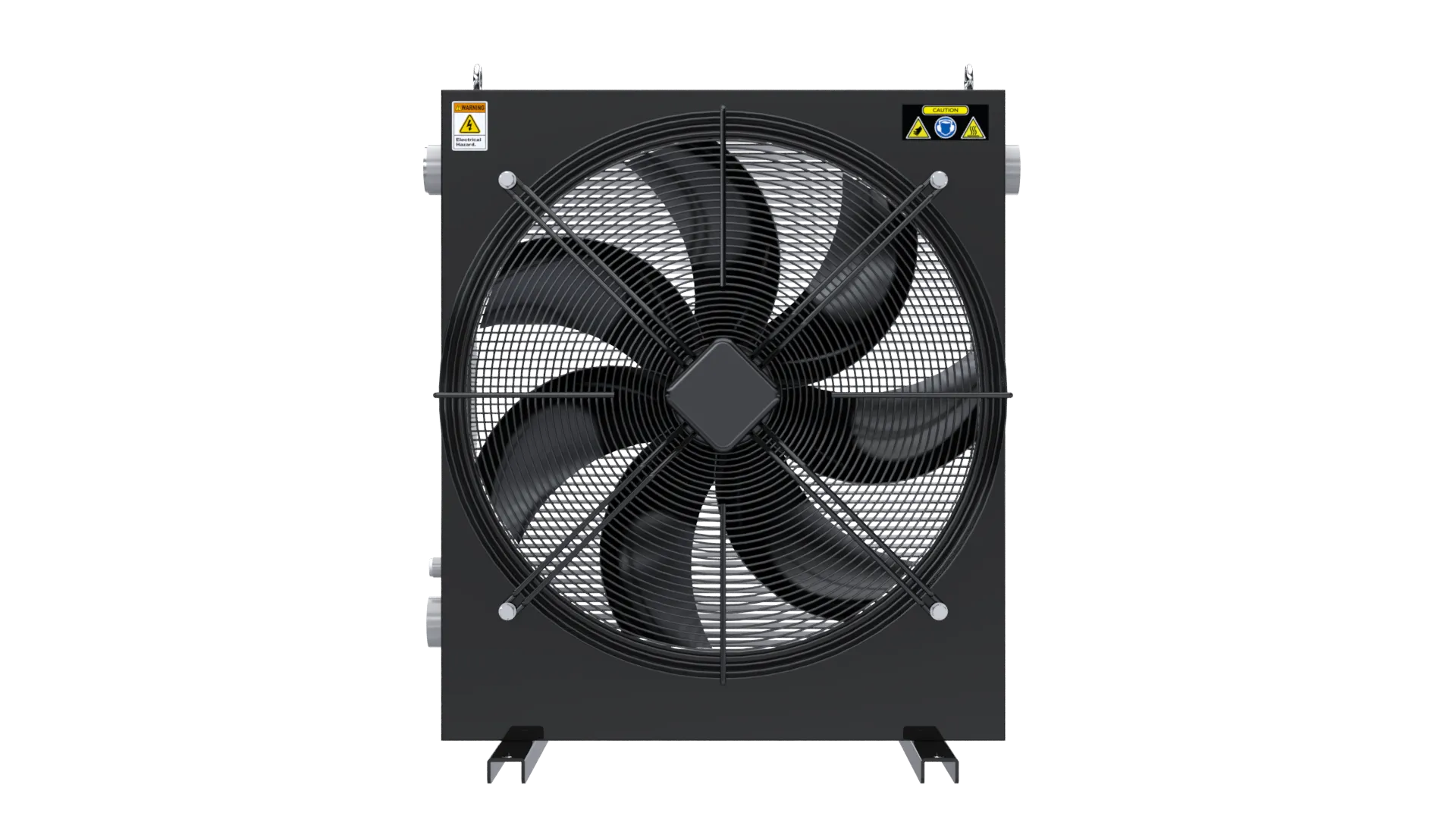

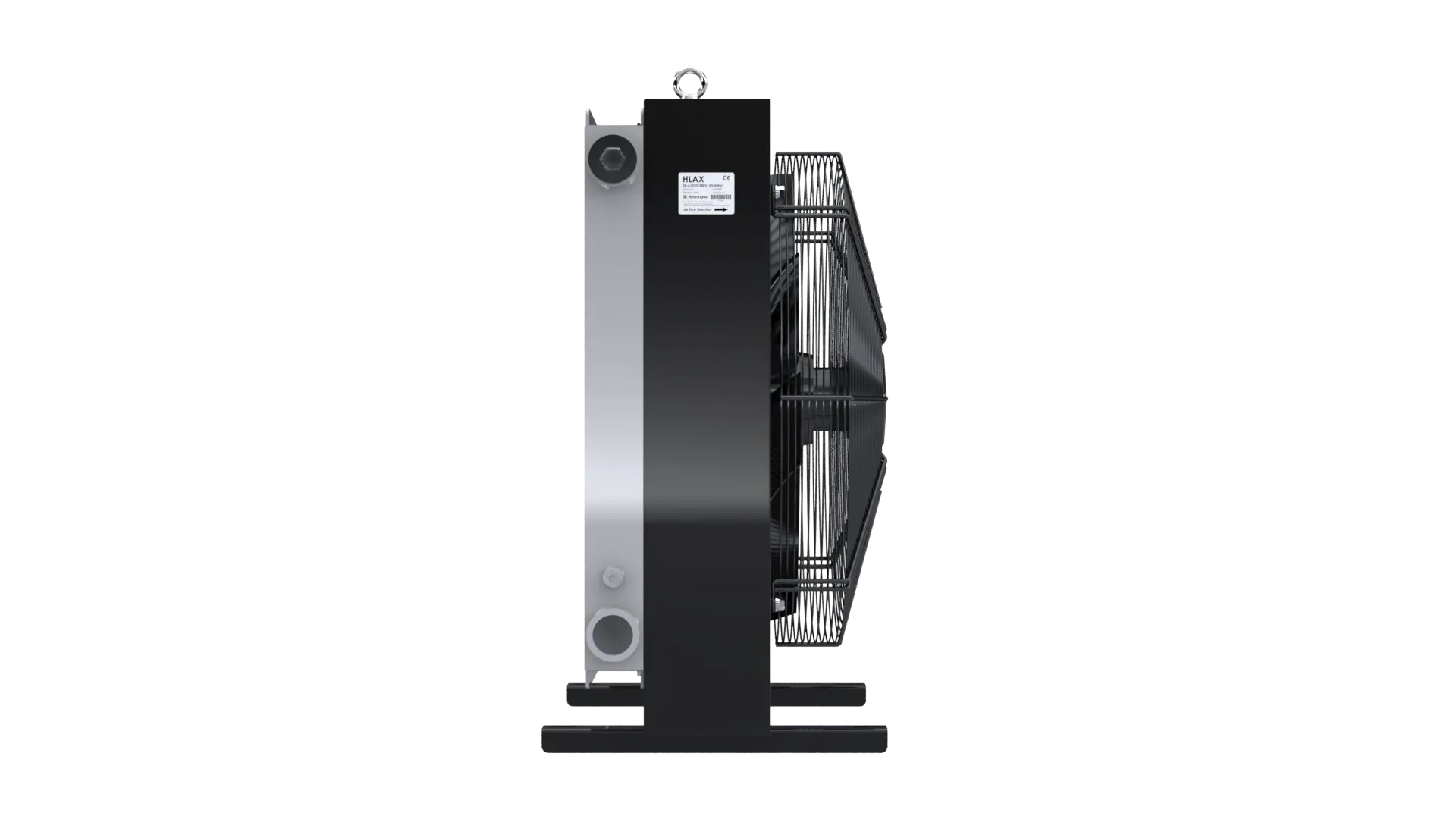

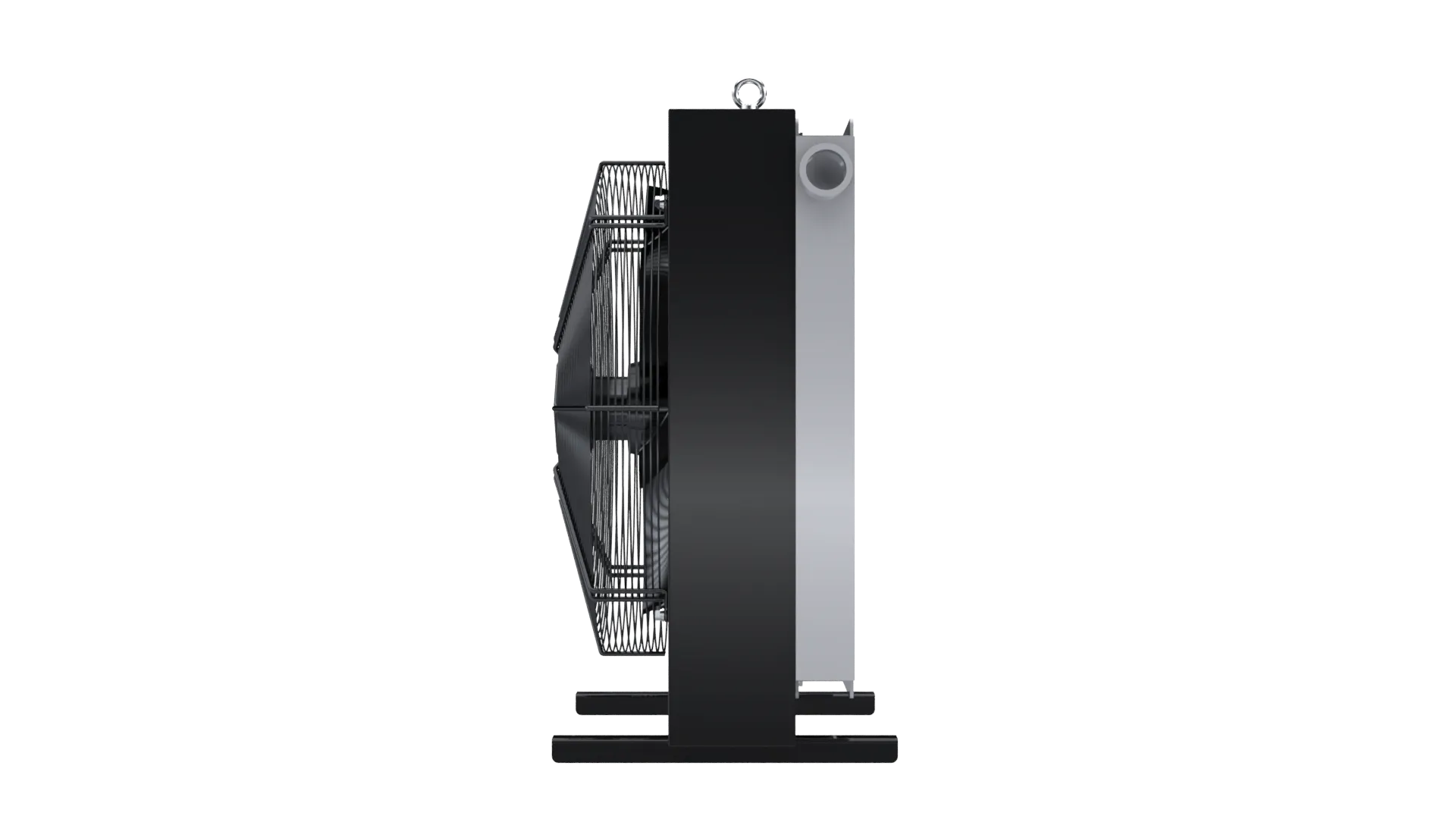

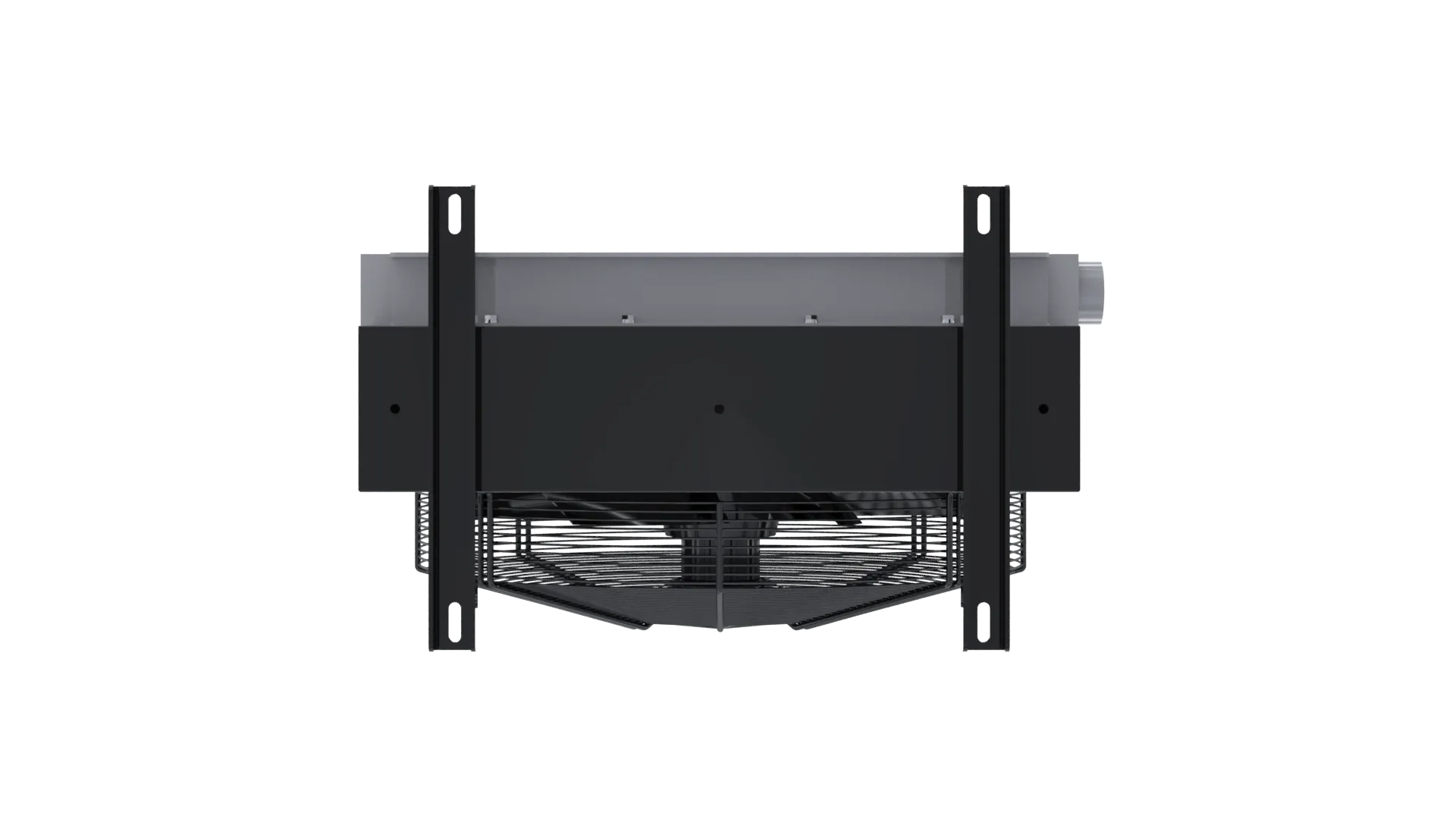

HydroLync HLAX 58-6 axial motor driven air-oil cooler

Request Quote

Quick Specifications

Cooling Capacity1.6 kW/°C
Heat Dissipation64 kW
Heat Dissipation (kcal/h)55040 kcal/h
Length (A)900 mm

Detailed Specifications

Performance

Cooling Capacity
1.6 kW/°C
Heat Dissipation
64 kW
Heat Dissipation (kcal/h)
55040 kcal/h

Dimensions

HLAX dimension drawing
Length (A)
900 mm
Width (B)
802 mm
Height (C)
935 mm
Depth (D)
447 mm
Dimension E
83 mm
Dimension F
664 mm
Dimension G
181 mm
Dimension H
500 mm
Dimension I
440 mm
Dimension J
570 mm
Dimension K
845 mm
Mounting Slot
ø13x43

Electrical

Insulation Grade
B, F
Max Speed (50Hz)
1000 RPM
Max Speed (60Hz)
1200 RPM
Motor Poles
6
Voltage
380V

Downloads

Accessories

Thermal Switch (DIN Connector)
TS-DIN
Thermal Switch (Wire Connector)
TS-WIRE
Matrix Stone Guard
STONE-GUARD
Matrix Dust Guard
DUST-GUARD
Matrix Dust + Stone Guard
COMBO-GUARD
