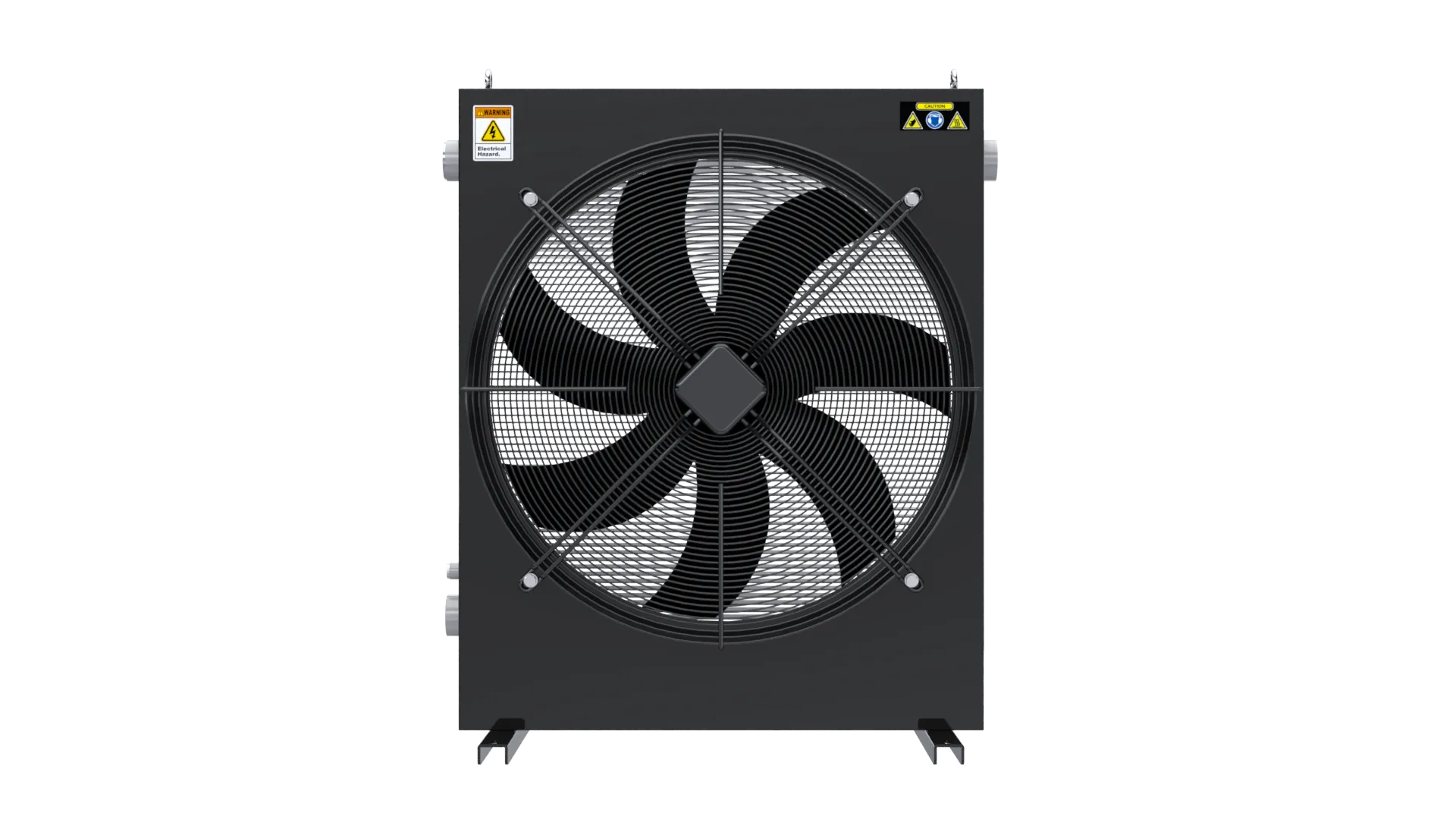

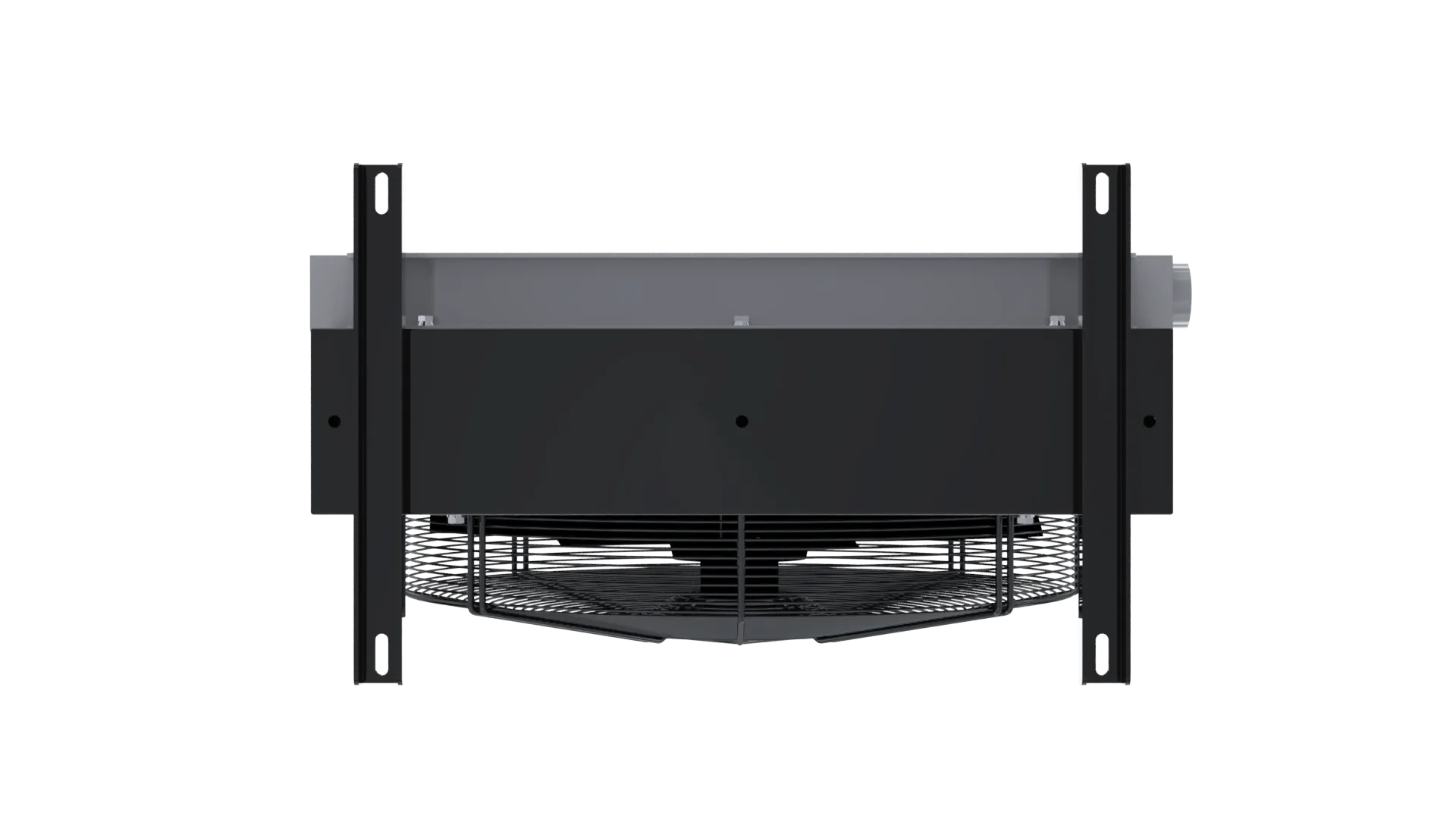

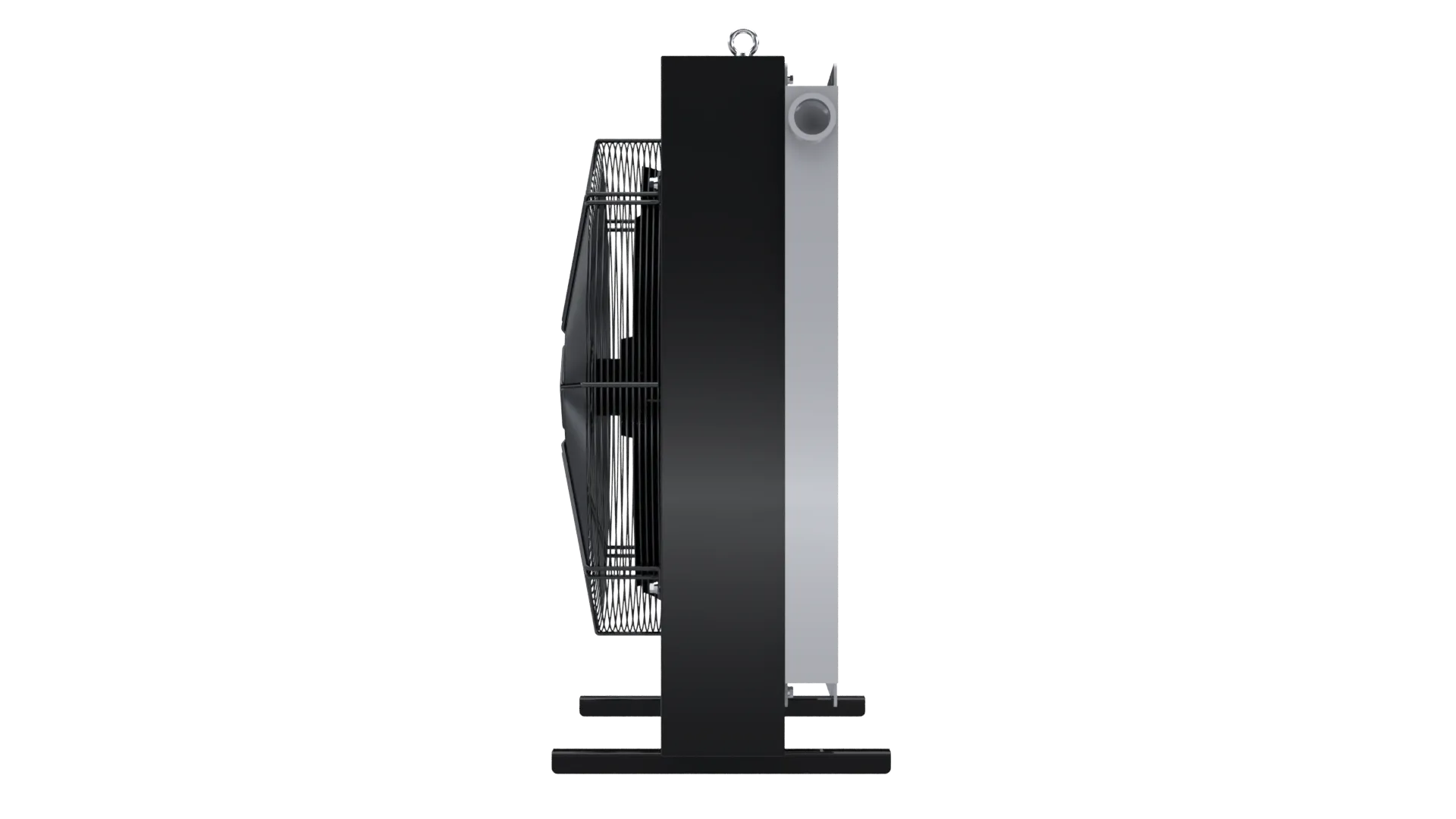

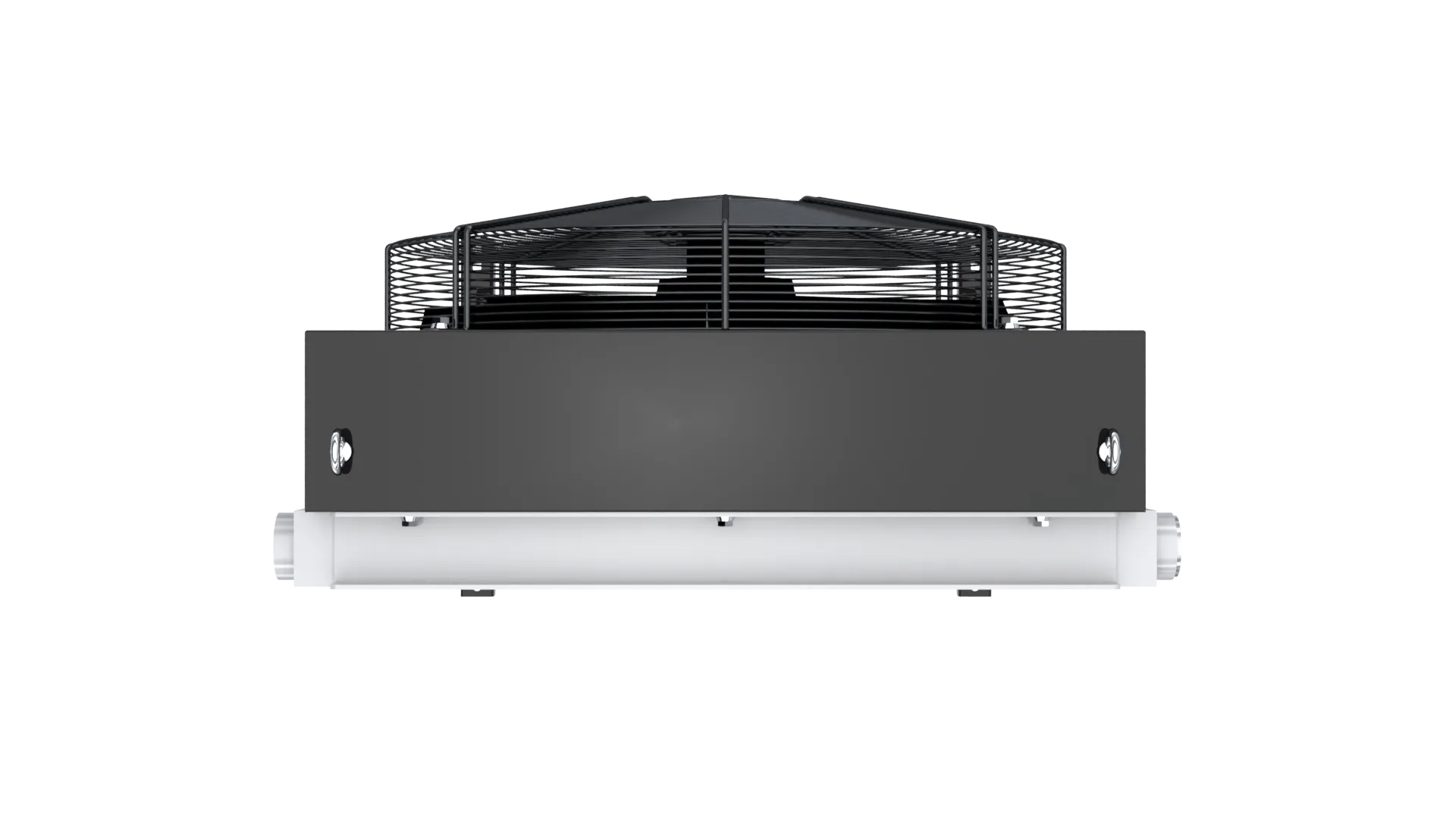

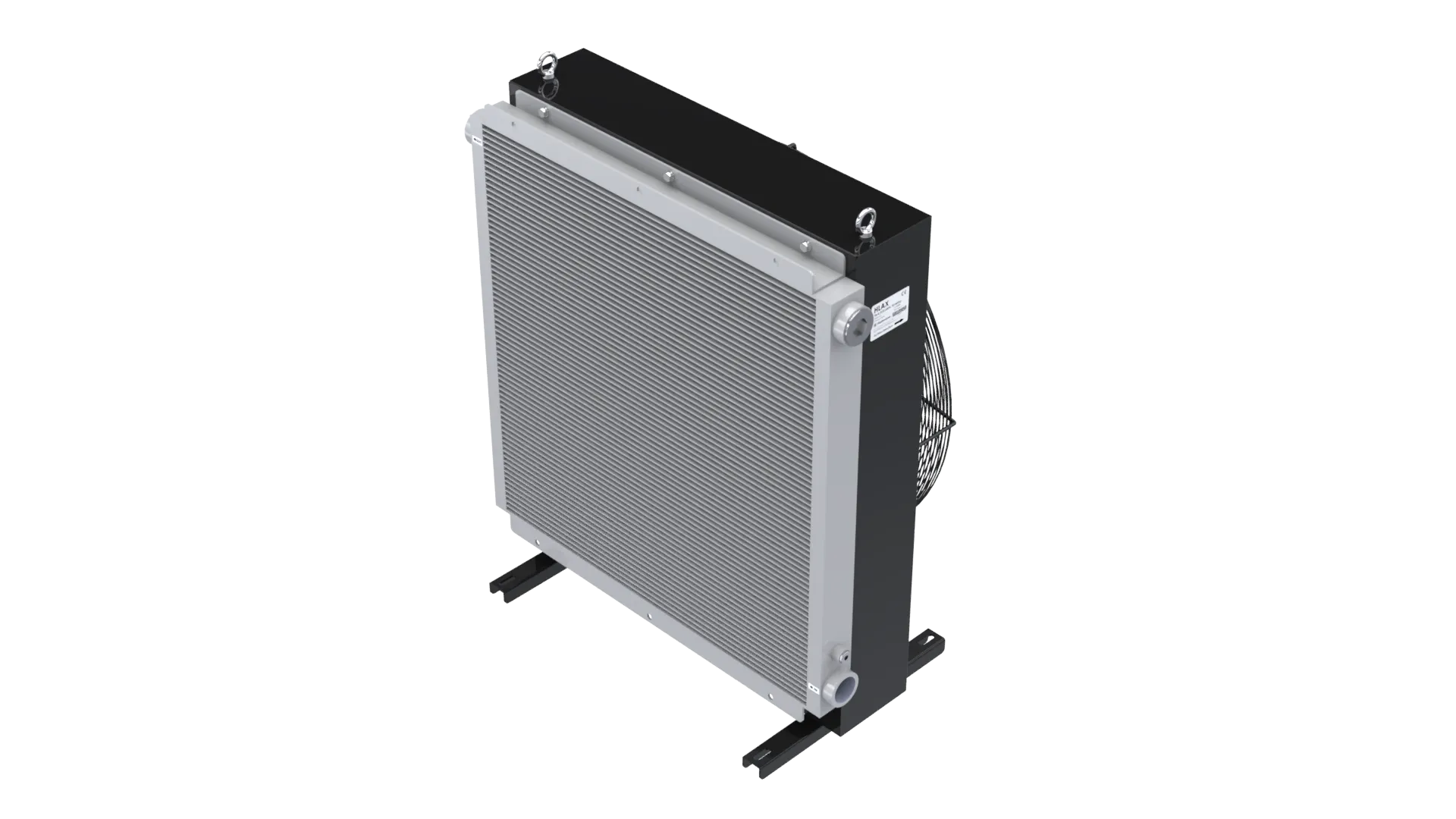

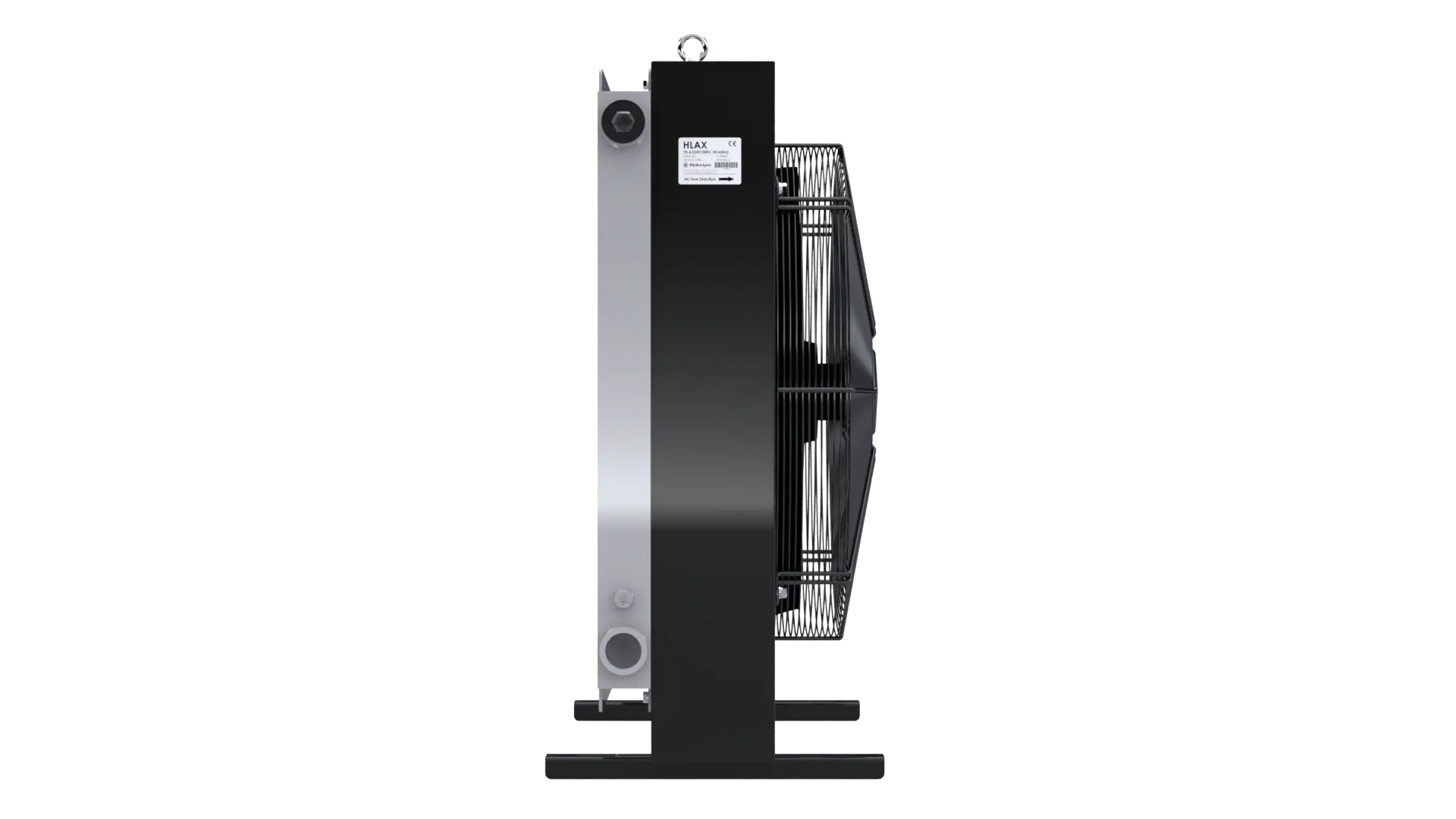

HLAX 78-6 Axial Motor Cooler

Product specifications and documentation

HLAX 78-6 Axial Motor Cooler
HLAX-78-6

HLAX 78-6 Axial Motor Cooler

Request Quote

Quick Specifications

Cooling Capacity2.07 kW/°C
Heat Dissipation82 kW
Heat Dissipation (kcal/h)71200 kcal/h
Length (A)1100 mm

Detailed Specifications

Performance

Cooling Capacity
2.07 kW/°C
Heat Dissipation
82 kW
Heat Dissipation (kcal/h)
71200 kcal/h

Dimensions

HLAX dimension drawing
Length (A)
1100 mm
Width (B)
940 mm
Height (C)
1135 mm
Depth (D)
462 mm
Dimension E
83 mm
Dimension F
821 mm
Dimension G
213 mm
Dimension H
540 mm
Dimension I
480 mm
Dimension J
750 mm
Dimension K
1034 mm
Mounting Slot
ø13x43

Electrical

Insulation Grade
B, F
Max Speed (50Hz)
1000 RPM
Max Speed (60Hz)
1200 RPM
Motor Poles
6
Voltage
380V

Downloads

Accessories

Thermal Switch (DIN Connector)
TS-DIN
Thermal Switch (Wire Connector)
TS-WIRE
Matrix Stone Guard
STONE-GUARD
Matrix Dust Guard
DUST-GUARD
Matrix Dust + Stone Guard
COMBO-GUARD
