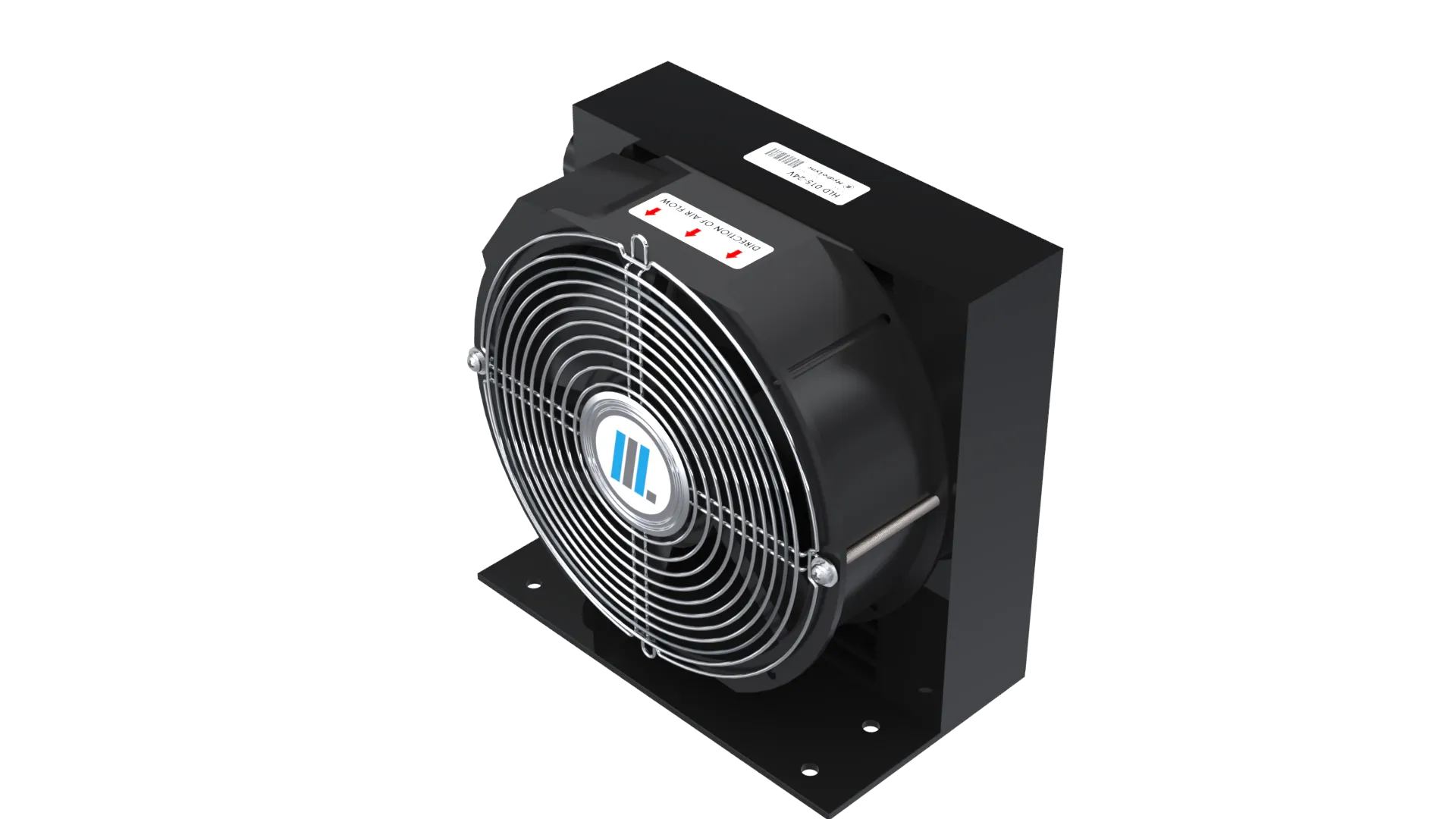

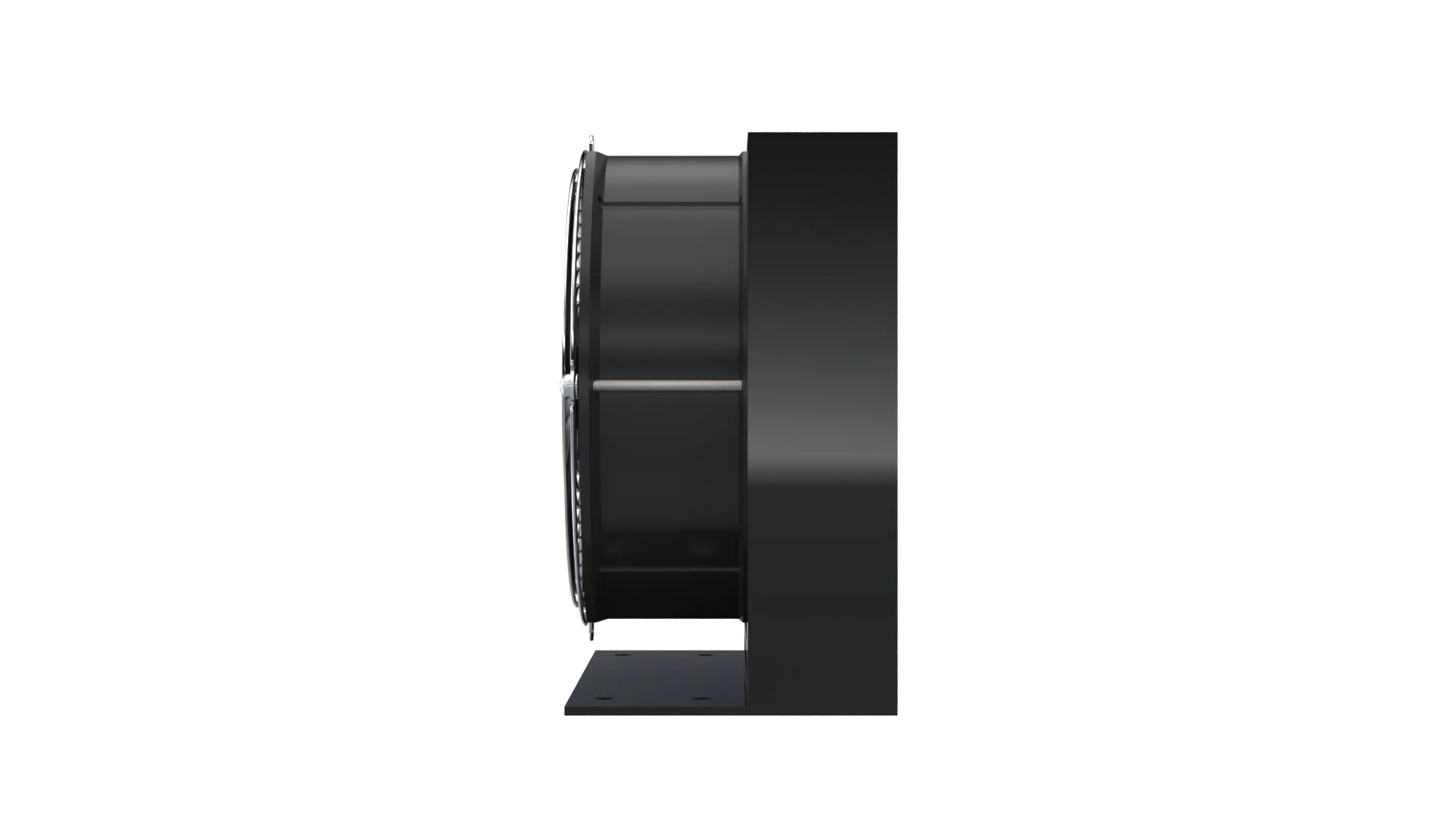

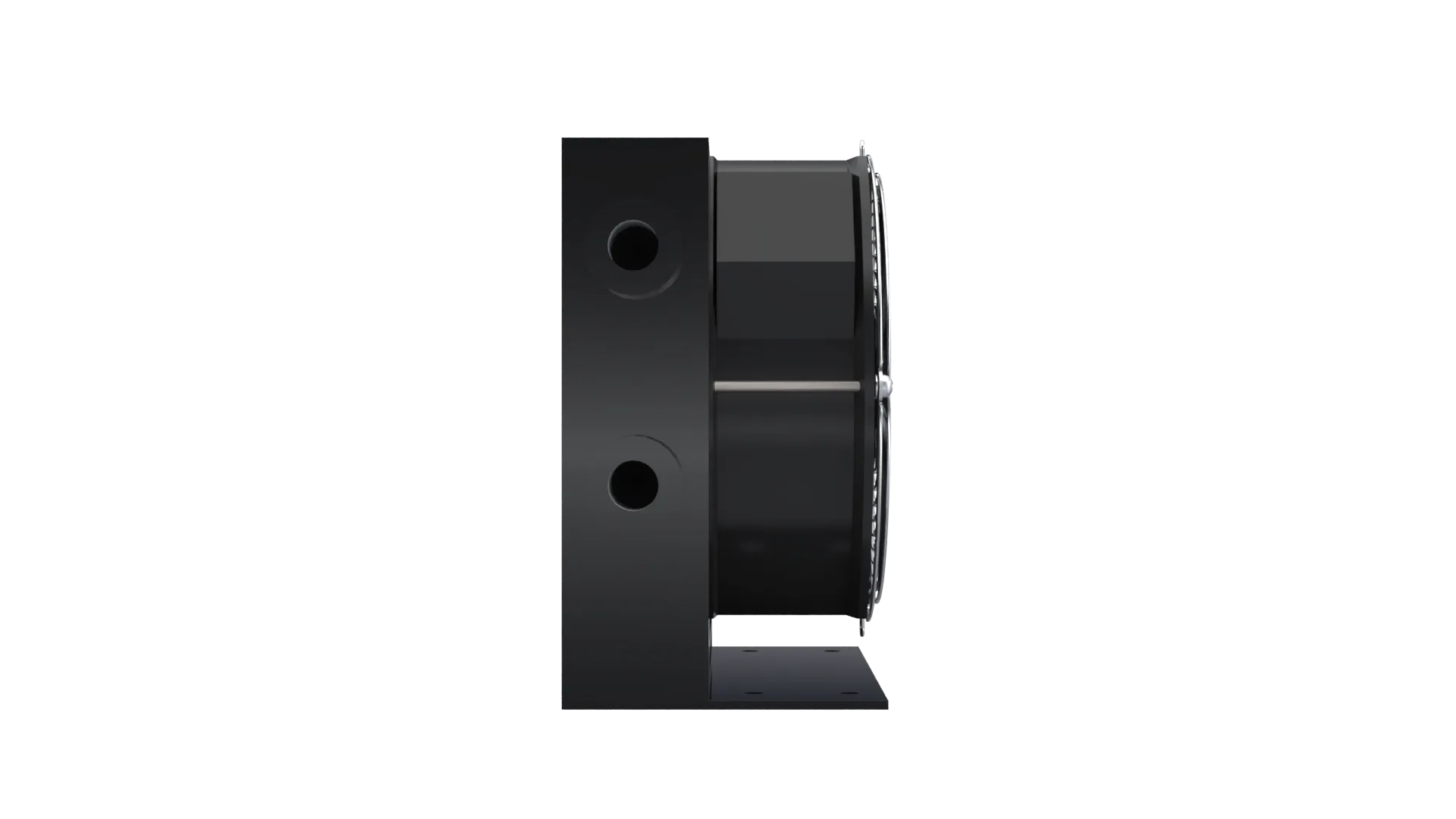

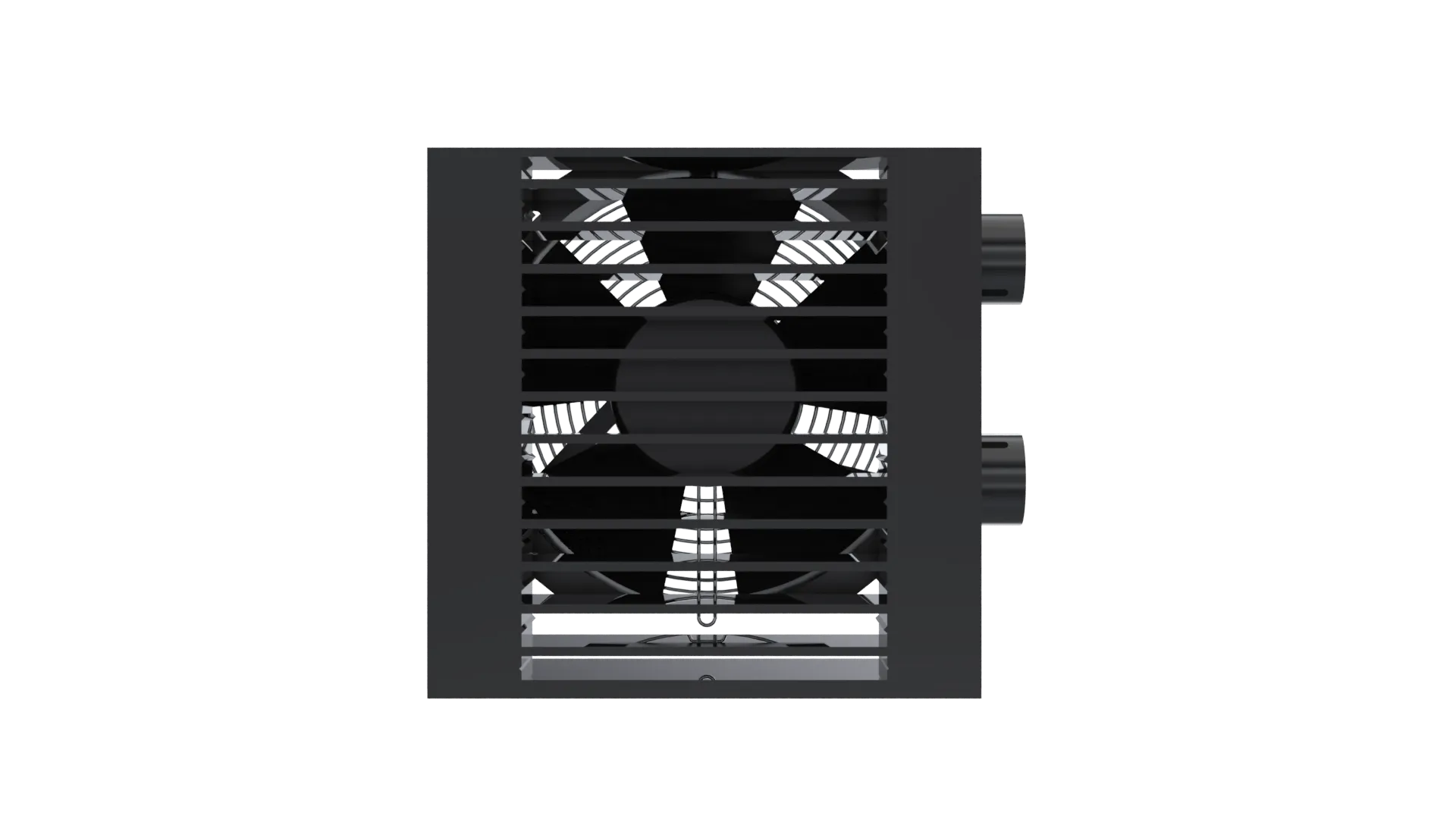

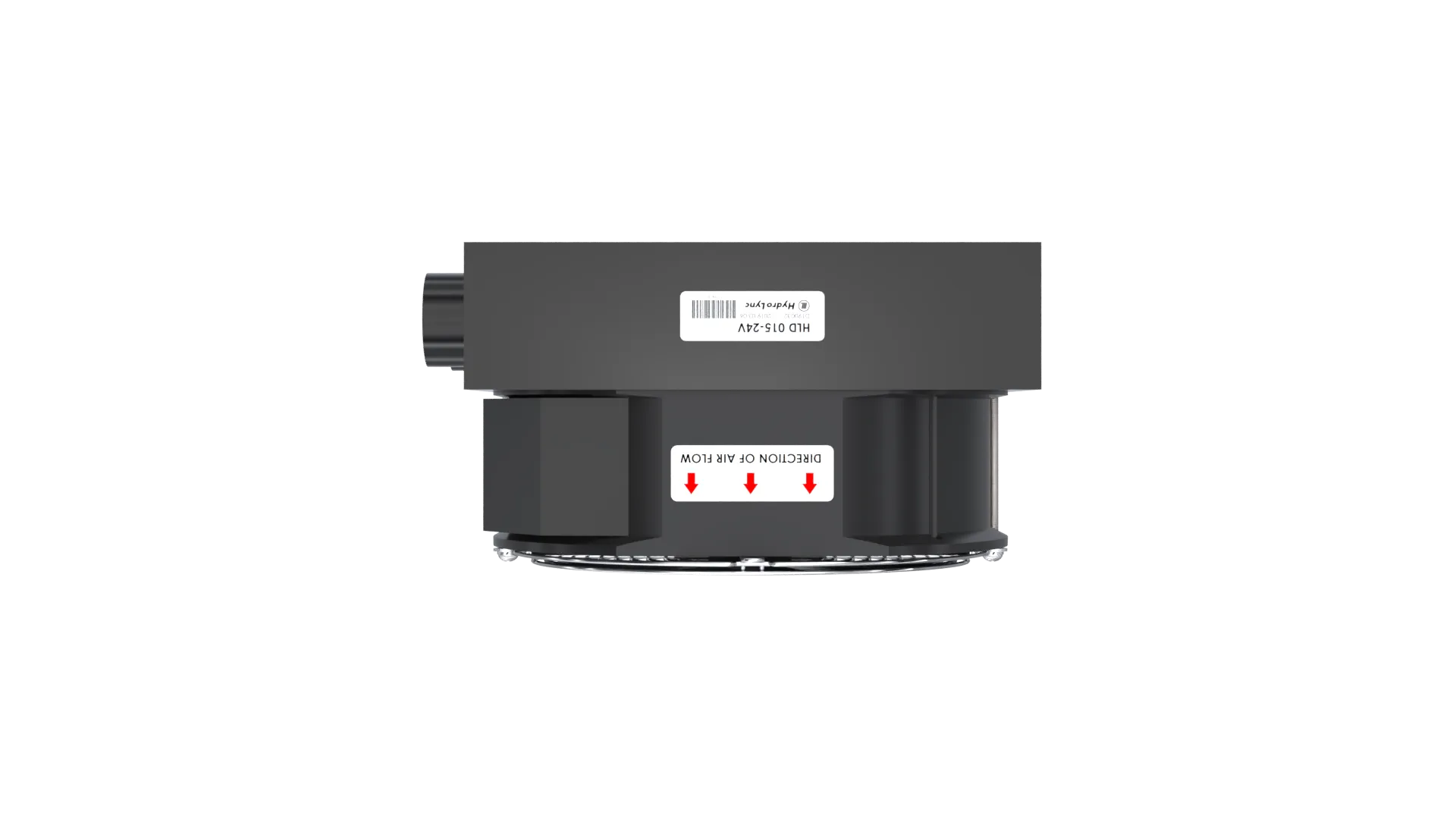

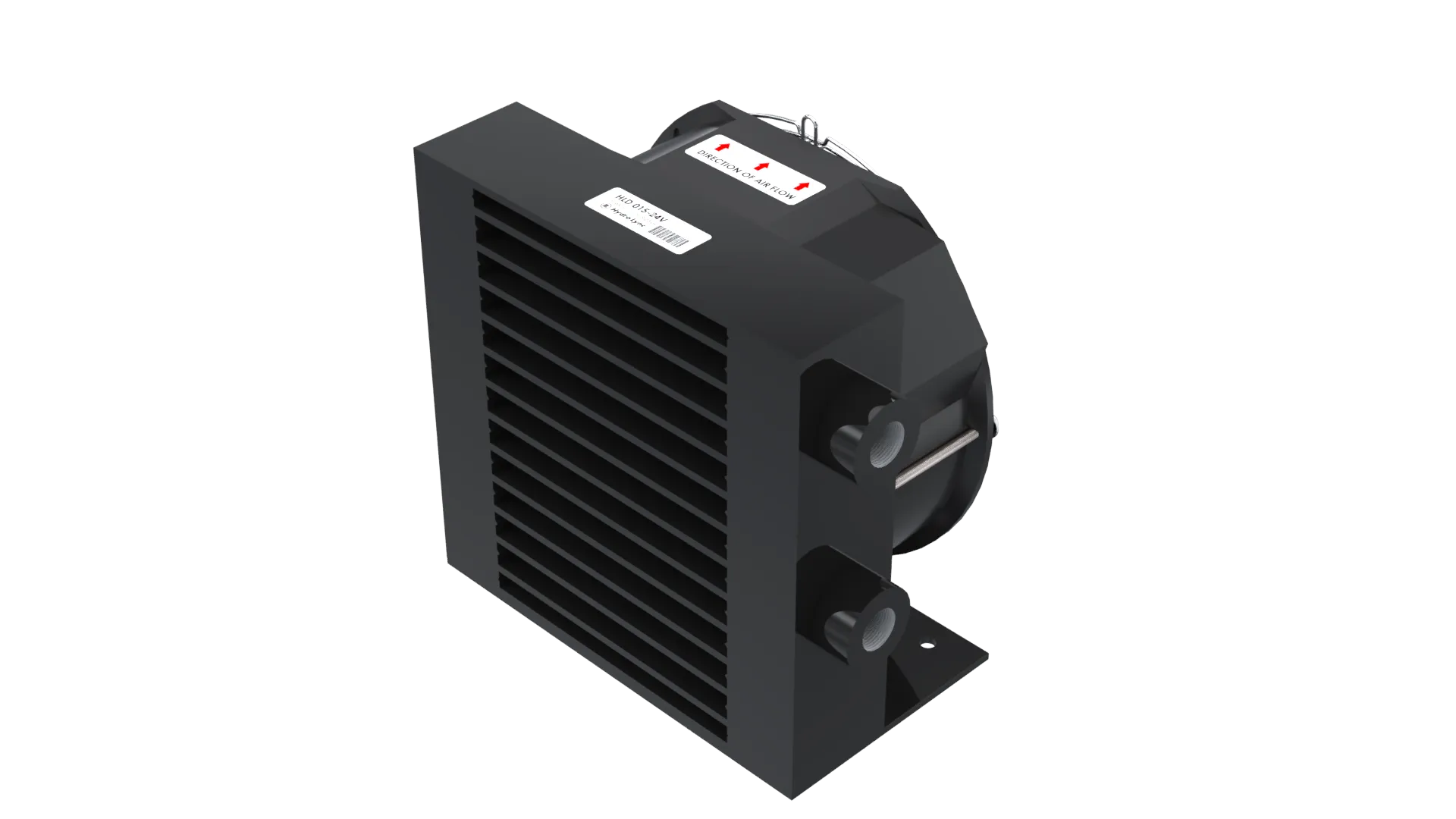

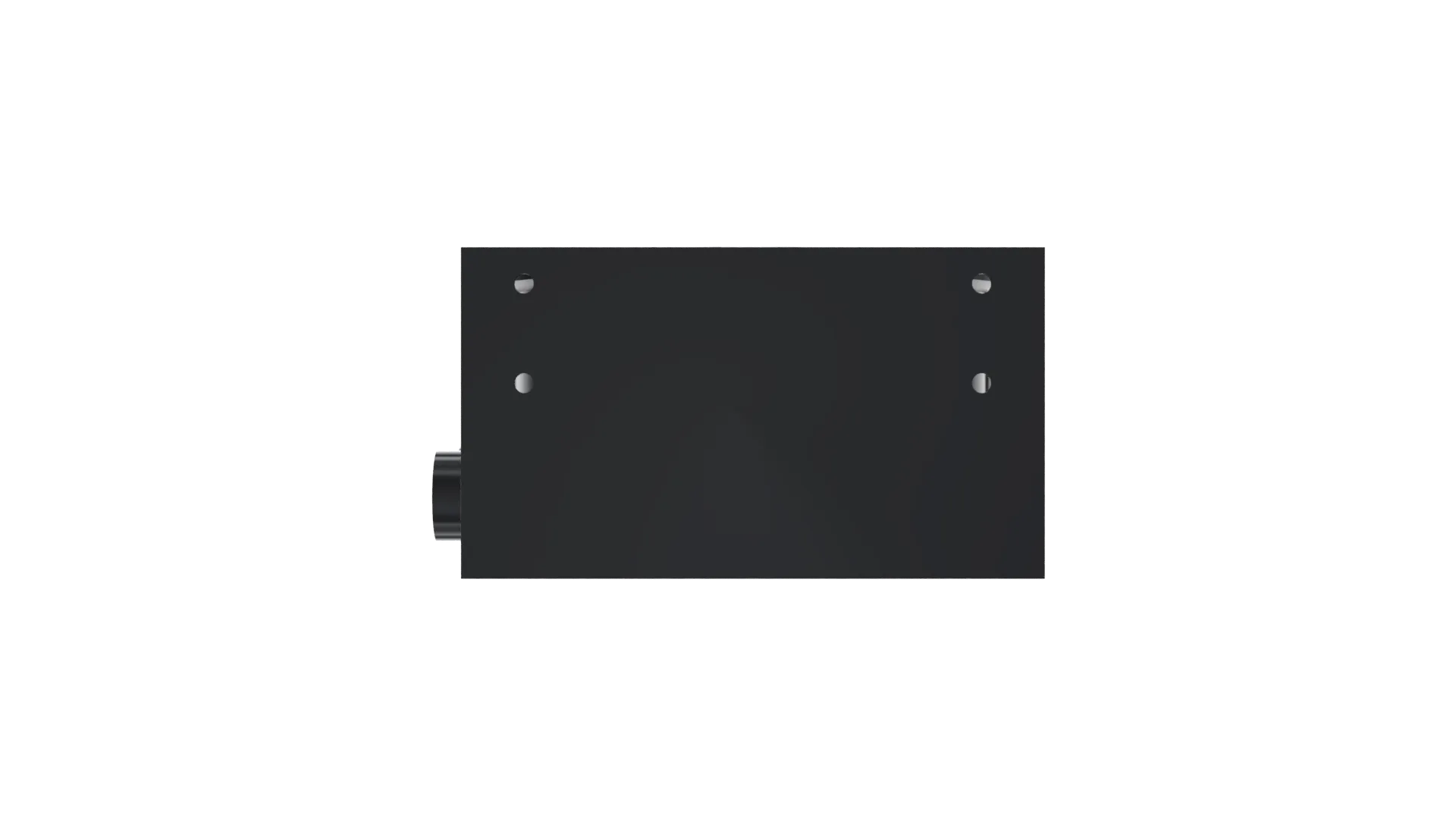

HydroLync HLD 015 DC motor driven air-oil cooler

Request Quote

Quick Specifications

Cooling Capacity0.048 kW/°C
Heat Dissipation (kcal/h)1651 kcal/h
Heat Dissipation (kW)1.92 kW
Max Flow Rate40 LPM

Detailed Specifications

Performance

Cooling Capacity
0.048 kW/°C
Heat Dissipation (kcal/h)
1651 kcal/h
Heat Dissipation (kW)
1.92 kW
Max Flow Rate
40 LPM
Motor RPM
3060 RPM
Noise Level
52 dBA
Oil Flow (Max)
10~40 (<ΔP=1.2 bar) LPM
Working Pressure (Max)
14 bar

Dimensions

HLD dimension drawing
Bracket Hole
4x⌀6
Depth (D)
104.3 mm
Dimension E
45 mm
Dimension F
72 mm
Dimension G
69 mm
Dimension H
100 mm
Dimension I
30 mm
Dimension J
138 mm
Height (C)
175 mm
Length (A)
175 mm
Net Weight
2.6 kg
Width (B)
176 mm

Electrical

DC Voltage
12V/24V V
12V Motor Specs
12V / 1.1A @3,200rpm
24V Motor Specs
24V / 0.6A @3,200rpm
