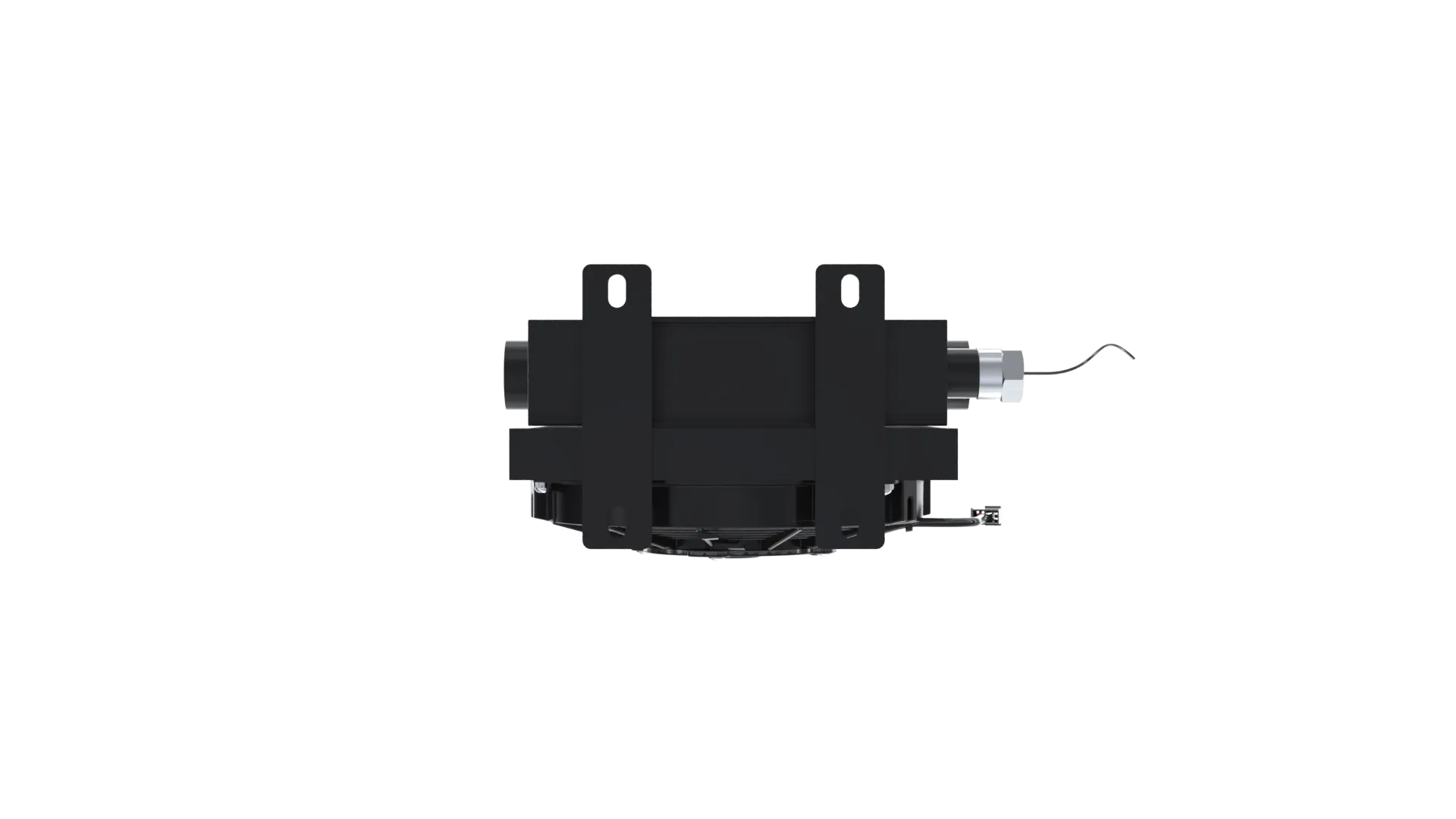

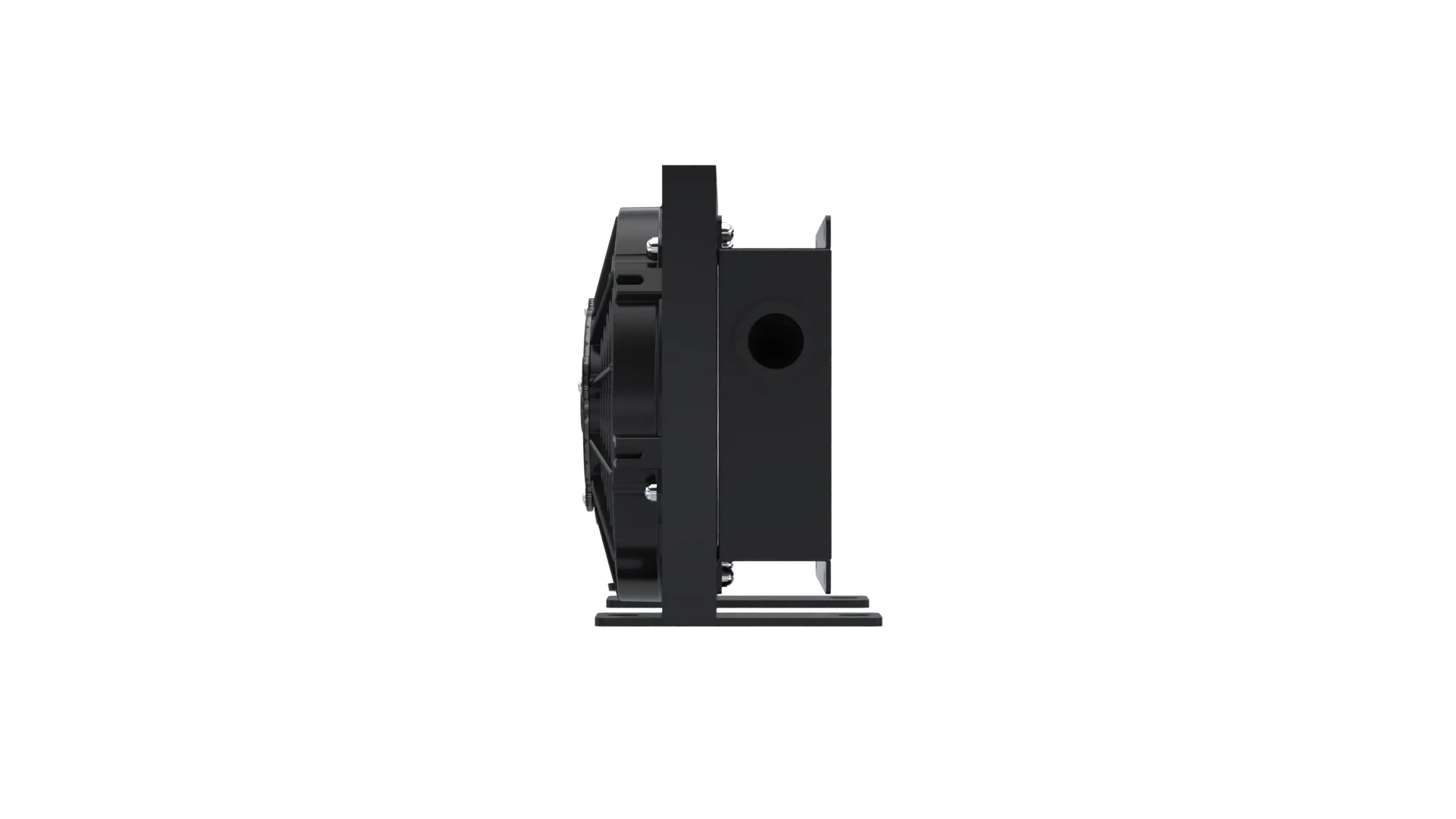

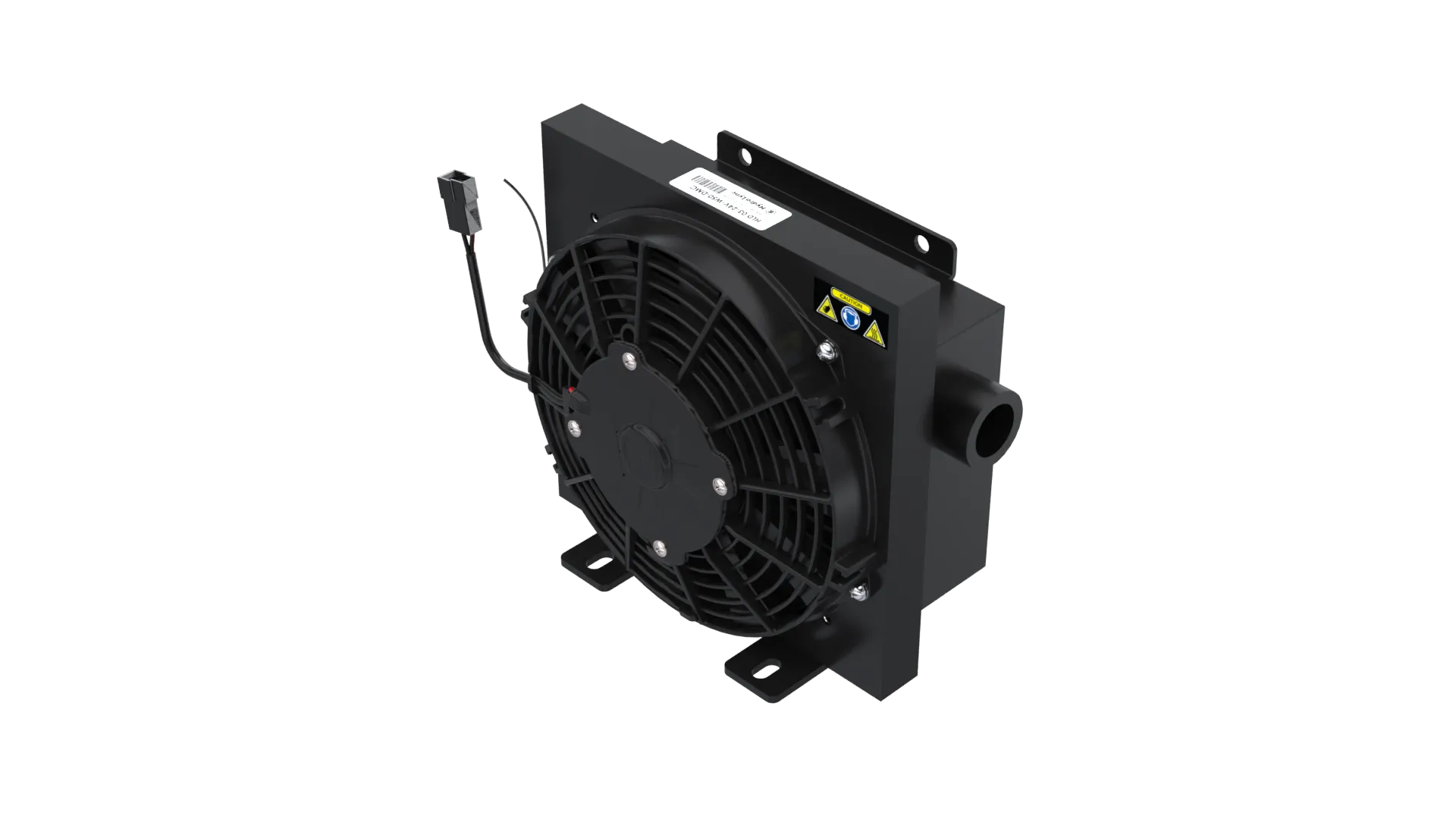

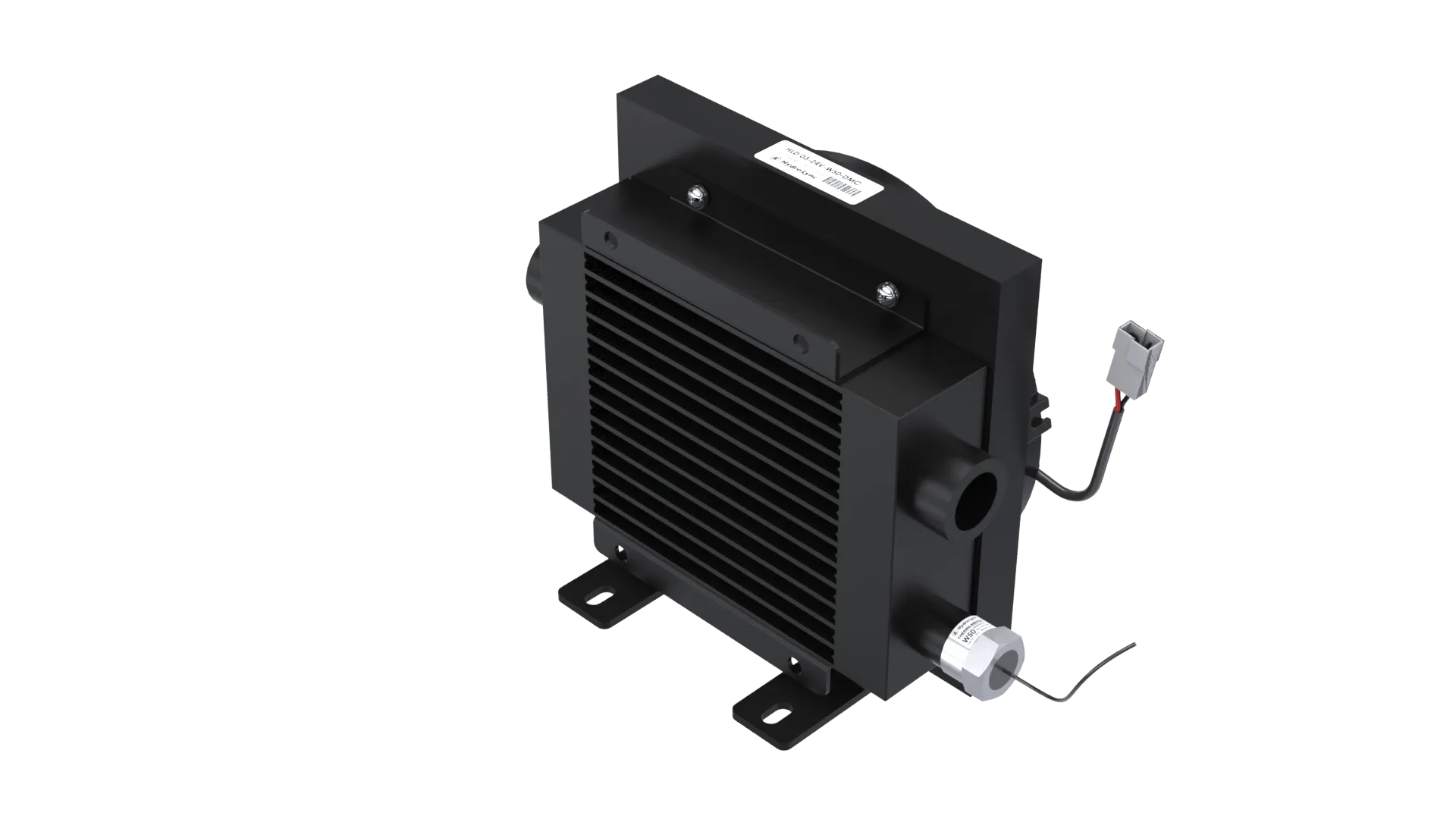

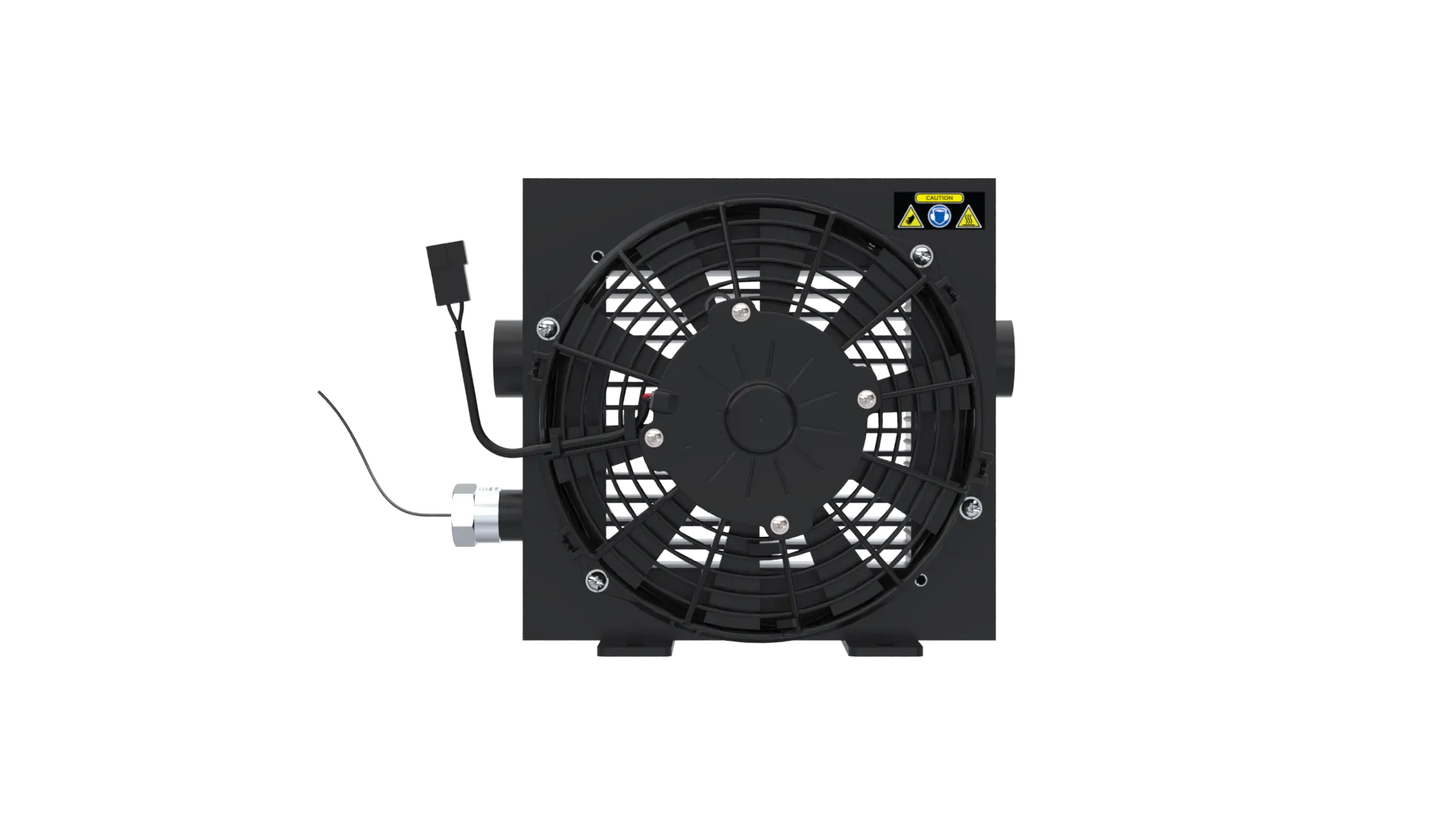

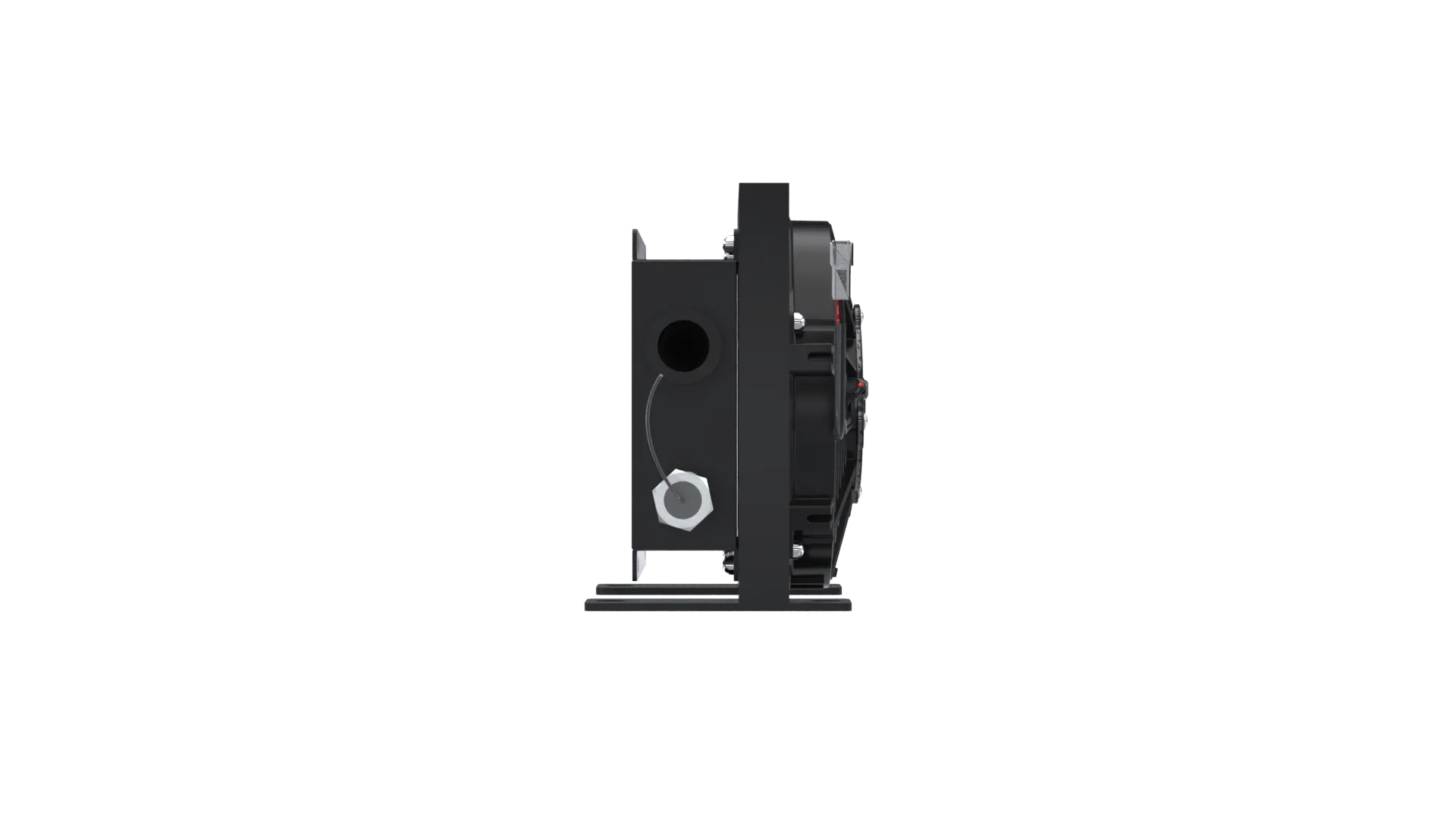

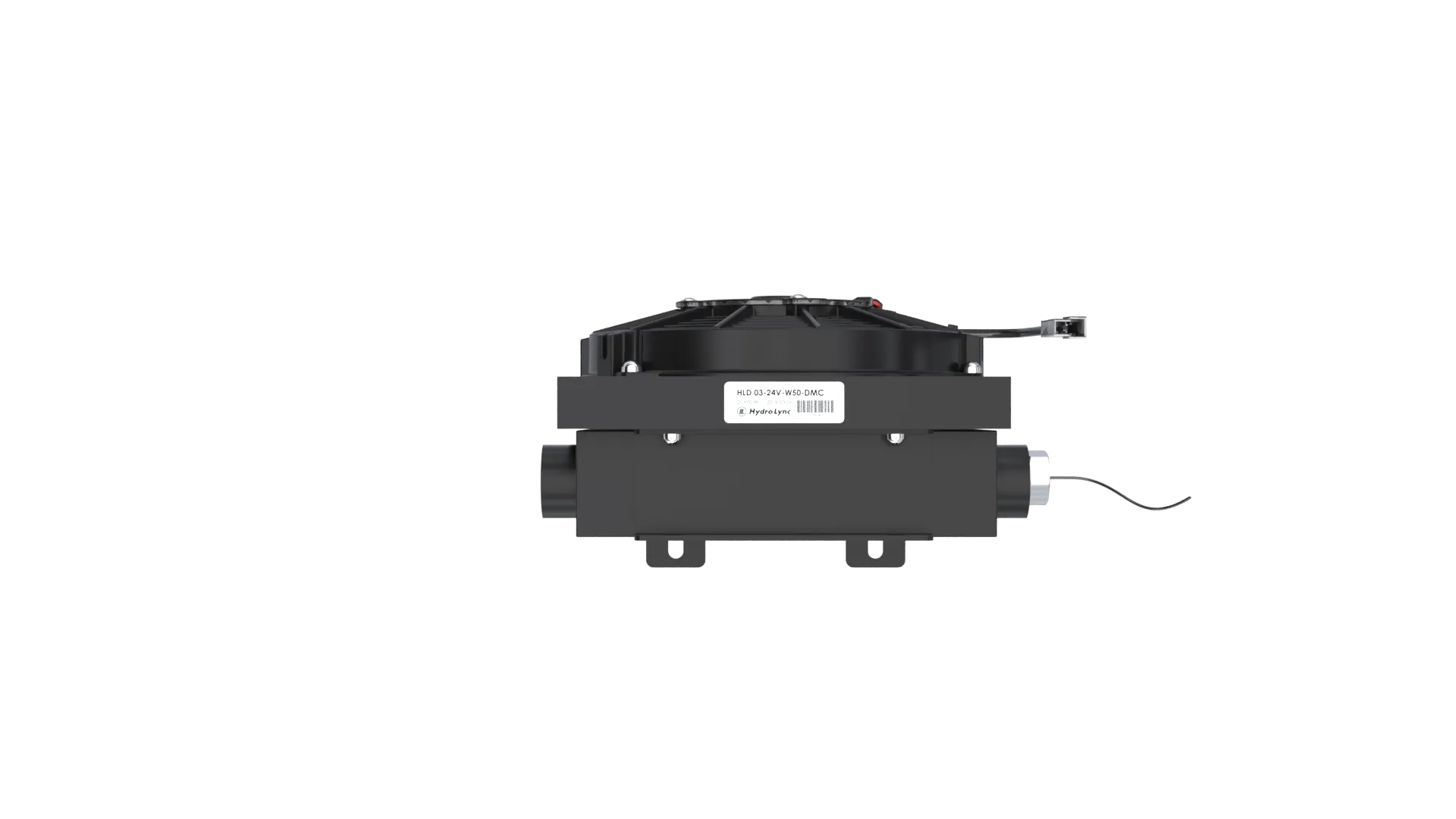

HydroLync HLD 03 DC motor driven air-oil cooler

Request Quote

Quick Specifications

Cooling Capacity0.08 kW/°C
Heat Dissipation (kW)3.2 kW
Heat Dissipation (kcal/h)2752 kcal/h
Max Flow Rate100 LPM

Detailed Specifications

Performance

Cooling Capacity
0.08 kW/°C
Heat Dissipation (kW)
3.2 kW
Heat Dissipation (kcal/h)
2752 kcal/h
Max Flow Rate
100 LPM
Motor RPM
3060 RPM
Noise Level
68 dBA
Oil Flow (Max)
Max. 100 LPM
Working Pressure (Max)
14 bar

Dimensions

HLD dimension drawing
Length (A)
253 mm
Width (B)
259 mm
Height (C)
258 mm
Depth (D)
160.2 mm
Dimension E
63 mm
Dimension F
89.5 mm
Dimension G
71 mm
Dimension H
164 mm
Dimension I
133 mm
Dimension J
134 mm
Dimension K
160.5 mm
Net Weight
5 kg
Bracket Hole
4x(⌀10x19)

Electrical

DC Voltage
12V/24V V
12V Motor Specs
12V / 8A @3,350rpm
24V Motor Specs
24V / 4A @3,350rpm
Insulation Class
H (180℃/356℉)

Downloads

Accessories

DMC Motor Controller
DMC
iDMC Intelligent Motor Controller
iDMC
DTM Digital Thermometer
DTM
Thermal Switch (DIN Connector)
TS-DIN
Thermal Switch (Wire Connector)
TS-WIRE
Matrix Stone Guard
STONE-GUARD
Matrix Dust Guard
DUST-GUARD
Matrix Dust + Stone Guard
COMBO-GUARD
