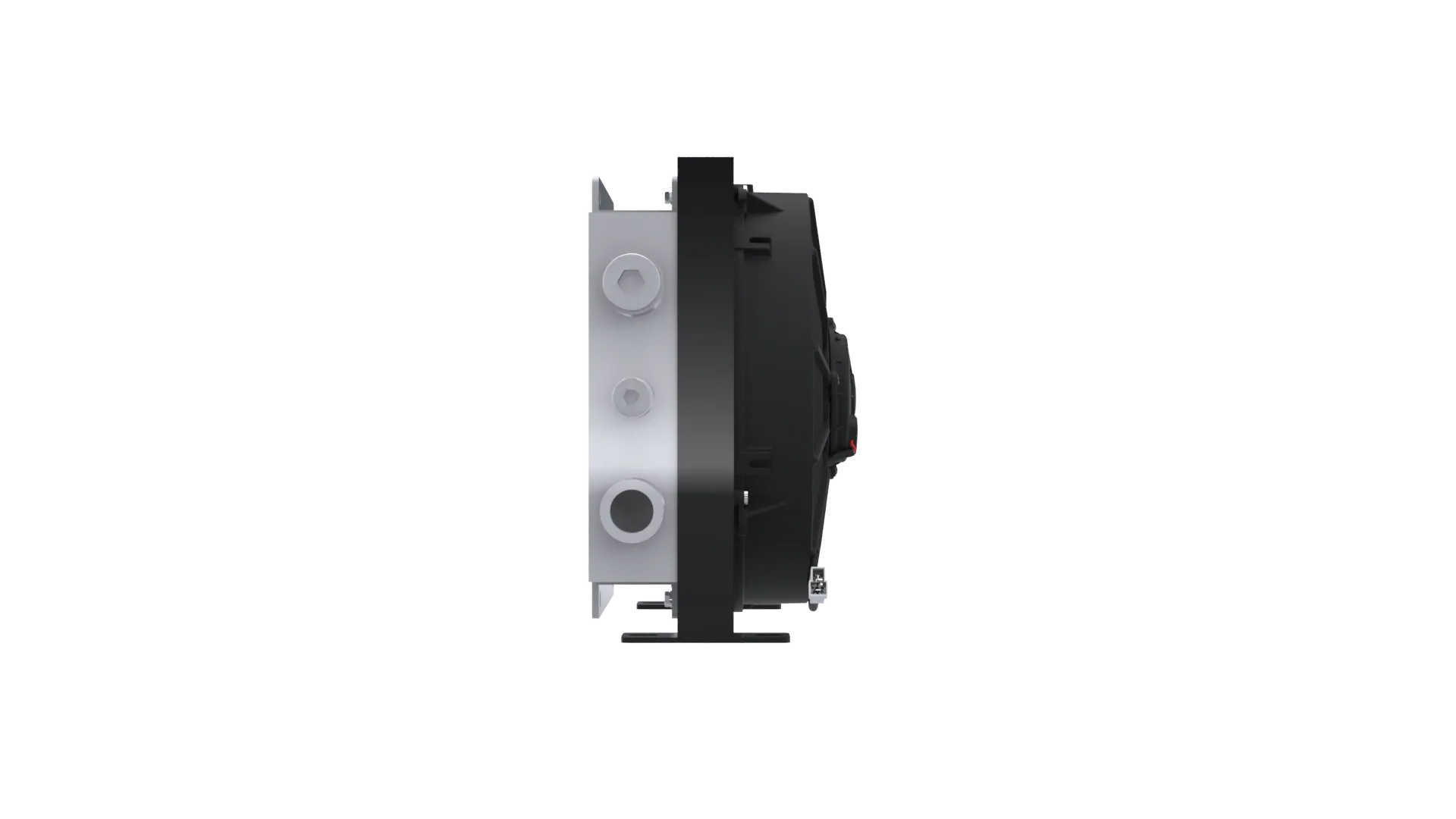

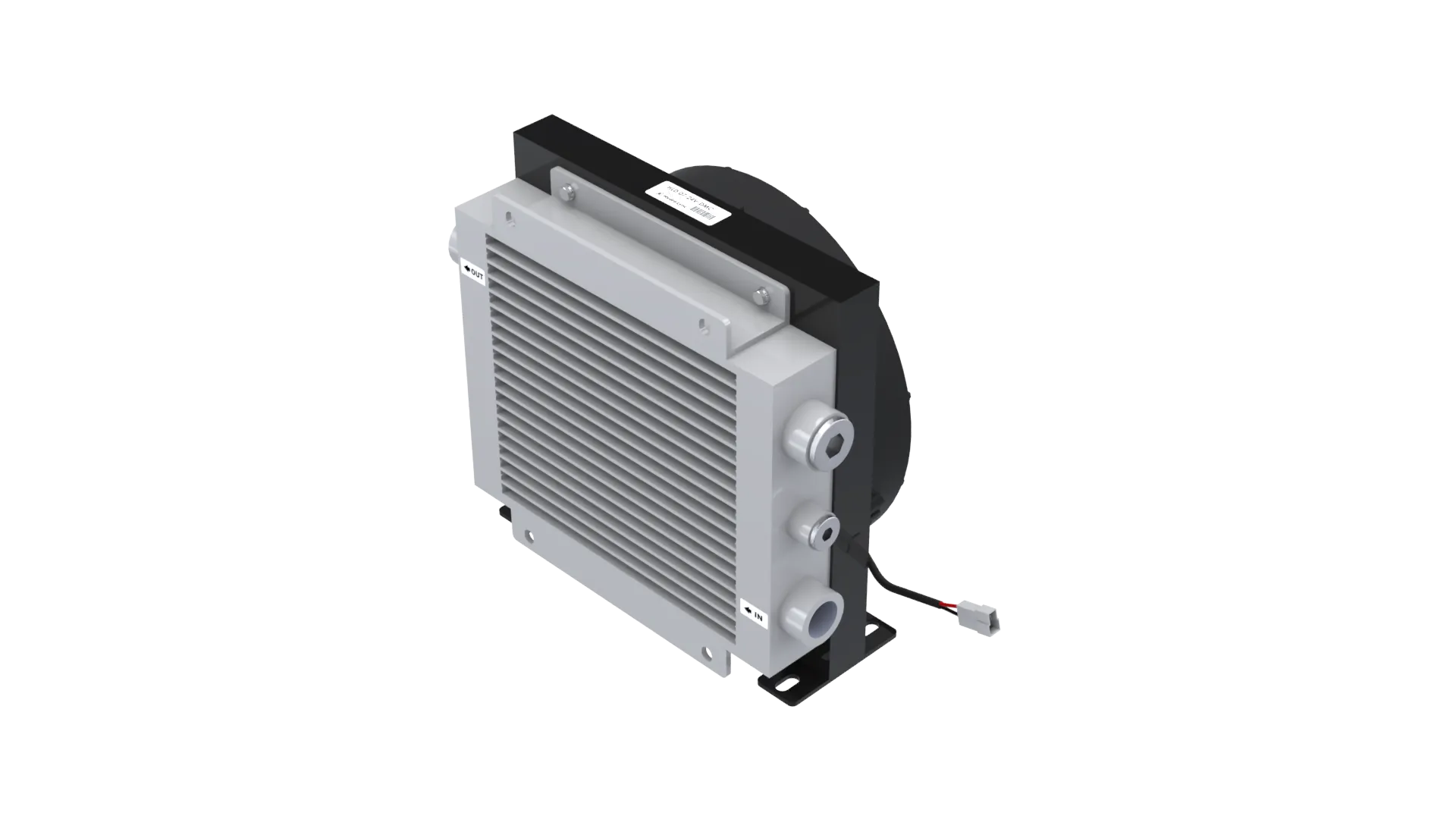

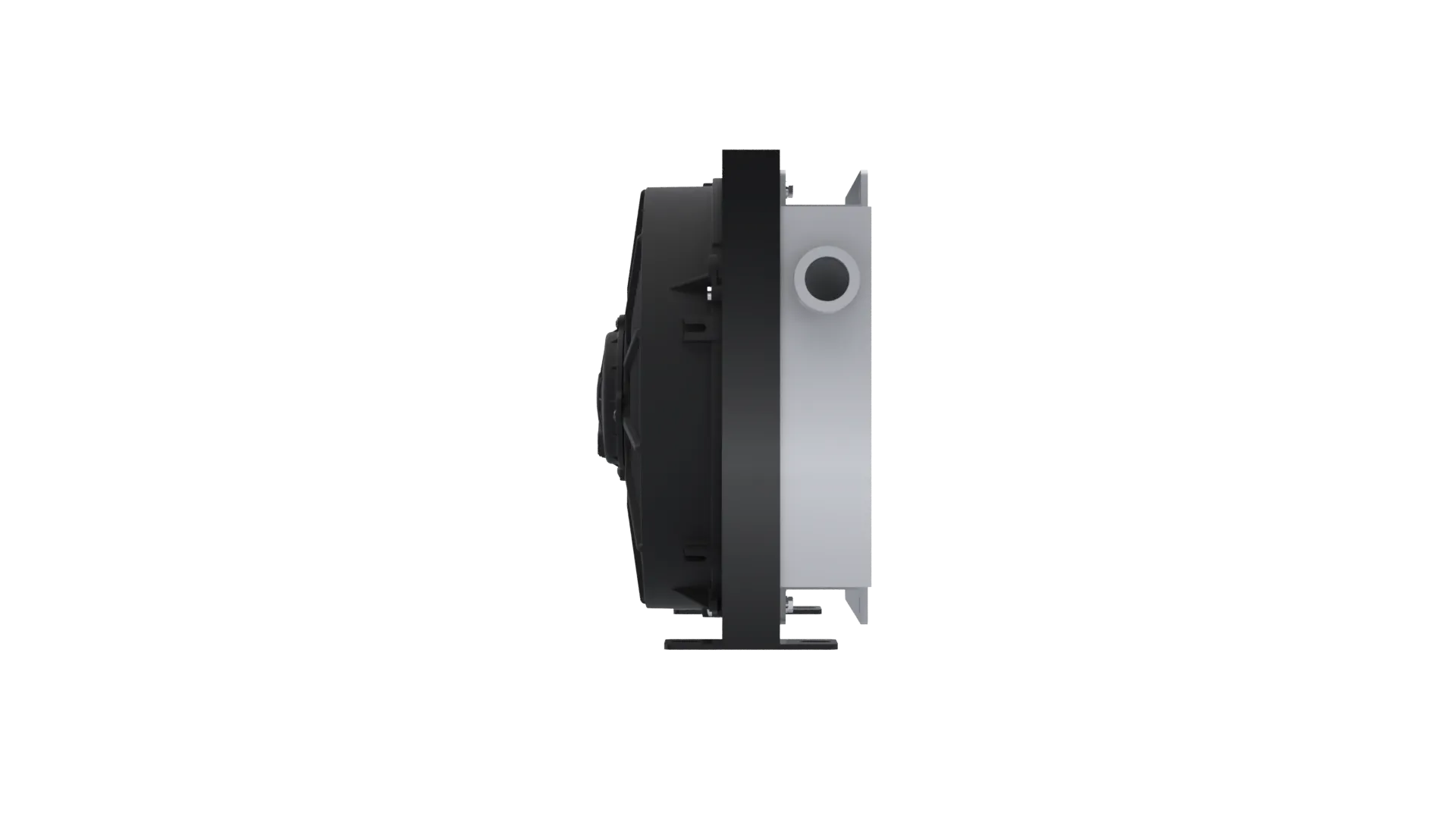

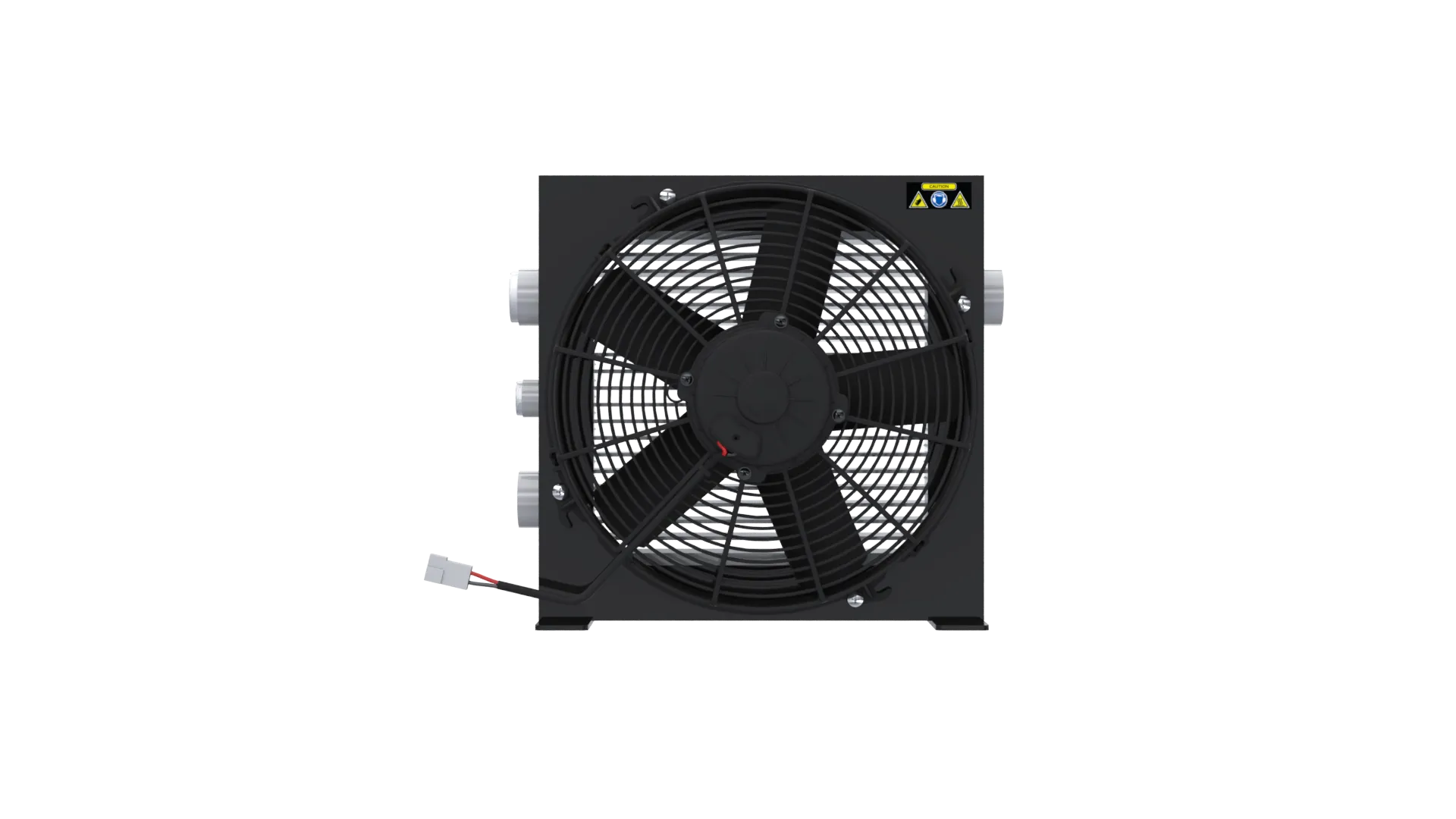

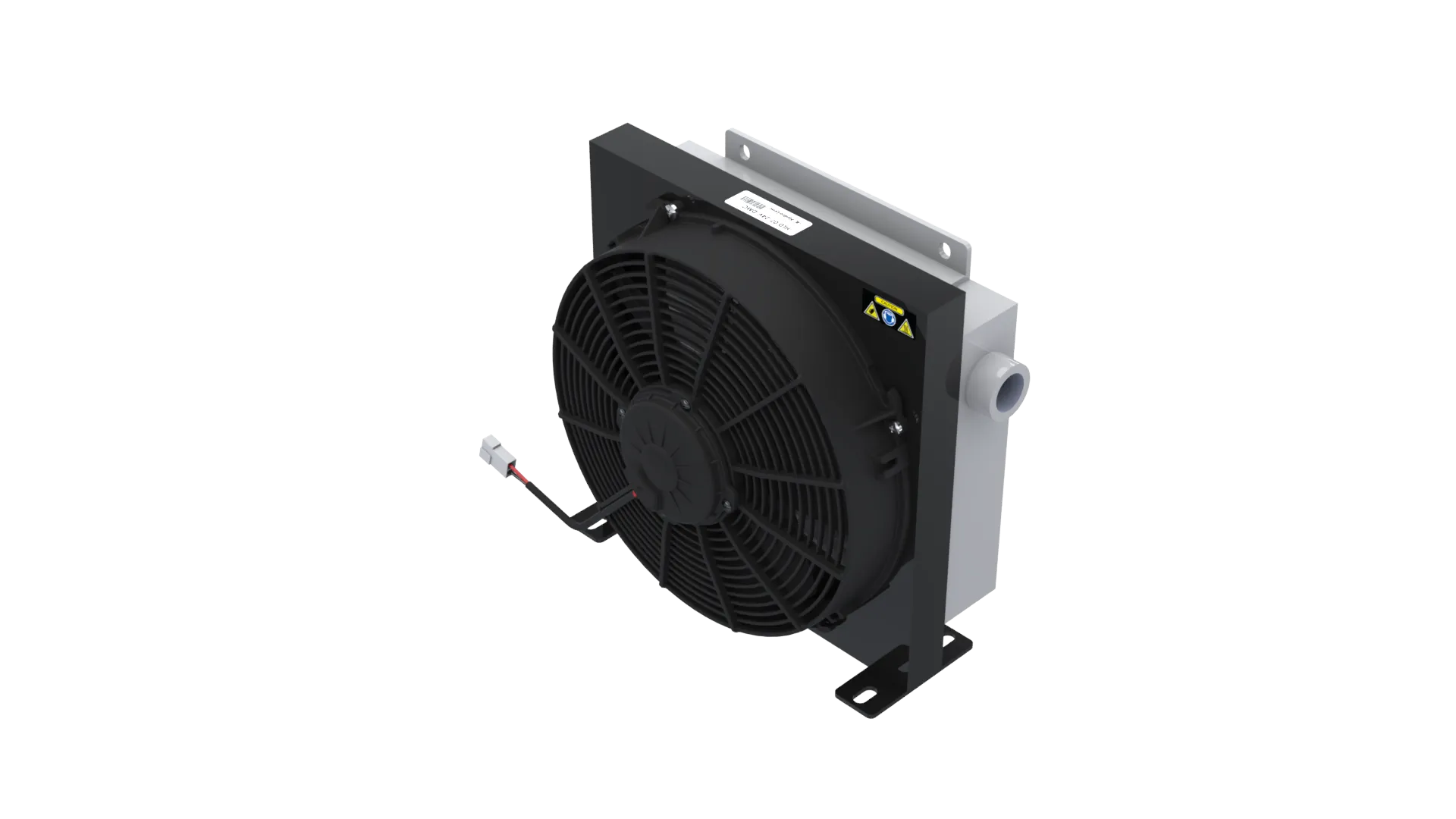

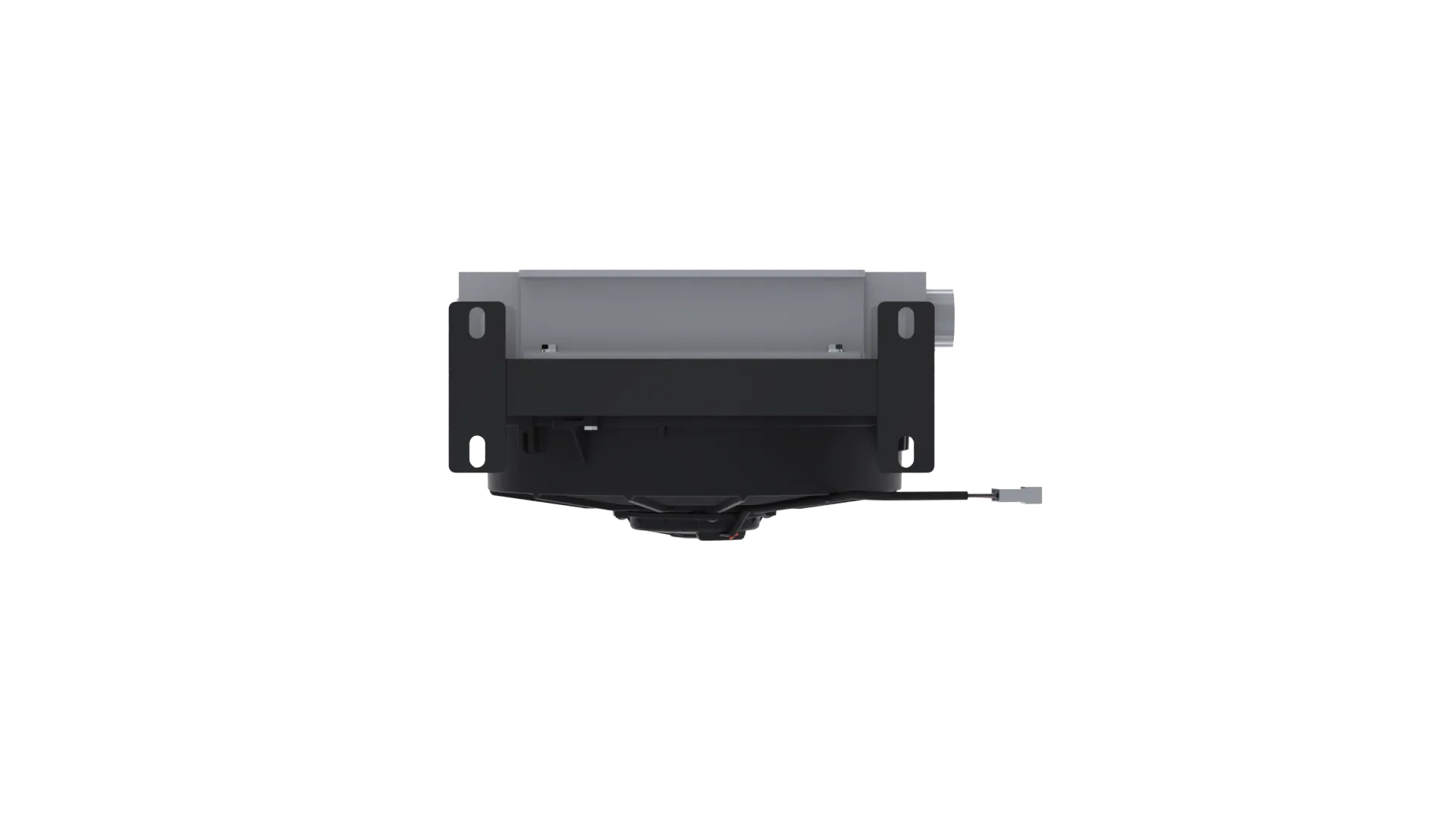

HydroLync HLD 07 DC motor driven air-oil cooler

Request Quote

Quick Specifications

Cooling Capacity0.19 kW/°C
Heat Dissipation (kW)7.6 kW
Heat Dissipation (kcal/h)6536 kcal/h
Max Flow Rate125 LPM

Detailed Specifications

Performance

Cooling Capacity
0.19 kW/°C
Heat Dissipation (kW)
7.6 kW
Heat Dissipation (kcal/h)
6536 kcal/h
Max Flow Rate
125 LPM
Motor RPM
3060 RPM
Noise Level
74 dBA
Oil Flow (Max)
Max. 130 LPM
Working Pressure (Max)
14 bar

Dimensions

HLD dimension drawing
Length (A)
340 mm
Width (B)
340 mm
Height (C)
335 mm
Depth (D)
198 mm
Dimension E
63 mm
Dimension F
160 mm
Dimension G
94 mm
Dimension H
120 mm
Dimension I
90 mm
Dimension J
300 mm
Dimension K
254 mm
Net Weight
9 kg
Bracket Hole
11x22

Electrical

DC Voltage
12V/24V V
12V Motor Specs
12V / 20A @3,060rpm
24V Motor Specs
24V / 10A @3,060rpm
Insulation Class
H (180℃/356℉)
