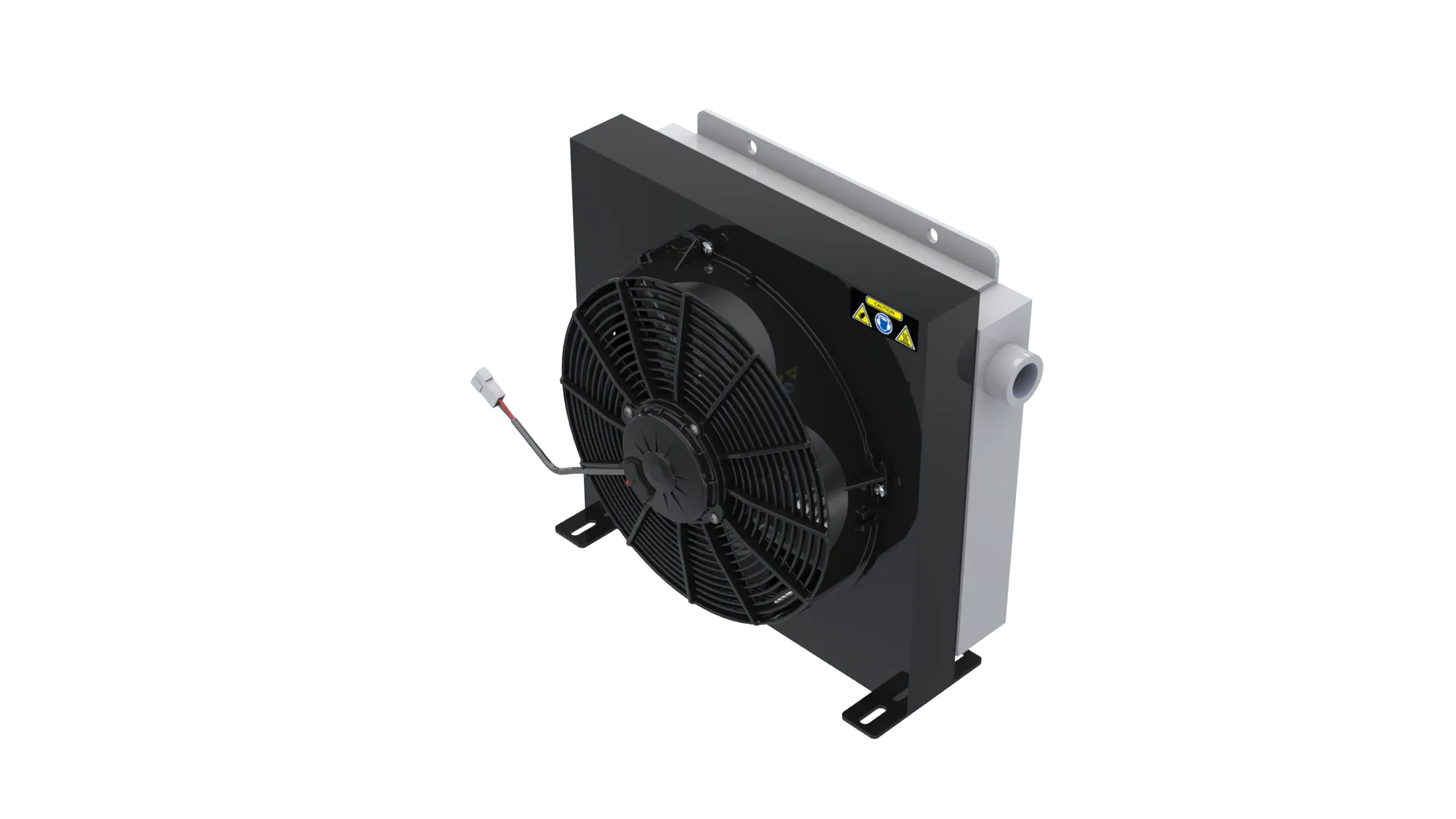

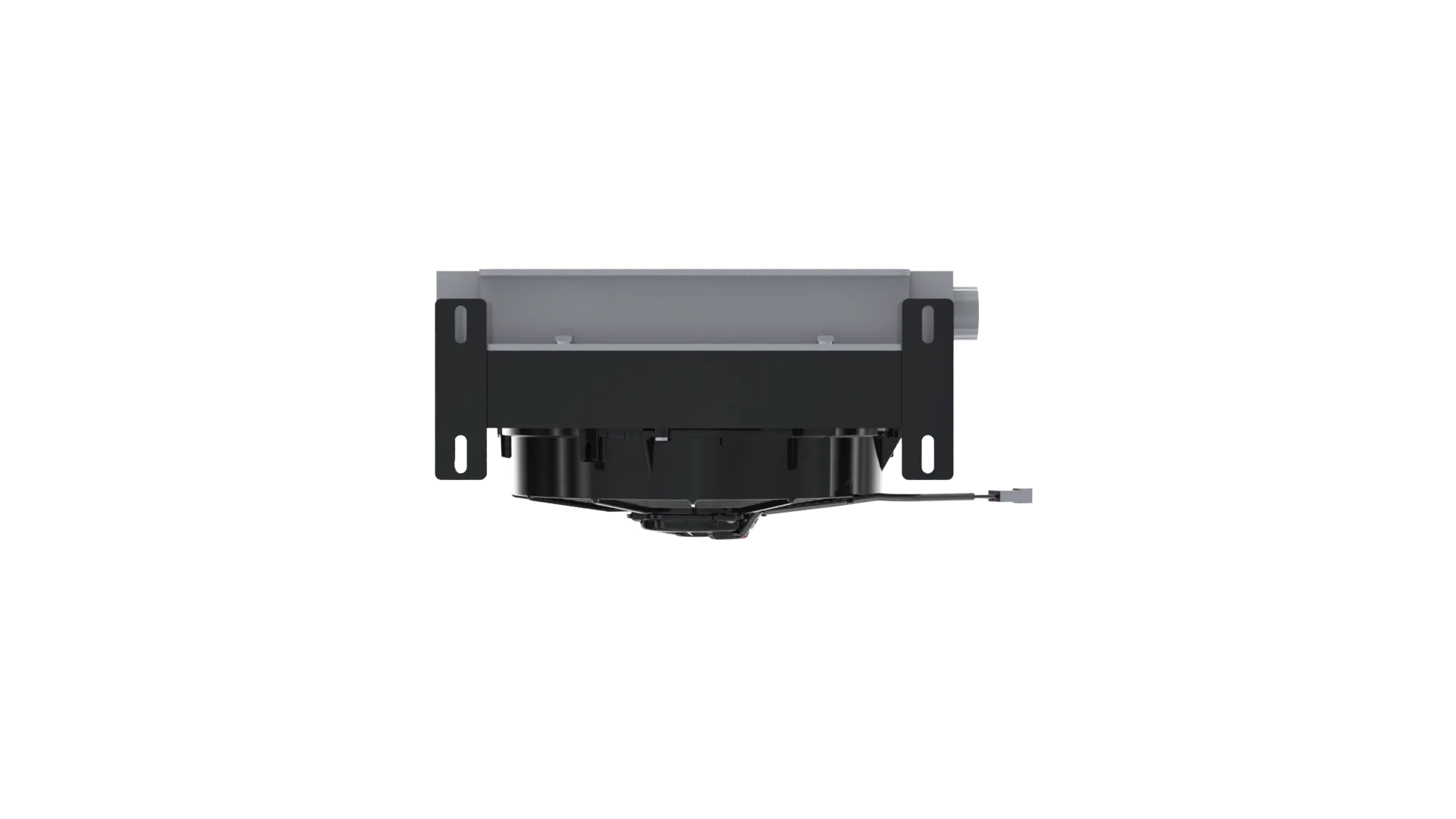

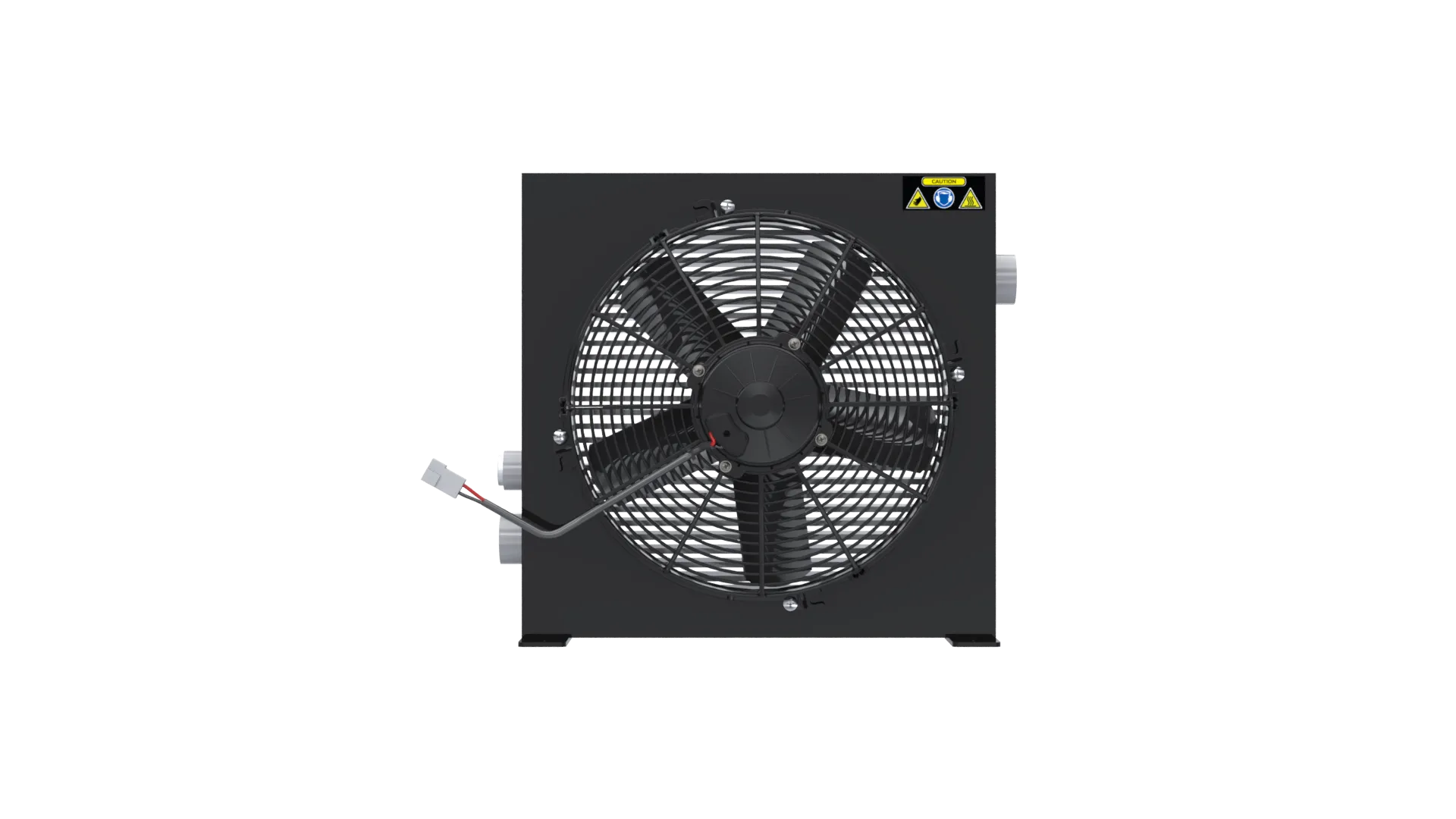

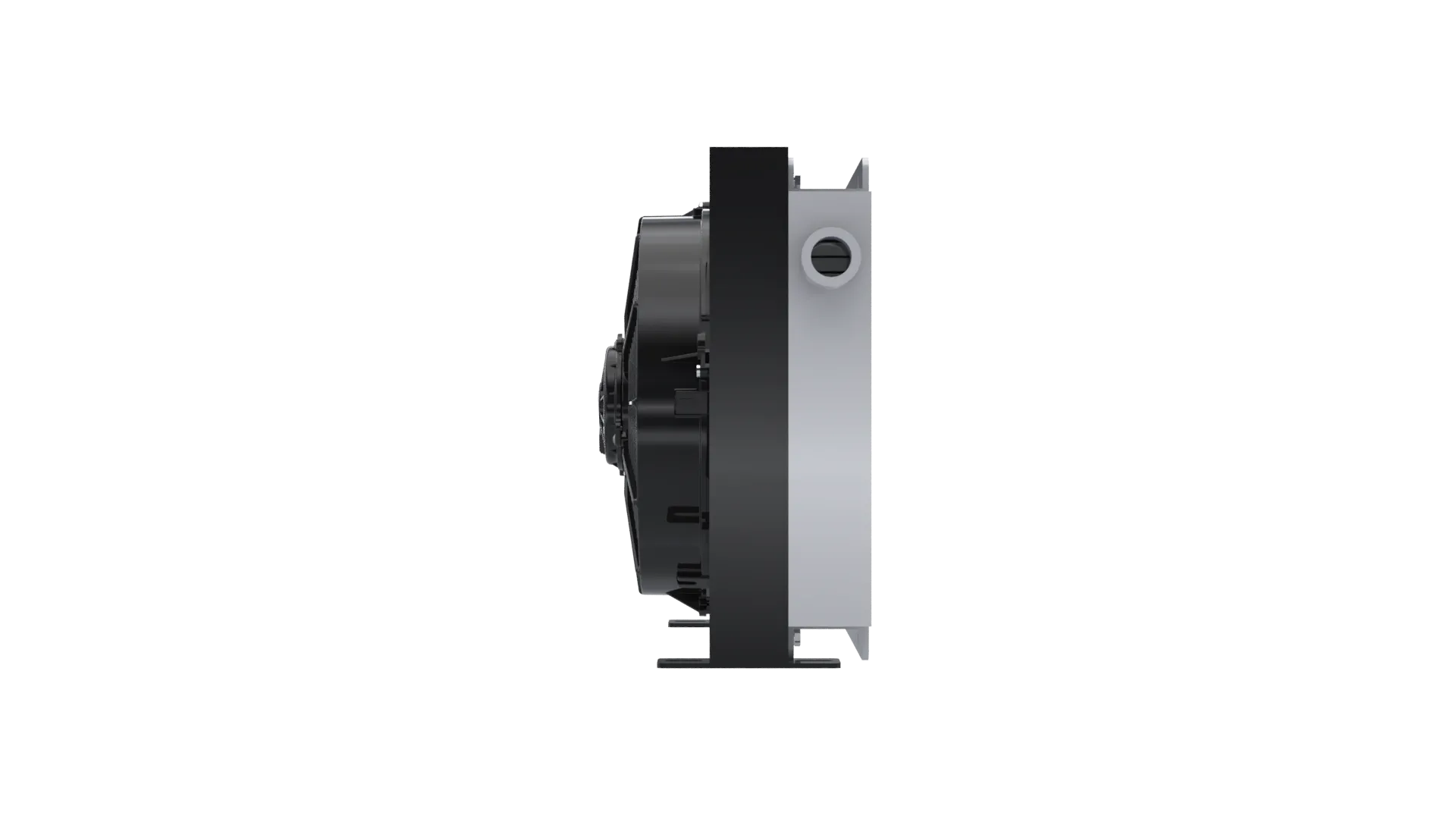

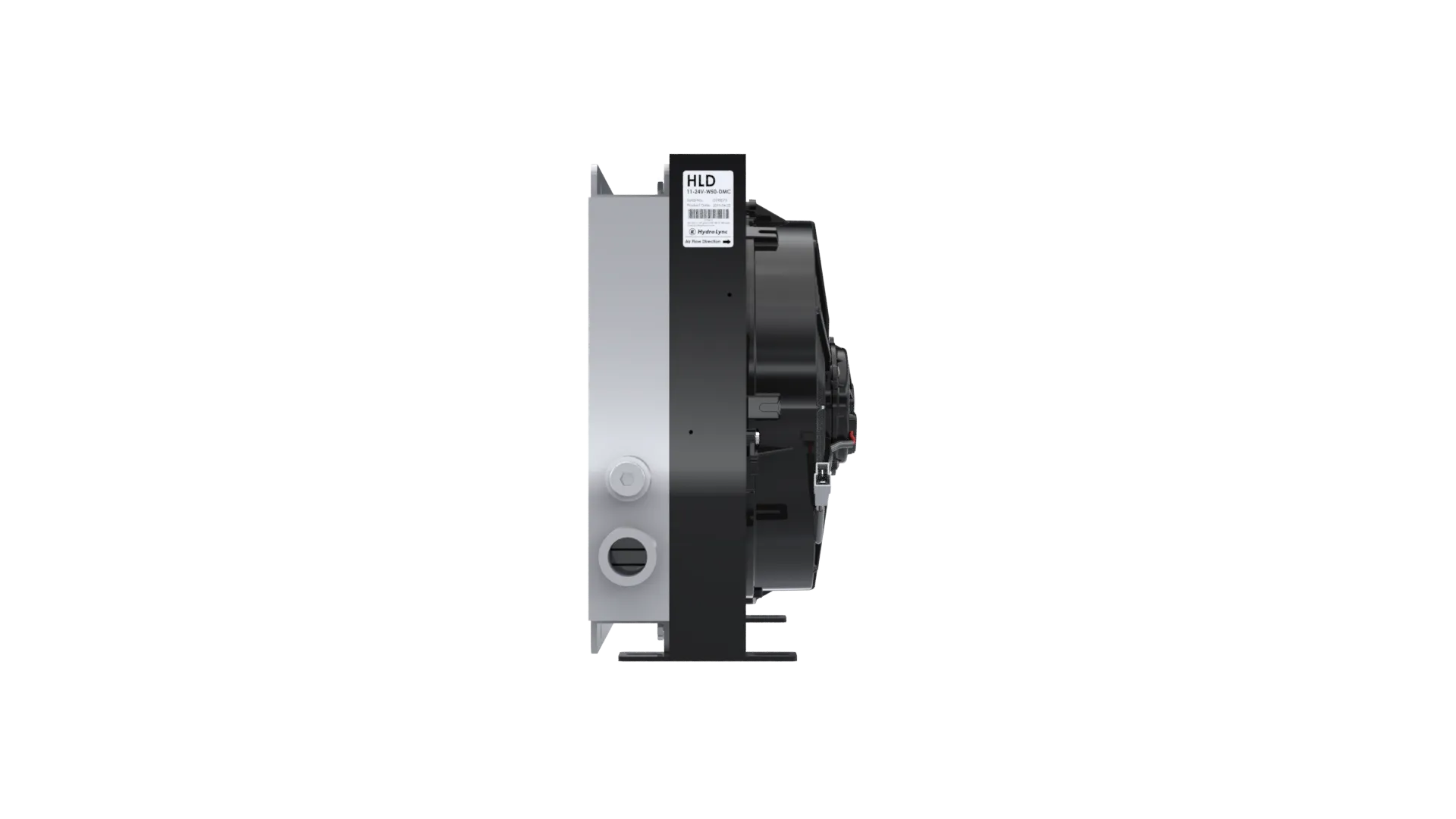

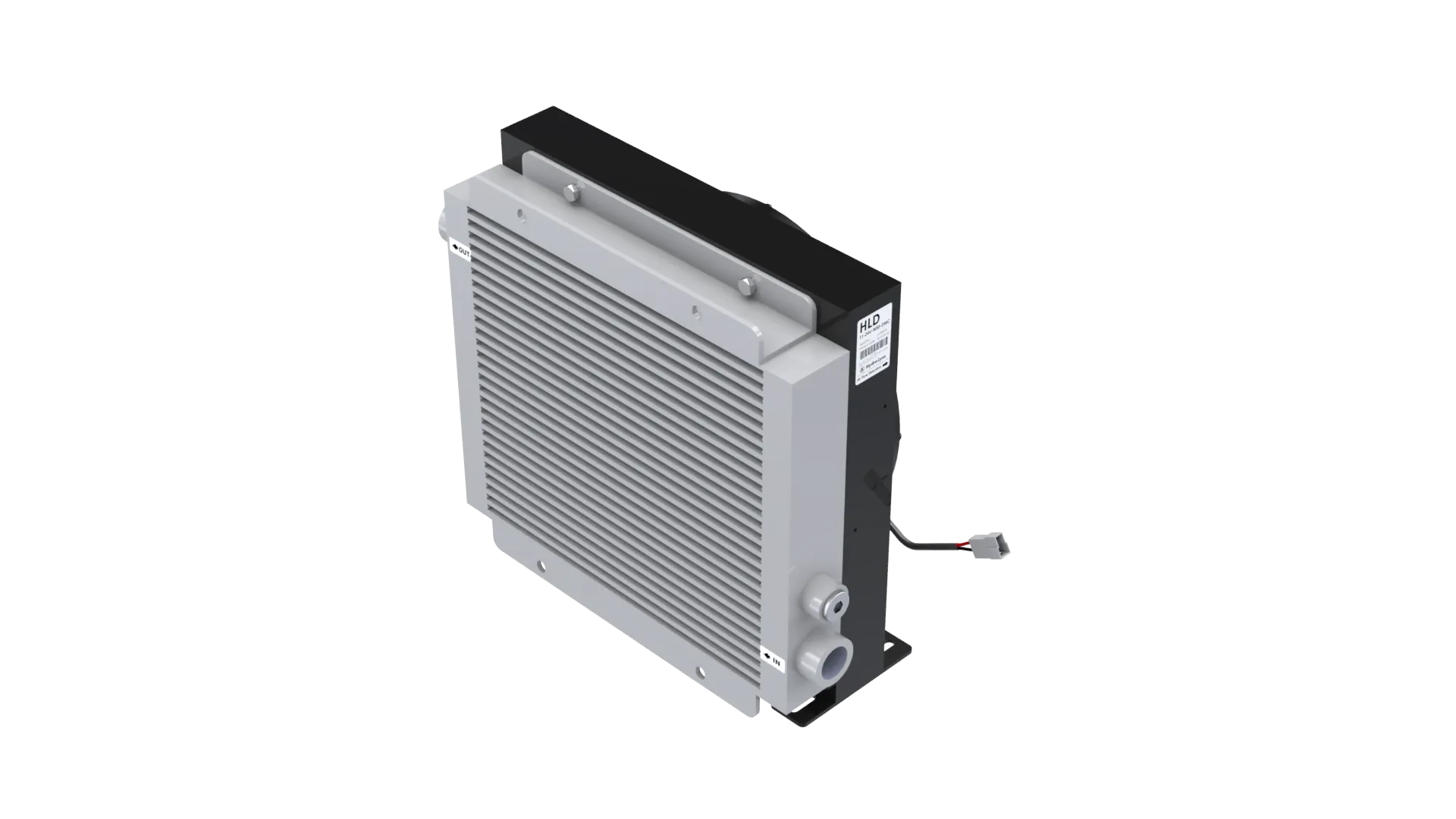

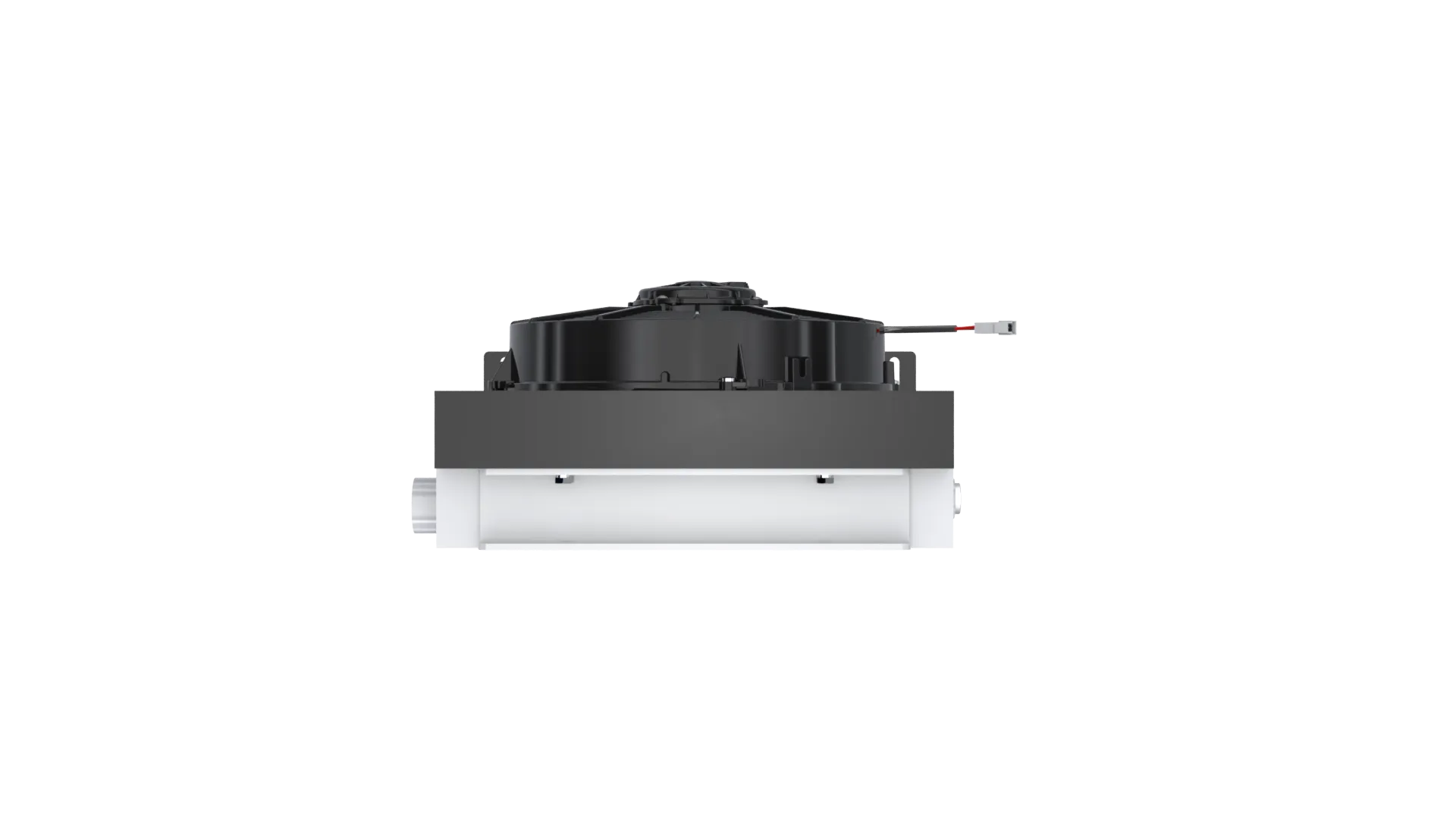

HydroLync HLD 11 DC motor driven air-oil cooler

Request Quote

Quick Specifications

Cooling Capacity0.31 kW/°C
Heat Dissipation (kW)12.4 kW
Heat Dissipation (kcal/h)10664 kcal/h
Max Flow Rate150 LPM

Detailed Specifications

Performance

Cooling Capacity
0.31 kW/°C
Heat Dissipation (kW)
12.4 kW
Heat Dissipation (kcal/h)
10664 kcal/h
Max Flow Rate
150 LPM
Motor RPM
3060 RPM
Noise Level
74 dBA
Oil Flow (Max)
Max. 150 LPM
Working Pressure (Max)
14 bar

Dimensions

Length (A)
398 mm
Width (B)
410 mm
Height (C)
402 mm
Depth (D)
218 mm
Dimension E
63 mm
Dimension F
228 mm
Dimension G
89 mm
Dimension H
140 mm
Dimension I
100 mm
Dimension J
360 mm
Dimension K
317 mm
Net Weight
12 kg
Bracket Hole
11x22

Electrical

DC Voltage
12V/24V V
12V Motor Specs
12V / 20A @3,060rpm
24V Motor Specs
24V / 10A @3,060rpm
Insulation Class
H (180℃/356℉)

Hydraulic

P1 Port Thread
G1"
P2 Port Thread
G1"
P3 Port Thread
G1

Environmental

Ingress Protection
IP68

Downloads

Accessories

DMC Motor Controller
DMC
iDMC Intelligent Motor Controller
iDMC
DTM Digital Thermometer
DTM
Thermal Switch (DIN Connector)
TS-DIN
Thermal Switch (Wire Connector)
TS-WIRE
Matrix Stone Guard
STONE-GUARD
Matrix Dust Guard
DUST-GUARD
Matrix Dust + Stone Guard
COMBO-GUARD
