HLD-23

Product specifications and documentation

HLD-23
HLD-23

HLD-23

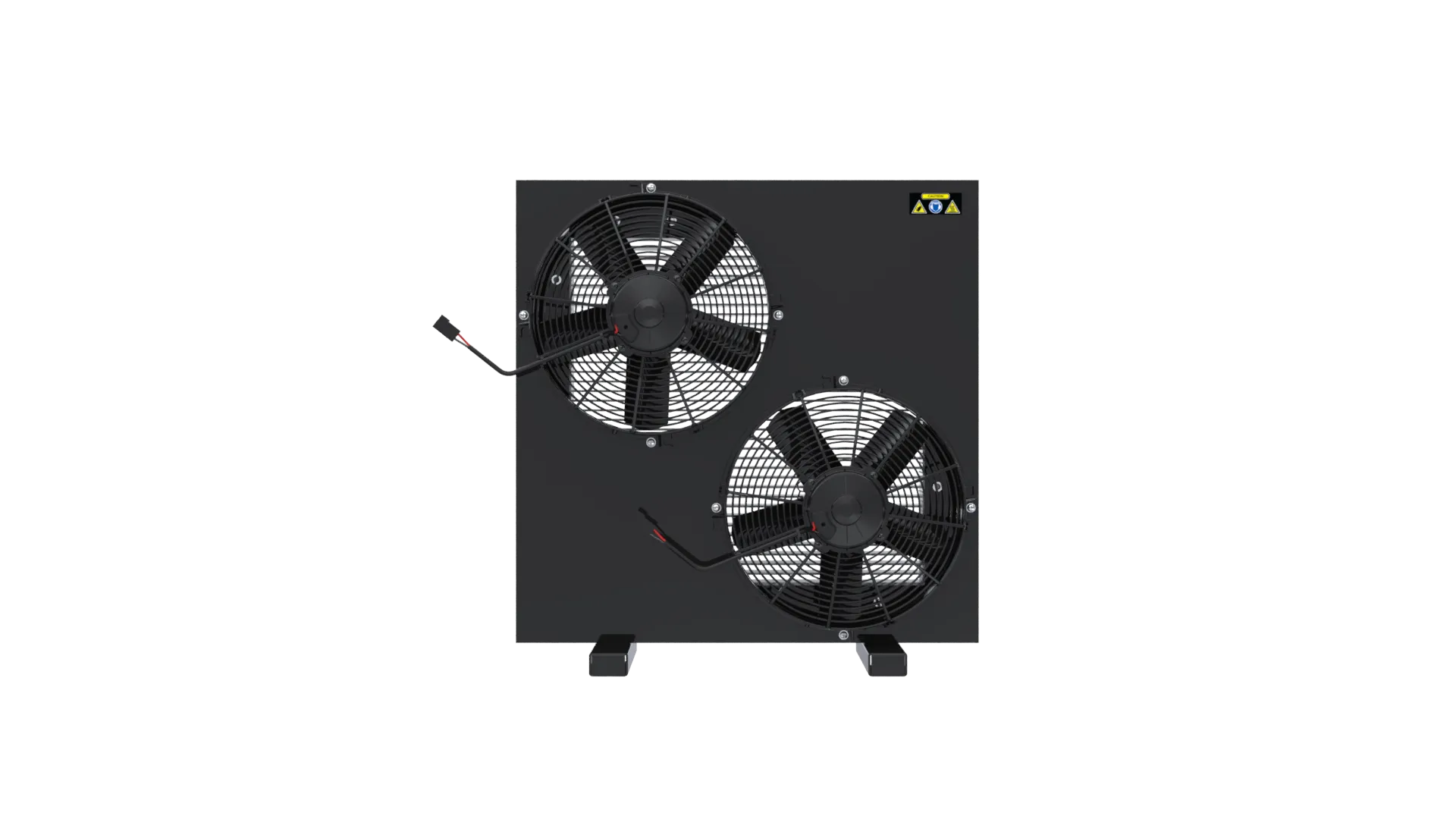

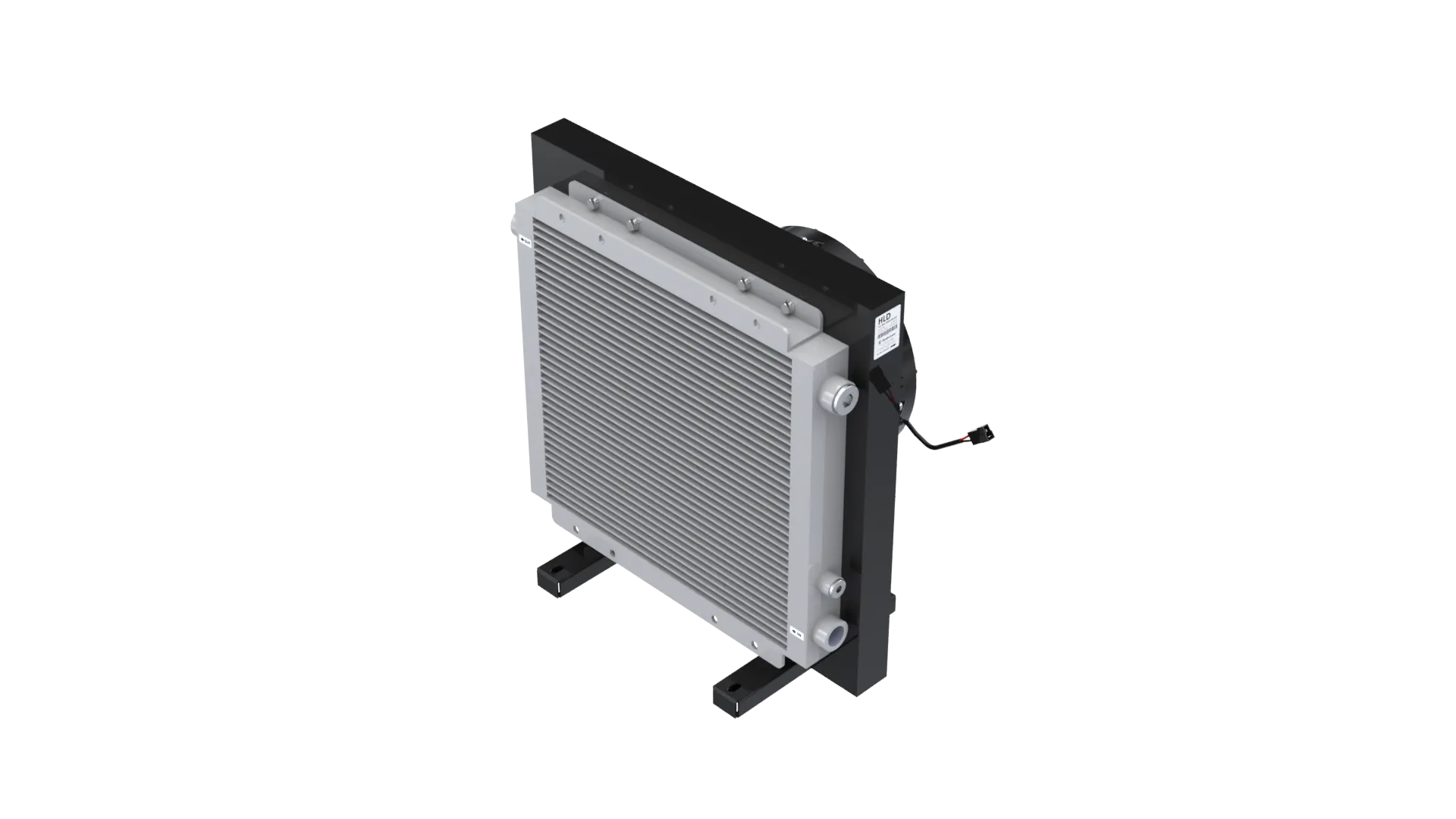

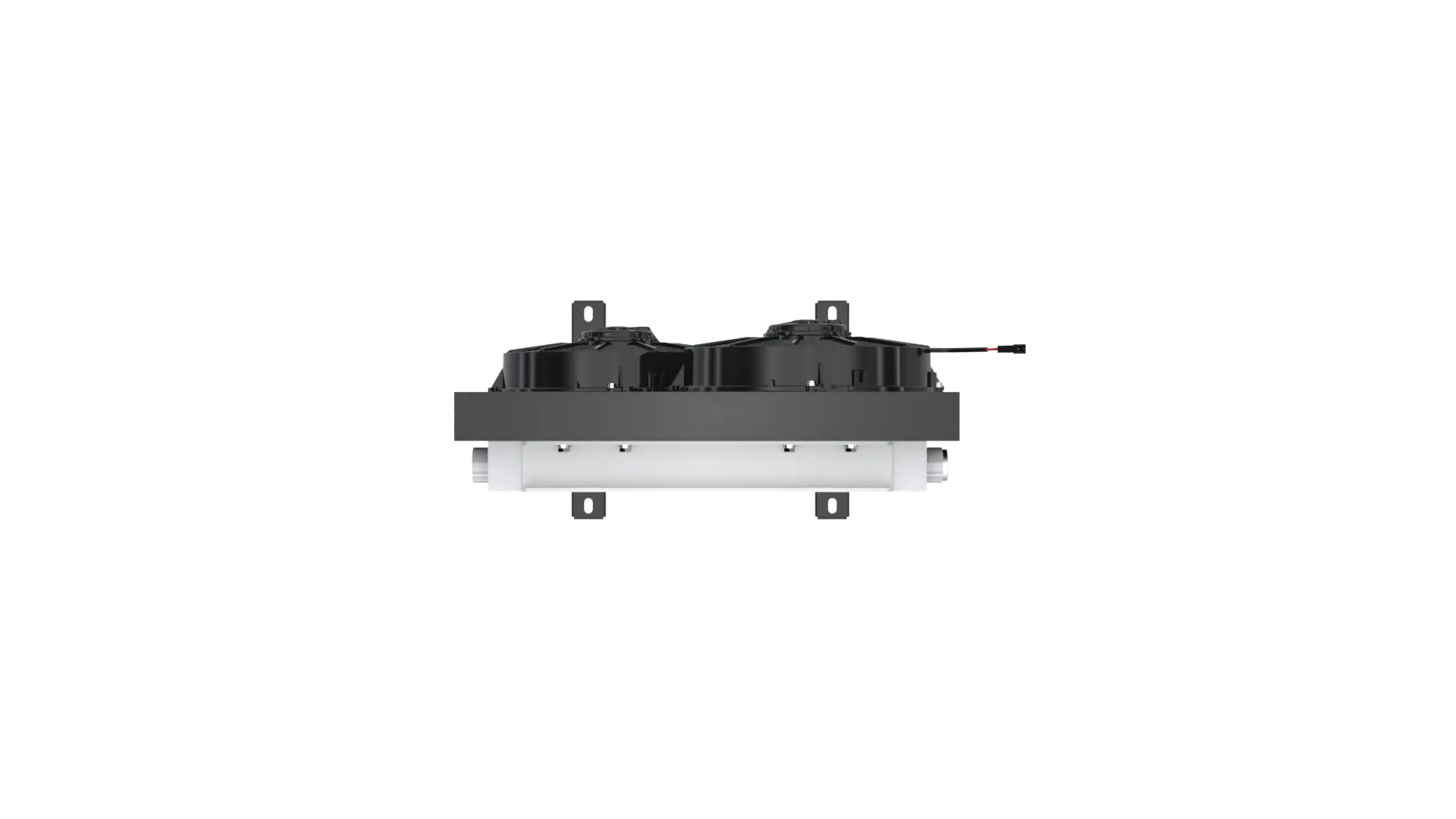

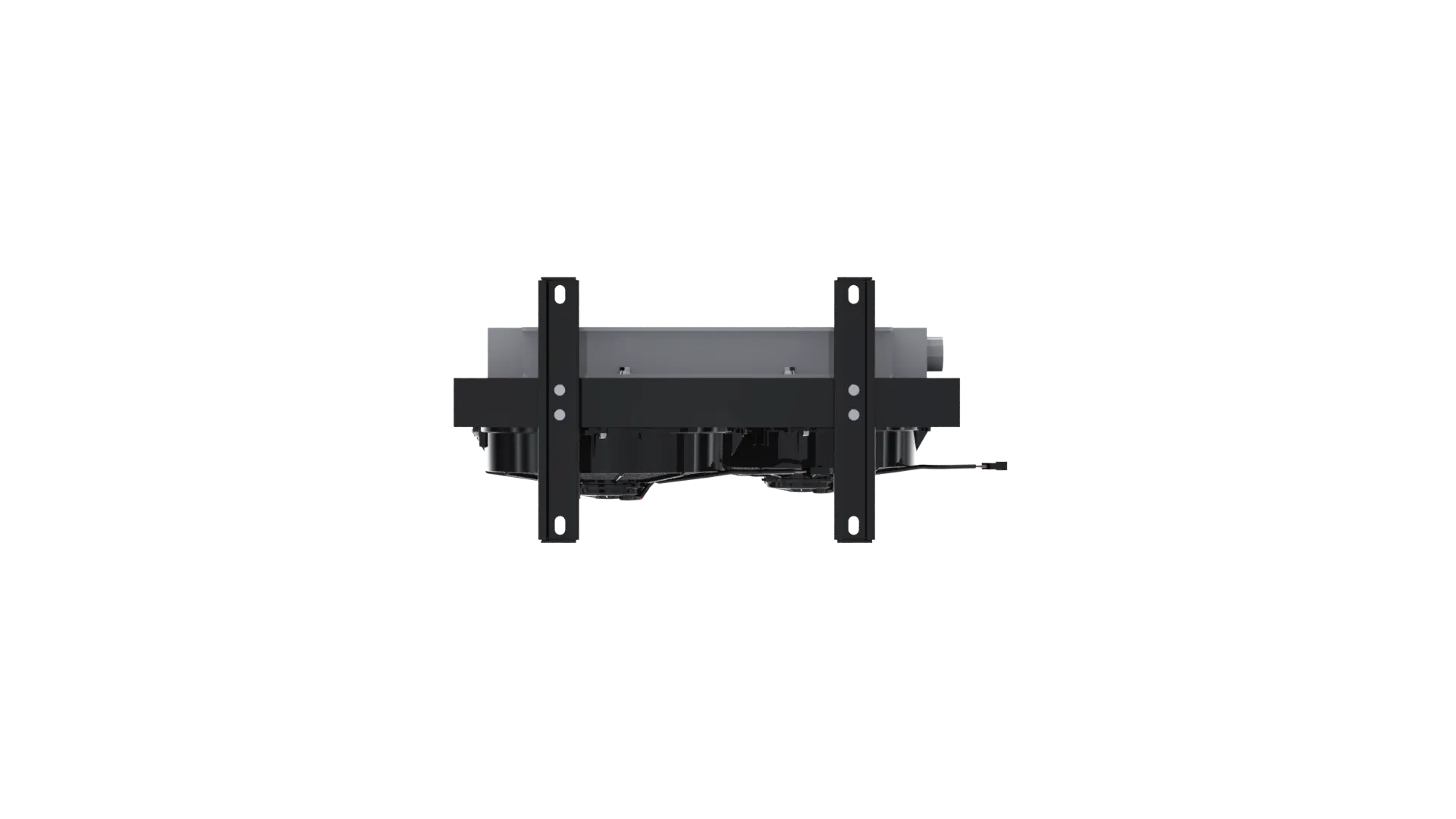

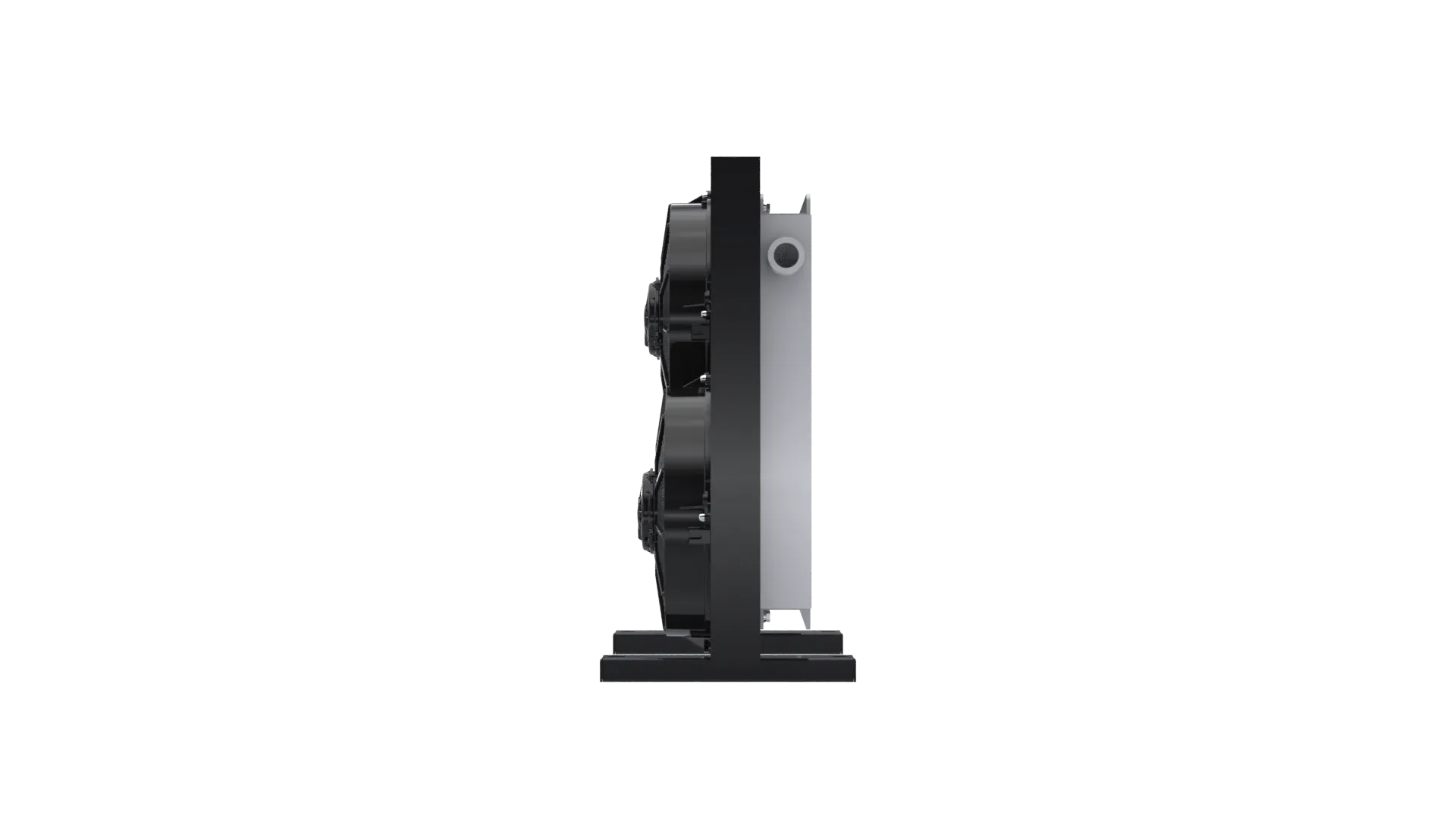

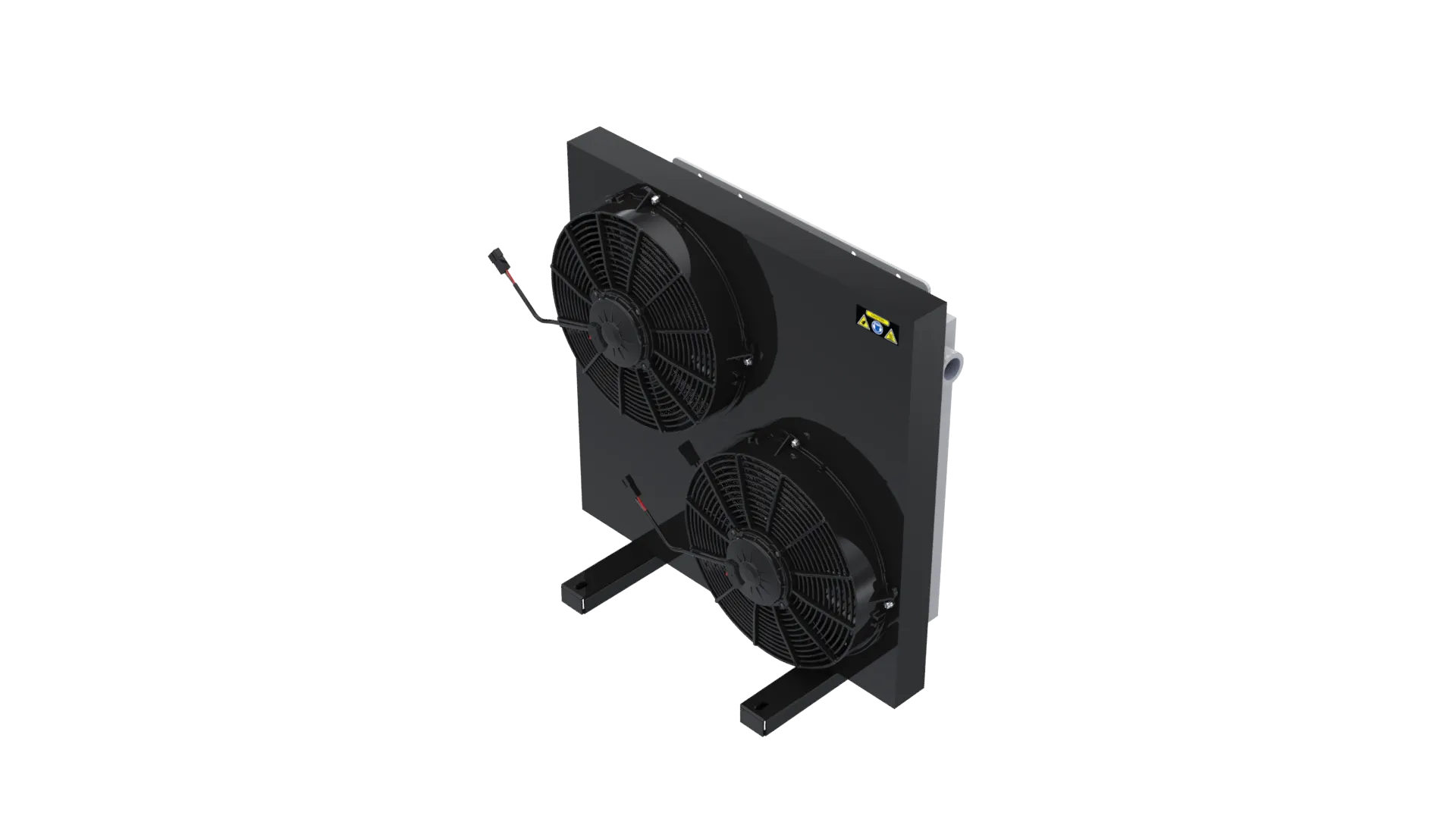

HydroLync HLD 23 DC motor driven air-oil cooler

Request Quote

Quick Specifications

Cooling Capacity0.6 kW/°C
Heat Dissipation (kW)24 kW
Heat Dissipation (kcal/h)20640 kcal/h
Max Flow Rate200 LPM

Detailed Specifications

Performance

Cooling Capacity
0.6 kW/°C
Heat Dissipation (kW)
24 kW
Heat Dissipation (kcal/h)
20640 kcal/h
Max Flow Rate
200 LPM
Motor RPM
3060 RPM
Noise Level
77 dBA
Oil Flow (Max)
Max. 200 LPM
Working Pressure (Max)
14 bar

Dimensions

HLD dimension drawing
Length (A)
615 mm
Width (B)
615 mm
Height (C)
645 mm
Depth (D)
218 mm
Dimension E
63 mm
Dimension F
378 mm
Dimension G
149 mm
Dimension H
320 mm
Dimension I
280 mm
Dimension J
356 mm
Dimension K
527 mm
Net Weight
25 kg
Bracket Hole
12x22

Electrical

DC Voltage
12V/24V V
12V Motor Specs
12V / 2×20A @3,060rpm
24V Motor Specs
24V / 2×10A @3,060rpm
Insulation Class
H (180℃/356℉)
