HLH2 07 Hydraulic Motor Cooler
HLH2-07

HLH2 07 Hydraulic Motor Cooler

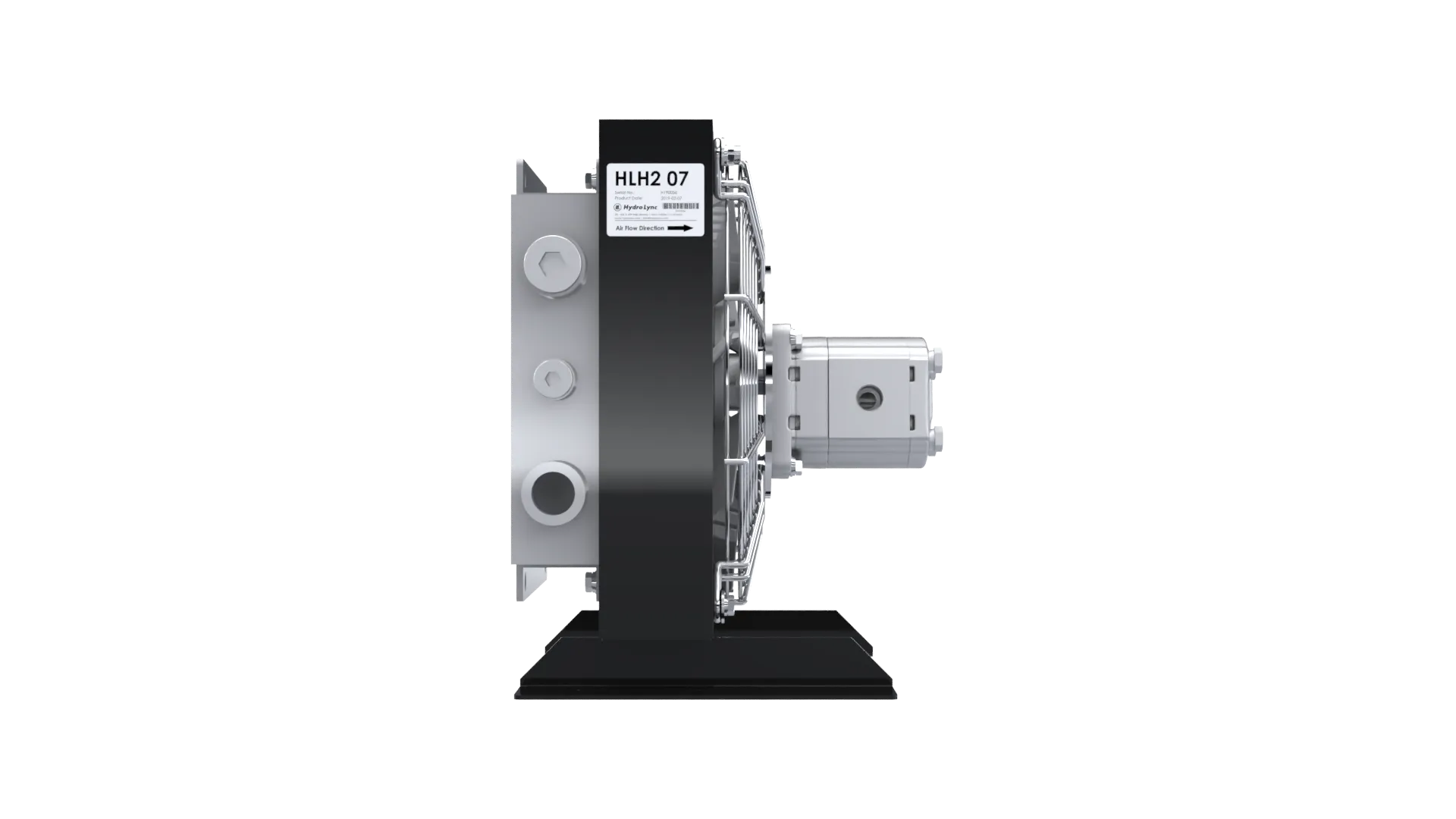

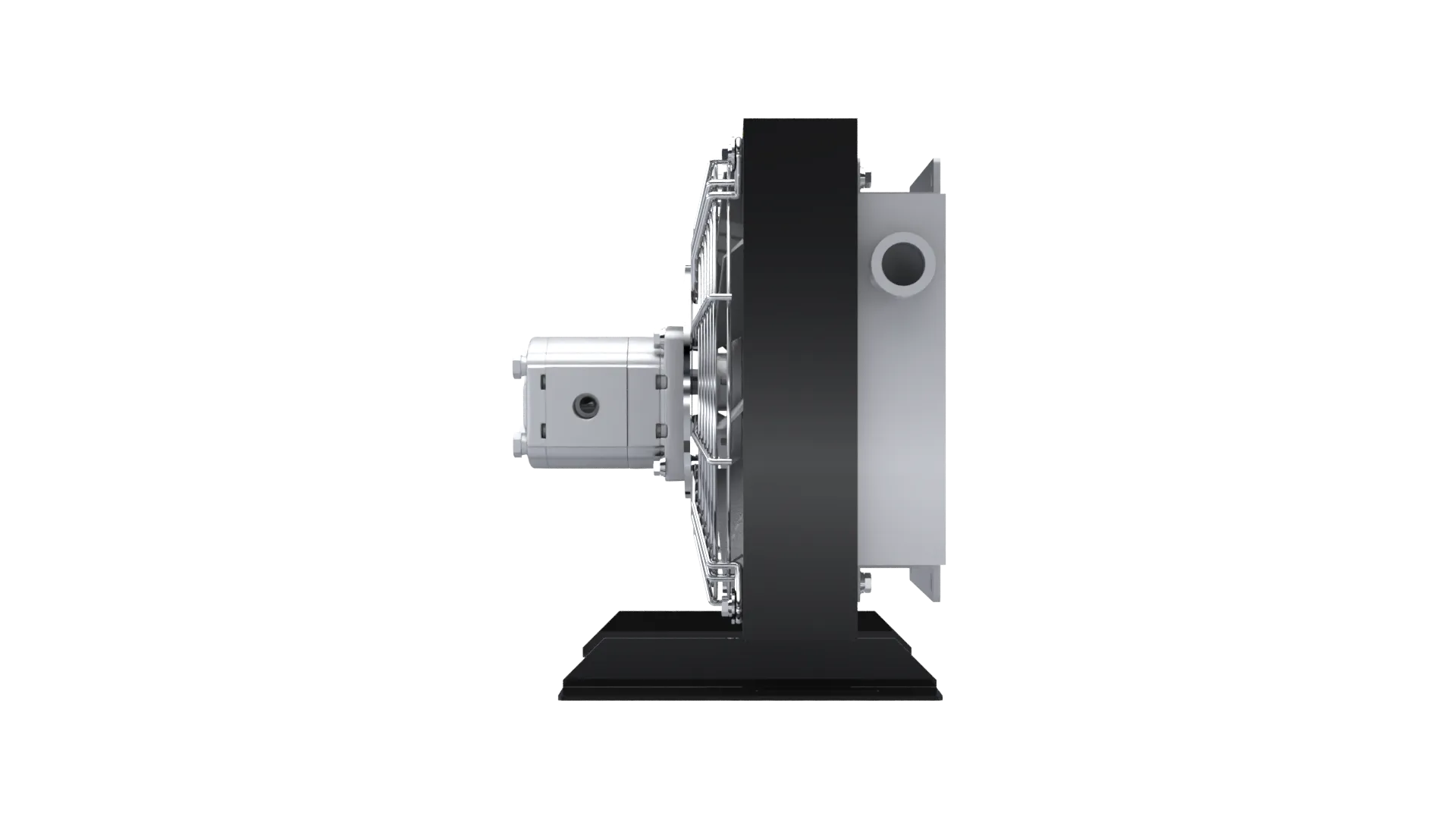

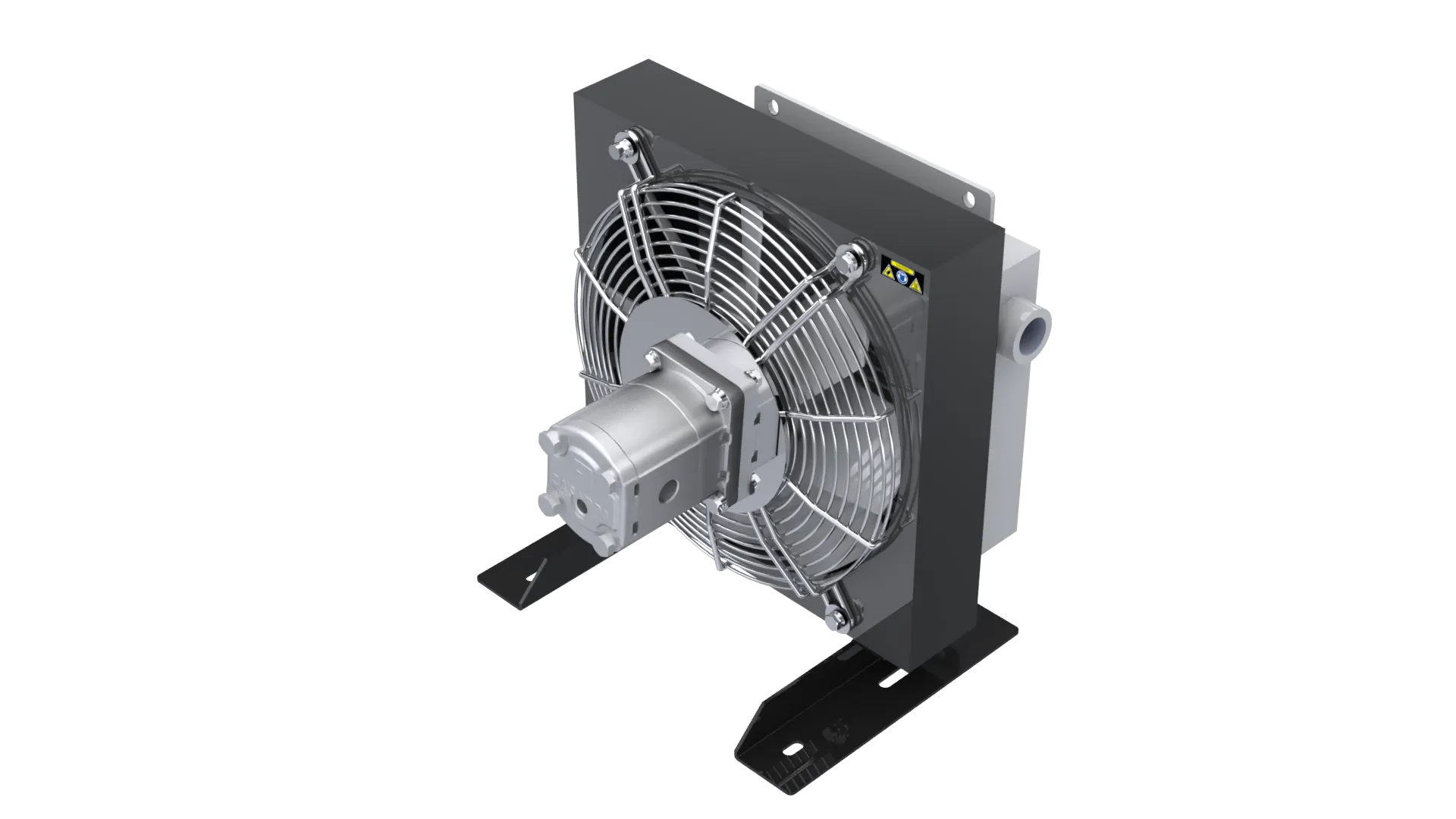

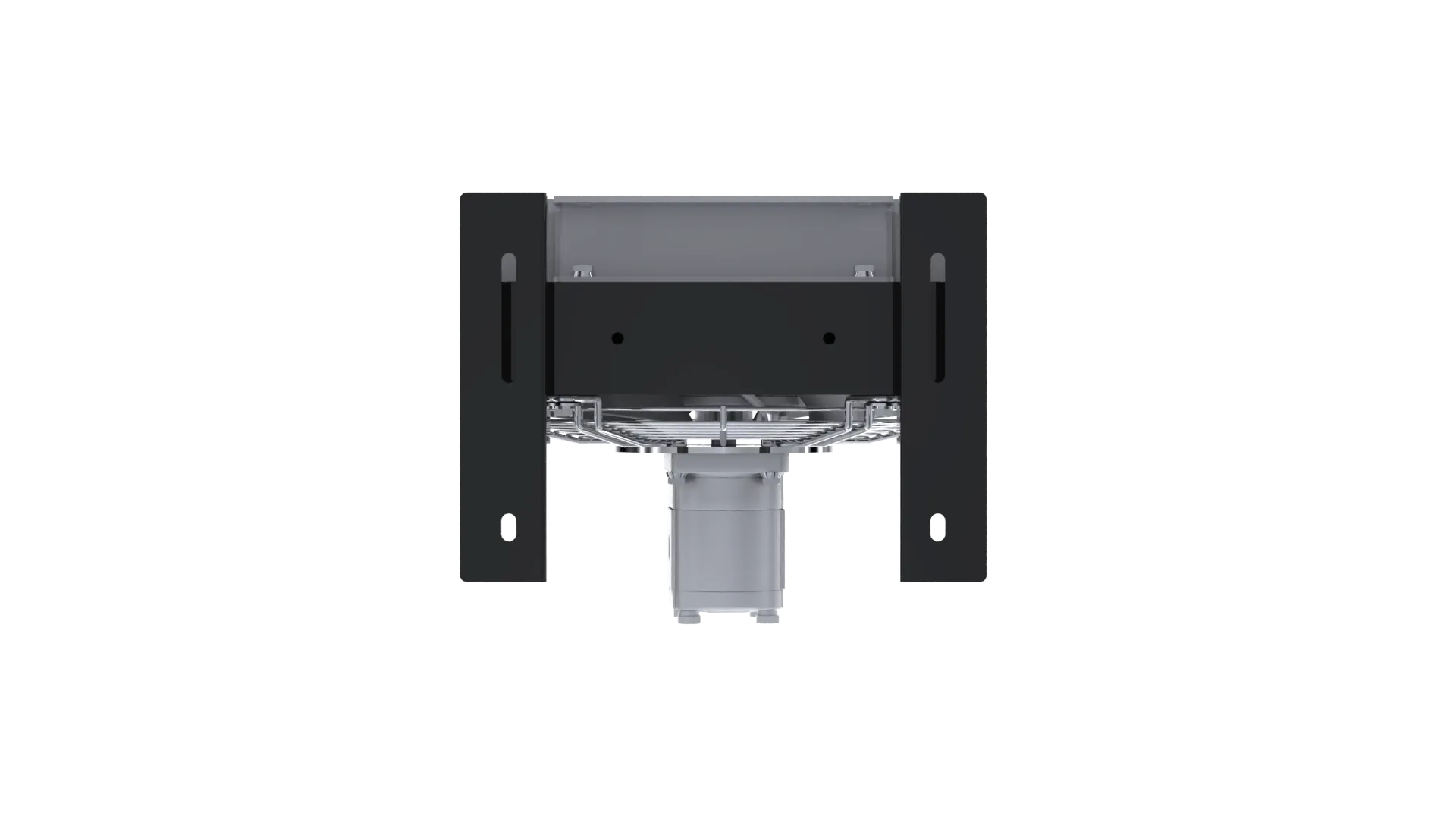

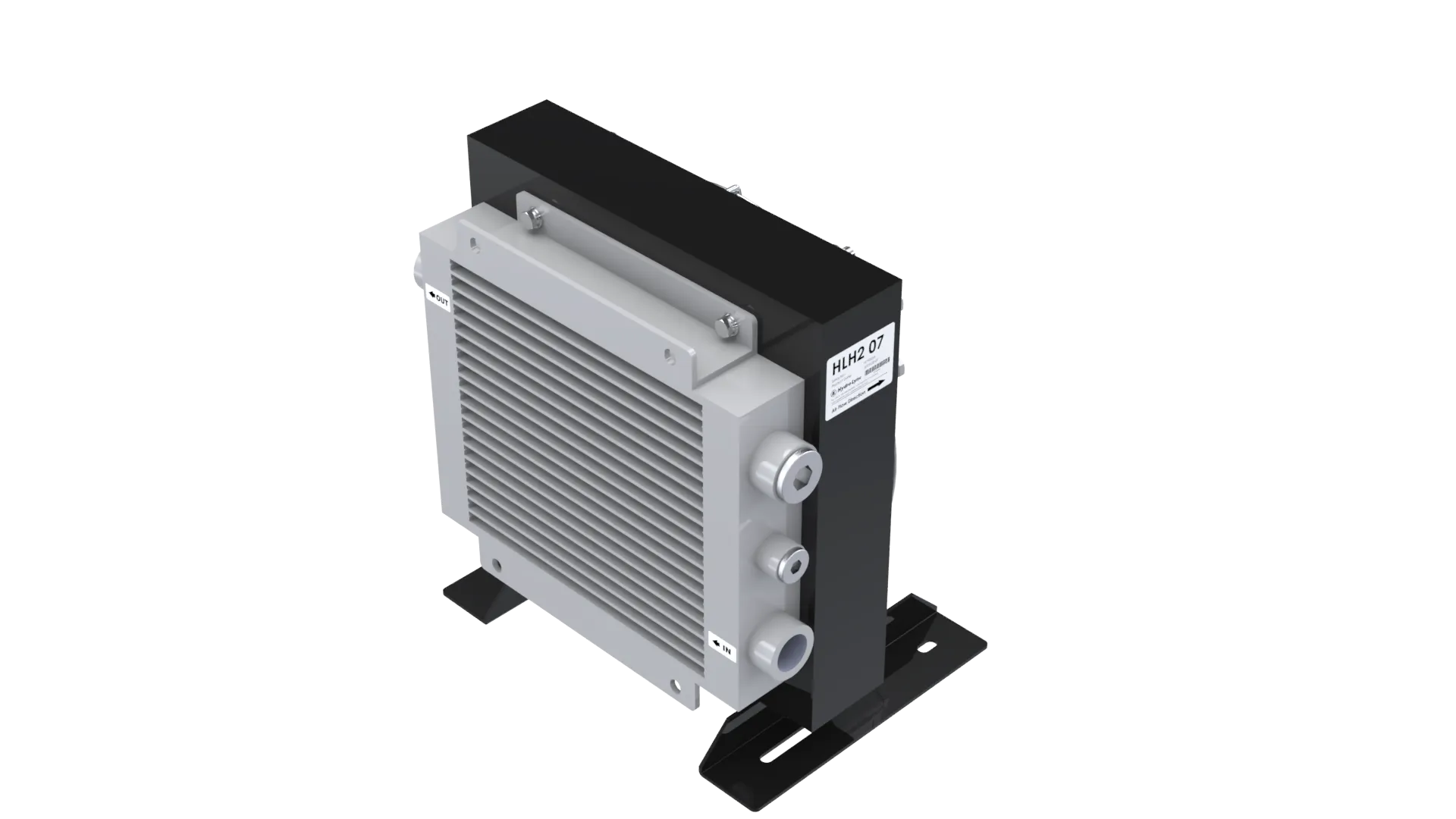

HydroLync HLH2 07 hydraulic motor driven air-oil cooler

Request Quote

Quick Specifications

Cooling Capacity0.25 kW/°C
Heat Dissipation (kcal/h)8600 kcal/h
Heat Dissipation10 kW
Max Speed3500 rpm

Detailed Specifications

Performance

Cooling Capacity
0.25 kW/°C
Heat Dissipation (kcal/h)
8600 kcal/h
Heat Dissipation
10 kW
Max Speed
3500 rpm

Dimensions

HLH2 dimension drawing
Length (A)
365 mm
Width (B)
365 mm
Height (C)
408 mm
Depth (D)
317 mm
Dimension E
63 mm
Dimension F
160 mm
Dimension G
145 mm
Dimension H
270 mm
Dimension I
145 mm
Dimension J
297 mm
Dimension K
305 mm
Dimension L
209 mm
Mounting Slot
ø10x90 / ø10x19
Net Weight
12 kg

Hydraulic Motor

Max Flow Rate
125 L/min
Oil Port (P1/P2/P3)
G1"

Downloads

Accessories

Thermal Switch (DIN Connector)
TS-DIN
Thermal Switch (Wire Connector)
TS-WIRE
Matrix Stone Guard
STONE-GUARD
Matrix Dust Guard
DUST-GUARD
Matrix Dust + Stone Guard
COMBO-GUARD
