HLH2 11 Hydraulic Motor Cooler

Product specifications and documentation

HLH2 11 Hydraulic Motor Cooler
HLH2-11

HLH2 11 Hydraulic Motor Cooler

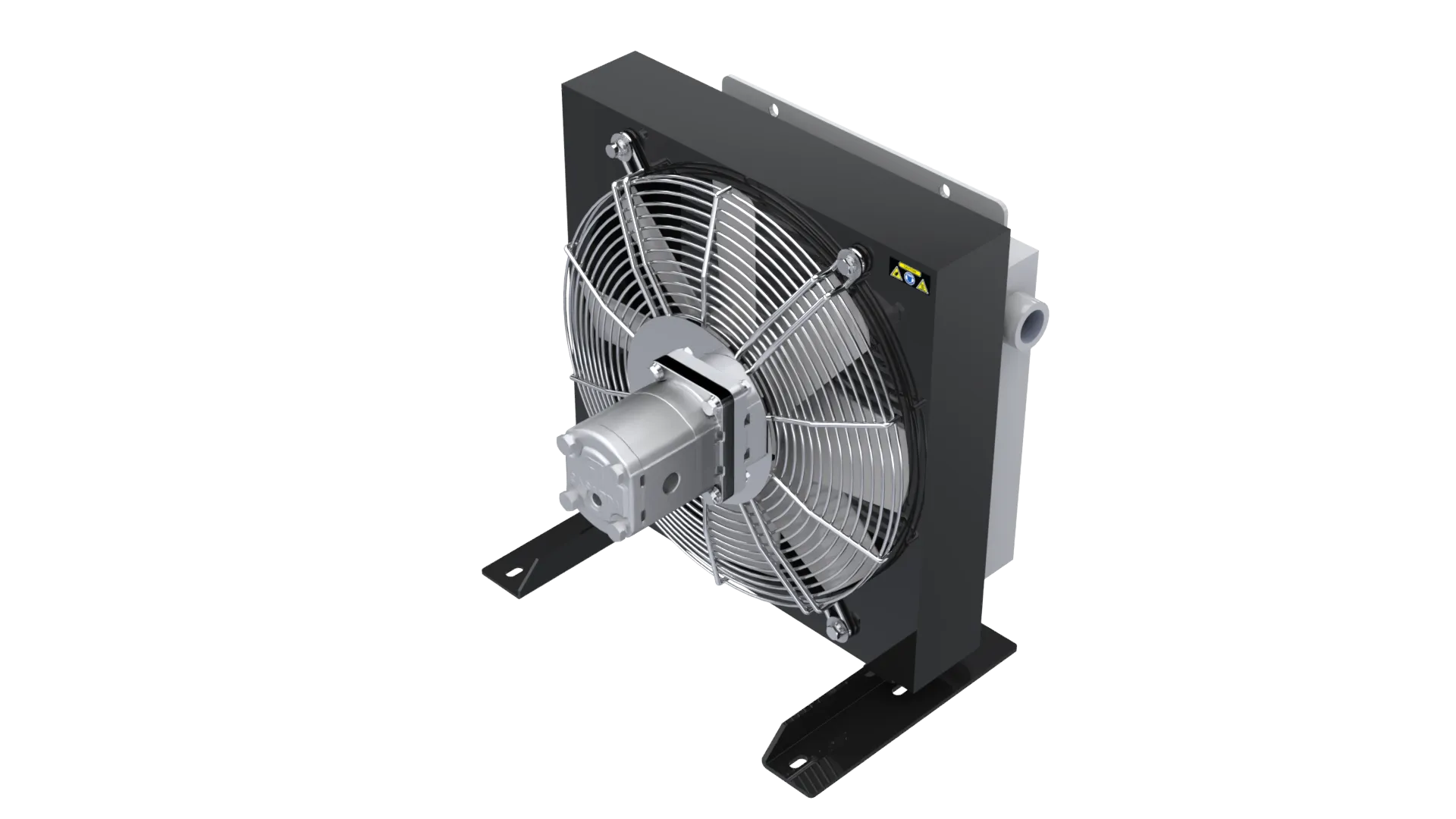

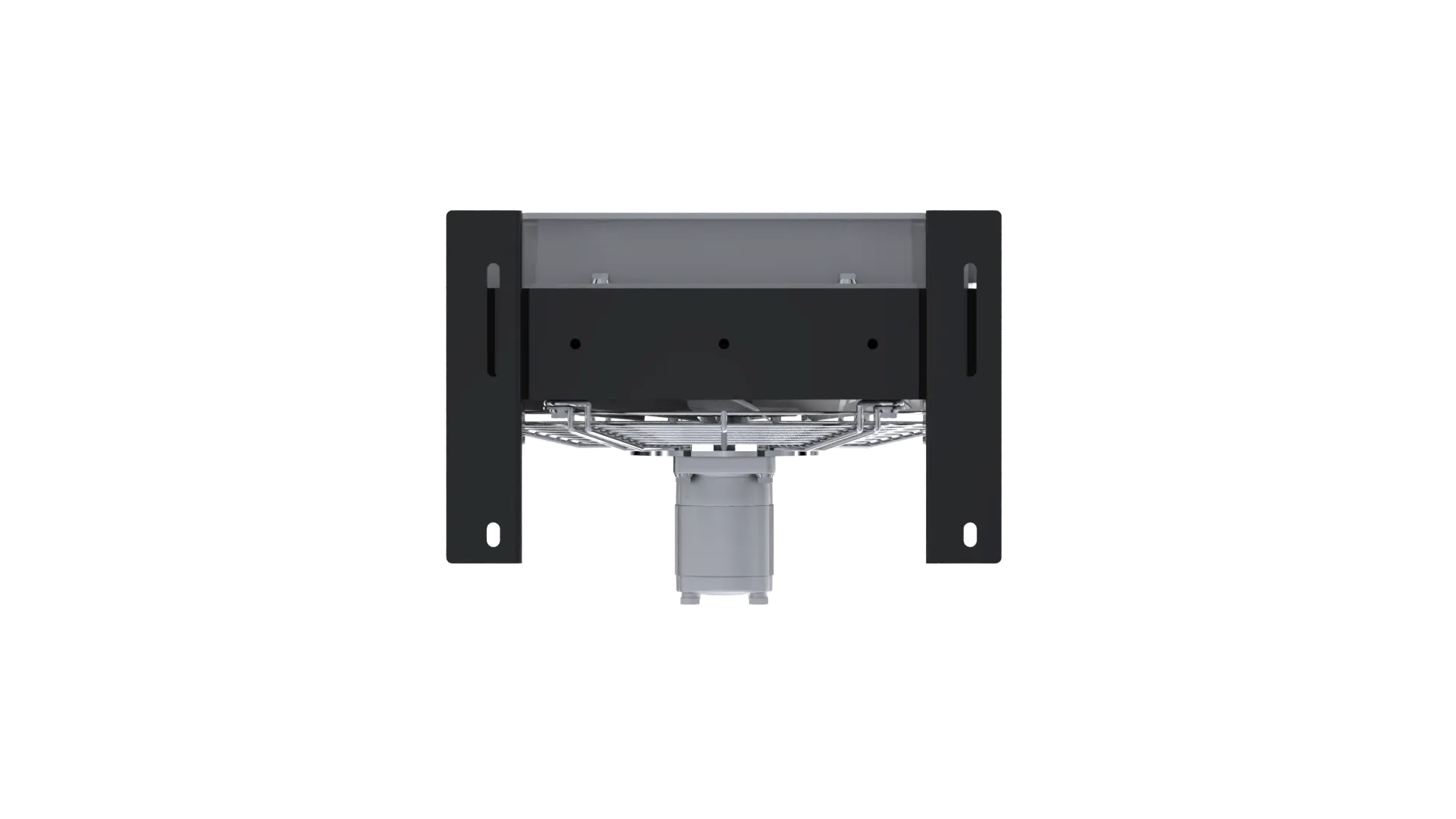

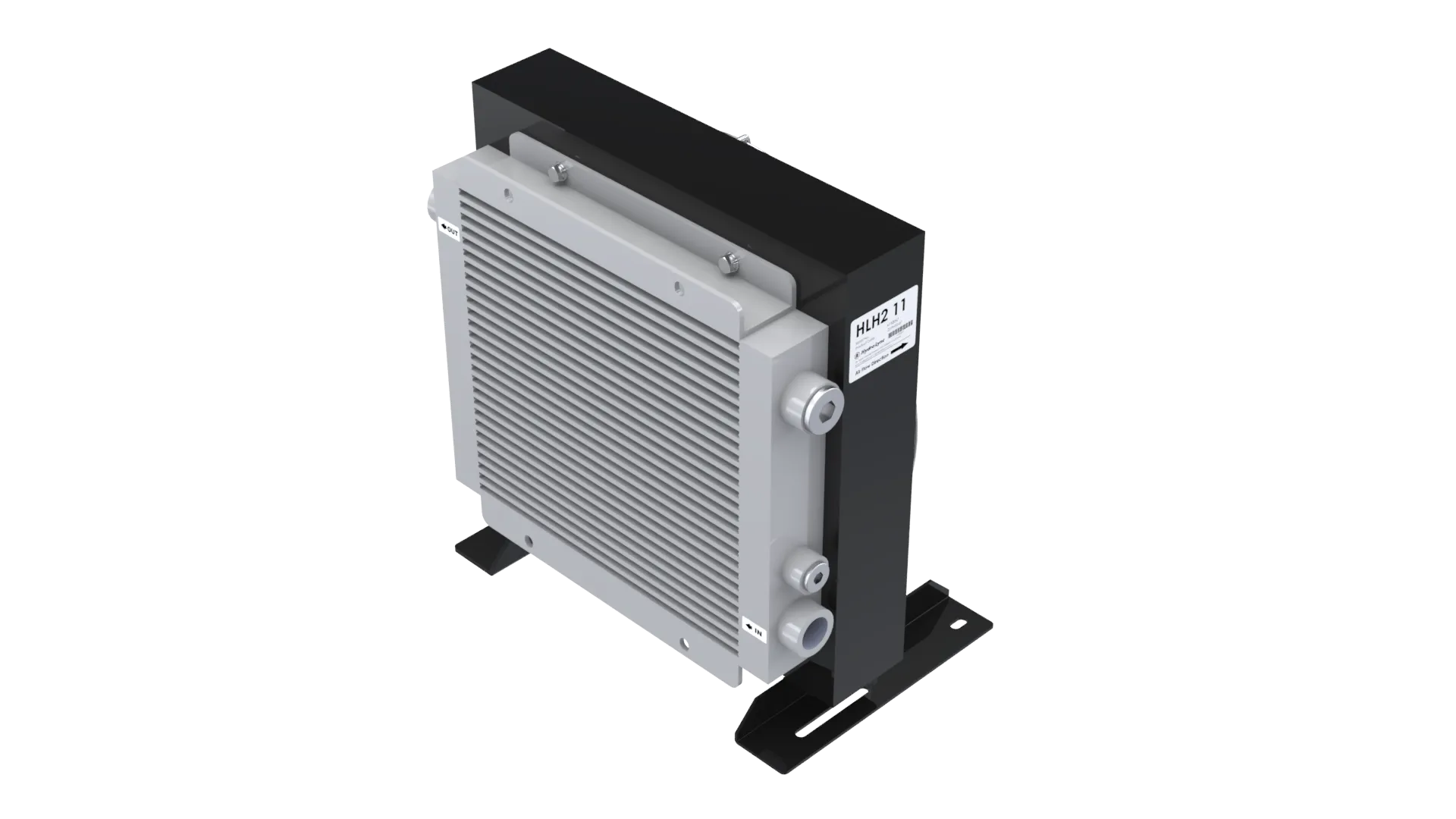

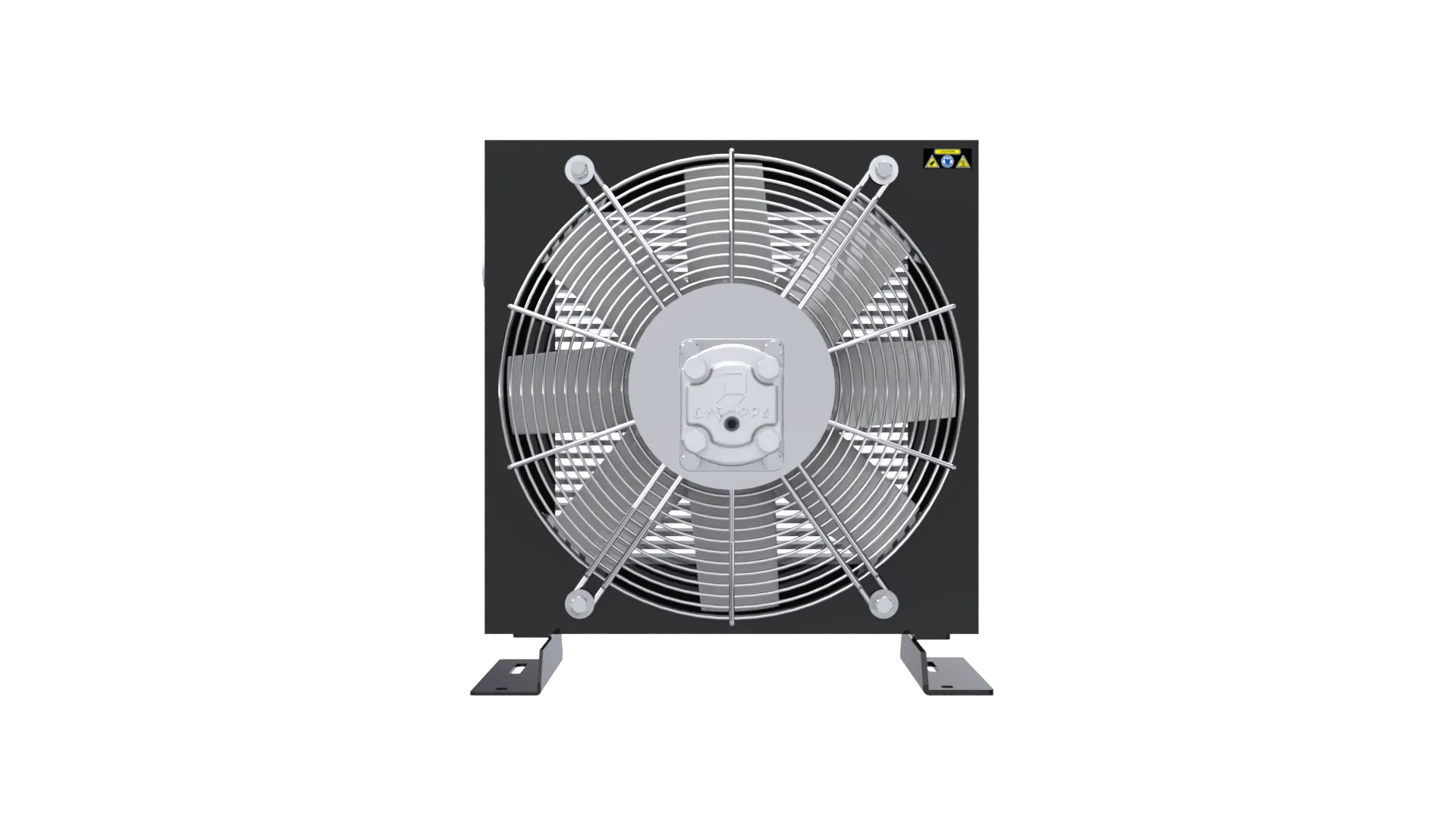

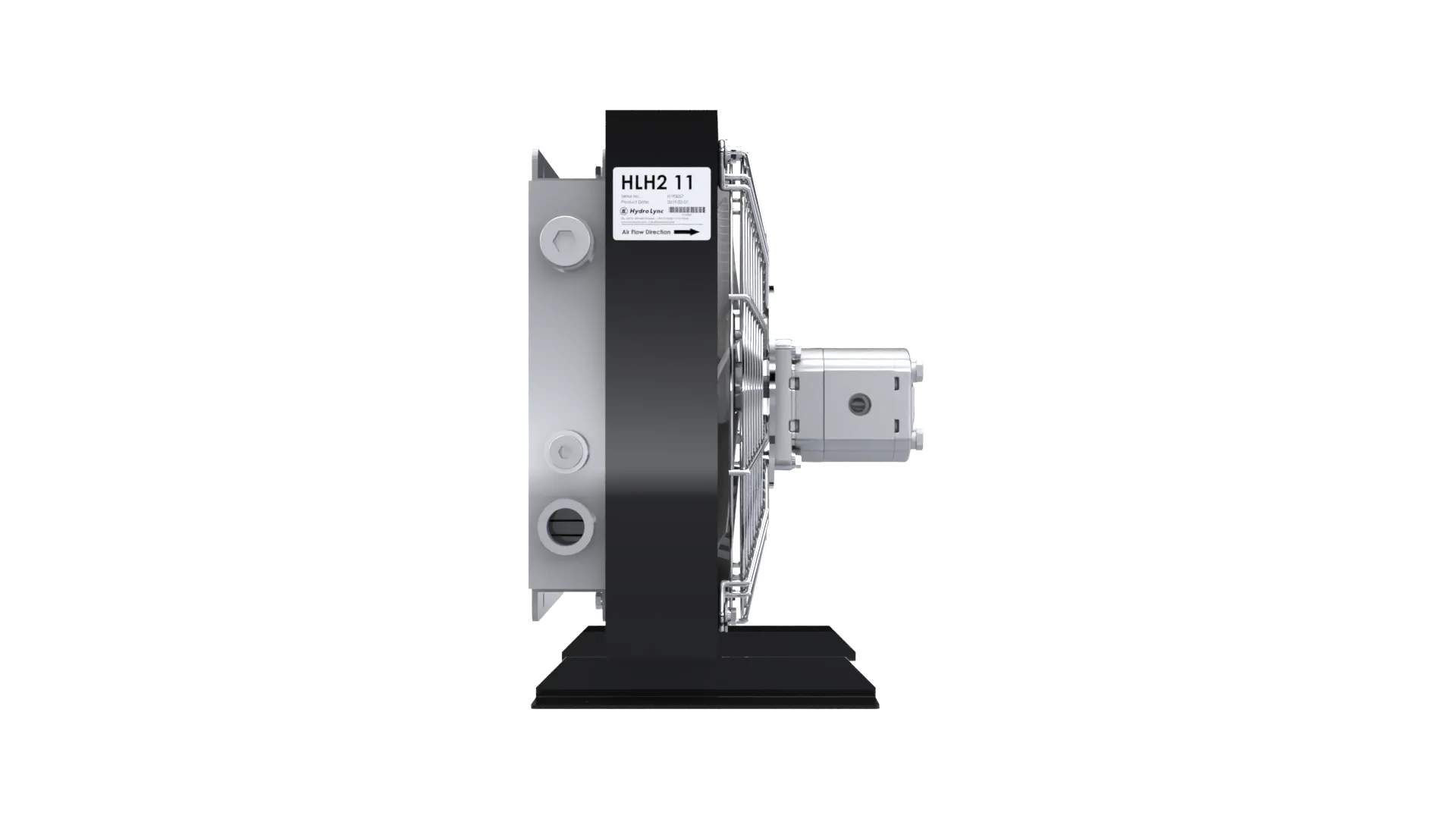

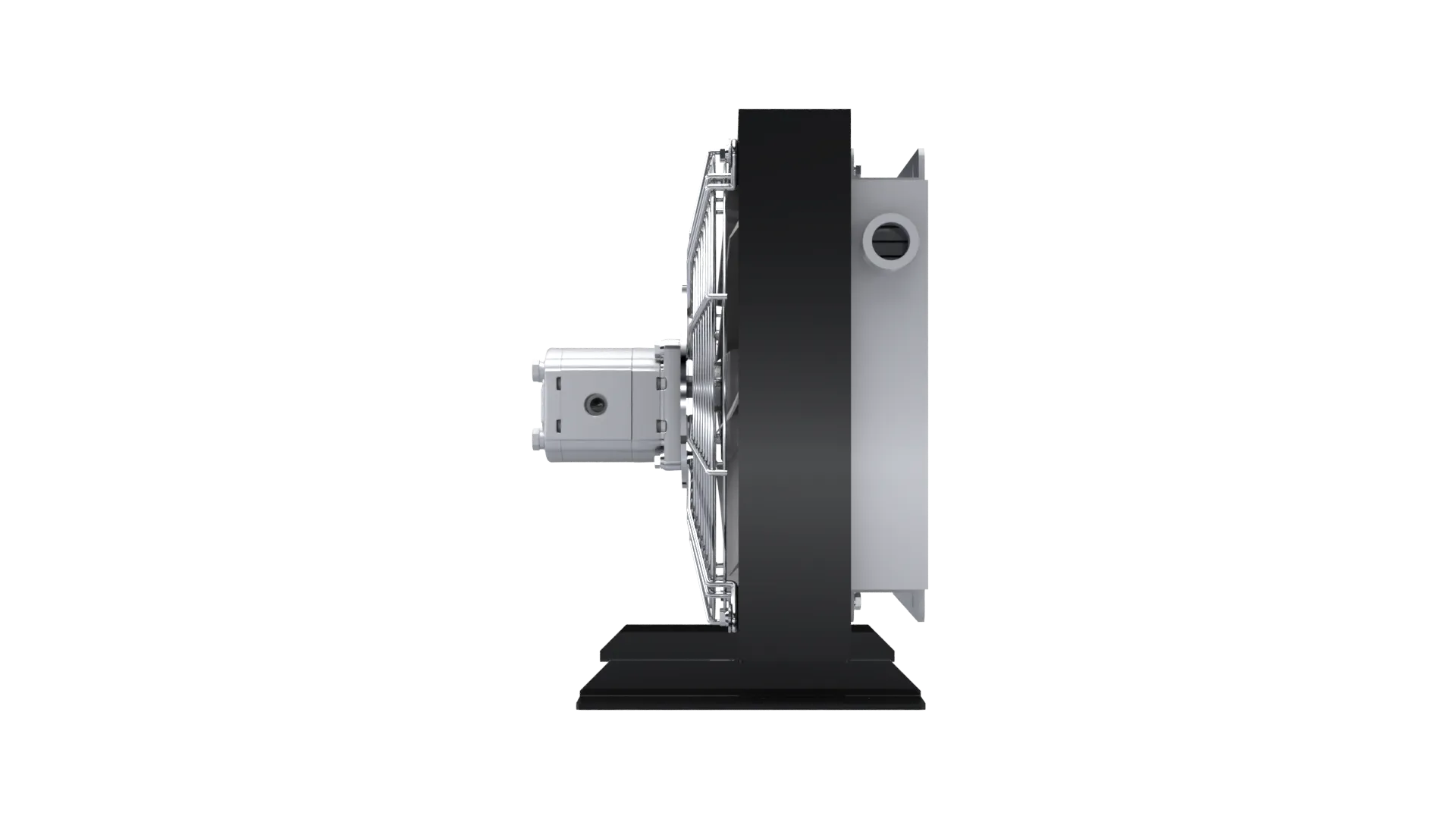

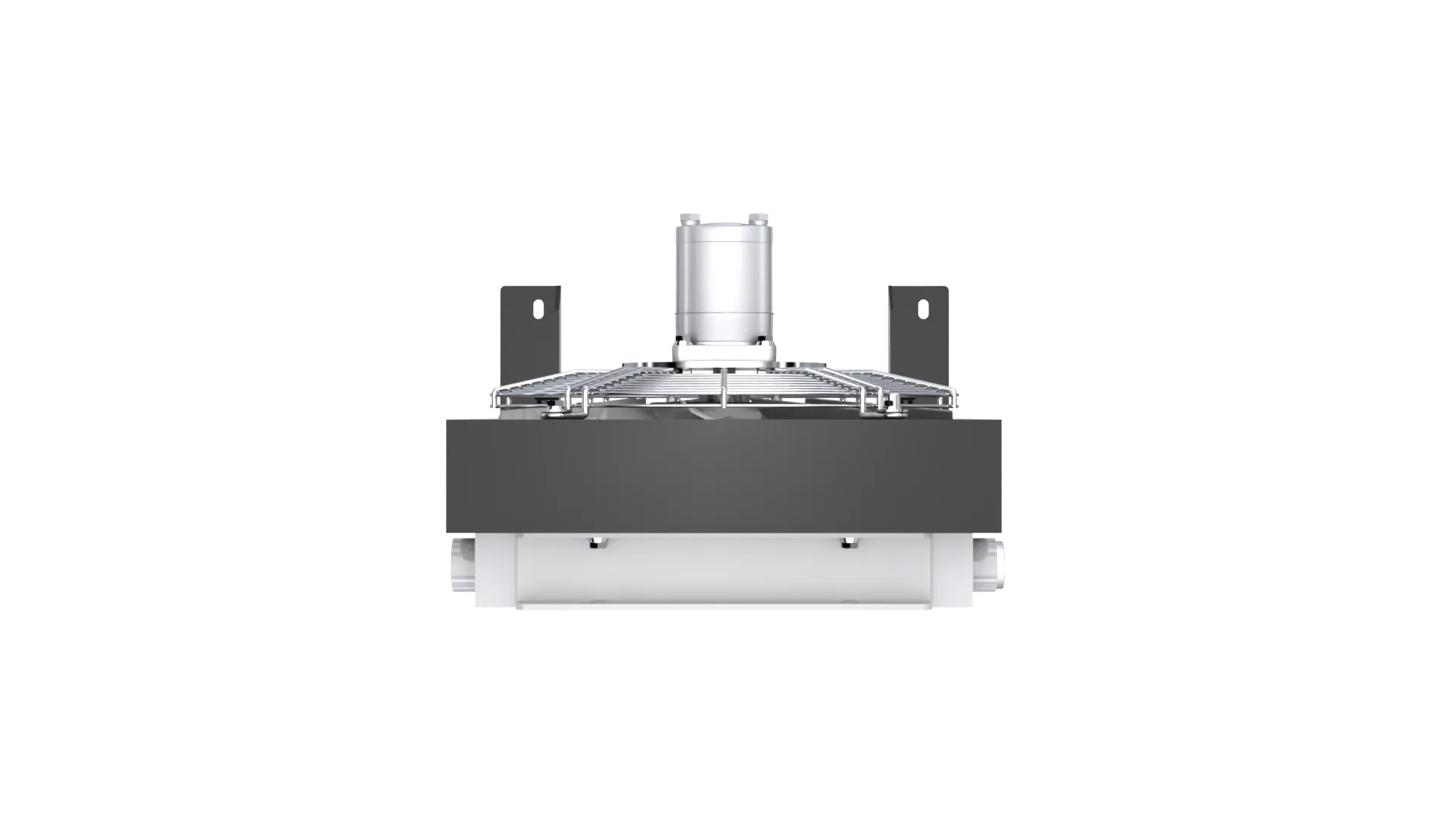

HydroLync HLH2 11 hydraulic motor driven air-oil cooler

Request Quote

Quick Specifications

Cooling Capacity0.445 kW/°C
Heat Dissipation (kcal/h)15308 kcal/h
Heat Dissipation17.8 kW
Max Speed3500 rpm

Detailed Specifications

Performance

Cooling Capacity
0.445 kW/°C
Heat Dissipation (kcal/h)
15308 kcal/h
Heat Dissipation
17.8 kW
Max Speed
3500 rpm

Dimensions

HLH2 dimension drawing
Length (A)
440 mm
Width (B)
440 mm
Height (C)
480 mm
Depth (D)
332 mm
Dimension E
63 mm
Dimension F
228 mm
Dimension G
146 mm
Dimension H
280 mm
Dimension I
170 mm
Dimension J
390 mm
Dimension K
374 mm
Dimension L
244 mm
Mounting Slot
ø10x90 / ø10x19
Net Weight
17 kg

Hydraulic Motor

Max Flow Rate
150 L/min
Oil Port (P1/P2/P3)
G1"

Downloads

Accessories

Thermal Switch (DIN Connector)
TS-DIN
Thermal Switch (Wire Connector)
TS-WIRE
Matrix Stone Guard
STONE-GUARD
Matrix Dust Guard
DUST-GUARD
Matrix Dust + Stone Guard
COMBO-GUARD
