HLH2 33 Hydraulic Motor Cooler
HLH2-33

HLH2 33 Hydraulic Motor Cooler

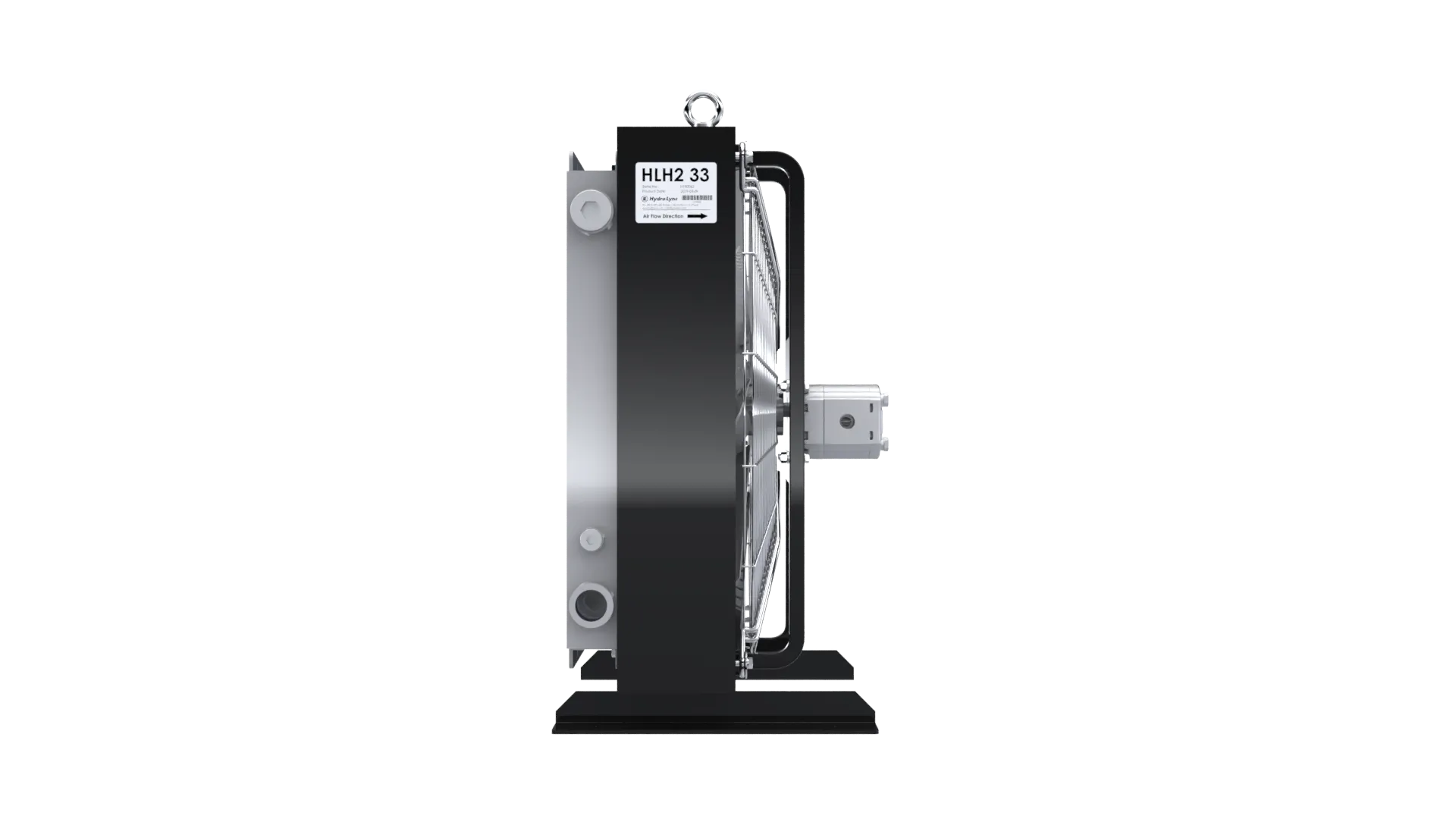

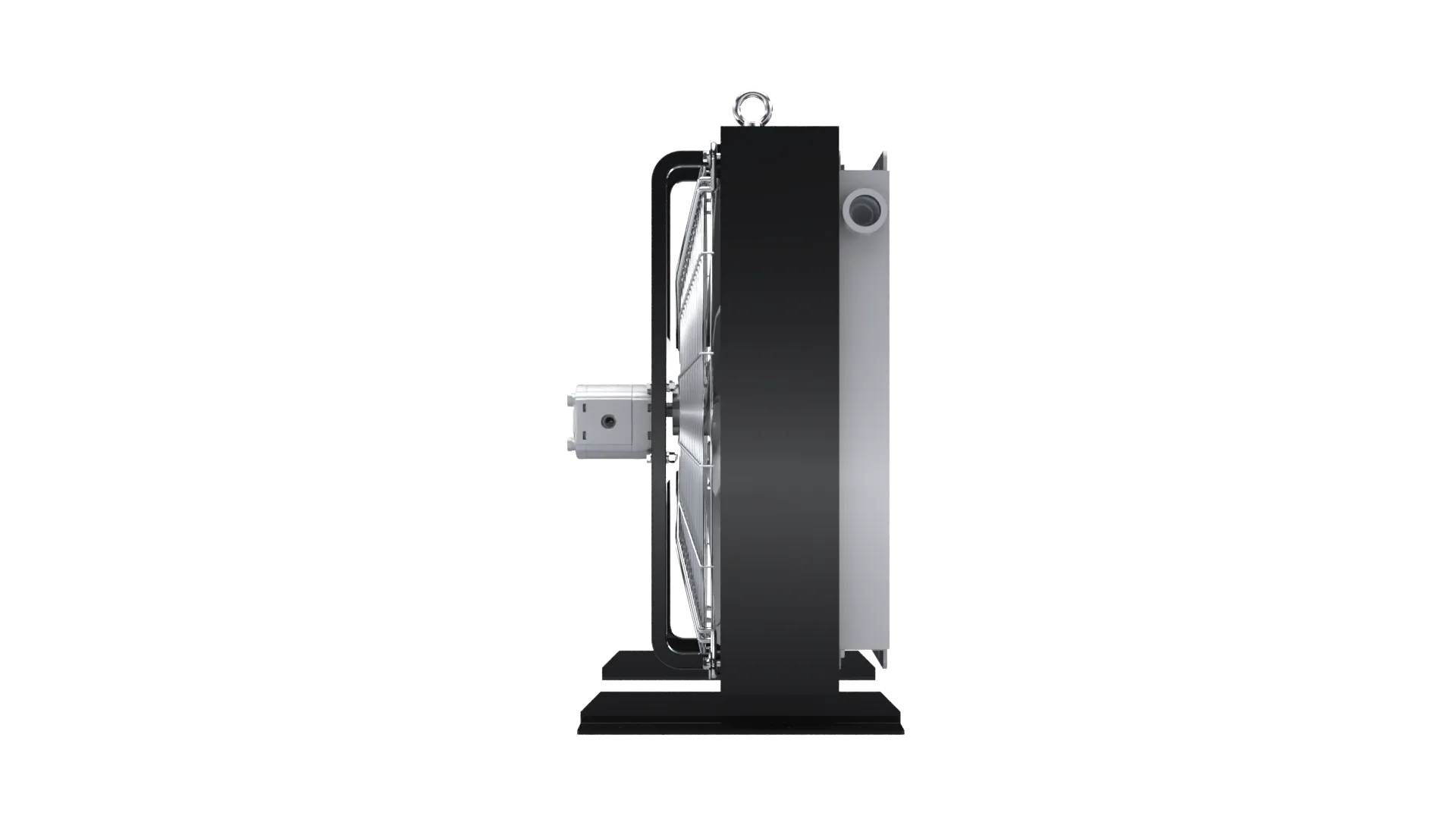

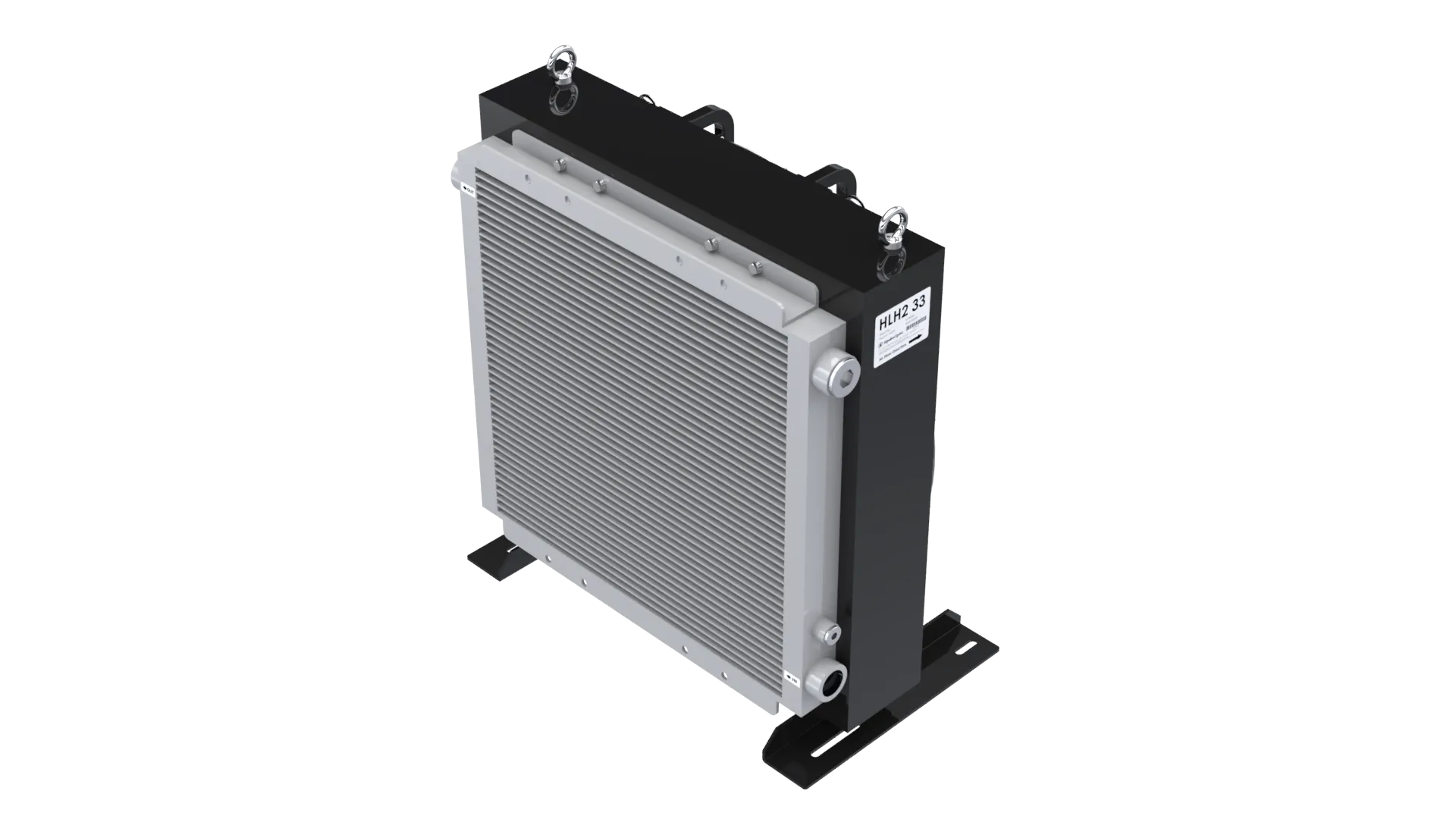

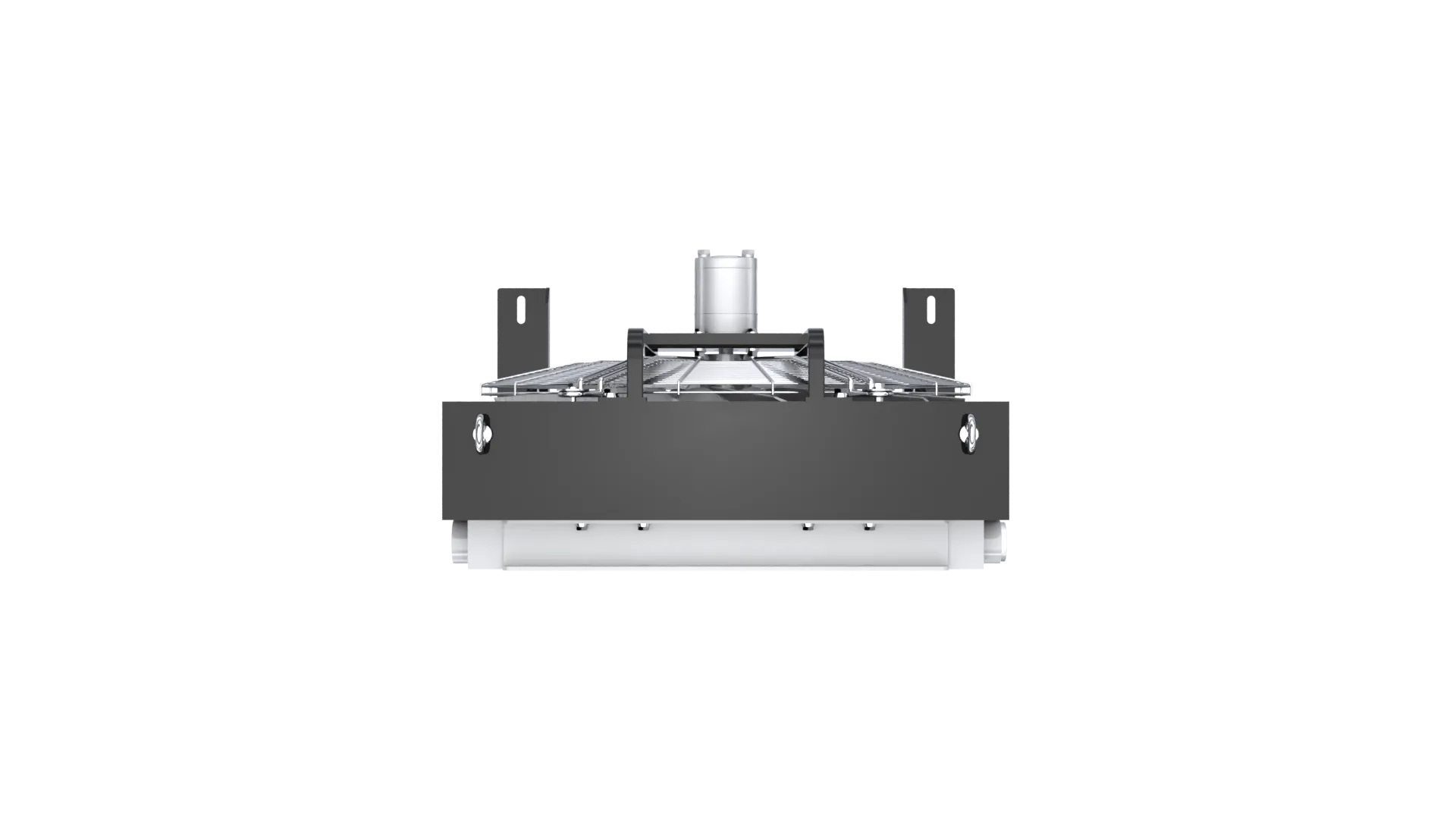

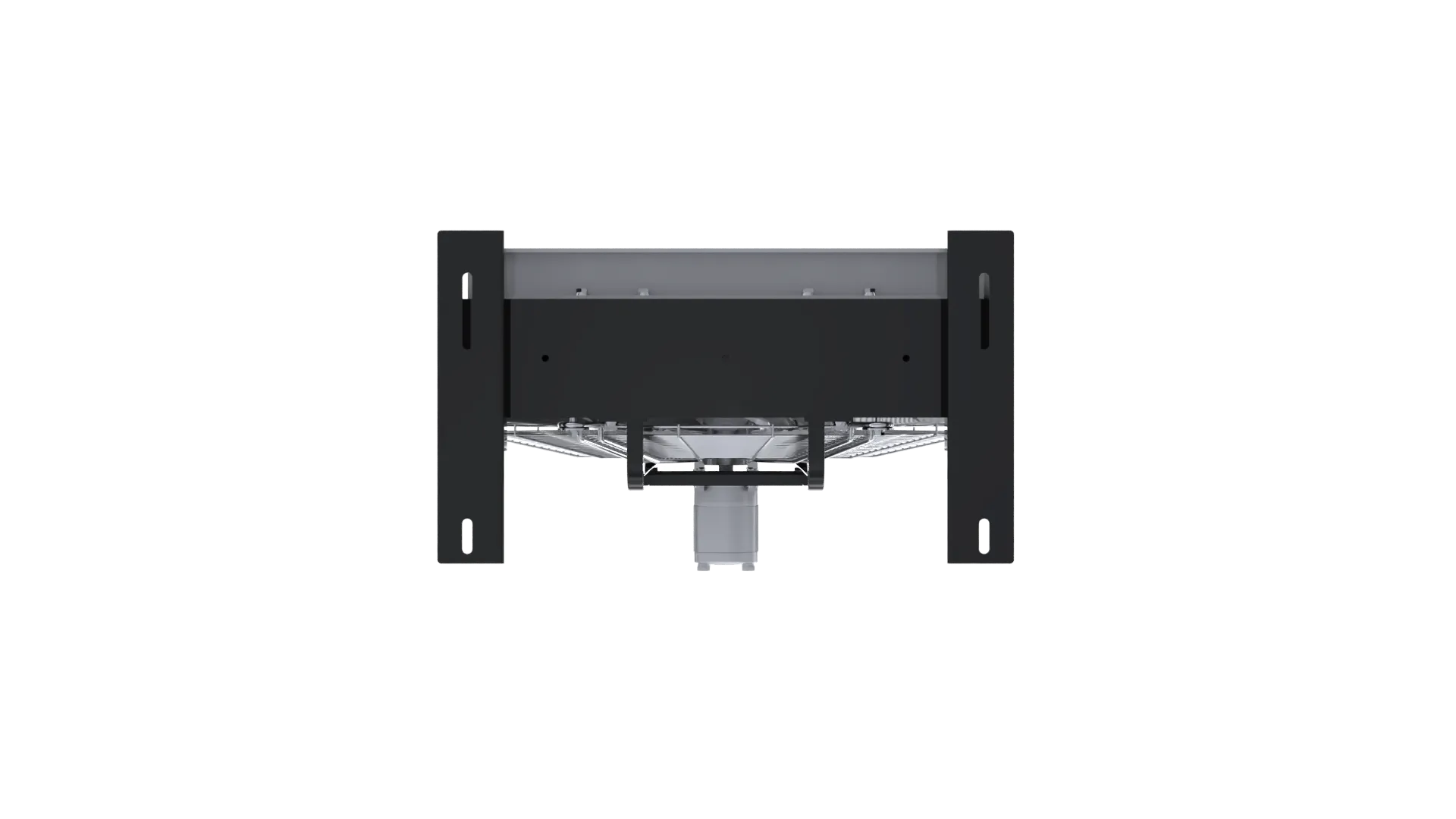

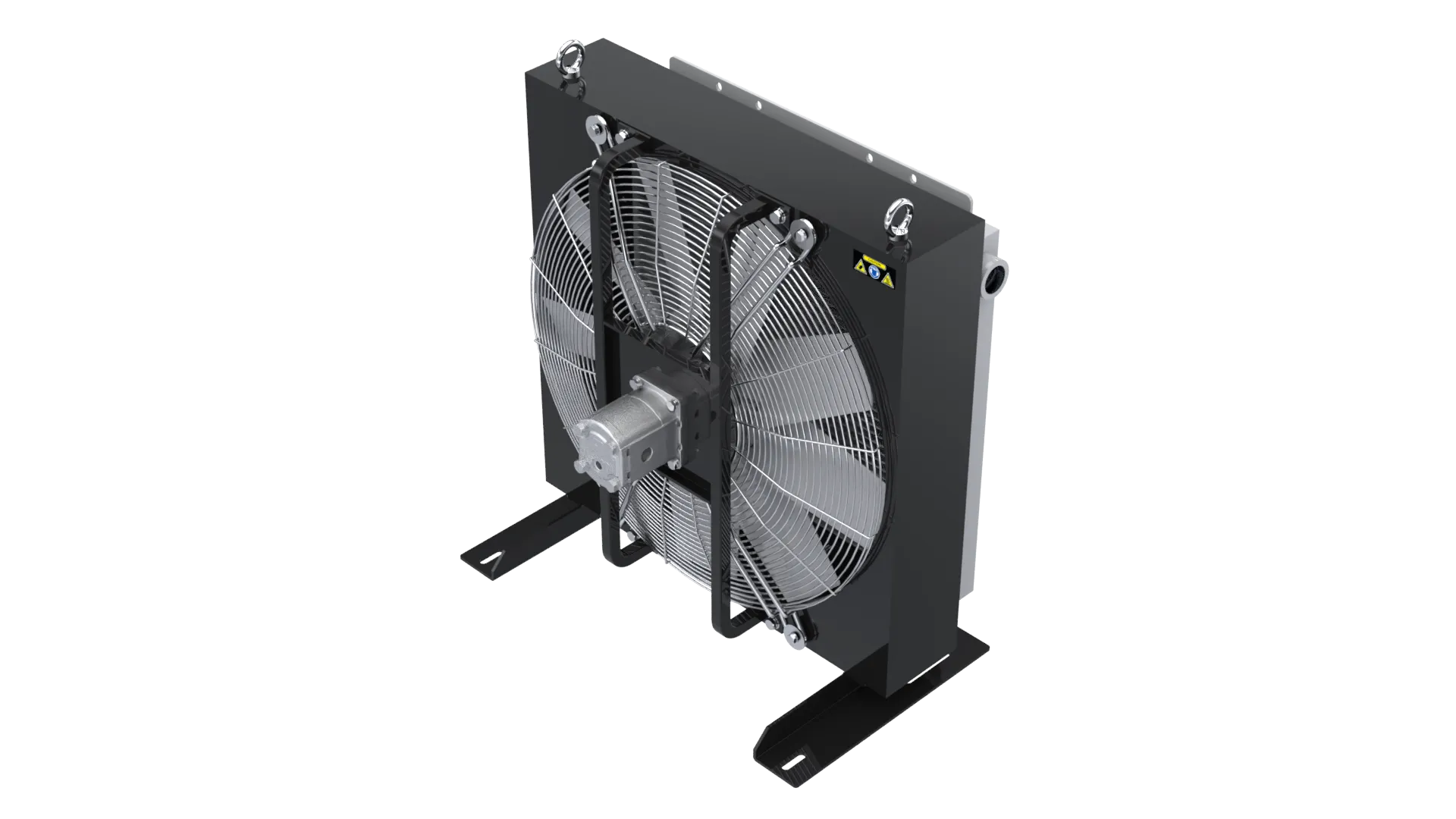

HydroLync HLH2 33 hydraulic motor driven air-oil cooler

Request Quote

Quick Specifications

Cooling Capacity1.1 kW/°C
Heat Dissipation (kcal/h)37840 kcal/h
Heat Dissipation44 kW
Max Speed2350 rpm

Detailed Specifications

Performance

Cooling Capacity
1.1 kW/°C
Heat Dissipation (kcal/h)
37840 kcal/h
Heat Dissipation
44 kW
Max Speed
2350 rpm

Dimensions

HLH2 dimension drawing
Length (A)
692 mm
Width (B)
692 mm
Height (C)
742 mm
Depth (D)
414 mm
Dimension E
63 mm
Dimension F
482 mm
Dimension G
157 mm
Dimension H
400 mm
Dimension I
270 mm
Dimension J
620 mm
Dimension K
639 mm
Dimension L
380 mm
Mounting Slot
ø12x92 / ø12x21
Net Weight
42 kg

Hydraulic Motor

Max Flow Rate
300 L/min
Oil Port (P1/P2/P3)
G1 1/4"

Downloads

Accessories

Thermal Switch (DIN Connector)
TS-DIN
Thermal Switch (Wire Connector)
TS-WIRE
Matrix Stone Guard
STONE-GUARD
Matrix Dust Guard
DUST-GUARD
Matrix Dust + Stone Guard
COMBO-GUARD
