HLH2 35 Hydraulic Motor Cooler

Product specifications and documentation

HLH2 35 Hydraulic Motor Cooler
HLH2-35

HLH2 35 Hydraulic Motor Cooler

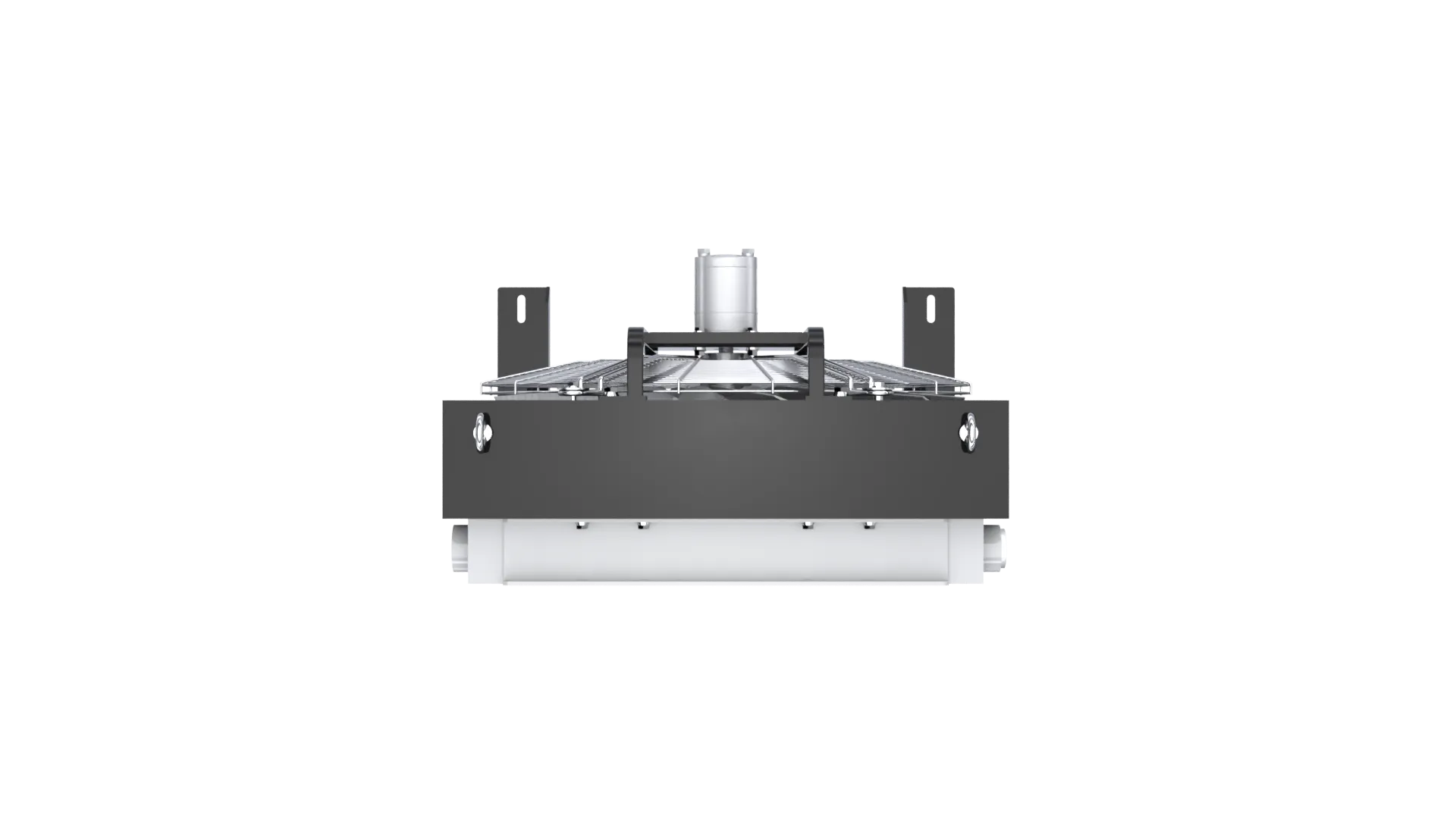

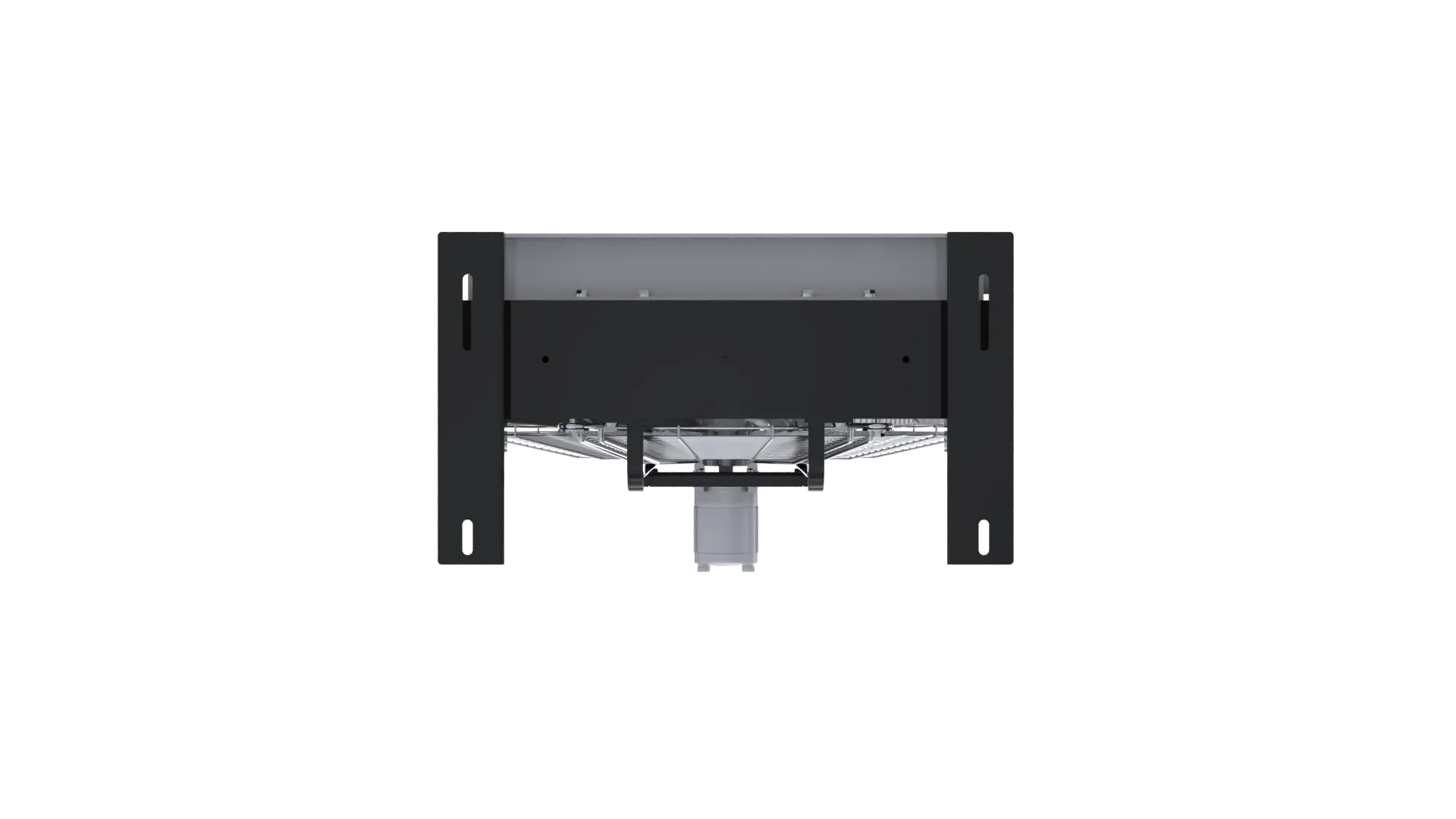

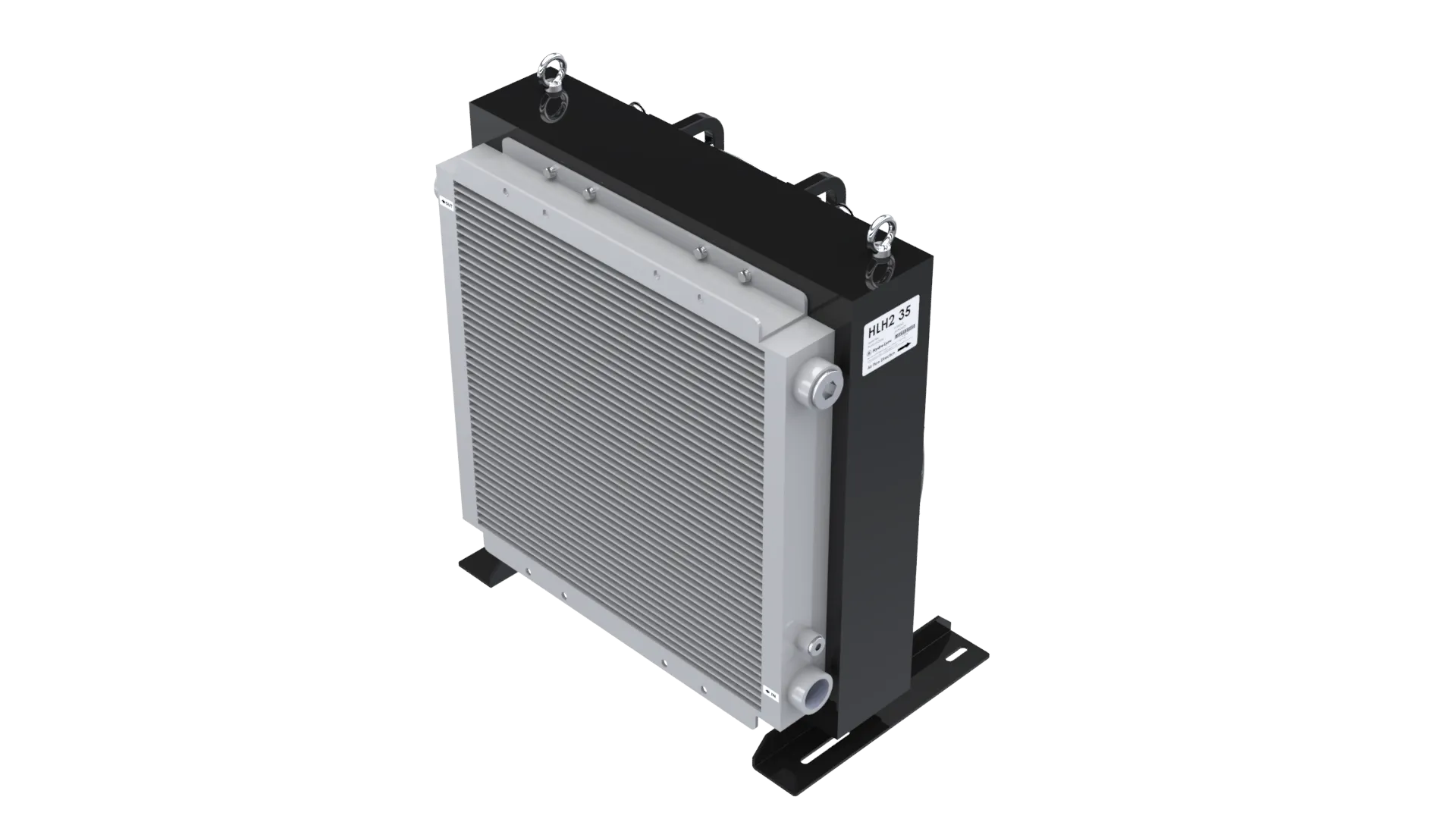

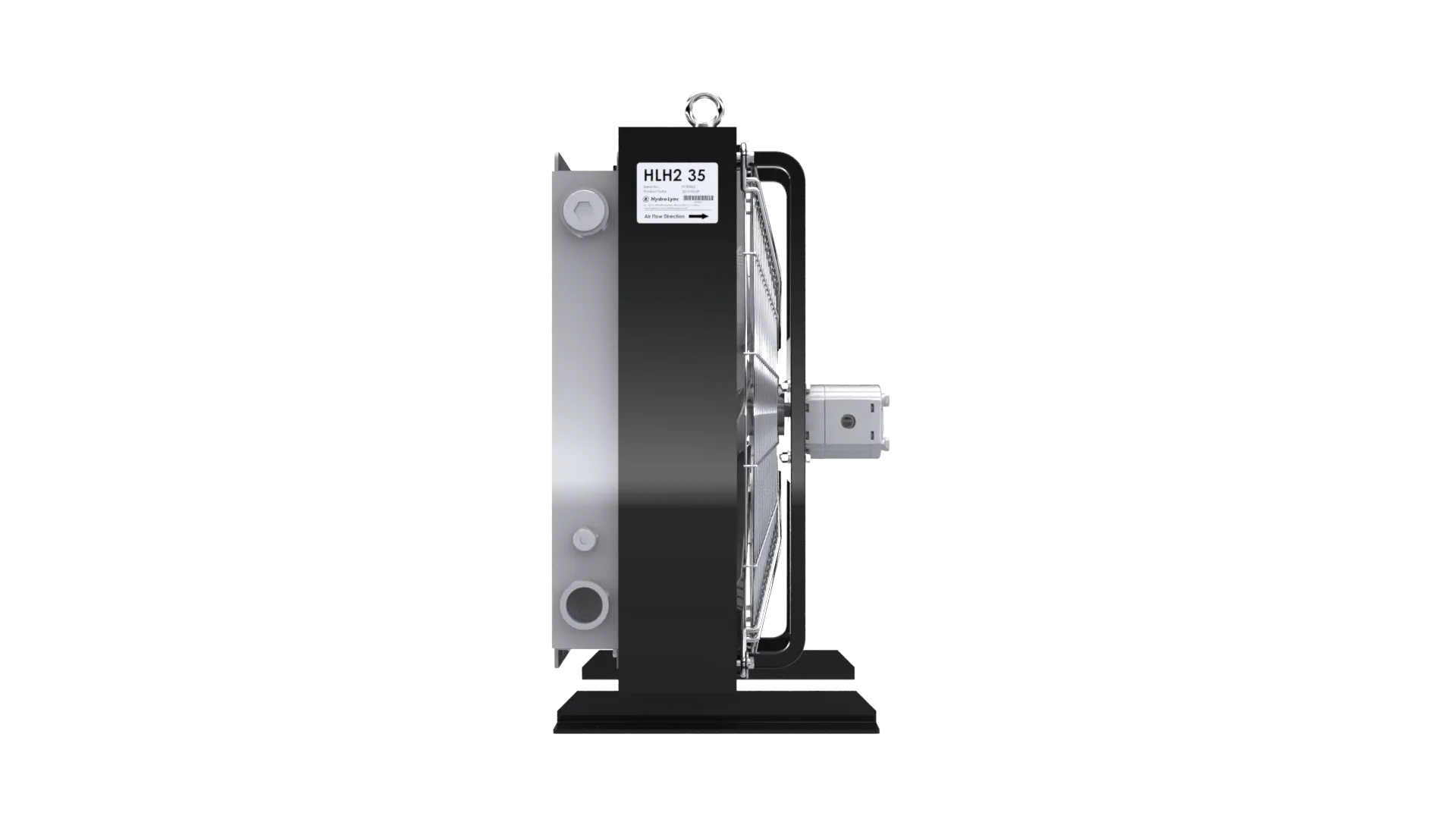

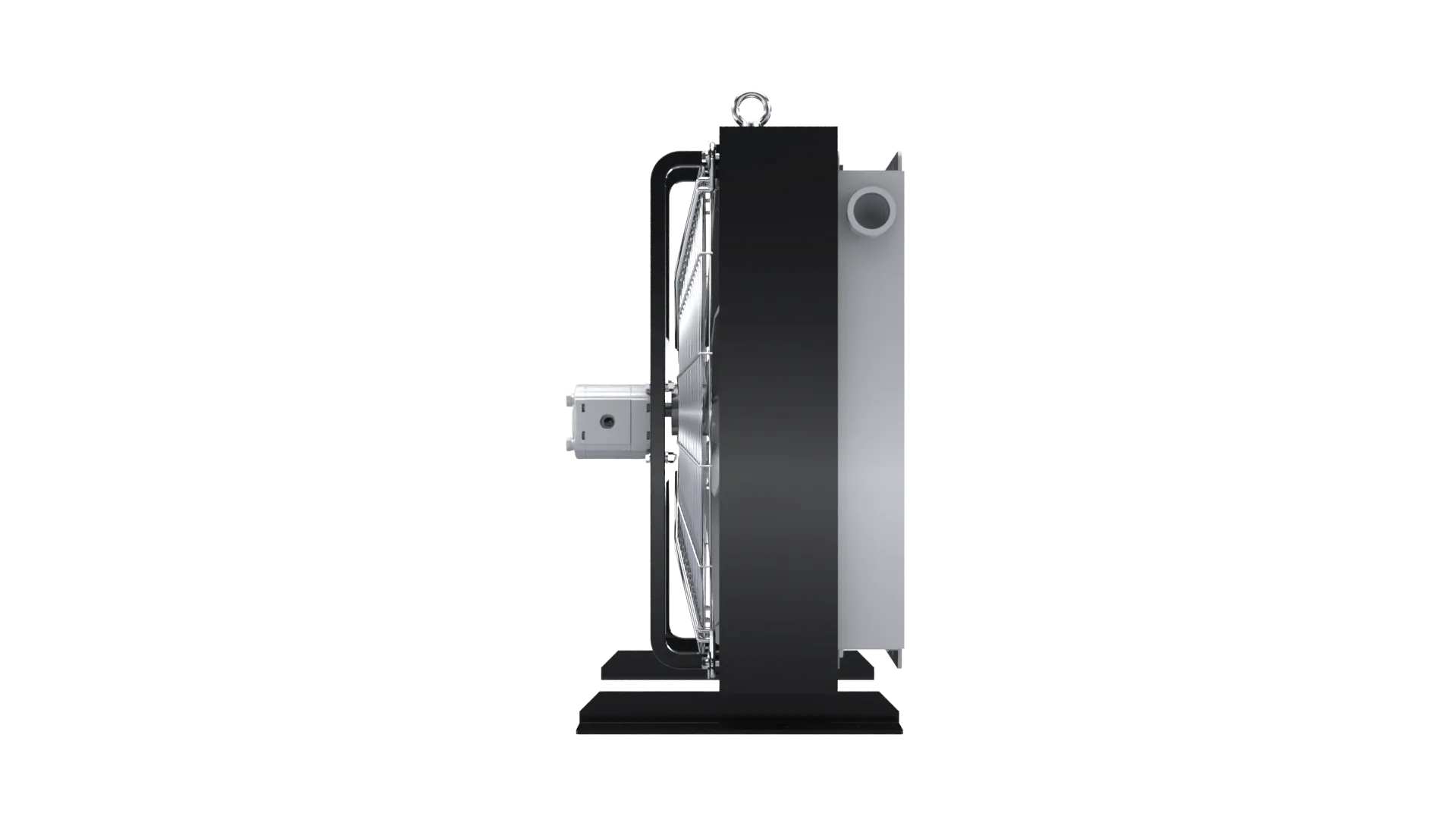

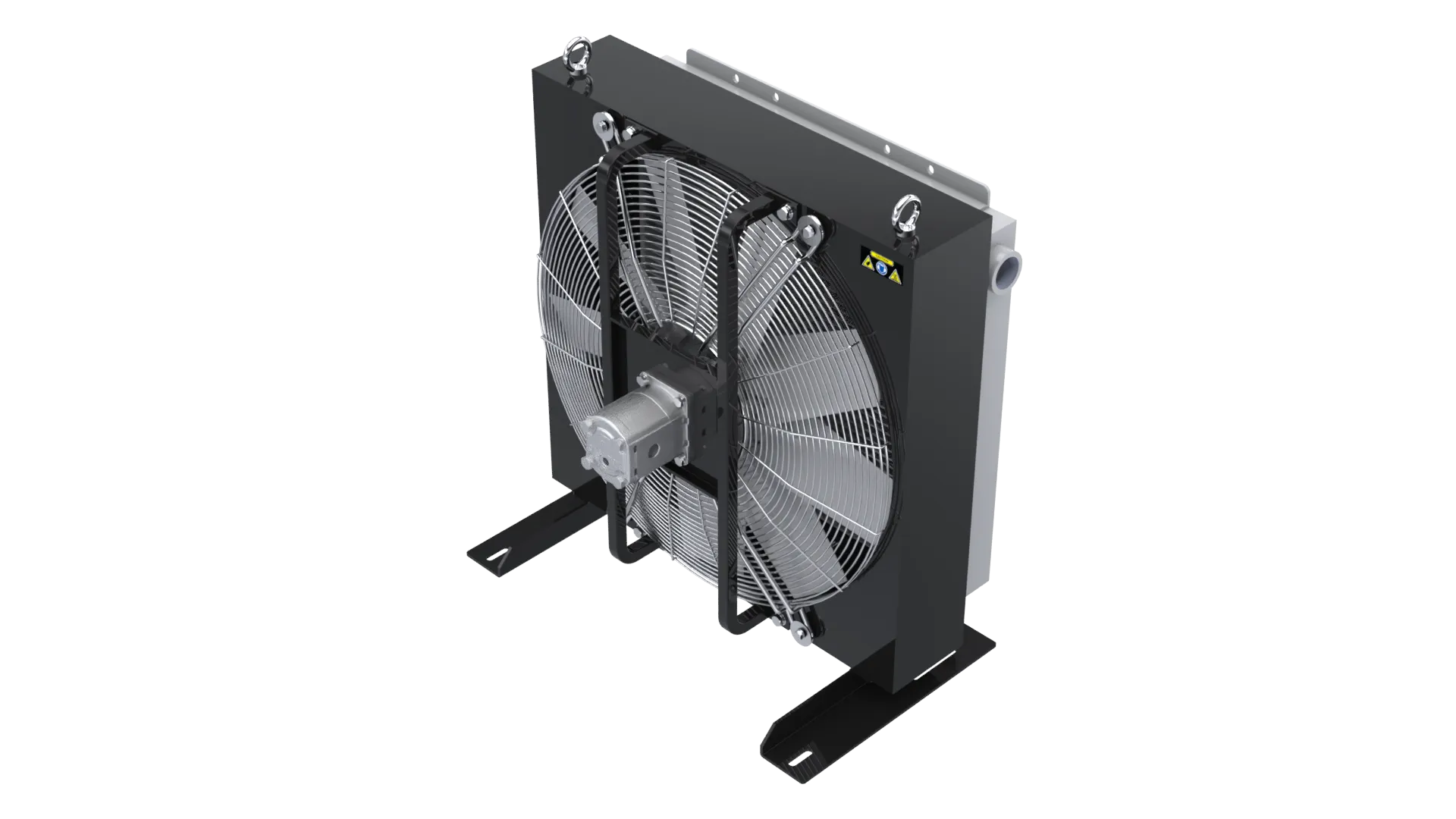

HydroLync HLH2 35 hydraulic motor driven air-oil cooler

Request Quote

Quick Specifications

Cooling Capacity1.3 kW/°C
Heat Dissipation (kcal/h)44720 kcal/h
Heat Dissipation52 kW
Max Speed2350 rpm

Detailed Specifications

Performance

Cooling Capacity
1.3 kW/°C
Heat Dissipation (kcal/h)
44720 kcal/h
Heat Dissipation
52 kW
Max Speed
2350 rpm

Dimensions

Length (A)
692 mm
Width (B)
692 mm
Height (C)
742 mm
Depth (D)
434 mm
Dimension E
83 mm
Dimension F
482 mm
Dimension G
157 mm
Dimension H
400 mm
Dimension I
270 mm
Dimension J
620 mm
Dimension K
639 mm
Dimension L
380 mm
Mounting Slot
ø12x92 / ø12x21
Net Weight
58 kg

Hydraulic

Max Flow Rate
300 L/min
Oil Port (P1/P2/P3)
G1 1/2"

Environmental

Noise Level (1m)
86 dB(A)
Noise Test RPM
1500 rpm
Noise Level
86 dBA

Mechanical

Max RPM
1500 RPM
Net Weight
58 kg
Motor Type
B
Motor Displacement
14.53 cm³/rev
Max Pressure p1 (Continuous)
250 bar
Max Pressure p2 (Intermittent)
280 bar
Max Pressure p3 (Peak)
300 bar
Motor Max Speed
3500 rpm
Motor Min Speed
500 rpm

Downloads

Accessories

Thermal Switch (DIN Connector)
TS-DIN
Thermal Switch (Wire Connector)
TS-WIRE
Matrix Stone Guard
STONE-GUARD
Matrix Dust Guard
DUST-GUARD
Matrix Dust + Stone Guard
COMBO-GUARD
