HLH2 58 Hydraulic Motor Cooler

Product specifications and documentation

HLH2 58 Hydraulic Motor Cooler
HLH2-58

HLH2 58 Hydraulic Motor Cooler

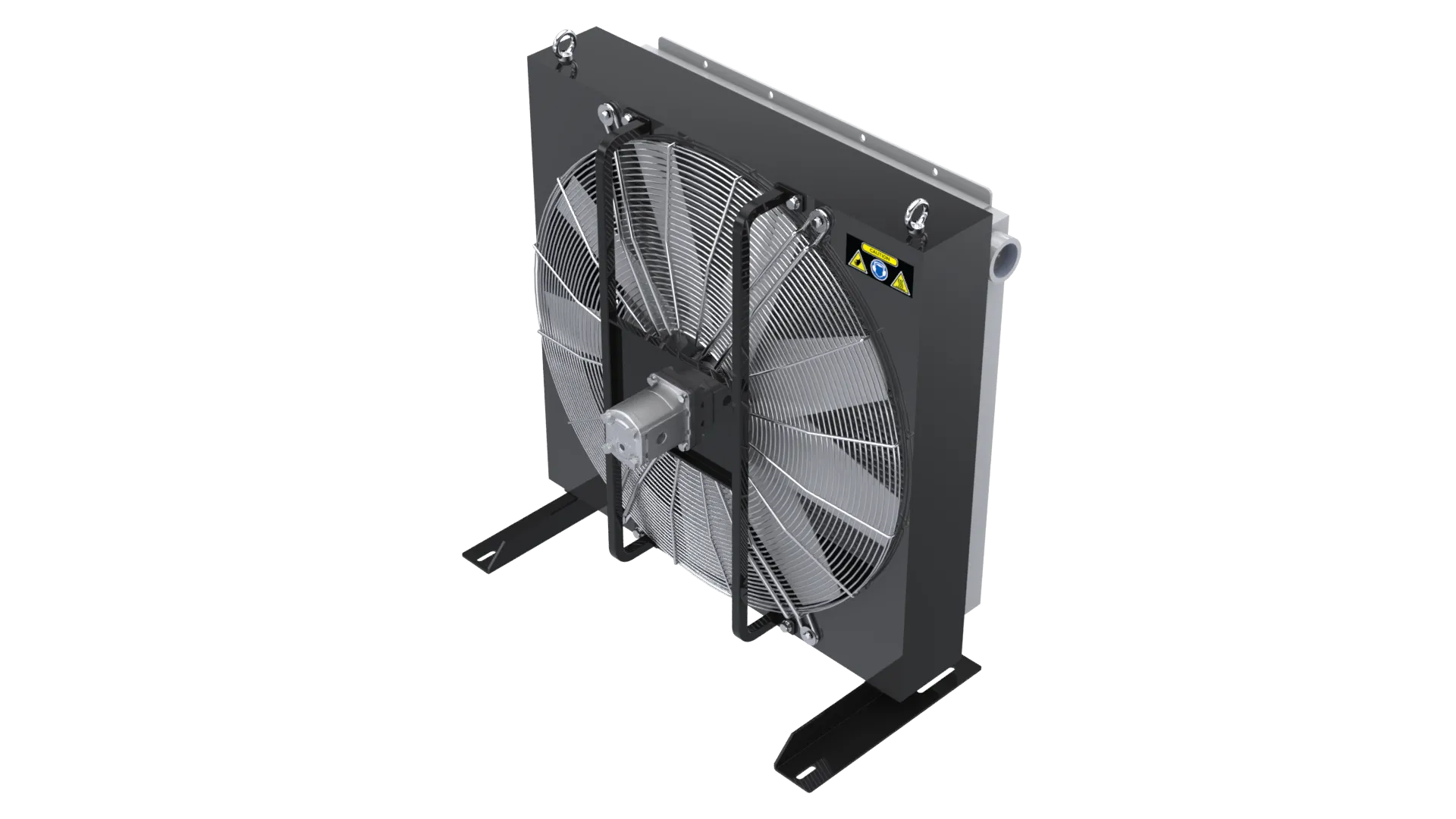

HydroLync HLH2 58 hydraulic motor driven air-oil cooler

Request Quote

Quick Specifications

Cooling Capacity1.7 kW/°C
Heat Dissipation (kcal/h)58480 kcal/h
Heat Dissipation68 kW
Max Speed1850 rpm

Detailed Specifications

Performance

Cooling Capacity
1.7 kW/°C
Heat Dissipation (kcal/h)
58480 kcal/h
Heat Dissipation
68 kW
Max Speed
1850 rpm

Dimensions

HLH2 dimension drawing
Length (A)
868 mm
Width (B)
868 mm
Height (C)
928 mm
Depth (D)
454 mm
Dimension E
83 mm
Dimension F
664 mm
Dimension G
163 mm
Dimension H
430 mm
Dimension I
320 mm
Dimension J
796 mm
Dimension K
827 mm
Dimension L
478 mm
Mounting Slot
ø12x92 / ø12x21
Net Weight
80 kg

Hydraulic Motor

Max Flow Rate
300 L/min
Oil Port (P1/P2/P3)
G2"

Downloads

Accessories

Thermal Switch (DIN Connector)
TS-DIN
Thermal Switch (Wire Connector)
TS-WIRE
Matrix Stone Guard
STONE-GUARD
Matrix Dust Guard
DUST-GUARD
Matrix Dust + Stone Guard
COMBO-GUARD
