HSC HSC-T-3-550-S Shell & Tube Cooler
Product specifications and documentation
HSC HSC-T-3-550-S Shell & Tube Cooler

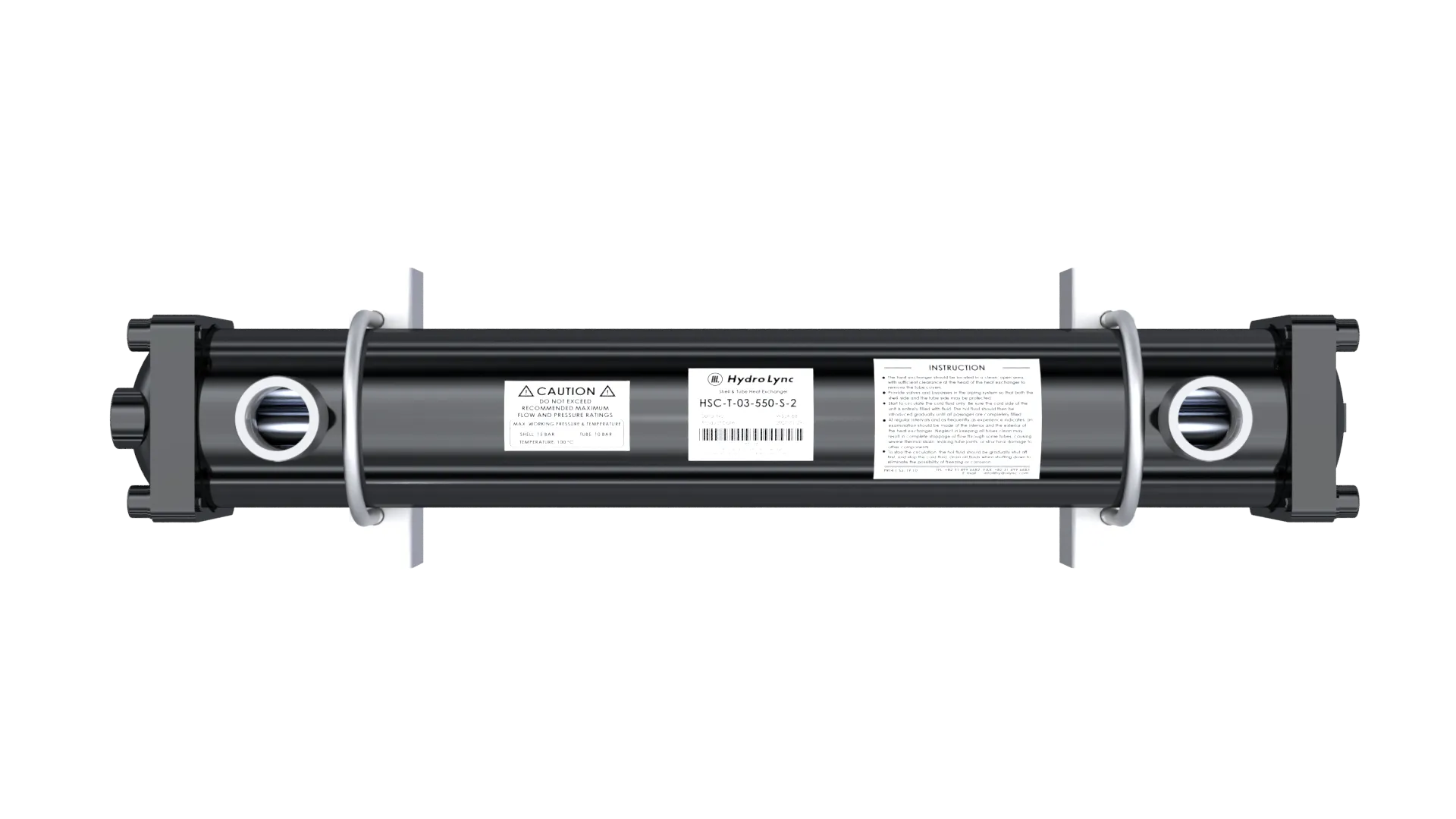

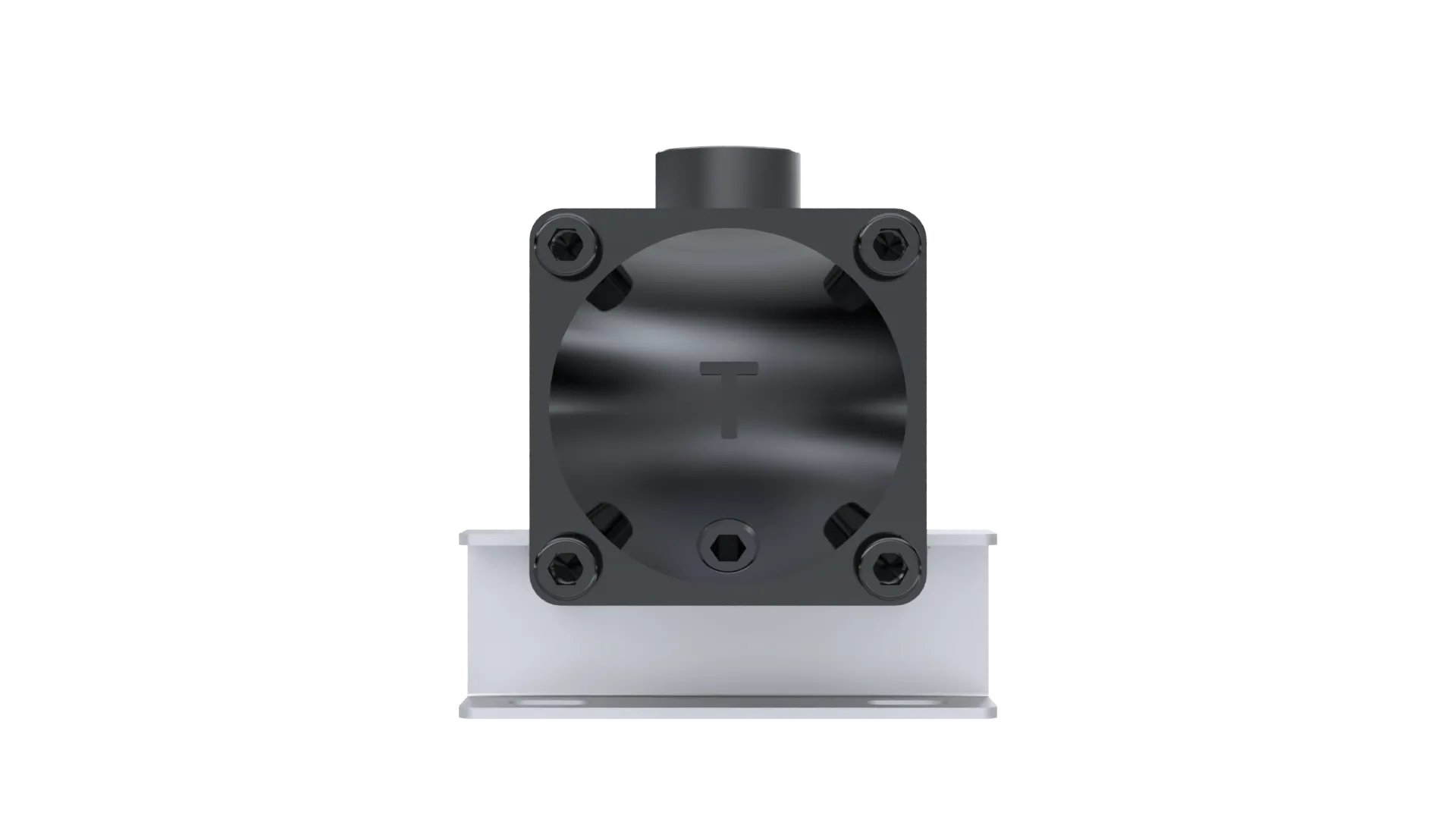

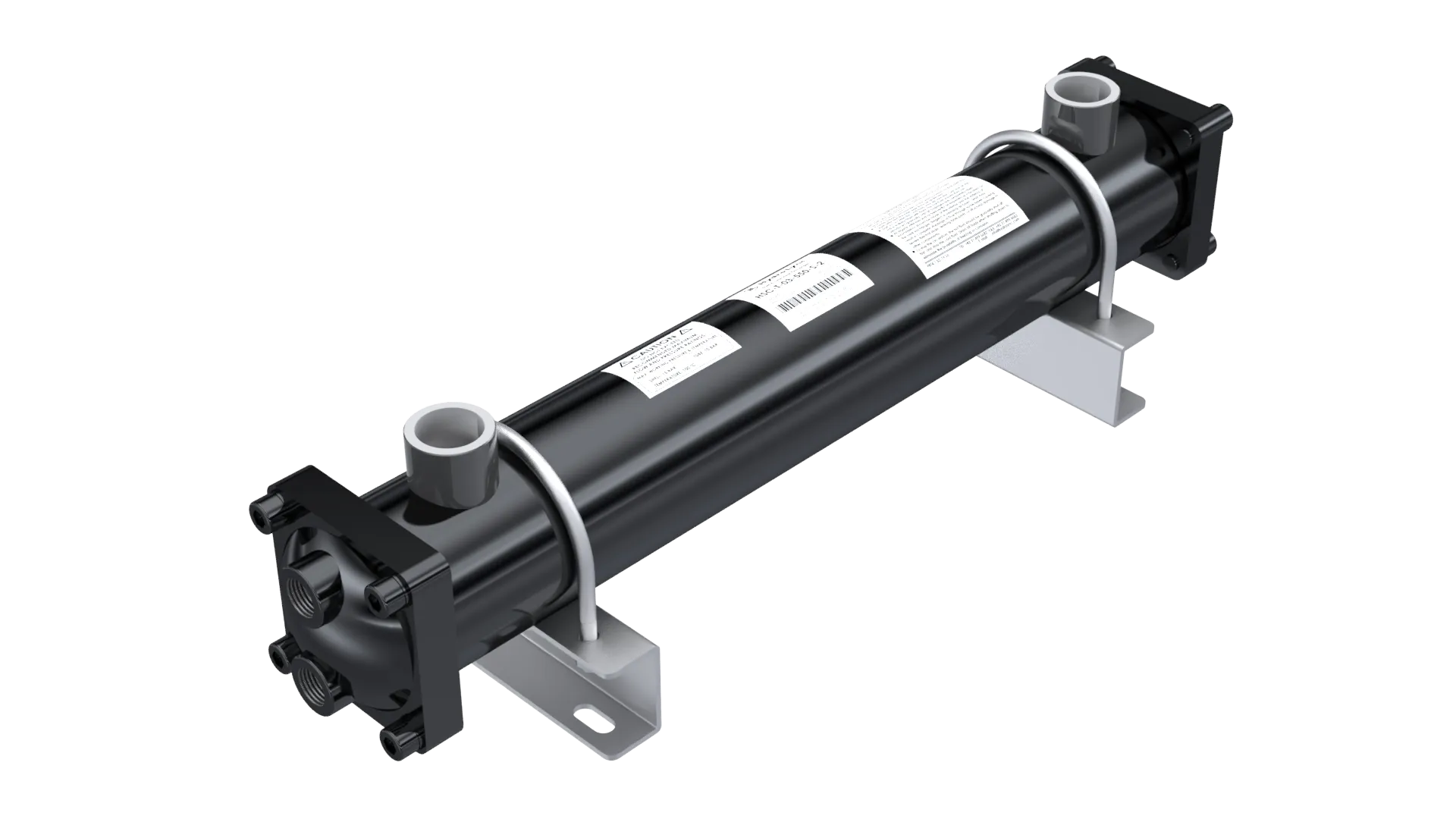

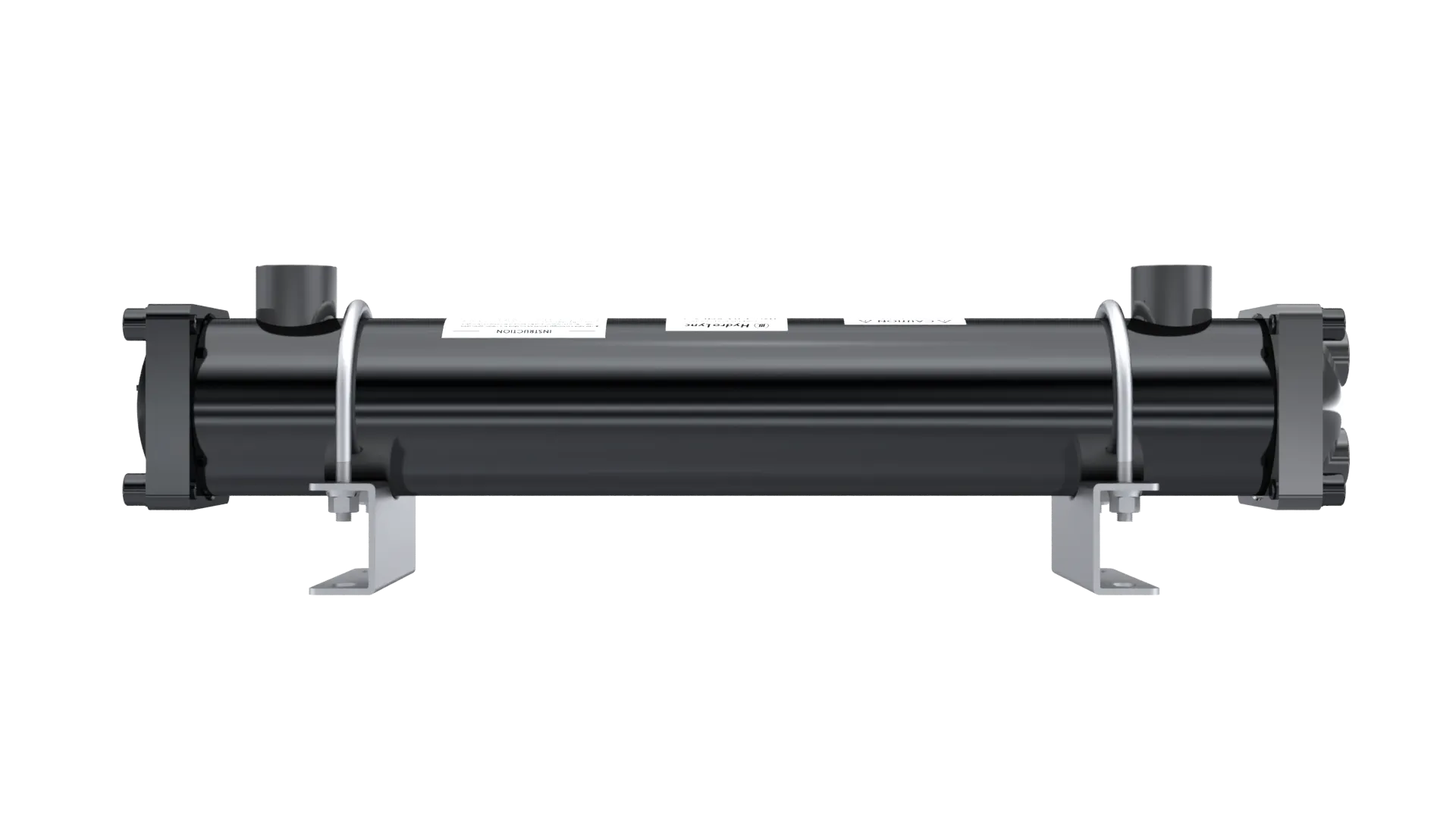

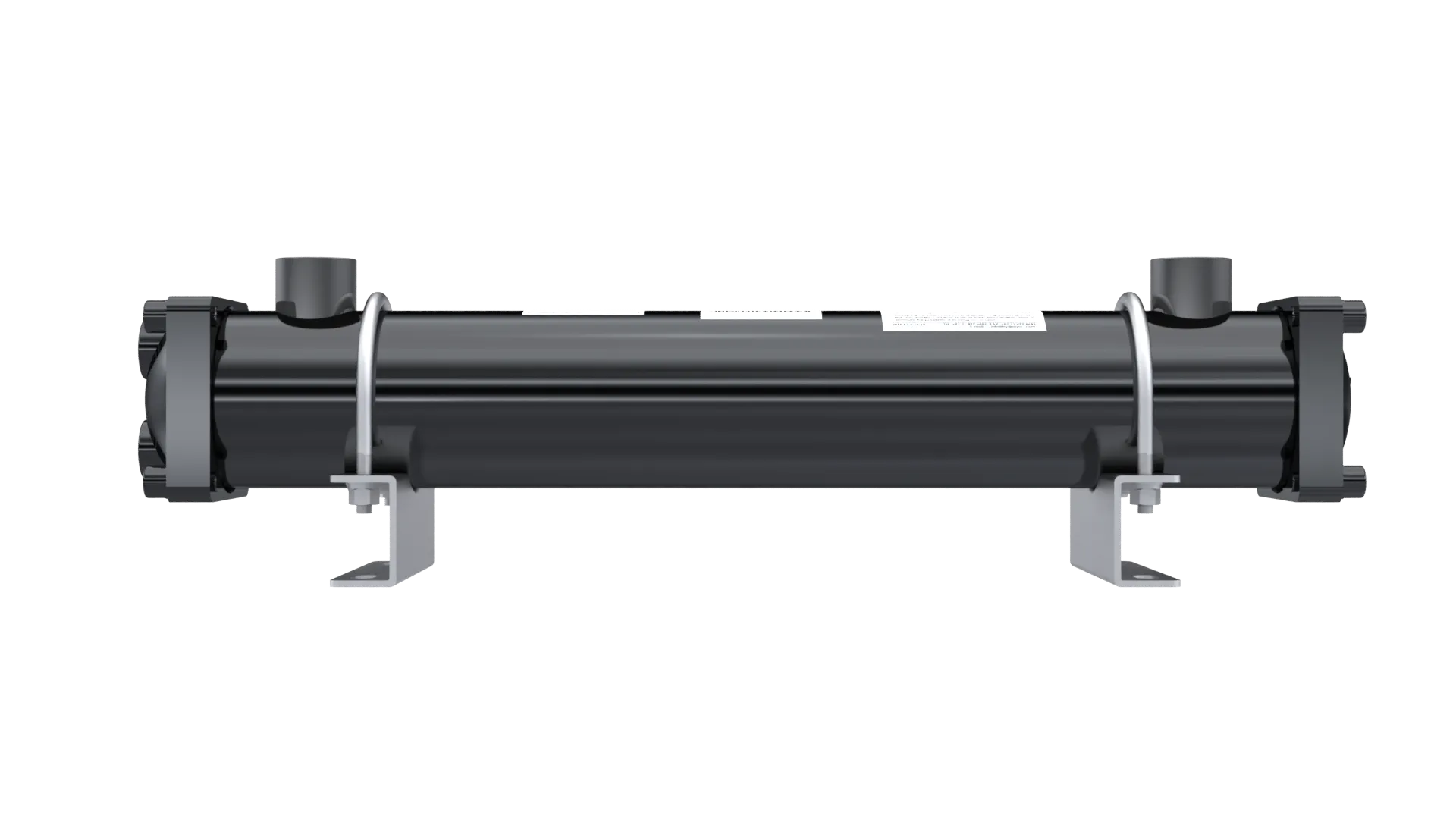

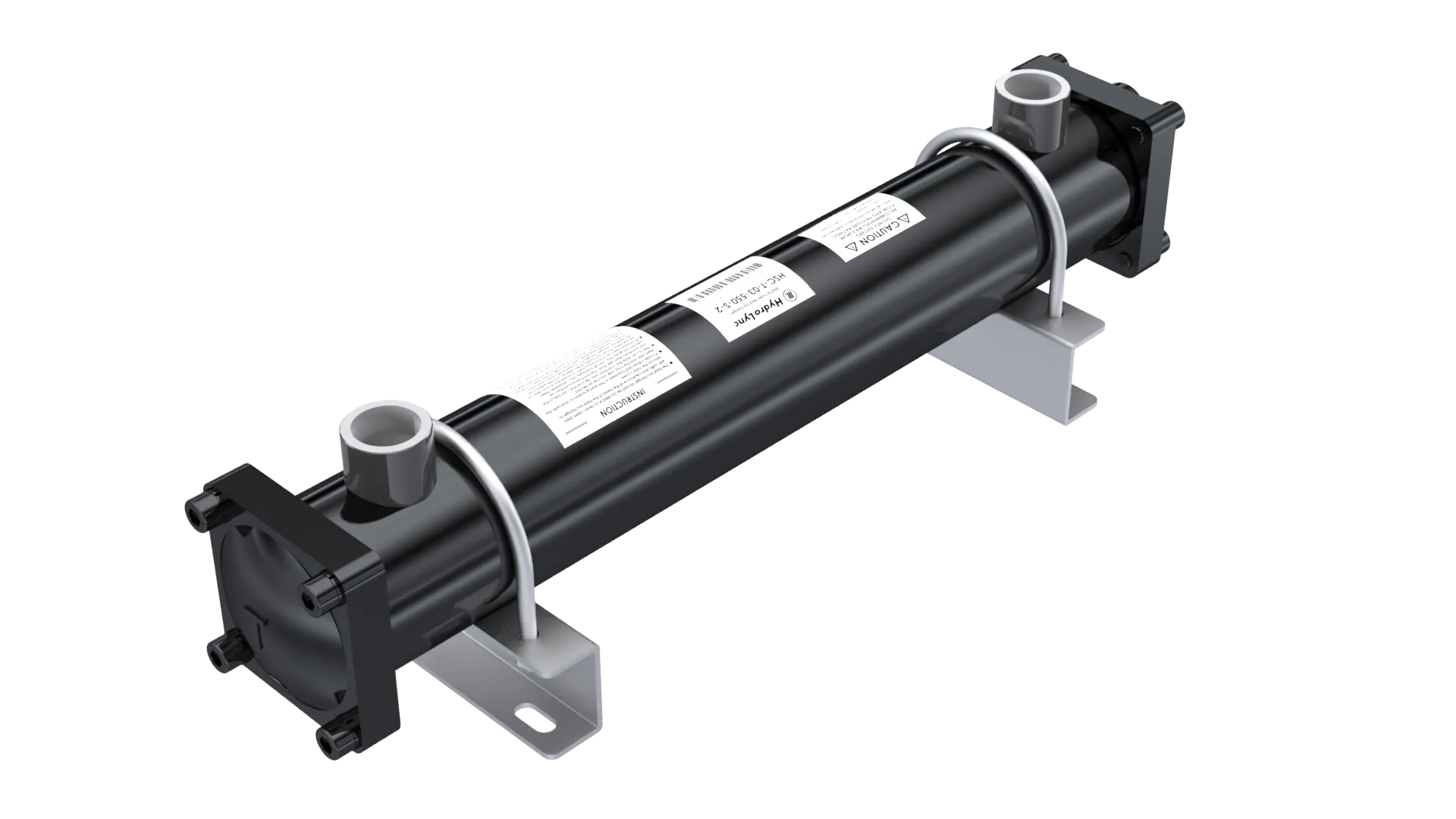

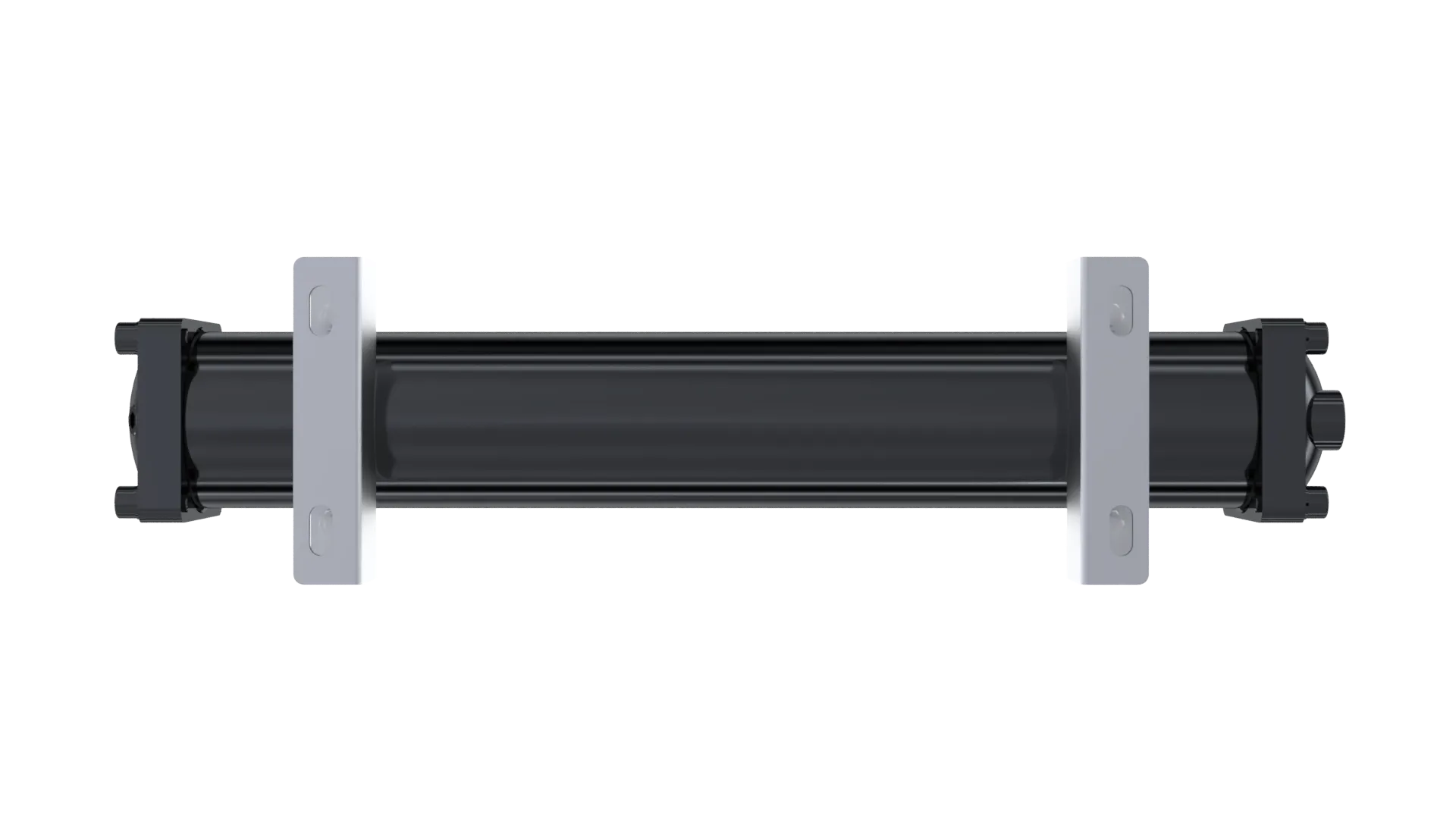

HydroLync HSC-T-3-550-S shell and tube heat exchanger
Quick Specifications
Heat Transfer Area1.2m²
Heat Transfer (kW)17kW
Pressure Drop (Oil)1.12bar
Pressure Drop (Water)0.8bar
Heat Transfer (kcal/h)13,300kcal/h
Detailed Specifications
Performance
| Heat Transfer Area | 1.2 m² |
|---|---|
| Heat Transfer (kW) | 17 kW |
| Pressure Drop (Oil) | 1.12 bar |
| Pressure Drop (Water) | 0.8 bar |
| Heat Transfer (kcal/h) | 13,300 kcal/h |
| Max Flow Rate | 65 LPM |
| Working Pressure | 0.8 bar |
Dimensions
| Overall Length (A) | 602 mm |
|---|---|
| Tube Length (B) | 550 mm |
| Shell Length (C) | 438 mm |
| Shell Diameter (D) | 89.1 mm |
| Oil Port (E) | 1 |
| Water Port (F) | 1/2 |
| Port Center Height (G) | 100 mm |
| Port Spacing (H) | 50 mm |
| Flange Diameter (I) | 159 mm |
| Foot Spacing (J) | 100 mm |
| Foot Width (K) | 154 mm |
| Foot Height (L) | 19 mm |
| Foot Thickness (M) | 32 mm |
| Bolt Hole (N) | 11x24 |
| Base Length (O) | 635 mm |
Technical Specifications
| Oil Flow Rate | 110 L/min |
|---|---|
| Water Flow Rate | 65 L/min |
| Max Working Pressure - Shell (bar) | 15 bar |
| Max Working Pressure - Cover (bar) | 10 bar |
| Max Test Pressure - Shell (bar) | 22 bar |
| Max Test Pressure - Cover (bar) | 15 bar |
| Fluid Channels - Shell | 1 Pass |
| Fluid Channels - Cover | 2 Pass |
